Text field

The normal text field is an object that displays a static text. Once the element has been created, the text can only be changed if the element is edited. Any different value can be introduced from outside of the element editor.

Create text

The text field can only be added to workspace from toolbar.

  1. Select the icon icon_text from toolbar to add a text field.

  2. Click the positional point from the text in the workspace.

Note

If the toolbar is not displayed, it can be displayed from Settings > Display > Parts.

Text properties

Element part proterties can be displayed from information panel when the part is selected.

Note

If the information panel is not displayed, it can be displayed from Settings > Display > Information.

../../../_images/qet_element_part_text.png

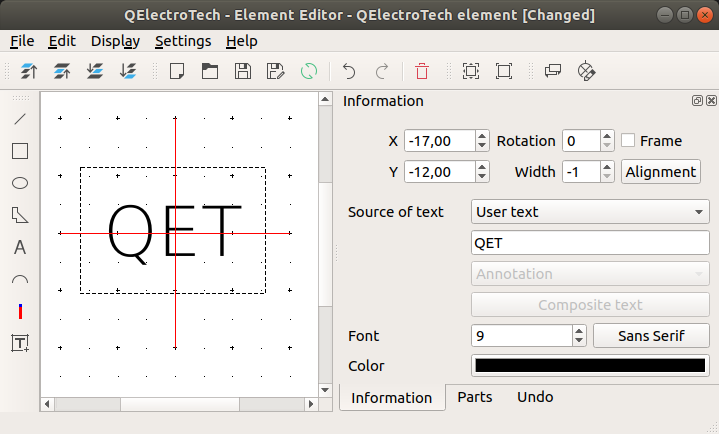

Figure: QElectroTech text field part from element

QElectroTech allows customizing different text properties:

Placement:
Position:

The text coordinates (x, y) can be defined.

Text angle:

The text display angle can be defined in the range of 0 to 360 degrees.

Content:
Size:

The text size can be defined.

Color:

The color text can be chosen between black and white.
