The QETApp class This class represents the QElectroTech application. More...

#include <qetapp.h>

Inherits QObject.

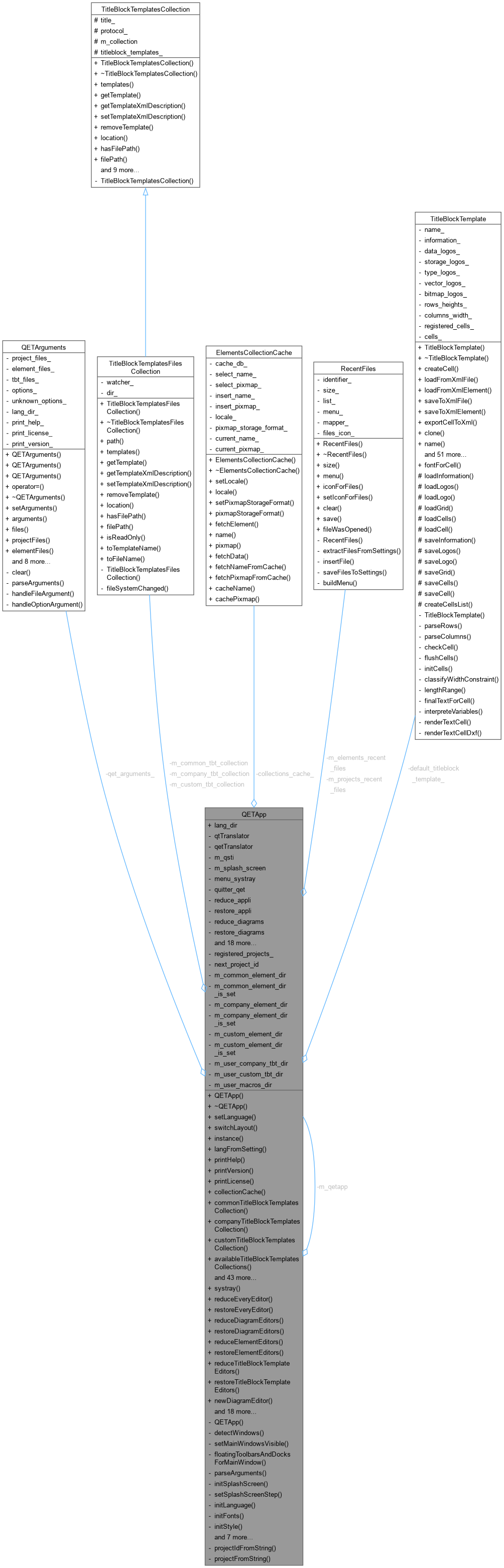

Collaboration diagram for QETApp:

Public Slots
void	systray (QSystemTrayIcon::ActivationReason)

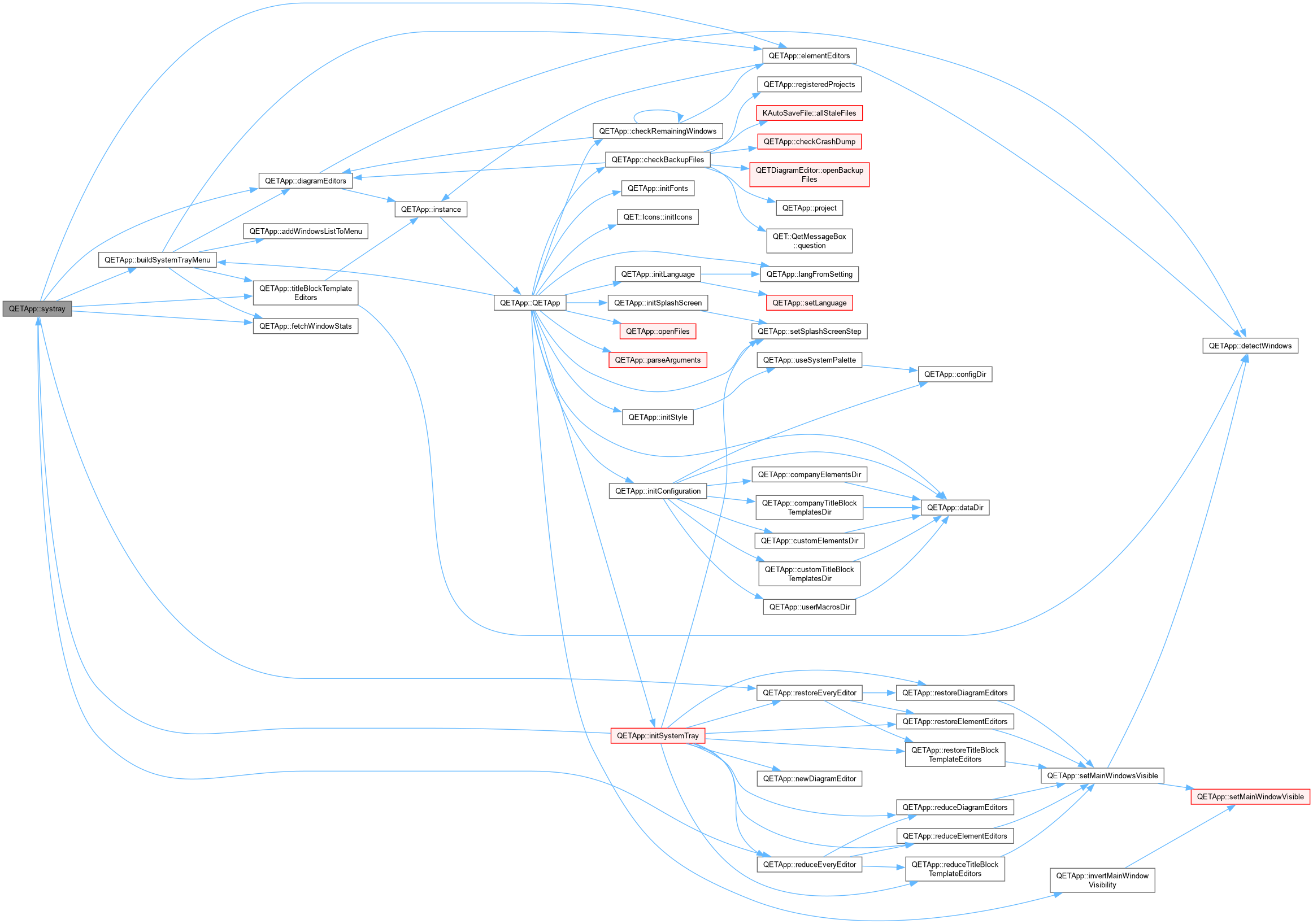

	QETApp::systray Manages QSystemTrayIcon related events.

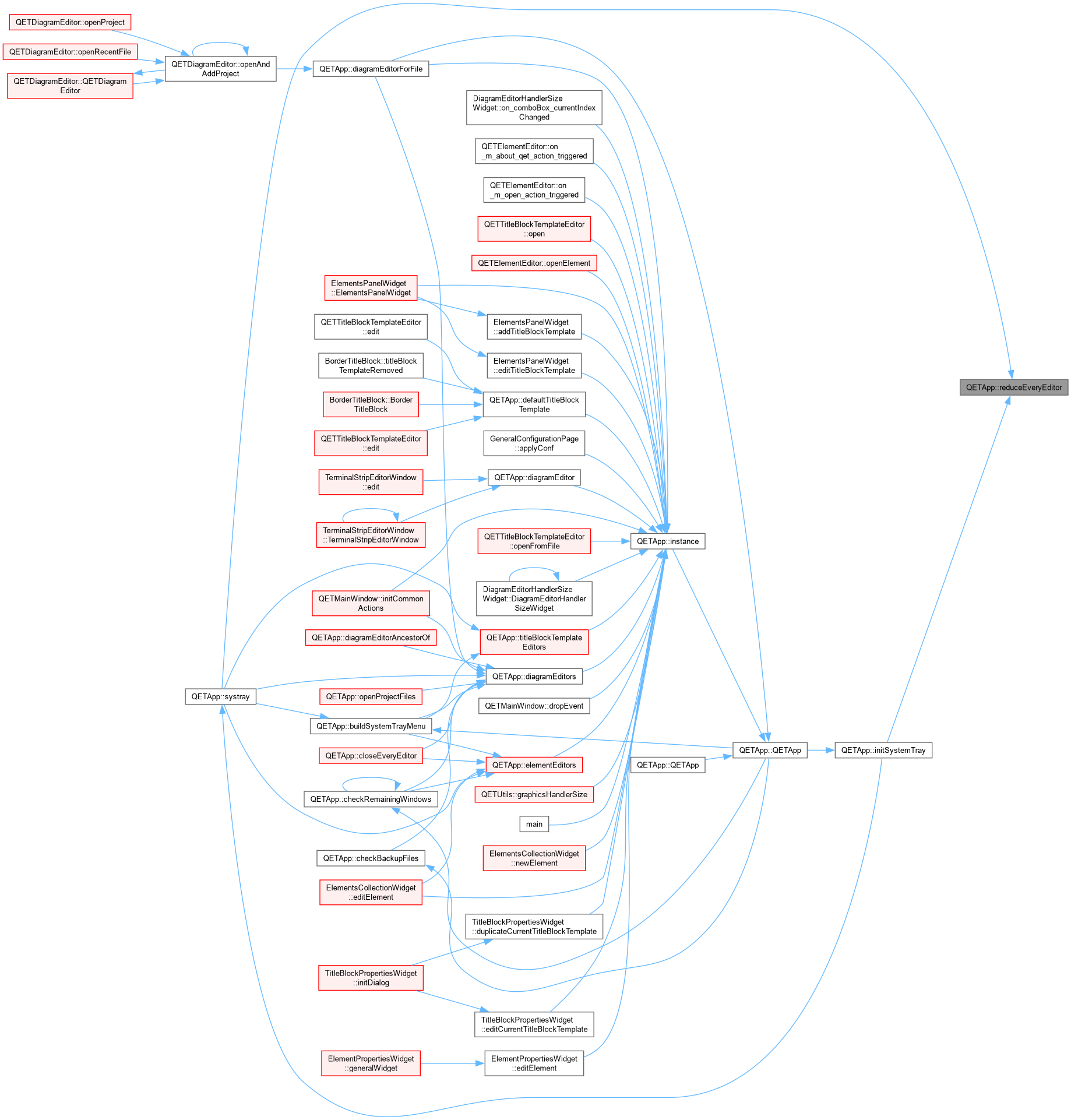

void	reduceEveryEditor ()
	QETApp::reduceEveryEditor Minimizes all application windows in the systray.

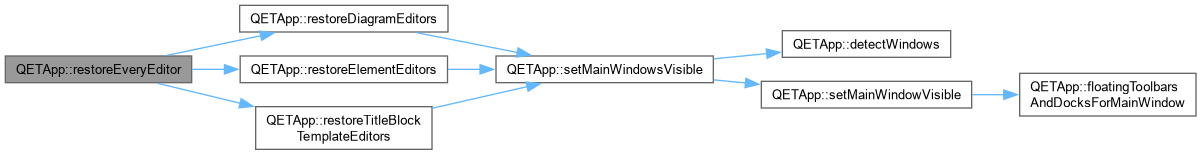

void	restoreEveryEditor ()

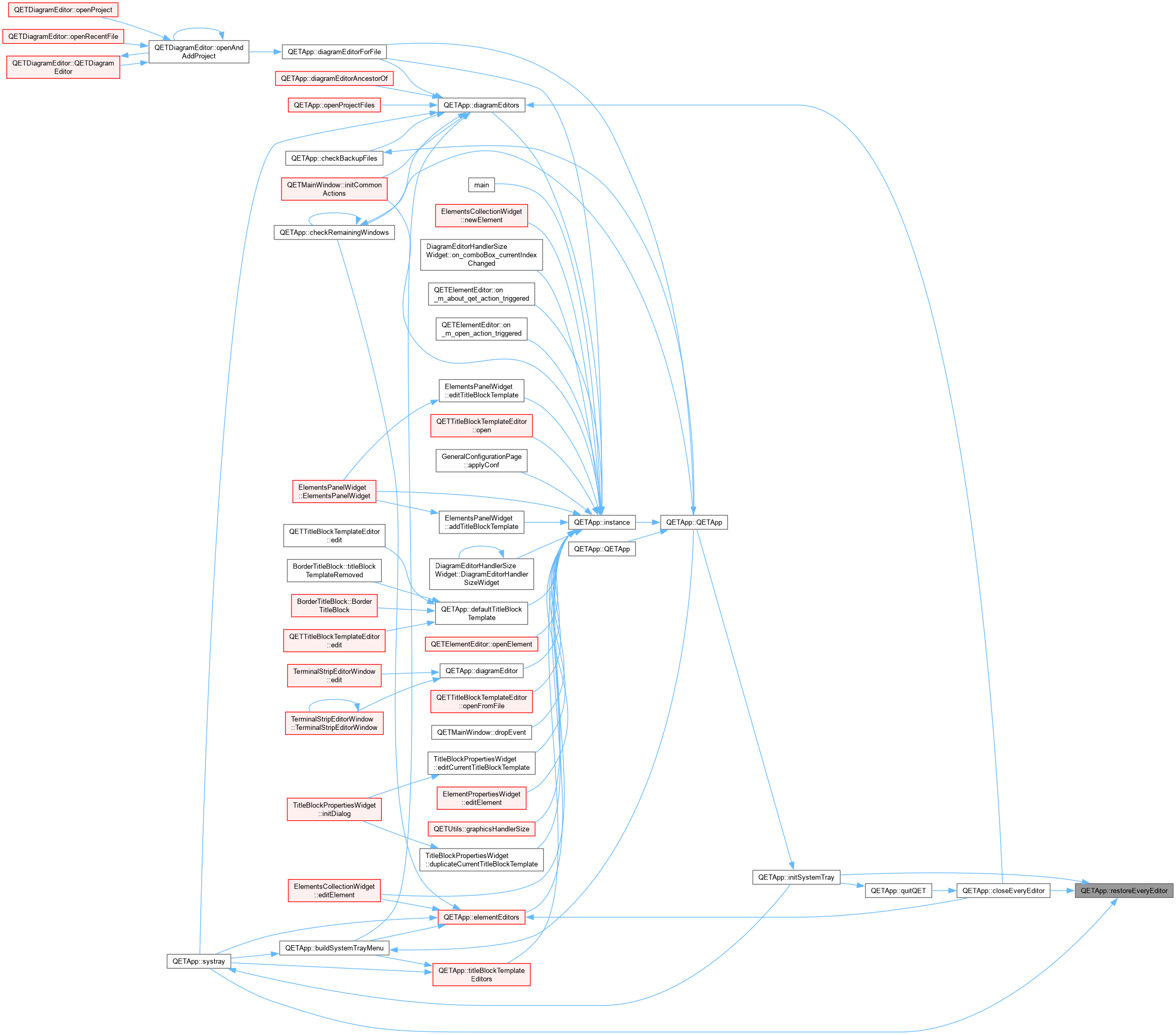

	QETApp::restoreEveryEditor Restores all application windows in the systray.
void	reduceDiagramEditors ()
	QETApp::reduceDiagramEditors Minimize all schema editors in the systray.
void	restoreDiagramEditors ()
	QETApp::restoreDiagramEditors Restore all schema editors in the systray.
void	reduceElementEditors ()
	QETApp::reduceElementEditors Minimize all element editors in systray.
void	restoreElementEditors ()
	QETApp::restoreElementEditors Restore all element editors in the systray.
void	reduceTitleBlockTemplateEditors ()

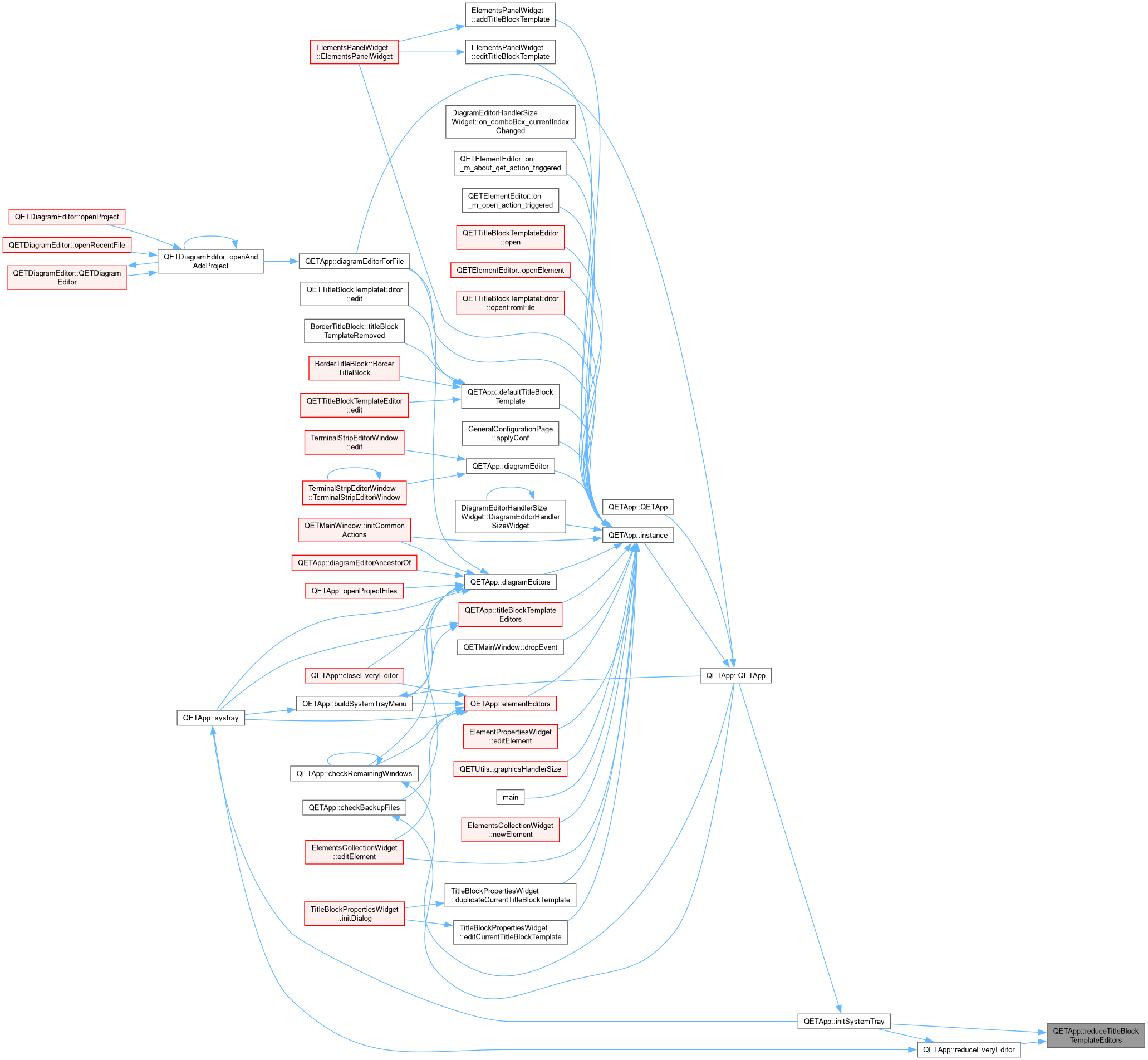

	QETApp::reduceTitleBlockTemplateEditors Reduce all known template editors.
void	restoreTitleBlockTemplateEditors ()
	QETApp::restoreTitleBlockTemplateEditors Restore all known template editors.

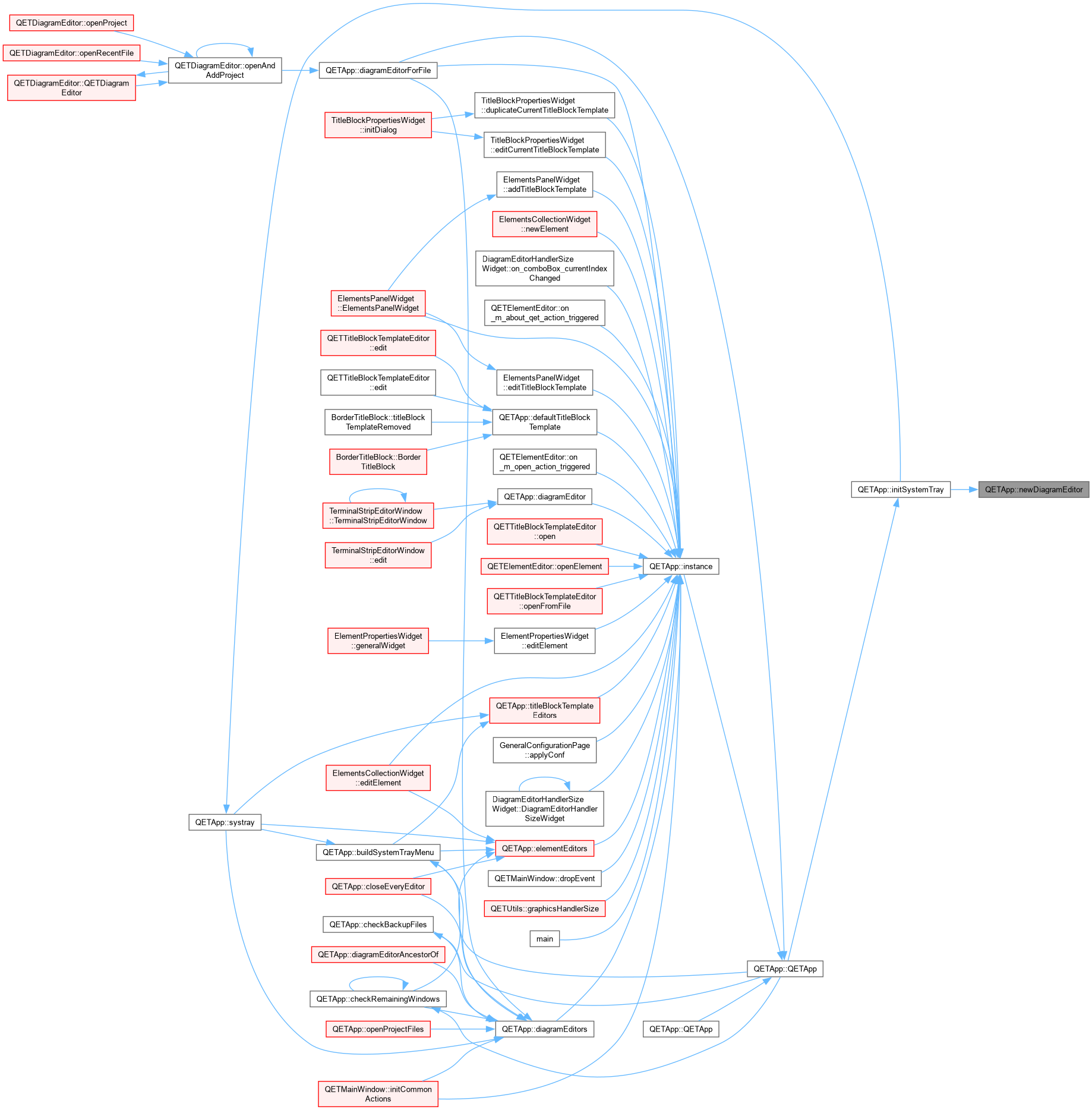

void	newDiagramEditor ()
	QETApp::newDiagramEditor launches a new schema editor.
void	newElementEditor ()
	QETApp::newElementEditor launches a new element editor.
bool	closeEveryEditor ()

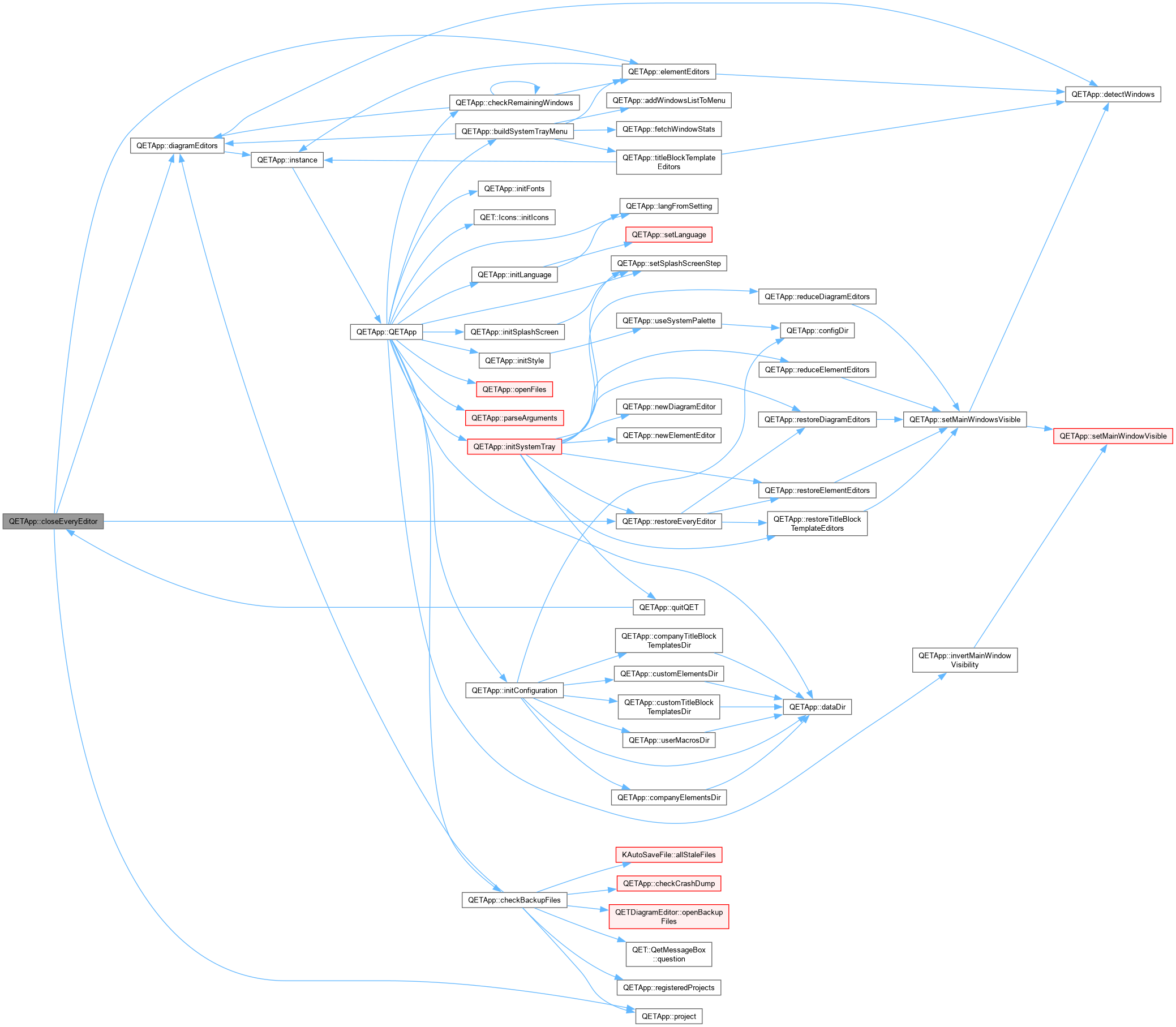

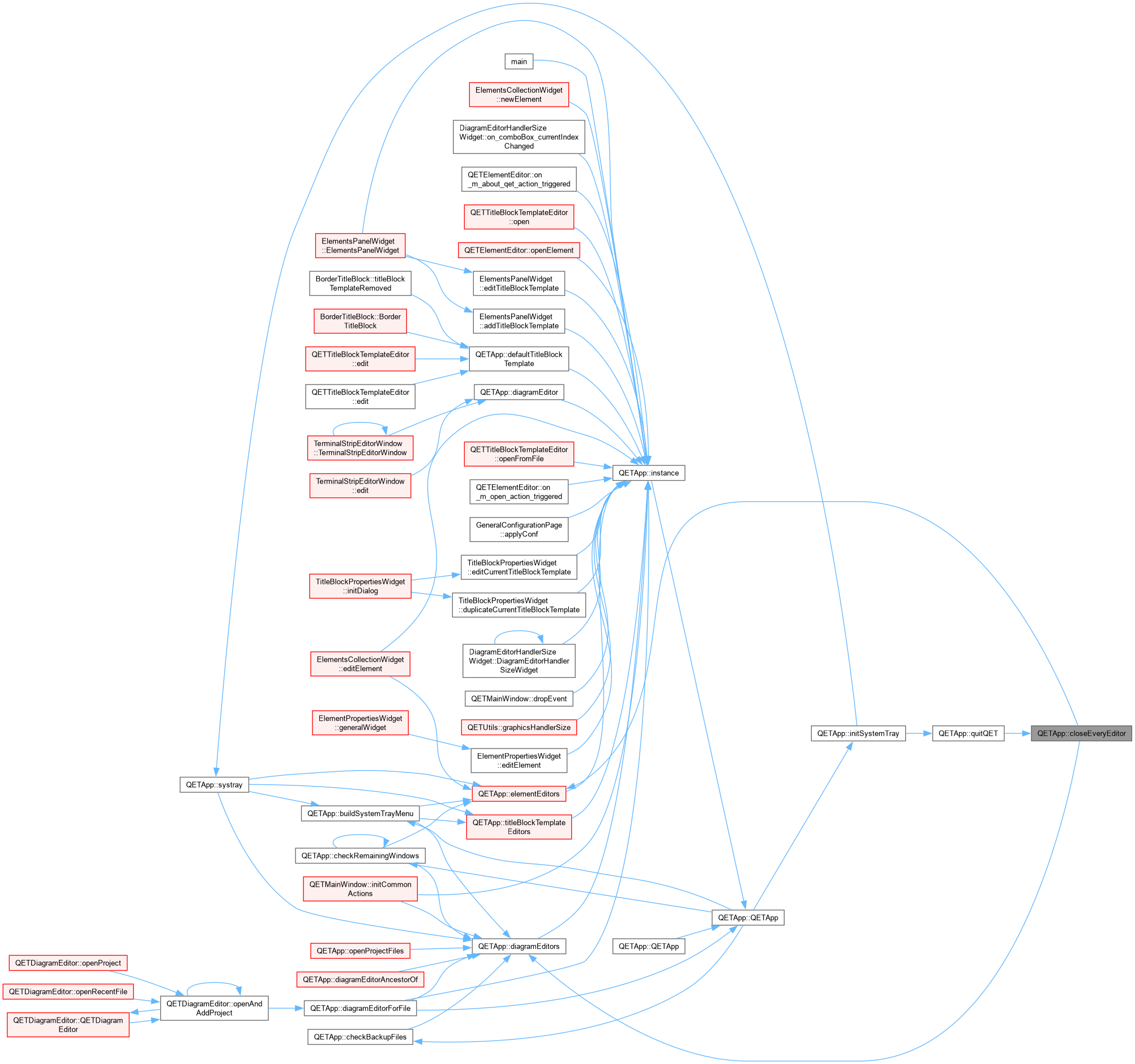

	QETApp::closeEveryEditor Close all editors.
void	setMainWindowVisible (QMainWindow *, bool)

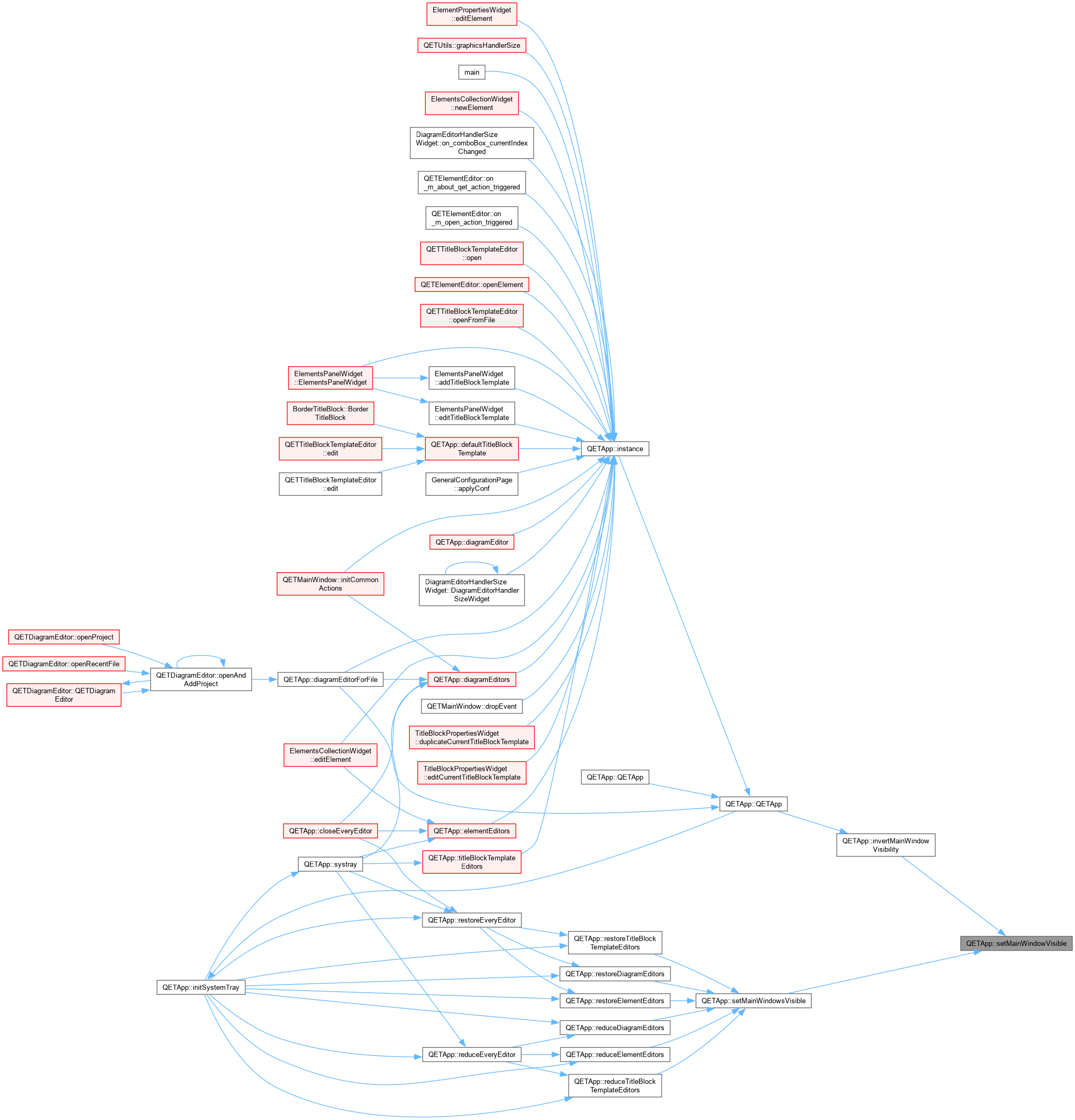

	QETApp::setMainWindowVisible Show or hide a window (schema editors / element editors).

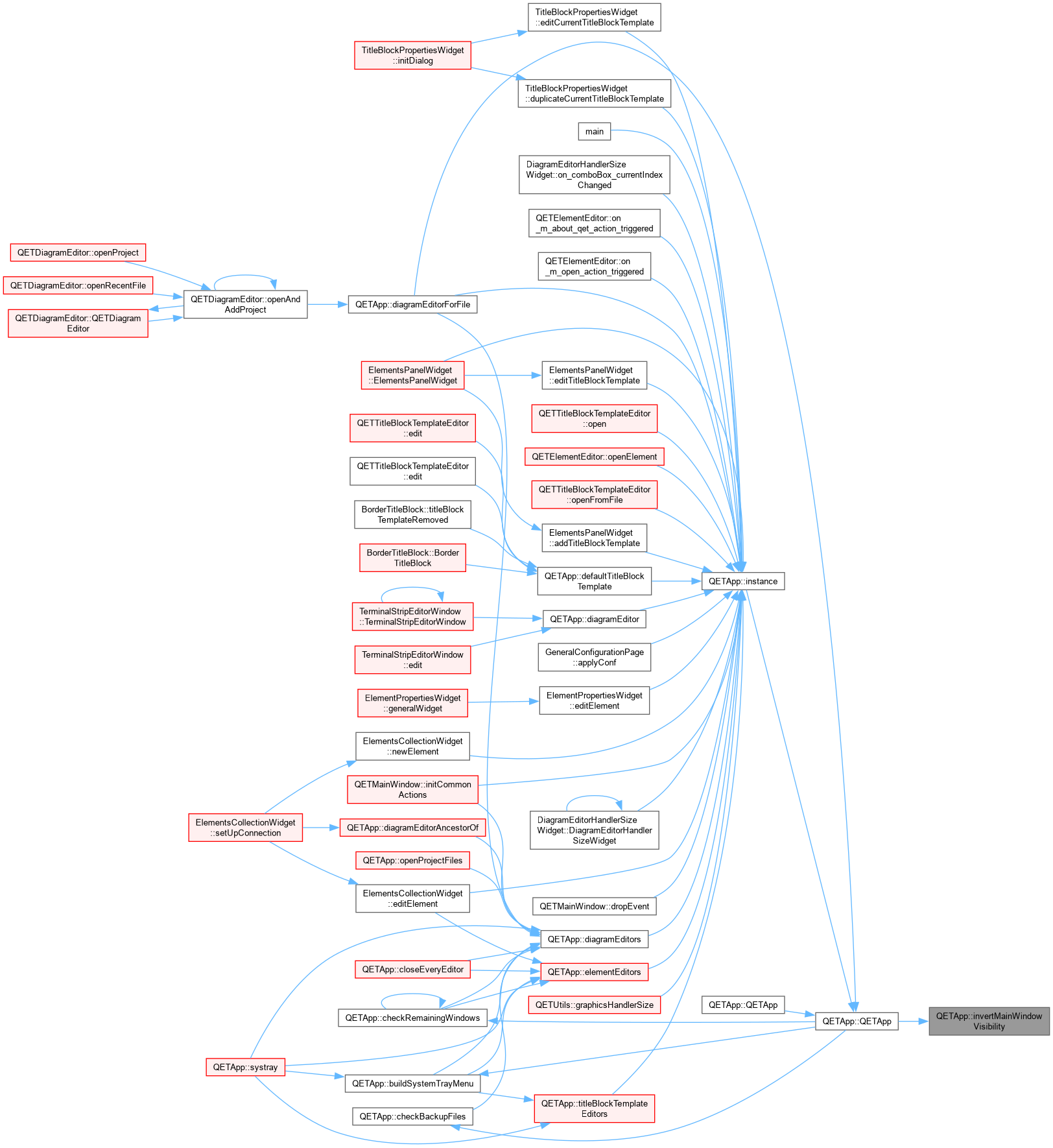

void	invertMainWindowVisibility (QWidget *)
	QETApp::invertMainWindowVisibility Display a window (schema editors / element editors) if this is hidden or hides it if it is displayed.

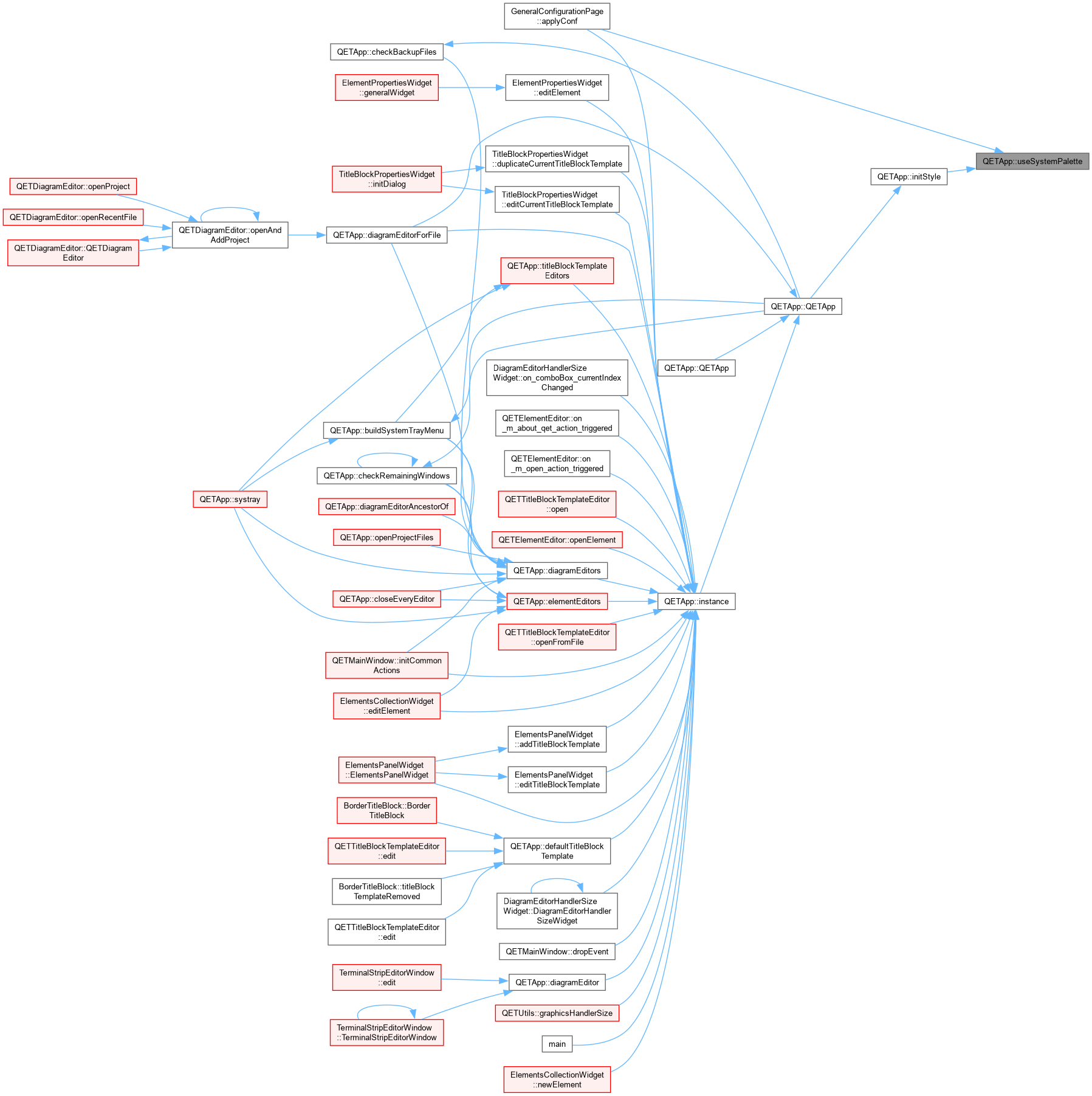

void	useSystemPalette (bool)
	QETApp::useSystemPalette Change the application palette.
void	quitQET ()
	QETApp::quitQET Request the closing of all windows; if the user accepts them, the application quits.

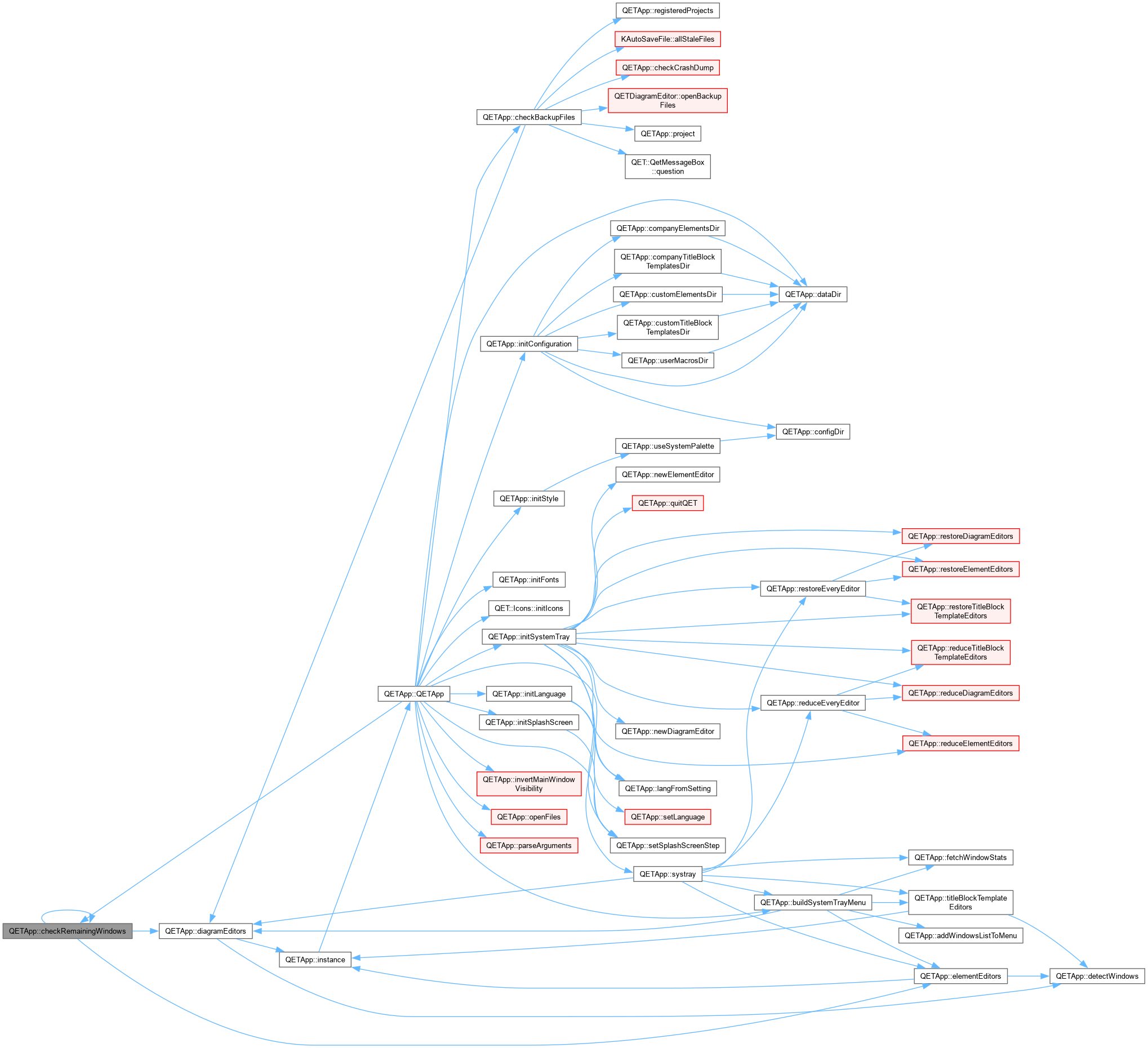

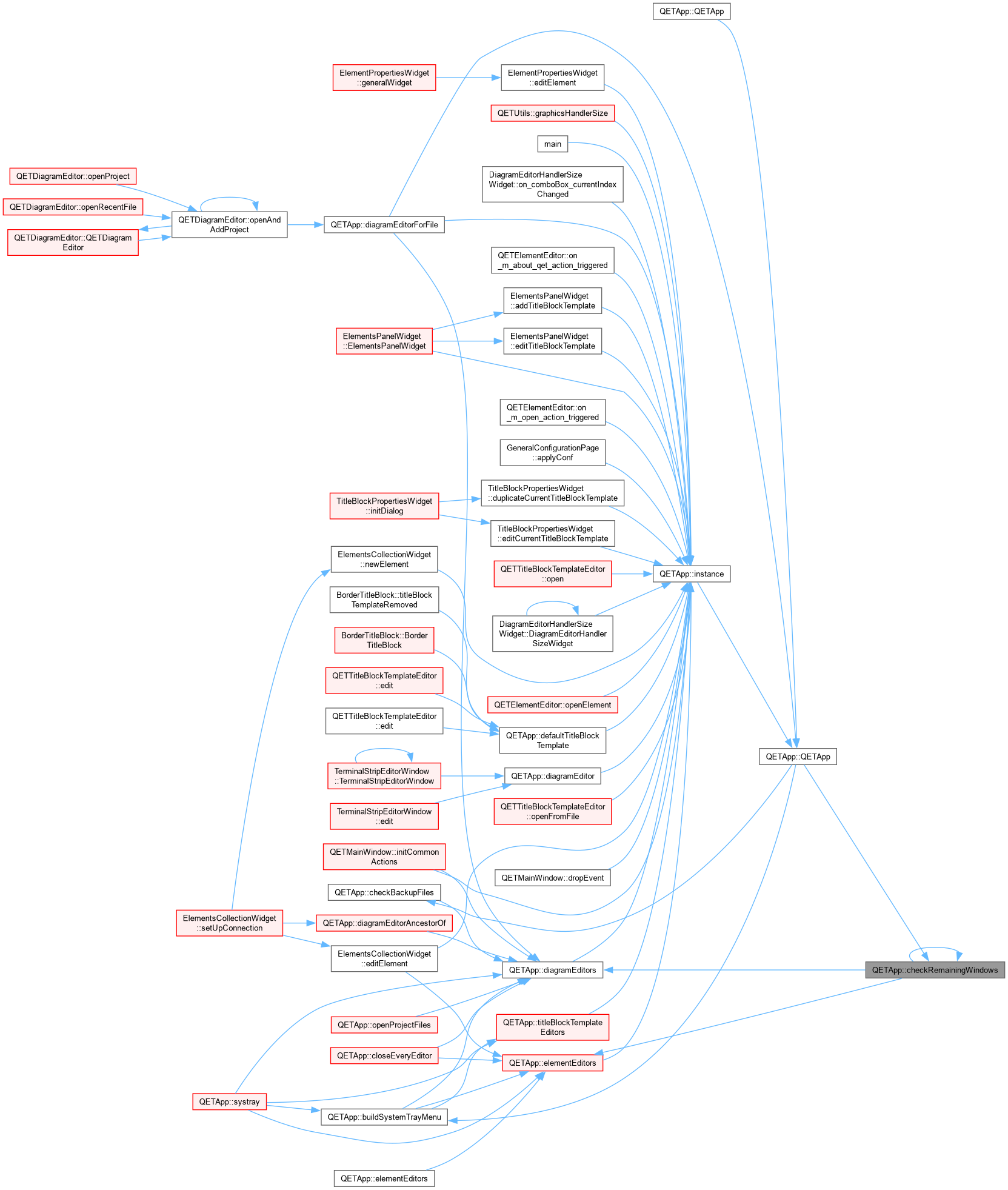

void	checkRemainingWindows ()
	QETApp::checkRemainingWindows Check if there are any windows (hidden or not) and exit if there are no more.
void	openFiles (const QETArguments &)
	QETApp::openFiles Open files passed as arguments.
void	openProjectFiles (const QStringList &)

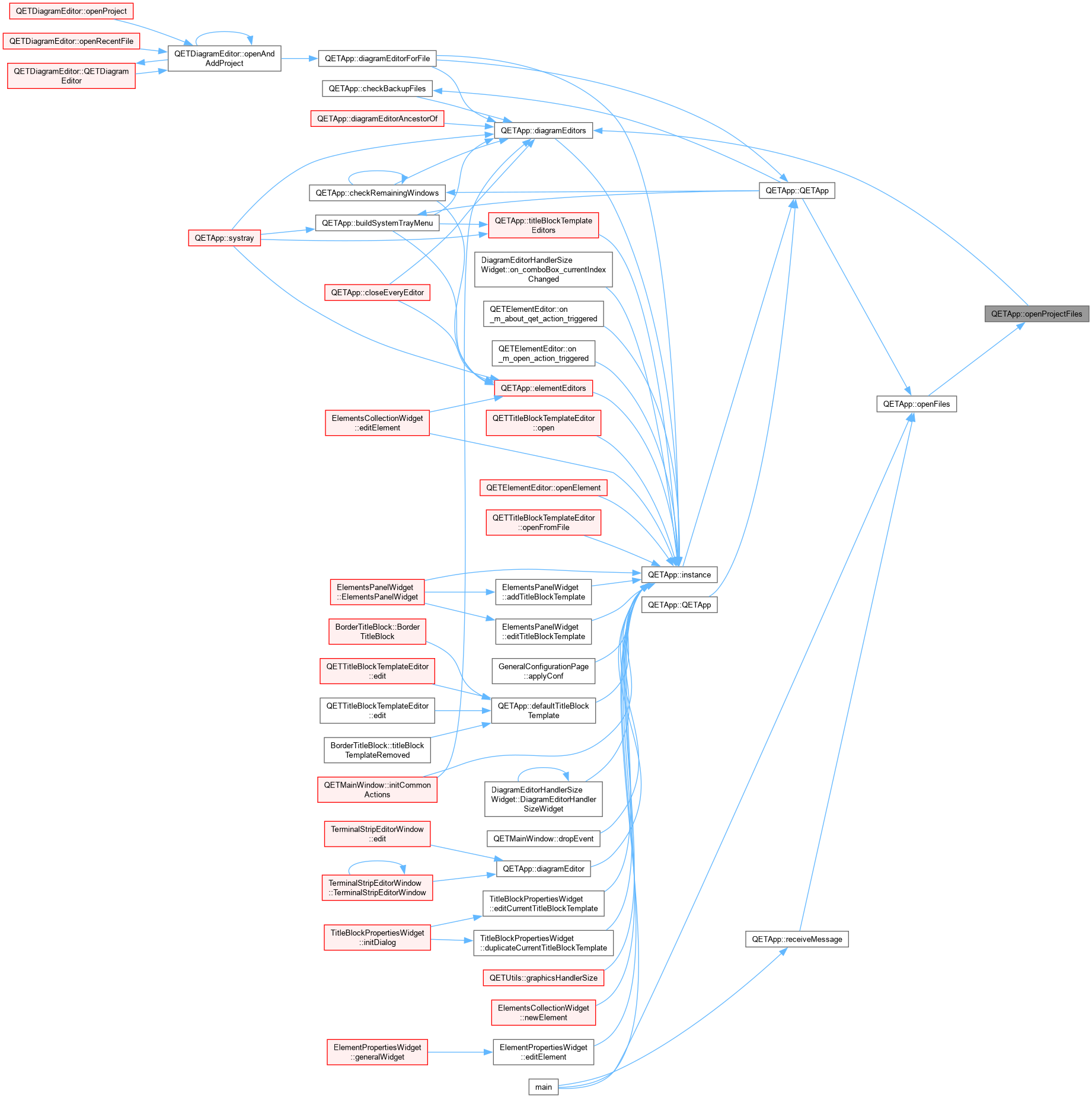

	QETApp::openProjectFiles Opens a list of files. Files are opened in the first visible schematic editor. Otherwise, the first existing schema editor becomes visible and is uses. If there is no schematic editor open, a new one is created and uses.

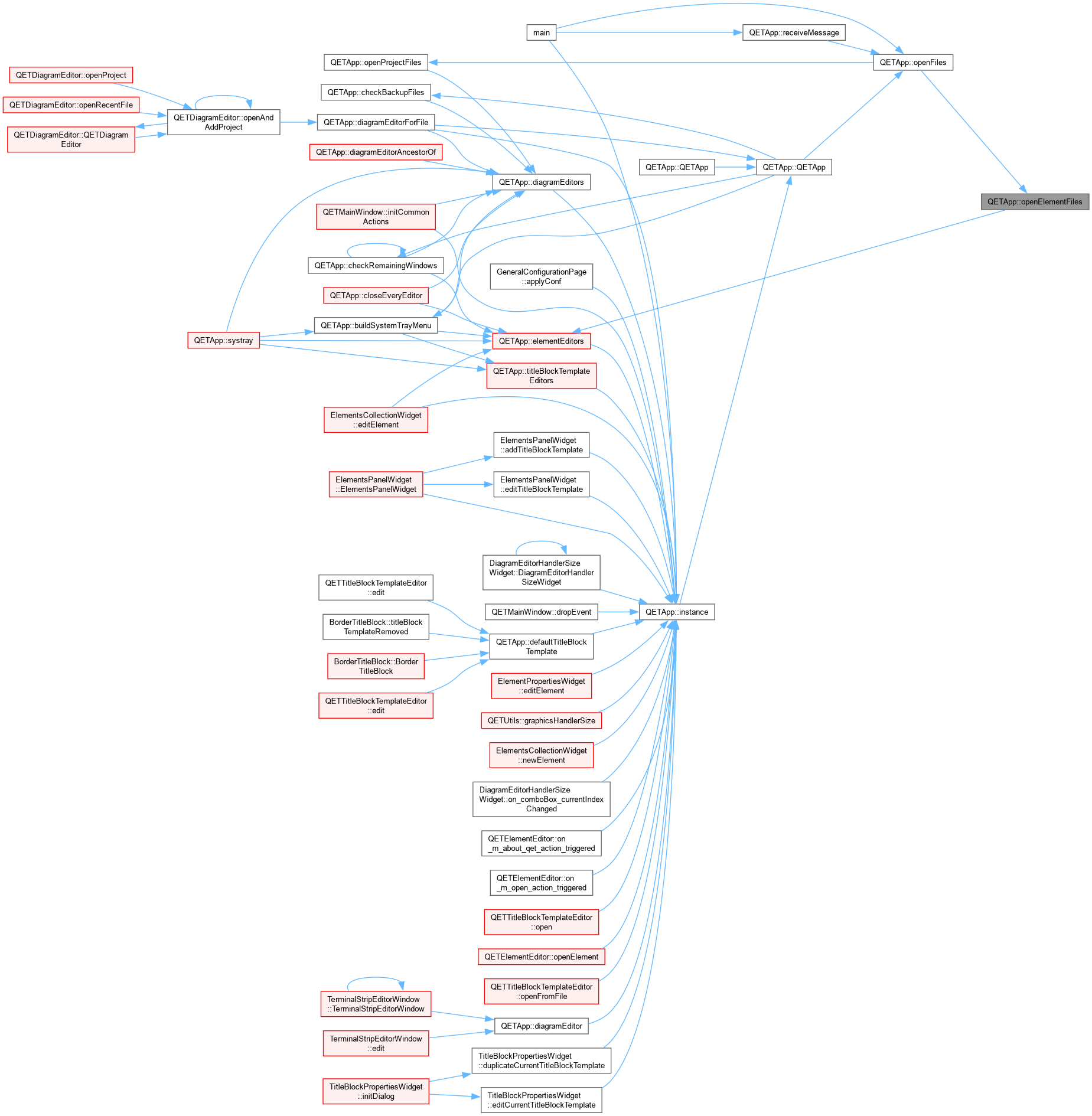

void	openElementFiles (const QStringList &)

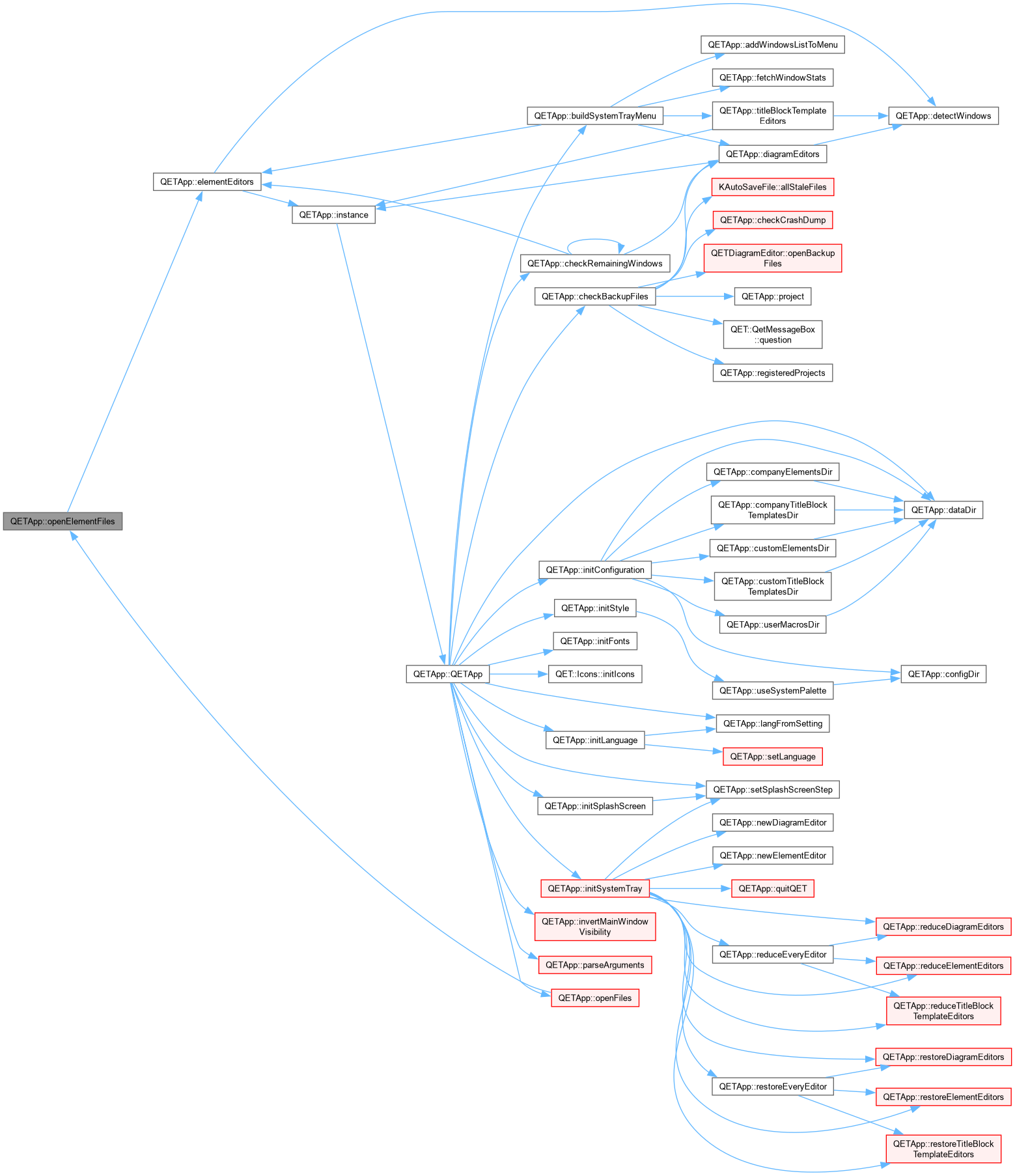

	QETApp::openElementFiles Open the elements files passed in parameter. If an element is already open, the window which edits it is activated.

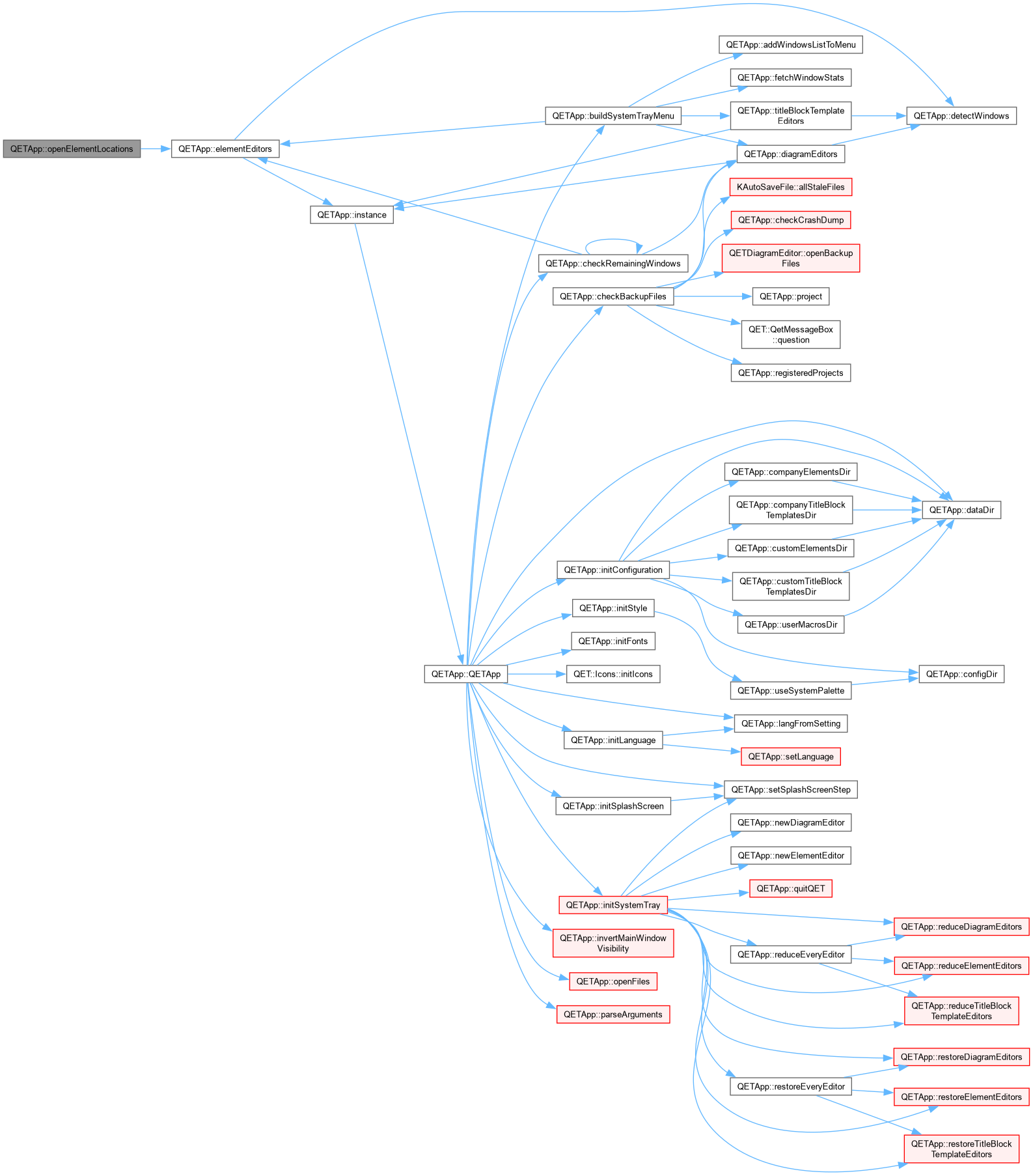

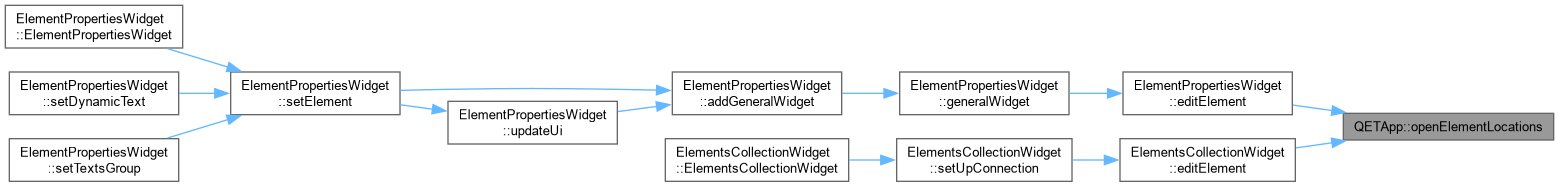

void	openElementLocations (const QList< ElementsLocation > &)
	QETApp::openElementLocations Open the elements whose location is passed in parameter. If an element is already open, the window which is edited is active.

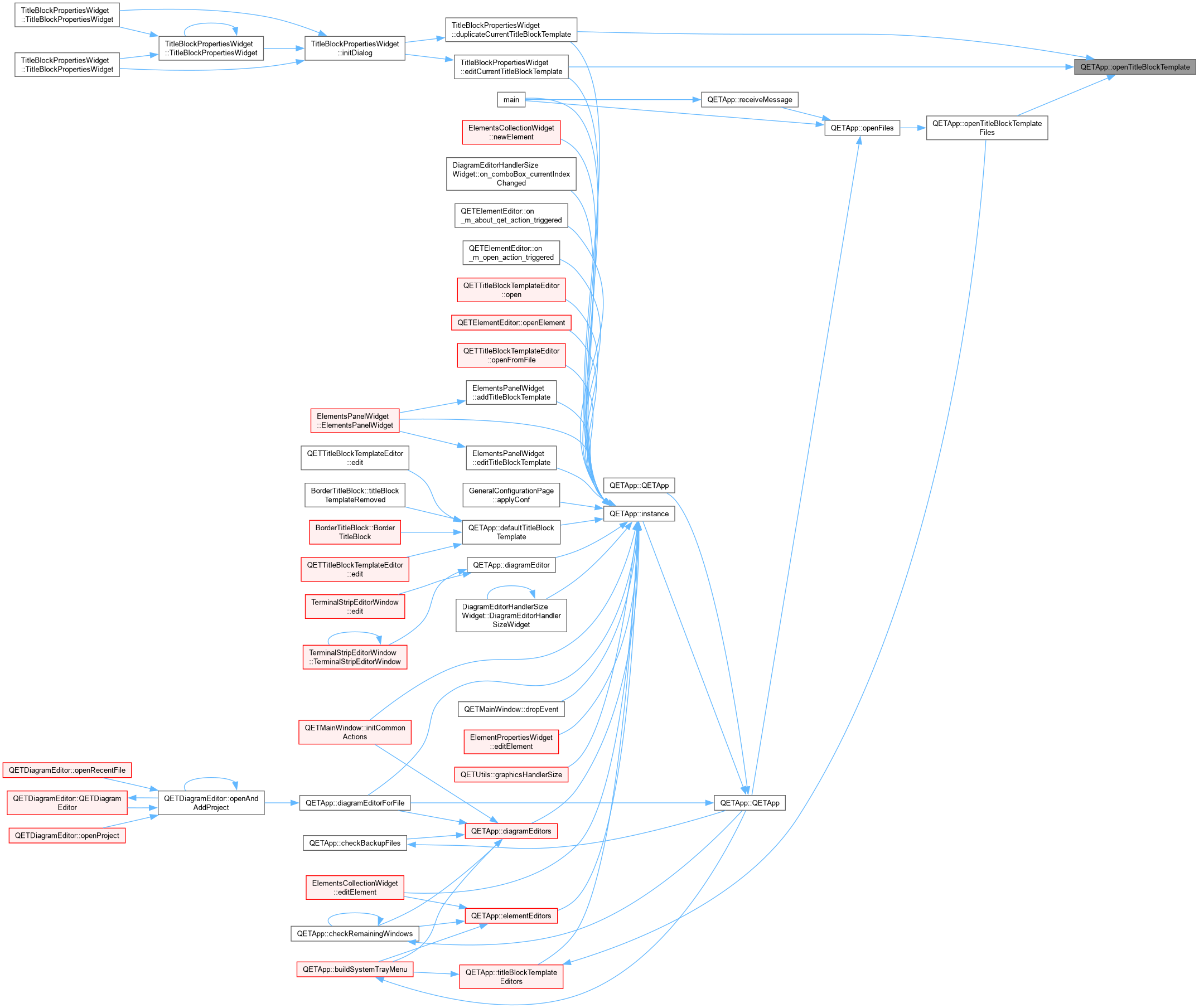

void	openTitleBlockTemplate (const TitleBlockTemplateLocation &, bool=false)
	QETApp::openTitleBlockTemplate Launch a new title block template editor to edit the given template.
void	openTitleBlockTemplate (const QString &)
	QETApp::openTitleBlockTemplate Launch a new title block template editor to edit the given template.
void	openTitleBlockTemplateFiles (const QStringList &)
	QETApp::openTitleBlockTemplateFiles Open provided title block template files. If a title block template is already opened, the adequate window is activated.

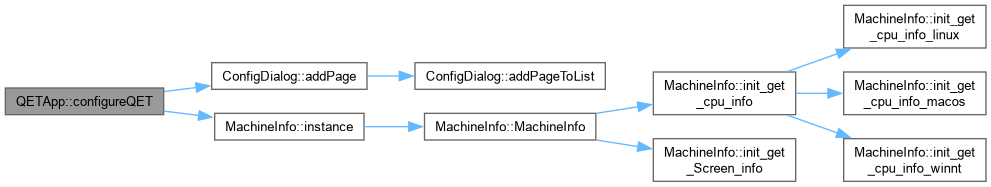

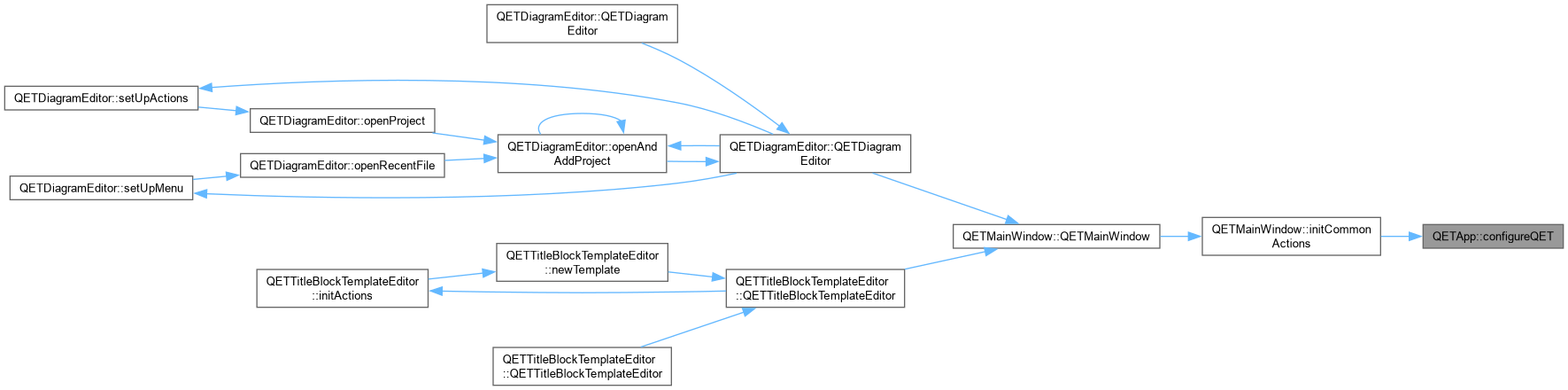

void	configureQET ()
	QETApp::configureQET Allows the user to configure QET by launching an appropriate dialog.

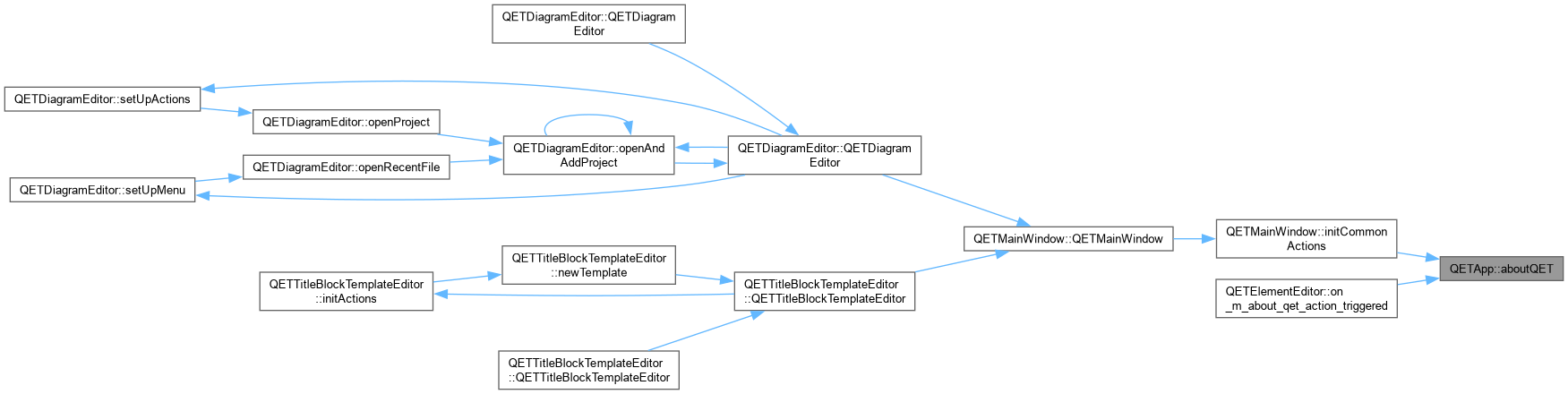

void	aboutQET ()
	QETApp::aboutQET Open the dialog about qet.

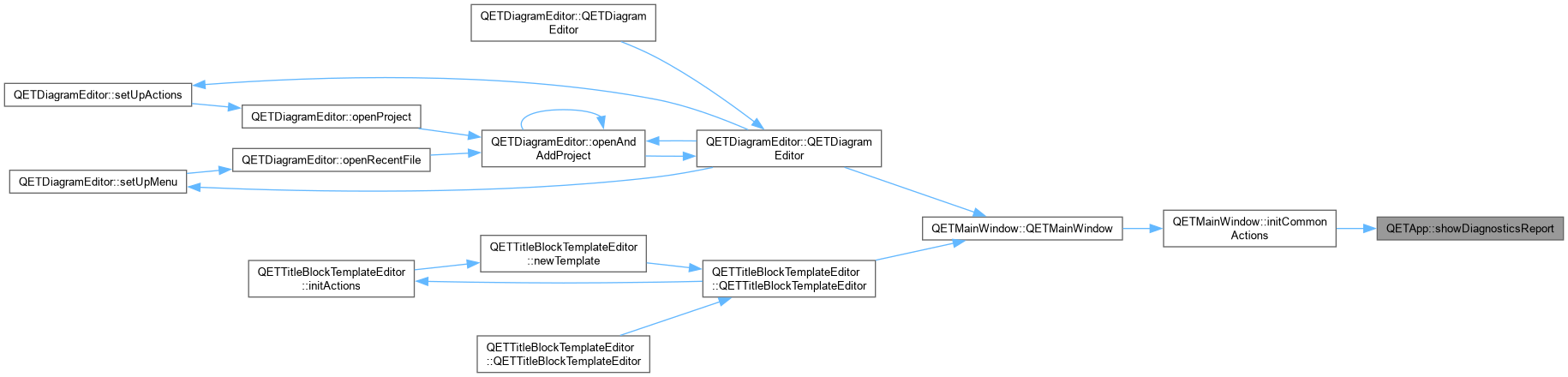

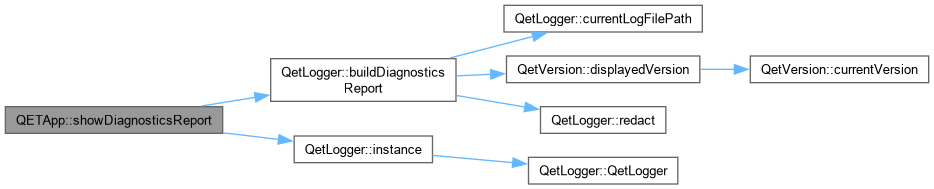

void	showDiagnosticsReport ()
	QETApp::showDiagnosticsReport Discussion #644, step 5: the manual "Help > Diagnostics > Save report" action. Unlike checkCrashDump(), this is about the current, still-running session, not a previous one.
void	receiveMessage (int instanceId, QByteArray message)
	QETApp::receiveMessage openFiles from message.

Public Member Functions

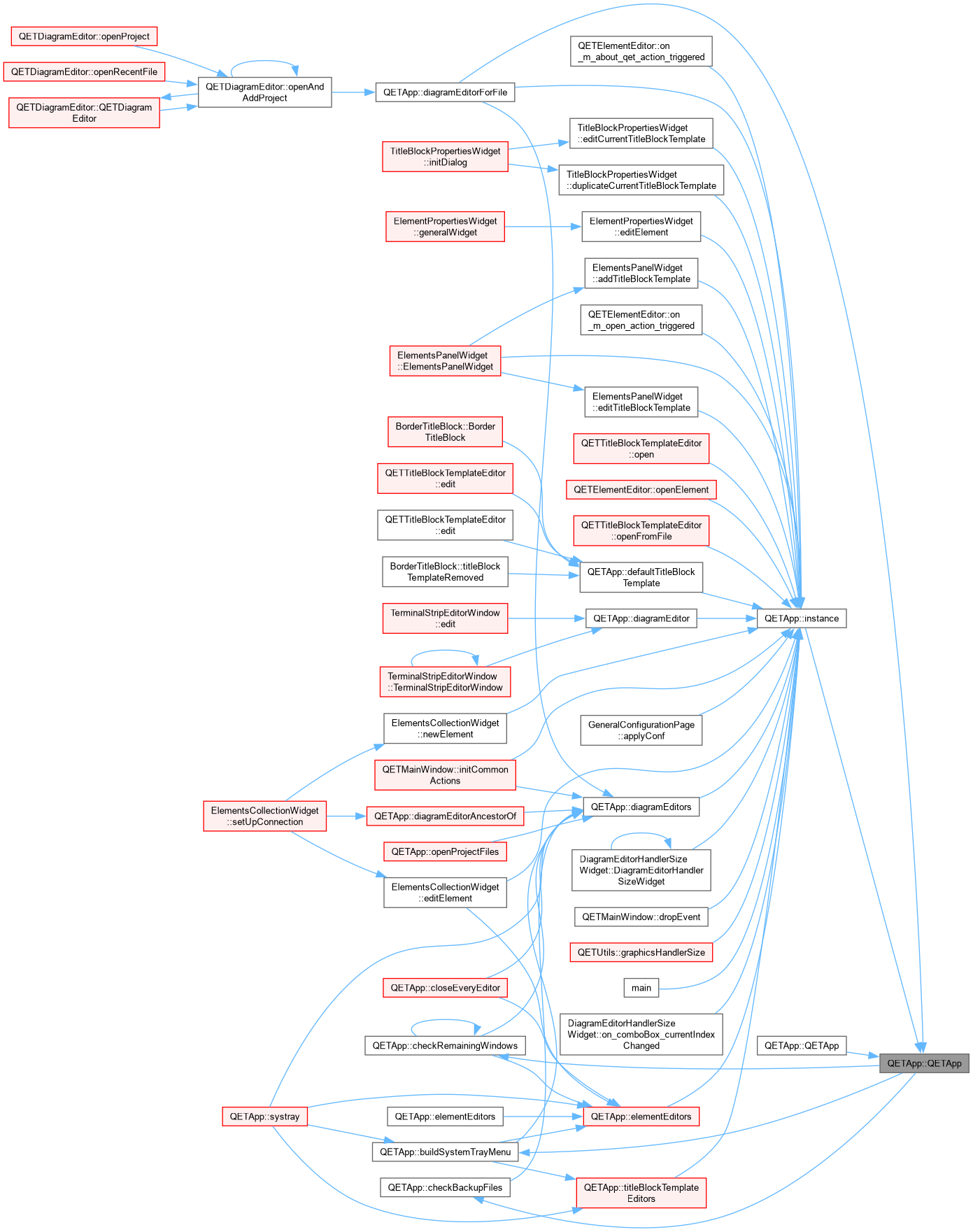

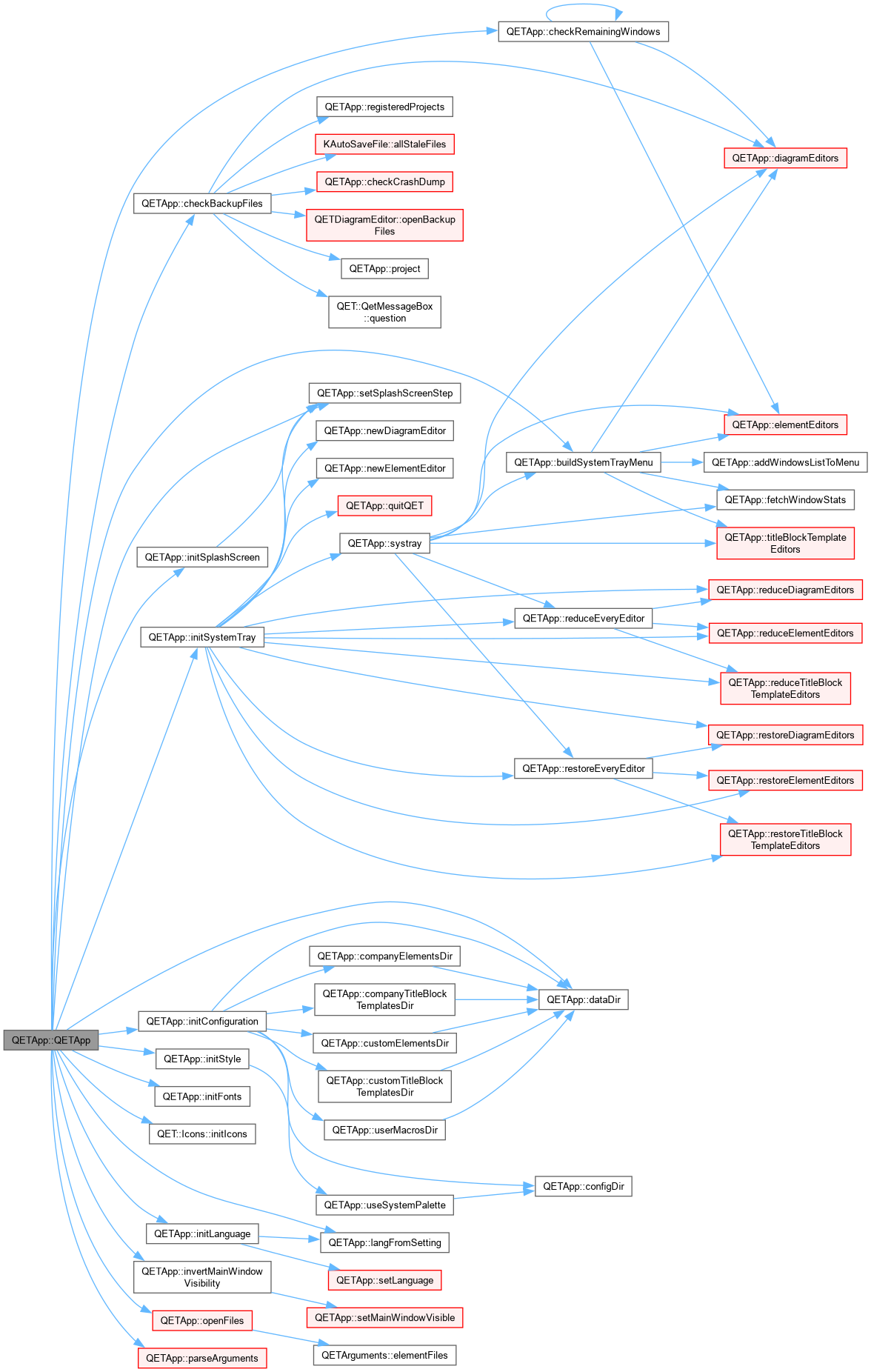

	QETApp ()
	QETApp::QETApp.

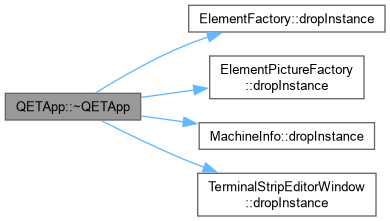

	~QETApp () override
	QETApp::~QETApp.
void	setLanguage (const QString &)

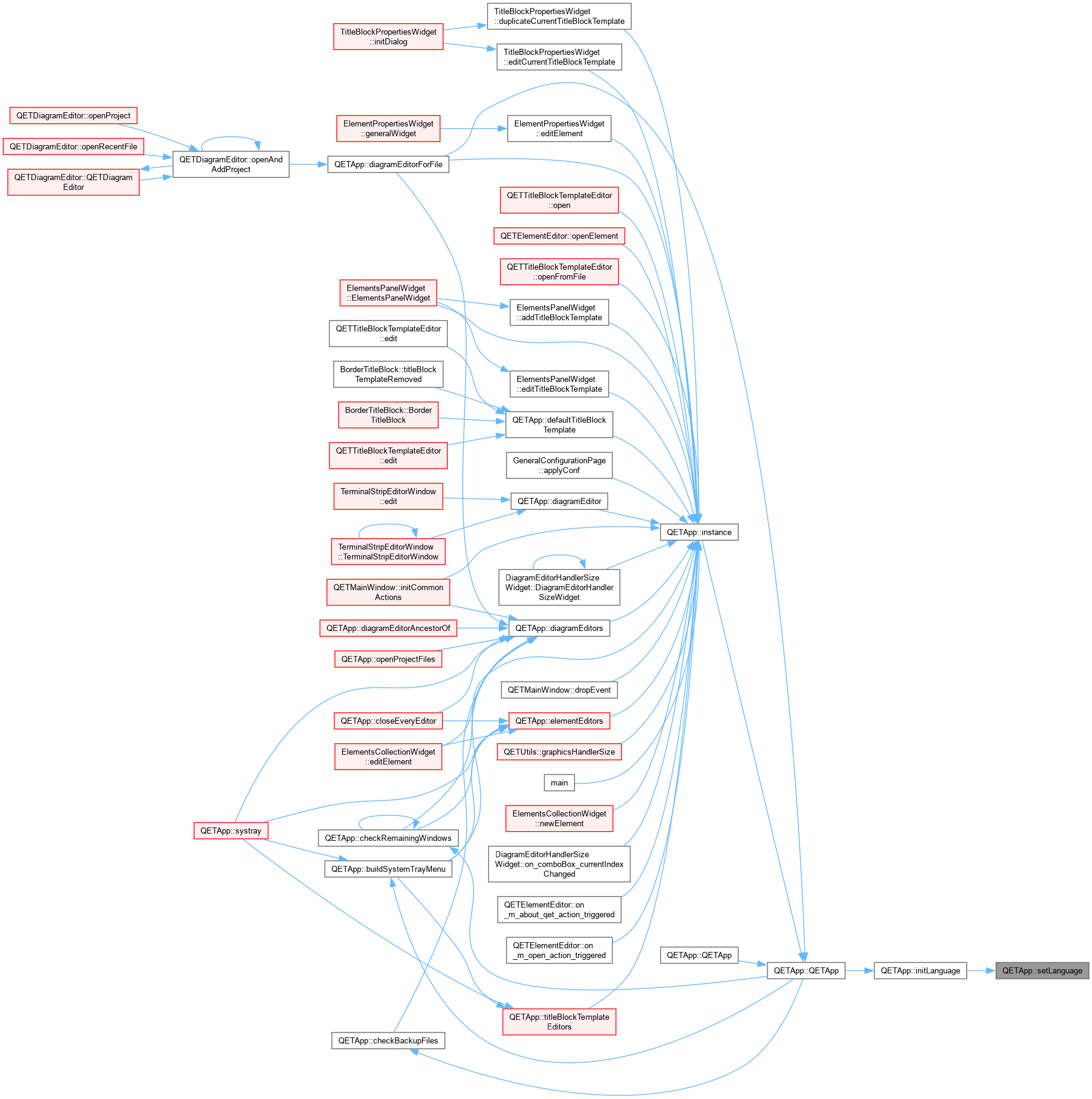

	QETApp::setLanguage Change the language used by the application.

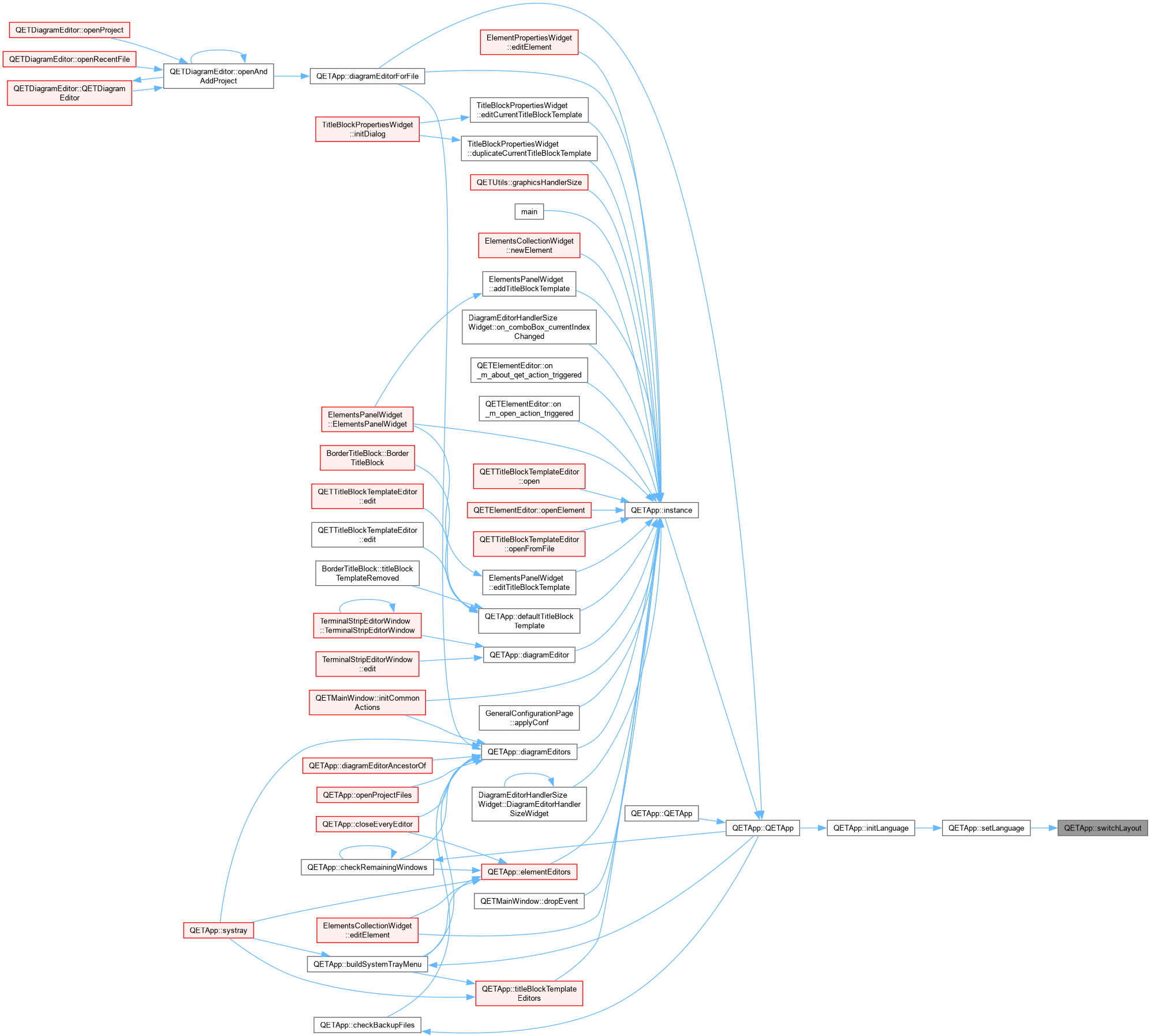

void	switchLayout (Qt::LayoutDirection)

Static Public Member Functions

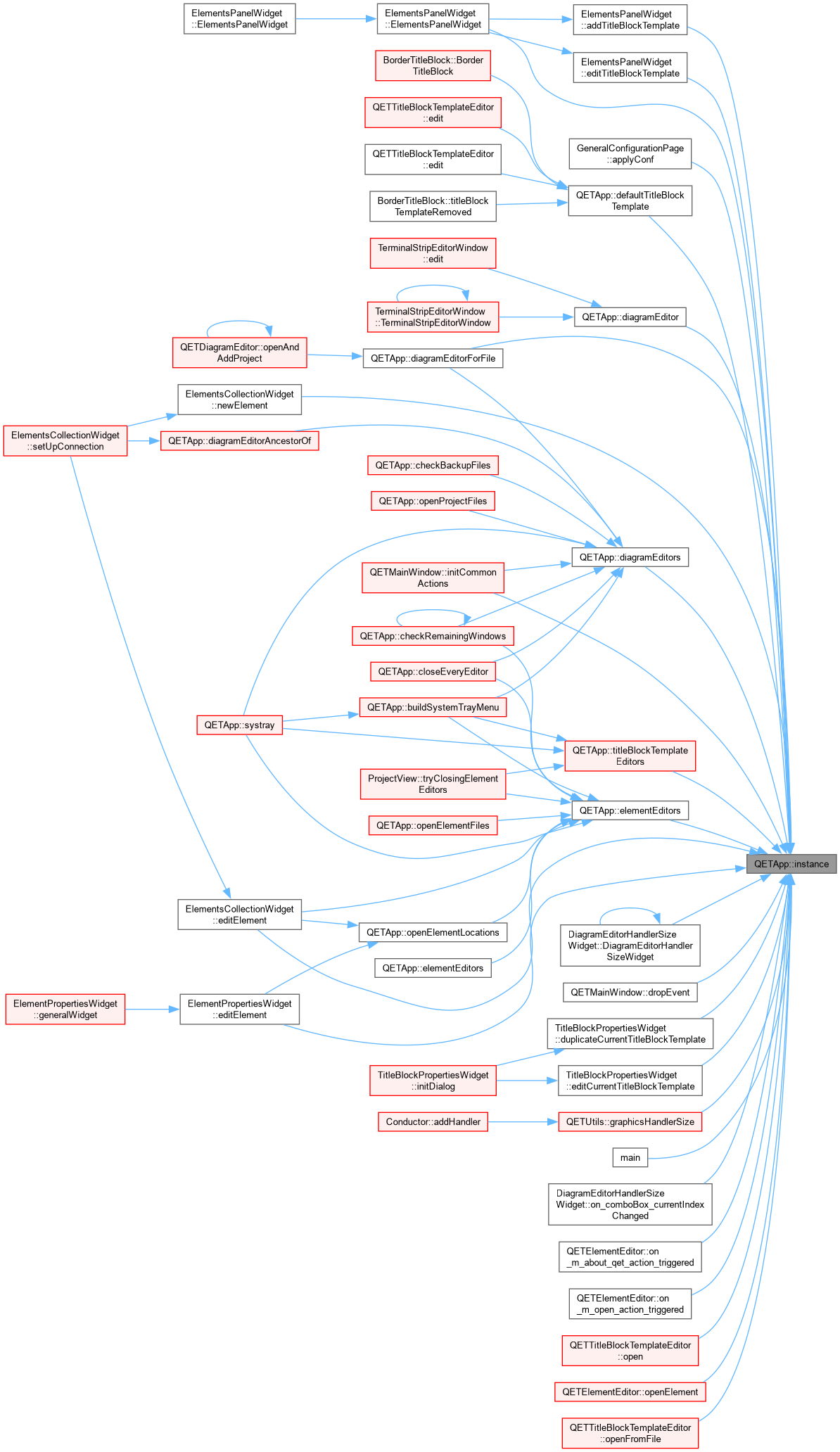

static QETApp *	instance ()

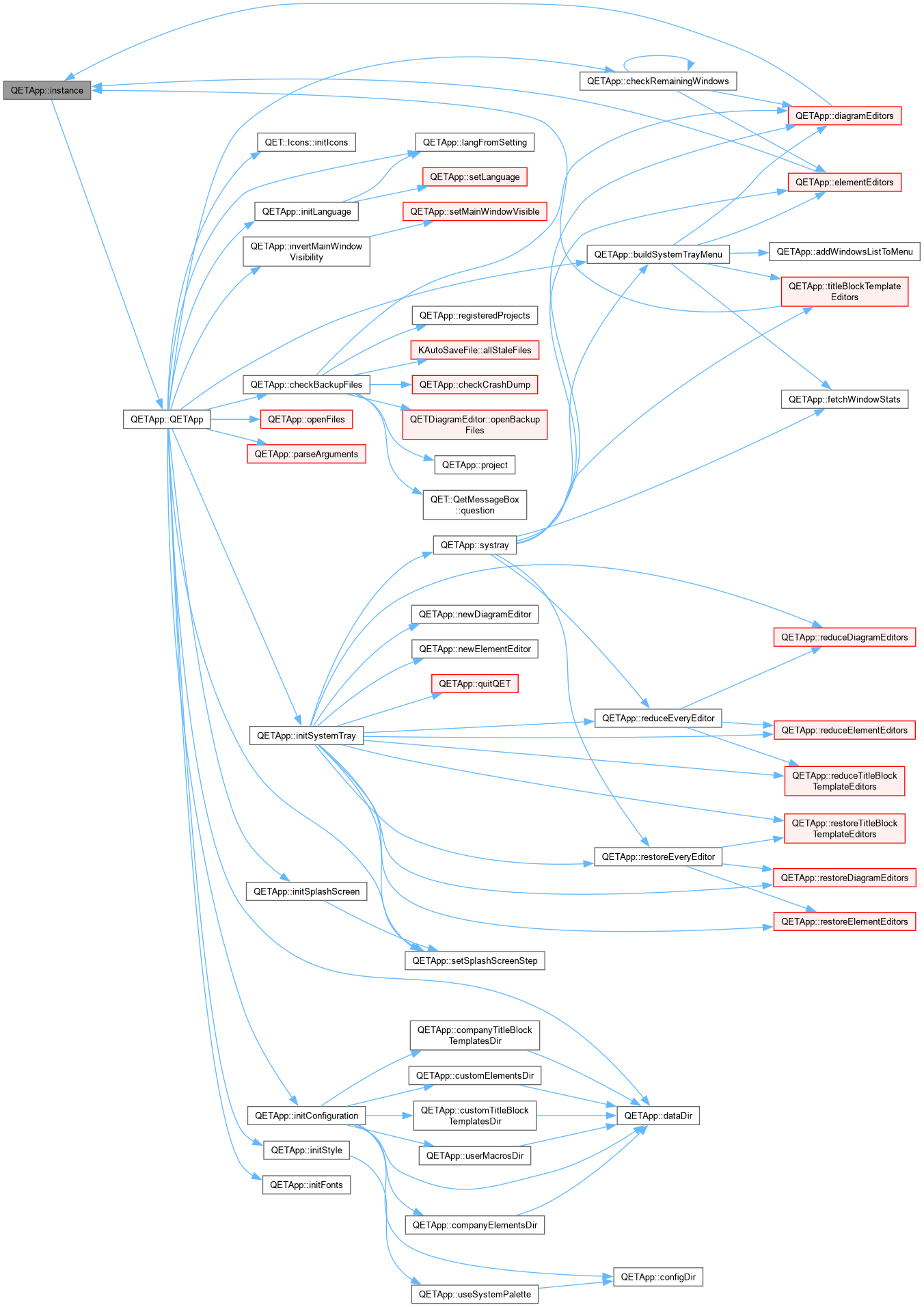

	QETApp::instance.
static QString	langFromSetting ()

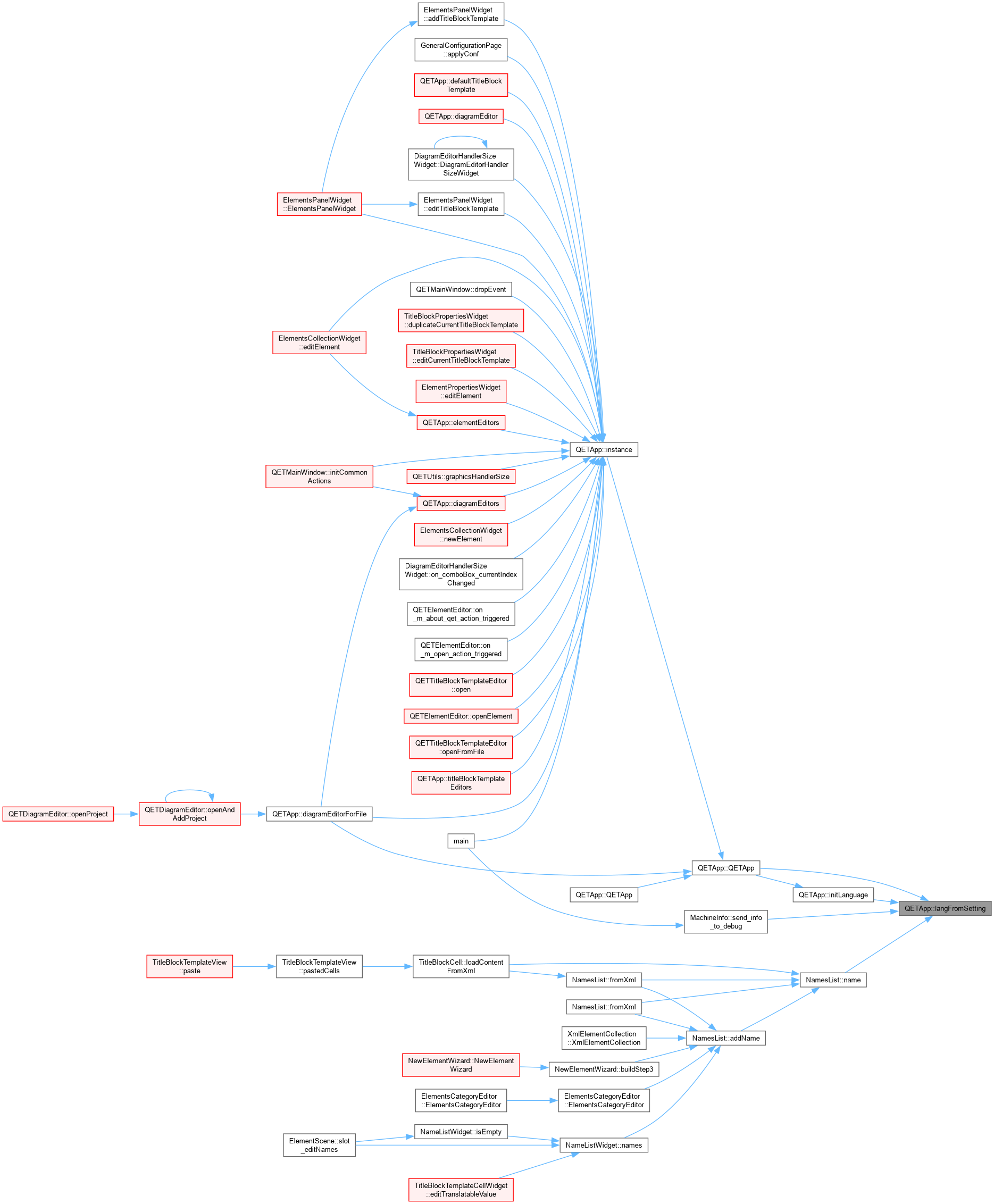

	QETApp::langFromSetting.
static void	printHelp ()
	QETApp::printHelp Display help and usage on standard output.
static void	printVersion ()
	QETApp::printVersion Print version to standard output.

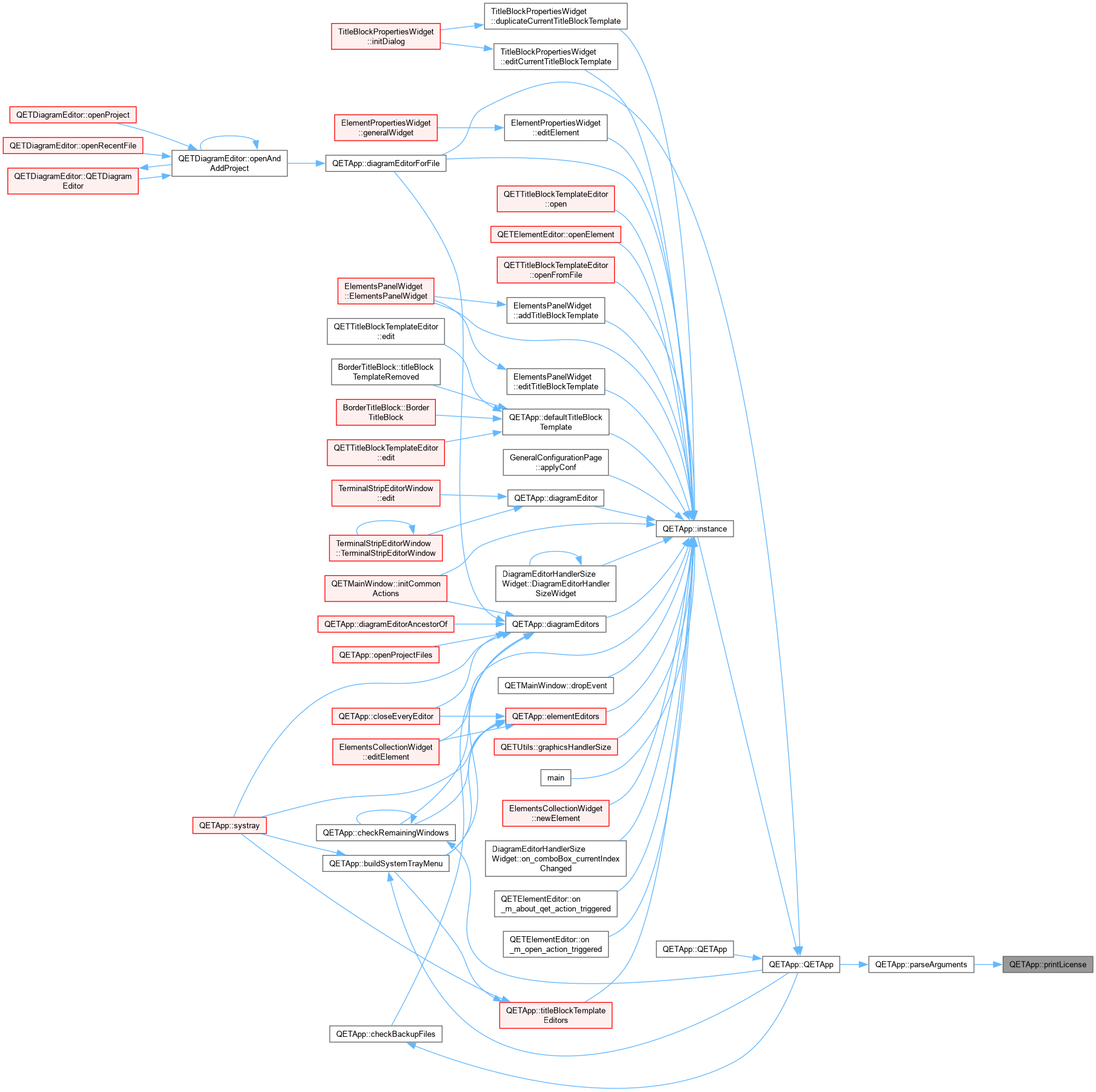

static void	printLicense ()
	QETApp::printLicense Display license on standard output.

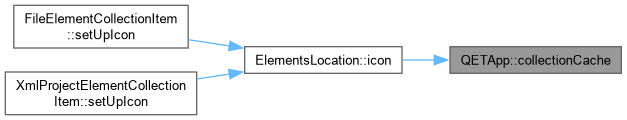

static ElementsCollectionCache *	collectionCache ()
	QETApp::collectionCache.

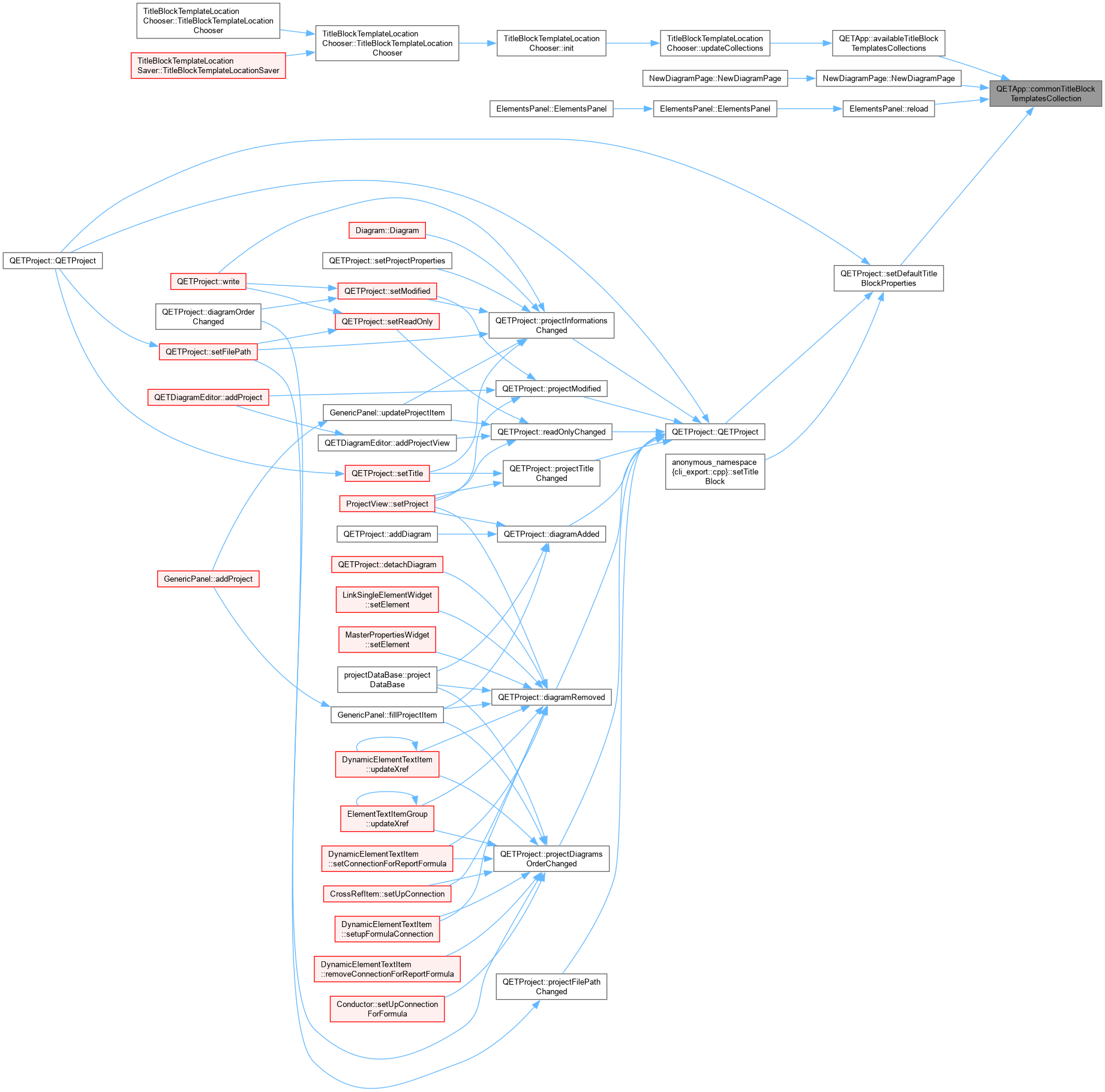

static TitleBlockTemplatesFilesCollection *	commonTitleBlockTemplatesCollection ()

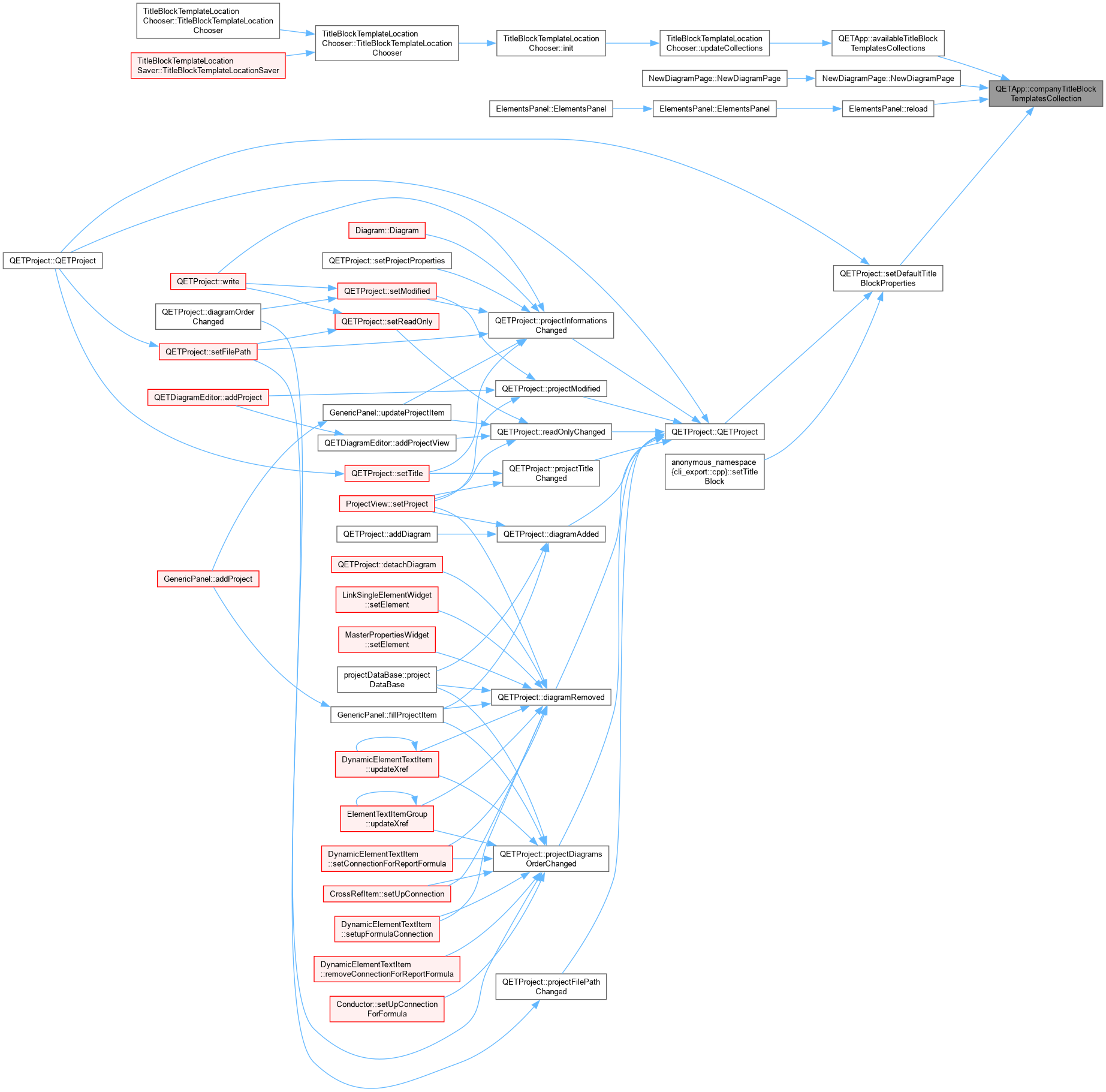

	QETApp::commonTitleBlockTemplatesCollection.
static TitleBlockTemplatesFilesCollection *	companyTitleBlockTemplatesCollection ()
	QETApp::companyTitleBlockTemplatesCollection.
static TitleBlockTemplatesFilesCollection *	customTitleBlockTemplatesCollection ()
	QETApp::customTitleBlockTemplatesCollection.

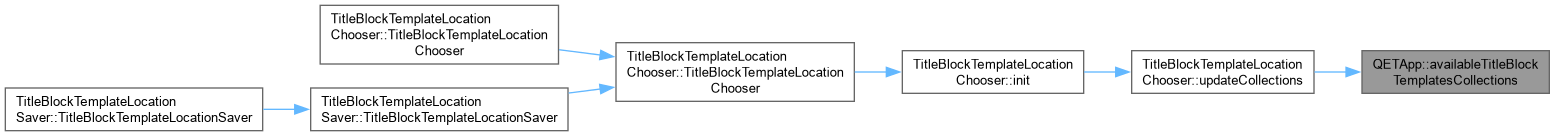

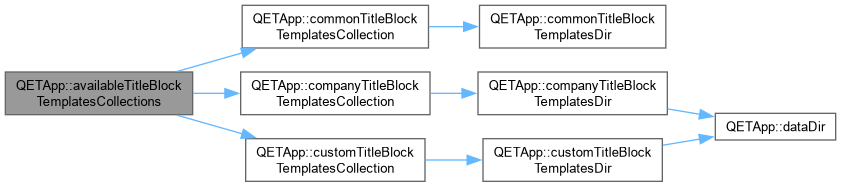

static QList< TitleBlockTemplatesCollection * >	availableTitleBlockTemplatesCollections ()
	QETApp::availableTitleBlockTemplatesCollections.

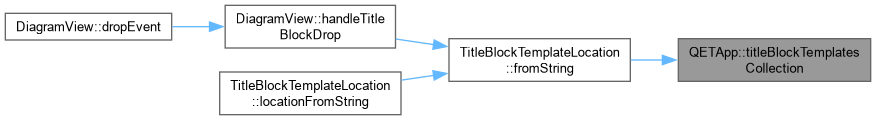

static TitleBlockTemplatesCollection *	titleBlockTemplatesCollection (const QString &)
	QETApp::titleBlockTemplatesCollection.
static QString	commonElementsDir ()
	QETApp::commonElementsDir.
static QString	companyElementsDir ()

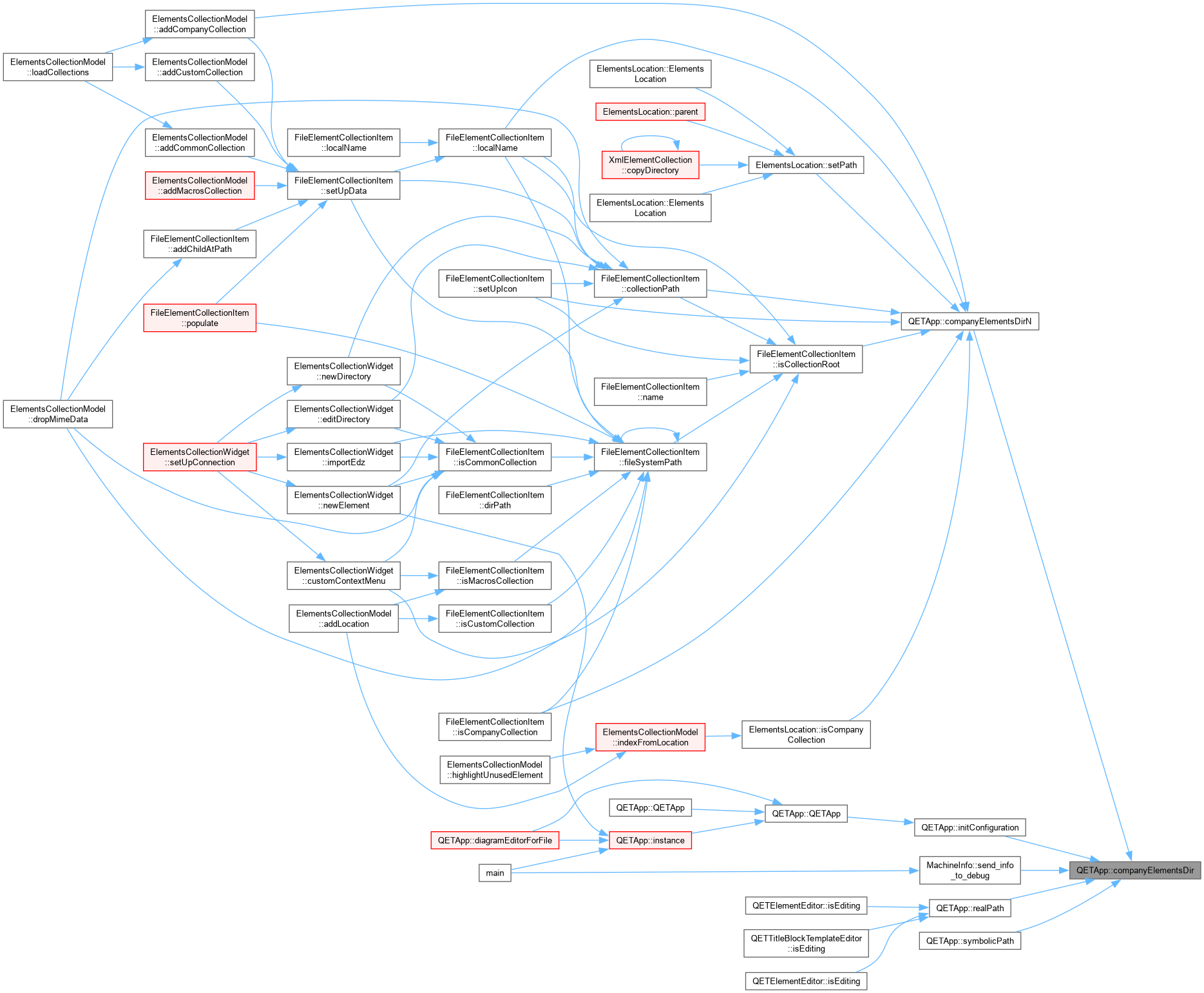

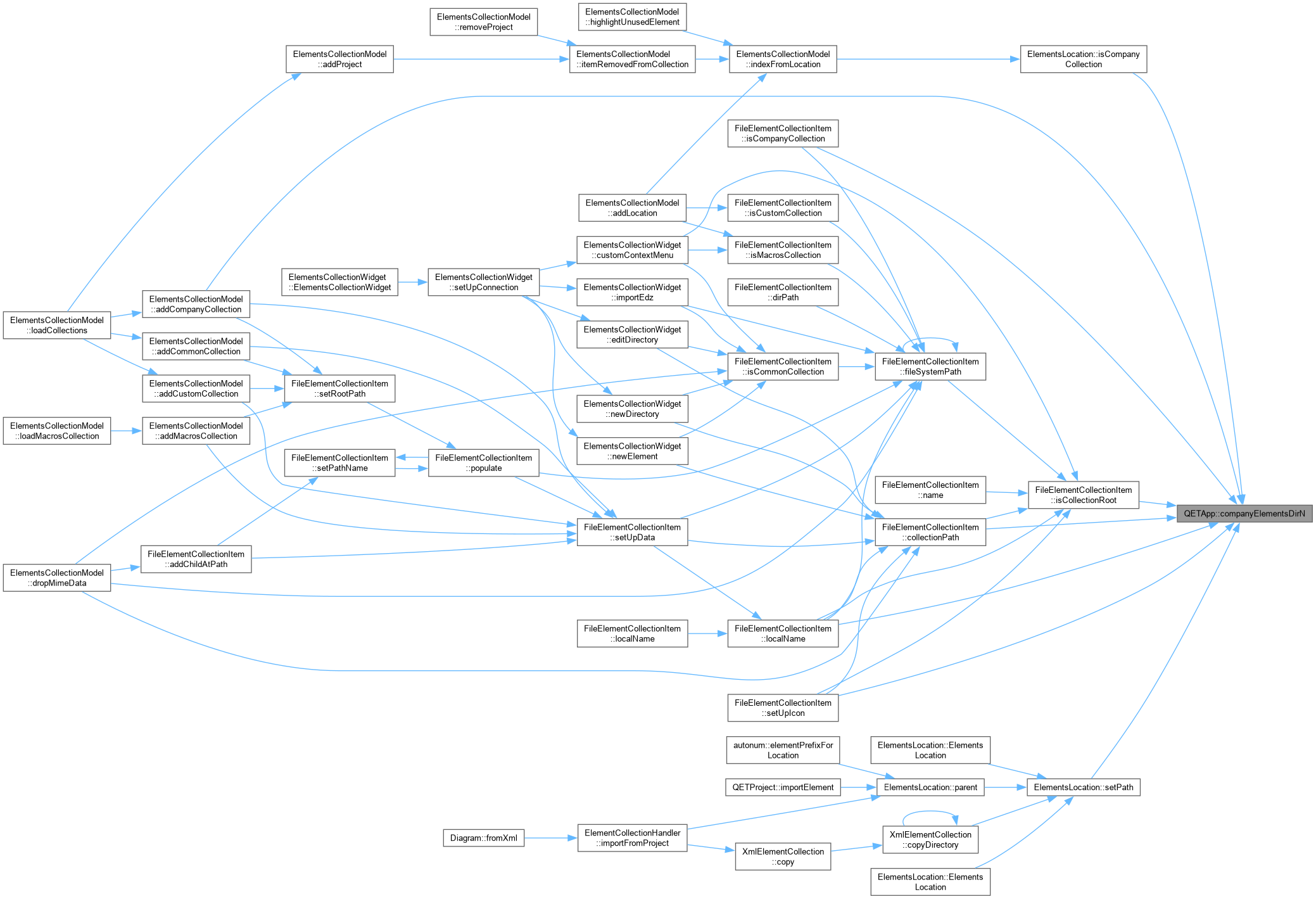

	QETApp::companyElementsDir.

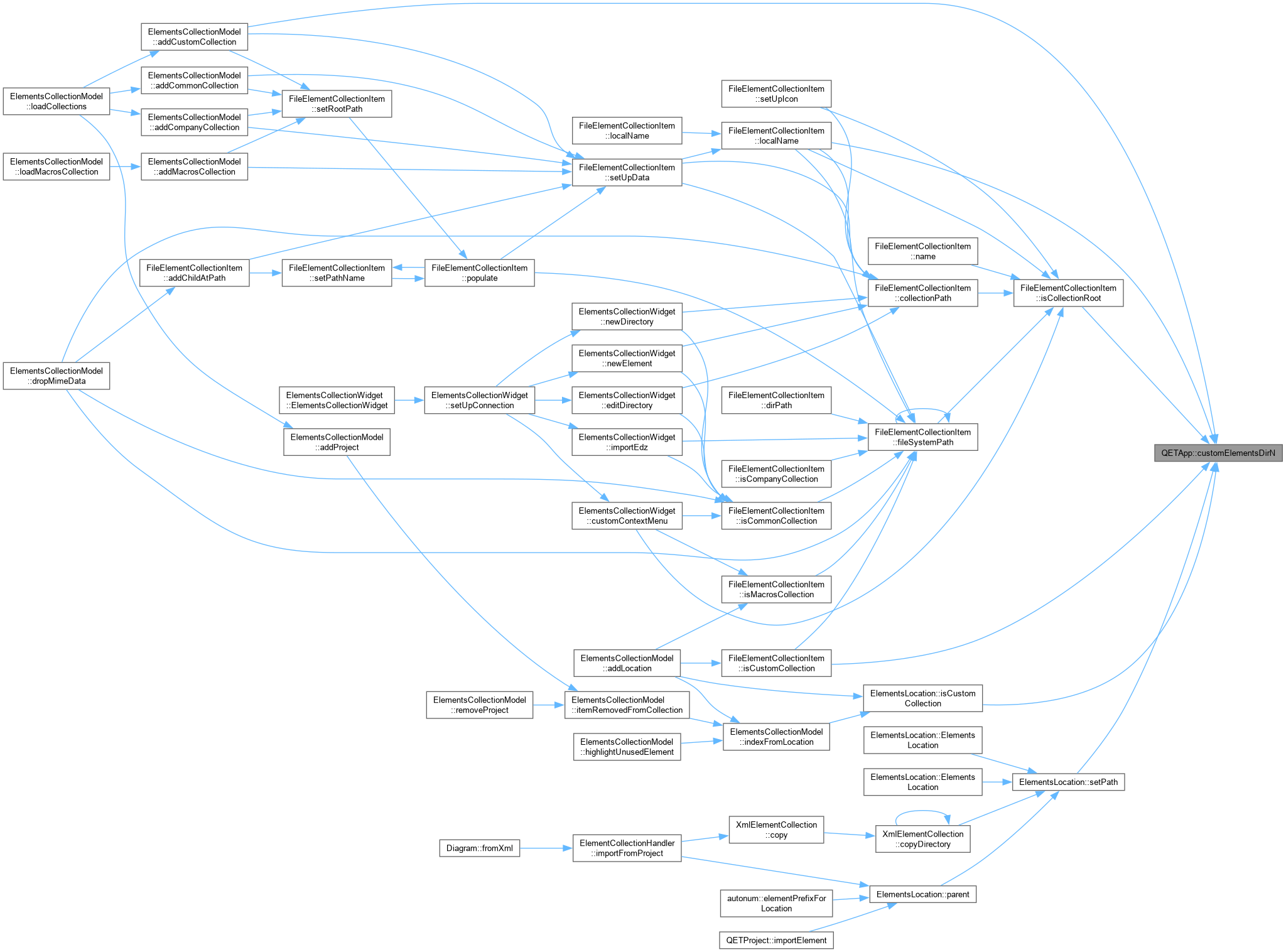

static QString	customElementsDir ()
	QETApp::customElementsDir.
static QString	commonElementsDirN ()

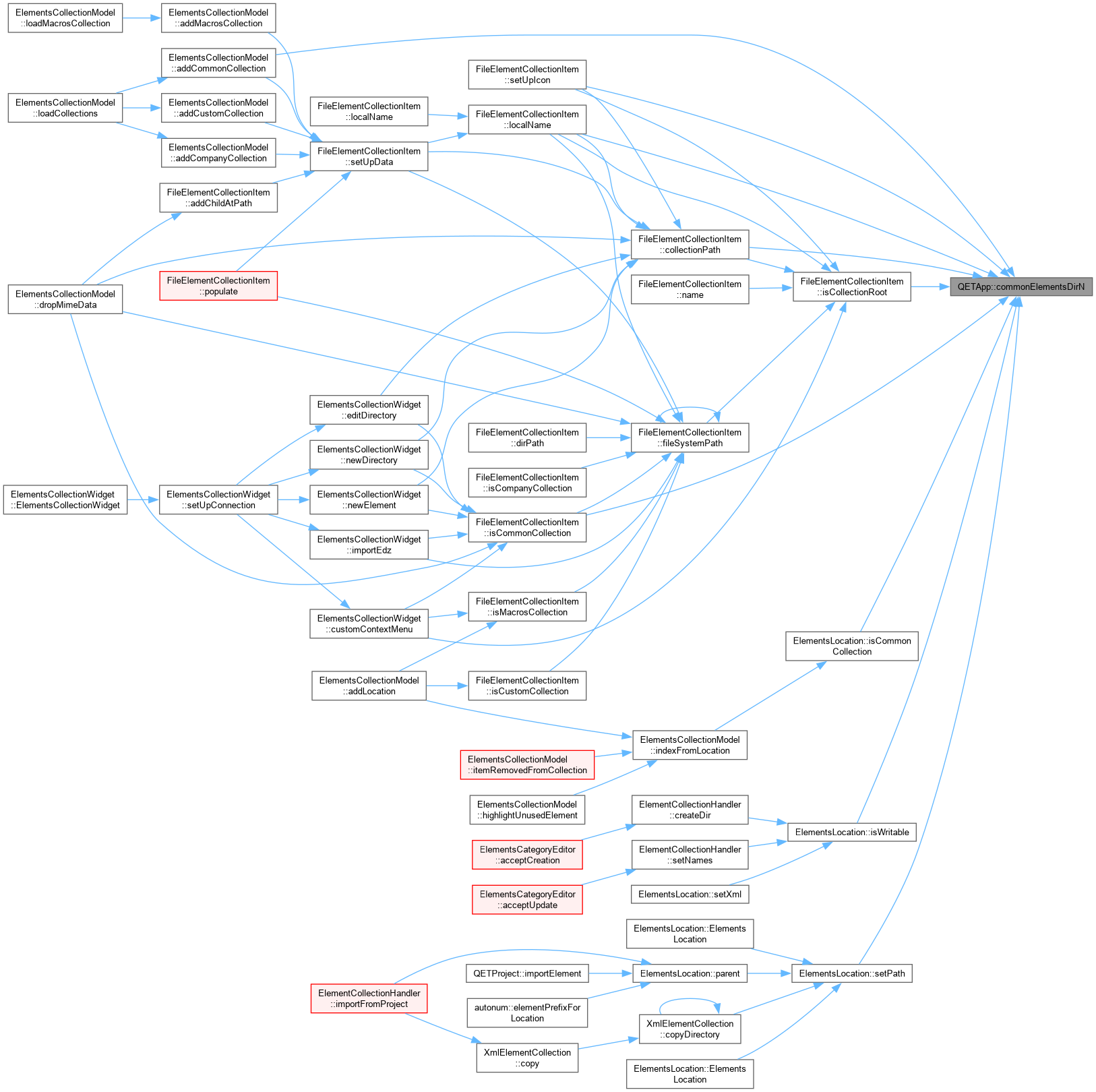

	QETApp::commonElementsDirN like QString QETApp::commonElementsDir but without "/" at the end.
static QString	companyElementsDirN ()
	QETApp::companyElementsDirN like QString QETApp::companyElementsDir but without "/" at the end.
static QString	customElementsDirN ()
	QETApp::customElementsDirN like QString QETApp::customElementsDir but without "/" at the end.
static void	resetCollectionsPath ()
	QETApp::resetCollectionsPath Reset the path of the user and common element collection and also the user titleblock path. Use this function when one of these three path change.

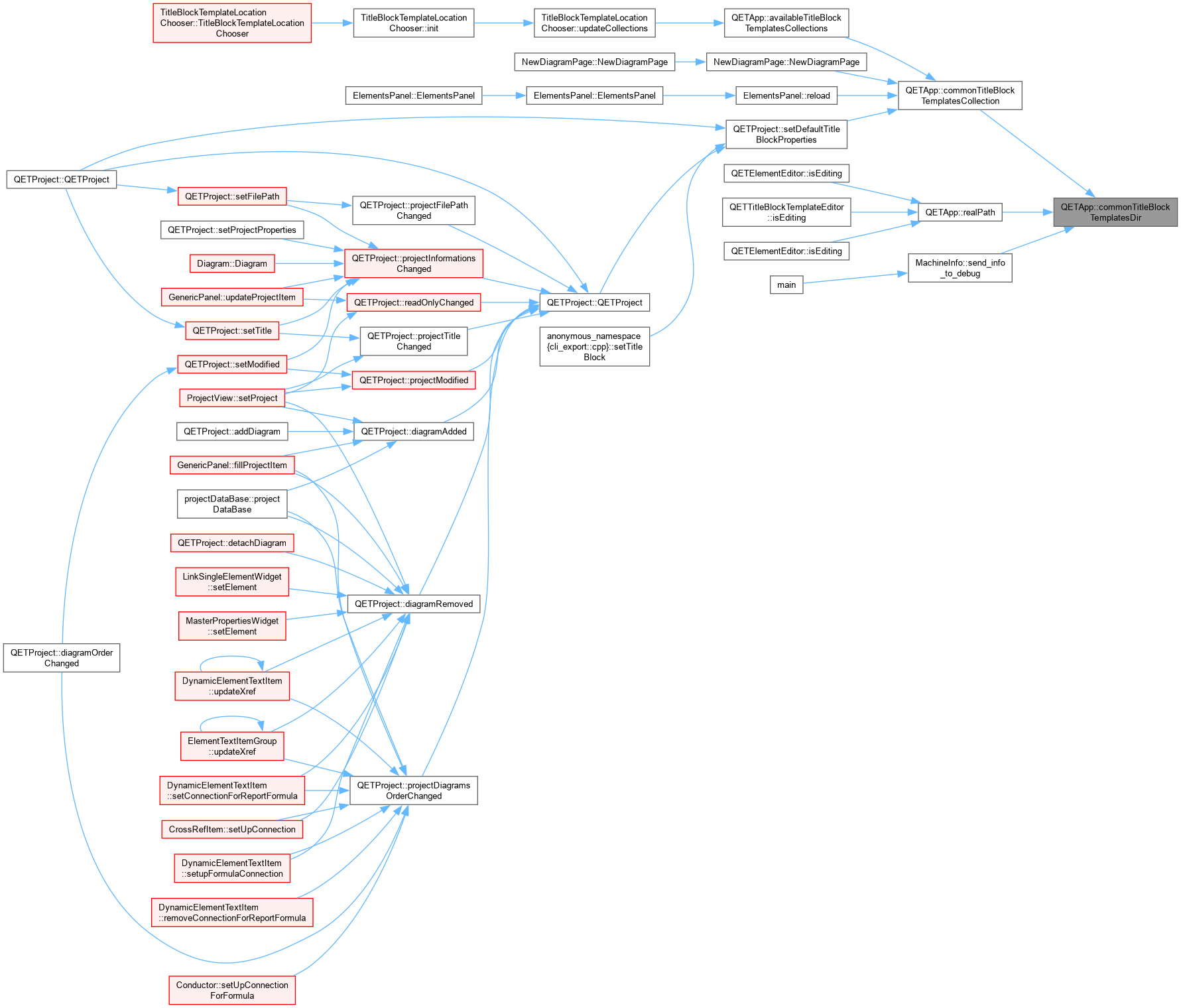

static QString	commonTitleBlockTemplatesDir ()
	QETApp::commonTitleBlockTemplatesDir.
static QString	companyTitleBlockTemplatesDir ()

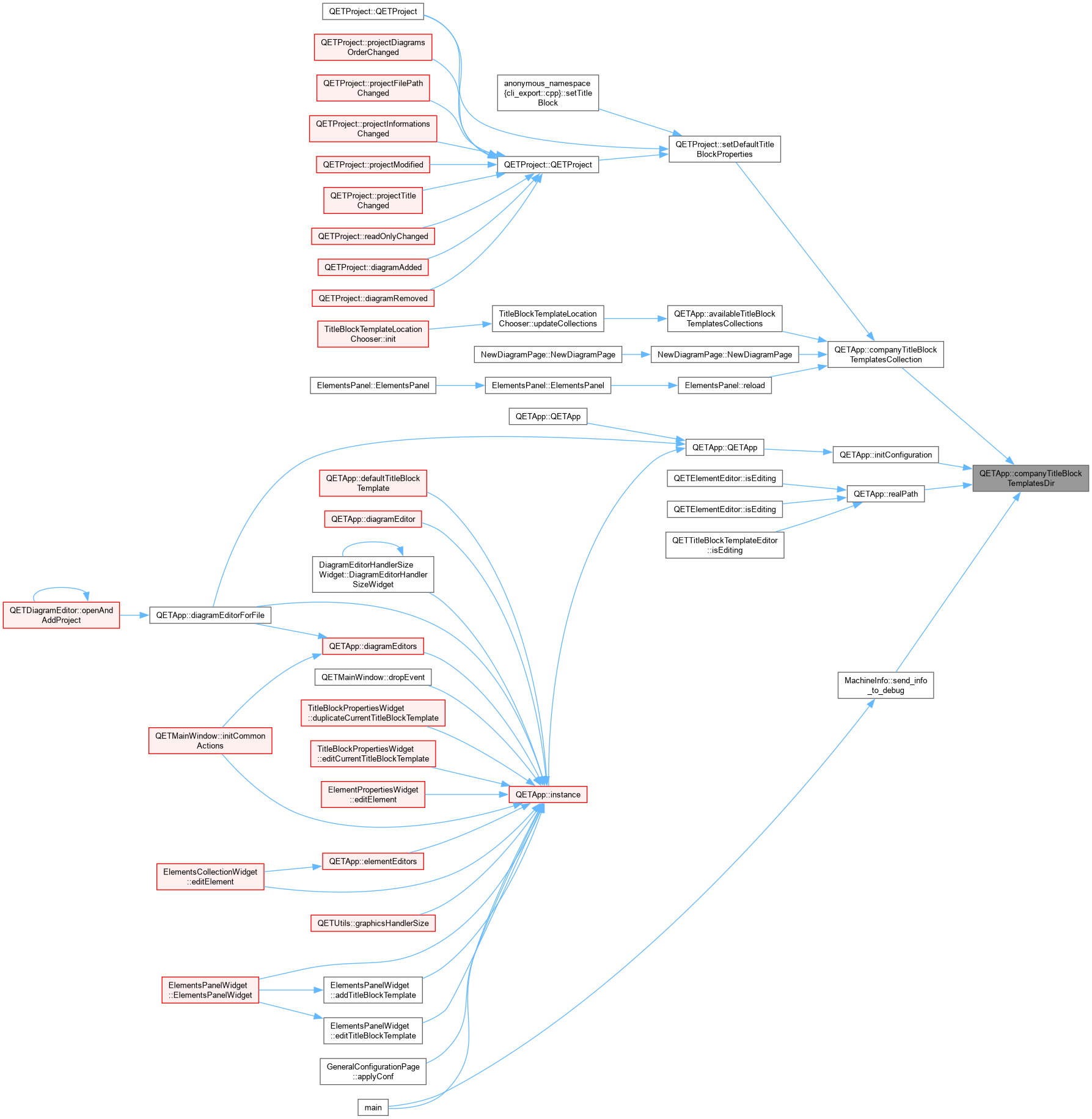

	QETApp::companyTitleBlockTemplatesDir.
static QString	customTitleBlockTemplatesDir ()
	QETApp::customTitleBlockTemplatesDir.

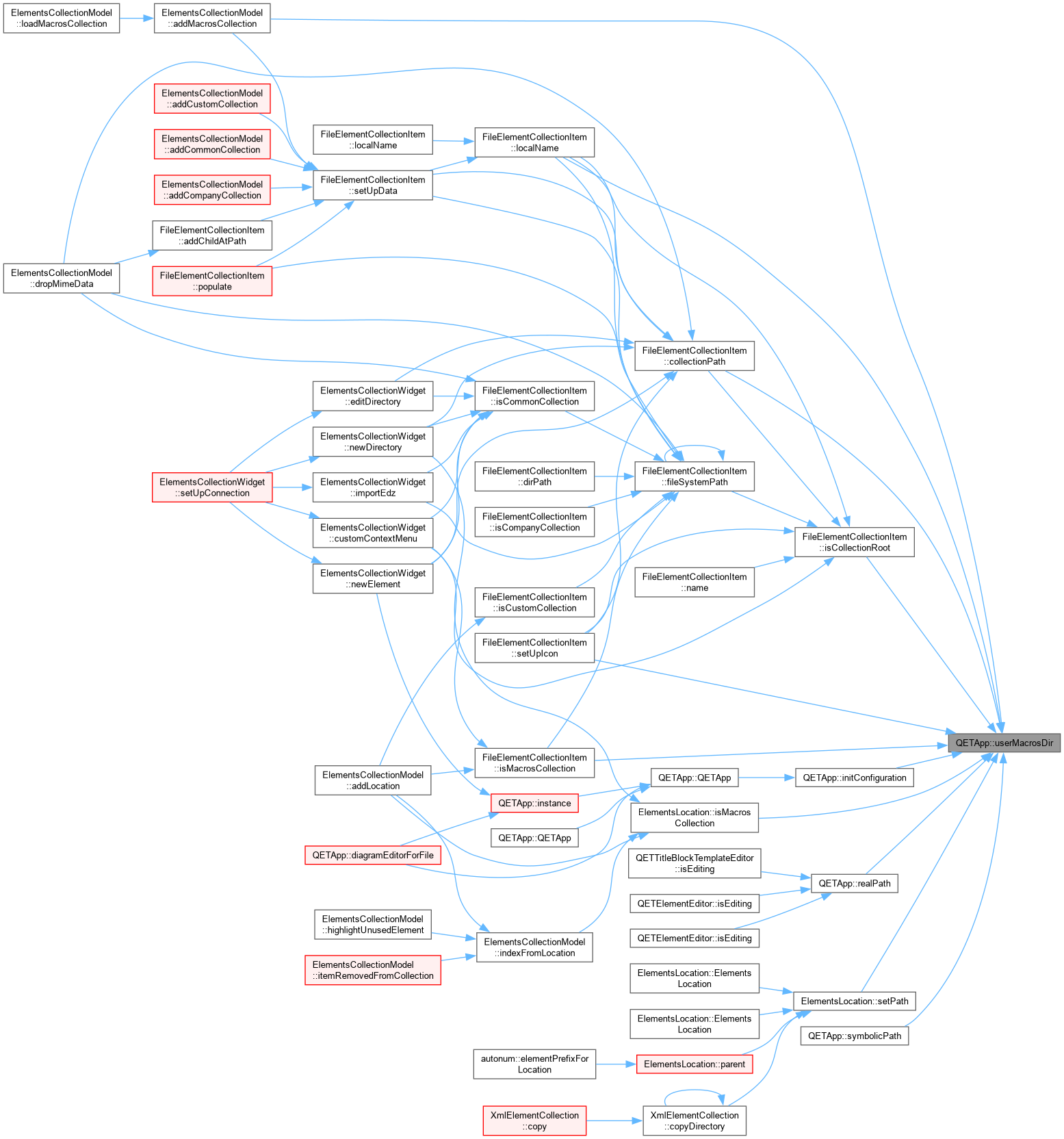

static QString	userMacrosDir ()
	QETApp::userMacrosDir.

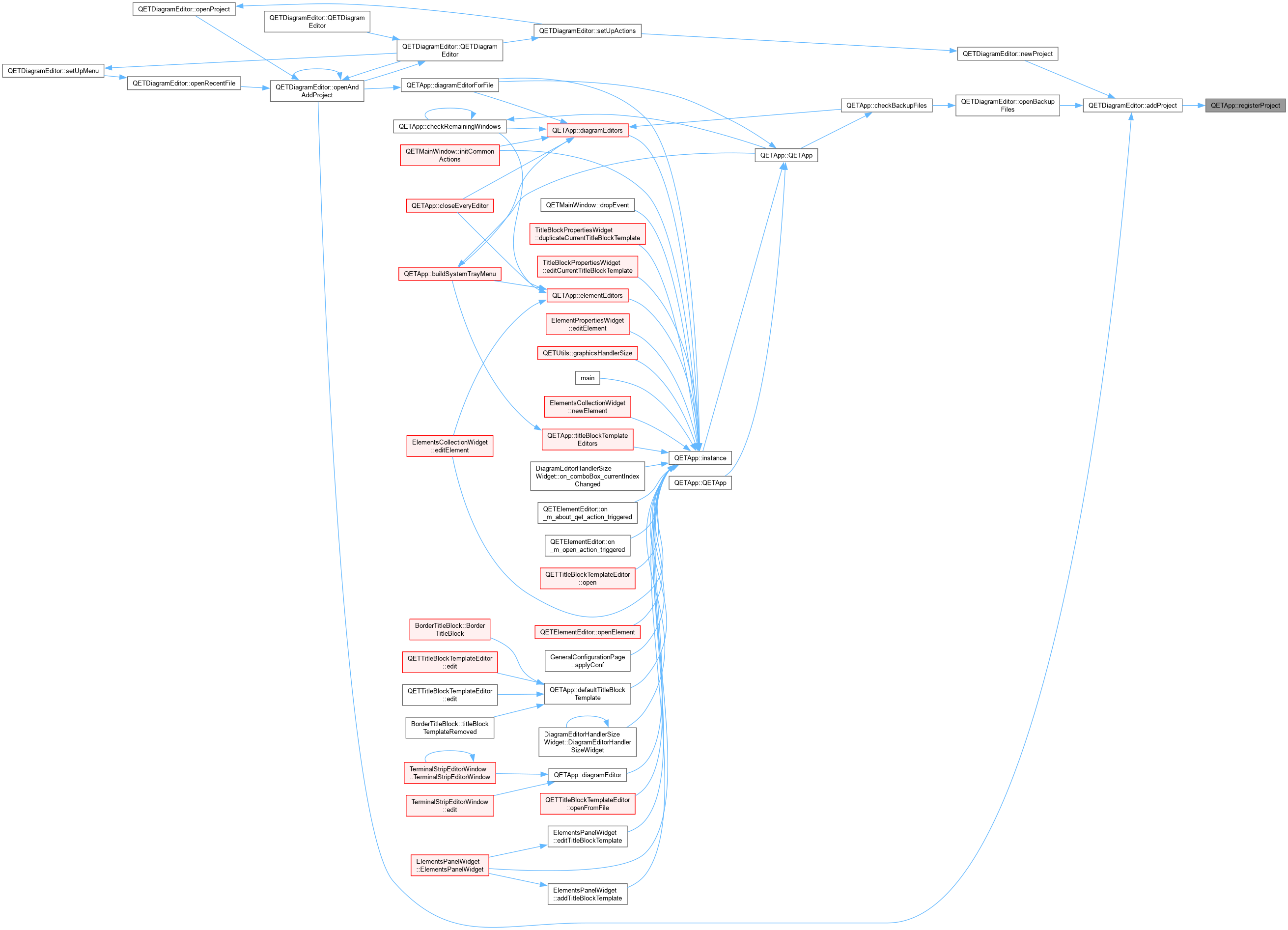

static bool	registerProject (QETProject *)
	QETApp::registerProject.
static bool	unregisterProject (QETProject *)
	QETApp::unregisterProject Cancel the recording of the project project.

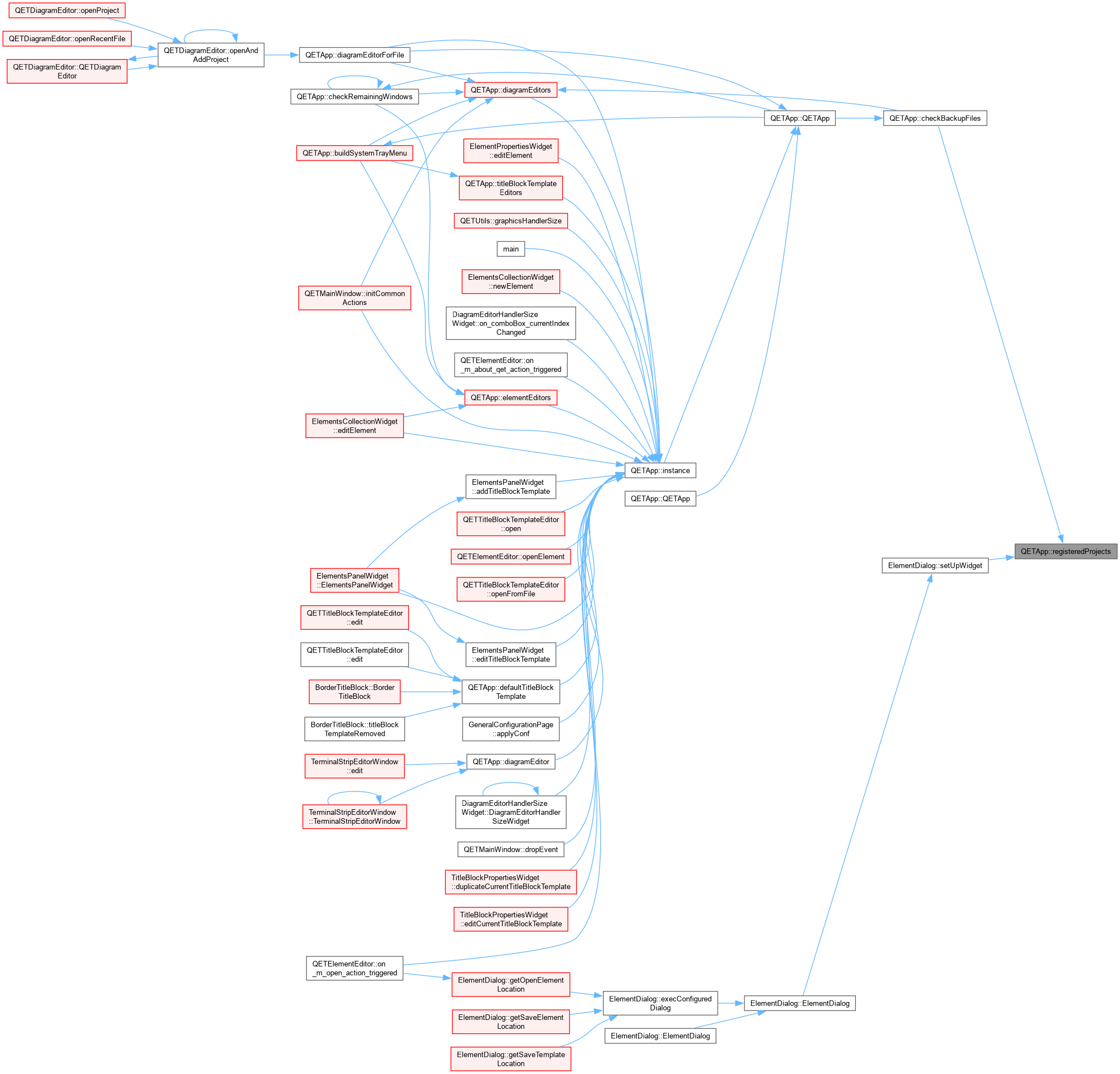

static QMap< uint, QETProject * >	registeredProjects ()
	QETApp::registeredProjects.
static QETProject *	project (const uint &)
	QETApp::project.
static int	projectId (const QETProject *)

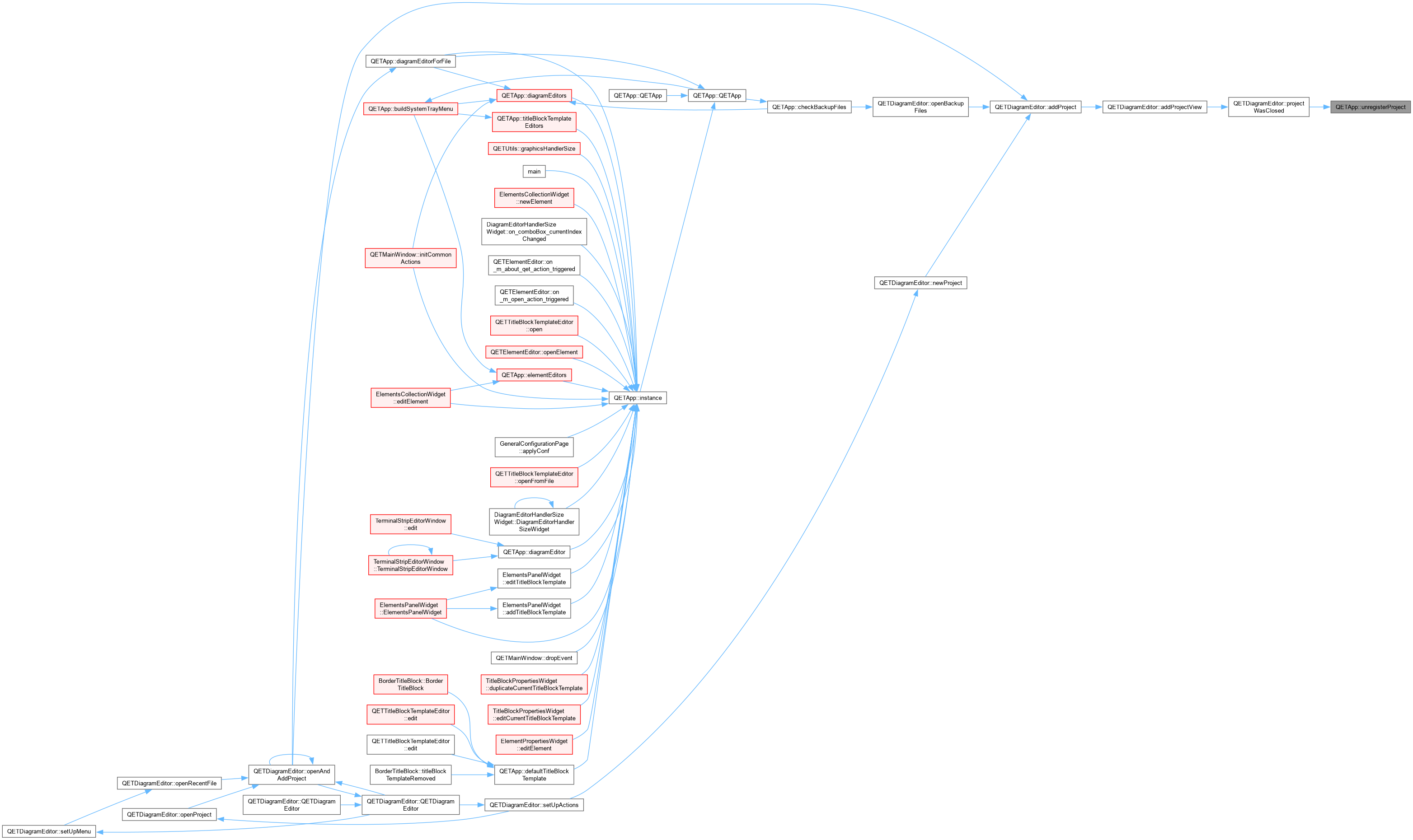

	QETApp::projectId.
static QString	configDir ()

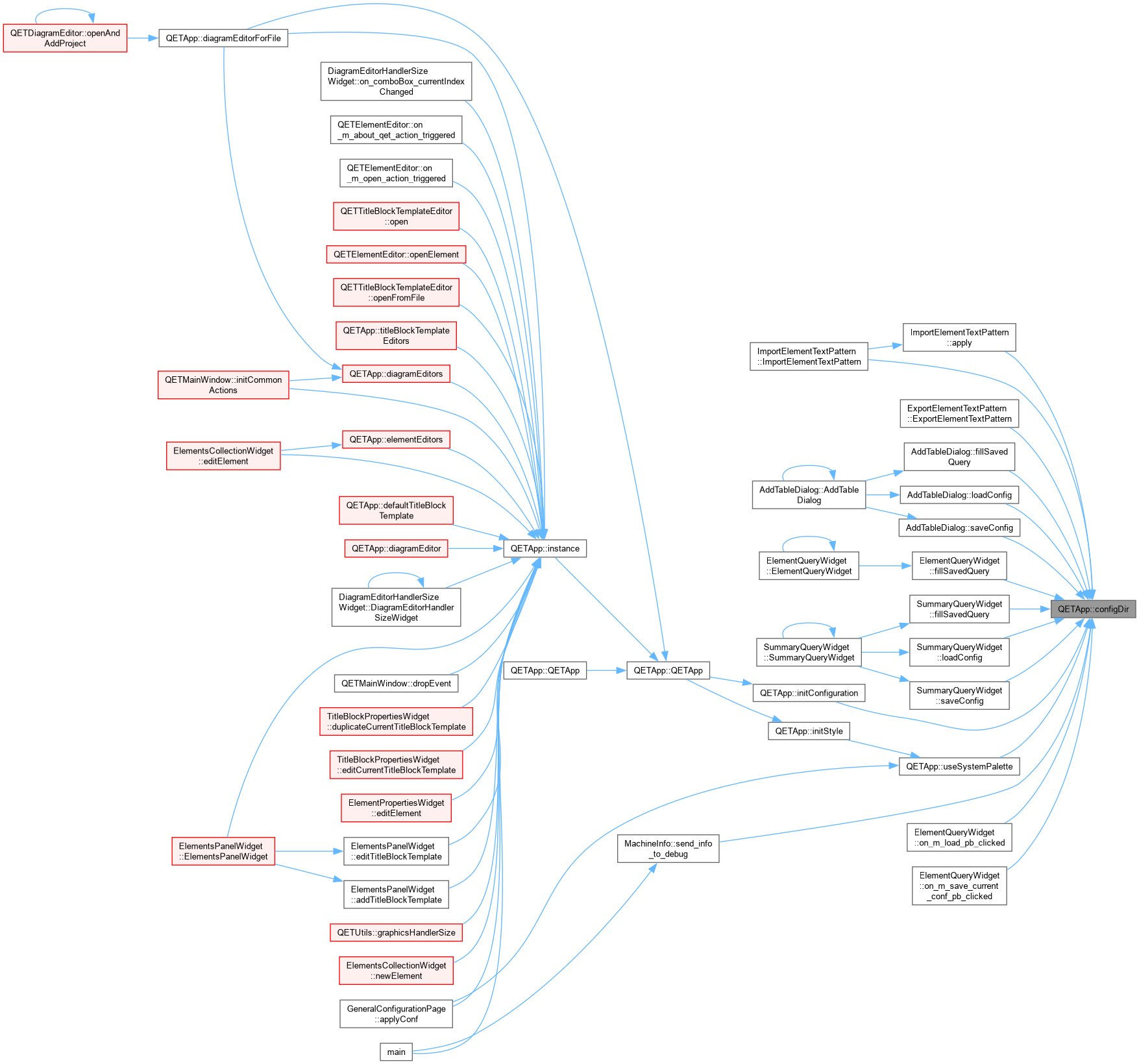

	QETApp::configDir Return the QET configuration folder, i.e. the path to the folder in which QET will read configuration and customization information specific to the current user. This file is generally C:/Users/<USER>/AppData/Local/<APPNAME> on Windows and ~/.config/<APPNAME> under UNIX-like systems.
static QString	dataDir ()

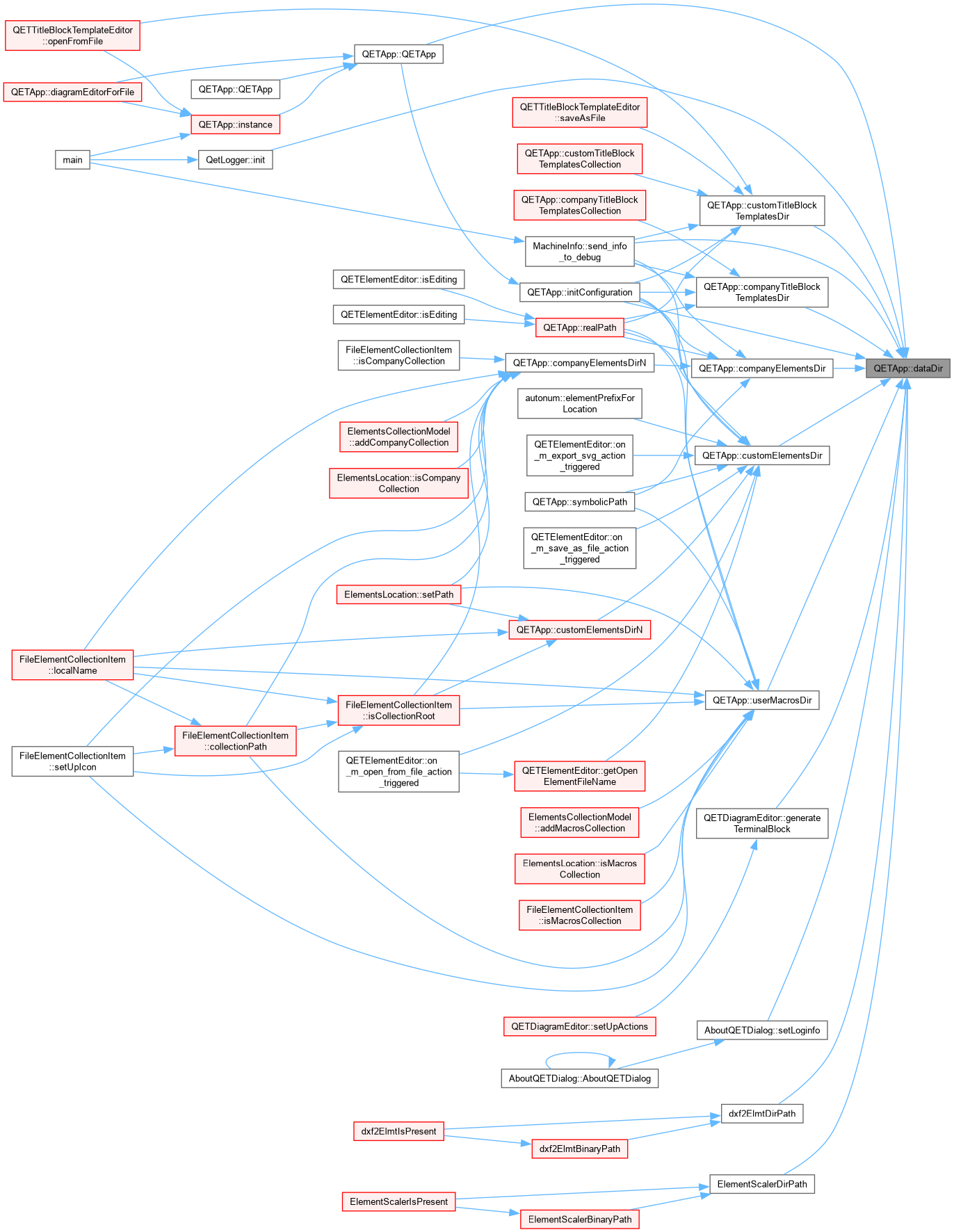

	QETApp::dataDir Return the QET data folder, i.e. the path to the folder in which QET will save log-files and elements-cache and where to find user-collections and user-titleblocks by default specific to the current user. This directory is generally C:/Users/<USER>/AppData/Roaming/<APPNAME> on Windows and ~/.local/share/<APPNAME> under UNIX-like systems.
static QString	documentDir ()

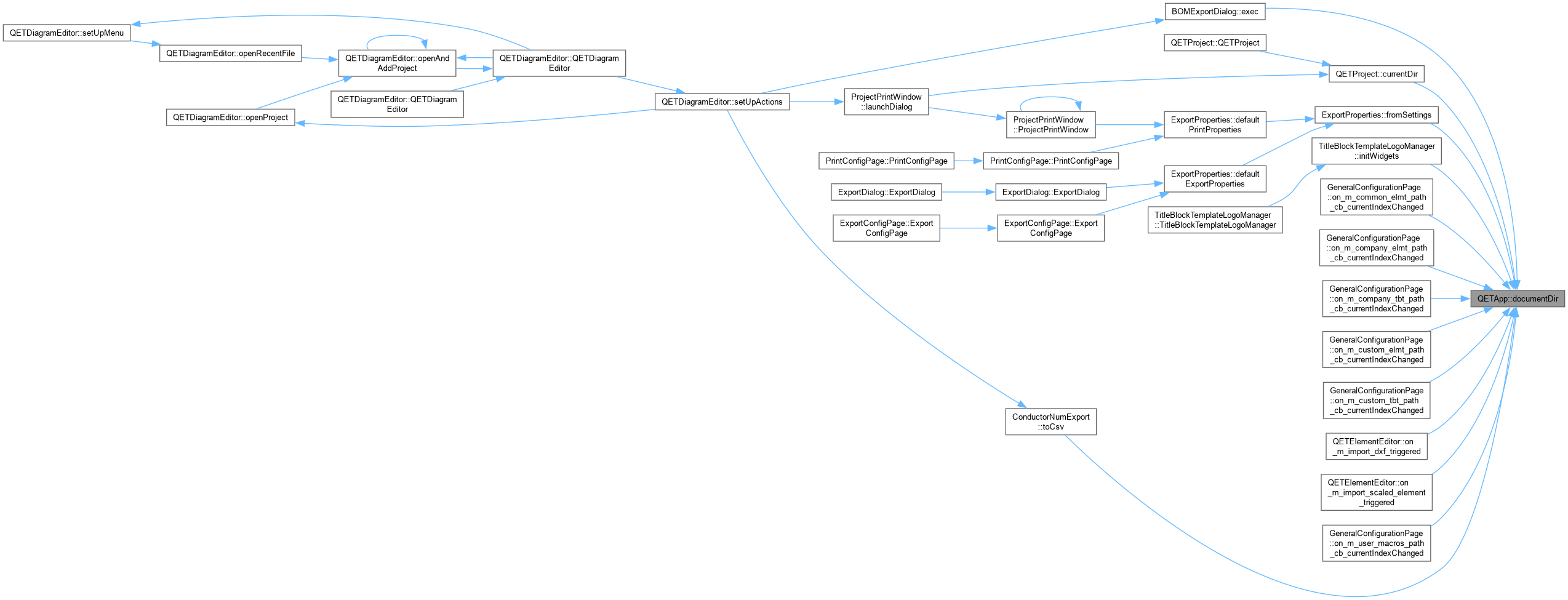

	QETApp::documentDir Return the standard-folder where to save users documents This directory is generally C:/Users/<USER>/Documents on Windows and ~/Documents under UNIX-like systems.
static QString	pictureDir ()

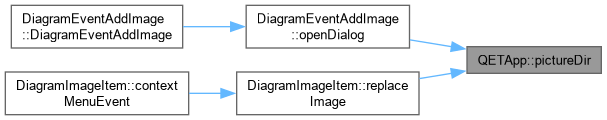

	QETApp::pictureDir Returns the standard-folder of users pictures This directory is generally C:/Users/<USER>/Pictures on Windows and ~/Pictures under UNIX-like systems.
static QString	languagesPath ()

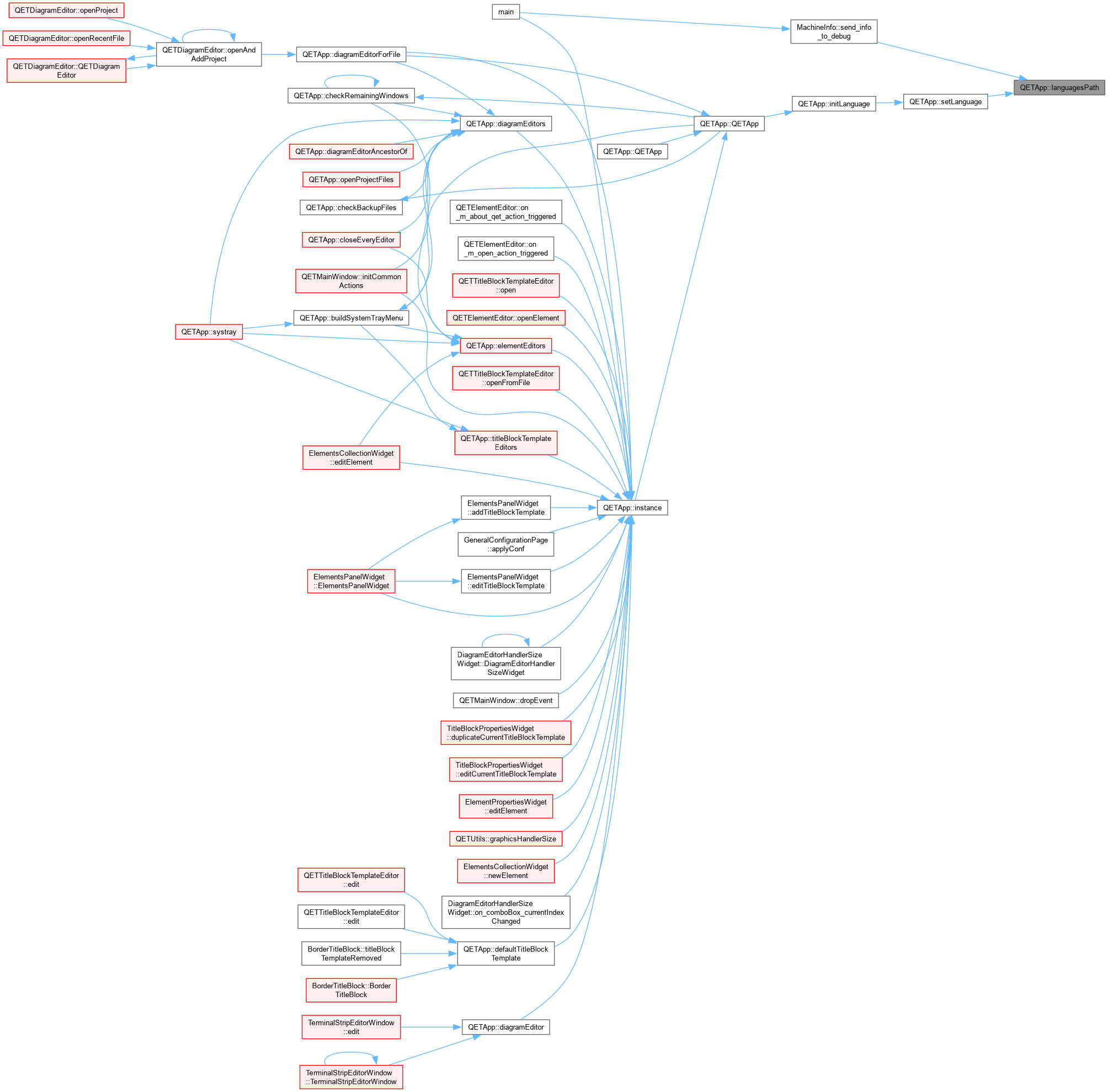

	QETApp::languagesPath.

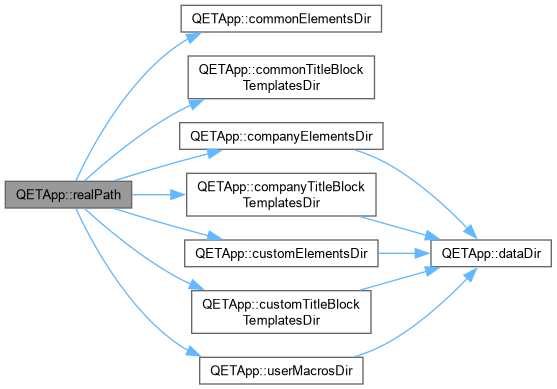

static QString	realPath (const QString &)
	QETApp::realPath Allows you to know the absolute path of the * .elmt file corresponding to a symbolic path (of the type custom: // tools_pervers / sado_maso / contact_bizarre).

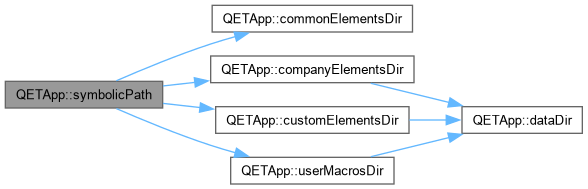

static QString	symbolicPath (const QString &)
	QETApp::symbolicPath Build the symbolic path (of the type custom: // tools_pervers / sado_maso / contact_bizarre) corresponding to a file.

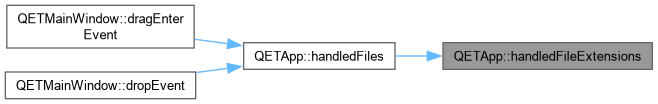

static QStringList	handledFileExtensions ()
	QETApp::handledFileExtensions.
static QStringList	handledFiles (const QList< QUrl > &)
	QETApp::handledFiles.
static RecentFiles *	projectsRecentFiles ()

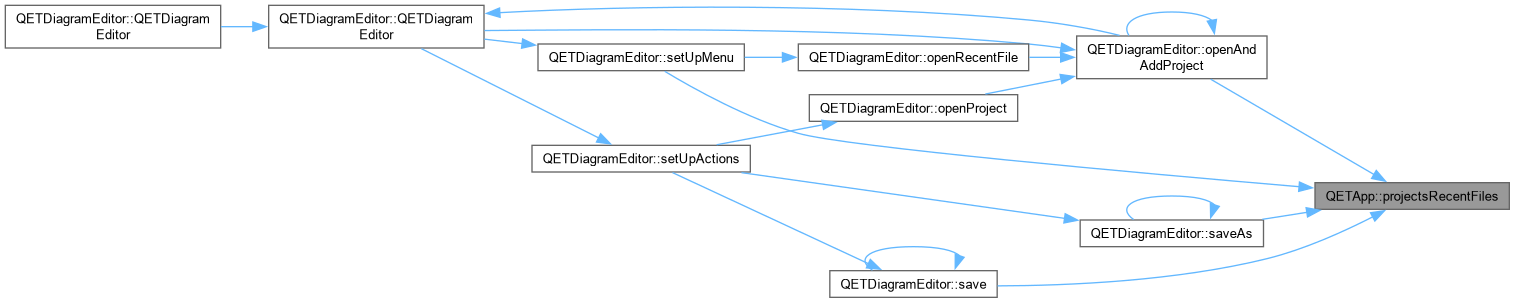

	QETApp::projectsRecentFiles.
static RecentFiles *	elementsRecentFiles ()

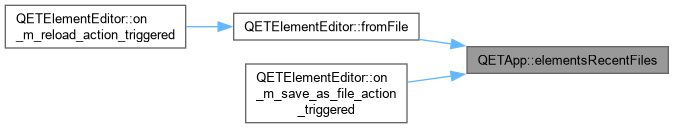

	QETApp::elementsRecentFiles.

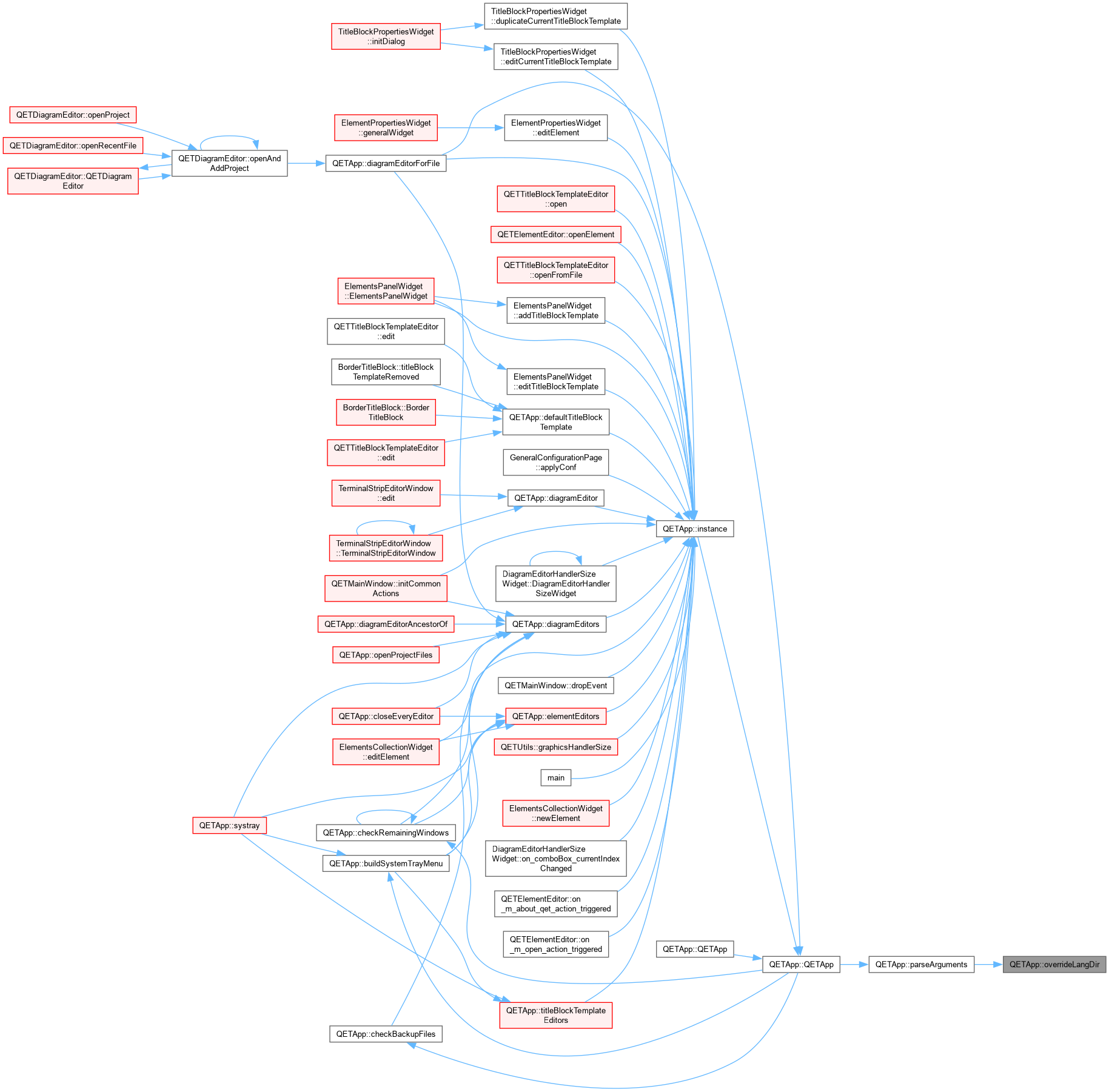

static void	overrideLangDir (const QString &)
	QETApp::overrideLangDir Redefines the path of the folder containing the language files.

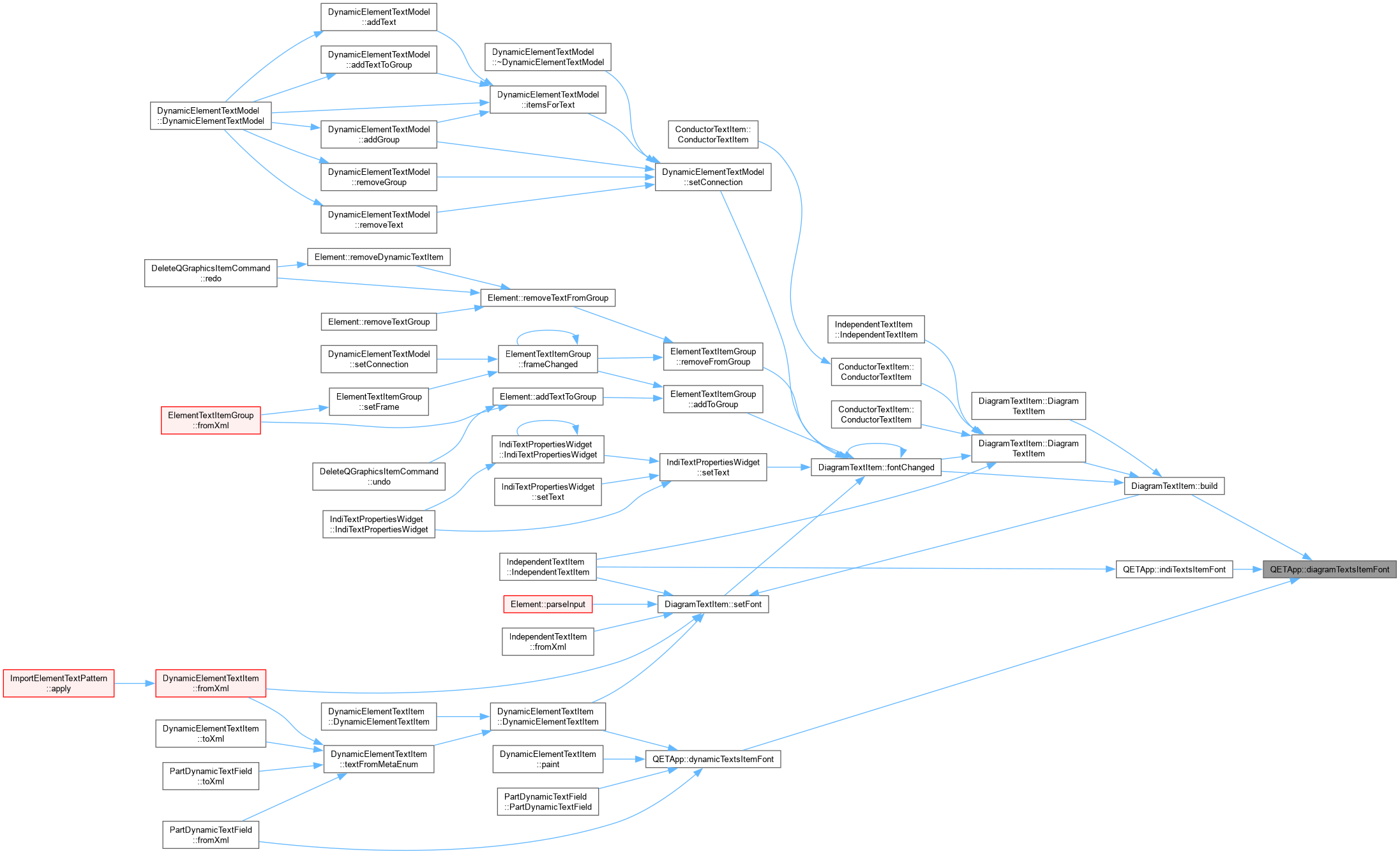

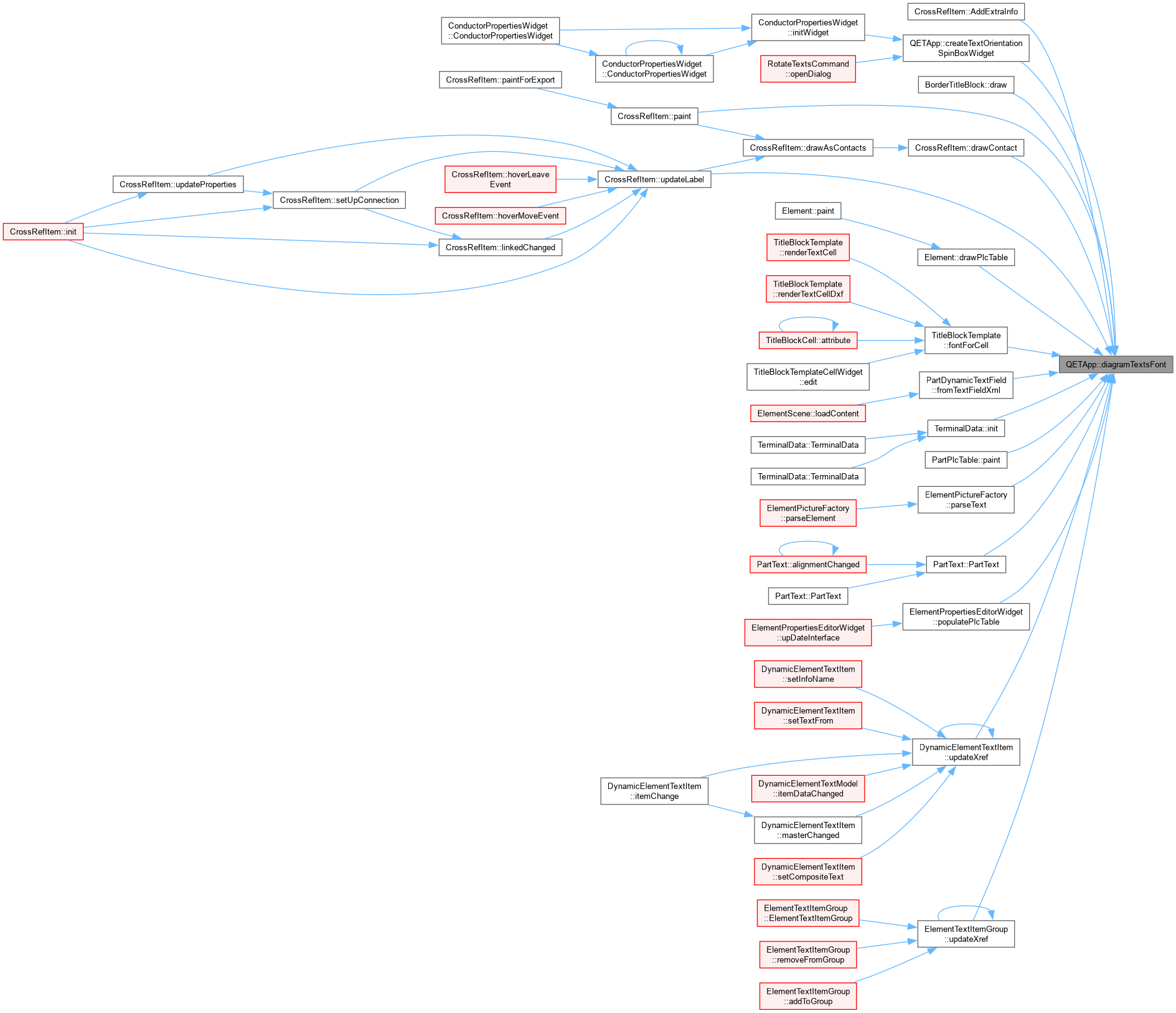

static QFont	diagramTextsFont (qreal=-1.0)
	QETApp::diagramTextsFont The font to use By default the font is "Liberation Sans" and size 9.
static QFont	diagramTextsItemFont (qreal=-1.0)
	QETApp::diagramTextsItemFont the font to use in independent text items.
static QFont	dynamicTextsItemFont (qreal=-1.0)

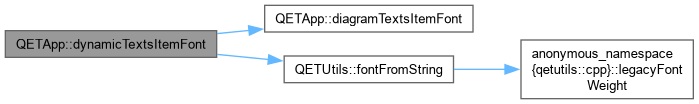

	QETApp::dynamicTextsFont the default font of dynamic element text item.

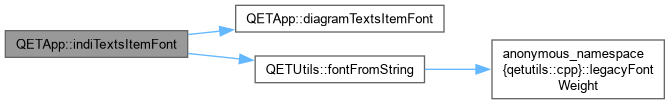

static QFont	indiTextsItemFont (qreal=-1.0)
	QETApp::indiTextsItemFont The default font to use for independent text item.

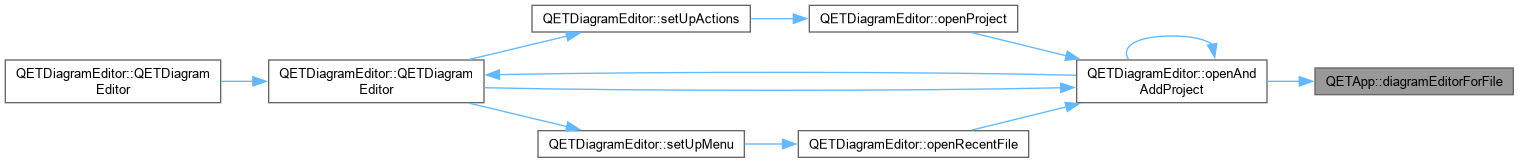

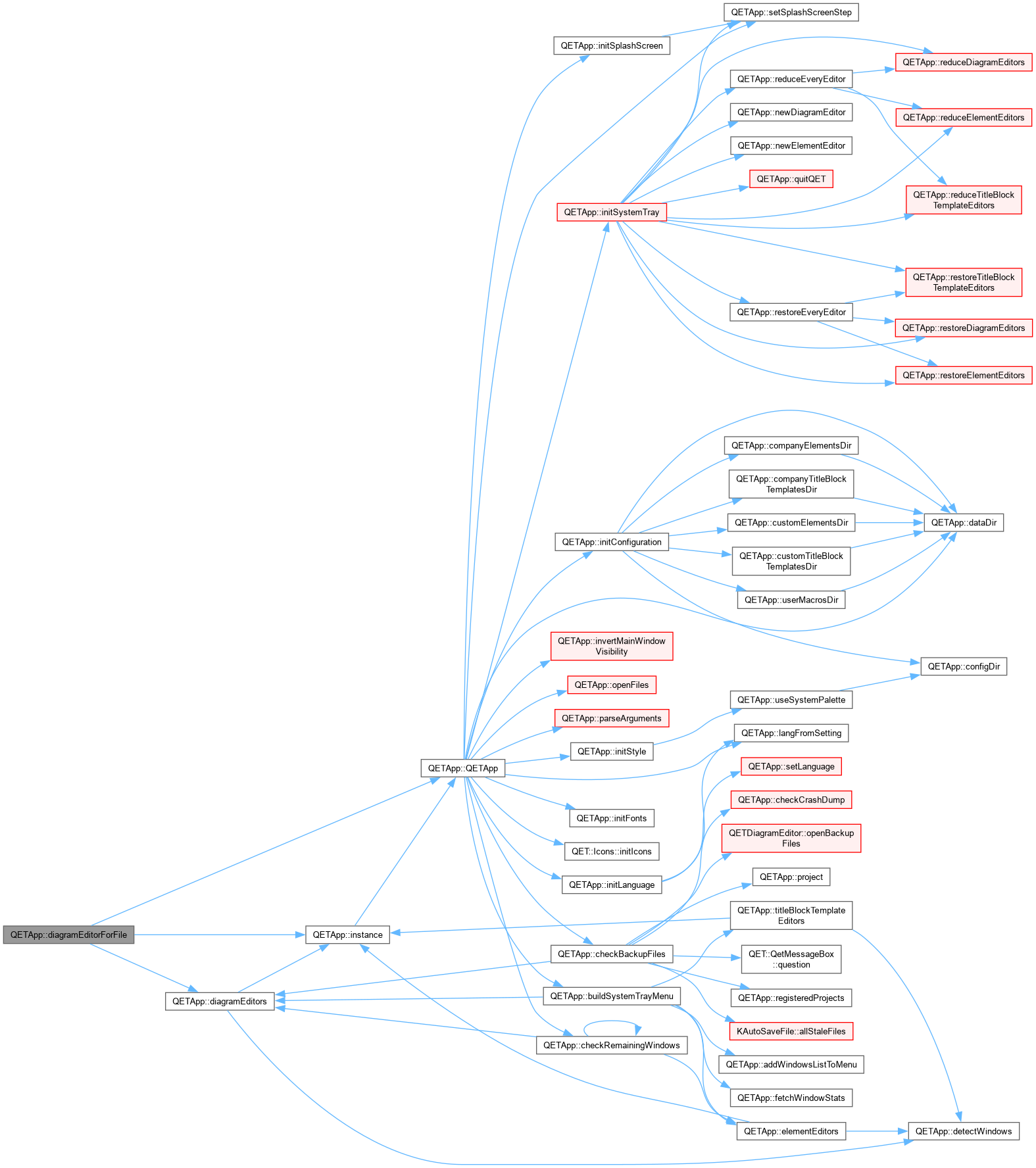

static QETDiagramEditor *	diagramEditorForFile (const QString &)
	QETApp::diagramEditorForFile.
static QETDiagramEditor *	diagramEditorAncestorOf (const QWidget *child)

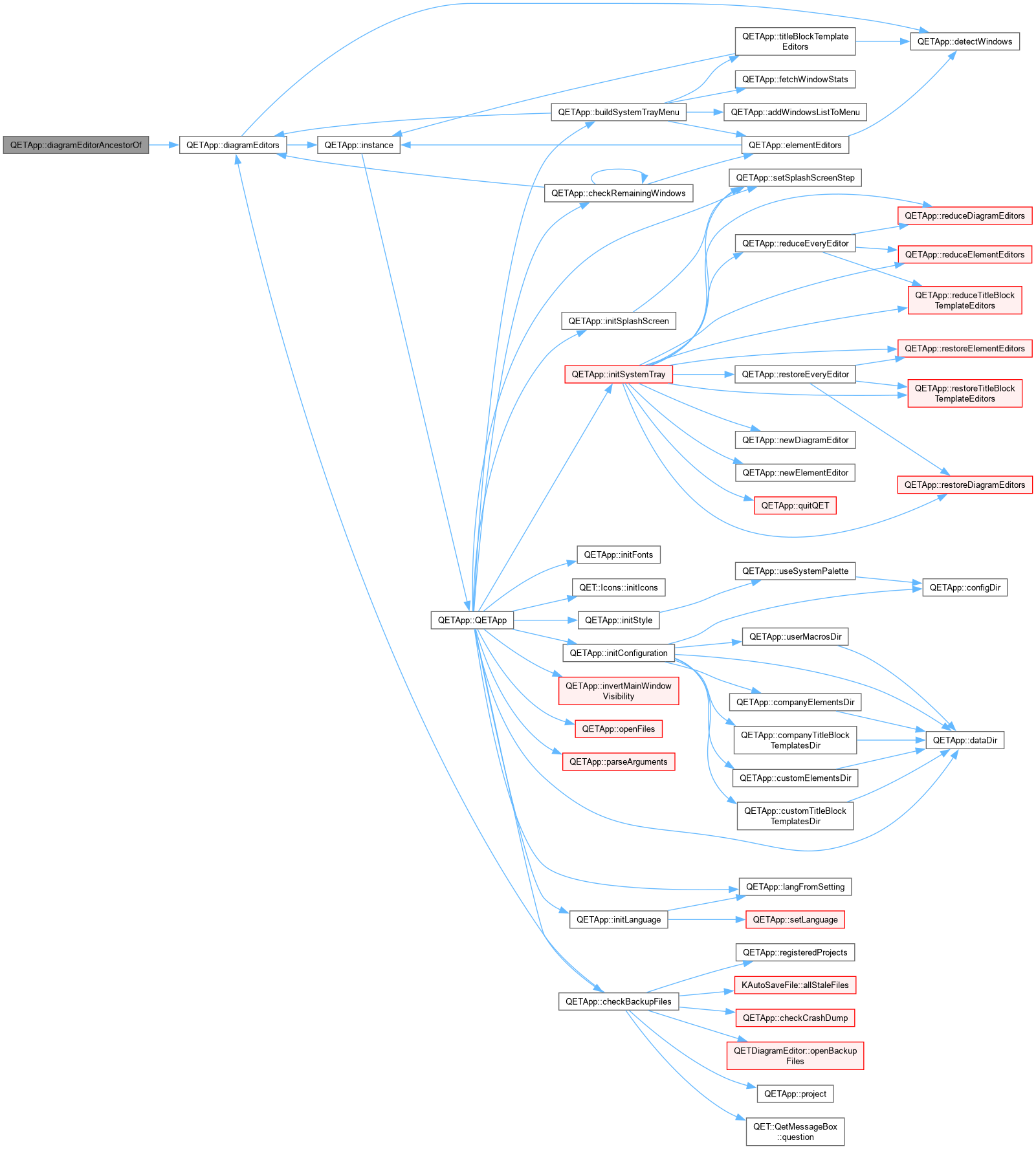

	QETApp::diagramEditorAncestorOf.

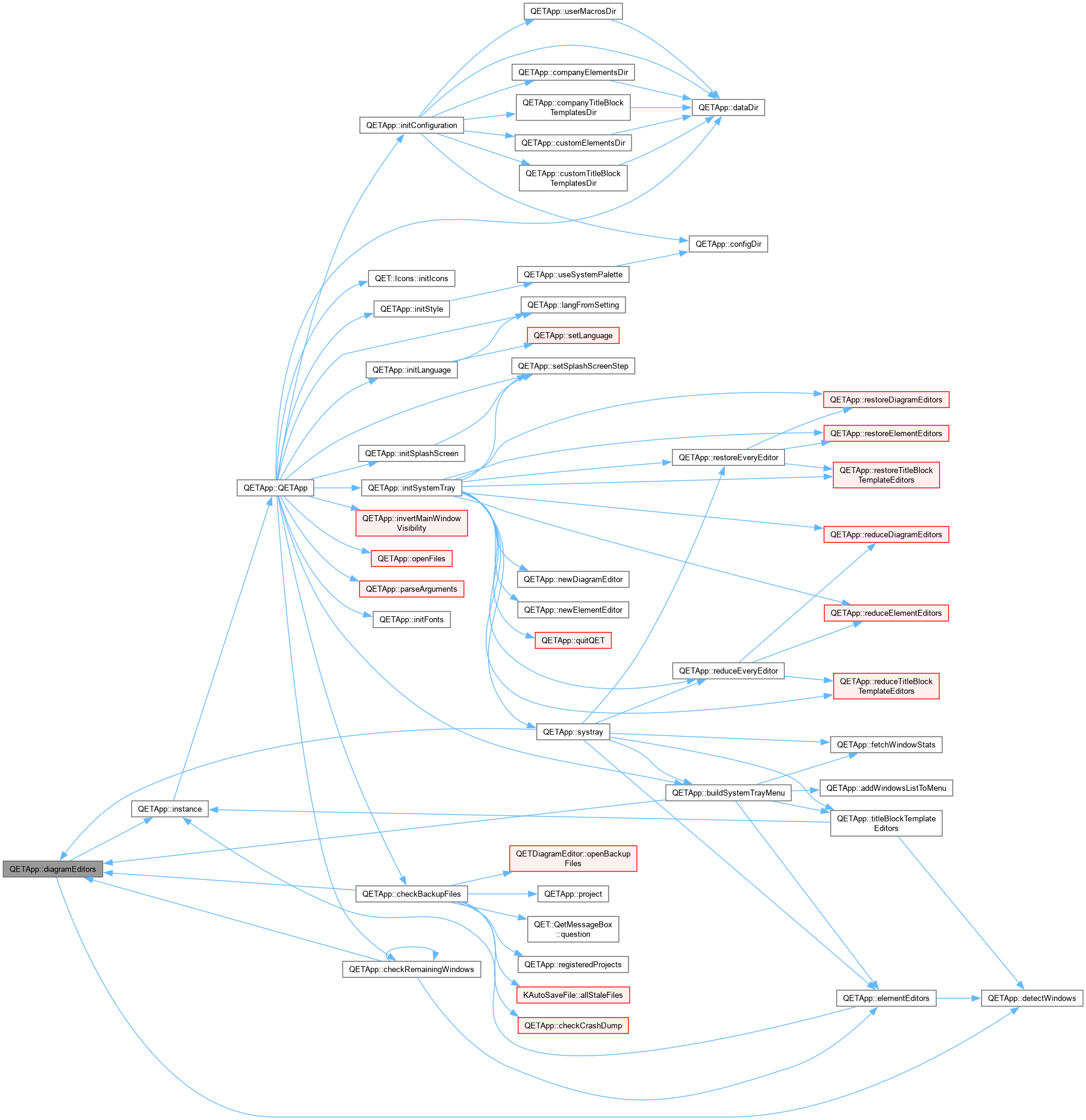

static QList< QETDiagramEditor * >	diagramEditors ()

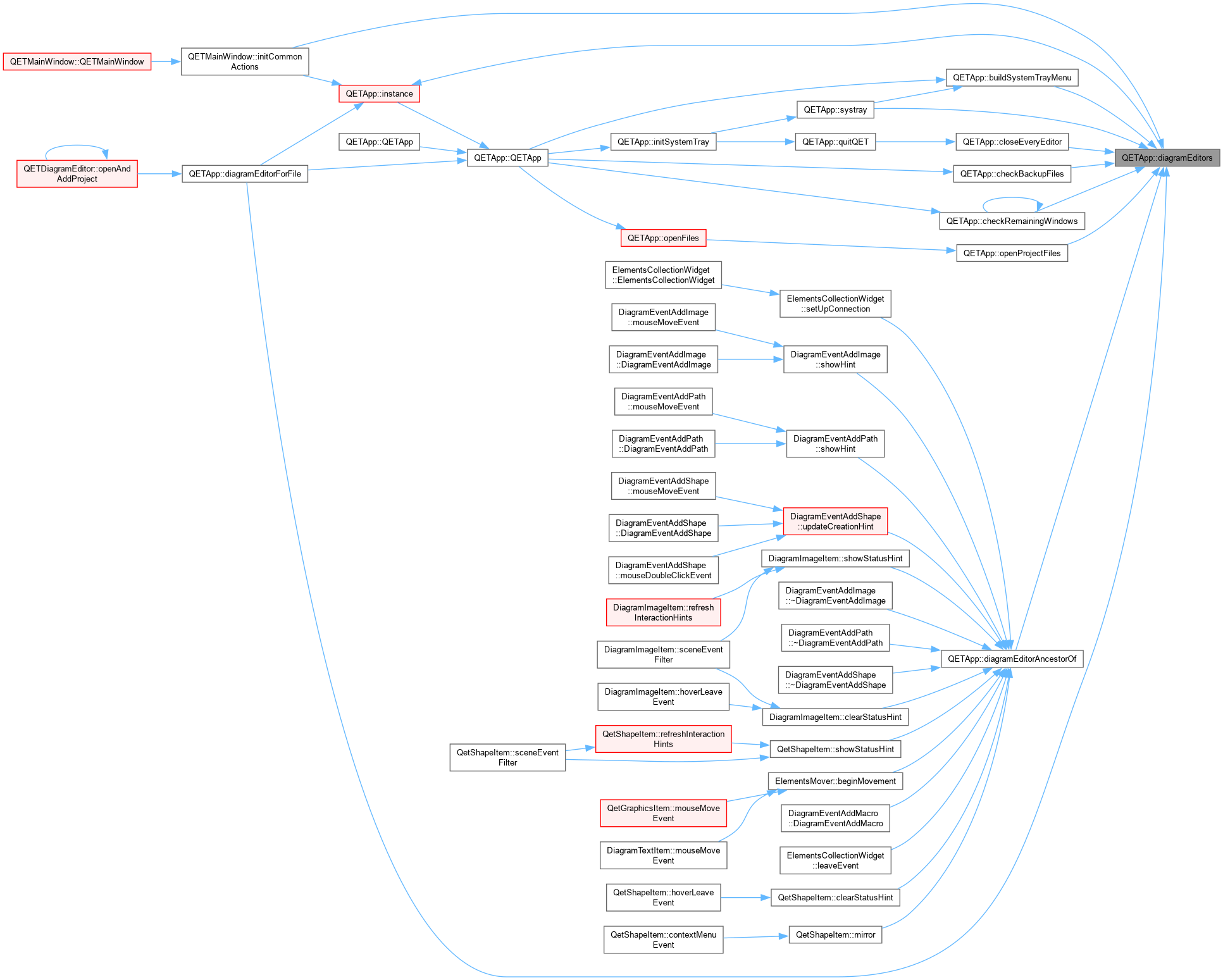

	QETApp::diagramEditors.

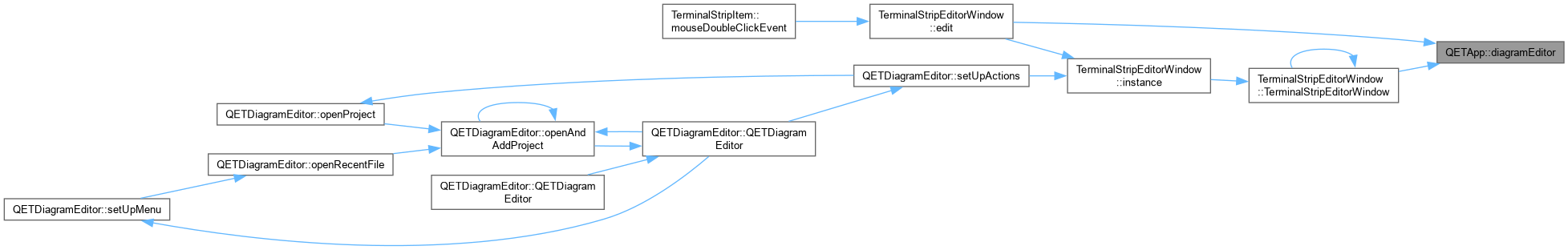

static QETDiagramEditor *	diagramEditor (QETProject *project)

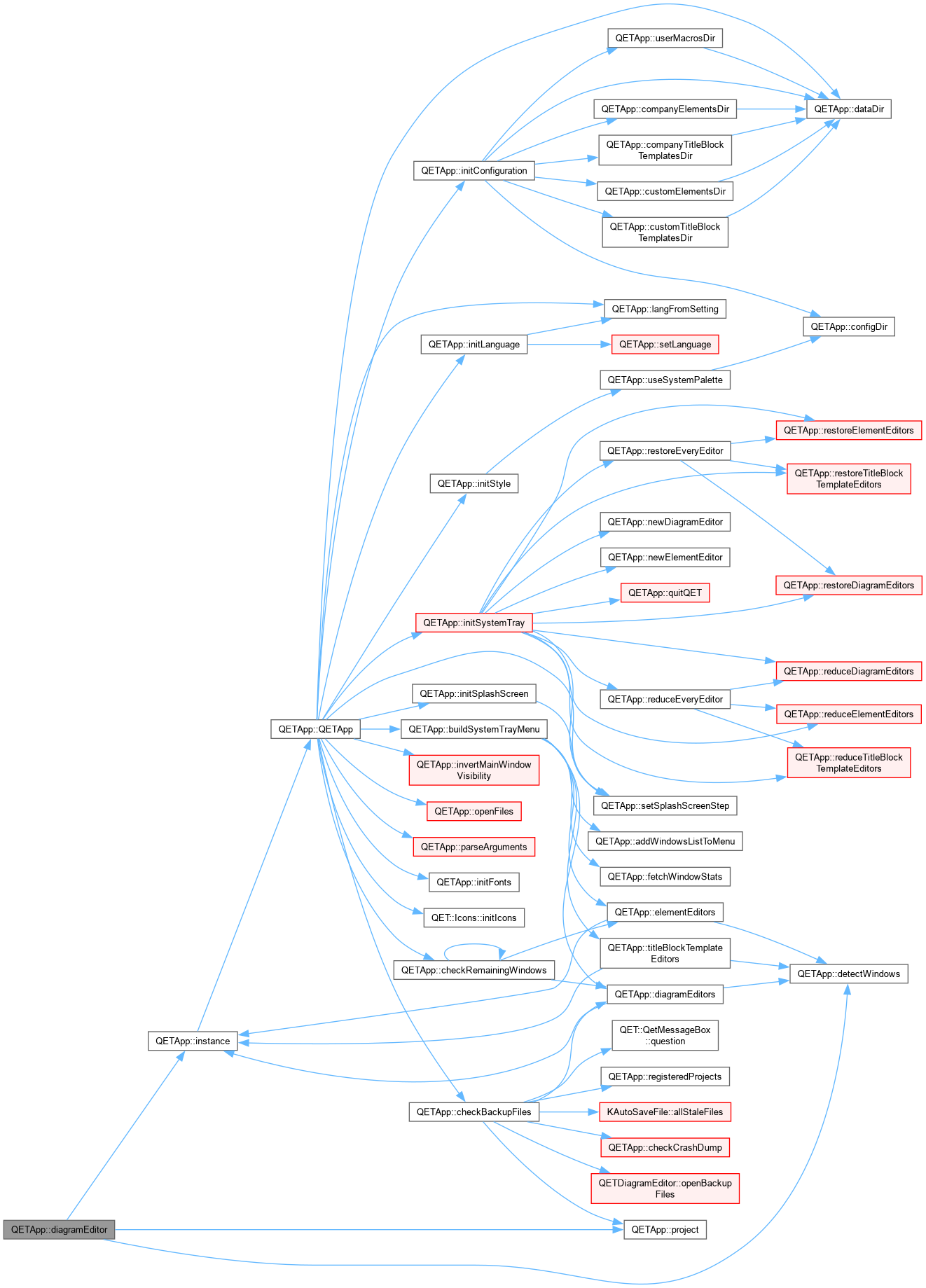

	QETApp::diagramEditor.

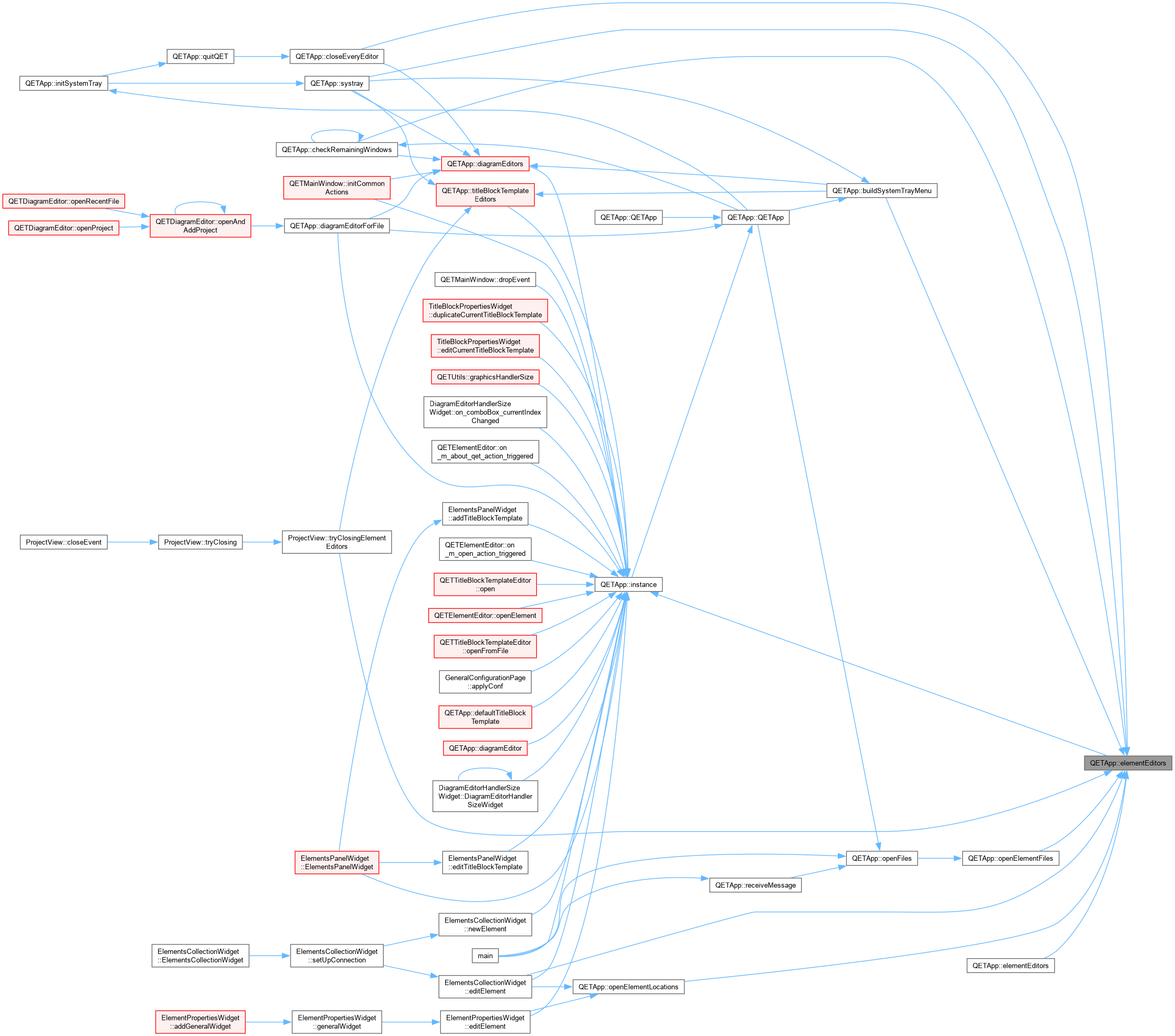

static QList< QETElementEditor * >	elementEditors ()

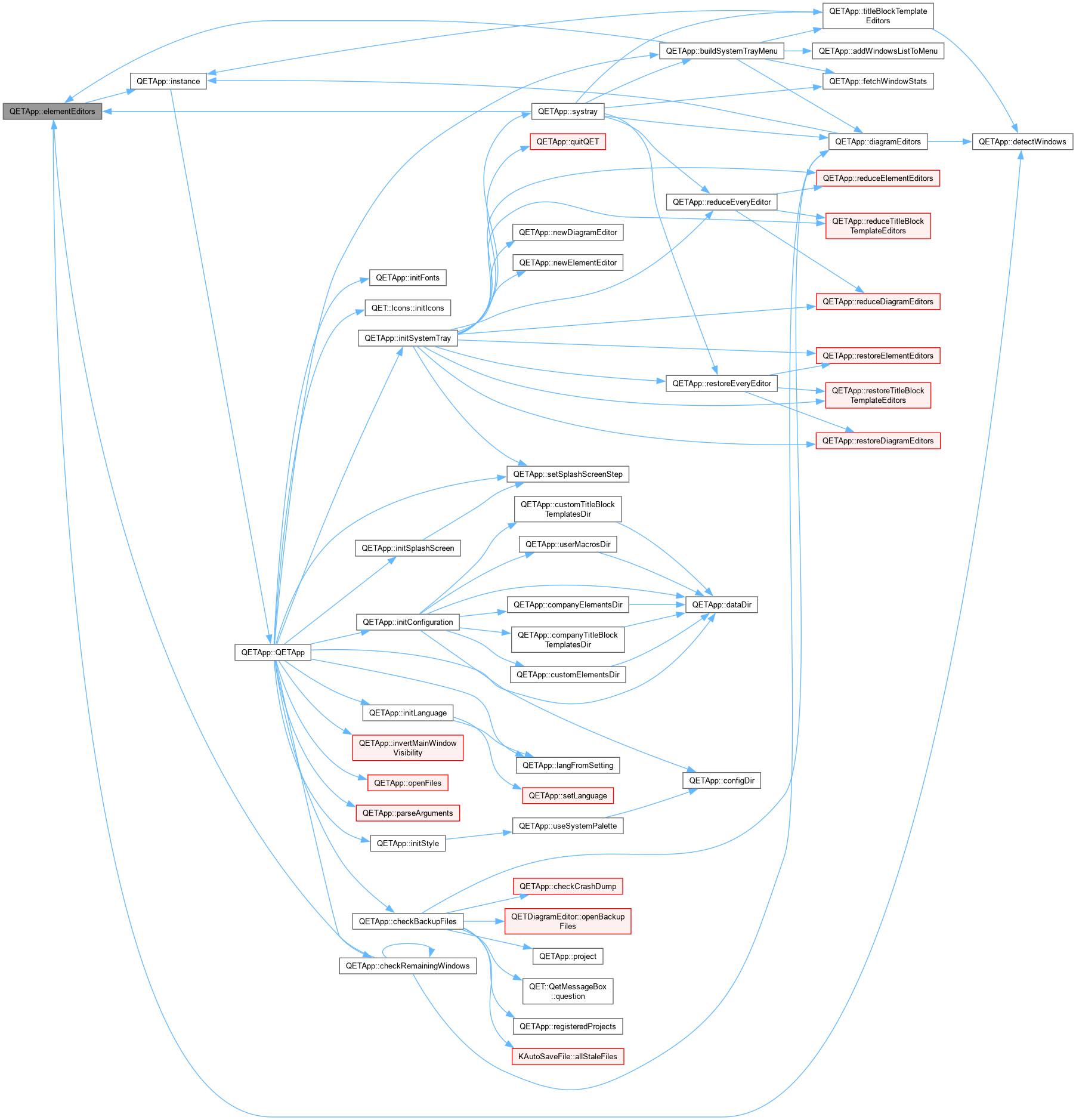

	QETApp::elementEditors.
static QList< QETElementEditor * >	elementEditors (QETProject *)
	QETApp::elementEditors.

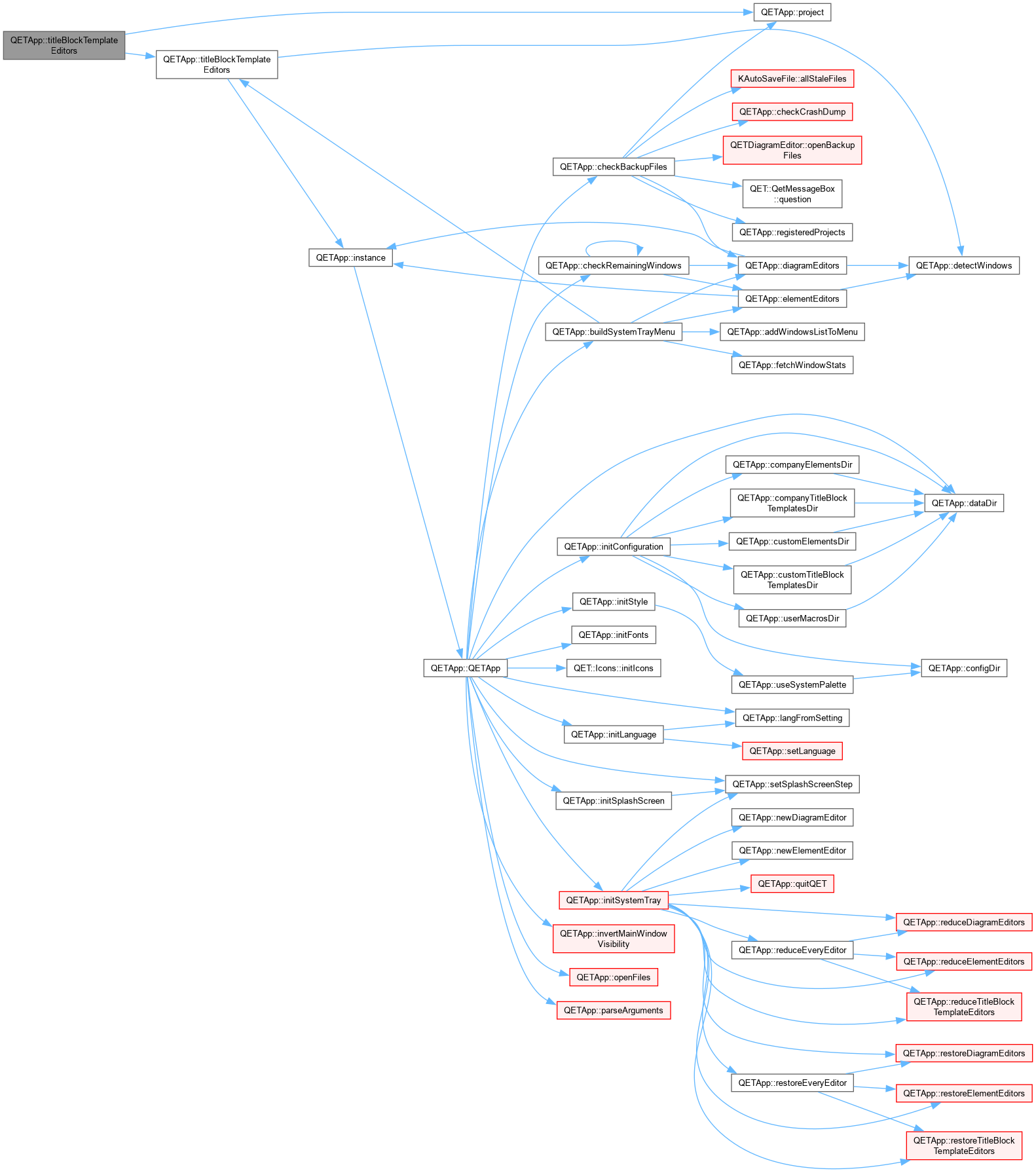

static QList< QETTitleBlockTemplateEditor * >	titleBlockTemplateEditors ()
	QETApp::titleBlockTemplateEditors.
static QList< QETTitleBlockTemplateEditor * >	titleBlockTemplateEditors (QETProject *)
	QETApp::titleBlockTemplateEditors.
static QTextOrientationSpinBoxWidget *	createTextOrientationSpinBoxWidget ()

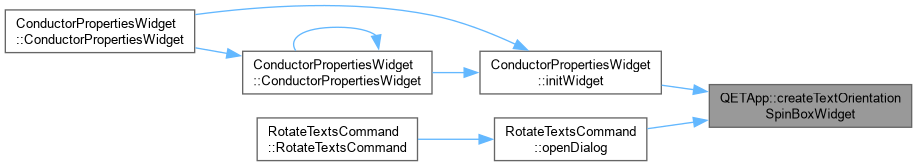

	QETApp::createTextOrientationSpinBoxWidget Instantiates a QTextOrientationSpinBoxWidget and configures:

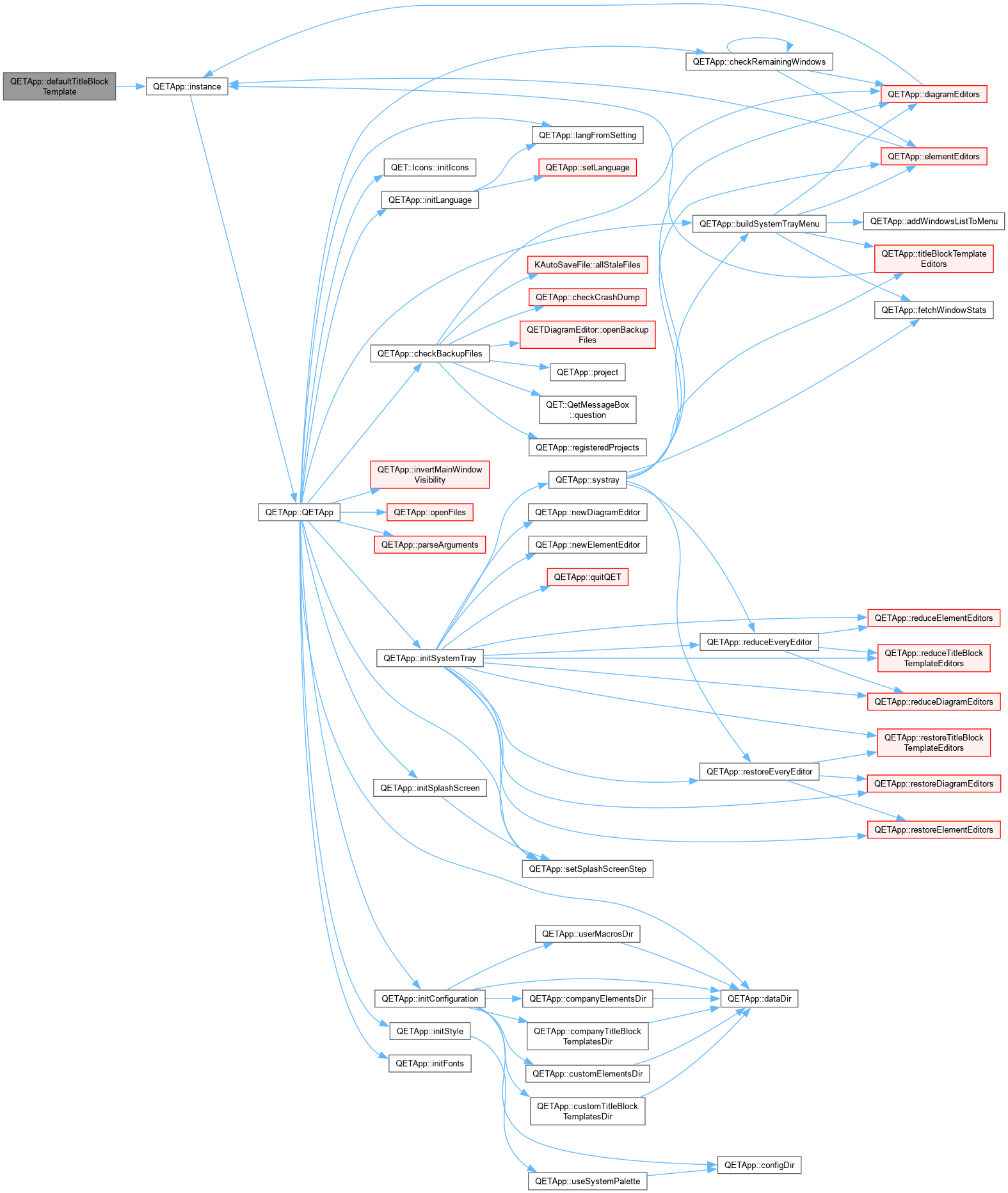

static TitleBlockTemplate *	defaultTitleBlockTemplate ()
	QETApp::defaultTitleBlockTemplate.

Static Public Attributes
static QString	lang_dir = QString()
	lang_dir Directory containing localization files.

Private Member Functions
	QETApp (const QETApp &)
template<class T>
QList< T * >	detectWindows () const
template<class T>
void	setMainWindowsVisible (bool)
QList< QWidget * >	floatingToolbarsAndDocksForMainWindow (QMainWindow *) const

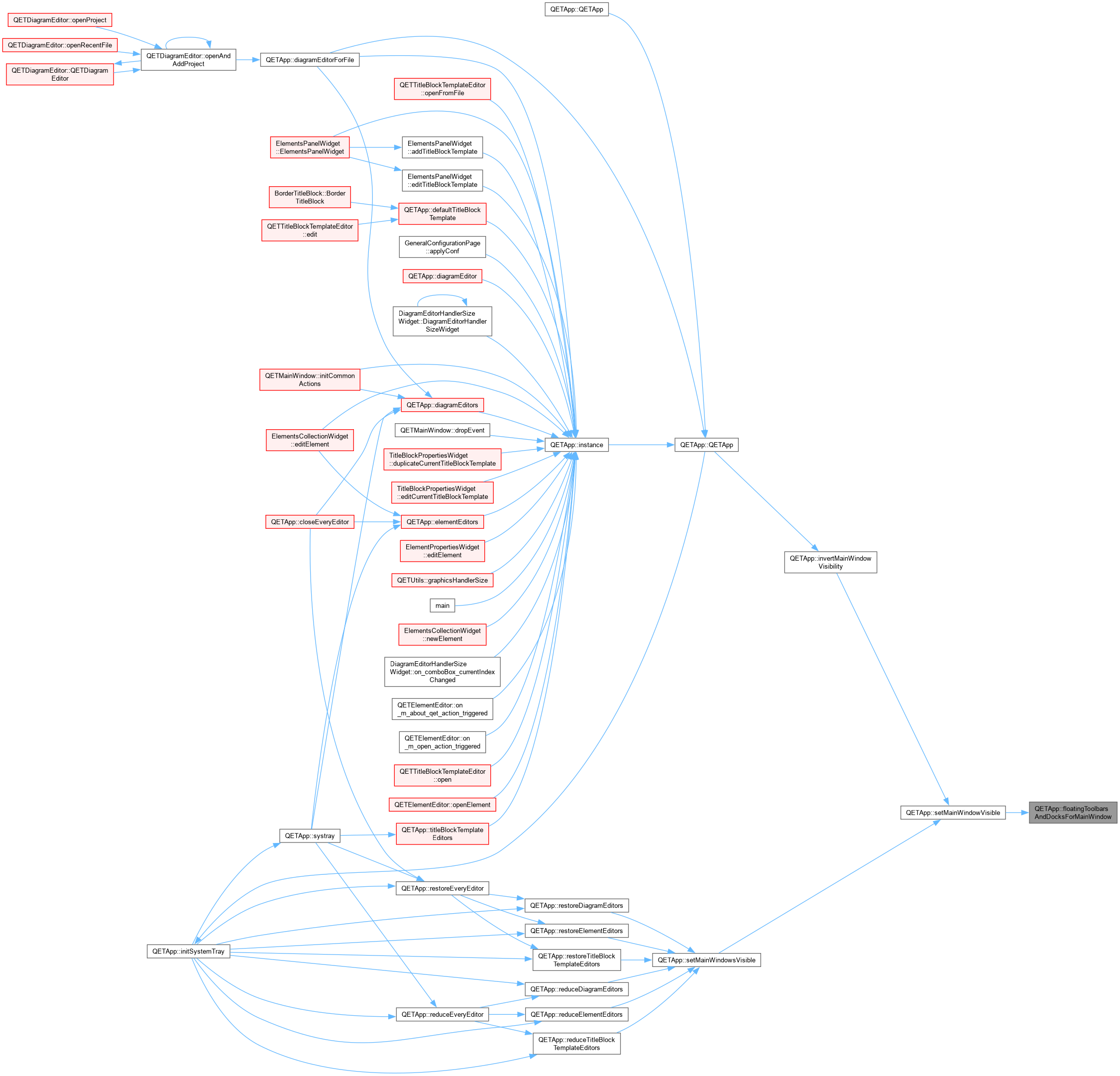

	QETApp::floatingToolbarsAndDocksForMainWindow.
void	parseArguments ()

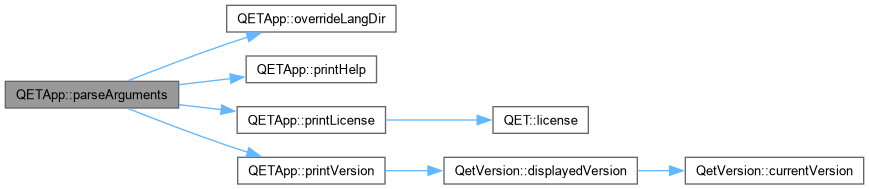

	QETApp::parseArguments Parse the following arguments:
void	initSplashScreen ()
	QETApp::initSplashScreen Initializes the splash screen if and only if the execution is interactive. Otherwise, the splash_screen_ attribute is 0.

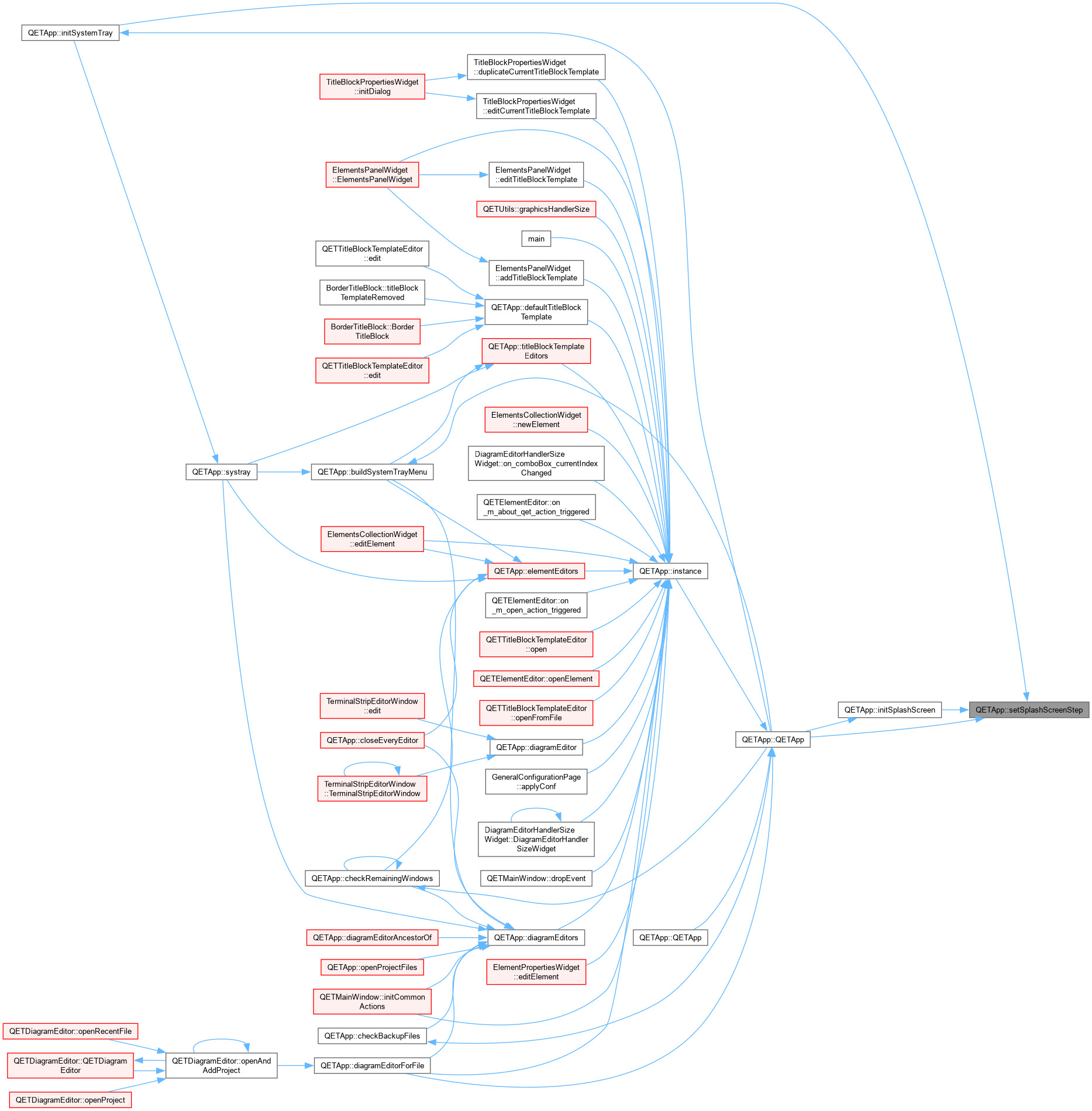

void	setSplashScreenStep (const QString &=QString())
	QETApp::setSplashScreenStep Changes the text of the splash screen and takes events into account. If the application is running non-interactively, this method does nothing.

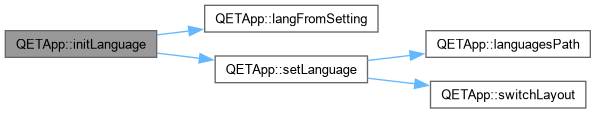

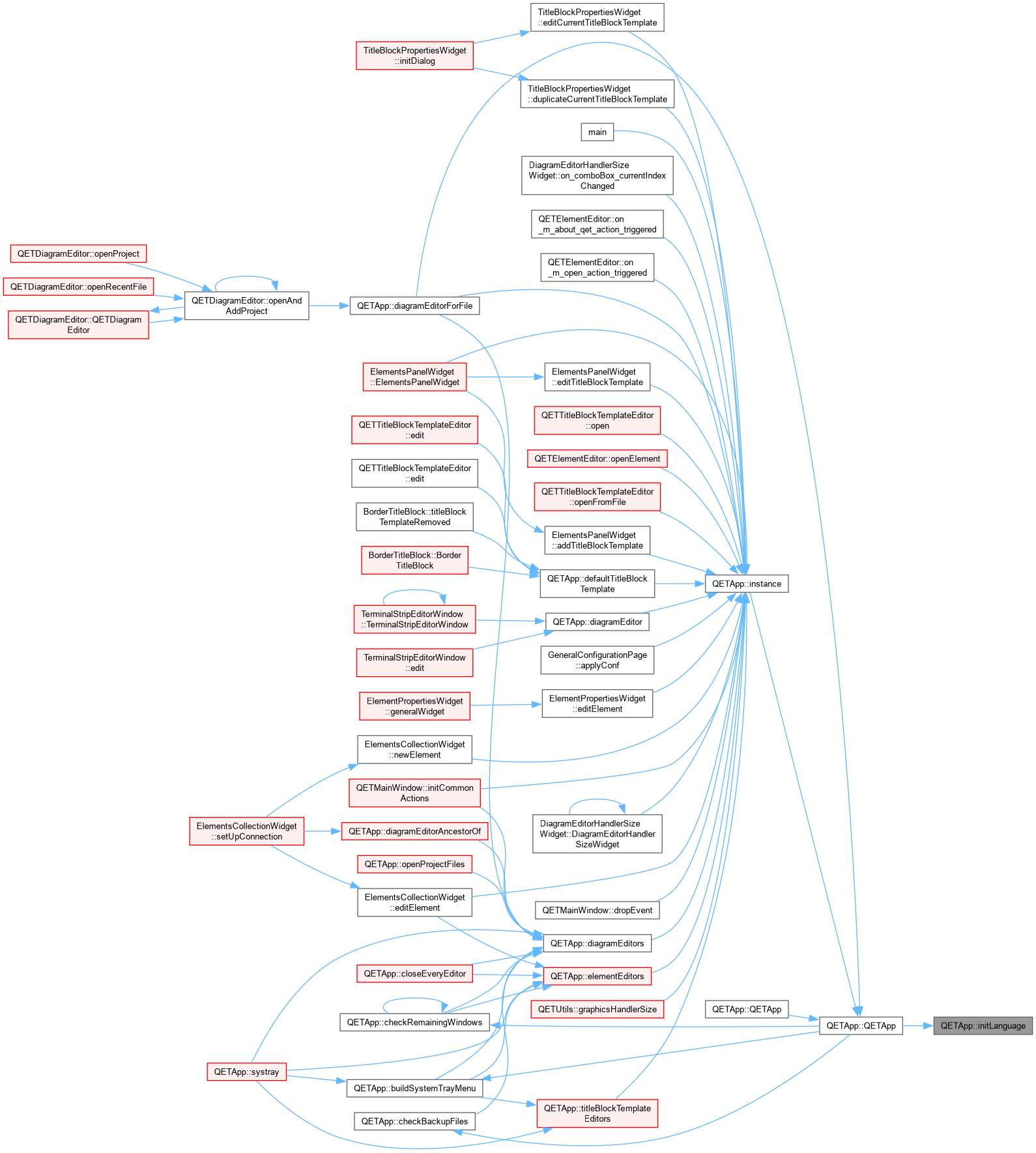

void	initLanguage ()
	QETApp::initLanguage Determine and apply the language to use for the application.

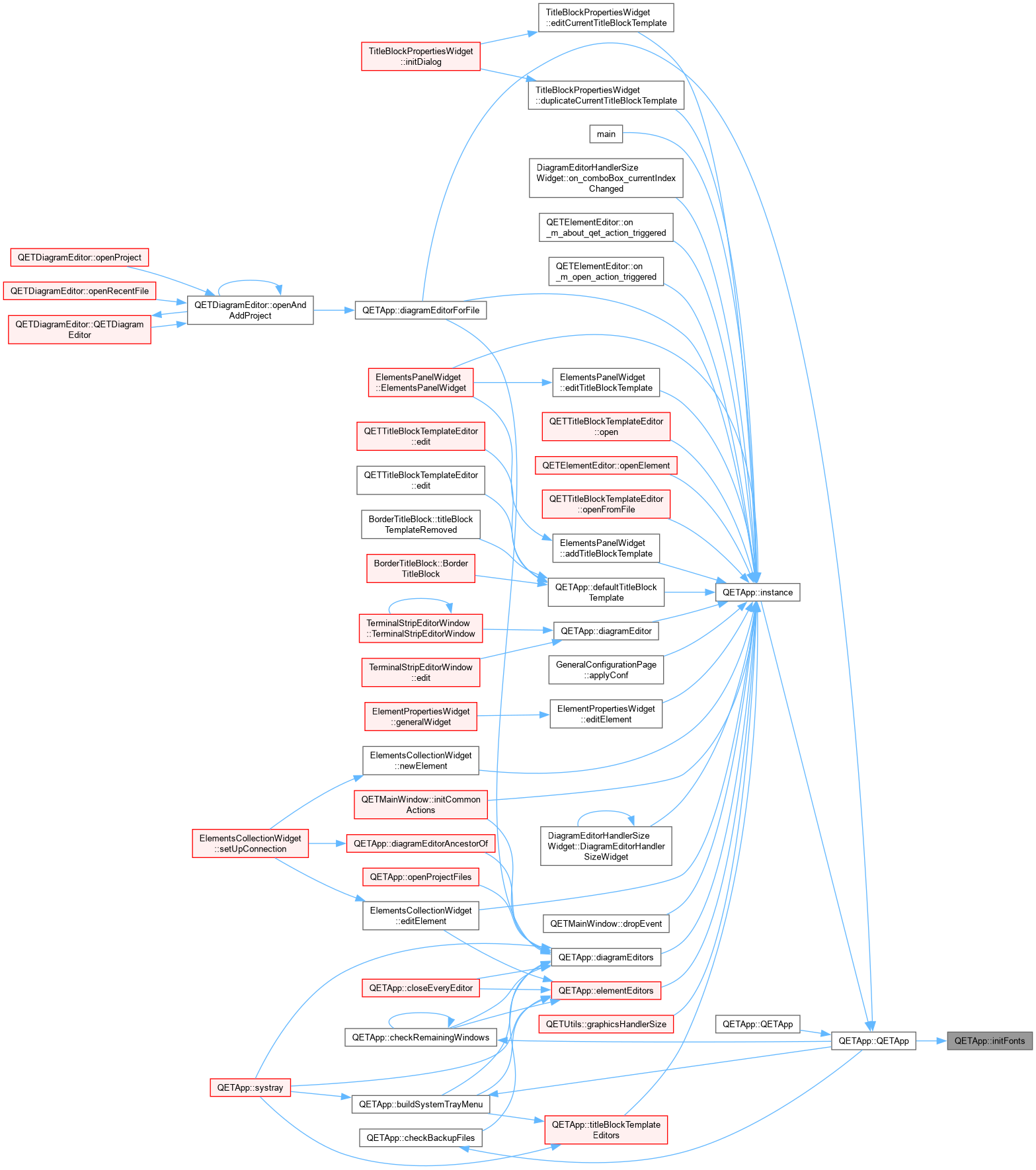

void	initFonts ()
	QETApp::initFonts Setup the fonts to use in the application.
void	initStyle ()
	QETApp::initStyle Setup the gui style.

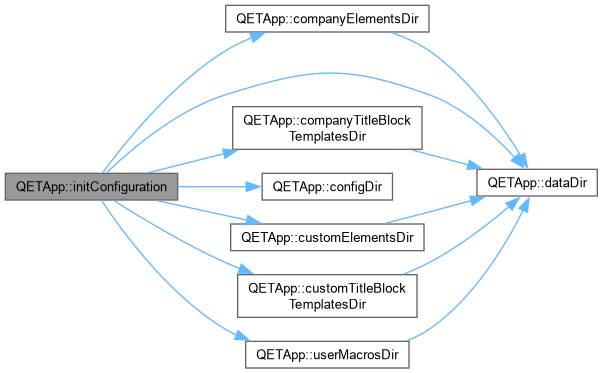

void	initConfiguration ()
	QETApp::initConfiguration Reads and takes into account the configuration of the application. This method will create, if necessary:

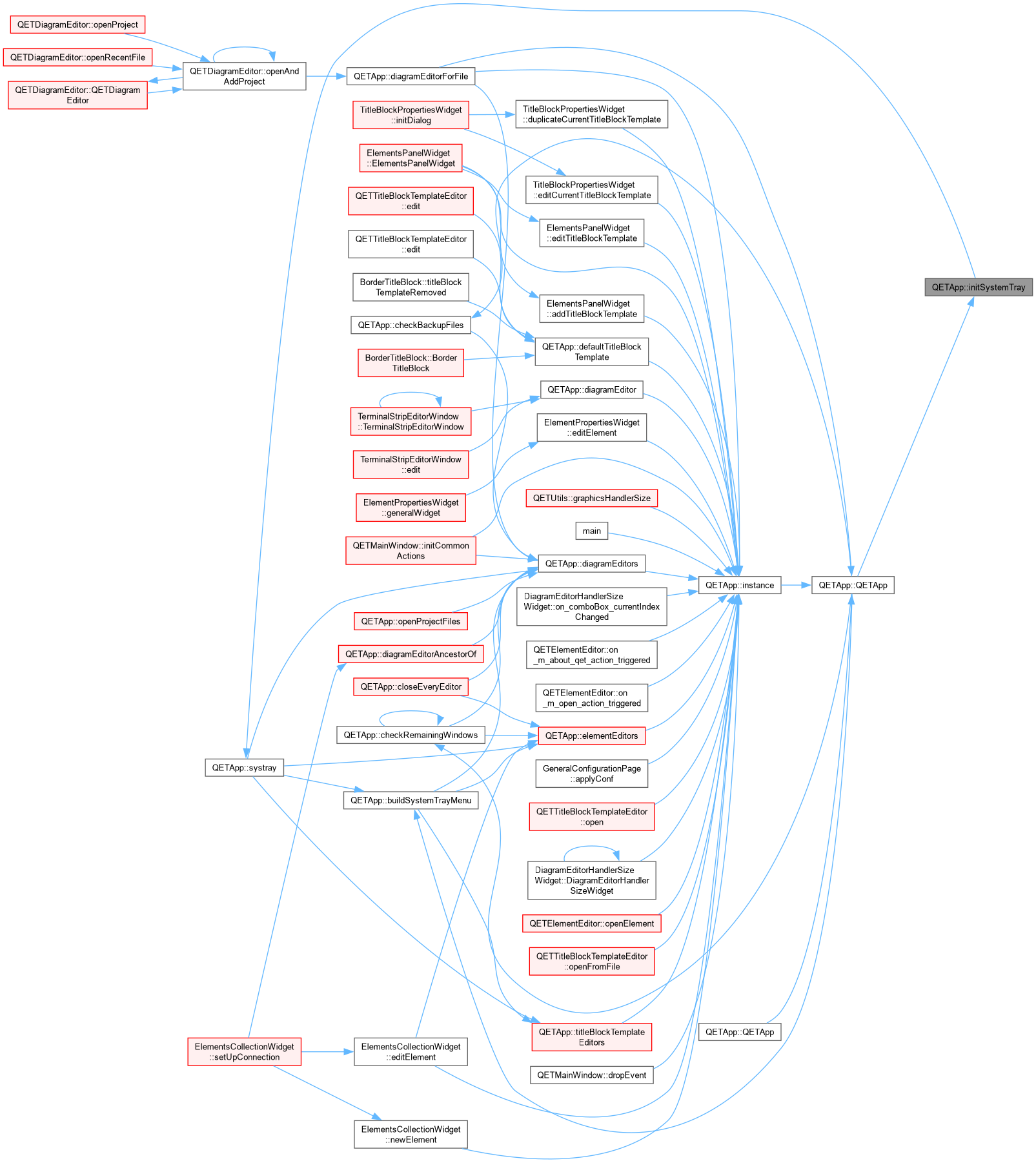

void	initSystemTray ()

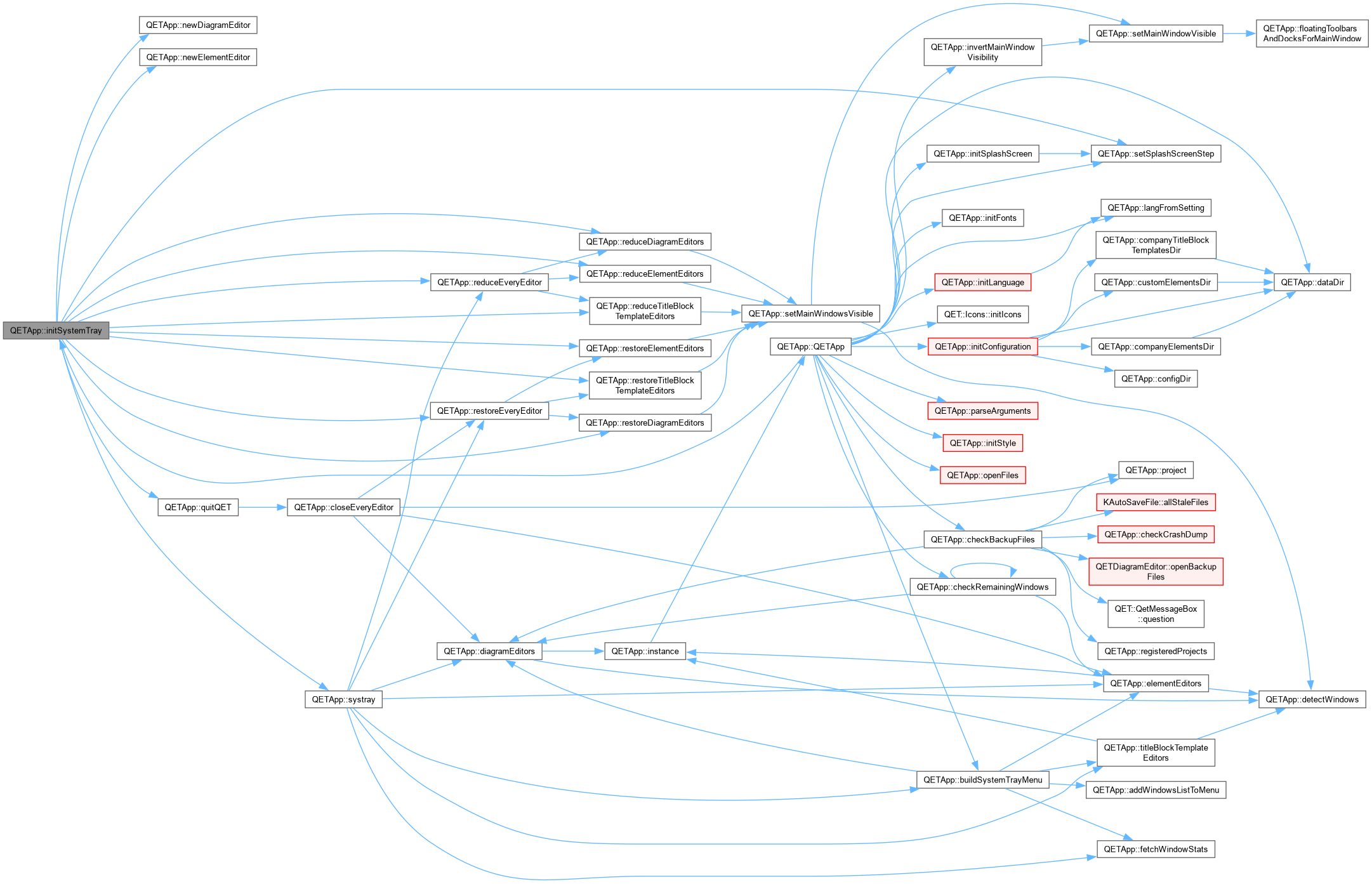

	QETApp::initSystemTray Build the icon in the systray and its menu.

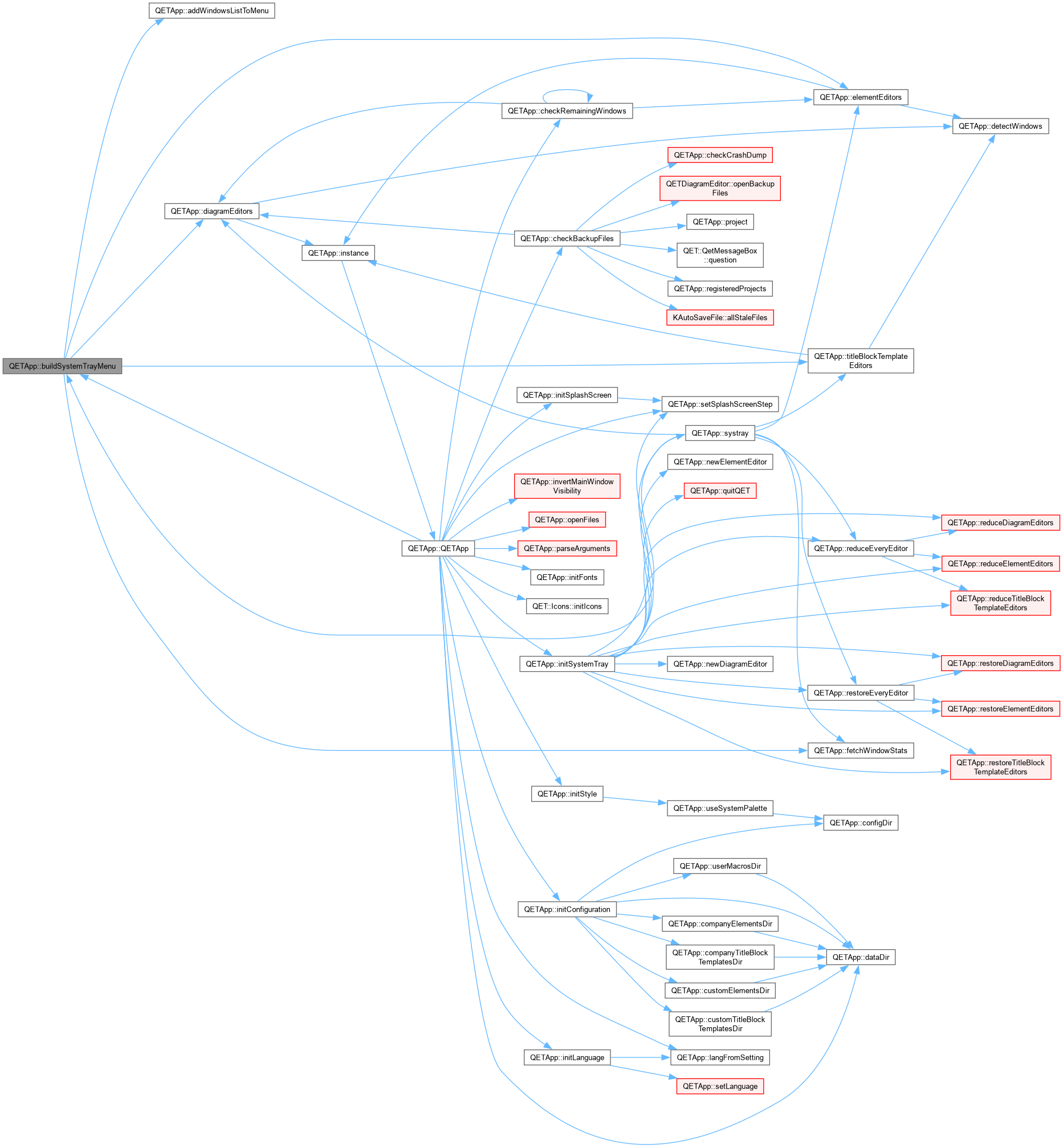

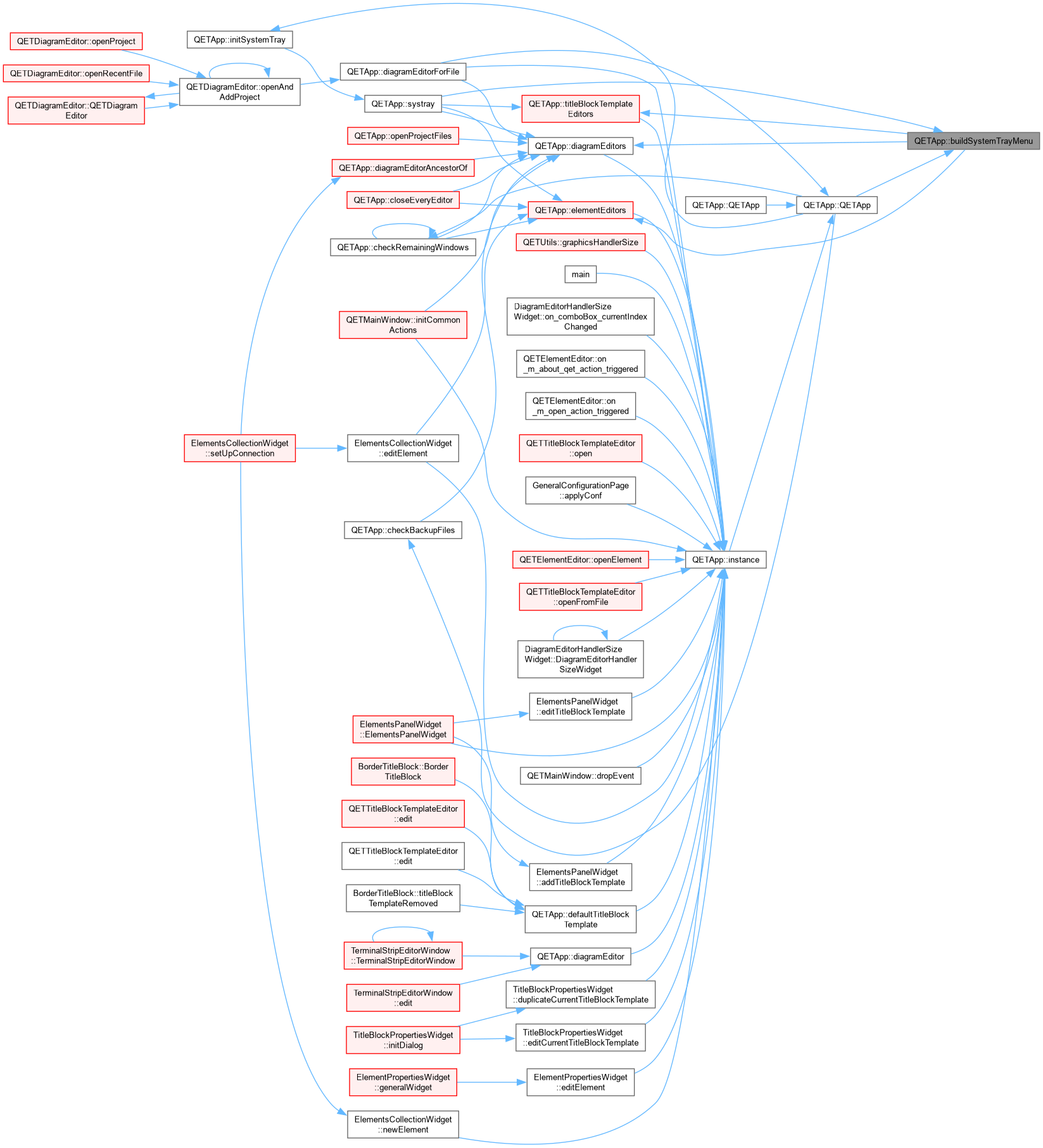

void	buildSystemTrayMenu ()
	QETApp::buildSystemTrayMenu builds the icon menu in the systray.

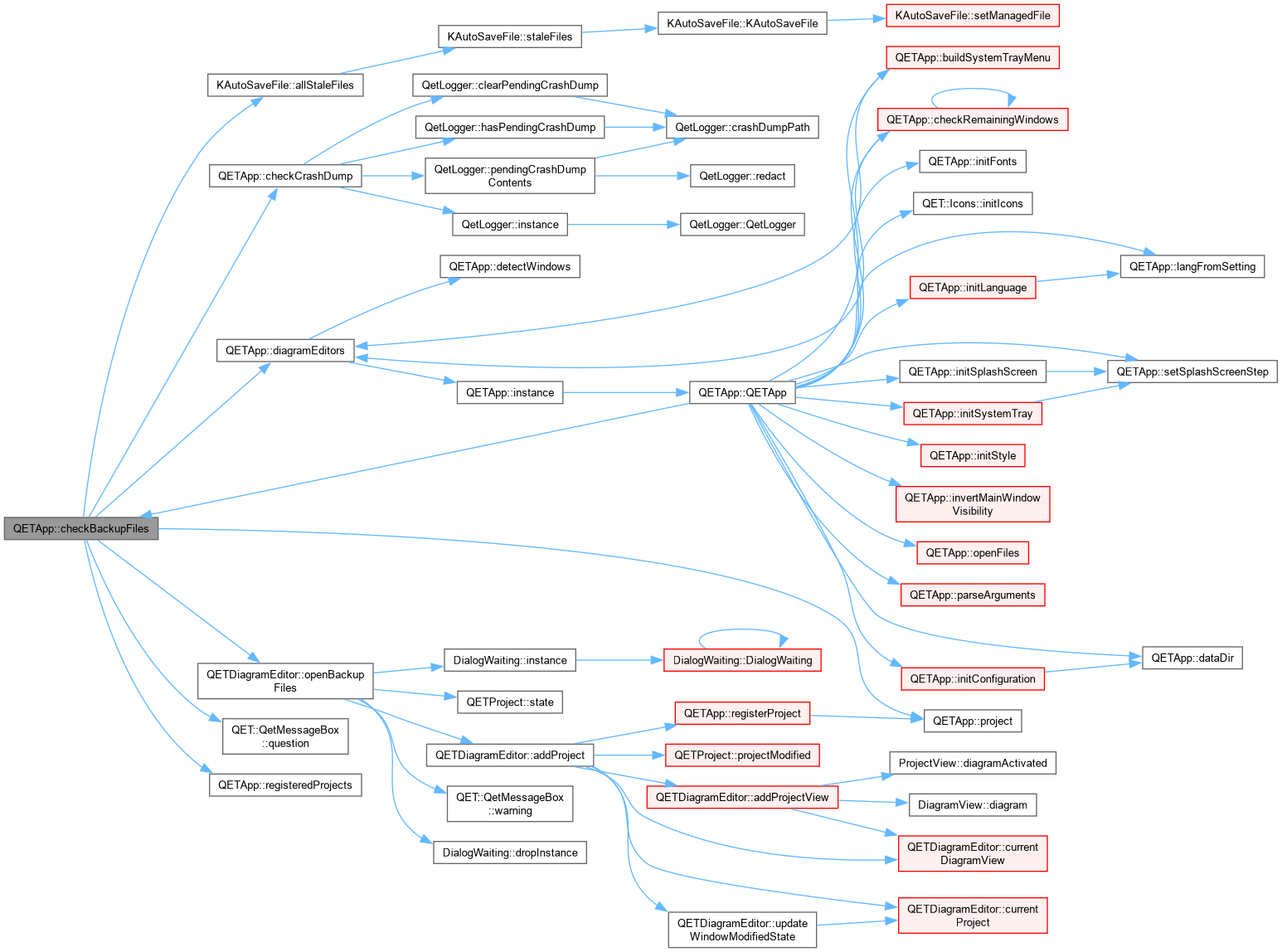

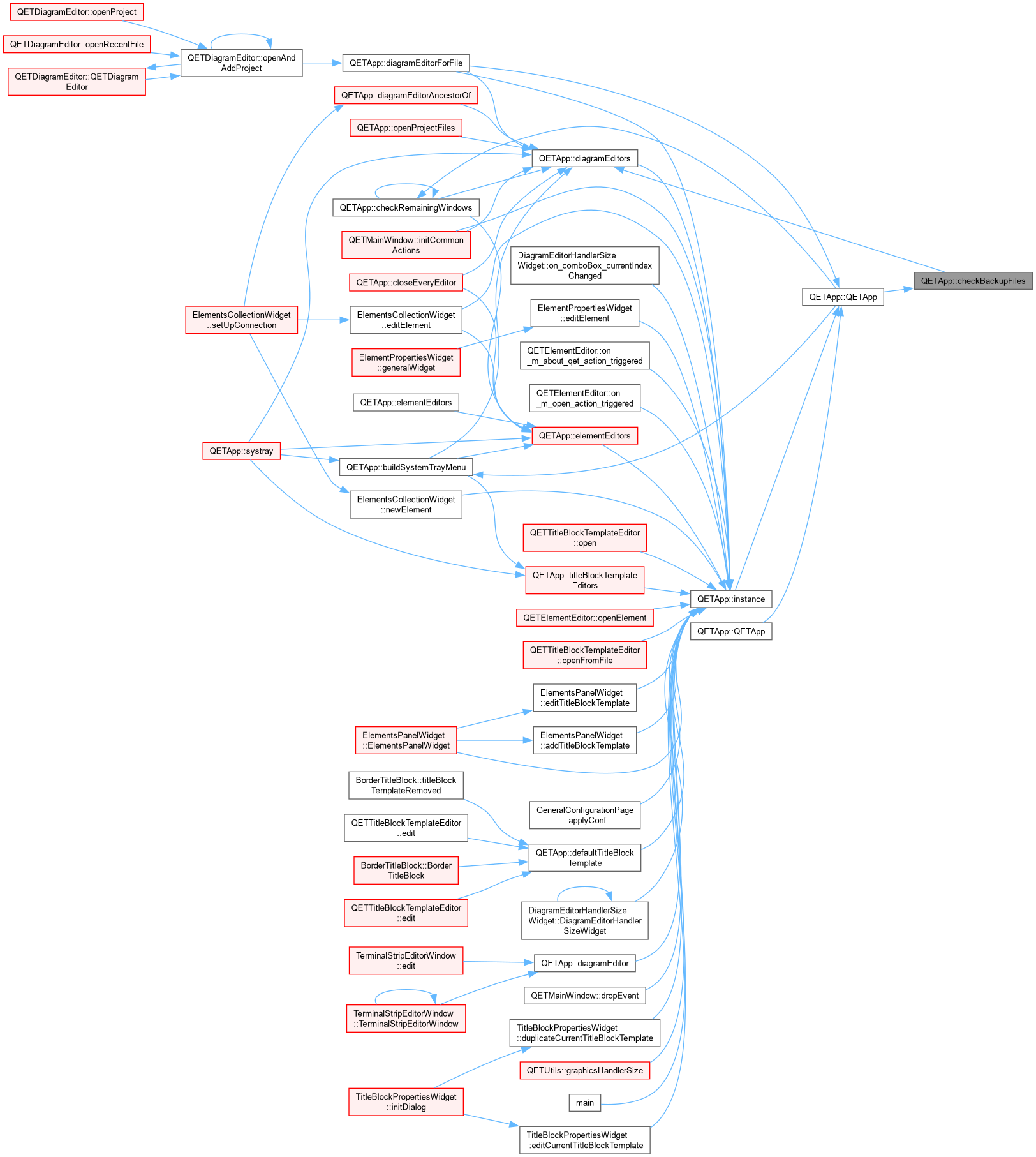

void	checkBackupFiles ()
	QETApp::checkBackupFiles Check for backup files. If backup was found, open a dialog and ask user what to do.

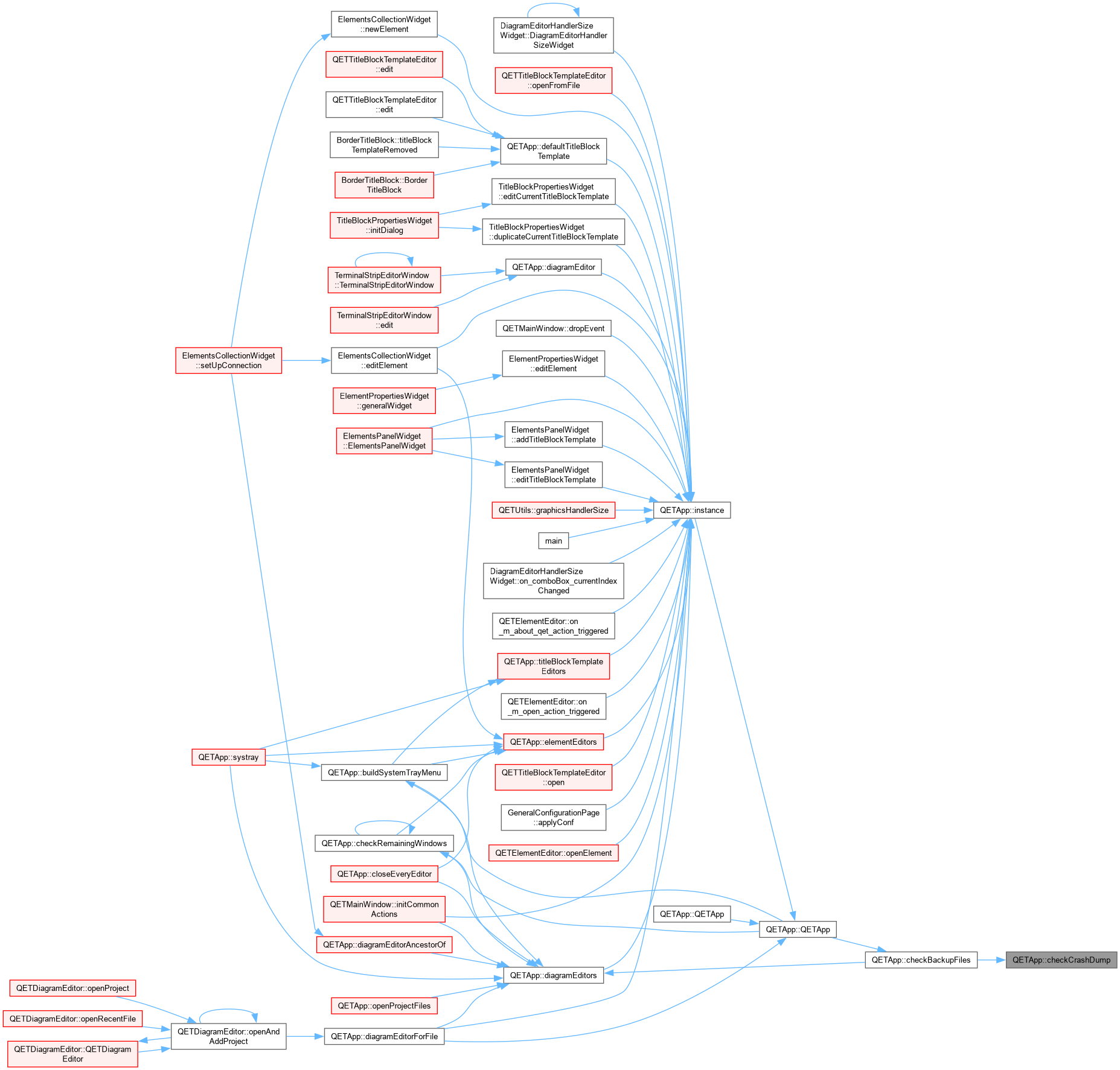

void	checkCrashDump ()

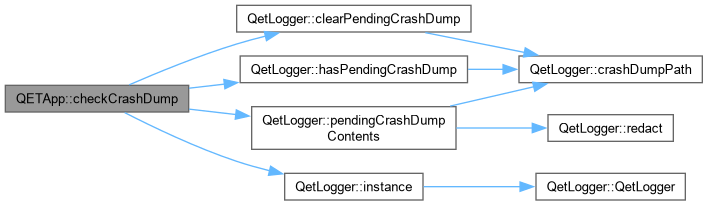

	QETApp::checkCrashDump Discussion #644, step 5: if the crash handler (step 4) left an unretrieved dump from a previous run, offer it to the user. Only called from checkBackupFiles() when there was no stale project file to recover this run, so the two prompts never both show at once.
void	fetchWindowStats (const QList< QETDiagramEditor * > &, const QList< QETElementEditor * > &, const QList< QETTitleBlockTemplateEditor * > &)

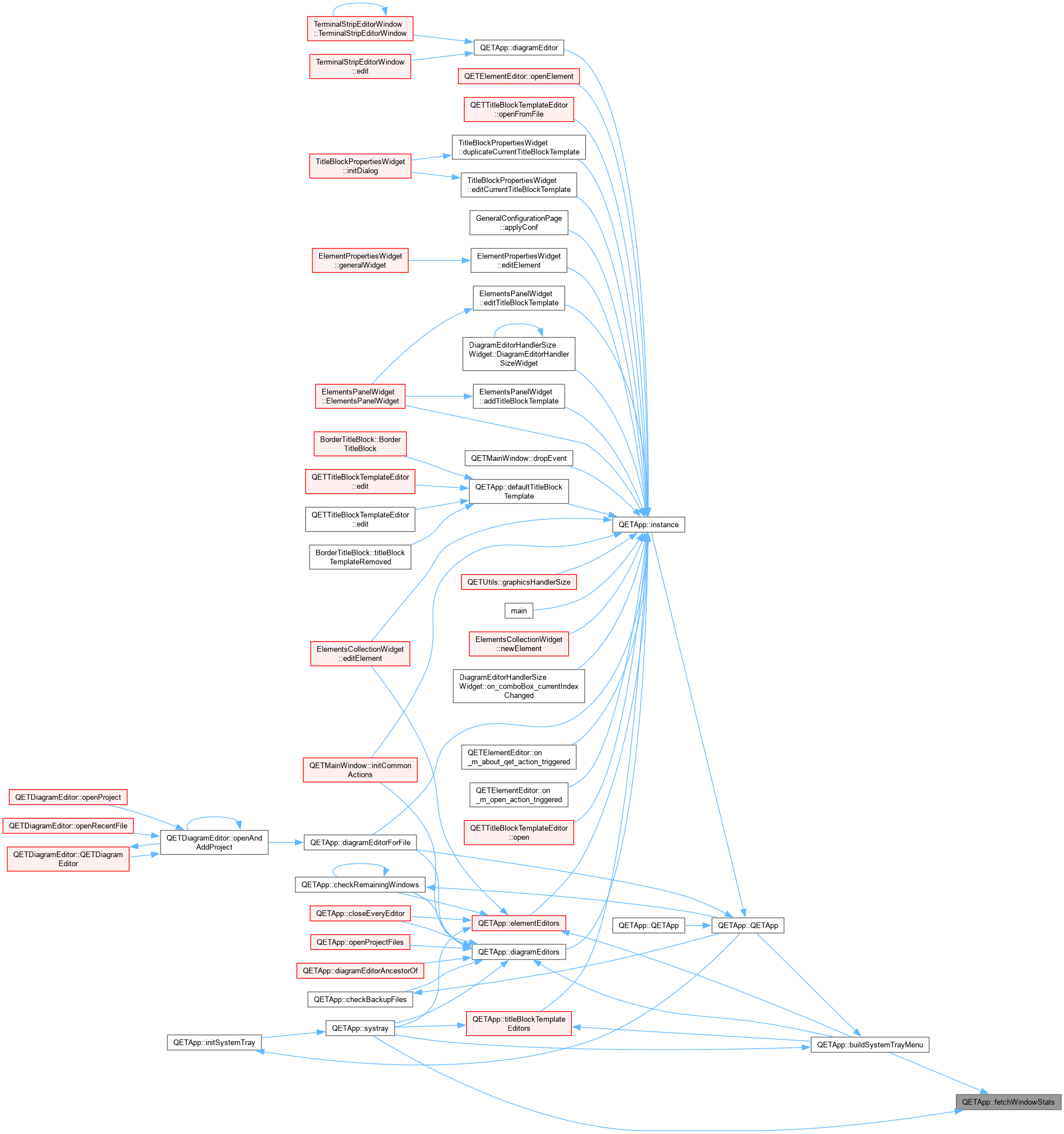

	QETApp::fetchWindowStats Updates the booleans concerning the state of the windows.
template<class T>

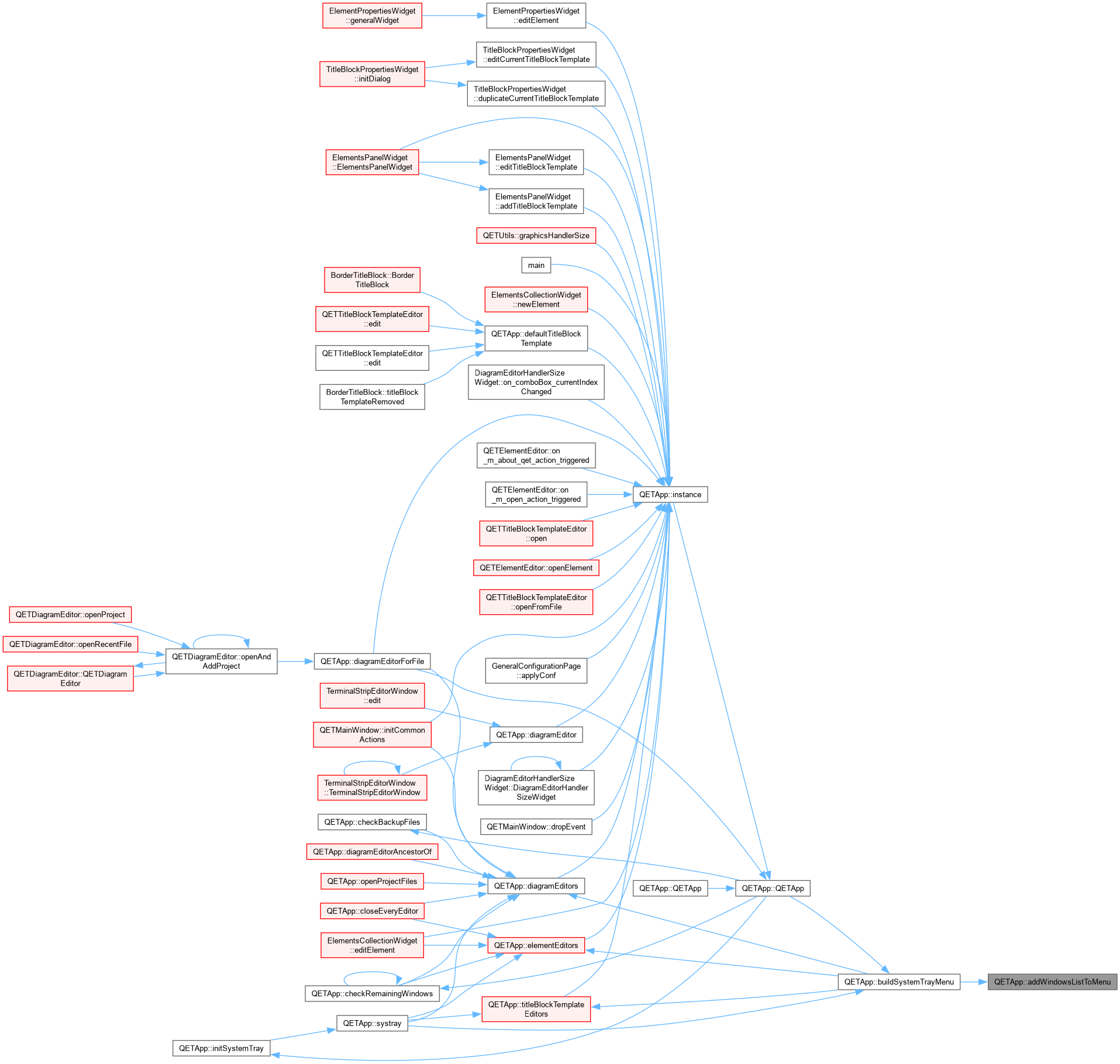

void	addWindowsListToMenu (QMenu , const QList< T > &)

Static Private Member Functions
static int	projectIdFromString (const QString &)
	QETApp::projectIdFromString.
static QETProject *	projectFromString (const QString &)

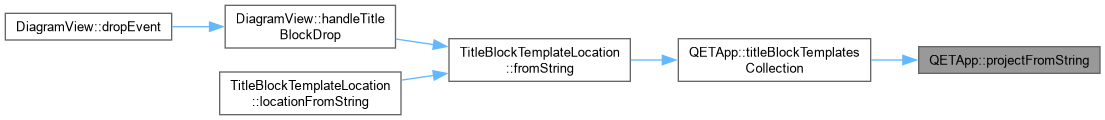

	QETApp::projectFromString.

Private Attributes
QTranslator	qtTranslator
QTranslator	qetTranslator
QSystemTrayIcon *	m_qsti
QSplashScreen *	m_splash_screen
QMenu *	menu_systray
QAction *	quitter_qet
QAction *	reduce_appli
QAction *	restore_appli
QAction *	reduce_diagrams
QAction *	restore_diagrams
QAction *	reduce_elements
QAction *	restore_elements
QAction *	reduce_templates
QAction *	restore_templates
QAction *	new_diagram
QAction *	new_element
QHash< QMainWindow *, QByteArray >	window_geometries
QHash< QMainWindow *, QByteArray >	window_states
bool	every_editor_reduced
bool	every_diagram_reduced
bool	every_diagram_visible
bool	every_element_reduced
bool	every_element_visible
bool	every_template_reduced
bool	every_template_visible
QSignalMapper	signal_map
QETArguments	qet_arguments_
	Command-line arguments parser.
bool	non_interactive_execution_
	non_interactive_execution_ Whether the application will end without any user interaction
QPalette	initial_palette_
	System color palette.

Static Private Attributes
static QETApp *	m_qetapp = nullptr
static TitleBlockTemplatesFilesCollection *	m_common_tbt_collection
static TitleBlockTemplatesFilesCollection *	m_company_tbt_collection
static TitleBlockTemplatesFilesCollection *	m_custom_tbt_collection
static ElementsCollectionCache *	collections_cache_ = nullptr
static QMap< uint, QETProject * >	registered_projects_ = QMap<uint, QETProject *>()
static uint	next_project_id = 0
static RecentFiles *	m_projects_recent_files = nullptr
static RecentFiles *	m_elements_recent_files = nullptr
static TitleBlockTemplate *	default_titleblock_template_ = nullptr
static QString	m_common_element_dir = QString()
static bool	m_common_element_dir_is_set = false
static QString	m_company_element_dir = QString()
static bool	m_company_element_dir_is_set = false
static QString	m_custom_element_dir = QString()
static bool	m_custom_element_dir_is_set = false
static QString	m_user_company_tbt_dir = QString()
static QString	m_user_custom_tbt_dir = QString()
static QString	m_user_macros_dir = QString()

Detailed Description

The QETApp class This class represents the QElectroTech application.

Constructor & Destructor Documentation

◆ QETApp() [1/2]

QETApp::QETApp ( )

QETApp::QETApp.

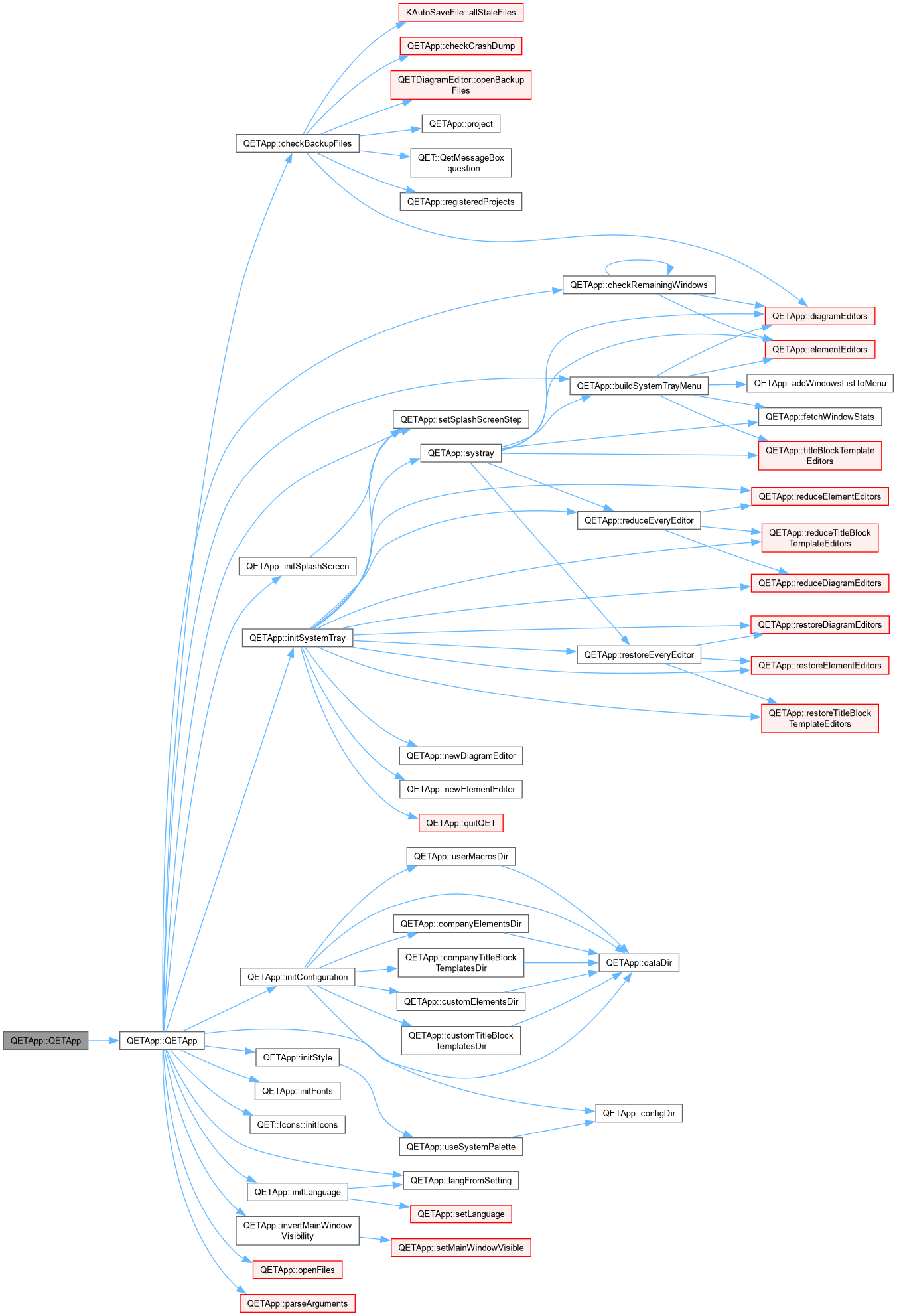

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ~QETApp()

QETApp::~QETApp ( )

override

QETApp::~QETApp.

Here is the call graph for this function:

◆ QETApp() [2/2]

QETApp::QETApp ( const QETApp & )

private

Here is the call graph for this function:

Member Function Documentation

◆ aboutQET

void QETApp::aboutQET ( )

slot

QETApp::aboutQET Open the dialog about qet.

Here is the caller graph for this function:

◆ addWindowsListToMenu()

template<class T>

void QETApp::addWindowsListToMenu	(	QMenu *	menu,
		const QList< T * > &	windows )

private

Add a list of windows to menu. This template function assumes it will be given a QList of pointers to objects inheriting the QMainWindow class. T the class inheriting QMainWindow

Parameters

menu	the menu windows will be added to
windows	A list of top-level windows.

Here is the caller graph for this function:

◆ availableTitleBlockTemplatesCollections()

QList< TitleBlockTemplatesCollection * > QETApp::availableTitleBlockTemplatesCollections ( )

static

QETApp::availableTitleBlockTemplatesCollections.

Returns: the list of all available title block templates collections, beginning with the common and custom ones, plus the projects-embedded ones.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ buildSystemTrayMenu()

void QETApp::buildSystemTrayMenu ( )

private

QETApp::buildSystemTrayMenu builds the icon menu in the systray.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkBackupFiles()

void QETApp::checkBackupFiles ( )

private

QETApp::checkBackupFiles Check for backup files. If backup was found, open a dialog and ask user what to do.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkCrashDump()

void QETApp::checkCrashDump ( )

private

QETApp::checkCrashDump Discussion #644, step 5: if the crash handler (step 4) left an unretrieved dump from a previous run, offer it to the user. Only called from checkBackupFiles() when there was no stale project file to recover this run, so the two prompts never both show at once.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkRemainingWindows

void QETApp::checkRemainingWindows ( )

slot

QETApp::checkRemainingWindows Check if there are any windows (hidden or not) and exit if there are no more.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ closeEveryEditor

bool QETApp::closeEveryEditor ( )

slot

QETApp::closeEveryEditor Close all editors.

Returns: true if the user has accepted all closures, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

◆ collectionCache()

ElementsCollectionCache * QETApp::collectionCache ( )

static

QETApp::collectionCache.

Returns: the collection cache provided by the application itself.

Here is the caller graph for this function:

◆ commonElementsDir()

QString QETApp::commonElementsDir ( )

static

QETApp::commonElementsDir.

Returns: the dir path of the common elements collection.

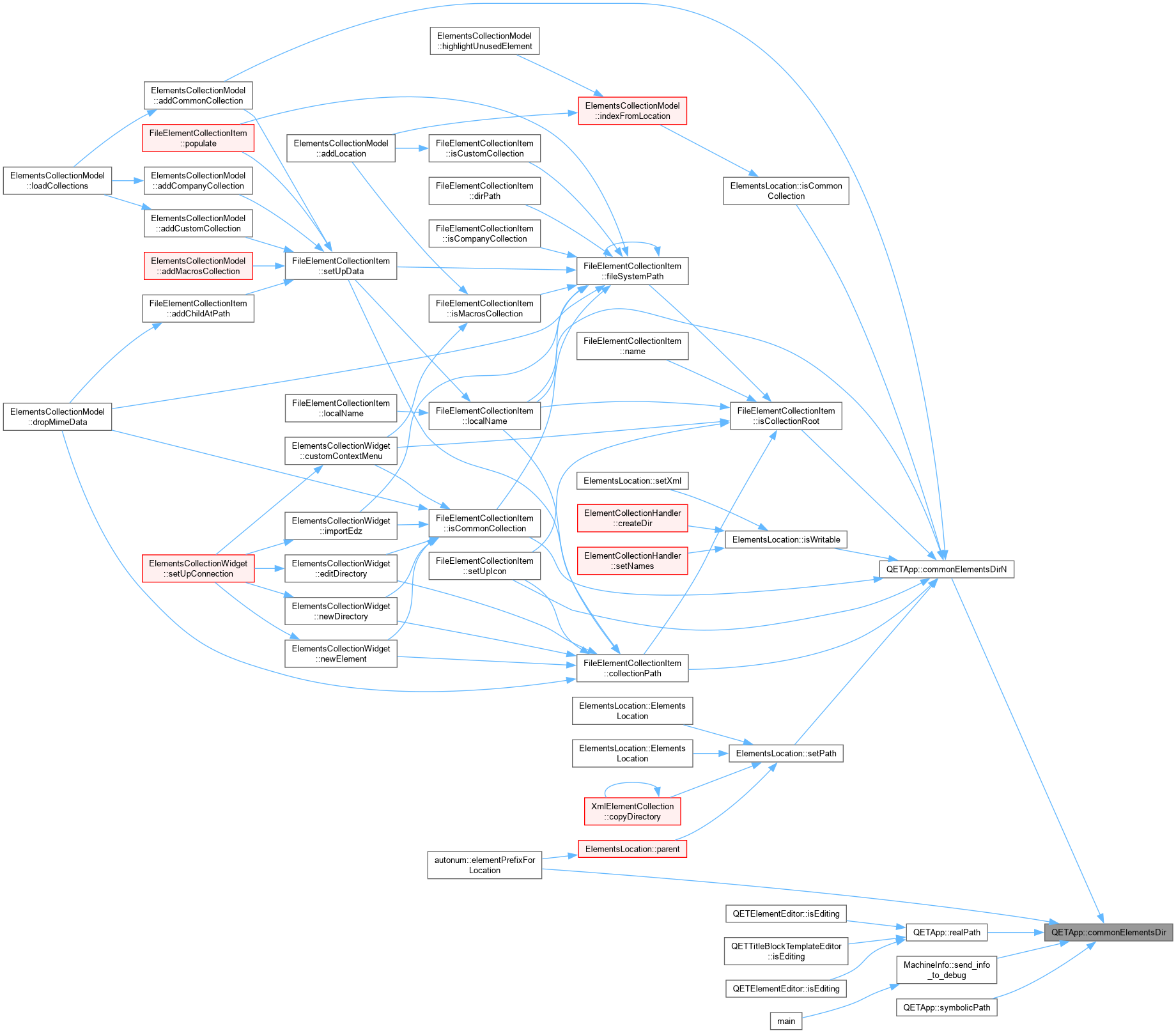

Here is the caller graph for this function:

◆ commonElementsDirN()

QString QETApp::commonElementsDirN ( )

static

QETApp::commonElementsDirN like QString QETApp::commonElementsDir but without "/" at the end.

Returns: QString path

Here is the call graph for this function:

Here is the caller graph for this function:

◆ commonTitleBlockTemplatesCollection()

TitleBlockTemplatesFilesCollection * QETApp::commonTitleBlockTemplatesCollection ( )

static

QETApp::commonTitleBlockTemplatesCollection.

Returns: the common title block templates collection, i.e. the one provided by QElecrotTech

Here is the call graph for this function:

Here is the caller graph for this function:

◆ commonTitleBlockTemplatesDir()

QString QETApp::commonTitleBlockTemplatesDir ( )

static

QETApp::commonTitleBlockTemplatesDir.

Returns: the path of the directory containing the common title block templates collection.

Here is the caller graph for this function:

◆ companyElementsDir()

QString QETApp::companyElementsDir ( )

static

QETApp::companyElementsDir.

Returns: the dir path of company elements collection appended with a "/" separator

Here is the call graph for this function:

Here is the caller graph for this function:

◆ companyElementsDirN()

QString QETApp::companyElementsDirN ( )

static

QETApp::companyElementsDirN like QString QETApp::companyElementsDir but without "/" at the end.

Returns: QString path

Here is the call graph for this function:

Here is the caller graph for this function:

◆ companyTitleBlockTemplatesCollection()

TitleBlockTemplatesFilesCollection * QETApp::companyTitleBlockTemplatesCollection ( )

static

QETApp::companyTitleBlockTemplatesCollection.

Returns: the company's title block templates collection, i.e. the one managed by the admin

Here is the call graph for this function:

Here is the caller graph for this function:

◆ companyTitleBlockTemplatesDir()

QString QETApp::companyTitleBlockTemplatesDir ( )

static

QETApp::companyTitleBlockTemplatesDir.

Returns: the path of the directory containing the company title block templates collection.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ configDir()

QString QETApp::configDir ( )

static

QETApp::configDir Return the QET configuration folder, i.e. the path to the folder in which QET will read configuration and customization information specific to the current user. This file is generally C:/Users/<USER>/AppData/Local/<APPNAME> on Windows and ~/.config/<APPNAME> under UNIX-like systems.

Returns: The path of the QElectroTech configuration folder

Here is the caller graph for this function:

◆ configureQET

void QETApp::configureQET ( )

slot

QETApp::configureQET Allows the user to configure QET by launching an appropriate dialog.

See also: ConfigDialog

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createTextOrientationSpinBoxWidget()

QTextOrientationSpinBoxWidget * QETApp::createTextOrientationSpinBoxWidget ( )

static

QETApp::createTextOrientationSpinBoxWidget Instantiates a QTextOrientationSpinBoxWidget and configures:

his font
his strings
Note
that the deletion of the widget thus allocated is the responsibility of the caller.

Returns

See also
QTextOrientationSpinBoxWidget

Here is the call graph for this function:

Here is the caller graph for this function:

◆ customElementsDir()

QString QETApp::customElementsDir ( )

static

QETApp::customElementsDir.

Returns: the dir path of user elements collection appended with a "/" separator

Here is the call graph for this function:

Here is the caller graph for this function:

◆ customElementsDirN()

QString QETApp::customElementsDirN ( )

static

QETApp::customElementsDirN like QString QETApp::customElementsDir but without "/" at the end.

Returns: QString path

Here is the call graph for this function:

Here is the caller graph for this function:

◆ customTitleBlockTemplatesCollection()

TitleBlockTemplatesFilesCollection * QETApp::customTitleBlockTemplatesCollection ( )

static

QETApp::customTitleBlockTemplatesCollection.

Returns: the custom title block templates collection, i.e. the one managed by the end user

Here is the call graph for this function:

Here is the caller graph for this function:

◆ customTitleBlockTemplatesDir()

QString QETApp::customTitleBlockTemplatesDir ( )

static

QETApp::customTitleBlockTemplatesDir.

Returns: the path of the directory containing the custom title block templates collection.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dataDir()

QString QETApp::dataDir ( )

static

QETApp::dataDir Return the QET data folder, i.e. the path to the folder in which QET will save log-files and elements-cache and where to find user-collections and user-titleblocks by default specific to the current user. This directory is generally C:/Users/<USER>/AppData/Roaming/<APPNAME> on Windows and ~/.local/share/<APPNAME> under UNIX-like systems.

Returns: The path of the QElectroTech data-folder

Here is the caller graph for this function:

◆ defaultTitleBlockTemplate()

TitleBlockTemplate * QETApp::defaultTitleBlockTemplate ( )

static

QETApp::defaultTitleBlockTemplate.

Returns: the default titleblock template for diagrams

Here is the call graph for this function:

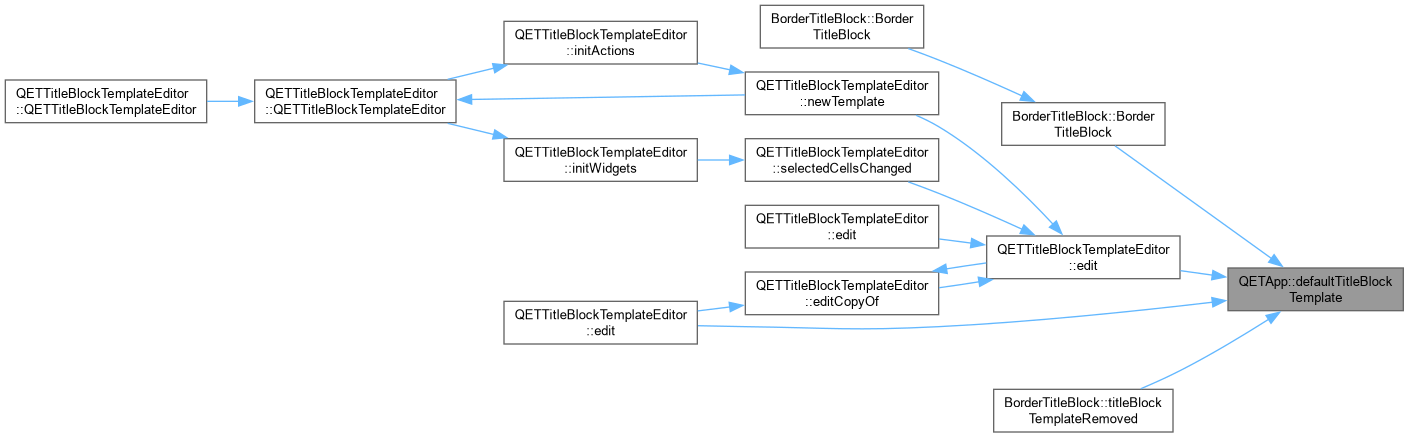

Here is the caller graph for this function:

◆ detectWindows()

template<class T>

QList< T * > QETApp::detectWindows ( ) const

private

Parameters

T	a class inheriting QMainWindow

Returns: the list of windows of type T

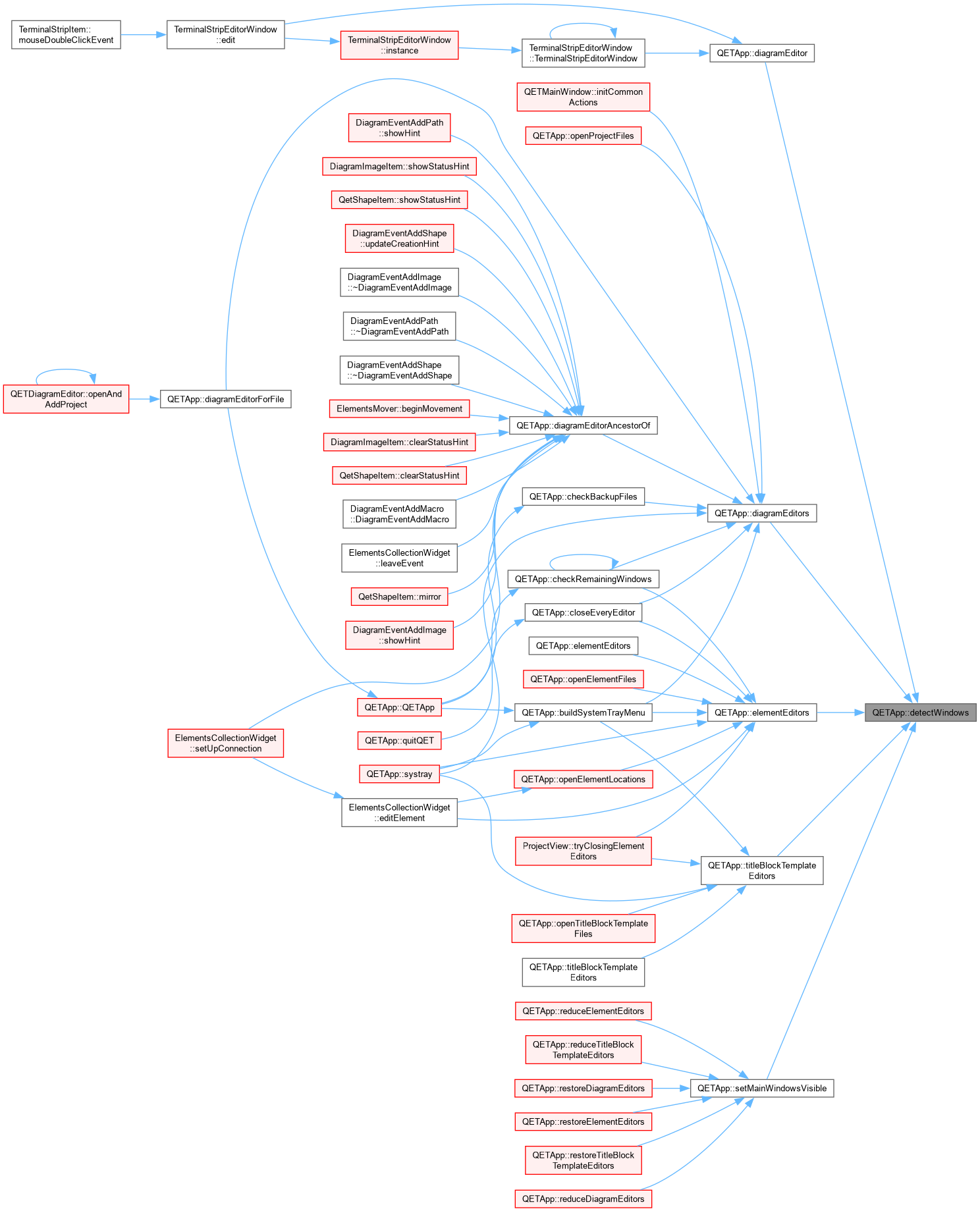

Here is the caller graph for this function:

◆ diagramEditor()

QETDiagramEditor * QETApp::diagramEditor ( QETProject * project )

static

QETApp::diagramEditor.

Parameters

project

Returns: The diagram editor of project or nullptr.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ diagramEditorAncestorOf()

QETDiagramEditor * QETApp::diagramEditorAncestorOf ( const QWidget * child )

static

QETApp::diagramEditorAncestorOf.

Parameters

child

Returns: the parent QETDiagramEditor (or grandparent and so on to any level) of the given child. If not return nullptr;

Here is the call graph for this function:

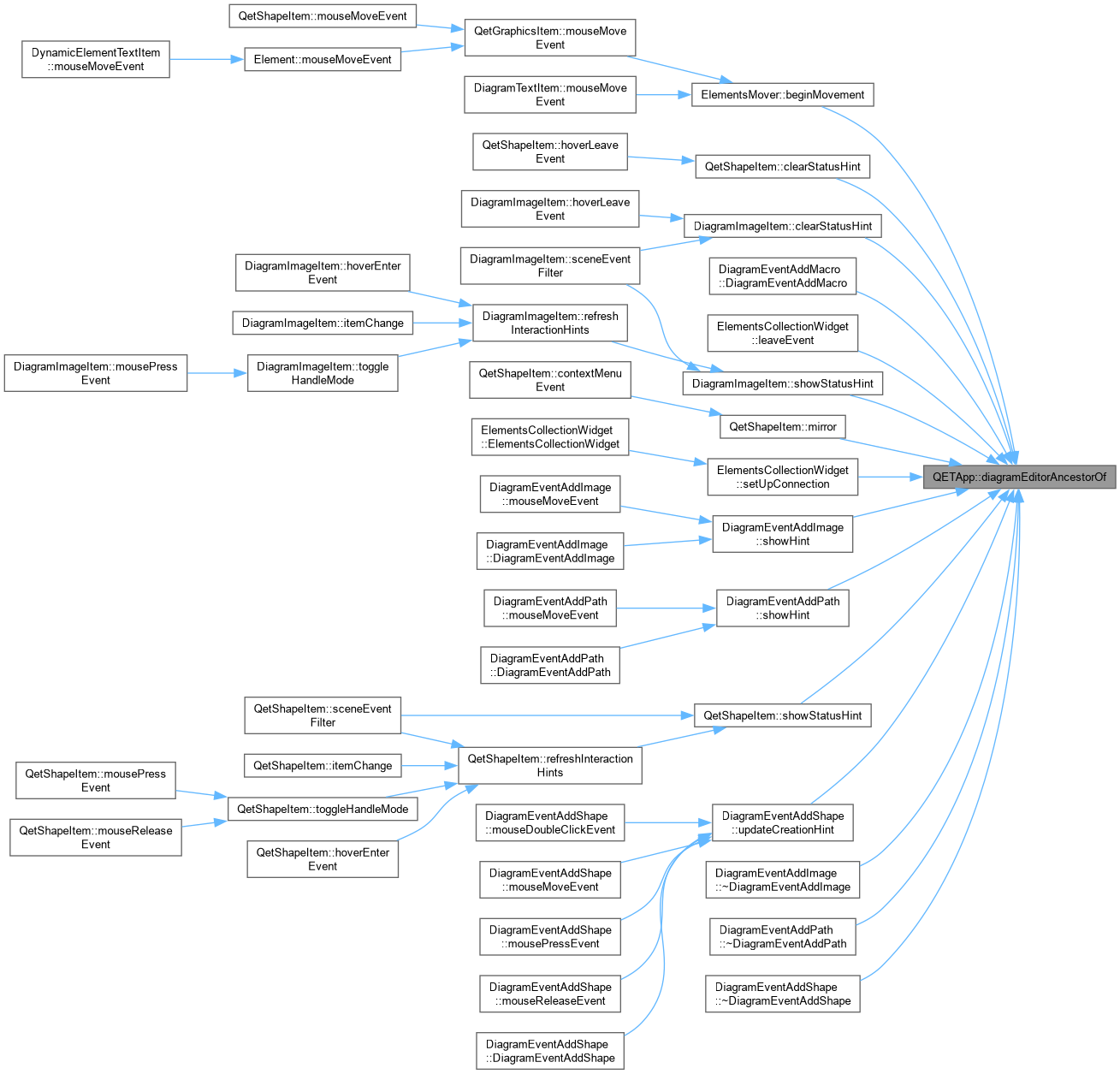

Here is the caller graph for this function:

◆ diagramEditorForFile()

QETDiagramEditor * QETApp::diagramEditorForFile ( const QString & filepath )

static

QETApp::diagramEditorForFile.

Parameters

filepath : A file path

Note: if filepath is an empty string, this method returns 0.

Returns: the QETDiagramEditor editing the filepath file, or 0 if this file is not edited by the application.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ diagramEditors()

QList< QETDiagramEditor * > QETApp::diagramEditors ( )

static

QETApp::diagramEditors.

Returns: schema editors

Here is the call graph for this function:

Here is the caller graph for this function:

◆ diagramTextsFont()

QFont QETApp::diagramTextsFont ( qreal size = -1.0 )

static

QETApp::diagramTextsFont The font to use By default the font is "Liberation Sans" and size 9.

Parameters

size	: the size of font

Returns: the font to use

Here is the caller graph for this function:

◆ diagramTextsItemFont()

QFont QETApp::diagramTextsItemFont ( qreal size = -1.0 )

static

QETApp::diagramTextsItemFont the font to use in independent text items.

Parameters

size of font

Returns

Here is the caller graph for this function:

◆ documentDir()

QString QETApp::documentDir ( )

static

QETApp::documentDir Return the standard-folder where to save users documents This directory is generally C:/Users/<USER>/Documents on Windows and ~/Documents under UNIX-like systems.

Returns: The path of users document-folder

Here is the caller graph for this function:

◆ dynamicTextsItemFont()

QFont QETApp::dynamicTextsItemFont ( qreal size = -1.0 )

static

QETApp::dynamicTextsFont the default font of dynamic element text item.

Parameters

size

Returns: dynamic text font with PointSizeF(size)

Here is the call graph for this function:

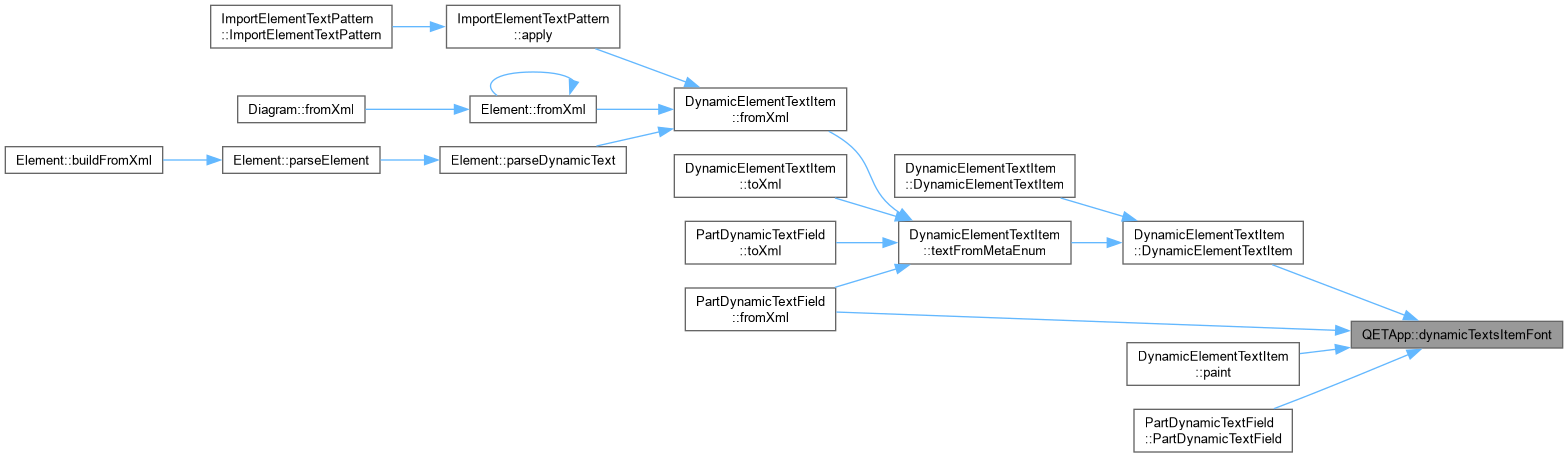

Here is the caller graph for this function:

◆ elementEditors() [1/2]

QList< QETElementEditor * > QETApp::elementEditors ( )

static

QETApp::elementEditors.

Returns: element editors

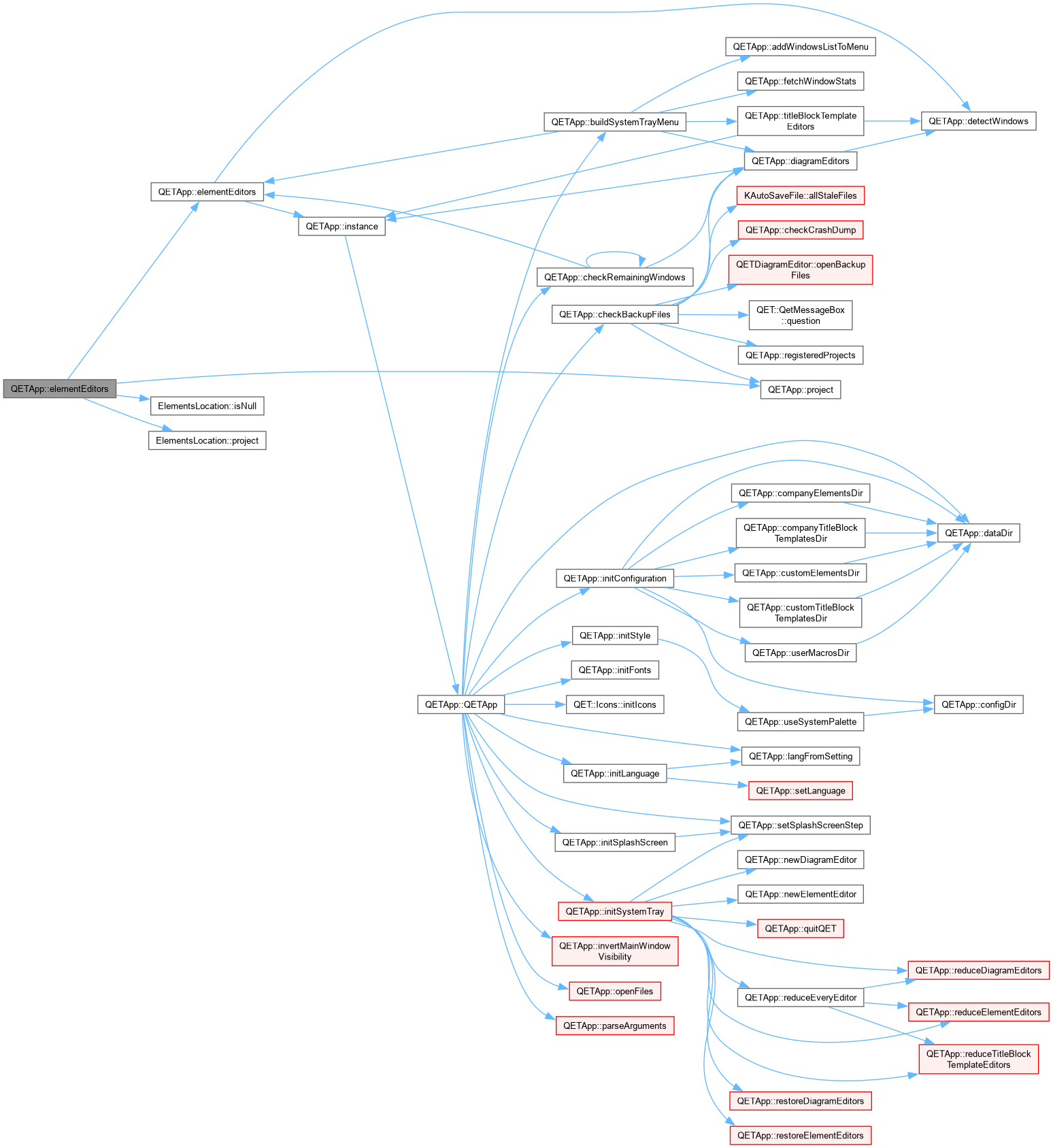

Here is the call graph for this function:

Here is the caller graph for this function:

◆ elementEditors() [2/2]

QList< QETElementEditor * > QETApp::elementEditors ( QETProject * project )

static

QETApp::elementEditors.

Parameters

project : a project

Returns: element editors editing an element belonging to the QETProject project

Here is the call graph for this function:

◆ elementsRecentFiles()

RecentFiles * QETApp::elementsRecentFiles ( )

static

QETApp::elementsRecentFiles.

Returns: The list of recent files for the elements

Here is the caller graph for this function:

◆ fetchWindowStats()

void QETApp::fetchWindowStats	(	const QList< QETDiagramEditor * > &	diagrams,
		const QList< QETElementEditor * > &	elements,
		const QList< QETTitleBlockTemplateEditor * > &	tbtemplates )

private

QETApp::fetchWindowStats Updates the booleans concerning the state of the windows.

Parameters

diagrams	: QList<QETDiagramEditor *>
elements	: QList<QETElementEditor *>
tbtemplates	: QList<QETTitleBlockTemplateEditor *>

Here is the caller graph for this function:

◆ floatingToolbarsAndDocksForMainWindow()

QList< QWidget * > QETApp::floatingToolbarsAndDocksForMainWindow ( QMainWindow * window ) const

private

QETApp::floatingToolbarsAndDocksForMainWindow.

Parameters

window : window where you have to find the toolbars and floating dock

Returns: the window's toolbars and floating dock

Here is the caller graph for this function:

◆ handledFileExtensions()

QStringList QETApp::handledFileExtensions ( )

static

QETApp::handledFileExtensions.

Returns: the list of file extensions QElectroTech is able to open and supposed to handle. Note they are provided with no leading point.

Here is the caller graph for this function:

◆ handledFiles()

QStringList QETApp::handledFiles ( const QList< QUrl > & urls )

static

QETApp::handledFiles.

Parameters

urls	: URLs list

Returns: the list of filepaths QElectroTech is able to open.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ indiTextsItemFont()

QFont QETApp::indiTextsItemFont ( qreal size = -1.0 )

static

QETApp::indiTextsItemFont The default font to use for independent text item.

Parameters

size

Returns: independent text font with PointSizeF(size)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initConfiguration()

void QETApp::initConfiguration ( )

private

QETApp::initConfiguration Reads and takes into account the configuration of the application. This method will create, if necessary:

the configuration folder
the folder of the personal collection
the directory for custom title blocks

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initFonts()

void QETApp::initFonts ( )

private

QETApp::initFonts Setup the fonts to use in the application.

"Liberation Fonts" Font Software is licensed under the SIL Open Font License, Version 1.1

See the file "fonts/liberation-fonts.LICENSE" for license information.

"osifont" Font Software is licensed under the GNU GENERAL PUBLIC LICENSE, Version 3 As a special exception, if you create a document which uses this font, and embed this font or unaltered portions of this font into the document, this font does not by itself cause the resulting document to be covered by the GNU General Public License. This exception does not however invalidate any other reasons why the document might be covered by the GNU General Public License. If you modify this font, you may extend this exception to your version of the font, but you are not obligated to do so. If you do not wish to do so, delete this exception statement from your version.

See the file "fonts/osifont.LICENSE" for license information.

Here is the caller graph for this function:

◆ initLanguage()

void QETApp::initLanguage ( )

private

QETApp::initLanguage Determine and apply the language to use for the application.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initSplashScreen()

void QETApp::initSplashScreen ( )

private

QETApp::initSplashScreen Initializes the splash screen if and only if the execution is interactive. Otherwise, the splash_screen_ attribute is 0.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initStyle()

void QETApp::initStyle ( )

private

QETApp::initStyle Setup the gui style.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initSystemTray()

void QETApp::initSystemTray ( )

private

QETApp::initSystemTray Build the icon in the systray and its menu.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ instance()

QETApp * QETApp::instance ( )

static

QETApp::instance.

Returns: the instance of the QETApp

Here is the call graph for this function:

Here is the caller graph for this function:

◆ invertMainWindowVisibility

void QETApp::invertMainWindowVisibility ( QWidget * window )

slot

QETApp::invertMainWindowVisibility Display a window (schema editors / element editors) if this is hidden or hides it if it is displayed.

Parameters

window : window to show / hide

Here is the call graph for this function:

Here is the caller graph for this function:

◆ langFromSetting()

QString QETApp::langFromSetting ( )

static

QETApp::langFromSetting.

Returns: the langage found in setting file if nothing was found return the system local.

Here is the caller graph for this function:

◆ languagesPath()

QString QETApp::languagesPath ( )

static

QETApp::languagesPath.

Returns: The path of the folder containing the language files

Here is the caller graph for this function:

◆ newDiagramEditor

void QETApp::newDiagramEditor ( )

slot

QETApp::newDiagramEditor launches a new schema editor.

Here is the caller graph for this function:

◆ newElementEditor

void QETApp::newElementEditor ( )

slot

QETApp::newElementEditor launches a new element editor.

Here is the caller graph for this function:

◆ openElementFiles

void QETApp::openElementFiles ( const QStringList & files_list )

slot

QETApp::openElementFiles Open the elements files passed in parameter. If an element is already open, the window which edits it is activated.

Parameters

files_list : Files to open

Here is the call graph for this function:

Here is the caller graph for this function:

◆ openElementLocations

void QETApp::openElementLocations ( const QList< ElementsLocation > & locations_list )

slot

QETApp::openElementLocations Open the elements whose location is passed in parameter. If an element is already open, the window which is edited is active.

Parameters

locations_list : Locations to open

Here is the call graph for this function:

Here is the caller graph for this function:

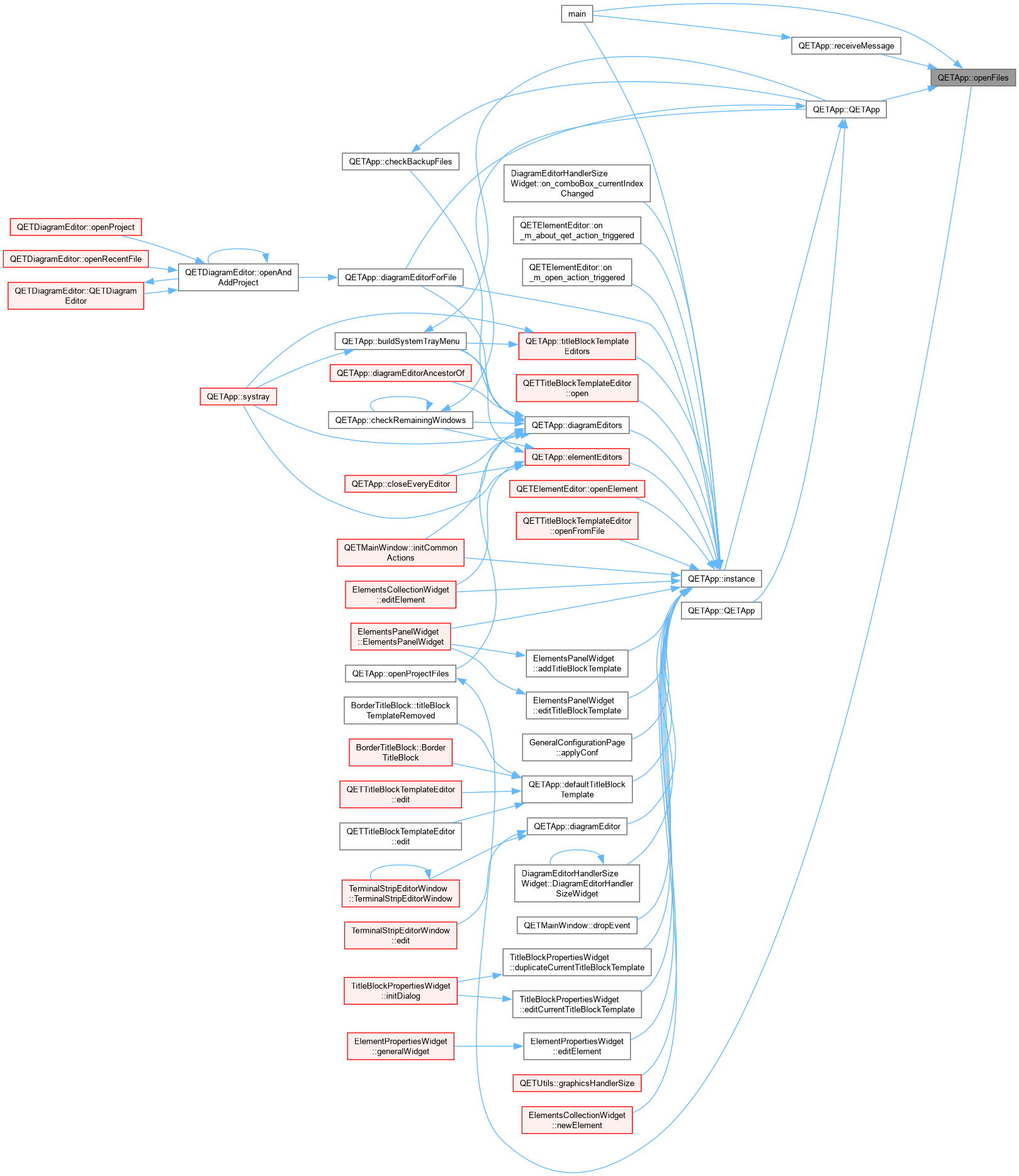

◆ openFiles

void QETApp::openFiles ( const QETArguments & args )

slot

QETApp::openFiles Open files passed as arguments.

Parameters

args	: Object containing arguments; the files

See also: openProjectFiles openElementFiles

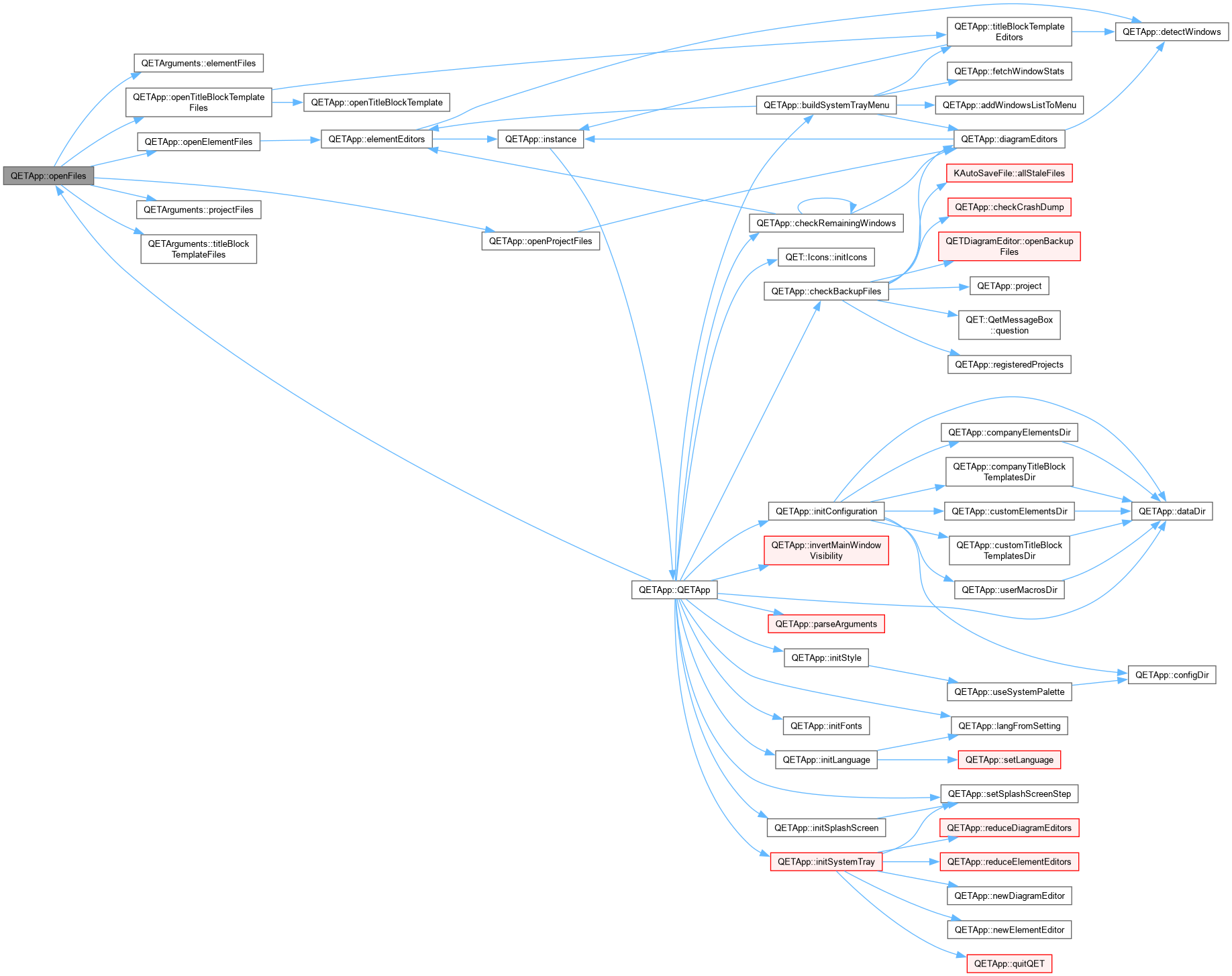

Here is the call graph for this function:

Here is the caller graph for this function:

◆ openProjectFiles

void QETApp::openProjectFiles ( const QStringList & files_list )

slot

QETApp::openProjectFiles Opens a list of files. Files are opened in the first visible schematic editor. Otherwise, the first existing schema editor becomes visible and is uses. If there is no schematic editor open, a new one is created and uses.

Parameters

files_list : Files to open

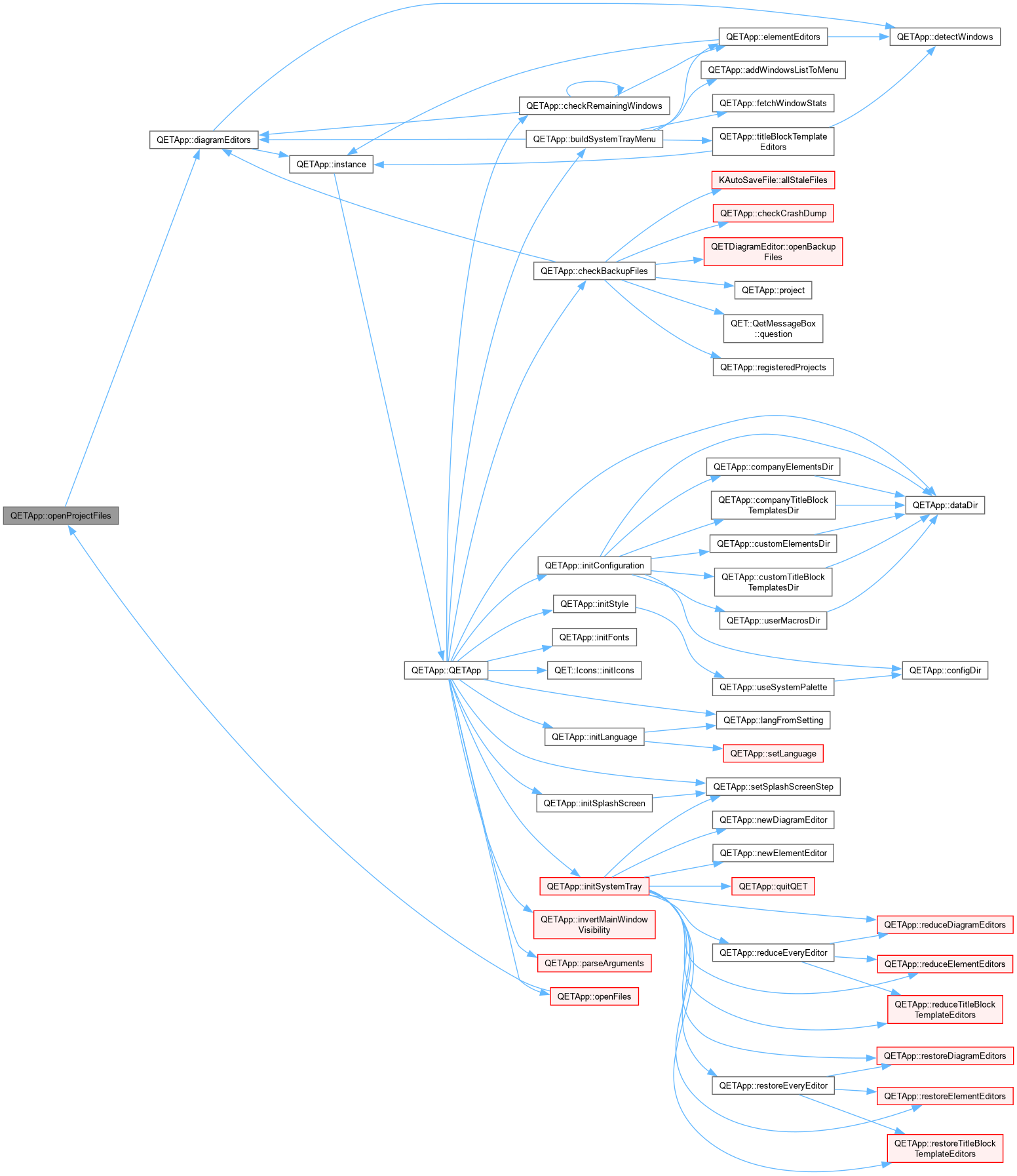

Here is the call graph for this function:

Here is the caller graph for this function:

◆ openTitleBlockTemplate [1/2]

void QETApp::openTitleBlockTemplate ( const QString & filepath )

slot

QETApp::openTitleBlockTemplate Launch a new title block template editor to edit the given template.

Parameters

filepath Path of the .titleblock file to be opened

◆ openTitleBlockTemplate [2/2]

void QETApp::openTitleBlockTemplate	(	const TitleBlockTemplateLocation &	location,
		bool	duplicate = false )

slot

QETApp::openTitleBlockTemplate Launch a new title block template editor to edit the given template.

Parameters

location	location of the title block template to be edited
duplicate	if true, the template is opened for duplication, which means the user will be prompter for a new template name.

See also: QETTitleBlockTemplateEditor::setOpenForDuplication()

Here is the caller graph for this function:

◆ openTitleBlockTemplateFiles

void QETApp::openTitleBlockTemplateFiles ( const QStringList & files_list )

slot

QETApp::openTitleBlockTemplateFiles Open provided title block template files. If a title block template is already opened, the adequate window is activated.

Parameters

files_list Files to be opened

Here is the call graph for this function:

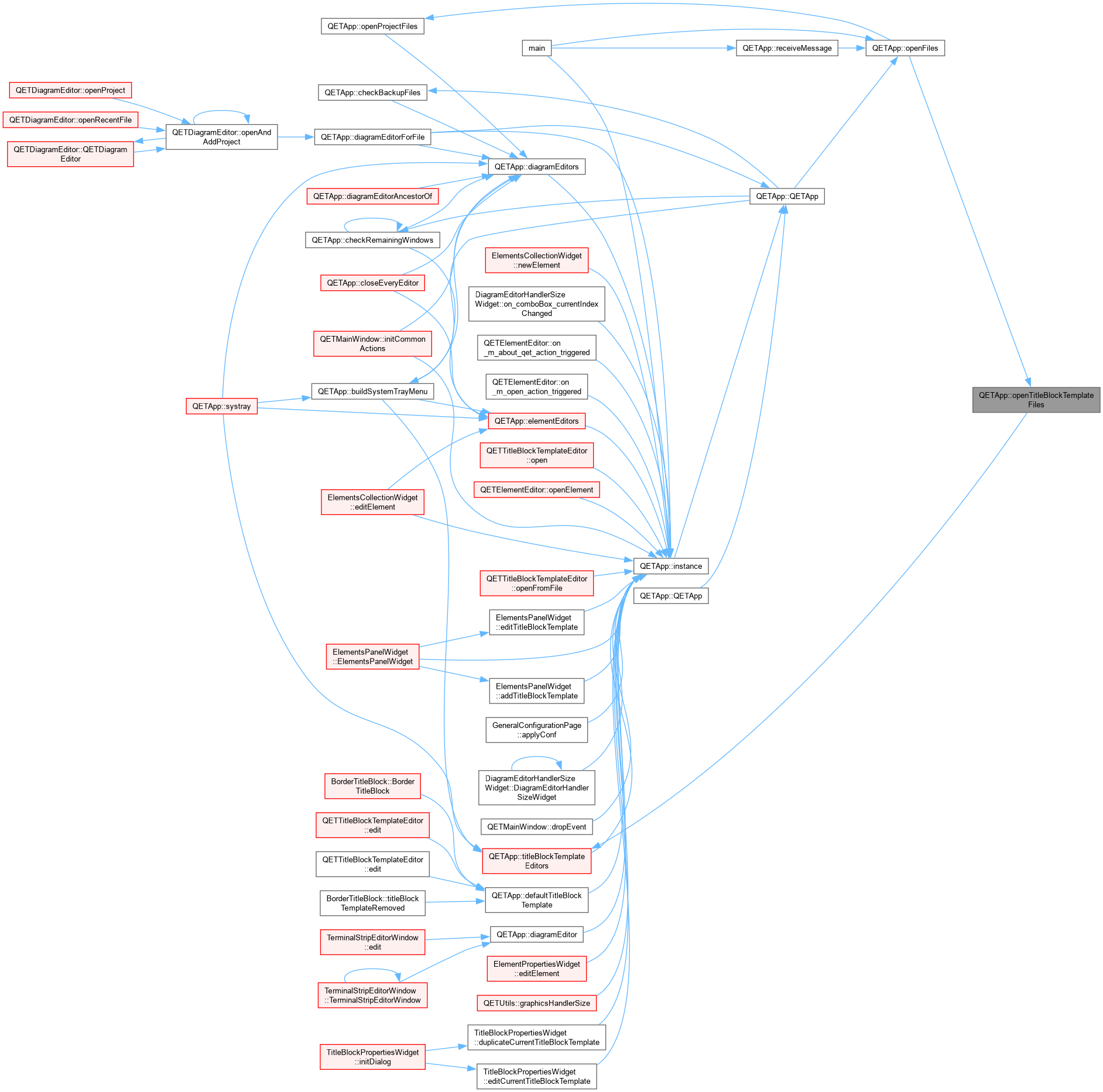

Here is the caller graph for this function:

◆ overrideLangDir()

void QETApp::overrideLangDir ( const QString & new_ld )

static

QETApp::overrideLangDir Redefines the path of the folder containing the language files.

Parameters

new_ld : New path of the folder containing the language files

Here is the caller graph for this function:

◆ parseArguments()

void QETApp::parseArguments ( )

private

QETApp::parseArguments Parse the following arguments:

–common-elements-dir=
–config-dir
–data-dir
–help
–version
-v
–license

The other arguments are normally file paths. If they exist, they are just stored in the arguments_files_ attribute. Otherwise, they are stored in the arguments_options_ attribute.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pictureDir()

QString QETApp::pictureDir ( )

static

QETApp::pictureDir Returns the standard-folder of users pictures This directory is generally C:/Users/<USER>/Pictures on Windows and ~/Pictures under UNIX-like systems.

Returns: The path of users picture-folder

Here is the caller graph for this function:

◆ printHelp()

void QETApp::printHelp ( )

static

QETApp::printHelp Display help and usage on standard output.

Here is the caller graph for this function:

◆ printLicense()

void QETApp::printLicense ( )

static

QETApp::printLicense Display license on standard output.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ printVersion()

void QETApp::printVersion ( )

static

QETApp::printVersion Print version to standard output.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ project()

QETProject * QETApp::project ( const uint & id )

static

QETApp::project.

Parameters

id	: Id of the desired project

Returns: the project corresponds to the id passed in parameter

Here is the caller graph for this function:

◆ projectFromString()

QETProject * QETApp::projectFromString ( const QString & url )

staticprivate

QETApp::projectFromString.

Parameters

url	The location of a collection item (title block template, element, category, ...).

Returns: the project mentionned in the URL, or 0 if none could be found.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ projectId()

int QETApp::projectId ( const QETProject * project )

static

QETApp::projectId.

Parameters

project : Project whose id we want to retrieve

Returns: the project id as a parameter if it is saved, -1 otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

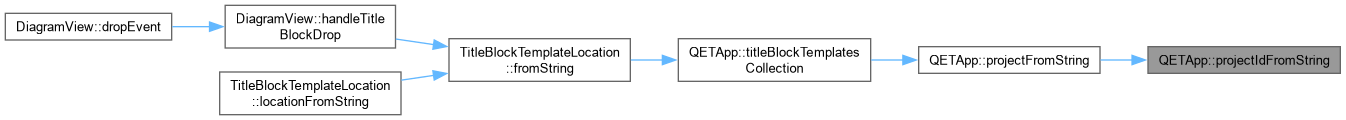

◆ projectIdFromString()

int QETApp::projectIdFromString ( const QString & url )

staticprivate

QETApp::projectIdFromString.

Parameters

url	The location of a collection item (title block template, element, category, ...).

Returns: the id of the project mentionned in the URL, or -1 if none could be found.

Here is the caller graph for this function:

◆ projectsRecentFiles()

RecentFiles * QETApp::projectsRecentFiles ( )

static

QETApp::projectsRecentFiles.

Returns: The list of recent files for projects

Here is the caller graph for this function:

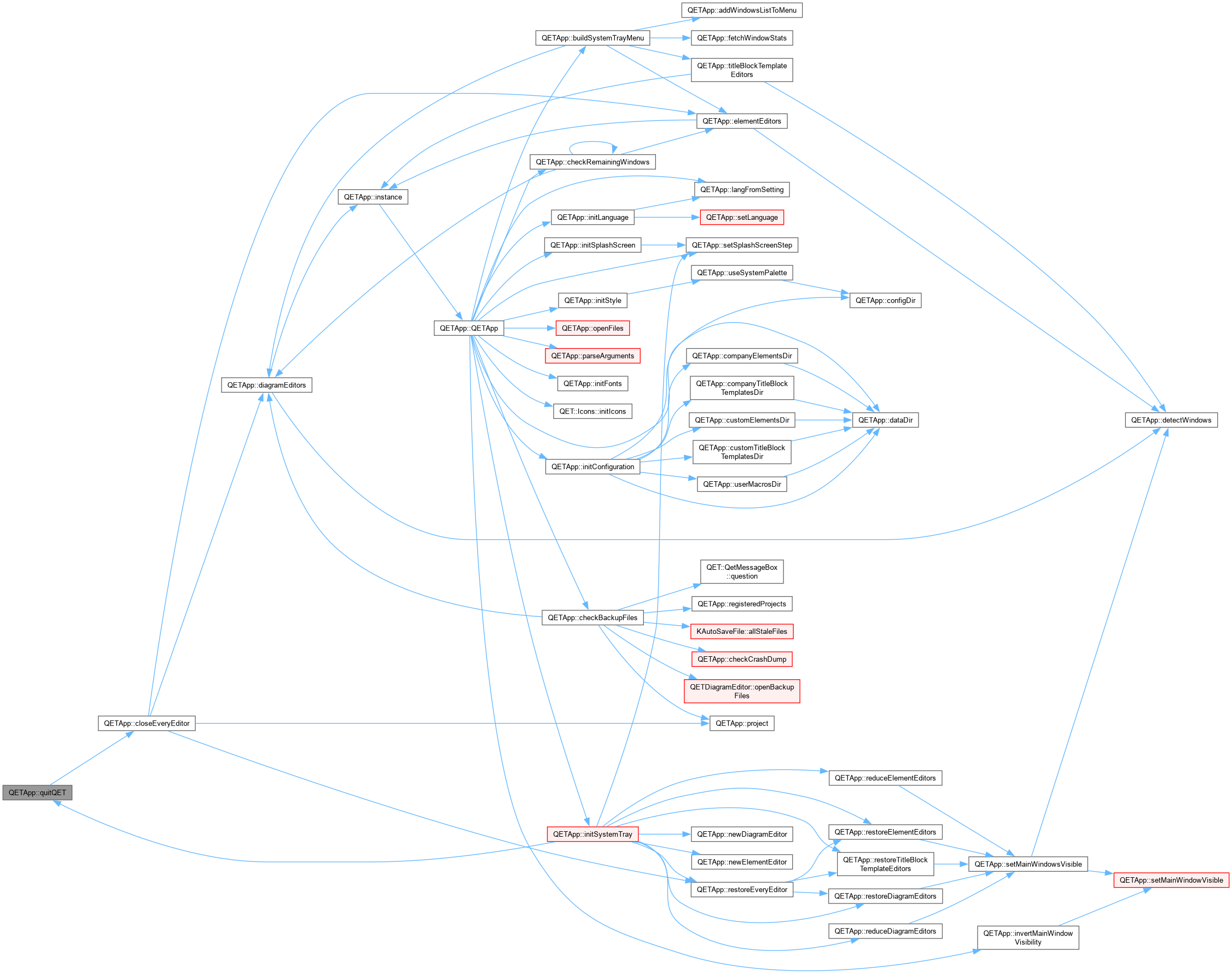

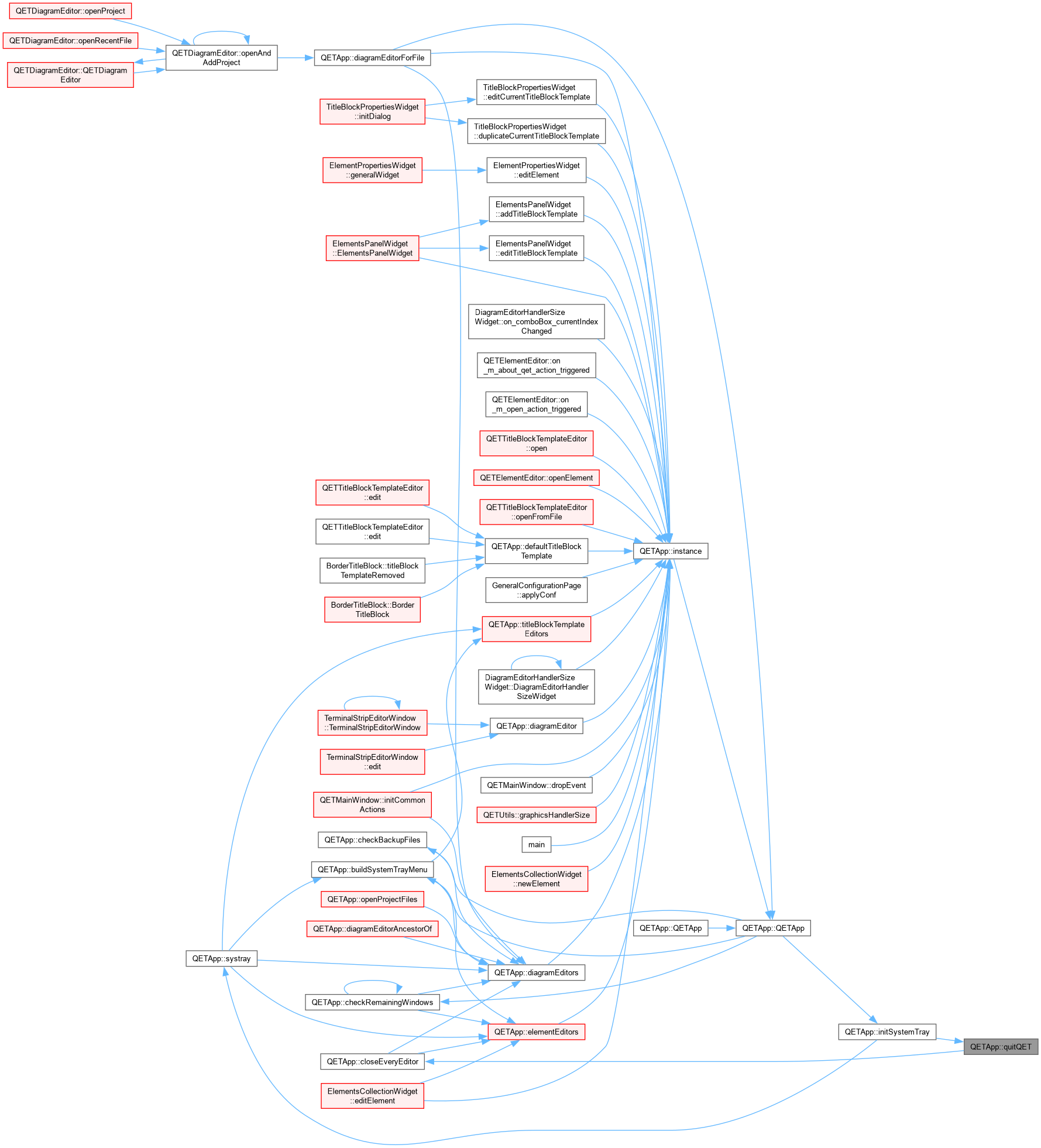

◆ quitQET

void QETApp::quitQET ( )

slot

QETApp::quitQET Request the closing of all windows; if the user accepts them, the application quits.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ realPath()

QString QETApp::realPath ( const QString & sym_path )

static

QETApp::realPath Allows you to know the absolute path of the * .elmt file corresponding to a symbolic path (of the type custom: // tools_pervers / sado_maso / contact_bizarre).

Parameters

sym_path Character string representing the absolute path of the file

Returns: An empty string in case of error or the absolute path of the * .elmt file.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ receiveMessage

void QETApp::receiveMessage	(	int	instanceId,
		QByteArray	message )

slot

QETApp::receiveMessage openFiles from message.

Parameters

instanceId	Q_UNUSED
message

Here is the call graph for this function:

Here is the caller graph for this function:

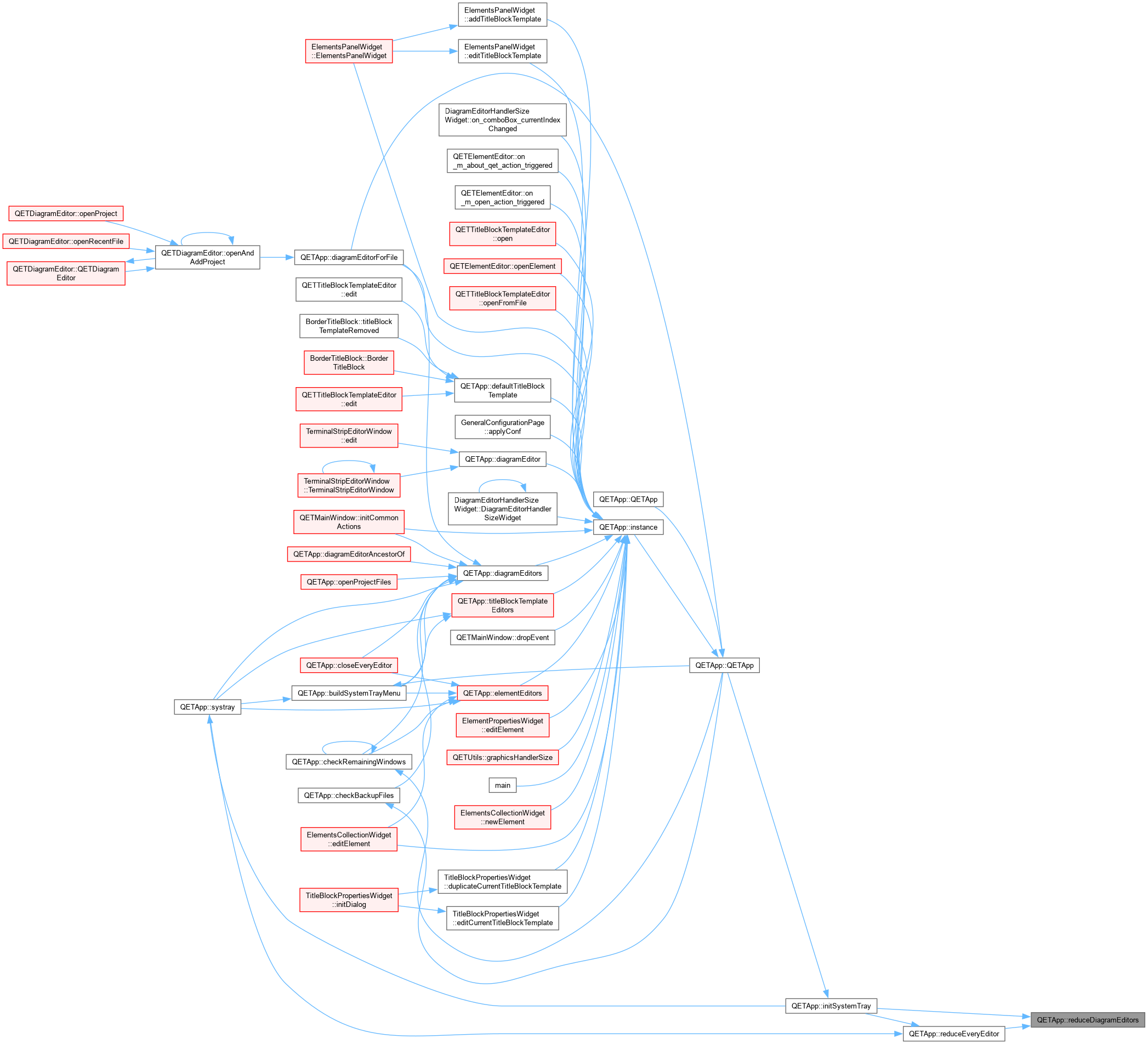

◆ reduceDiagramEditors

void QETApp::reduceDiagramEditors ( )

slot

QETApp::reduceDiagramEditors Minimize all schema editors in the systray.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reduceElementEditors

void QETApp::reduceElementEditors ( )

slot

QETApp::reduceElementEditors Minimize all element editors in systray.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reduceEveryEditor

void QETApp::reduceEveryEditor ( )

slot

QETApp::reduceEveryEditor Minimizes all application windows in the systray.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reduceTitleBlockTemplateEditors

void QETApp::reduceTitleBlockTemplateEditors ( )

slot

QETApp::reduceTitleBlockTemplateEditors Reduce all known template editors.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ registeredProjects()

QMap< uint, QETProject * > QETApp::registeredProjects ( )

static

QETApp::registeredProjects.

Returns: the list of projects with their associated ids

Here is the caller graph for this function:

◆ registerProject()

bool QETApp::registerProject ( QETProject * project )

static

QETApp::registerProject.

Parameters

project : Project to register with the application

Returns: true if the project could be saved, false otherwise Failure to save a project usually means that it is already saved.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ resetCollectionsPath()

void QETApp::resetCollectionsPath ( )

static

QETApp::resetCollectionsPath Reset the path of the user and common element collection and also the user titleblock path. Use this function when one of these three path change.

Here is the caller graph for this function:

◆ restoreDiagramEditors

void QETApp::restoreDiagramEditors ( )

slot

QETApp::restoreDiagramEditors Restore all schema editors in the systray.

Here is the call graph for this function:

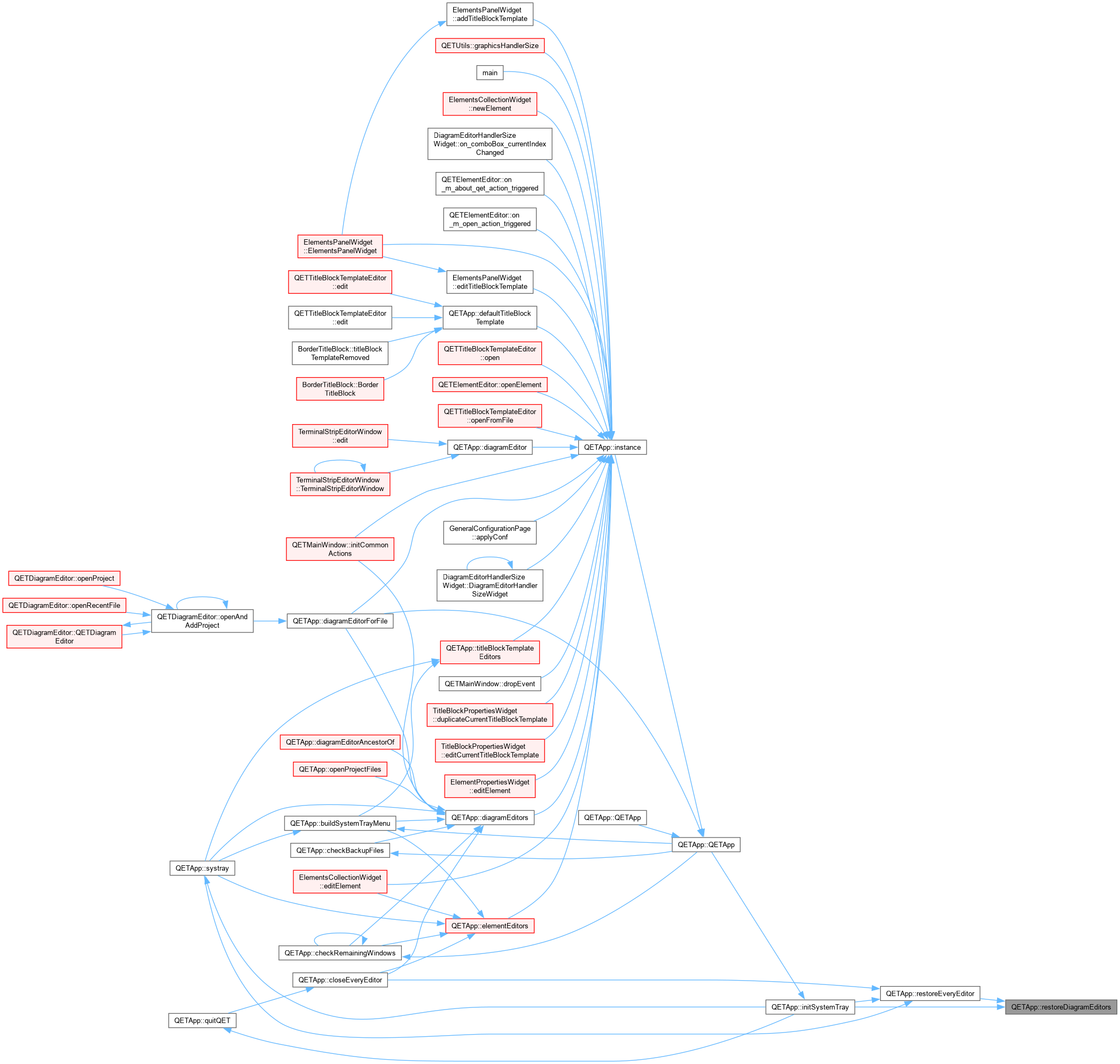

Here is the caller graph for this function:

◆ restoreElementEditors

void QETApp::restoreElementEditors ( )

slot

QETApp::restoreElementEditors Restore all element editors in the systray.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ restoreEveryEditor

void QETApp::restoreEveryEditor ( )

slot

QETApp::restoreEveryEditor Restores all application windows in the systray.

Here is the call graph for this function:

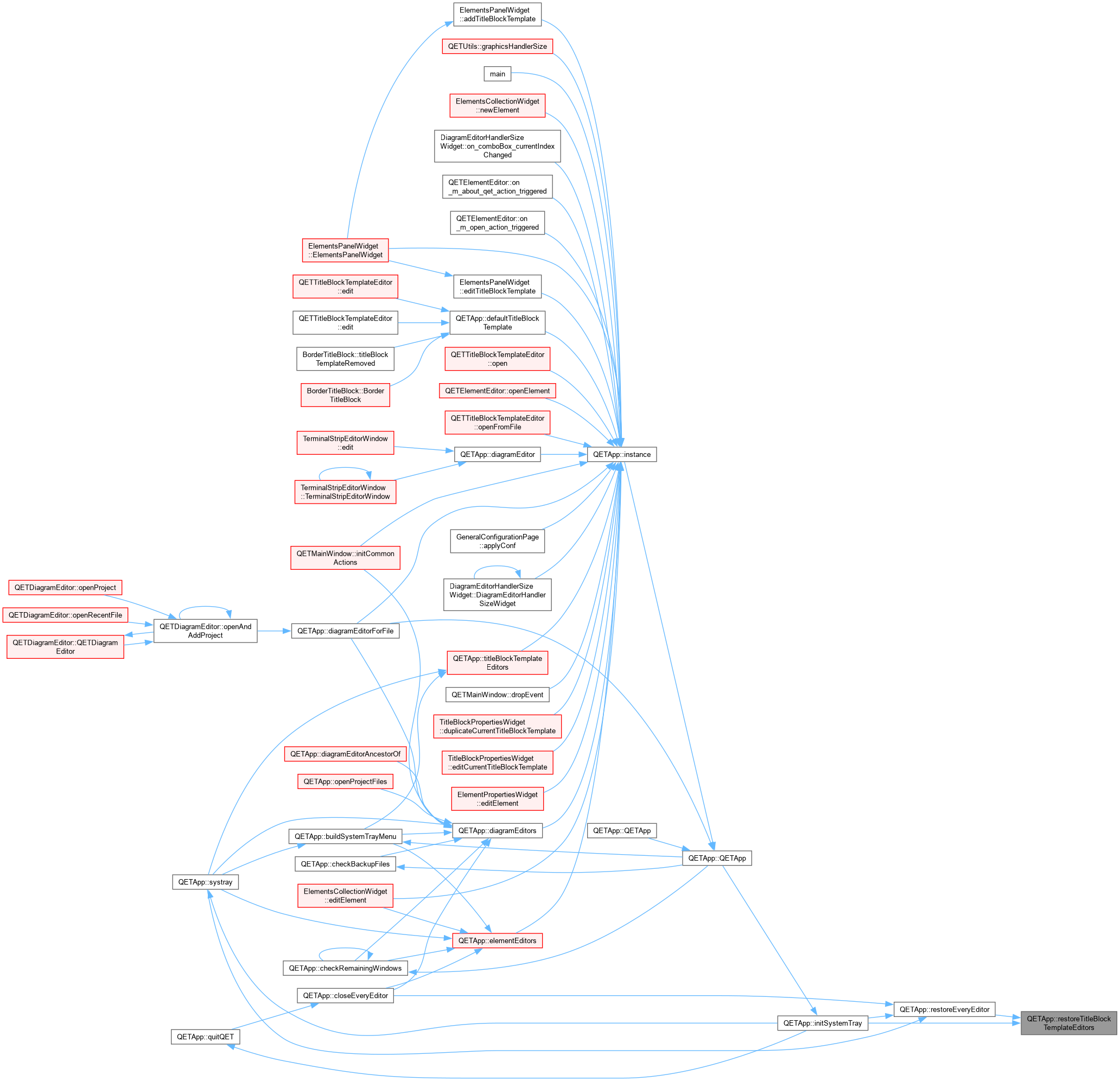

Here is the caller graph for this function:

◆ restoreTitleBlockTemplateEditors

void QETApp::restoreTitleBlockTemplateEditors ( )

slot

QETApp::restoreTitleBlockTemplateEditors Restore all known template editors.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setLanguage()

void QETApp::setLanguage ( const QString & desired_language )

QETApp::setLanguage Change the language used by the application.

Parameters

desired_language : wanted language

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setMainWindowsVisible()

template<class T>

void QETApp::setMainWindowsVisible ( bool visible )

private

T a class inheriting QMainWindow

Parameters

visible whether detected main windows should be visible

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setMainWindowVisible

void QETApp::setMainWindowVisible	(	QMainWindow *	window,
		bool	visible )

slot

QETApp::setMainWindowVisible Show or hide a window (schema editors / element editors).

Parameters

window	: window to show / hide
visible	: true to display the window, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setSplashScreenStep()

void QETApp::setSplashScreenStep ( const QString & message = QString() )

private

QETApp::setSplashScreenStep Changes the text of the splash screen and takes events into account. If the application is running non-interactively, this method does nothing.

Parameters

message : the text of the splash screen

Here is the caller graph for this function:

◆ showDiagnosticsReport

void QETApp::showDiagnosticsReport ( )

slot

QETApp::showDiagnosticsReport Discussion #644, step 5: the manual "Help > Diagnostics > Save report" action. Unlike checkCrashDump(), this is about the current, still-running session, not a previous one.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ switchLayout()

void QETApp::switchLayout ( Qt::LayoutDirection direction )

Switches the application to the provided layout.

Here is the caller graph for this function:

◆ symbolicPath()

QString QETApp::symbolicPath ( const QString & real_path )

static

QETApp::symbolicPath Build the symbolic path (of the type custom: // tools_pervers / sado_maso / contact_bizarre) corresponding to a file.

Parameters

real_path : Character string representing the symbolic path of the file

Returns: An empty string in case of error or the path symbolic designating the element.

Here is the call graph for this function:

◆ systray

void QETApp::systray ( QSystemTrayIcon::ActivationReason reason )

slot

QETApp::systray Manages QSystemTrayIcon related events.

Parameters

reason : reason an integer representing the event on the systray

Here is the call graph for this function:

Here is the caller graph for this function:

◆ titleBlockTemplateEditors() [1/2]

QList< QETTitleBlockTemplateEditor * > QETApp::titleBlockTemplateEditors ( )

static

QETApp::titleBlockTemplateEditors.

Returns: the title block template editors

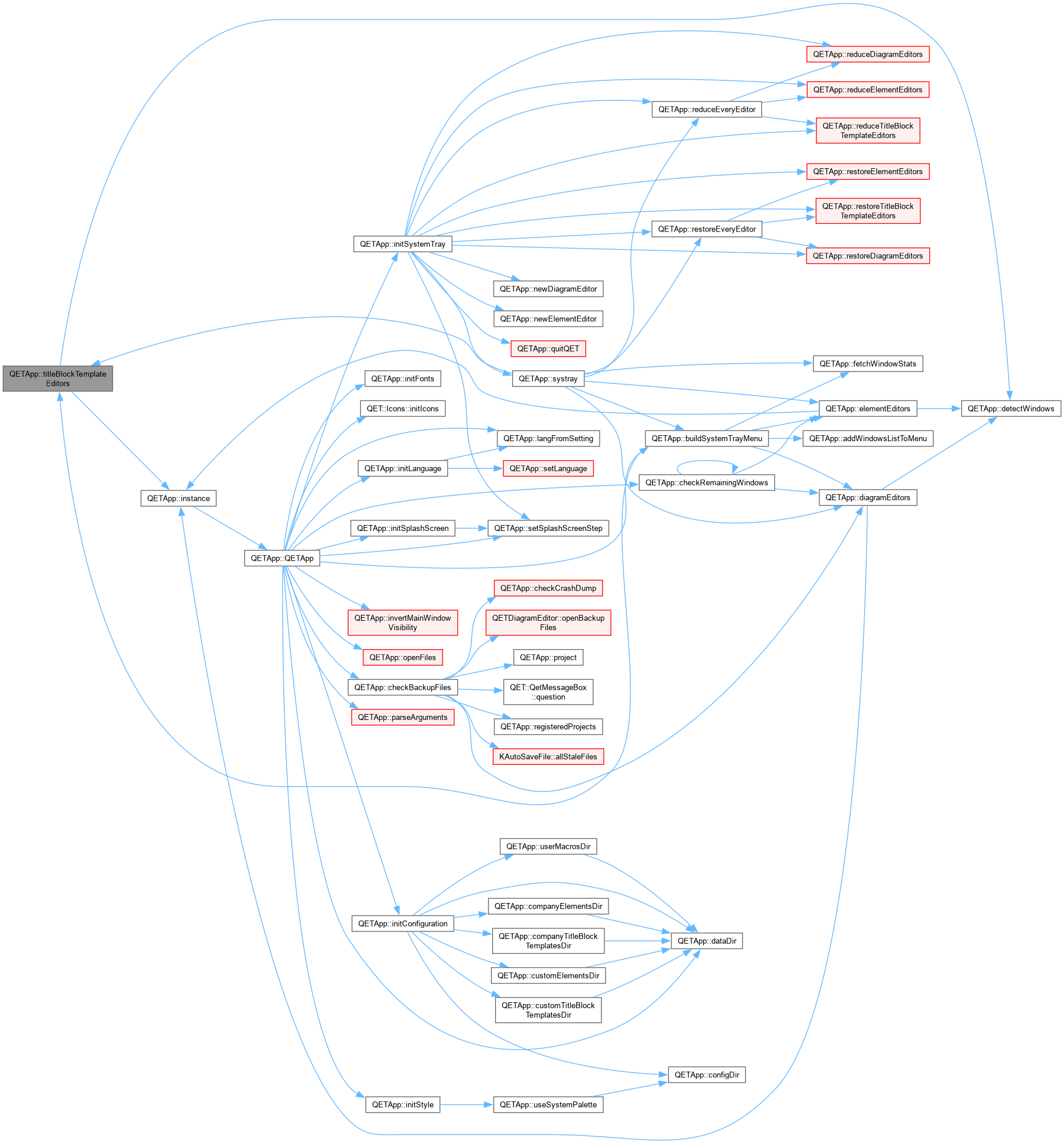

Here is the call graph for this function:

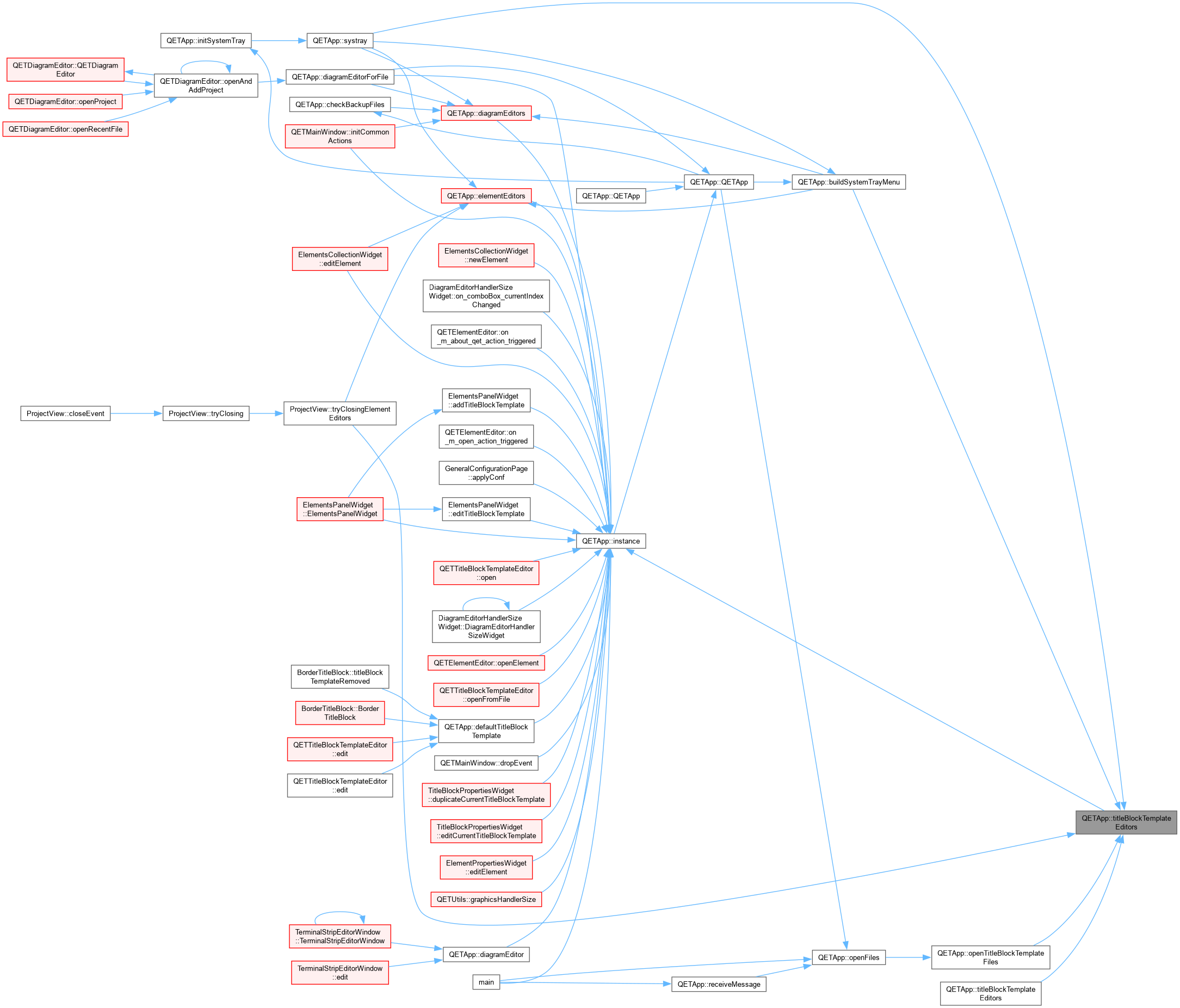

Here is the caller graph for this function:

◆ titleBlockTemplateEditors() [2/2]

QList< QETTitleBlockTemplateEditor * > QETApp::titleBlockTemplateEditors ( QETProject * project )

static

QETApp::titleBlockTemplateEditors.

Parameters

project Opened project object.

Returns: the list of title block template editors which are currently editing a template embedded within project.

Here is the call graph for this function:

◆ titleBlockTemplatesCollection()

TitleBlockTemplatesCollection * QETApp::titleBlockTemplatesCollection ( const QString & protocol )

static

QETApp::titleBlockTemplatesCollection.

Parameters

protocol Protocol string

Returns: the templates collection matching the provided protocol, or 0 if none could be found

Here is the call graph for this function:

Here is the caller graph for this function:

◆ unregisterProject()

bool QETApp::unregisterProject ( QETProject * project )

static

QETApp::unregisterProject Cancel the recording of the project project.

Parameters

project : Project to be unregistered

Returns: true if the cancellation was successful, false otherwise The failure of this method usually means that the project was not saved.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ userMacrosDir()

QString QETApp::userMacrosDir ( )

static

QETApp::userMacrosDir.

Returns: the path of the directory containing the user macros collection.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ useSystemPalette

void QETApp::useSystemPalette ( bool use )

slot

QETApp::useSystemPalette Change the application palette.

Parameters

use	: true to use the system colors, false to use those of the current theme

Here is the call graph for this function:

Here is the caller graph for this function:

private

System color palette.

◆ lang_dir

◆ new_element

QAction* QETApp::new_element

private

◆ next_project_id

uint QETApp::next_project_id = 0

staticprivate

◆ non_interactive_execution_

bool QETApp::non_interactive_execution_

private

non_interactive_execution_ Whether the application will end without any user interaction

◆ qet_arguments_

QETArguments QETApp::qet_arguments_

sources/qetapp.h
sources/qetapp.cpp

Public Slots

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ QETApp() [1/2]

◆ ~QETApp()

◆ QETApp() [2/2]

Member Function Documentation

◆ aboutQET

◆ addWindowsListToMenu()

◆ availableTitleBlockTemplatesCollections()

◆ buildSystemTrayMenu()

◆ checkBackupFiles()

◆ checkCrashDump()

◆ checkRemainingWindows

◆ closeEveryEditor

◆ collectionCache()

◆ commonElementsDir()

◆ commonElementsDirN()

◆ commonTitleBlockTemplatesCollection()

◆ commonTitleBlockTemplatesDir()

◆ companyElementsDir()

◆ companyElementsDirN()

◆ companyTitleBlockTemplatesCollection()

◆ companyTitleBlockTemplatesDir()

◆ configDir()

◆ configureQET

◆ createTextOrientationSpinBoxWidget()

◆ customElementsDir()

◆ customElementsDirN()

◆ customTitleBlockTemplatesCollection()

◆ customTitleBlockTemplatesDir()

◆ dataDir()

◆ defaultTitleBlockTemplate()

◆ detectWindows()

◆ diagramEditor()

◆ diagramEditorAncestorOf()

◆ diagramEditorForFile()

◆ diagramEditors()

◆ diagramTextsFont()

◆ diagramTextsItemFont()

◆ documentDir()

◆ dynamicTextsItemFont()

◆ elementEditors() [1/2]

◆ elementEditors() [2/2]

◆ elementsRecentFiles()

◆ fetchWindowStats()

◆ floatingToolbarsAndDocksForMainWindow()

◆ handledFileExtensions()

◆ handledFiles()

◆ indiTextsItemFont()

◆ initConfiguration()

◆ initFonts()

◆ initLanguage()

◆ initSplashScreen()

◆ initStyle()

◆ initSystemTray()

◆ instance()

◆ invertMainWindowVisibility

◆ langFromSetting()

◆ languagesPath()

◆ newDiagramEditor

◆ newElementEditor

◆ openElementFiles

◆ openElementLocations

◆ openFiles

◆ openProjectFiles

◆ openTitleBlockTemplate [1/2]

◆ openTitleBlockTemplate [2/2]

◆ openTitleBlockTemplateFiles

◆ overrideLangDir()

◆ parseArguments()

◆ pictureDir()

◆ printHelp()
