#include <templatescollection.h>

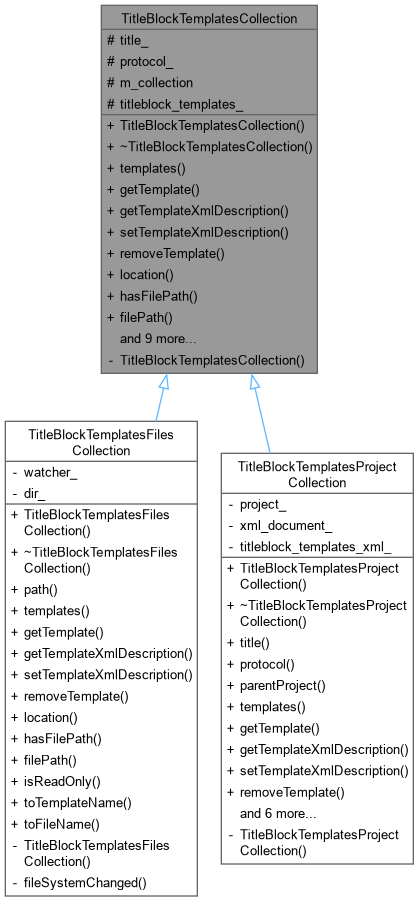

Inheritance diagram for TitleBlockTemplatesCollection:

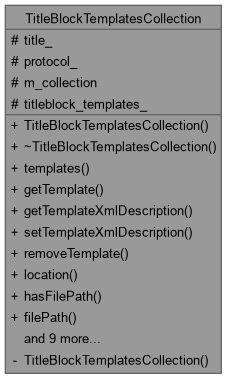

Collaboration diagram for TitleBlockTemplatesCollection:

Signals
void	changed (TitleBlockTemplatesCollection *, const QString &=QString())
void	aboutToRemove (TitleBlockTemplatesCollection *, const QString &)

Public Member Functions
	TitleBlockTemplatesCollection (QObject *parent)
	~TitleBlockTemplatesCollection () override
virtual QStringList	templates ()=0
virtual TitleBlockTemplate *	getTemplate (const QString &)=0
virtual QDomElement	getTemplateXmlDescription (const QString &)=0
virtual bool	setTemplateXmlDescription (const QString &, const QDomElement &)=0
virtual void	removeTemplate (const QString &)=0
virtual TitleBlockTemplateLocation	location (const QString &=QString())=0
virtual bool	hasFilePath ()=0
virtual QString	filePath ()=0
virtual bool	isReadOnly (const QString &=QString()) const =0
virtual QString	title () const
virtual void	setTitle (const QString &)
	TitleBlockTemplatesCollection::setTitle.
virtual QString	protocol () const
virtual void	setProtocol (const QString &)
virtual QET::QetCollection	collection () const
	TitleBlockTemplatesCollection::collection.
virtual void	setCollection (QET::QetCollection)
	TitleBlockTemplatesCollection::setCollection Set the storage of this collection.
virtual QETProject *	parentProject ()
virtual QList< TitleBlockTemplateLocation >	templatesLocations ()

Protected Attributes
QString	title_
	Human-readable title for this collection.
QString	protocol_
	Protocol used to designate this collection.
QET::QetCollection	m_collection
QHash< QString, TitleBlockTemplate * >	titleblock_templates_
	Already parsed embedded titleblock templates.

Private Member Functions
	TitleBlockTemplatesCollection (const TitleBlockTemplatesCollection &)

Detailed Description

This abstract class represents a generic collection of title block templates. Unlike elements collections, title block templates collections do not provide a tree structure. Instead, they provide a simple, flat list of available templates.

Constructor & Destructor Documentation

◆ TitleBlockTemplatesCollection() [1/2]

TitleBlockTemplatesCollection::TitleBlockTemplatesCollection ( QObject * parent )

Constructor

Parameters

parent Parent QObject

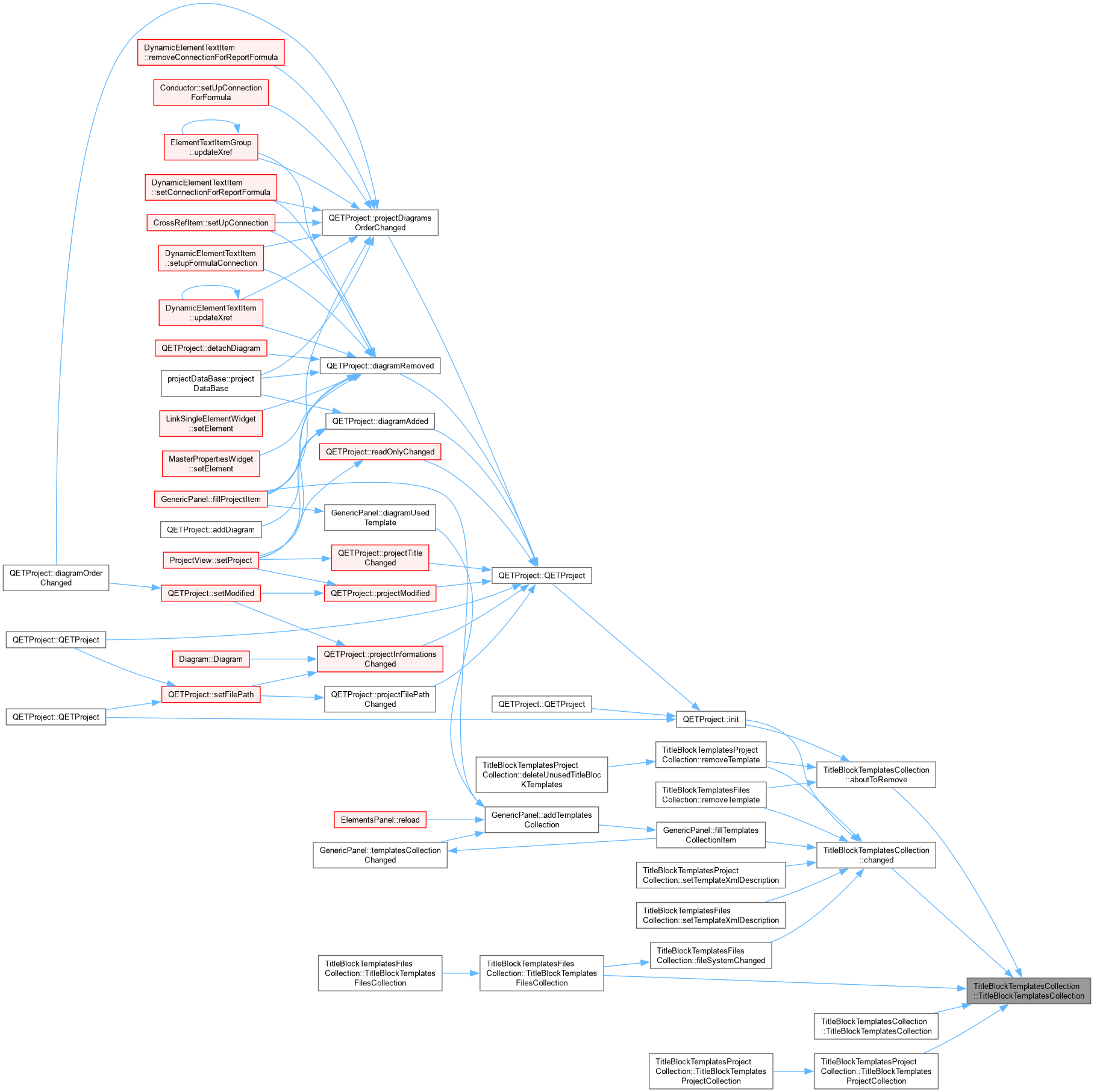

Here is the caller graph for this function:

◆ ~TitleBlockTemplatesCollection()

TitleBlockTemplatesCollection::~TitleBlockTemplatesCollection ( )

override

Destructor

◆ TitleBlockTemplatesCollection() [2/2]

TitleBlockTemplatesCollection::TitleBlockTemplatesCollection ( const TitleBlockTemplatesCollection & )

private

Here is the call graph for this function:

Member Function Documentation

◆ aboutToRemove

void TitleBlockTemplatesCollection::aboutToRemove	(	TitleBlockTemplatesCollection *	,
		const QString &	)

signal

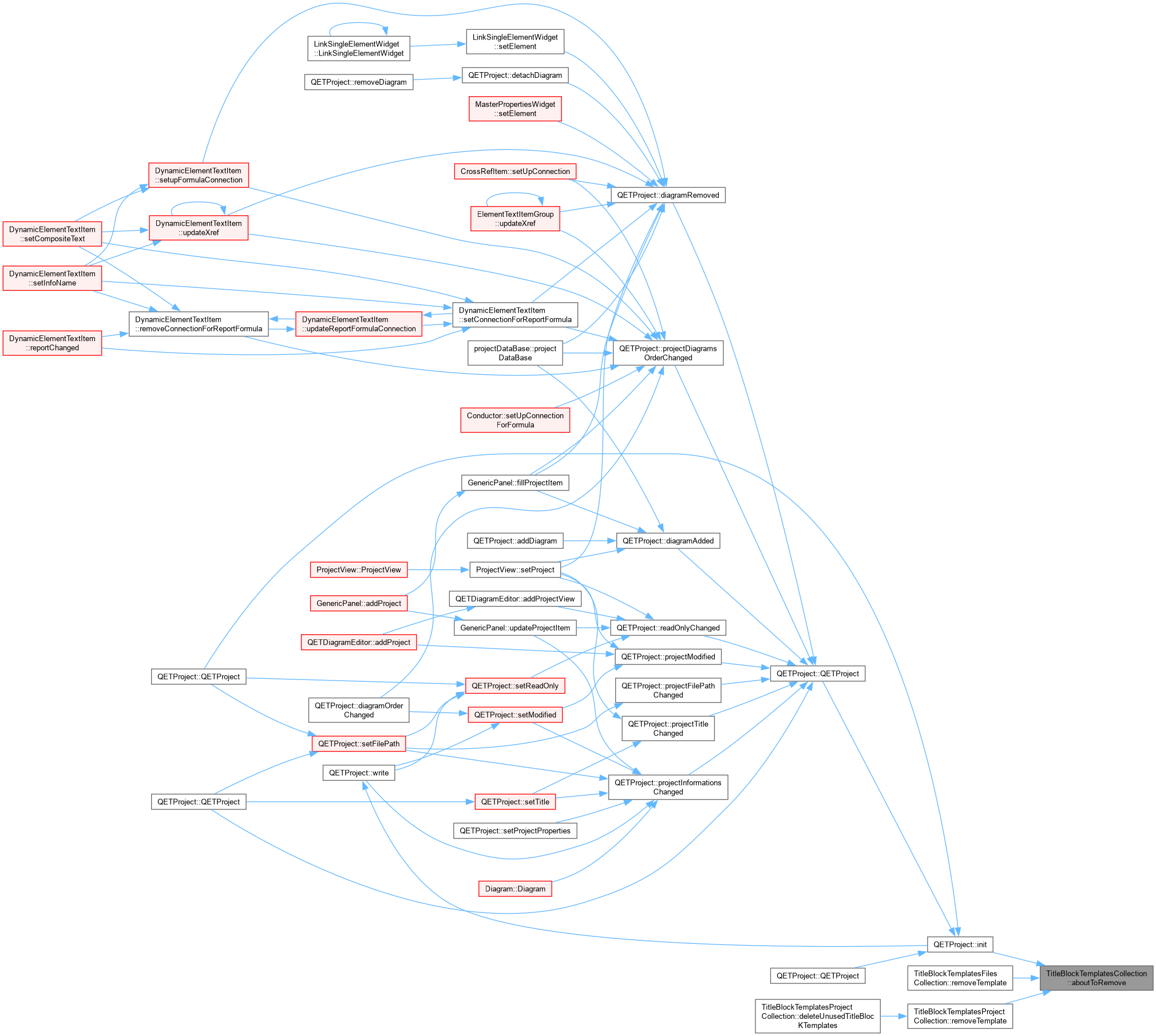

Here is the call graph for this function:

Here is the caller graph for this function:

◆ changed

void TitleBlockTemplatesCollection::changed	(	TitleBlockTemplatesCollection *	,
		const QString &	= QString() )

signal

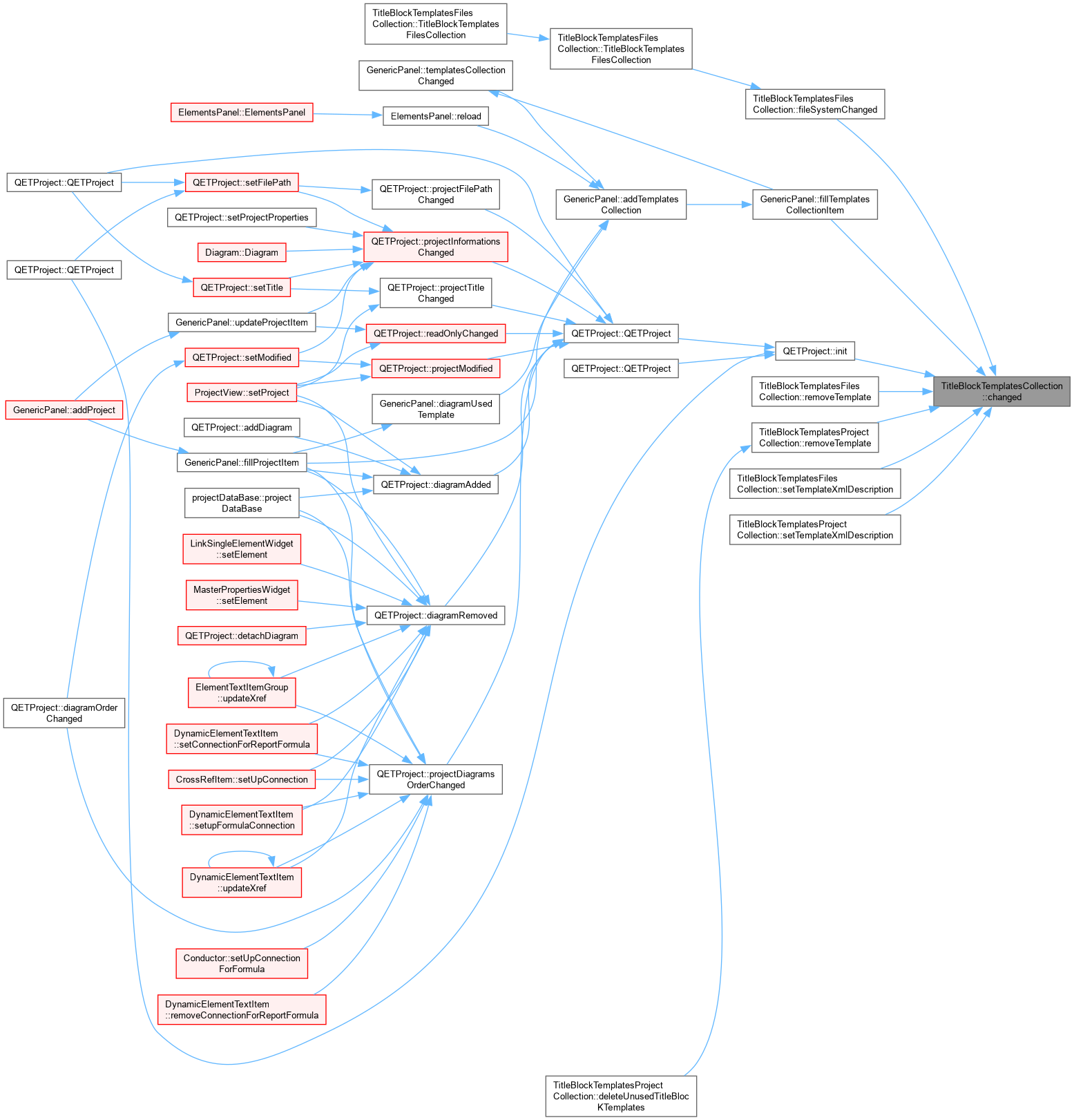

Here is the call graph for this function:

Here is the caller graph for this function:

◆ collection()

QET::QetCollection TitleBlockTemplatesCollection::collection ( ) const

virtual

TitleBlockTemplatesCollection::collection.

Returns: the collection where is stored this collection.

◆ filePath()

virtual QString TitleBlockTemplatesCollection::filePath ( )

pure virtual

Implemented in TitleBlockTemplatesFilesCollection, and TitleBlockTemplatesProjectCollection.

◆ getTemplate()

virtual TitleBlockTemplate * TitleBlockTemplatesCollection::getTemplate ( const QString & )

pure virtual

Implemented in TitleBlockTemplatesFilesCollection, and TitleBlockTemplatesProjectCollection.

◆ getTemplateXmlDescription()

virtual QDomElement TitleBlockTemplatesCollection::getTemplateXmlDescription ( const QString & )

pure virtual

Implemented in TitleBlockTemplatesFilesCollection, and TitleBlockTemplatesProjectCollection.

◆ hasFilePath()

virtual bool TitleBlockTemplatesCollection::hasFilePath ( )

pure virtual

Implemented in TitleBlockTemplatesFilesCollection, and TitleBlockTemplatesProjectCollection.

◆ isReadOnly()

virtual bool TitleBlockTemplatesCollection::isReadOnly ( const QString & = QString() ) const

pure virtual

Implemented in TitleBlockTemplatesFilesCollection, and TitleBlockTemplatesProjectCollection.

◆ location()

virtual TitleBlockTemplateLocation TitleBlockTemplatesCollection::location ( const QString & = QString() )

pure virtual

Implemented in TitleBlockTemplatesFilesCollection, and TitleBlockTemplatesProjectCollection.

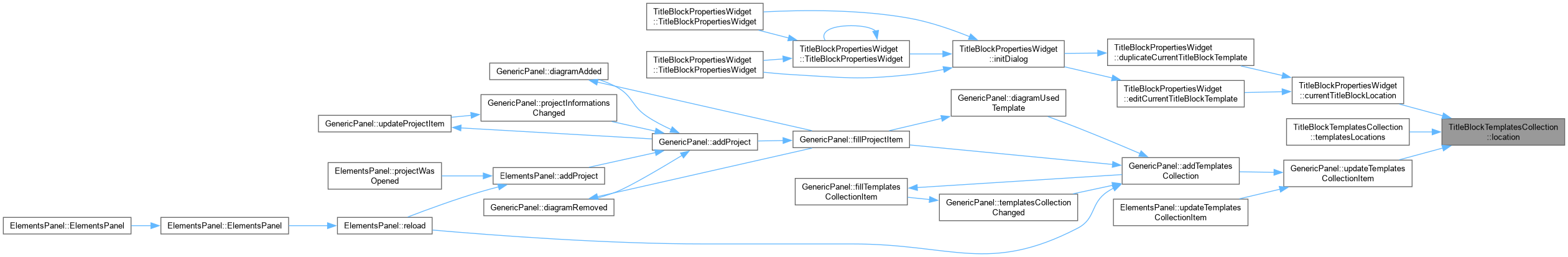

Here is the caller graph for this function:

◆ parentProject()

QETProject * TitleBlockTemplatesCollection::parentProject ( )

virtual

Returns: the project this collection is affiliated to, or 0 if this collection is not related to any project.

Reimplemented in TitleBlockTemplatesProjectCollection.

◆ protocol()

QString TitleBlockTemplatesCollection::protocol ( ) const

virtual

Returns: the protocol used by this collection ; examples: commontbt, customtbt, embedtbt, ...

Reimplemented in TitleBlockTemplatesProjectCollection.

Here is the caller graph for this function:

◆ removeTemplate()

virtual void TitleBlockTemplatesCollection::removeTemplate ( const QString & )

pure virtual

Implemented in TitleBlockTemplatesFilesCollection, and TitleBlockTemplatesProjectCollection.

◆ setCollection()

void TitleBlockTemplatesCollection::setCollection ( QET::QetCollection c )

virtual

TitleBlockTemplatesCollection::setCollection Set the storage of this collection.

Parameters

c

◆ setProtocol()

void TitleBlockTemplatesCollection::setProtocol ( const QString & protocol )

virtual

Define the protocol for this collection

Parameters

protocol New protocol for this collection

Here is the call graph for this function:

◆ setTemplateXmlDescription()

virtual bool TitleBlockTemplatesCollection::setTemplateXmlDescription	(	const QString &	,
		const QDomElement &	)

pure virtual

Implemented in TitleBlockTemplatesFilesCollection, and TitleBlockTemplatesProjectCollection.

◆ setTitle()

void TitleBlockTemplatesCollection::setTitle ( const QString & title )

virtual

TitleBlockTemplatesCollection::setTitle.

Parameters

title : New title for this collection

Here is the call graph for this function:

◆ templates()

virtual QStringList TitleBlockTemplatesCollection::templates ( )

pure virtual

Implemented in TitleBlockTemplatesFilesCollection, and TitleBlockTemplatesProjectCollection.

Here is the caller graph for this function:

◆ templatesLocations()

QList< TitleBlockTemplateLocation > TitleBlockTemplatesCollection::templatesLocations ( )

virtual

Returns: the templates contained within this collection, as a list of location objects.

See also: templates()

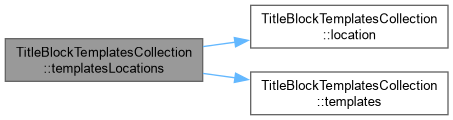

Here is the call graph for this function:

◆ title()

QString TitleBlockTemplatesCollection::title ( ) const

virtual

Returns: the title of this collection

Reimplemented in TitleBlockTemplatesProjectCollection.

Here is the caller graph for this function:

Member Data Documentation

◆ m_collection

QET::QetCollection TitleBlockTemplatesCollection::m_collection

protected

◆ protocol_

QString TitleBlockTemplatesCollection::protocol_

protected

Protocol used to designate this collection.

◆ title_

QString TitleBlockTemplatesCollection::title_

protected

Human-readable title for this collection.

◆ titleblock_templates_

QHash<QString, TitleBlockTemplate *> TitleBlockTemplatesCollection::titleblock_templates_

protected

Already parsed embedded titleblock templates.

The documentation for this class was generated from the following files:

sources/titleblock/templatescollection.h
sources/titleblock/templatescollection.cpp
