TitleBlockTemplatesFilesCollection Class Reference

#include <templatescollection.h>

Inheritance diagram for TitleBlockTemplatesFilesCollection:

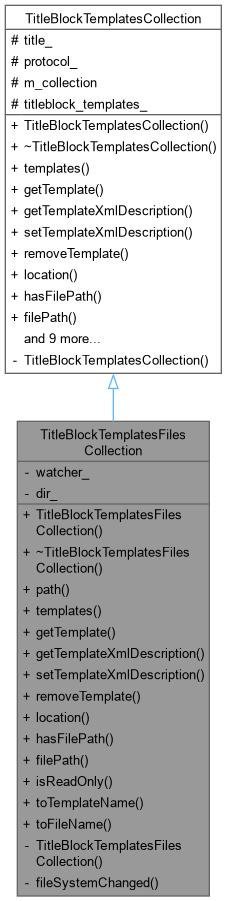

Collaboration diagram for TitleBlockTemplatesFilesCollection:

Public Member Functions
	TitleBlockTemplatesFilesCollection (const QString &, QObject *=nullptr)
	~TitleBlockTemplatesFilesCollection () override
QString	path (const QString &=QString()) const
QStringList	templates () override
TitleBlockTemplate *	getTemplate (const QString &) override
QDomElement	getTemplateXmlDescription (const QString &) override
bool	setTemplateXmlDescription (const QString &, const QDomElement &) override
void	removeTemplate (const QString &) override
TitleBlockTemplateLocation	location (const QString &=QString()) override
bool	hasFilePath () override
QString	filePath () override
bool	isReadOnly (const QString &=QString()) const override
Public Member Functions inherited from TitleBlockTemplatesCollection
	TitleBlockTemplatesCollection (QObject *parent)
	~TitleBlockTemplatesCollection () override
virtual QString	title () const
virtual void	setTitle (const QString &)
	TitleBlockTemplatesCollection::setTitle.
virtual QString	protocol () const
virtual void	setProtocol (const QString &)
virtual QET::QetCollection	collection () const
	TitleBlockTemplatesCollection::collection.
virtual void	setCollection (QET::QetCollection)
	TitleBlockTemplatesCollection::setCollection Set the storage of this collection.
virtual QETProject *	parentProject ()
virtual QList< TitleBlockTemplateLocation >	templatesLocations ()

Static Public Member Functions
static QString	toTemplateName (const QString &)
static QString	toFileName (const QString &)

Private Slots
void	fileSystemChanged (const QString &str)

Private Member Functions
	TitleBlockTemplatesFilesCollection (const TitleBlockTemplatesFilesCollection &)

Private Attributes
QFileSystemWatcher	watcher_
	File System Watcher object to track the files changes made outside the application.
QDir	dir_
	Collection real directory.

Additional Inherited Members
Signals inherited from TitleBlockTemplatesCollection
void	changed (TitleBlockTemplatesCollection *, const QString &=QString())
void	aboutToRemove (TitleBlockTemplatesCollection *, const QString &)
Protected Attributes inherited from TitleBlockTemplatesCollection
QString	title_
	Human-readable title for this collection.
QString	protocol_
	Protocol used to designate this collection.
QET::QetCollection	m_collection
QHash< QString, TitleBlockTemplate * >	titleblock_templates_
	Already parsed embedded titleblock templates.

Detailed Description

This classe represents a simple abastraction layer for a file-based title block templates directory.

Constructor & Destructor Documentation

TitleBlockTemplatesFilesCollection() [1/2]

TitleBlockTemplatesFilesCollection::TitleBlockTemplatesFilesCollection	(	const QString &	path,
		QObject *	parent = nullptr )

Constructor

Parameters

path	Path of the directory containing the collection
parent	Parent QObject

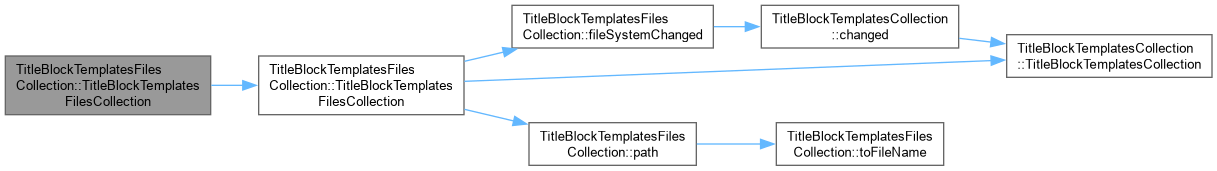

Here is the call graph for this function:

Here is the caller graph for this function:

~TitleBlockTemplatesFilesCollection()

TitleBlockTemplatesFilesCollection::~TitleBlockTemplatesFilesCollection ( )

override

Destructor

TitleBlockTemplatesFilesCollection() [2/2]

TitleBlockTemplatesFilesCollection::TitleBlockTemplatesFilesCollection ( const TitleBlockTemplatesFilesCollection & )

private

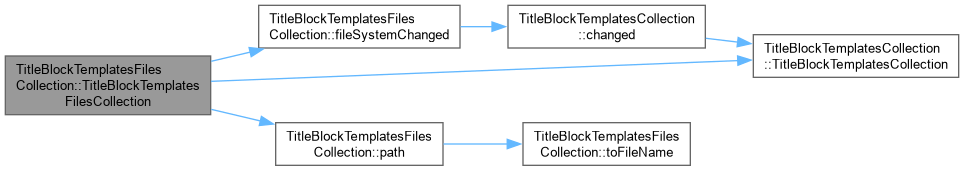

Here is the call graph for this function:

Member Function Documentation

filePath()

QString TitleBlockTemplatesFilesCollection::filePath ( )

overridevirtual

Returns

The filesystem path where this files collection is actually stored.

Implements TitleBlockTemplatesCollection.

fileSystemChanged

void TitleBlockTemplatesFilesCollection::fileSystemChanged ( const QString & str )

privateslot

Handle the changes occurring on the file system.

Parameters

str	Path of the directory that changed.

Here is the call graph for this function:

Here is the caller graph for this function:

getTemplate()

TitleBlockTemplate * TitleBlockTemplatesFilesCollection::getTemplate ( const QString & template_name )

overridevirtual

Returns

the template which name is template_name, or 0 if the template could not be loaded.

Implements TitleBlockTemplatesCollection.

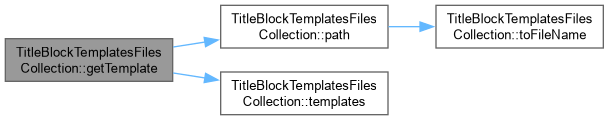

Here is the call graph for this function:

getTemplateXmlDescription()

QDomElement TitleBlockTemplatesFilesCollection::getTemplateXmlDescription ( const QString & template_name )

overridevirtual

Parameters

template_name

Name of a template (which has to already exist)

Returns

the XML description for the template_name template, or a null QDomElement if no such template exists.

Implements TitleBlockTemplatesCollection.

Here is the call graph for this function:

hasFilePath()

bool TitleBlockTemplatesFilesCollection::hasFilePath ( )

overridevirtual

Returns

always true since a files collection is always stored on a filesystem.

Implements TitleBlockTemplatesCollection.

isReadOnly()

bool TitleBlockTemplatesFilesCollection::isReadOnly ( const QString & template_name = QString() ) const

overridevirtual

Parameters

template_name

Either an empty QString to know whether the collection itself is read only, or a specific template name.

Returns

true if the specified template is read only, false otherwise

Implements TitleBlockTemplatesCollection.

Here is the call graph for this function:

location()

TitleBlockTemplateLocation TitleBlockTemplatesFilesCollection::location ( const QString & template_name = QString() )

overridevirtual

Parameters

template_name

Name of a template supposed to be contained within this collection.

Returns

Implements TitleBlockTemplatesCollection.

path()

QString TitleBlockTemplatesFilesCollection::path

(

const QString &

template_name = QString()

)

const

Returns

the canonical path of the directory hosting this collection.

Here is the call graph for this function:

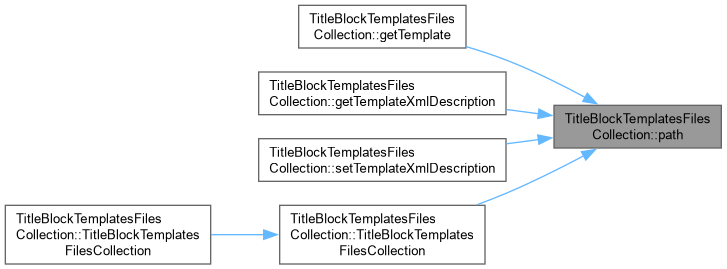

Here is the caller graph for this function:

removeTemplate()

void TitleBlockTemplatesFilesCollection::removeTemplate ( const QString & template_name )

overridevirtual

Remove the template_name template.

Implements TitleBlockTemplatesCollection.

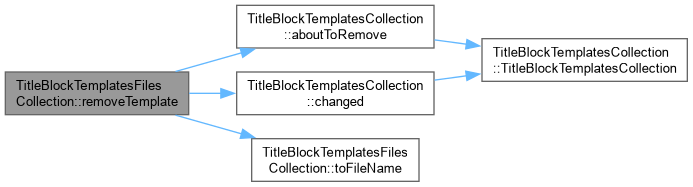

Here is the call graph for this function:

setTemplateXmlDescription()

bool TitleBlockTemplatesFilesCollection::setTemplateXmlDescription ( const QString & template_name, const QDomElement & xml_element )

overridevirtual

Set the XML description of the template_name template to xml_element.

Parameters

template_name	Name of a template (which does not have to already exist)
xml_element	XML element describing the template

Implements TitleBlockTemplatesCollection.

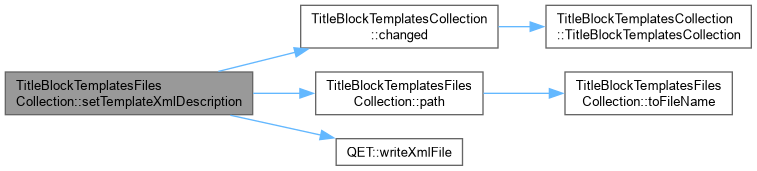

Here is the call graph for this function:

templates()

QStringList TitleBlockTemplatesFilesCollection::templates ( )

overridevirtual

Returns

the list of templates contained in this collection

Implements TitleBlockTemplatesCollection.

Here is the caller graph for this function:

toFileName()

QString TitleBlockTemplatesFilesCollection::toFileName ( const QString & template_name )

static

Parameters

template_name

A template name

Returns

the file name for template_name

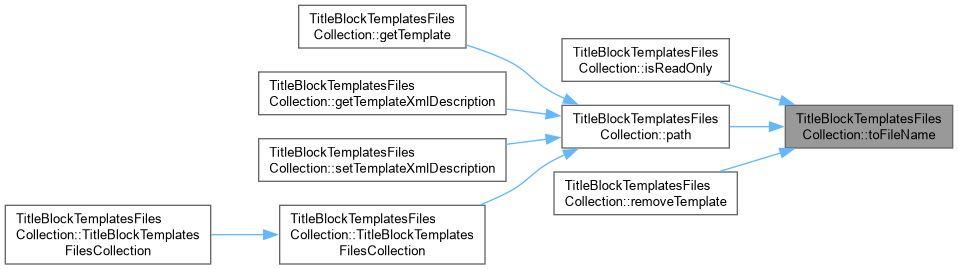

Here is the caller graph for this function:

toTemplateName()

QString TitleBlockTemplatesFilesCollection::toTemplateName ( const QString & file_name )

static

Parameters

file_name

A file name

Returns

the template name for file_name

Member Data Documentation

dir_

QDir TitleBlockTemplatesFilesCollection::dir_

private

Collection real directory.

watcher_

QFileSystemWatcher TitleBlockTemplatesFilesCollection::watcher_

private

File System Watcher object to track the files changes made outside the application.

---

The documentation for this class was generated from the following files:

• sources/titleblock/templatescollection.h
• sources/titleblock/templatescollection.cpp
