The TitleBlockTemplate class This class represents an title block template for an electric diagram. It can read from an XML document the layout of the table that graphically represents the title block, and can produce a graphical rendering of it from a diagram context (object embedding the informations of the diagram we want to represent the title block. More...

#include <titleblocktemplate.h>

Inherits QObject.

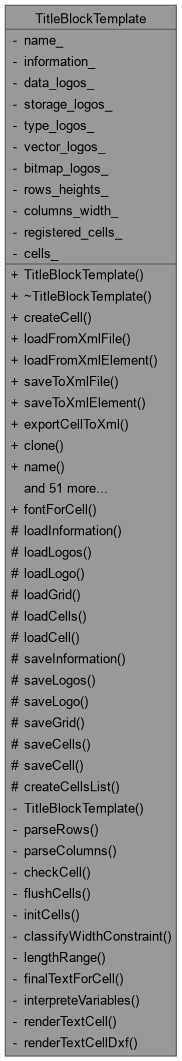

Collaboration diagram for TitleBlockTemplate:

Public Types
enum class	WidthConstraintCase : int { Unconstrained = -1 , RelativeWidthExceeds100Percent = -2 , AbsoluteColumnsExceedRemainingWidth = -3 }
	The TitleBlockTemplate::WidthConstraintCase enum Distinguishes the possible outcomes of minimumWidth() or maximumWidth() for a template's column layout: either a genuine finite pixel width, or one of the cases below where no single finite width applies – some of which are perfectly ordinary (Unconstrained), and some of which indicate the template's columns cannot be laid out at any width. More...

Public Member Functions
	TitleBlockTemplate (QObject *=nullptr)
	TitleBlockTemplate::TitleBlockTemplate Constructor.
	~TitleBlockTemplate () override
	TitleBlockTemplate::~TitleBlockTemplate Destructor.
TitleBlockCell *	createCell (const TitleBlockCell *=nullptr)
	TitleBlockTemplate::createCell Create a new cell and associate it with this template, which means that it will be deleted when this template is destroyed.
bool	loadFromXmlFile (const QString &)
	TitleBlockTemplate::loadFromXmlFile Load a titleblock template from an XML file.
bool	loadFromXmlElement (const QDomElement &)
	TitleBlockTemplate::loadFromXmlElement.
bool	saveToXmlFile (const QString &)
	TitleBlockTemplate::saveToXmlFile Save the title block template into an XML file.
bool	saveToXmlElement (QDomElement &) const
	TitleBlockTemplate::saveToXmlElement Save the title block template as XML.
void	exportCellToXml (TitleBlockCell *, QDomElement &) const
	TitleBlockTemplate::exportCellToXml.
TitleBlockTemplate *	clone () const
	TitleBlockTemplate::clone.
QString	name () const
	TitleBlockTemplate::name.
QString	information () const
	TitleBlockTemplate::information.
void	setInformation (const QString &)
	TitleBlockTemplate::setInformation.
int	rowDimension (int)
	TitleBlockTemplate::rowDimension.
void	setRowDimension (int, const TitleBlockDimension &)
	TitleBlockTemplate::setRowDimension Set the height of a row.
TitleBlockDimension	columnDimension (int)
	TitleBlockTemplate::columnDimension.
void	setColumnDimension (int, const TitleBlockDimension &)
	TitleBlockTemplate::setColumnDimension Set the width of a column.
int	columnsCount () const
	TitleBlockTemplate::columnsCount.
int	rowsCount () const
	TitleBlockTemplate::rowsCount.

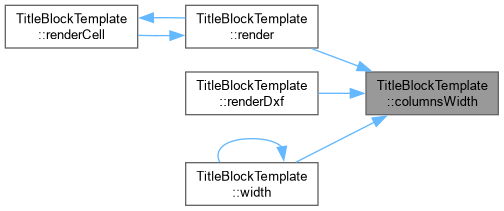

QList< int >	columnsWidth (int) const
	TitleBlockTemplate::columnsWidth.
QList< int >	rowsHeights () const
	TitleBlockTemplate::rowsHeights.
int	columnTypeCount (QET::TitleBlockColumnLength)
	TitleBlockTemplate::columnTypeCount.
int	columnTypeTotal (QET::TitleBlockColumnLength)
	TitleBlockTemplate::columnTypeTotal.
int	minimumWidth ()
	TitleBlockTemplate::minimumWidth.
int	maximumWidth ()
	TitleBlockTemplate::maximumWidth.
int	width (int)
	TitleBlockTemplate::width.
int	height () const
	TitleBlockTemplate::height.
bool	moveRow (int, int)
	TitleBlockTemplate::moveRow Move a row within this template.
void	addRow (int=-1)
	TitleBlockTemplate::addRow Add a new 25px-wide row at the provided index.
bool	insertRow (int, const QList< TitleBlockCell * > &, int=-1)
	TitleBlockTemplate::insertRow.
QList< TitleBlockCell * >	takeRow (int)
	TitleBlockTemplate::takeRow Removes the row at index i.
QList< TitleBlockCell * >	createRow ()
	TitleBlockTemplate::createRow.
bool	moveColumn (int, int)
	TitleBlockTemplate::moveColumn Move the column at index "from" to index "to".
void	addColumn (int=-1)
	TitleBlockTemplate::addColumn Add a new 50px-wide column at the provided index.
bool	insertColumn (const TitleBlockDimension &, const QList< TitleBlockCell * > &, int=-1)
	TitleBlockTemplate::insertColumn.
QList< TitleBlockCell * >	takeColumn (int)
	TitleBlockTemplate::takeColumn Removes the column at index i.
QList< TitleBlockCell * >	createColumn ()
	TitleBlockTemplate::createColumn.
TitleBlockCell *	cell (int, int) const
	TitleBlockTemplate::cell.
QSet< TitleBlockCell * >	spannedCells (const TitleBlockCell *, bool=false) const
	TitleBlockTemplate::spannedCells.
QHash< TitleBlockCell *, QPair< int, int > >	getAllSpans () const
	TitleBlockTemplate::getAllSpans Export the span parameters of all cell in the current grid.
void	setAllSpans (const QHash< TitleBlockCell *, QPair< int, int > > &)
	TitleBlockTemplate::setAllSpans Restore a set of span parameters.
bool	addLogo (const QString &, QByteArray *, const QString &="svg", const QString &="xml")
	TitleBlockTemplate::addLogo.
bool	addLogoFromFile (const QString &, const QString &=QString())
	TitleBlockTemplate::addLogoFromFile.
bool	saveLogoToFile (const QString &, const QString &)
	TitleBlockTemplate::saveLogoToFile.
bool	removeLogo (const QString &)
	TitleBlockTemplate::removeLogo.
bool	renameLogo (const QString &, const QString &)
	TitleBlockTemplate::renameLogo Rename the logo_name logo to new_name.
void	setLogoStorage (const QString &, const QString &)
	TitleBlockTemplate::setLogoStorage Set the kind of storage for the logo_name logo.
QList< QString >	logos () const
	TitleBlockTemplate::logos.
QString	logoType (const QString &) const
	TitleBlockTemplate::logoType.
QSvgRenderer *	vectorLogo (const QString &) const
	TitleBlockTemplate::vectorLogo.
QPixmap	bitmapLogo (const QString &) const
	TitleBlockTemplate::bitmapLogo.
void	render (QPainter &, const DiagramContext &, int) const
	TitleBlockTemplate::render Render the titleblock.
void	renderDxf (QRectF &, const DiagramContext &, int, QString &, int) const
	TitleBlockTemplate::renderDxf Render the titleblock in DXF.
void	renderCell (QPainter &, const TitleBlockCell &, const DiagramContext &, const QRect &) const
	TitleBlockTemplate::renderCell Render a titleblock cell.
void	applyCellSpans ()
	TitleBlockTemplate::applyCellSpans Forget any previously applied span, then apply again all spans defined by existing cells.
void	forgetSpanning ()
	TitleBlockTemplate::forgetSpanning Set the spanner_cell attribute of every cell to 0.
void	forgetSpanning (TitleBlockCell *, bool=true)
	TitleBlockTemplate::forgetSpanning Set the spanner_cell attribute of every cell spanned by spanning_cell to 0.
bool	checkCellSpan (TitleBlockCell *)
	TitleBlockTemplate::checkCellSpan Check whether a given cell can be spanned according to its row_span and col_span attributes. the following attributes of cell are updated according to what is really possible: applied_col_span applied_row_span span_state.

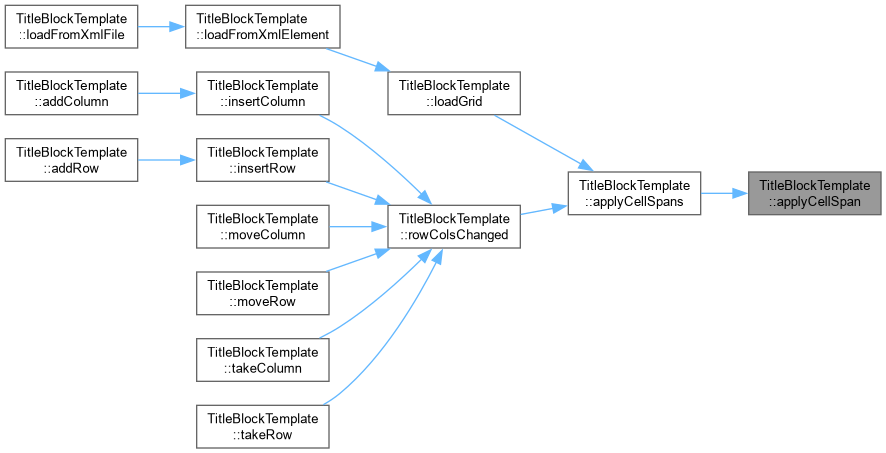

void	applyCellSpan (TitleBlockCell *)
	TitleBlockTemplate::applyCellSpan Ensure the spans of the provided cell are applied within the grid structure.
void	applyRowColNums ()
	TitleBlockTemplate::applyRowColNums Ensure all cells have the right col+row numbers.

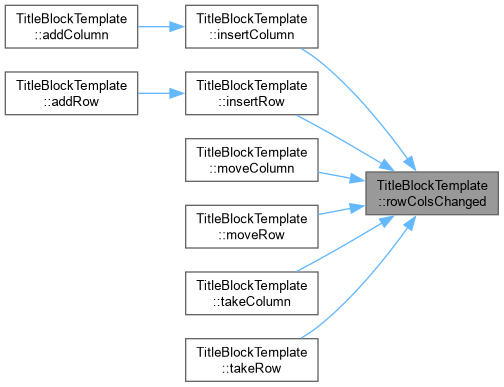

void	rowColsChanged ()
	TitleBlockTemplate::rowColsChanged Take care of consistency and span-related problematics when adding/moving/deleting rows and columns.
QStringList	listOfVariables ()
	TitleBlockTemplate::listOfVariables Get list of variables.

Static Public Member Functions
static QFont	fontForCell (const TitleBlockCell &)
	TitleBlockTemplate::fontForCell.

Protected Member Functions
void	loadInformation (const QDomElement &)
	TitleBlockTemplate::loadInformation Import text informations from a given XML title block template.
bool	loadLogos (const QDomElement &, bool=false)
	TitleBlockTemplate::loadLogos Import the logos from a given XML titleblock template.
bool	loadLogo (const QDomElement &)
	TitleBlockTemplate::loadLogo Import the logo from a given XML logo description.
bool	loadGrid (const QDomElement &)
bool	loadCells (const QDomElement &)
	TitleBlockTemplate::loadCells Analyze an XML element, looking for grid cells. The grid cells are checked and stored in this object.
void	loadCell (const QDomElement &)
	TitleBlockTemplate::loadCell Load a cell into this template.
void	saveInformation (QDomElement &) const
	TitleBlockTemplate::saveInformation Export this template's extra information.
void	saveLogos (QDomElement &) const
	TitleBlockTemplate::saveLogos Export this template's logos as XML.
void	saveLogo (const QString &, QDomElement &) const
	TitleBlockTemplate::saveLogo Export a specific logo as XML.
void	saveGrid (QDomElement &) const
	TitleBlockTemplate::saveGrid Export this template's cells grid as XML.
void	saveCells (QDomElement &) const
	TitleBlockTemplate::saveCells Export this template's cells as XML (without the grid-related information, usch as rows and cols).
void	saveCell (TitleBlockCell *, QDomElement &, bool=false) const
	TitleBlockTemplate::saveCell Export a specific cell as XML.
QList< TitleBlockCell * >	createCellsList (int)
	TitleBlockTemplate::createCellsList.

Private Member Functions
	TitleBlockTemplate (const TitleBlockTemplate &)
void	parseRows (const QString &)
	TitleBlockTemplate::parseRows Parse the rows heights.
void	parseColumns (const QString &)
	TitleBlockTemplate::parseColumns Parse the columns widths.
bool	checkCell (const QDomElement &, TitleBlockCell **=nullptr)
	TitleBlockTemplate::checkCell Load the essential attributes of a cell: row and column indices and spans.
void	flushCells ()
void	initCells ()
	TitleBlockTemplate::initCells Initialize the internal cells grid with the row and column counts. Note that this method does nothing if one of the internal lists columns_width_ and rows_heights_ is empty.
std::optional< WidthConstraintCase >	classifyWidthConstraint (int &abs_total, qreal &remaining_width_fraction)
	TitleBlockTemplate::classifyWidthConstraint Classifies this template's absolute-width (ABS) and relative-to-total-length (RTT) columns, independently of whether a minimum or a maximum width is being computed – see minimumWidth() for the derivation this is based on.
int	lengthRange (int, int, const QList< int > &) const
	TitleBlockTemplate::lengthRange.

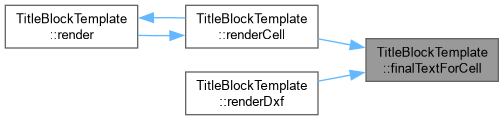

QString	finalTextForCell (const TitleBlockCell &, const DiagramContext &) const
	TitleBlockTemplate::finalTextForCell.
QString	interpreteVariables (const QString &, const DiagramContext &) const
	TitleBlockTemplate::interpreteVariables.
void	renderTextCell (QPainter &, const QString &, const TitleBlockCell &, const QRectF &) const
	TitleBlockTemplate::renderTextCell This method uses a painter to render the text of a cell into the cell_rect rectangle. The alignment, font_size and other cell parameters are taken into account when rendering.
void	renderTextCellDxf (QString &, const QString &, const TitleBlockCell &, qreal, qreal, qreal, qreal, int) const
	TitleBlockTemplate::renderTextCellDxf.

Private Attributes
QString	name_
	name_ : name identifying the Title Block Template within its parent collection
QString	information_
QHash< QString, QByteArray >	data_logos_
	data_logos_ : Logos raw data
QHash< QString, QString >	storage_logos_
	storage_logos_ : Logos applied storage type (e.g. "xml" or "base64")
QHash< QString, QString >	type_logos_
	type_logos_ : Logos types (e.g. "png", "jpeg", "svg")
QHash< QString, QSvgRenderer * >	vector_logos_
	vector_logos_ : Rendered objects for vector logos
QHash< QString, QPixmap >	bitmap_logos_
	bitmap_logos_ : Pixmaps for bitmap logos
QList< int >	rows_heights_
	rows heights – simple integers
QList< TitleBlockDimension >	columns_width_
	columns_width_ : columns widths –
QList< TitleBlockCell * >	registered_cells_
	registered_cells_ : Cells objects created rattached to this template, but not mandatorily used
QList< QList< TitleBlockCell * > >	cells_
	Cells grid.

Detailed Description

The TitleBlockTemplate class This class represents an title block template for an electric diagram. It can read from an XML document the layout of the table that graphically represents the title block, and can produce a graphical rendering of it from a diagram context (object embedding the informations of the diagram we want to represent the title block.

Member Enumeration Documentation

◆ WidthConstraintCase

enum class TitleBlockTemplate::WidthConstraintCase : int

strong

The TitleBlockTemplate::WidthConstraintCase enum Distinguishes the possible outcomes of minimumWidth() or maximumWidth() for a template's column layout: either a genuine finite pixel width, or one of the cases below where no single finite width applies – some of which are perfectly ordinary (Unconstrained), and some of which indicate the template's columns cannot be laid out at any width.

Both functions return one of the non-Bounded* cases below, cast to int, in place of a genuine width whenever no finite width applies. (*minimumWidth()/maximumWidth() never return a literal "Bounded" value – when a finite width exists, they return that width directly. Bounded only appears as a concept in classifyWidthConstraint()'s std::nullopt return.) The int-based encoding exists because this project currently targets C++17.

Todo: Once this project's minimum supported C++ standard reaches C++23, migrate minimumWidth() and maximumWidth() to return std::expected<int, WidthConstraintCase> instead of encoding these cases as negative int sentinels. That removes the possibility of a caller silently misinterpreting a sentinel as a real pixel width – something the current int-based encoding cannot prevent at compile time.

Enumerator
Unconstrained	There is no finite width constraint in this direction: any width is valid. This is a perfectly ordinary case, not a problem with the template – for minimumWidth(), it happens when the relative-to-total-length (RTT) columns account for exactly 100% of the total width and there are no absolute-width (ABS) columns competing for space – every term in the minimum-width inequality vanishes (0 >= 0), which holds for any width. For maximumWidth(), it happens whenever at least one column scales with the total width, so nothing caps how wide the template may grow – the common case for most templates.
RelativeWidthExceeds100Percent	The RTT columns alone already exceed 100% of the total width (sum(RTT) > 100), independently of whether any ABS columns exist. The minimum-width inequality then only holds for a non-positive width, which cannot represent a real template: this indicates a genuinely misconfigured template that cannot be laid out at any width.
AbsoluteColumnsExceedRemainingWidth	The RTT columns account for exactly 100% of the total width, but at least one ABS column also needs a nonzero, fixed amount of space on top of that. The minimum-width inequality reduces to "0 >= (a positive number)", which never holds: this also indicates a genuinely misconfigured template that cannot be laid out at any width.

Constructor & Destructor Documentation

◆ TitleBlockTemplate() [1/2]

TitleBlockTemplate::TitleBlockTemplate ( QObject * parent = nullptr )

TitleBlockTemplate::TitleBlockTemplate Constructor.

Parameters

parent parent QObject

Here is the caller graph for this function:

◆ ~TitleBlockTemplate()

TitleBlockTemplate::~TitleBlockTemplate ( )

override

TitleBlockTemplate::~TitleBlockTemplate Destructor.

Here is the call graph for this function:

◆ TitleBlockTemplate() [2/2]

TitleBlockTemplate::TitleBlockTemplate ( const TitleBlockTemplate & )

private

Here is the call graph for this function:

Member Function Documentation

◆ addColumn()

void TitleBlockTemplate::addColumn ( int i = -1 )

TitleBlockTemplate::addColumn Add a new 50px-wide column at the provided index.

Parameters

i	: Index of the added column, -1 meaning "last position"

Here is the call graph for this function:

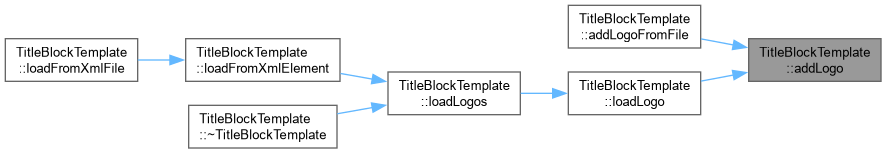

◆ addLogo()

bool TitleBlockTemplate::addLogo	(	const QString &	logo_name,
		QByteArray *	logo_data,
		const QString &	logo_type = "svg",
		const QString &	logo_storage = "xml" )

TitleBlockTemplate::addLogo.

Parameters

logo_name	: Logo name to be added / replaced
logo_data	: Logo data
logo_type	:
logo_storage	:

Returns: true or false

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addLogoFromFile()

bool TitleBlockTemplate::addLogoFromFile	(	const QString &	filepath,
		const QString &	name = QString() )

TitleBlockTemplate::addLogoFromFile.

Parameters

filepath	: Path of the image file to add as a logo
name	: Name used to store the logo; if none is provided, the basename of the first argument is used.

Returns: true if the logo could be deleted, false otherwise

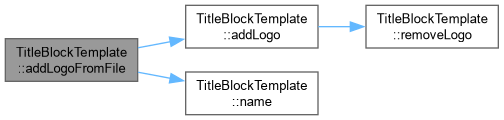

Here is the call graph for this function:

◆ addRow()

void TitleBlockTemplate::addRow ( int i = -1 )

TitleBlockTemplate::addRow Add a new 25px-wide row at the provided index.

Parameters

i	: Index of the added row, -1 meaning "last position"

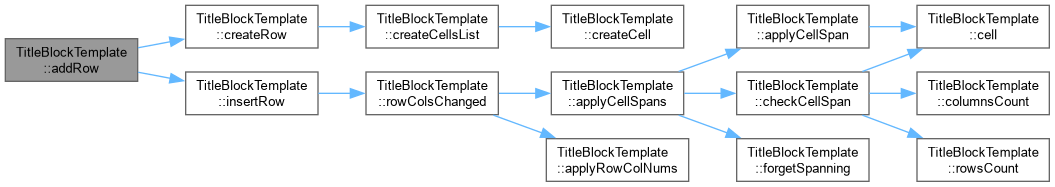

Here is the call graph for this function:

◆ applyCellSpan()

void TitleBlockTemplate::applyCellSpan ( TitleBlockCell * cell )

TitleBlockTemplate::applyCellSpan Ensure the spans of the provided cell are applied within the grid structure.

Note: : this function does not check whether the spans of the provided cell make sense.

Parameters

cell	: Potentially spanning cell

Here is the call graph for this function:

Here is the caller graph for this function:

◆ applyCellSpans()

void TitleBlockTemplate::applyCellSpans ( )

TitleBlockTemplate::applyCellSpans Forget any previously applied span, then apply again all spans defined by existing cells.

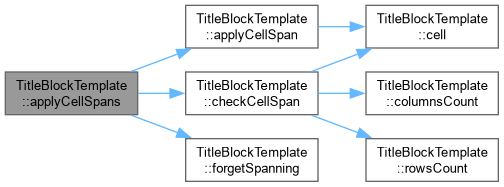

Here is the call graph for this function:

Here is the caller graph for this function:

◆ applyRowColNums()

void TitleBlockTemplate::applyRowColNums ( )

TitleBlockTemplate::applyRowColNums Ensure all cells have the right col+row numbers.

Here is the caller graph for this function:

◆ bitmapLogo()

QPixmap TitleBlockTemplate::bitmapLogo ( const QString & logo_name ) const

TitleBlockTemplate::bitmapLogo.

Parameters

logo_name : Name of a logo embedded within this title block template.

Returns: the pixmap for the required bitmap logo, or a null pixmap if no such bitmap logo was found in this template.

◆ cell()

TitleBlockCell * TitleBlockTemplate::cell	(	int	row,
		int	col ) const

TitleBlockTemplate::cell.

Parameters

row	: A row number (starting from 0)
col	: A column number (starting from 0)

Returns: the cell located at (row, col)

Here is the caller graph for this function:

◆ checkCell()

bool TitleBlockTemplate::checkCell	(	const QDomElement &	xml_element,
		TitleBlockCell **	titleblock_cell_ptr = nullptr )

private

TitleBlockTemplate::checkCell Load the essential attributes of a cell: row and column indices and spans.

Parameters

xml_element	: XML element representing a cell, i.e. either an titleblock logo or an titleblock field.
titleblock_cell_ptr	: Pointer to a TitleBlockCell object pointer - if non-zero and if this method returns true, will be filled with the created TitleBlockCell

Returns: TRUE if the cell appears to be ok, FALSE otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkCellSpan()

bool TitleBlockTemplate::checkCellSpan ( TitleBlockCell * cell )

TitleBlockTemplate::checkCellSpan Check whether a given cell can be spanned according to its row_span and col_span attributes. the following attributes of cell are updated according to what is really possible: applied_col_span applied_row_span span_state.

Parameters

cell	: Cell we want to check

Returns: false if no check could be performed, true otherwise

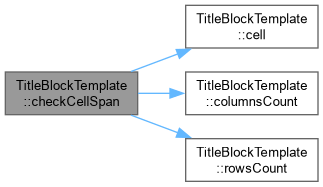

Here is the call graph for this function:

Here is the caller graph for this function:

◆ classifyWidthConstraint()

std::optional< TitleBlockTemplate::WidthConstraintCase > TitleBlockTemplate::classifyWidthConstraint	(	int &	abs_total,
		qreal &	remaining_width_fraction )

private

TitleBlockTemplate::classifyWidthConstraint Classifies this template's absolute-width (ABS) and relative-to-total-length (RTT) columns, independently of whether a minimum or a maximum width is being computed – see minimumWidth() for the derivation this is based on.

TitleBlockTemplate::classifyWidthConstraint Classifies this template's absolute-width (ABS) and relative-to-total-length (RTT) columns, independently of whether a minimum or a maximum width is being computed.

Parameters

[out]	abs_total	set to columnTypeTotal(QET::Absolute).
[out]	remaining_width_fraction	set to the fraction of the total template width left over once the RTT columns have taken their share: (100.0 - sum(RTT)) / 100.0. Zero means the RTT columns claim the entire width, leaving nothing for ABS columns; negative means they claim more than the entire width, which is unsatisfiable regardless of any ABS columns. Only meaningful when this function returns std::nullopt.

Returns: WidthConstraintCase::RelativeWidthExceeds100Percent, WidthConstraintCase::AbsoluteColumnsExceedRemainingWidth, or WidthConstraintCase::Unconstrained if no finite width exists for this template's columns, or std::nullopt if a finite width does exist (computable as qRound(abs_total / remaining_width_fraction)).

The classification is derived from the same inequality minimumWidth() solves for a minimum width:

TOT >= ((sum(RTT)/100)*TOT) + sum(ABS)

Regardless of TOT, the RTT term above scales linearly with TOT. If sum(RTT) alone already accounts for 100% or more of TOT, no choice of TOT – however large – can make room for it (and for any ABS columns on top of it): making the template wider grows the RTT columns' pixel footprint by the same proportion, so the shortfall never resolves. This function exists so both minimumWidth() and maximumWidth() report that consistently, instead of maximumWidth() incorrectly treating a misconfigured template as "no upper bound".

Parameters

[out]	abs_total	set to columnTypeTotal(QET::Absolute).
[out]	remaining_width_fraction	set to the fraction of the total template width left over once the RTT columns have taken their share: (100.0 - sum(RTT)) / 100.0. Zero means the RTT columns claim the entire width, leaving nothing for ABS columns; negative means they claim more than the entire width, which is unsatisfiable regardless of any ABS columns. Only meaningful when this function returns std::nullopt.

Returns: WidthConstraintCase::RelativeWidthExceeds100Percent if sum(RTT) exceeds 100% (unsatisfiable at any width, with or without ABS columns), WidthConstraintCase::AbsoluteColumnsExceedRemainingWidth if sum(RTT) equals exactly 100% and at least one ABS column is also present (unsatisfiable at any width, since the RTT columns leave no room for it), WidthConstraintCase::Unconstrained if sum(RTT) equals exactly 100% with no ABS columns (every term vanishes, any width holds – an ordinary, valid template), or std::nullopt if this template's columns admit a genuine finite width.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clone()

TitleBlockTemplate * TitleBlockTemplate::clone ( ) const

TitleBlockTemplate::clone.

Returns: a deep copy of the current title block template (i.e. title block cells are duplicated too and associated with their parent template).

Here is the call graph for this function:

◆ columnDimension()

TitleBlockDimension TitleBlockTemplate::columnDimension ( int i )

TitleBlockTemplate::columnDimension.

Parameters

i	: column index

Returns: the width of the column at index i

◆ columnsCount()

int TitleBlockTemplate::columnsCount ( ) const

TitleBlockTemplate::columnsCount.

Returns: the number of columns in this template

Here is the caller graph for this function:

◆ columnsWidth()

QList< int > TitleBlockTemplate::columnsWidth ( int total_width ) const

TitleBlockTemplate::columnsWidth.

Parameters

total_width : The total width of the titleblock to render

Returns: the list of the columns widths for this rendering

Here is the caller graph for this function:

◆ columnTypeCount()

int TitleBlockTemplate::columnTypeCount ( QET::TitleBlockColumnLength type )

TitleBlockTemplate::columnTypeCount.

Parameters

type	: a column type

Returns: the count of type columns

Here is the caller graph for this function:

◆ columnTypeTotal()

int TitleBlockTemplate::columnTypeTotal ( QET::TitleBlockColumnLength type )

TitleBlockTemplate::columnTypeTotal.

Parameters

type	: a column type

Returns: the sum of values attached to type columns

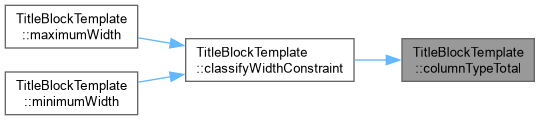

Here is the caller graph for this function:

◆ createCell()

TitleBlockCell * TitleBlockTemplate::createCell ( const TitleBlockCell * existing_cell = nullptr )

TitleBlockTemplate::createCell Create a new cell and associate it with this template, which means that it will be deleted when this template is destroyed.

Parameters

existing_cell (optional) An existing cell that will be copied

Returns: A pointer to the newly created cell

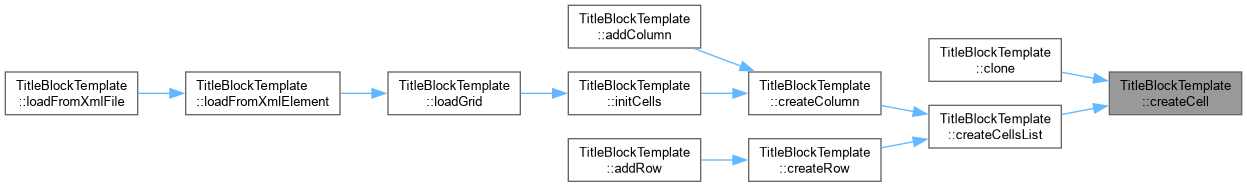

Here is the caller graph for this function:

◆ createCellsList()

QList< TitleBlockCell * > TitleBlockTemplate::createCellsList ( int count )

protected

TitleBlockTemplate::createCellsList.

Parameters

count : Number of cells expected in the list

Returns: a list containing count newly created (and registered) cells

See also: createCell()

Here is the call graph for this function:

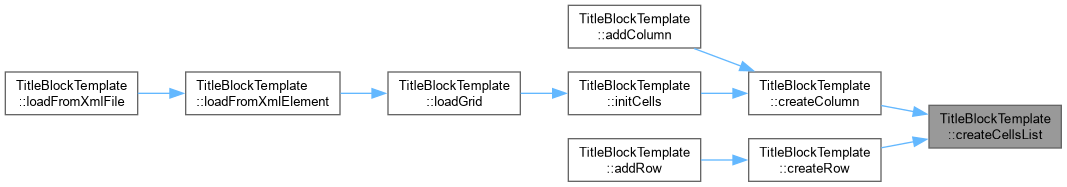

Here is the caller graph for this function:

◆ createColumn()

QList< TitleBlockCell * > TitleBlockTemplate::createColumn ( )

TitleBlockTemplate::createColumn.

Returns: a new column that fits the current grid

Here is the call graph for this function:

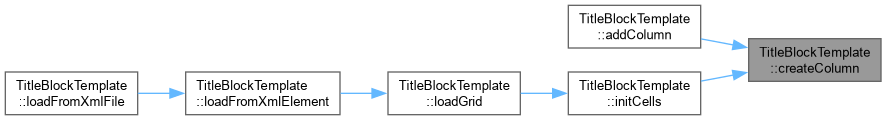

Here is the caller graph for this function:

◆ createRow()

QList< TitleBlockCell * > TitleBlockTemplate::createRow ( )

TitleBlockTemplate::createRow.

Returns: a new row that fits the current grid

Here is the call graph for this function:

Here is the caller graph for this function:

◆ exportCellToXml()

void TitleBlockTemplate::exportCellToXml	(	TitleBlockCell *	cell,
		QDomElement &	xml_element ) const

TitleBlockTemplate::exportCellToXml.

Parameters

cell	: Cell to export
xml_element	: Parent XML element to be used when exporting cell

Here is the call graph for this function:

◆ finalTextForCell()

QString TitleBlockTemplate::finalTextForCell	(	const TitleBlockCell &	cell,
		const DiagramContext &	diagram_context ) const

private

TitleBlockTemplate::finalTextForCell.

Parameters

cell	: A cell from this template
diagram_context	: Diagram context to use to generate the final text for the given cell

Returns: the final text that has to be drawn in the given cell

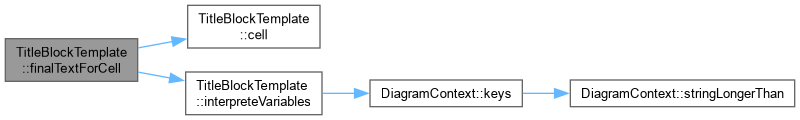

Here is the call graph for this function:

Here is the caller graph for this function:

◆ flushCells()

void TitleBlockTemplate::flushCells ( )

private

◆ fontForCell()

QFont TitleBlockTemplate::fontForCell ( const TitleBlockCell & cell )

static

TitleBlockTemplate::fontForCell.

Parameters

cell	: An existing cell

Returns: The font that should be used to render this cell according to its properties.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ forgetSpanning() [1/2]

void TitleBlockTemplate::forgetSpanning ( )

TitleBlockTemplate::forgetSpanning Set the spanner_cell attribute of every cell to 0.

Here is the caller graph for this function:

◆ forgetSpanning() [2/2]

void TitleBlockTemplate::forgetSpanning	(	TitleBlockCell *	spanning_cell,
		bool	modify_cell = true )

TitleBlockTemplate::forgetSpanning Set the spanner_cell attribute of every cell spanned by spanning_cell to 0.

Parameters

spanning_cell	:
modify_cell	: (Optional, defaults to true) Whether to set row_span and col_span of spanning_cell to 0.

Here is the call graph for this function:

◆ getAllSpans()

QHash< TitleBlockCell *, QPair< int, int > > TitleBlockTemplate::getAllSpans ( ) const

TitleBlockTemplate::getAllSpans Export the span parameters of all cell in the current grid.

Returns

◆ height()

int TitleBlockTemplate::height ( ) const

TitleBlockTemplate::height.

Returns: the total height of this template

Here is the call graph for this function:

Here is the caller graph for this function:

◆ information()

QString TitleBlockTemplate::information ( ) const

TitleBlockTemplate::information.

Returns: the information field attached to this template

Here is the caller graph for this function:

◆ initCells()

void TitleBlockTemplate::initCells ( )

private

TitleBlockTemplate::initCells Initialize the internal cells grid with the row and column counts. Note that this method does nothing if one of the internal lists columns_width_ and rows_heights_ is empty.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ insertColumn()

bool TitleBlockTemplate::insertColumn	(	const TitleBlockDimension &	dimension,
		const QList< TitleBlockCell * > &	column,
		int	i = -1 )

TitleBlockTemplate::insertColumn.

Parameters

dimension	: Size of the column to be added
column	: Column to be added
i	: Index of the column after insertion, -1 meaning "last position"

Returns: true

Here is the call graph for this function:

Here is the caller graph for this function:

◆ insertRow()

bool TitleBlockTemplate::insertRow	(	int	dimension,
		const QList< TitleBlockCell * > &	row,
		int	i = -1 )

TitleBlockTemplate::insertRow.

Parameters

dimension	: dimension Size of the row to be added (always absolute, in pixels)
row	: column Row to be added
i	: Index of the column after insertion, -1 meaning "last position"

Returns: true

Here is the call graph for this function:

Here is the caller graph for this function:

◆ interpreteVariables()

QString TitleBlockTemplate::interpreteVariables	(	const QString &	string,
		const DiagramContext &	diagram_context ) const

private

TitleBlockTemplate::interpreteVariables.

Parameters

string	: A text containing 0 to n variables, e.g. "%var" or "%{var}"
diagram_context	: Diagram context to use to interprete variables

Returns: the provided string with variables replaced by the values from the diagram context

Here is the call graph for this function:

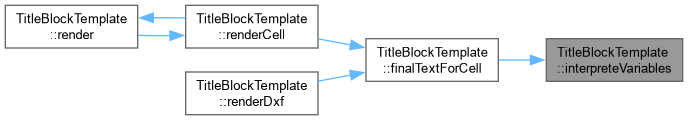

Here is the caller graph for this function:

◆ lengthRange()

int TitleBlockTemplate::lengthRange	(	int	start,
		int	end,
		const QList< int > &	lengths_list ) const

private

TitleBlockTemplate::lengthRange.

Parameters

start	: start border number
end	: end border number
lengths_list	:

Returns: the width between two borders

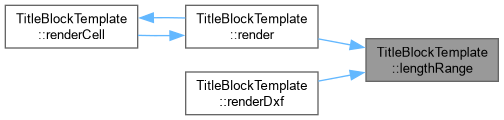

Here is the caller graph for this function:

◆ listOfVariables()

QStringList TitleBlockTemplate::listOfVariables ( )

TitleBlockTemplate::listOfVariables Get list of variables.

Returns: The list of string with variables

Here is the call graph for this function:

◆ loadCell()

void TitleBlockTemplate::loadCell ( const QDomElement & cell_element )

protected

TitleBlockTemplate::loadCell Load a cell into this template.

Parameters

cell_element : XML element describing a cell within a title block template

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadCells()

bool TitleBlockTemplate::loadCells ( const QDomElement & xml_element )

protected

TitleBlockTemplate::loadCells Analyze an XML element, looking for grid cells. The grid cells are checked and stored in this object.

Parameters

xml_element XML element to analyze

Returns: systematically true

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadFromXmlElement()

bool TitleBlockTemplate::loadFromXmlElement ( const QDomElement & xml_element )

TitleBlockTemplate::loadFromXmlElement.

Parameters

xml_element : An XML document to read the template from.

Returns: true if the reading succeeds, false otherwise.

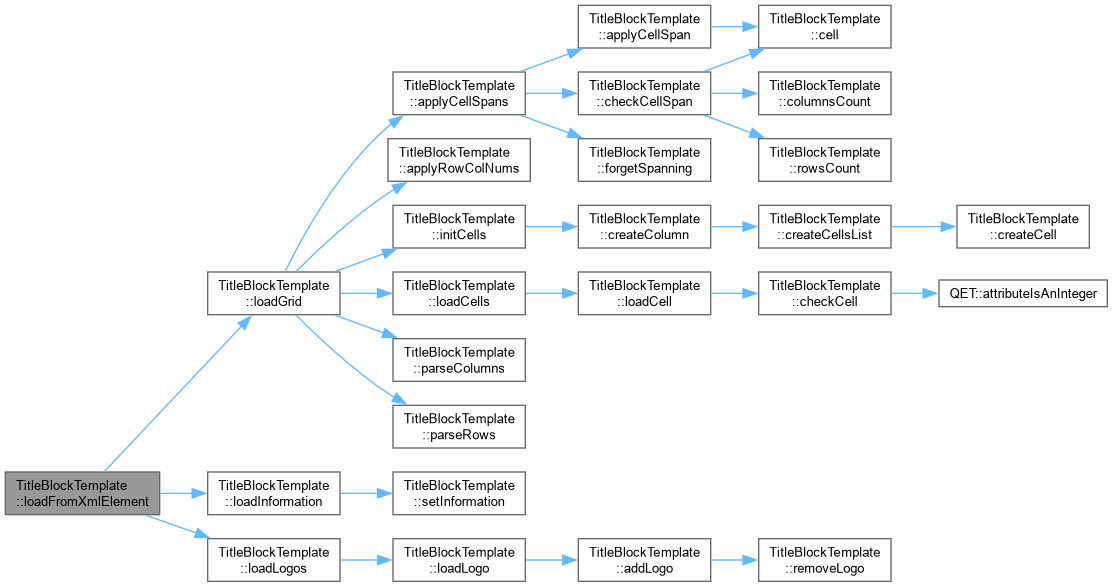

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadFromXmlFile()

bool TitleBlockTemplate::loadFromXmlFile ( const QString & filepath )

TitleBlockTemplate::loadFromXmlFile Load a titleblock template from an XML file.

Parameters

filepath : A file path to read the template from.

Returns: true if the reading succeeds, false otherwise.

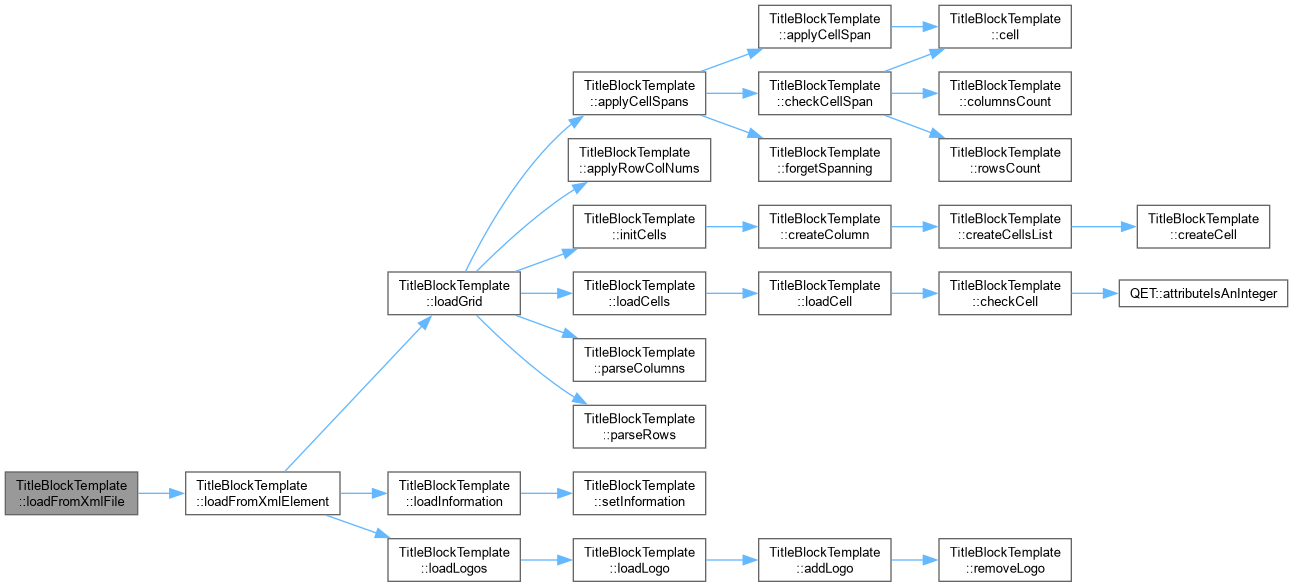

Here is the call graph for this function:

◆ loadGrid()

bool TitleBlockTemplate::loadGrid ( const QDomElement & xml_element )

protected

Import the grid from a given XML titleblock template.

Parameters

xml_element An XML element representing an titleblock template.

Returns: true if the reading succeeds, false otherwise.

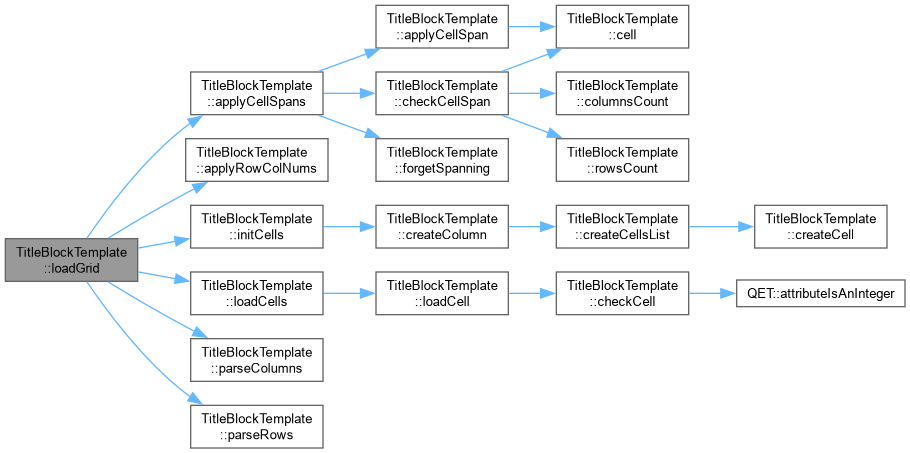

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadInformation()

void TitleBlockTemplate::loadInformation ( const QDomElement & xml_element )

protected

TitleBlockTemplate::loadInformation Import text informations from a given XML title block template.

Parameters

xml_element

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadLogo()

bool TitleBlockTemplate::loadLogo ( const QDomElement & xml_element )

protected

TitleBlockTemplate::loadLogo Import the logo from a given XML logo description.

Parameters

xml_element : An XML element representing a logo within an titleblock template.

Returns: true if the reading succeeds, false otherwise.

Here is the call graph for this function:

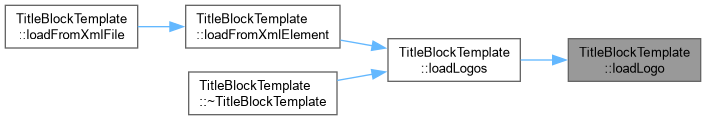

Here is the caller graph for this function:

◆ loadLogos()

bool TitleBlockTemplate::loadLogos	(	const QDomElement &	xml_element,
		bool	reset = false )

protected

TitleBlockTemplate::loadLogos Import the logos from a given XML titleblock template.

Parameters

xml_element	: An XML element representing an titleblock template.
reset	: true to delete all previously known logos before, false otherwise.

Returns: true if the reading succeeds, false otherwise.

Here is the call graph for this function:

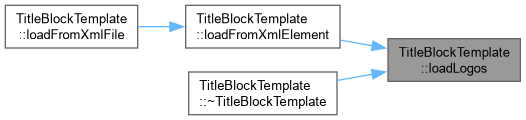

Here is the caller graph for this function:

◆ logos()

QList< QString > TitleBlockTemplate::logos ( ) const

TitleBlockTemplate::logos.

Returns: The names of logos embedded within this title block template.

◆ logoType()

QString TitleBlockTemplate::logoType ( const QString & logo_name ) const

TitleBlockTemplate::logoType.

Parameters

logo_name : Name of a logo embedded within this title block template.

Returns: the kind of storage used for the required logo, or a null QString if no such logo was found in this template.

◆ maximumWidth()

int TitleBlockTemplate::maximumWidth ( )

TitleBlockTemplate::maximumWidth.

Returns: the maximum width, in pixels, this template may be rendered at.

If this template is composed entirely of absolute-width (ABS) columns, the maximum is fixed: the template cannot extend beyond their sum, since nothing in it scales with the template's total width. Otherwise, at least one column scales with the total width (relative-to-total-length or relative-to-remaining-length), so there is ordinarily no upper bound: returns WidthConstraintCase::Unconstrained (cast to int) – the common case for most templates.

The exception is when this template's columns cannot be satisfied by any width at all (see classifyWidthConstraint()) – in that case there is no width, however large, that works, and this returns WidthConstraintCase::RelativeWidthExceeds100Percent or WidthConstraintCase::AbsoluteColumnsExceedRemainingWidth (cast to int) instead of Unconstrained, matching minimumWidth()'s handling of the same cases.

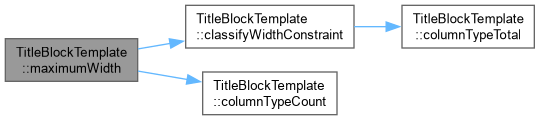

Here is the call graph for this function:

◆ minimumWidth()

int TitleBlockTemplate::minimumWidth ( )

TitleBlockTemplate::minimumWidth.

Returns: the minimum width, in pixels, required for this template's absolute-width (ABS) and relative-to-total-length (RTT) columns to all fit.

Derivation: writing TOT for the (variable) total template width, the minimum size enforced by the ABS and RTT columns is:

TOT >= ((sum(RTT)/100)*TOT) + sum(ABS)
=> (1 - (sum(RTT)/100))*TOT >= sum(ABS)
=> TOT >= sum(ABS) / (1 - (sum(RTT)/100))
=> TOT >= sum(ABS) / ((100 - sum(RTT))/100)

relative-to-remaining-length (RTR) columns do not constrain the minimum width, since by definition they only ever claim a share of whatever space is left over after the ABS and RTT columns are laid out.

If no finite minimum width applies, returns one of WidthConstraintCase::Unconstrained, WidthConstraintCase::RelativeWidthExceeds100Percent, or WidthConstraintCase::AbsoluteColumnsExceedRemainingWidth (cast to int) instead – see classifyWidthConstraint() and that enum's documentation for when each case applies.

Here is the call graph for this function:

◆ moveColumn()

bool TitleBlockTemplate::moveColumn	(	int	from,
		int	to )

TitleBlockTemplate::moveColumn Move the column at index "from" to index "to".

Parameters

from	: Source index of the moved column
to	: Target index of the moved column

Returns: true or false

Here is the call graph for this function:

◆ moveRow()

bool TitleBlockTemplate::moveRow	(	int	from,
		int	to )

TitleBlockTemplate::moveRow Move a row within this template.

Parameters

from	: Index of the moved row
to	: Arrival index of the moved row

Returns: true on row Changed or false

Here is the call graph for this function:

◆ name()

QString TitleBlockTemplate::name ( ) const

TitleBlockTemplate::name.

Returns: the name of this template

Here is the caller graph for this function:

◆ parseColumns()

void TitleBlockTemplate::parseColumns ( const QString & cols_string )

private

TitleBlockTemplate::parseColumns Parse the columns widths.

Parameters

cols_string : A string describing the columns widths of the titleblock

Here is the caller graph for this function:

◆ parseRows()

void TitleBlockTemplate::parseRows ( const QString & rows_string )

private

TitleBlockTemplate::parseRows Parse the rows heights.

Parameters

rows_string : A string describing the rows heights of the titleblock

Here is the caller graph for this function:

◆ removeLogo()

bool TitleBlockTemplate::removeLogo ( const QString & logo_name )

TitleBlockTemplate::removeLogo.

Parameters

logo_name : Name of the logo to remove

Returns: true if the logo could be deleted, false otherwise

TODO check existing cells using this logo.

Here is the caller graph for this function:

◆ renameLogo()

bool TitleBlockTemplate::renameLogo	(	const QString &	logo_name,
		const QString &	new_name )

TitleBlockTemplate::renameLogo Rename the logo_name logo to new_name.

Parameters

logo_name	: Name of the logo to be renamed
new_name	: New name of the renamed logo

Returns

TODO check existing cells using this logo.

◆ render()

void TitleBlockTemplate::render	(	QPainter &	painter,
		const DiagramContext &	diagram_context,
		int	titleblock_width ) const

TitleBlockTemplate::render Render the titleblock.

Parameters

painter	: Painter to use to render the titleblock
diagram_context	: Diagram context to use to generate the titleblock strings
titleblock_width	: Width of the titleblock to render

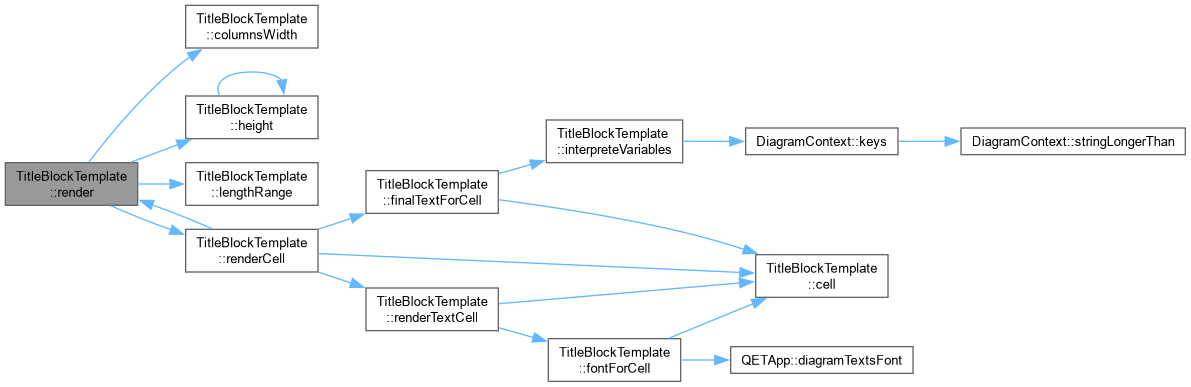

Here is the call graph for this function:

Here is the caller graph for this function:

◆ renderCell()

void TitleBlockTemplate::renderCell	(	QPainter &	painter,
		const TitleBlockCell &	cell,
		const DiagramContext &	diagram_context,
		const QRect &	cell_rect ) const

TitleBlockTemplate::renderCell Render a titleblock cell.

Parameters

painter	: Painter to use to render the titleblock
cell	:
diagram_context	: Diagram context to use to generate the titleblock strings
cell_rect	: Rectangle the cell must be rendered into.

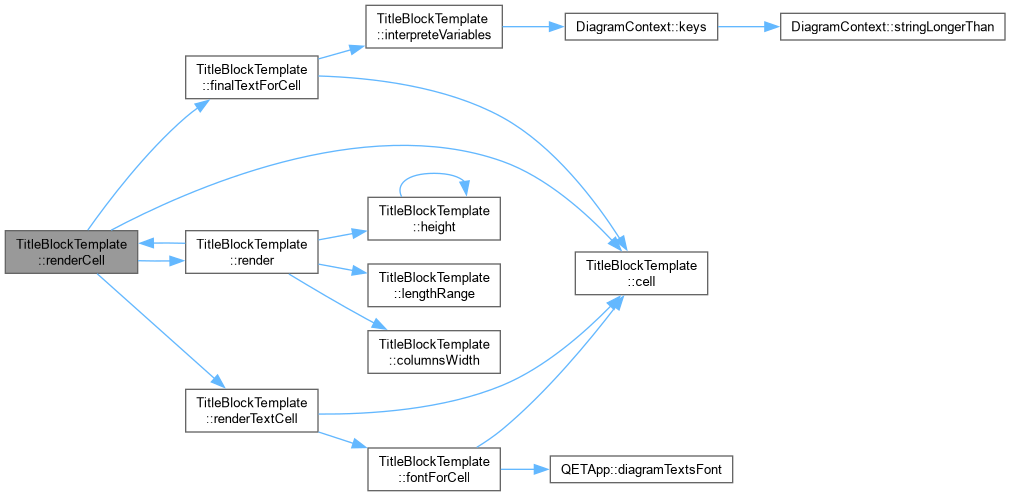

Here is the call graph for this function:

Here is the caller graph for this function:

◆ renderDxf()

void TitleBlockTemplate::renderDxf	(	QRectF &	title_block_rect,
		const DiagramContext &	diagram_context,
		int	titleblock_width,
		QString &	file_path,
		int	color ) const

TitleBlockTemplate::renderDxf Render the titleblock in DXF.

Parameters

title_block_rect	:
diagram_context	: Diagram context to use to generate the titleblock strings
titleblock_width	: Width of the titleblock to render
file_path	:
color	:

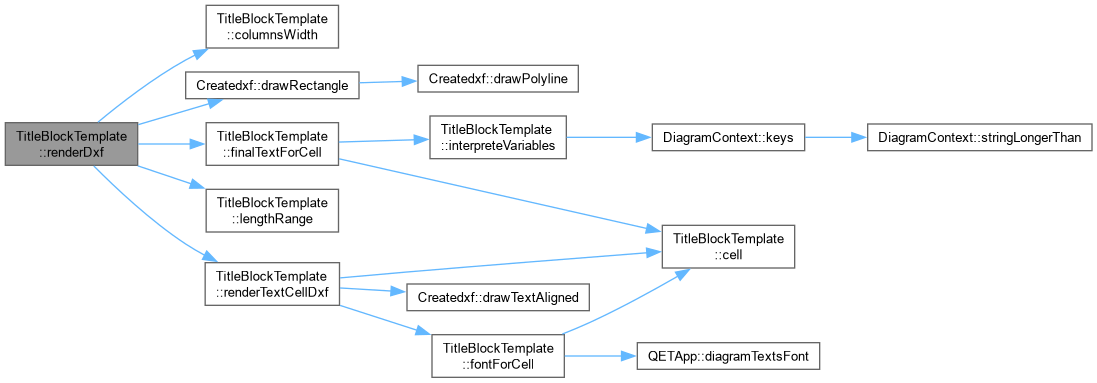

Here is the call graph for this function:

◆ renderTextCell()

void TitleBlockTemplate::renderTextCell	(	QPainter &	painter,
		const QString &	text,
		const TitleBlockCell &	cell,
		const QRectF &	cell_rect ) const

private

TitleBlockTemplate::renderTextCell This method uses a painter to render the text of a cell into the cell_rect rectangle. The alignment, font_size and other cell parameters are taken into account when rendering.

Parameters

painter	: QPainter used to render the text
text	: Text to render
cell	: Cell the rendered text is rattached to
cell_rect	: Rectangle delimiting the cell area

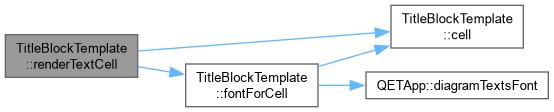

Here is the call graph for this function:

Here is the caller graph for this function:

◆ renderTextCellDxf()

void TitleBlockTemplate::renderTextCellDxf	(	QString &	file_path,
		const QString &	text,
		const TitleBlockCell &	cell,
		qreal	x,
		qreal	y,
		qreal	w,
		qreal	h,
		int	color ) const

private

TitleBlockTemplate::renderTextCellDxf.

Parameters

file_path
text
cell
x
y
w
h
color

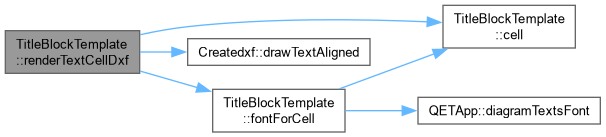

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rowColsChanged()

void TitleBlockTemplate::rowColsChanged ( )

TitleBlockTemplate::rowColsChanged Take care of consistency and span-related problematics when adding/moving/deleting rows and columns.

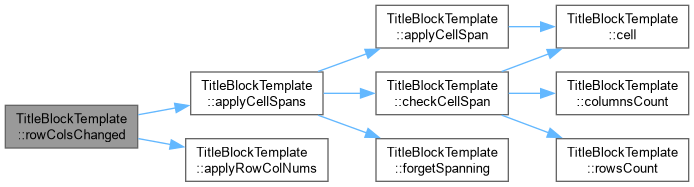

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rowDimension()

int TitleBlockTemplate::rowDimension ( int i )

TitleBlockTemplate::rowDimension.

Parameters

i	: row index

Returns: the height of the row at index i

◆ rowsCount()

int TitleBlockTemplate::rowsCount ( ) const

TitleBlockTemplate::rowsCount.

Returns: the number of rows in this template

Here is the caller graph for this function:

◆ rowsHeights()

QList< int > TitleBlockTemplate::rowsHeights ( ) const

TitleBlockTemplate::rowsHeights.

Returns: the heights of all the rows in this template

◆ saveCell()

void TitleBlockTemplate::saveCell	(	TitleBlockCell *	cell,
		QDomElement &	xml_element,
		bool	save_empty = false ) const

protected

TitleBlockTemplate::saveCell Export a specific cell as XML.

Parameters

cell	: Cell to be exported as XML
xml_element	: XML element under which the <cell> element will be attached
save_empty	: If true, the cell will be saved even if it is an empty one

Here is the call graph for this function:

Here is the caller graph for this function:

◆ saveCells()

void TitleBlockTemplate::saveCells ( QDomElement & xml_element ) const

protected

TitleBlockTemplate::saveCells Export this template's cells as XML (without the grid-related information, usch as rows and cols).

Parameters

xml_element : XML element under which the <cell> elements will be attached

Here is the call graph for this function:

Here is the caller graph for this function:

◆ saveGrid()

void TitleBlockTemplate::saveGrid ( QDomElement & xml_element ) const

protected

TitleBlockTemplate::saveGrid Export this template's cells grid as XML.

Parameters

xml_element : XML element under which the <grid> element will be attached

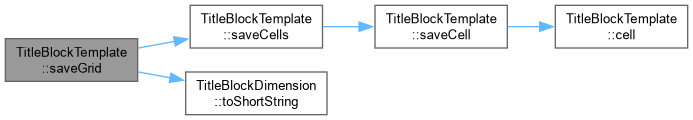

Here is the call graph for this function:

Here is the caller graph for this function:

◆ saveInformation()

void TitleBlockTemplate::saveInformation ( QDomElement & xml_element ) const

protected

TitleBlockTemplate::saveInformation Export this template's extra information.

Parameters

xml_element : XML element under which extra informations will be attached

Here is the call graph for this function:

Here is the caller graph for this function:

◆ saveLogo()

void TitleBlockTemplate::saveLogo	(	const QString &	logo_name,
		QDomElement &	xml_element ) const

protected

TitleBlockTemplate::saveLogo Export a specific logo as XML.

Parameters

logo_name	: Name of the logo to be exported
xml_element	: XML element in which the logo will be exported

Here is the caller graph for this function:

◆ saveLogos()

void TitleBlockTemplate::saveLogos ( QDomElement & xml_element ) const

protected

TitleBlockTemplate::saveLogos Export this template's logos as XML.

Parameters

xml_element : XML Element under which the <logos> element will be attached

Here is the call graph for this function:

Here is the caller graph for this function:

◆ saveLogoToFile()

bool TitleBlockTemplate::saveLogoToFile	(	const QString &	logo_name,
		const QString &	filepath )

TitleBlockTemplate::saveLogoToFile.

Parameters

logo_name	: Name used to store the logo
filepath	: Path the logo will be saved as

Returns: true if the logo could be exported, false otherwise

◆ saveToXmlElement()

bool TitleBlockTemplate::saveToXmlElement ( QDomElement & xml_element ) const

TitleBlockTemplate::saveToXmlElement Save the title block template as XML.

Parameters

xml_element : The XML element this title block template should be saved to.

Returns: true if the export succeeds, false otherwise

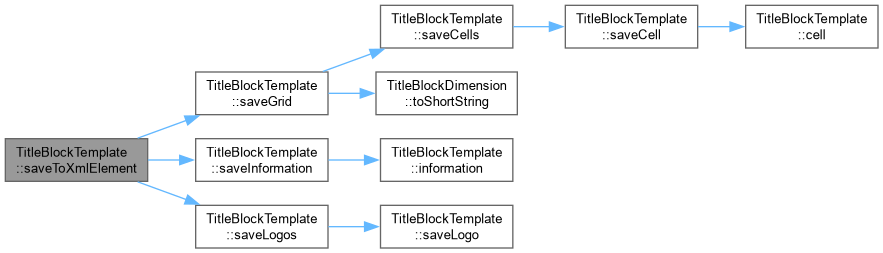

Here is the call graph for this function:

Here is the caller graph for this function:

◆ saveToXmlFile()

bool TitleBlockTemplate::saveToXmlFile ( const QString & filepath )

TitleBlockTemplate::saveToXmlFile Save the title block template into an XML file.

Parameters

filepath : The file path this title block template should be saved to.

Returns: true if the operation succeeds, false otherwise

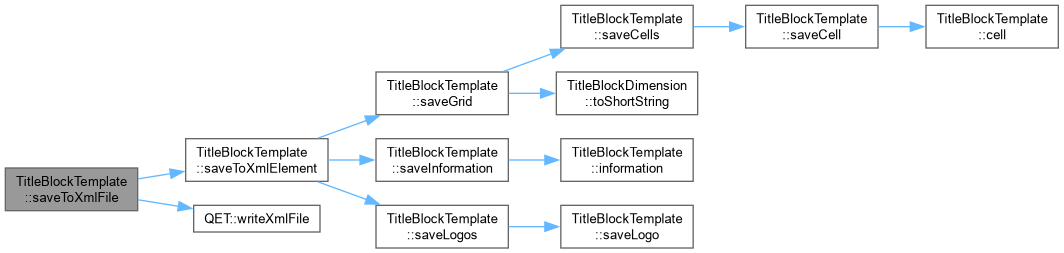

Here is the call graph for this function:

◆ setAllSpans()

void TitleBlockTemplate::setAllSpans ( const QHash< TitleBlockCell *, QPair< int, int > > & spans )

TitleBlockTemplate::setAllSpans Restore a set of span parameters.

Parameters

spans :

Here is the call graph for this function:

◆ setColumnDimension()

void TitleBlockTemplate::setColumnDimension	(	int	i,
		const TitleBlockDimension &	dimension )

TitleBlockTemplate::setColumnDimension Set the width of a column.

Parameters

i	: column index
dimension	: New width of the column at index i

◆ setInformation()

void TitleBlockTemplate::setInformation ( const QString & info )

TitleBlockTemplate::setInformation.

Parameters

info	information to be attached to this template

Here is the caller graph for this function:

◆ setLogoStorage()

void TitleBlockTemplate::setLogoStorage	(	const QString &	logo_name,
		const QString &	storage )

TitleBlockTemplate::setLogoStorage Set the kind of storage for the logo_name logo.

Parameters

logo_name	: Name of the logo which kind of storage is to be changed
storage	: The kind of storage to use for the logo, e.g. "xml" or "base64".

◆ setRowDimension()

void TitleBlockTemplate::setRowDimension	(	int	i,
		const TitleBlockDimension &	dimension )

TitleBlockTemplate::setRowDimension Set the height of a row.

Parameters

i	: row index
dimension	: New height of the row at index i

◆ spannedCells()

QSet< TitleBlockCell * > TitleBlockTemplate::spannedCells	(	const TitleBlockCell *	given_cell,
		bool	ignore_span_state = false ) const

TitleBlockTemplate::spannedCells.

Parameters

given_cell	: cell A cell belonging to this title block template
ignore_span_state	: (Optional, defaults to false) If true, will consider cells theoretically spanned (i.e. row_span and col_span attributes). Otherwise, will take span_state attribute into account.

Returns: the set of cells spanned by the provided cell Note the returned set does not include the spanning, provided cell

Here is the call graph for this function:

Here is the caller graph for this function:

◆ takeColumn()

QList< TitleBlockCell * > TitleBlockTemplate::takeColumn ( int i )

TitleBlockTemplate::takeColumn Removes the column at index i.

Parameters

i	: Index of the column to be removed

Returns: the removed column

Here is the call graph for this function:

◆ takeRow()

QList< TitleBlockCell * > TitleBlockTemplate::takeRow ( int i )

TitleBlockTemplate::takeRow Removes the row at index i.

Parameters

i	: Index of the column to be removed

Returns: the removed column

Here is the call graph for this function:

◆ vectorLogo()

QSvgRenderer * TitleBlockTemplate::vectorLogo ( const QString & logo_name ) const

TitleBlockTemplate::vectorLogo.

Parameters

logo_name : Name of a vector logo embedded within this title block template.

Returns: the rendering object for the required vector logo, or 0 if no such vector logo was found in this template.

◆ width()

int TitleBlockTemplate::width ( int total_width )

TitleBlockTemplate::width.

Parameters

total_width : The total width initially planned for the rendering

Returns: the total effective width of this template

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ bitmap_logos_

QHash<QString, QPixmap> TitleBlockTemplate::bitmap_logos_

private

bitmap_logos_ : Pixmaps for bitmap logos

◆ cells_

QList< QList<TitleBlockCell *> > TitleBlockTemplate::cells_

private

Cells grid.

◆ columns_width_

QList<TitleBlockDimension> TitleBlockTemplate::columns_width_

private

columns_width_ : columns widths –

See also: TitleBlockColDimension

◆ data_logos_

QHash<QString, QByteArray > TitleBlockTemplate::data_logos_

private

data_logos_ : Logos raw data

◆ information_

QString TitleBlockTemplate::information_

private

◆ name_

QString TitleBlockTemplate::name_

private

name_ : name identifying the Title Block Template within its parent collection

◆ registered_cells_

QList<TitleBlockCell *> TitleBlockTemplate::registered_cells_

private

registered_cells_ : Cells objects created rattached to this template, but not mandatorily used

◆ rows_heights_

QList<int> TitleBlockTemplate::rows_heights_

private

rows heights – simple integers

◆ storage_logos_

QHash<QString, QString> TitleBlockTemplate::storage_logos_

private

storage_logos_ : Logos applied storage type (e.g. "xml" or "base64")

◆ type_logos_

QHash<QString, QString> TitleBlockTemplate::type_logos_

private

type_logos_ : Logos types (e.g. "png", "jpeg", "svg")

◆ vector_logos_

QHash<QString, QSvgRenderer *> TitleBlockTemplate::vector_logos_

private

vector_logos_ : Rendered objects for vector logos

The documentation for this class was generated from the following files:

sources/titleblocktemplate.h
sources/titleblocktemplate.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ WidthConstraintCase

Constructor & Destructor Documentation

◆ TitleBlockTemplate() [1/2]

◆ ~TitleBlockTemplate()

◆ TitleBlockTemplate() [2/2]

Member Function Documentation

◆ addColumn()

◆ addLogo()

◆ addLogoFromFile()

◆ addRow()

◆ applyCellSpan()

◆ applyCellSpans()

◆ applyRowColNums()

◆ bitmapLogo()

◆ cell()

◆ checkCell()

◆ checkCellSpan()

◆ classifyWidthConstraint()

◆ clone()

◆ columnDimension()

◆ columnsCount()

◆ columnsWidth()

◆ columnTypeCount()

◆ columnTypeTotal()

◆ createCell()

◆ createCellsList()

◆ createColumn()

◆ createRow()

◆ exportCellToXml()

◆ finalTextForCell()

◆ flushCells()

◆ fontForCell()

◆ forgetSpanning() [1/2]

◆ forgetSpanning() [2/2]

◆ getAllSpans()

◆ height()

◆ information()

◆ initCells()

◆ insertColumn()

◆ insertRow()

◆ interpreteVariables()

◆ lengthRange()

◆ listOfVariables()

◆ loadCell()

◆ loadCells()

◆ loadFromXmlElement()

◆ loadFromXmlFile()

◆ loadGrid()

◆ loadInformation()

◆ loadLogo()

◆ loadLogos()

◆ logos()

◆ logoType()

◆ maximumWidth()

◆ minimumWidth()

◆ moveColumn()

◆ moveRow()

◆ name()

◆ parseColumns()

◆ parseRows()

◆ removeLogo()

◆ renameLogo()

◆ render()

◆ renderCell()

◆ renderDxf()

◆ renderTextCell()

◆ renderTextCellDxf()

◆ rowColsChanged()

◆ rowDimension()

◆ rowsCount()

◆ rowsHeights()

◆ saveCell()
