#include <element.h>

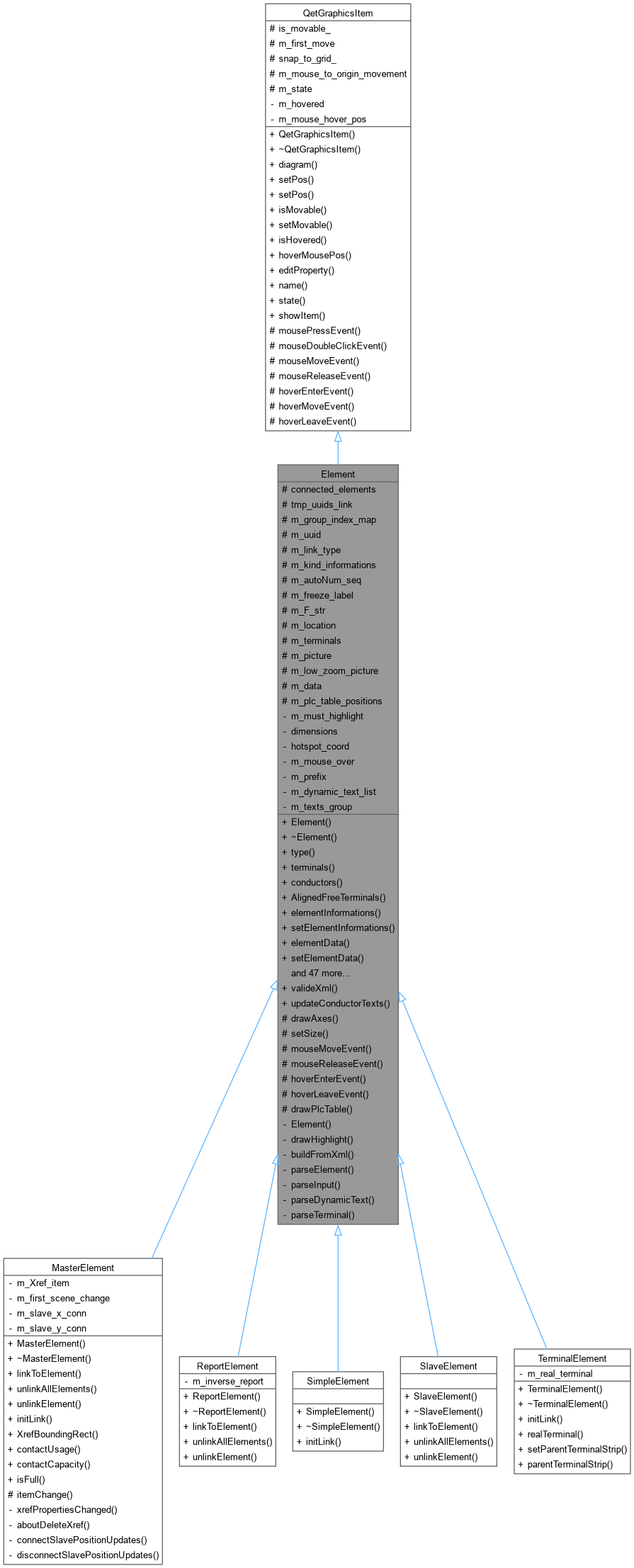

Inheritance diagram for Element:

Collaboration diagram for Element:

Classes
struct	LinkInfo
	The LinkInfo struct Stores link data for element connections. For slave elements, group_index indicates which contact group of the master this slave is assigned to (-1 = no group assigned). More...

Public Types
enum	kind { Simple = 1 , NextReport = 2 , PreviousReport = 4 , AllReport = 6 , Master = 8 , Slave = 16 , Terminale = 32 , Thumbnail = 64 , ConductorDefinition = 128 }
	The kind enum Used to know the kind of this element (master, slave, report ect...). More...
enum	{ Type = UserType + 1000 }

Public Slots
void	updateConductorTexts ()
	Element::updateConductorTexts Slot that is triggered when a cable is * connected to or disconnected from a terminal on this component.

Signals

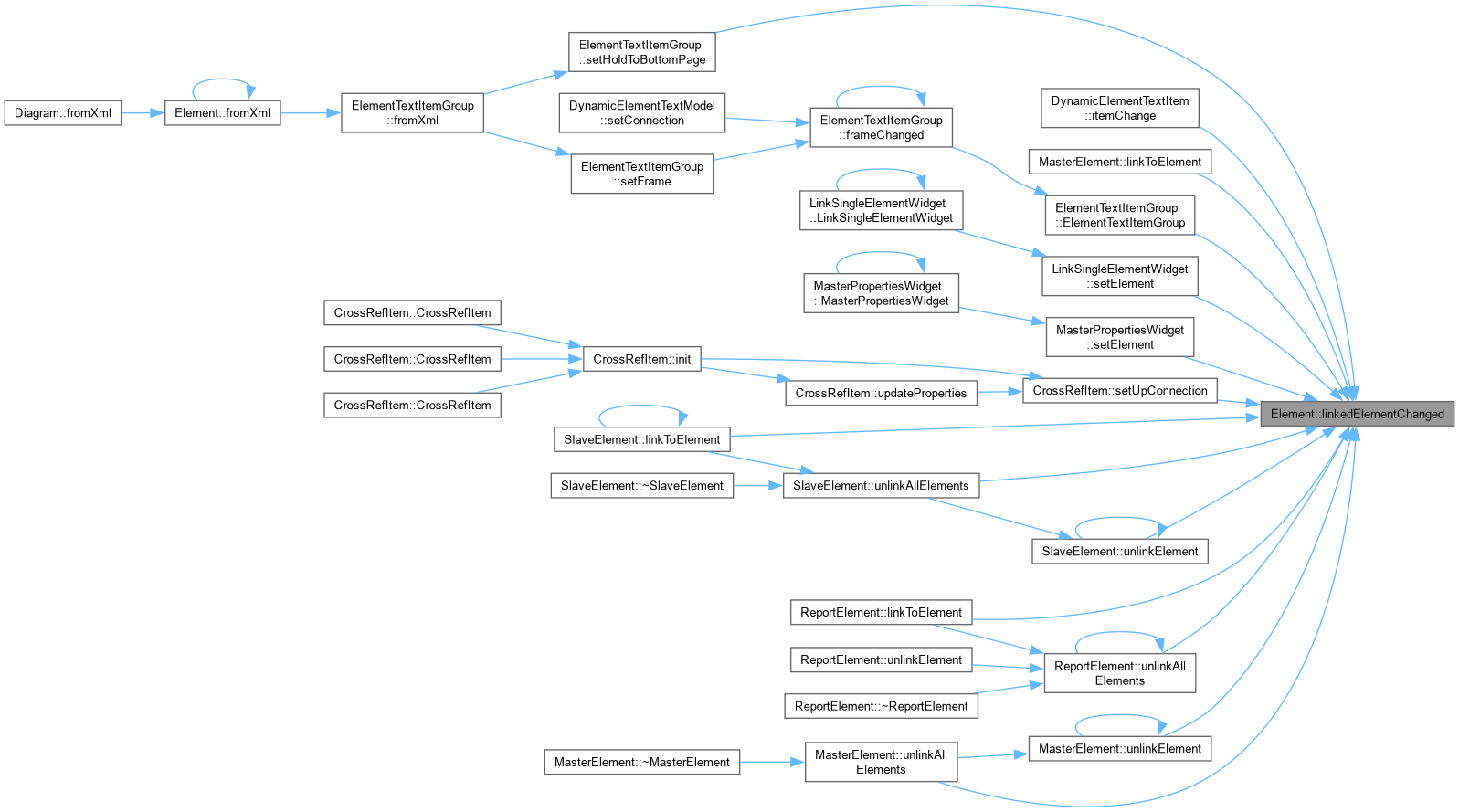

void	linkedElementChanged ()

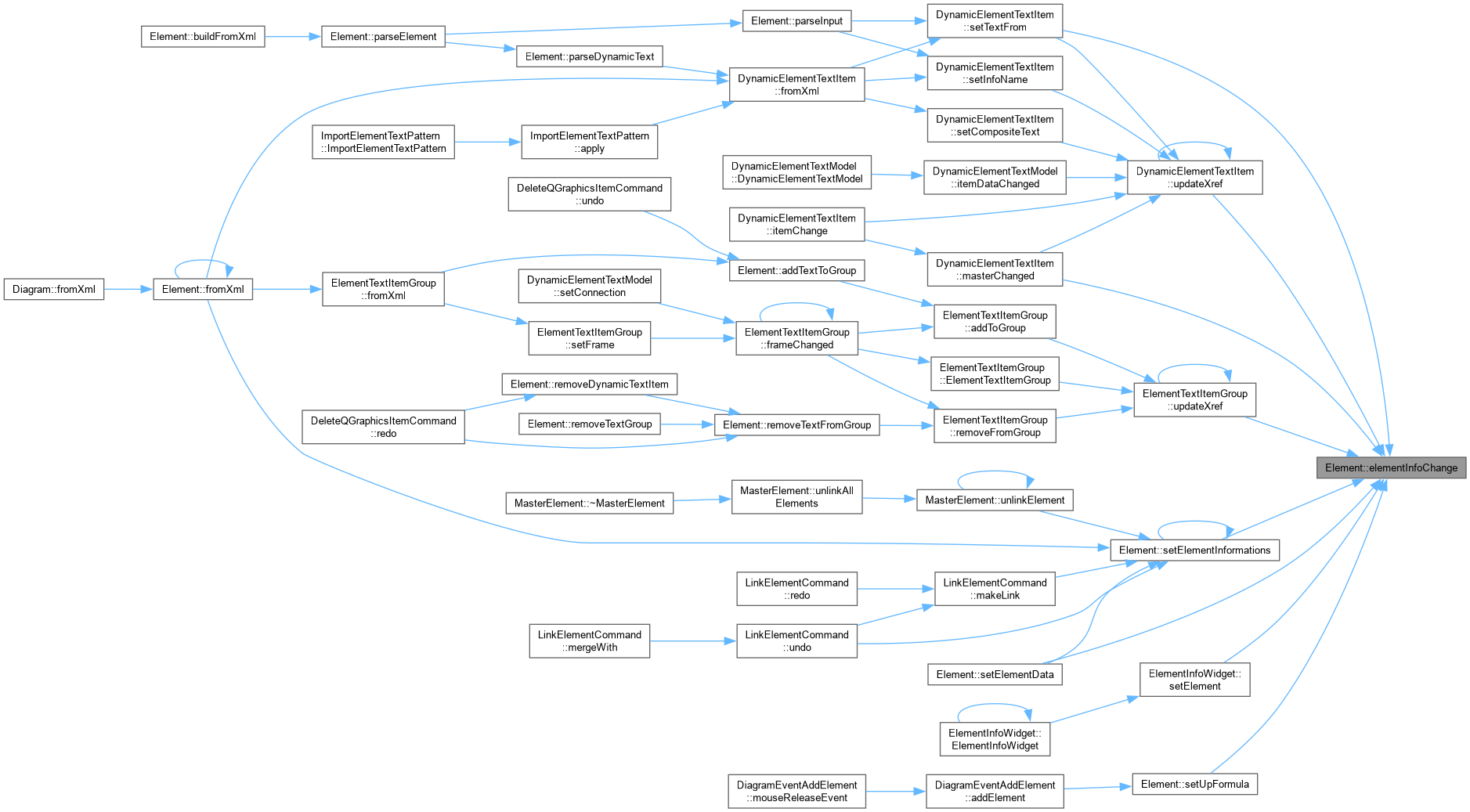

void	elementInfoChange (DiagramContext old_info, DiagramContext new_info)

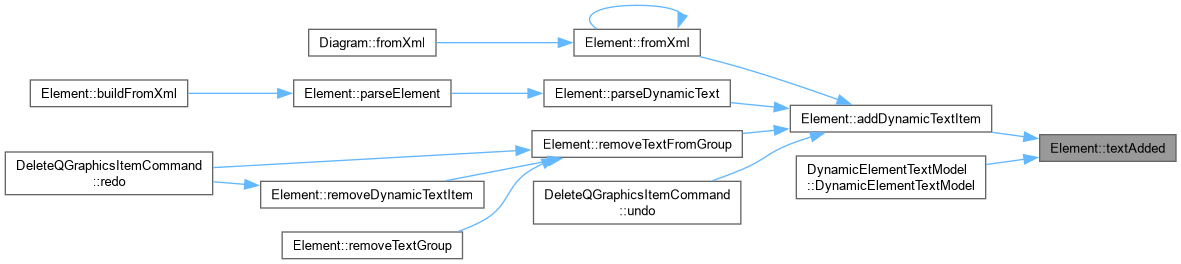

void	textAdded (DynamicElementTextItem *deti)

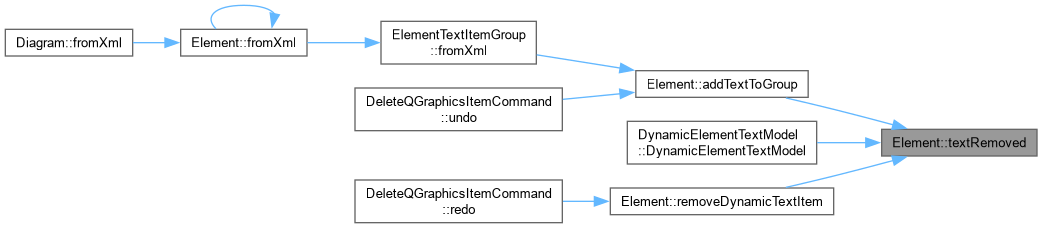

void	textRemoved (DynamicElementTextItem *deti)

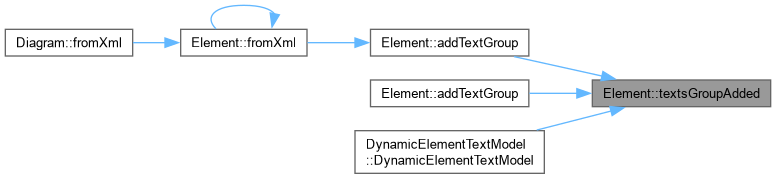

void	textsGroupAdded (ElementTextItemGroup *group)
void	textsGroupAboutToBeRemoved (ElementTextItemGroup *group)
void	textAddedToGroup (DynamicElementTextItem text, ElementTextItemGroup group)

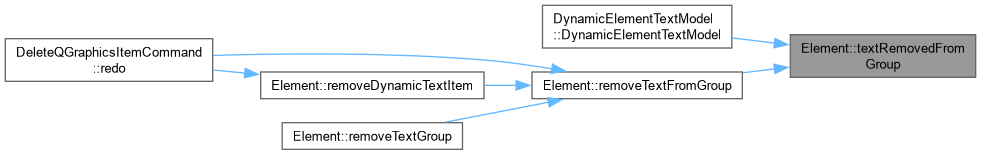

void	textRemovedFromGroup (DynamicElementTextItem text, ElementTextItemGroup group)

Public Member Functions
	Element (const ElementsLocation &location, QGraphicsItem =nullptr, int state=nullptr, Element::kind link_type=Element::Simple)
	Element::Element.
	~Element () override
	Element::~Element.
int	type () const override
QList< Terminal * >	terminals () const
	Element::terminals.
QList< Conductor * >	conductors () const
	Element::conductors.
QList< QPair< Terminal , Terminal > >	AlignedFreeTerminals () const
	Element::AlignedFreeTerminals.

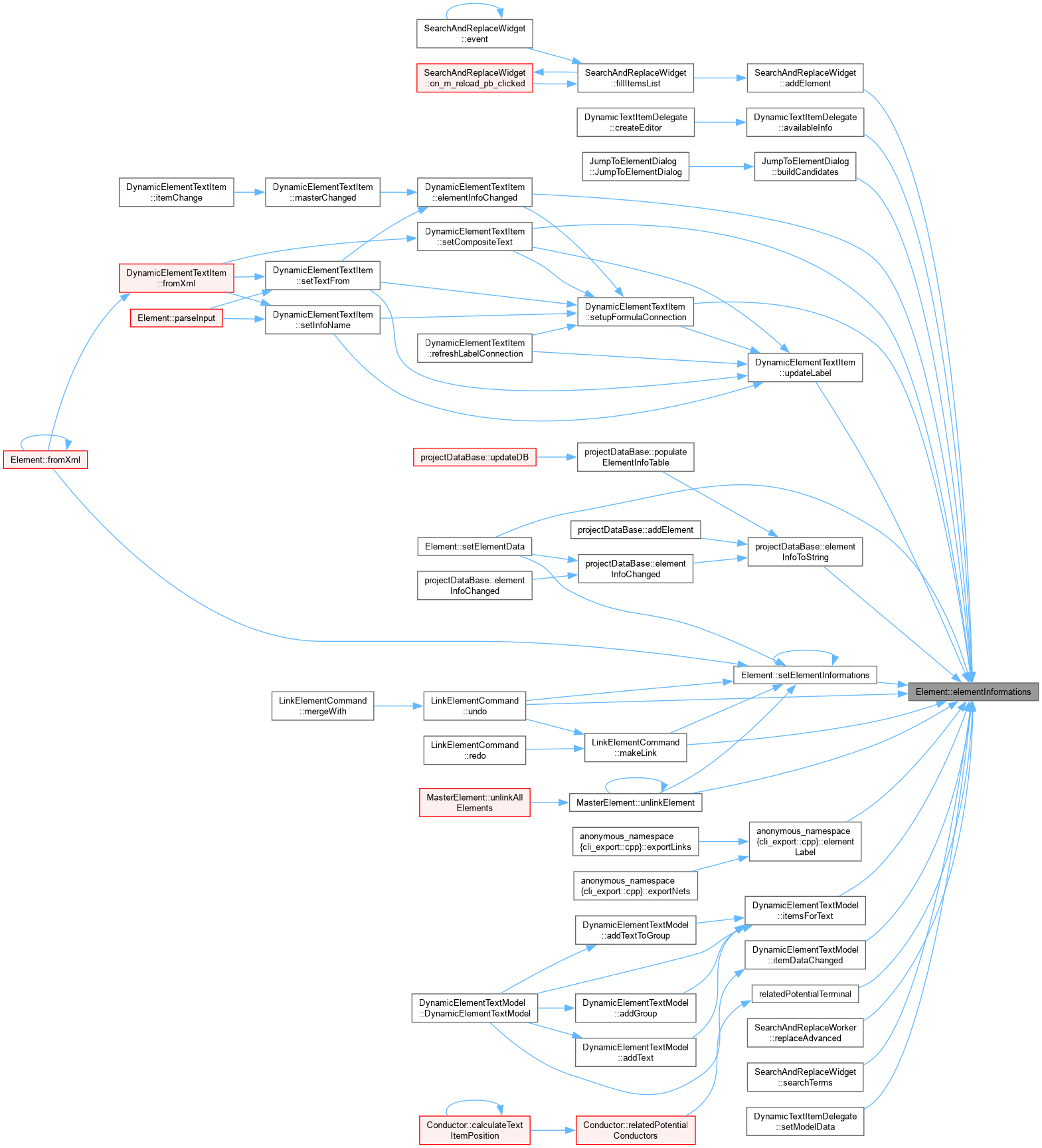

DiagramContext	elementInformations () const
virtual void	setElementInformations (DiagramContext dc)
	Element::setElementInformations Set new information for this element. If new information is different of current infotmation emit elementInfoChange.
ElementData	elementData () const
	Element::elementData.
void	setElementData (ElementData data)
	Element::setElementData Set new data for this element. If m_information of `data` is changed, emit elementInfoChange.
DiagramContext	kindInformations () const
	kindInformations
autonum::sequentialNumbers	sequenceStruct () const
autonum::sequentialNumbers &	rSequenceStruct ()
void	setUpFormula (bool code_letter=true, QUndoCommand *parent_undo=nullptr)

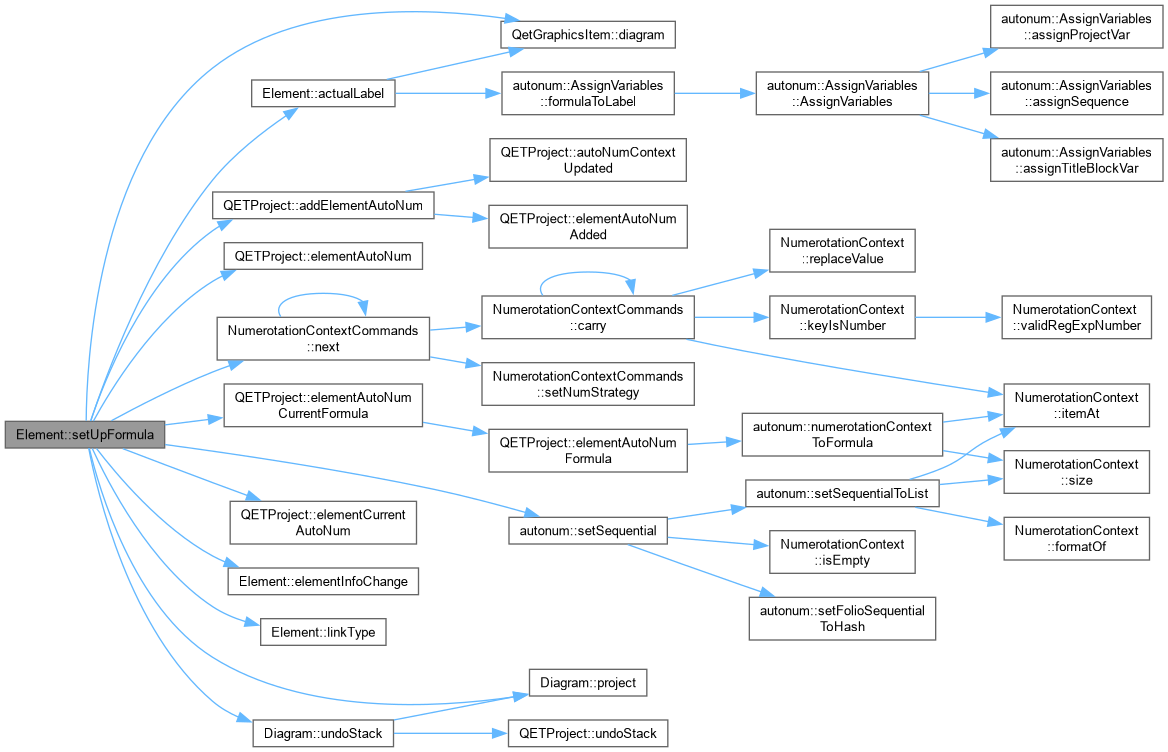

	Element::setUpFormula Set up the formula used to create the label of this element.
void	setPrefix (QString)
	Element::setPrefix set Element Prefix.
QString	getPrefix () const
	Element::getPrefix get Element Prefix.
void	freezeLabel (bool freeze)
	Element::freezeLabel Freeze this element label.
bool	isFreezeLabel () const
void	freezeNewAddedElement ()
	Element::freezeNewAddedElement Freeze this label if needed.
QString	actualLabel ()
	Element::actualLabel Always return the current label to be displayed. This function is useful when label is based on formula, because label can change at any time.
QString	name () const override
	Element::name.
ElementsLocation	location () const

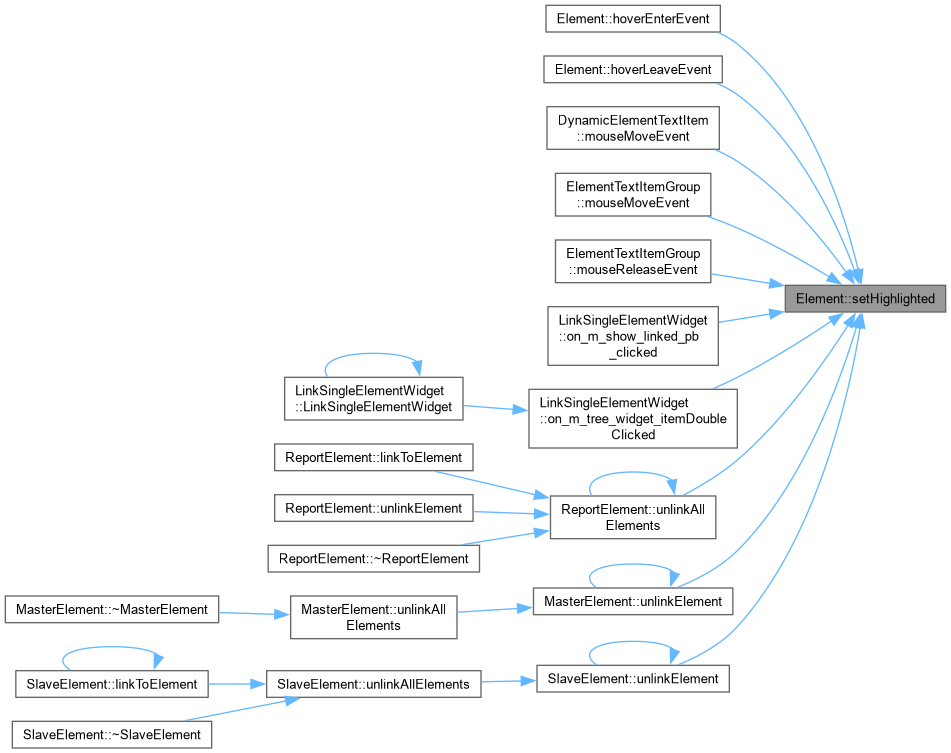

virtual void	setHighlighted (bool)
void	displayHelpLine (bool b=true)
	Element::displayHelpLine Display the help line of each terminal if b is true.
QSize	size () const
QPixmap	pixmap ()
	Element::pixmap.
QPoint	setHotspot (QPoint)
QPoint	hotspot () const
void	editProperty () override
virtual bool	fromXml (QDomElement &, QHash< int, Terminal * > &)
	Element::fromXml Import the parameters of this element from a xml document. When call this function ensure this element is already in a scene, because the dynamic text item and element text item group (in the xml file) are created in this function and need a diagram for create their Xref, when this element is linked to another. If not the Xref can be not displayed, until the next call of update Xref of the group or text item.
virtual QDomElement	toXml (QDomDocument &, QHash< Terminal *, int > &) const
	Element::toXml Allows to export the element in XML.
QUuid	uuid () const
	Element::uuid.
int	orientation () const
void	addDynamicTextItem (DynamicElementTextItem *deti=nullptr)
	Element::addDynamiqueTextItem Add deti as a dynamic text item of this element, deti is reparented to this If deti is null, a new DynamicElementTextItem is created and added to this element.

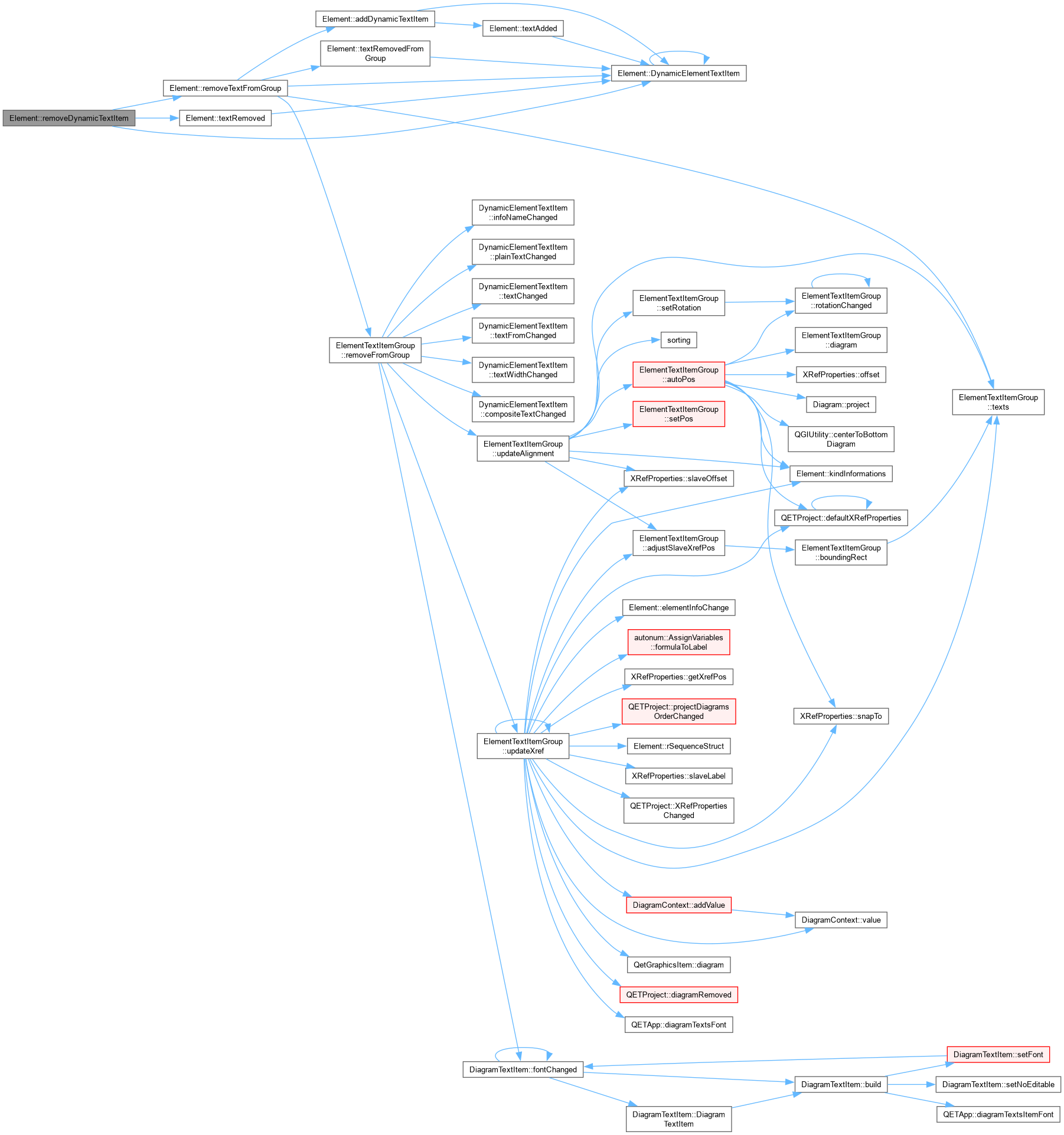

void	removeDynamicTextItem (DynamicElementTextItem *deti)
	Element::removeDynamicTextItem Remove deti, no matter if is a child of this element or a child of a group of this element. Set he parent item of deti to 0, deti is not deleted.

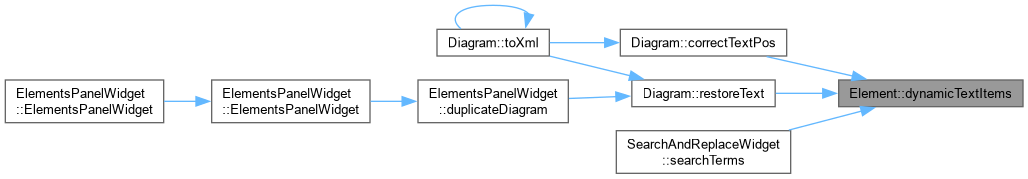

QList< DynamicElementTextItem * >	dynamicTextItems () const
	Element::dynamicTextItems.
ElementTextItemGroup *	addTextGroup (const QString &name)
	Element::addTextGroup Create and add an element text item group to this element. If this element already have a group with the same name, then name will renamed to name1 or name2 etc....
void	addTextGroup (ElementTextItemGroup *group)
	Element::addTextGroup.
void	removeTextGroup (ElementTextItemGroup *group)
	Element::removeTextGroup Remove the text group group from this element, and set the parent of group to 0. group is not deleted. All texts owned by the group will be reparented to this element.
ElementTextItemGroup *	textGroup (const QString &name) const
	Element::textGroup.

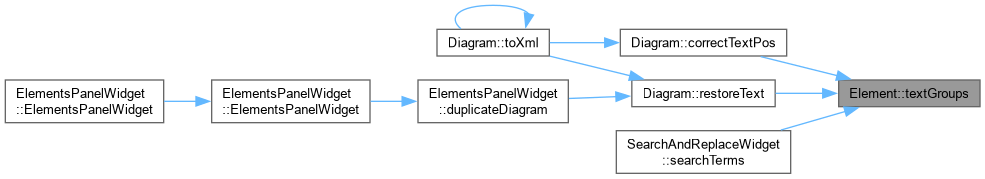

QList< ElementTextItemGroup * >	textGroups () const
	Element::textGroups.
bool	addTextToGroup (DynamicElementTextItem text, ElementTextItemGroup group)
	Element::addTextToGroup Add the text text to the group group; If group isn't owned by this element return false. The text must be a text of this element.
bool	removeTextFromGroup (DynamicElementTextItem text, ElementTextItemGroup group)
	Element::removeTextFromGroup Remove the text text from the group group, en reparent text to this element.
bool	isFree () const
virtual void	linkToElement (Element *)
virtual void	unlinkAllElements ()
virtual void	unlinkElement (Element *)

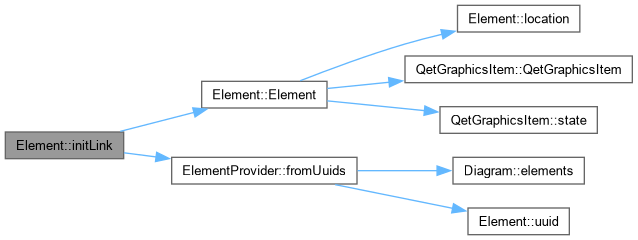

virtual void	initLink (QETProject *)
	Element::initLink Initialise the link between this element and other elements. This method can be call once because init the link according to uuid store in a private list, after link, the list is clear, so call another time do nothing.
QList< Element * >	linkedElements ()
	Element::linkedElements.
int	groupIndexForElement (Element *elmt) const
	Element::groupIndexForElement Returns the group index assigned to the given linked element. For slave elements, this indicates which contact group of the master this slave is assigned to.

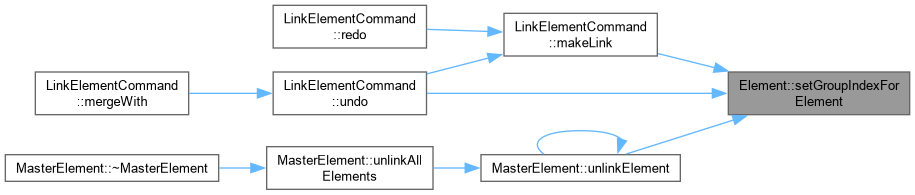

void	setGroupIndexForElement (Element *elmt, int index)
	Element::setGroupIndexForElement Sets the group index for a linked element.
virtual kind	linkType () const
	linkType use elementData function instead
QString	linkTypeToString () const
	linkTypeToString use elementData function instead
void	newUuid ()
void	paint (QPainter , const QStyleOptionGraphicsItem , QWidget *) override
	Element::paint.
QRectF	boundingRect () const override
QList< QPointF >	plcTablePositions () const
	Positions where the PLC IO table is drawn (from the .elmt file).
Public Member Functions inherited from QetGraphicsItem
	QetGraphicsItem (QGraphicsItem *parent=nullptr)
	~QetGraphicsItem () override=0
Diagram *	diagram () const
virtual void	setPos (const QPointF &p)
virtual void	setPos (qreal x, qreal y)
virtual bool	isMovable () const
virtual void	setMovable (bool movable)
bool	isHovered () const
QPointF	hoverMousePos () const
QET::GraphicsItemState	state () const
	QetGraphicsItem::state.

Static Public Member Functions
static bool	valideXml (QDomElement &)
Static Public Member Functions inherited from QetGraphicsItem
static void	showItem (QetGraphicsItem *item)
	QetGraphicsItem::QetGraphicsItem Default constructor.

Protected Member Functions
void	drawAxes (QPainter , const QStyleOptionGraphicsItem )
void	setSize (int, int)
	Element::setSize Define the size of the element. The size must be a multiple of 10. If not, the dimensions indicated will be arrrondies to higher tens.
void	mouseMoveEvent (QGraphicsSceneMouseEvent *event) override
	Element::mouseMoveEvent.
void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event) override
	Element::mouseReleaseEvent.
void	hoverEnterEvent (QGraphicsSceneHoverEvent *) override
void	hoverLeaveEvent (QGraphicsSceneHoverEvent *) override
void	drawPlcTable (QPainter *painter)

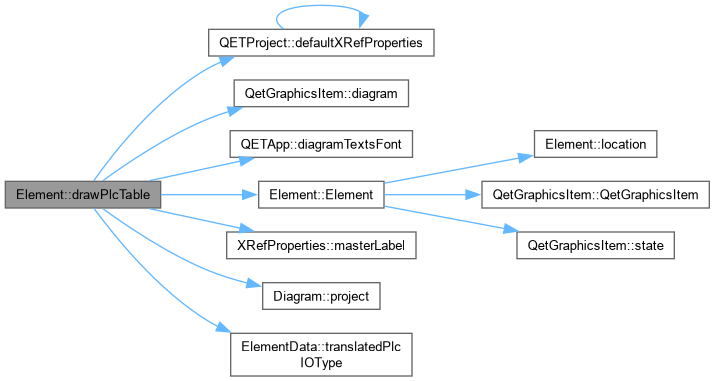

	Element::drawPlcTable Draw the PLC table directly from in-memory ElementData. This overlays the stale picture from the .elmt file with current data.
Protected Member Functions inherited from QetGraphicsItem
void	mousePressEvent (QGraphicsSceneMouseEvent *event) override
void	mouseDoubleClickEvent (QGraphicsSceneMouseEvent *event) override
void	mouseMoveEvent (QGraphicsSceneMouseEvent *event) override
void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event) override
	QetGraphicsItem::mouseReleaseEvent handle mouse release click.
void	hoverEnterEvent (QGraphicsSceneHoverEvent *event) override
void	hoverMoveEvent (QGraphicsSceneHoverEvent *event) override
void	hoverLeaveEvent (QGraphicsSceneHoverEvent *event) override

Protected Attributes
QList< Element * >	connected_elements
QList< LinkInfo >	tmp_uuids_link
QHash< Element *, int >	m_group_index_map
	Maps linked elements to their group index (for slave->master links).
QUuid	m_uuid
kind	m_link_type = Element::Simple
DiagramContext	m_kind_informations
autonum::sequentialNumbers	m_autoNum_seq
bool	m_freeze_label = false
QString	m_F_str
ElementsLocation	m_location
QList< Terminal * >	m_terminals
QPicture	m_picture
QPicture	m_low_zoom_picture
ElementData	m_data
QList< QPointF >	m_plc_table_positions
Protected Attributes inherited from QetGraphicsItem
bool	is_movable_
bool	m_first_move
bool	snap_to_grid_
QPointF	m_mouse_to_origin_movement
QET::GraphicsItemState	m_state = QET:: GIOK

Private Member Functions
	Element (const Element &)
void	drawHighlight (QPainter , const QStyleOptionGraphicsItem )
bool	buildFromXml (const QDomElement &, int *=nullptr)
	Element::buildFromXml Build this element from an xml description.
bool	parseElement (const QDomElement &dom)
	Element::parseElement Parse the element of the xml description of this element.
bool	parseInput (const QDomElement &dom_element)
	Element::parseInput Parse the input (old text field) the parsed input are converted to dynamic text field, this function is only here to keep compatibility with old text.

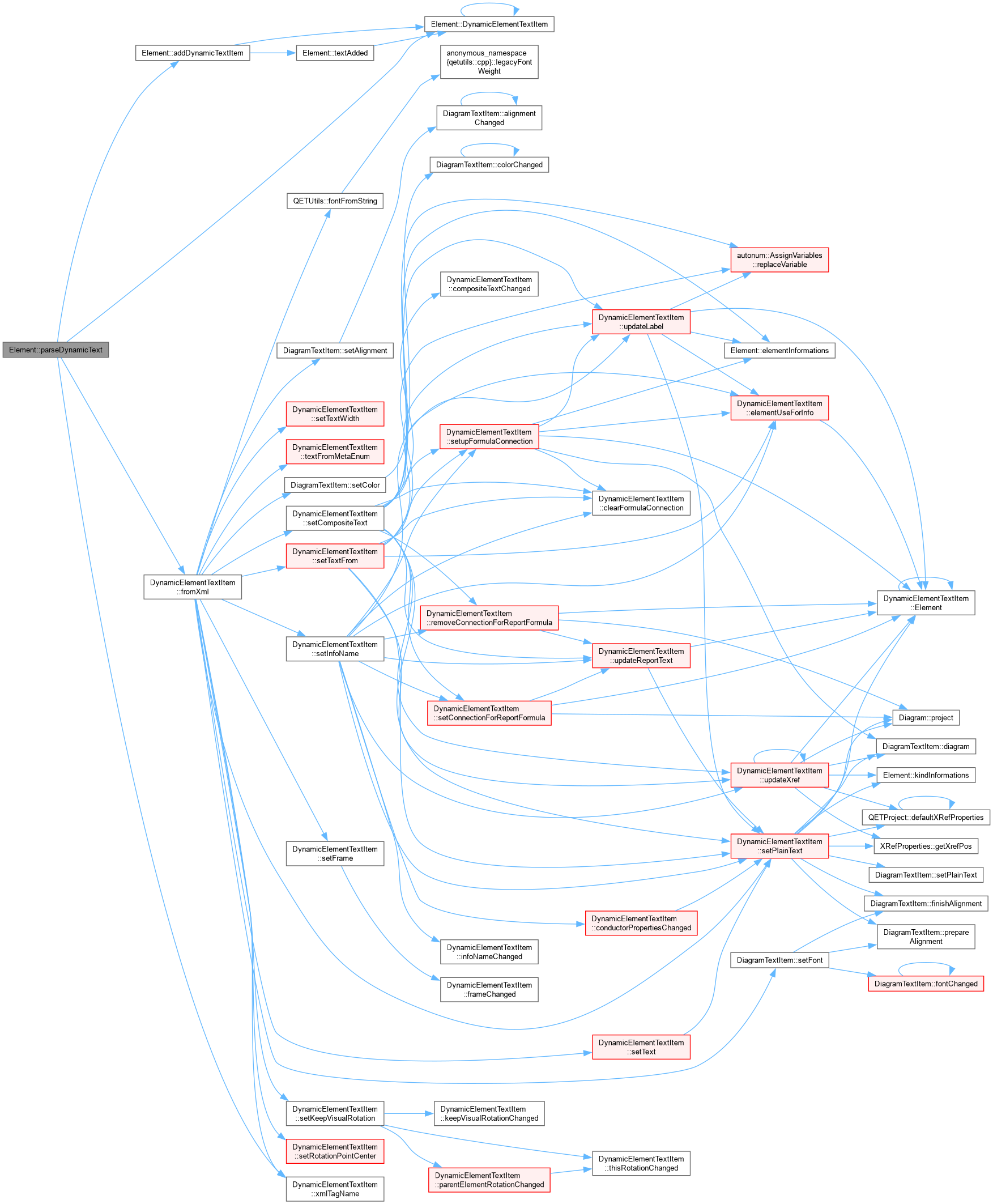

DynamicElementTextItem *	parseDynamicText (const QDomElement &dom_element)
	Element::parseDynamicText Create the dynamic text field described in dom_element.
Terminal *	parseTerminal (const QDomElement &dom_element)
	Element::parseTerminal Parse partTerminal from xml structure.

Private Attributes
bool	m_must_highlight = false
QSize	dimensions
QPoint	hotspot_coord
bool	m_mouse_over = false
QString	m_prefix
QList< DynamicElementTextItem * >	m_dynamic_text_list
QList< ElementTextItemGroup * >	m_texts_group

Friends
class	DiagramEventAddElement
class	DynamicElementTextItem

Detailed Description

This is the base class for electrical elements.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enable the use of qgraphicsitem_cast to safely cast a QGraphicsItem into an Element.

Returns: the QGraphicsItem type

Enumerator
Type

◆ kind

enum Element::kind

The kind enum Used to know the kind of this element (master, slave, report ect...).

Enumerator
Simple
NextReport
PreviousReport
AllReport
Master
Slave
Terminale
Thumbnail
ConductorDefinition

Constructor & Destructor Documentation

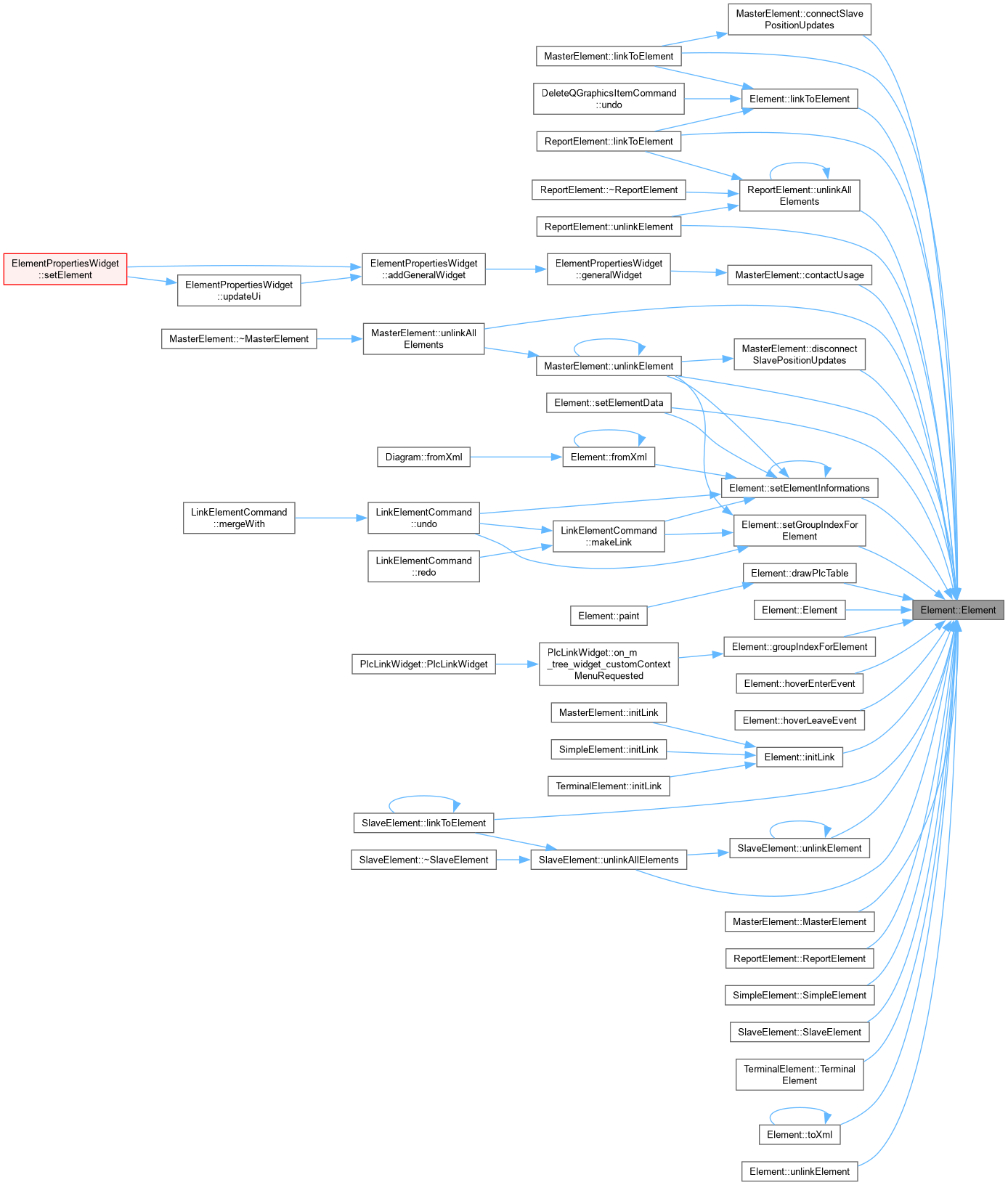

◆ Element() [1/2]

Element::Element	(	const ElementsLocation &	location,
		QGraphicsItem *	parent = nullptr,
		int *	state = nullptr,
		Element::kind	link_type = Element::Simple )

Element::Element.

Parameters

location	: location of this element
parent	: parent graphics item
state	: state of the instantiation
link_type

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ~Element()

Element::~Element ( )

override

Element::~Element.

◆ Element() [2/2]

Element::Element ( const Element & )

private

Here is the call graph for this function:

Member Function Documentation

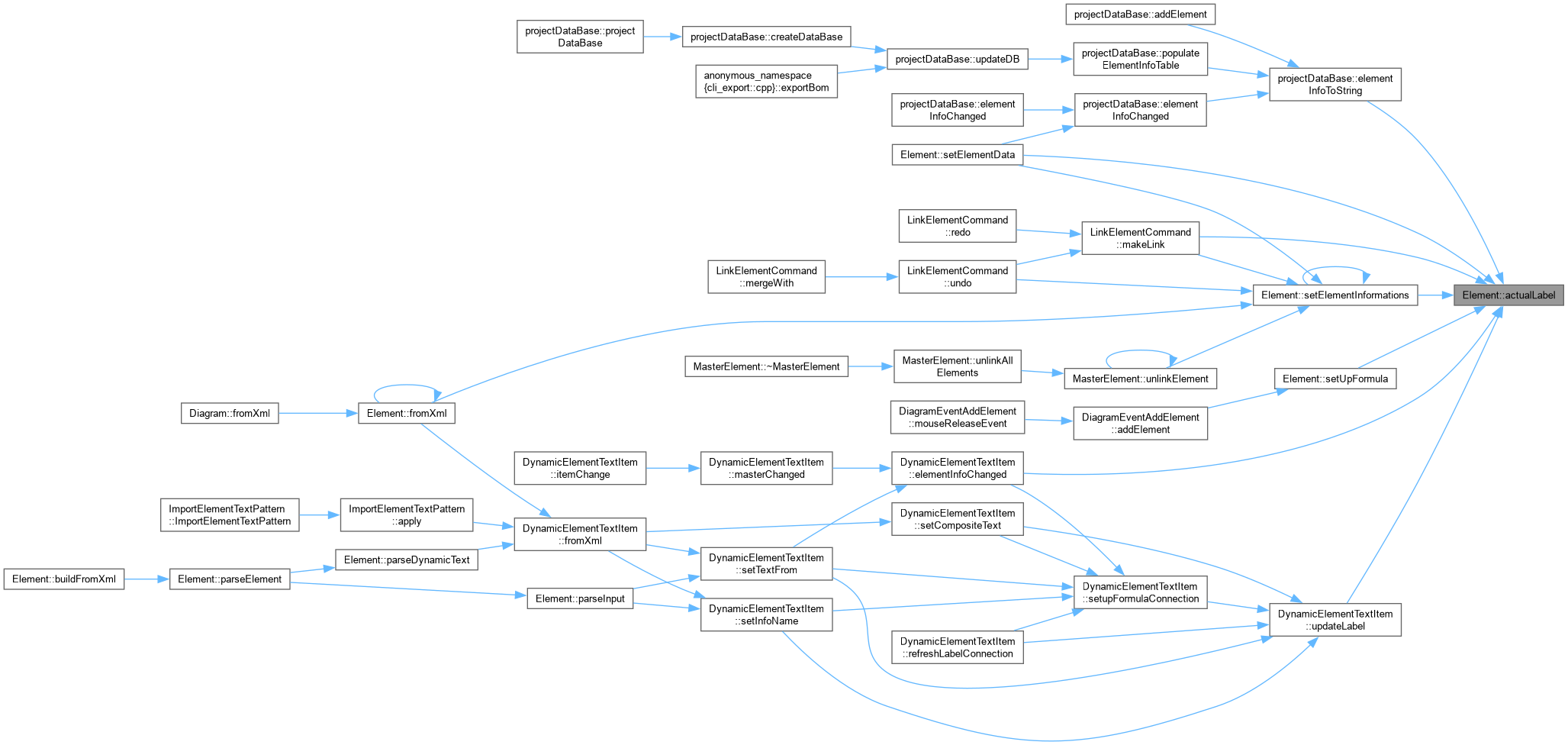

◆ actualLabel()

QString Element::actualLabel ( )

Element::actualLabel Always return the current label to be displayed. This function is useful when label is based on formula, because label can change at any time.

Returns

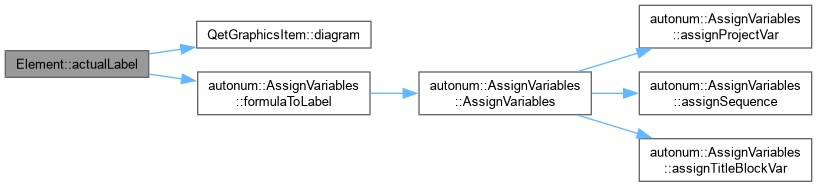

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addDynamicTextItem()

void Element::addDynamicTextItem ( DynamicElementTextItem * deti = nullptr )

Element::addDynamiqueTextItem Add deti as a dynamic text item of this element, deti is reparented to this If deti is null, a new DynamicElementTextItem is created and added to this element.

Parameters

deti

Here is the call graph for this function:

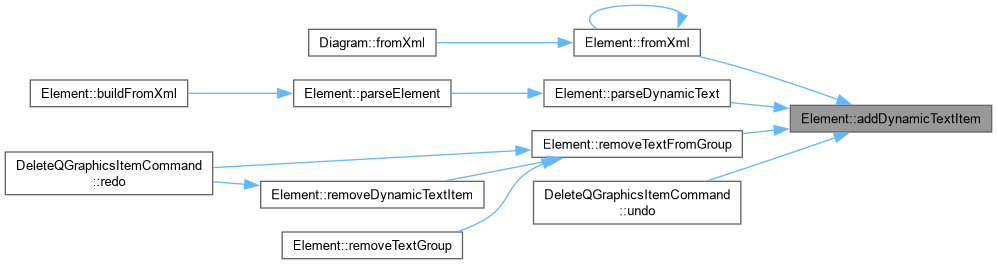

Here is the caller graph for this function:

◆ addTextGroup() [1/2]

ElementTextItemGroup * Element::addTextGroup ( const QString & name )

Element::addTextGroup Create and add an element text item group to this element. If this element already have a group with the same name, then name will renamed to name1 or name2 etc....

Parameters

name	: the name of the group

Returns: the created group.

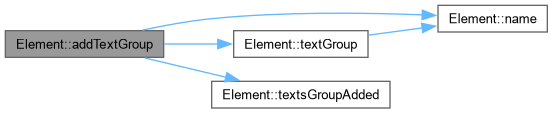

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addTextGroup() [2/2]

void Element::addTextGroup ( ElementTextItemGroup * group )

Element::addTextGroup.

Parameters

group add group to the group of this element. the group must not be owned by an element.

Here is the call graph for this function:

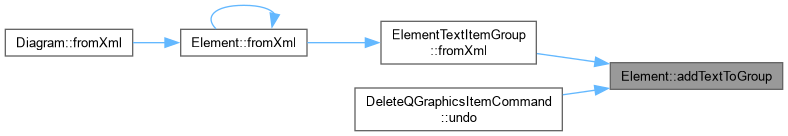

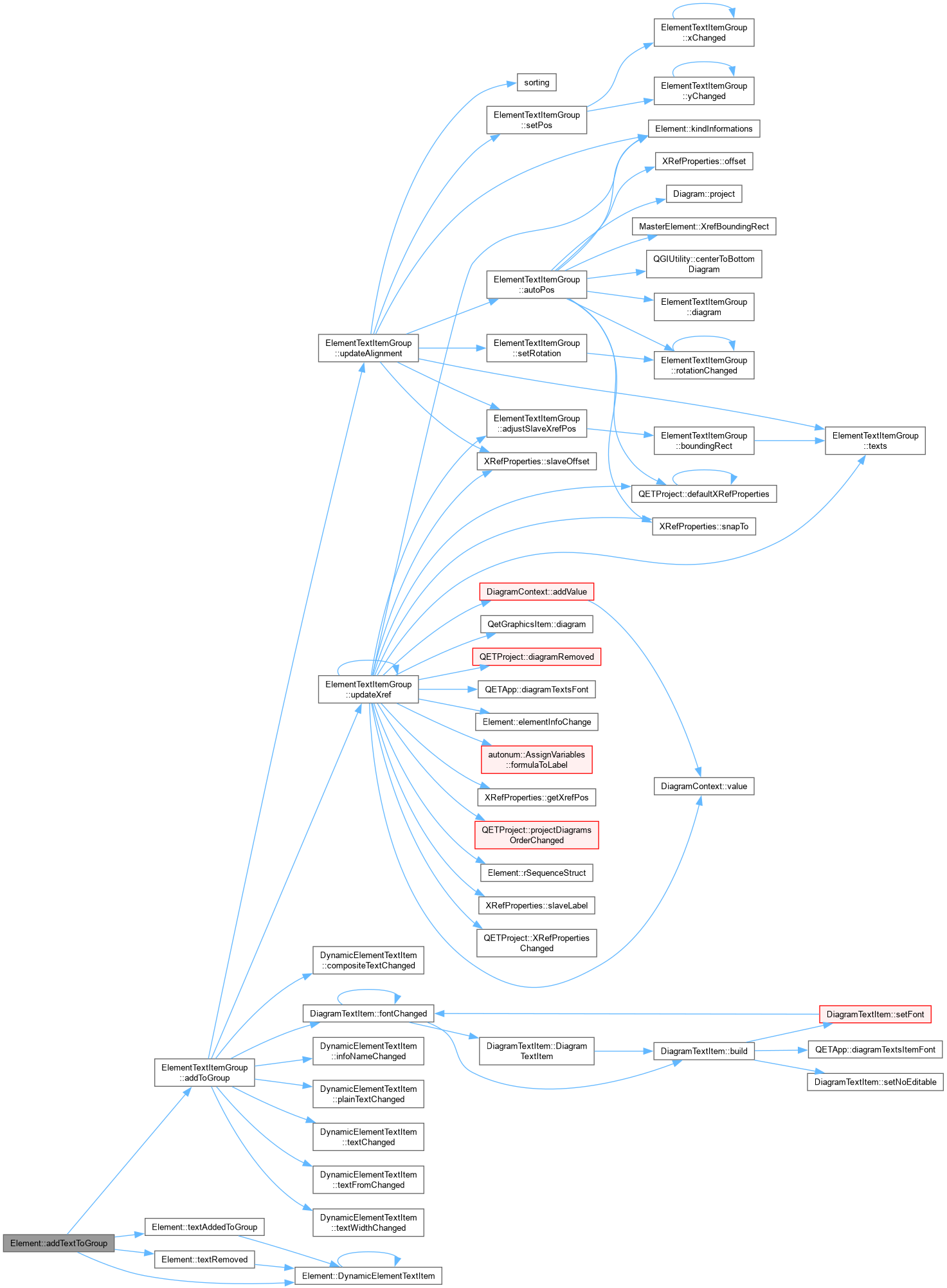

◆ addTextToGroup()

bool Element::addTextToGroup	(	DynamicElementTextItem *	text,
		ElementTextItemGroup *	group )

Element::addTextToGroup Add the text text to the group group; If group isn't owned by this element return false. The text must be a text of this element.

Returns: : true if the text was successfully added to the group.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AlignedFreeTerminals()

QList< QPair< Terminal *, Terminal * > > Element::AlignedFreeTerminals ( ) const

Element::AlignedFreeTerminals.

Returns: a list of terminal (owned by this element) aligned to other terminal (from other element) The first Terminal of QPair is a Terminal owned by this element, this terminal haven't got any conductor docked. The second Terminal of QPair is a Terminal owned by an other element, which is aligned with the first Terminal. The second Terminal can have or not docked conductors.

Here is the call graph for this function:

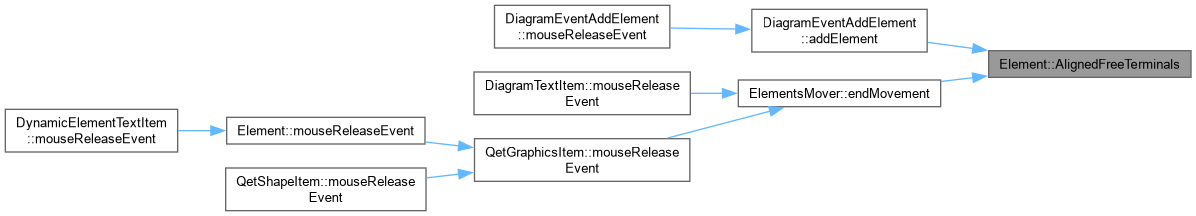

Here is the caller graph for this function:

◆ boundingRect()

QRectF Element::boundingRect ( ) const

override

Returns: Le rectangle delimitant le contour de l'element

Here is the caller graph for this function:

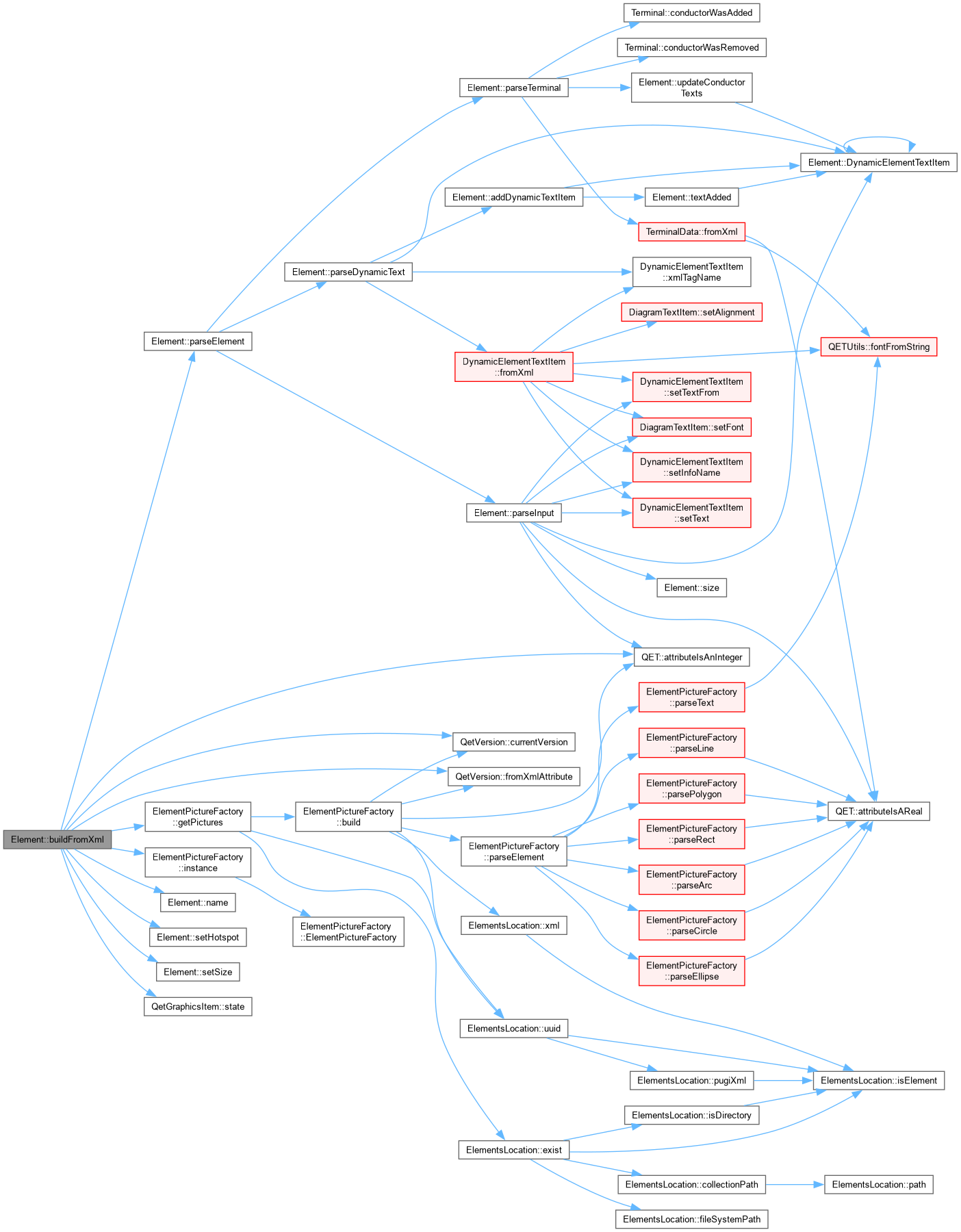

◆ buildFromXml()

bool Element::buildFromXml	(	const QDomElement &	xml_def_elmt,
		int *	state = nullptr )

private

Element::buildFromXml Build this element from an xml description.

Parameters

xml_def_elmt
state	Optional pointer which define the status of build 0 - evreything all right 4 - xml isn't a "definition" 5 - attribute of the definition isn't present or valid 6 - the definition is empty 7 - parsing of a xml node who describe a graphical part failed. 8 - No part of the drawing could be loaded

Returns

Here is the call graph for this function:

◆ conductors()

QList< Conductor * > Element::conductors ( ) const

Element::conductors.

Returns: The list of conductors docked to this element the list is sorted according to the position of the terminal where the conductor is docked from top to bottom, and left to right.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ displayHelpLine()

void Element::displayHelpLine ( bool b = true )

Element::displayHelpLine Display the help line of each terminal if b is true.

Parameters

b

Here is the call graph for this function:

◆ drawAxes()

void Element::drawAxes	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	options )

protected

Dessine un petit repere (axes x et y) relatif a l'element

Parameters

painter	Le QPainter a utiliser pour dessiner les axes
options	Les options de style a prendre en compte

◆ drawHighlight()

void Element::drawHighlight	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	options )

private

Dessine le cadre de selection de l'element de maniere systematiquement non antialiasee.

Parameters

painter	Le QPainter a utiliser pour dessiner les bornes.
options	Les options de style a prendre en compte

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drawPlcTable()

void Element::drawPlcTable ( QPainter * painter )

protected

Element::drawPlcTable Draw the PLC table directly from in-memory ElementData. This overlays the stale picture from the .elmt file with current data.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dynamicTextItems()

QList< DynamicElementTextItem * > Element::dynamicTextItems ( ) const

Element::dynamicTextItems.

Returns: all dynamic text items of this element directly child of this element. Texts in text-groups belonging to this element are not returned by this function.

See also: ElementTextItemGroup::texts

Here is the caller graph for this function:

◆ editProperty()

void Element::editProperty ( )

overridevirtual

Reimplemented from QetGraphicsItem.

Here is the call graph for this function:

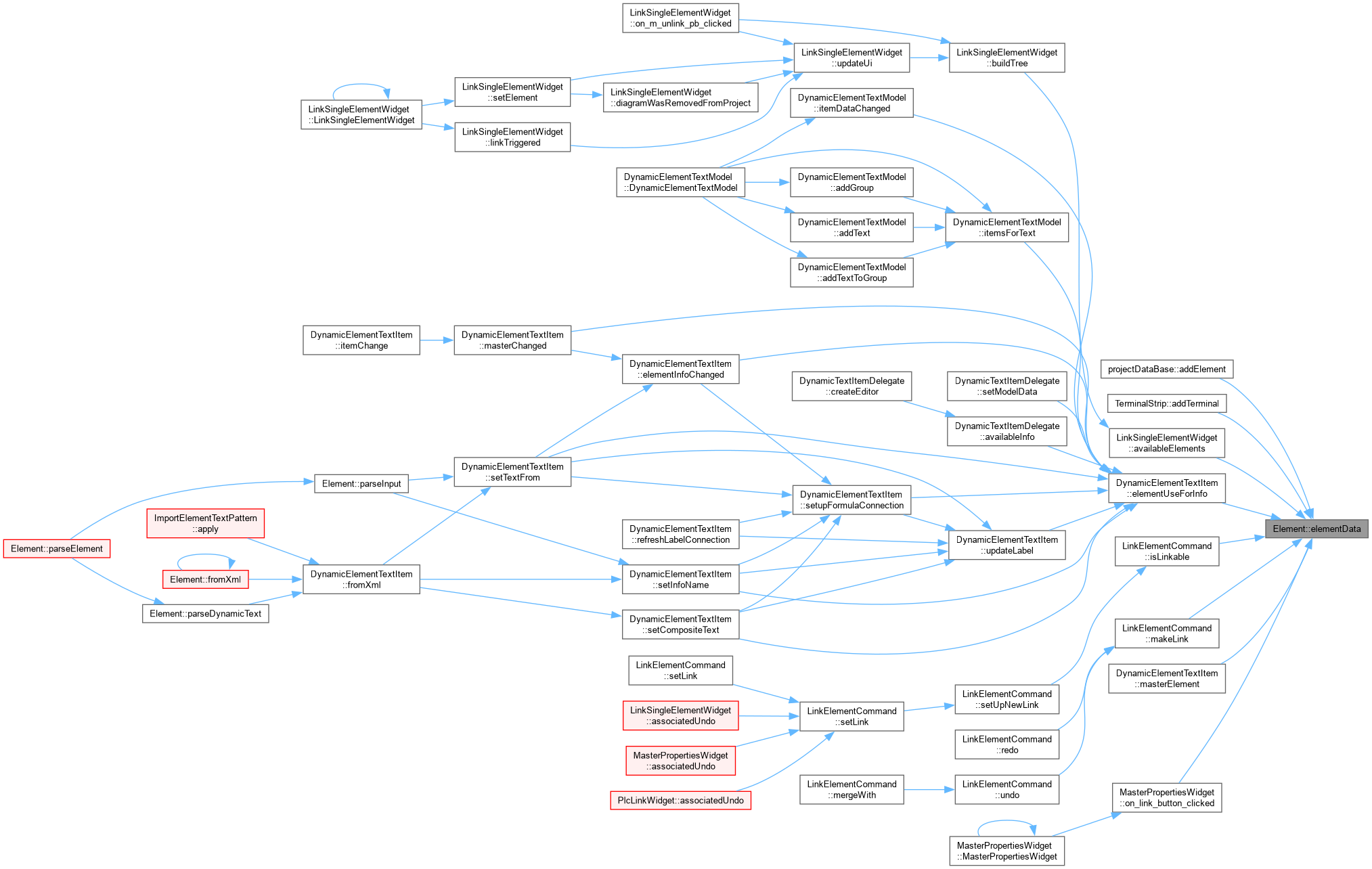

◆ elementData()

ElementData Element::elementData ( ) const

Element::elementData.

Returns: the element data used by this element

Here is the caller graph for this function:

◆ elementInfoChange

void Element::elementInfoChange	(	DiagramContext	old_info,
		DiagramContext	new_info )

signal

Here is the caller graph for this function:

◆ elementInformations()

DiagramContext Element::elementInformations ( ) const

inline

Here is the caller graph for this function:

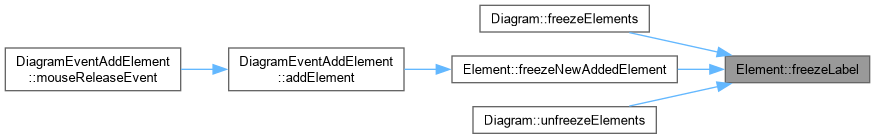

◆ freezeLabel()

void Element::freezeLabel ( bool freeze )

Element::freezeLabel Freeze this element label.

Here is the caller graph for this function:

◆ freezeNewAddedElement()

void Element::freezeNewAddedElement ( )

Element::freezeNewAddedElement Freeze this label if needed.

Here is the call graph for this function:

Here is the caller graph for this function:

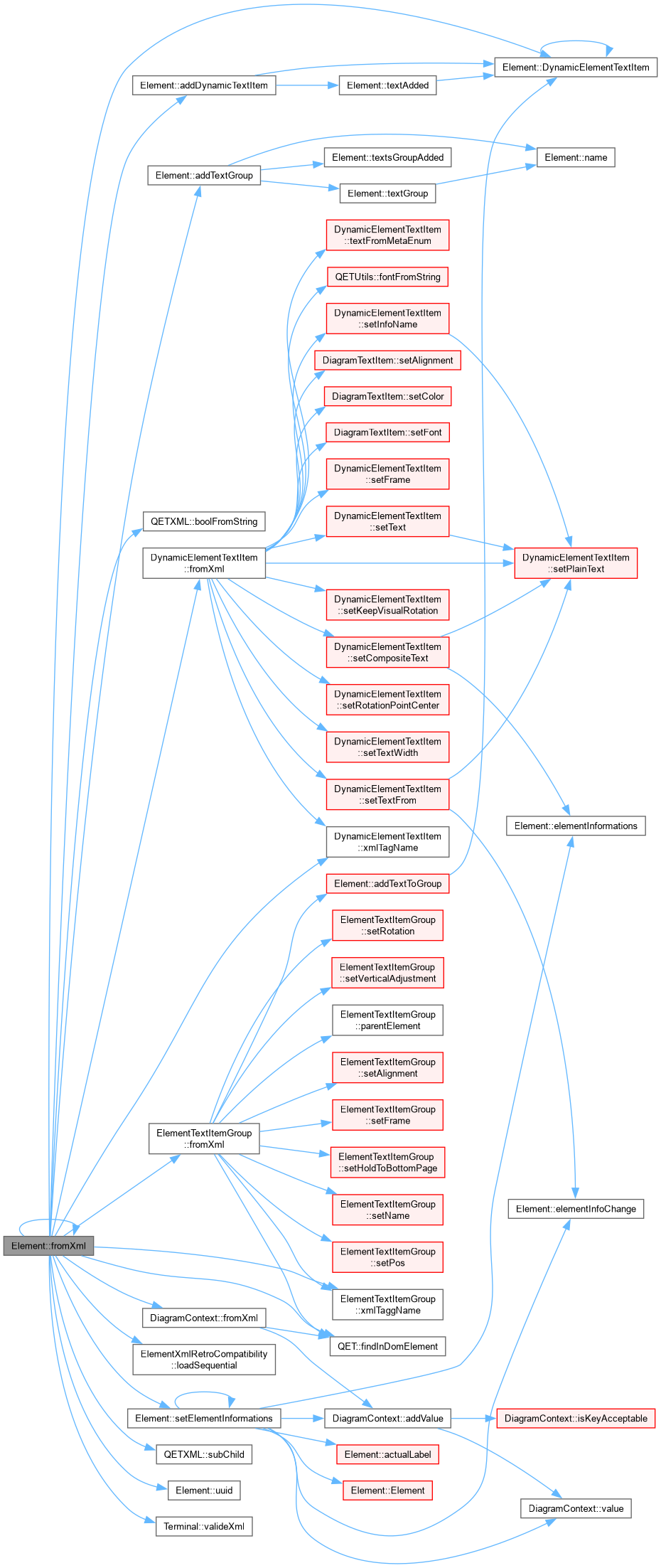

◆ fromXml()

bool Element::fromXml	(	QDomElement &	e,
		QHash< int, Terminal * > &	table_id_adr )

virtual

Element::fromXml Import the parameters of this element from a xml document. When call this function ensure this element is already in a scene, because the dynamic text item and element text item group (in the xml file) are created in this function and need a diagram for create their Xref, when this element is linked to another. If not the Xref can be not displayed, until the next call of update Xref of the group or text item.

Parameters

e	: the dom element where the parameter is stored
table_id_adr	: Reference to the mapping table between IDs of the XML file and the addresses in memory. If the import succeeds, it must be add the right couples (id, address).

Returns

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getPrefix()

QString Element::getPrefix ( ) const

Element::getPrefix get Element Prefix.

◆ groupIndexForElement()

int Element::groupIndexForElement ( Element * elmt ) const

Element::groupIndexForElement Returns the group index assigned to the given linked element. For slave elements, this indicates which contact group of the master this slave is assigned to.

Parameters

elmt	the linked element to query

Returns: group index, or -1 if not assigned

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hotspot()

QPoint Element::hotspot ( ) const

Returns: Le hotspot courant de l'element

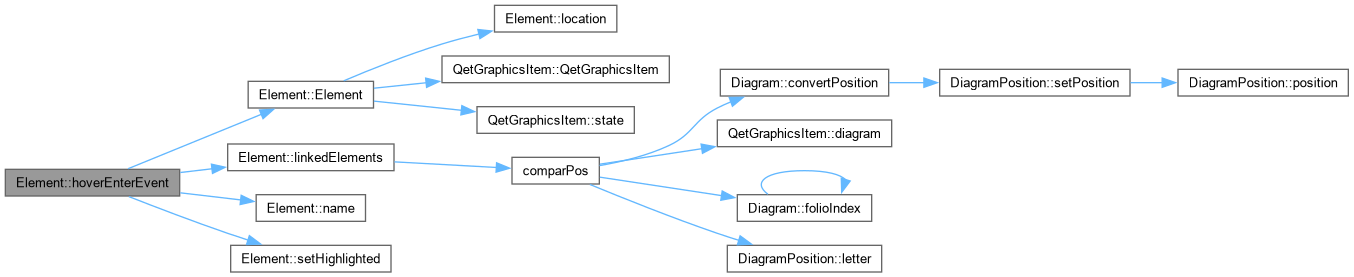

◆ hoverEnterEvent()

void Element::hoverEnterEvent ( QGraphicsSceneHoverEvent * e )

overrideprotected

When mouse over element change m_mouse_over to true (used in paint() function ) Also highlight linked elements

Parameters

e	QGraphicsSceneHoverEvent

Here is the call graph for this function:

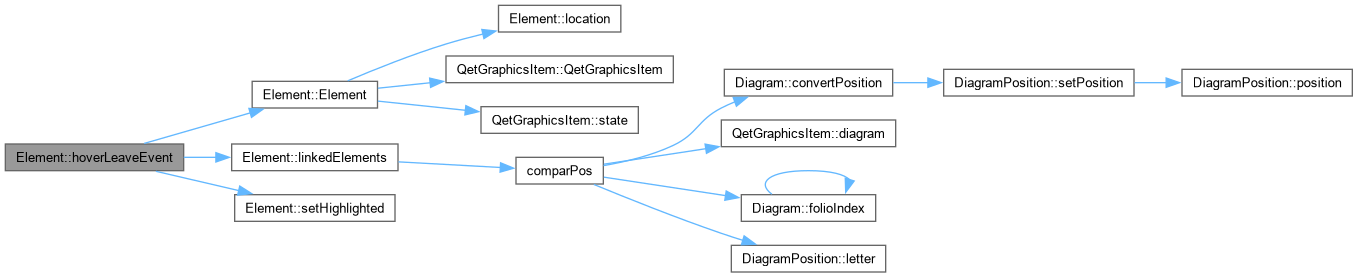

◆ hoverLeaveEvent()

void Element::hoverLeaveEvent ( QGraphicsSceneHoverEvent * e )

overrideprotected

When mouse over element leave the position change m_mouse_over to false(used in paint() function ) Also un-highlight linked elements

Parameters

e	QGraphicsSceneHoverEvent

Here is the call graph for this function:

◆ initLink()

void Element::initLink ( QETProject * prj )

virtual

Element::initLink Initialise the link between this element and other elements. This method can be call once because init the link according to uuid store in a private list, after link, the list is clear, so call another time do nothing.

Parameters

prj	: ownership project of this element and other element to be linked

Reimplemented in MasterElement, SimpleElement, and TerminalElement.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isFree()

bool Element::isFree ( ) const

inline

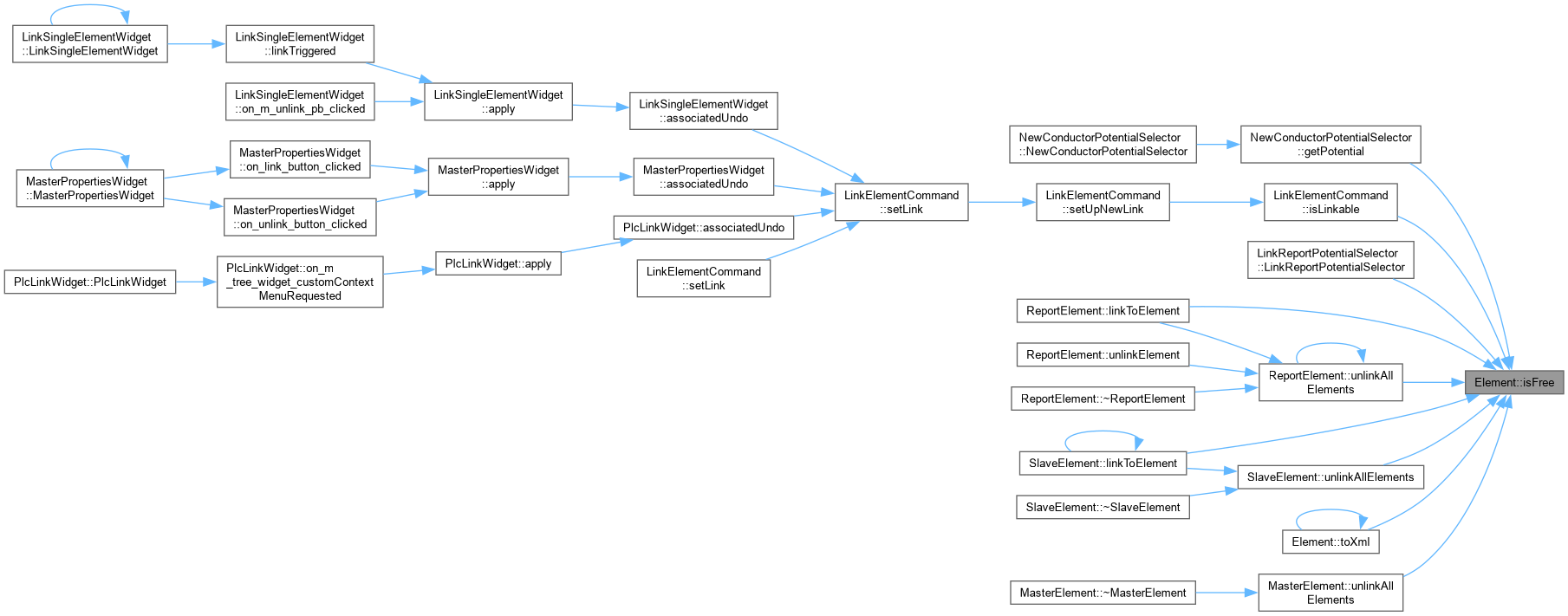

Here is the caller graph for this function:

◆ isFreezeLabel()

bool Element::isFreezeLabel ( ) const

inline

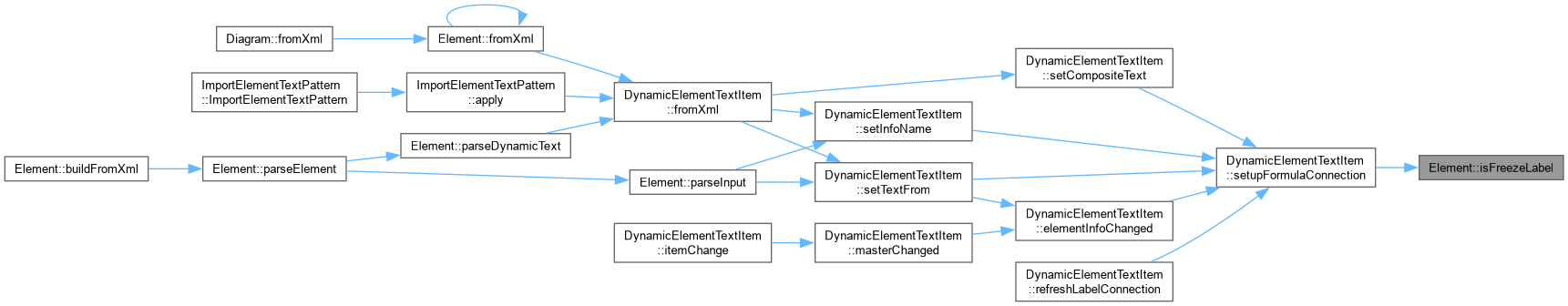

Here is the caller graph for this function:

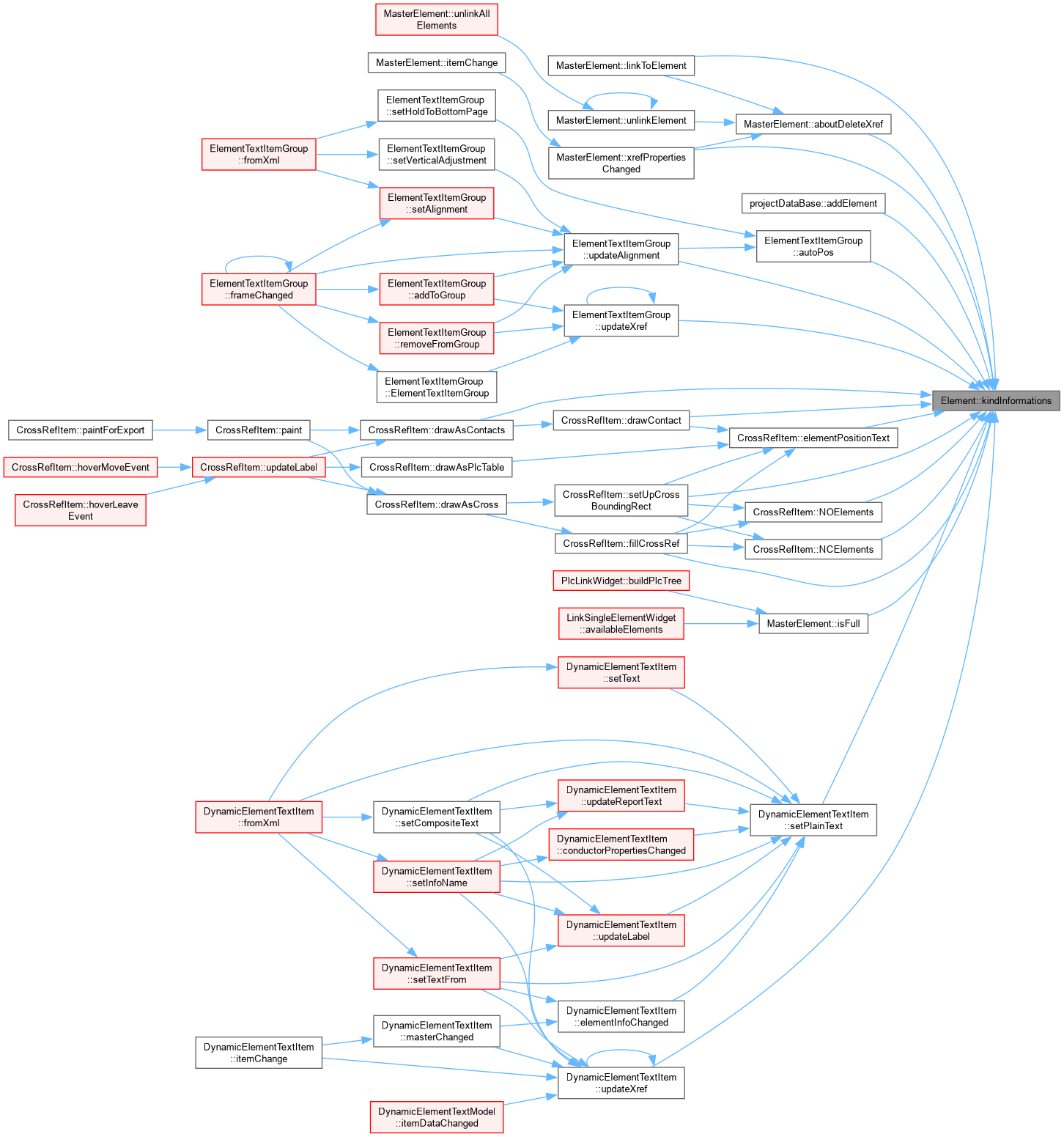

◆ kindInformations()

DiagramContext Element::kindInformations ( ) const

inline

kindInformations

Deprecated: use elementData function instead

Returns

Here is the caller graph for this function:

◆ linkedElementChanged

void Element::linkedElementChanged ( )

signal

Here is the caller graph for this function:

◆ linkedElements()

QList< Element * > Element::linkedElements ( )

inline

Element::linkedElements.

Returns: the list of linked elements, the list is sorted by position

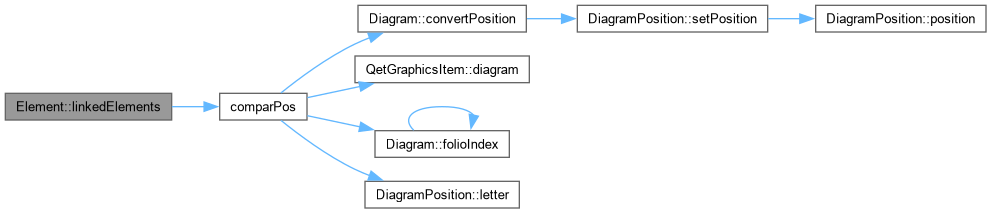

Here is the call graph for this function:

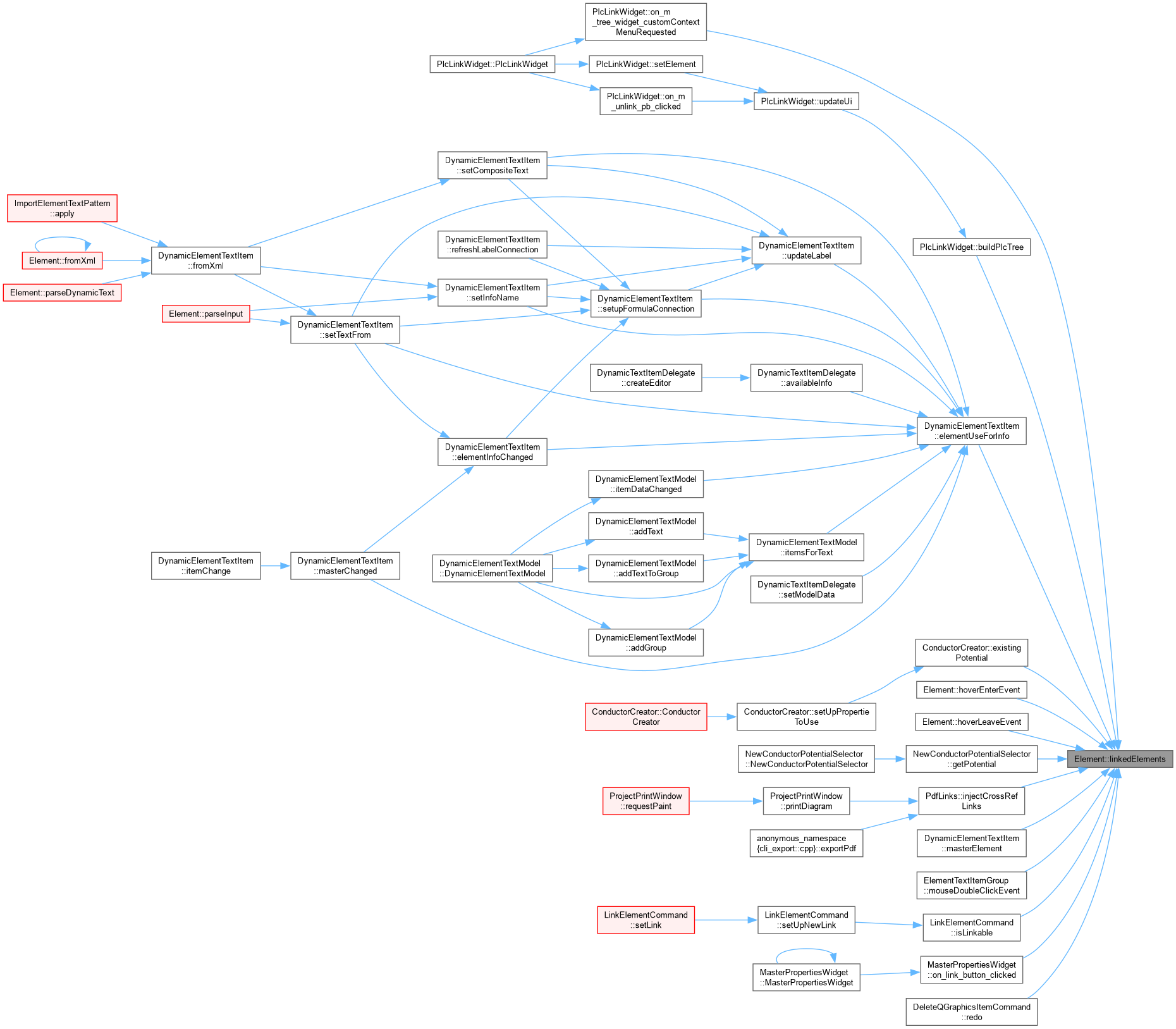

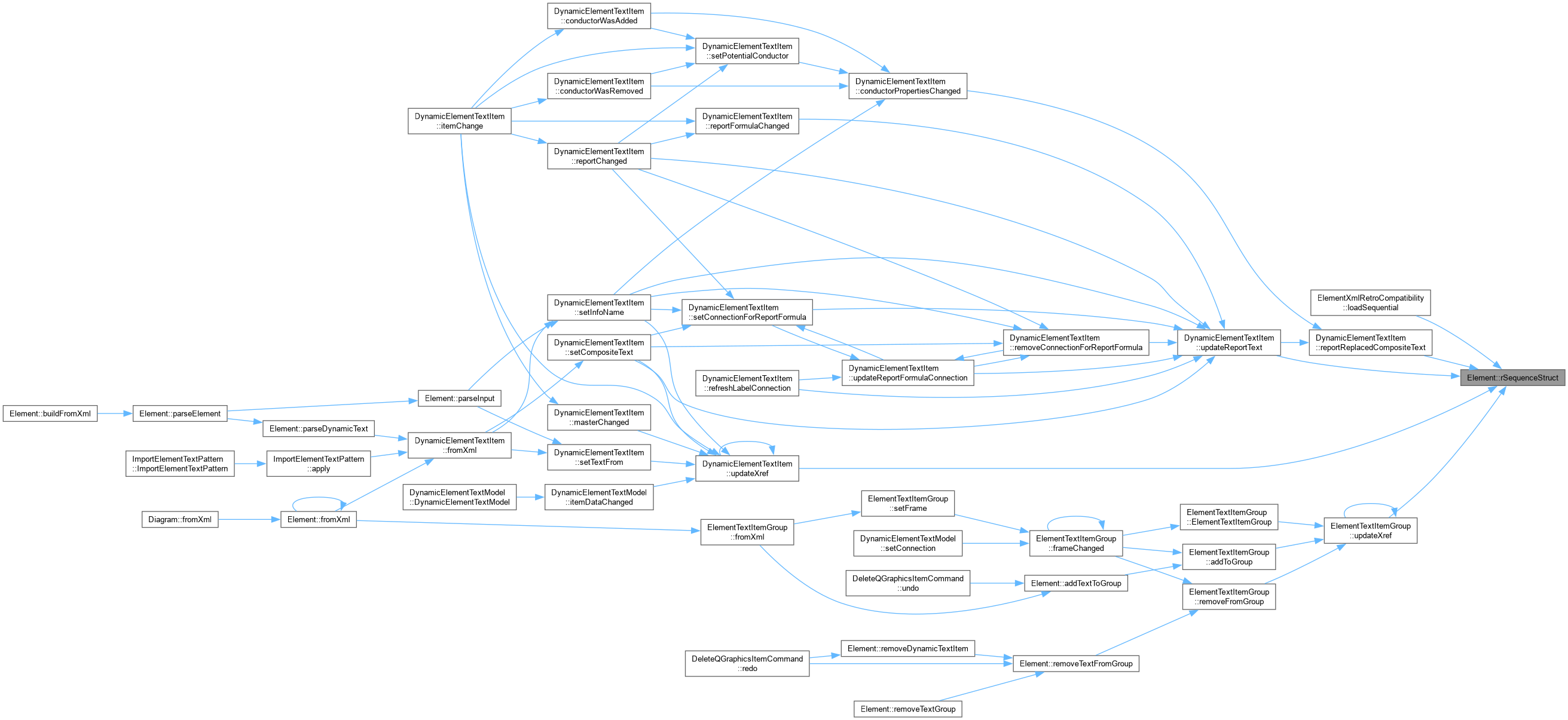

Here is the caller graph for this function:

◆ linkToElement()

virtual void Element::linkToElement ( Element * )

inlinevirtual

Reimplemented in MasterElement, ReportElement, and SlaveElement.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ linkType()

virtual kind Element::linkType ( ) const

inlinevirtual

linkType use elementData function instead

Returns

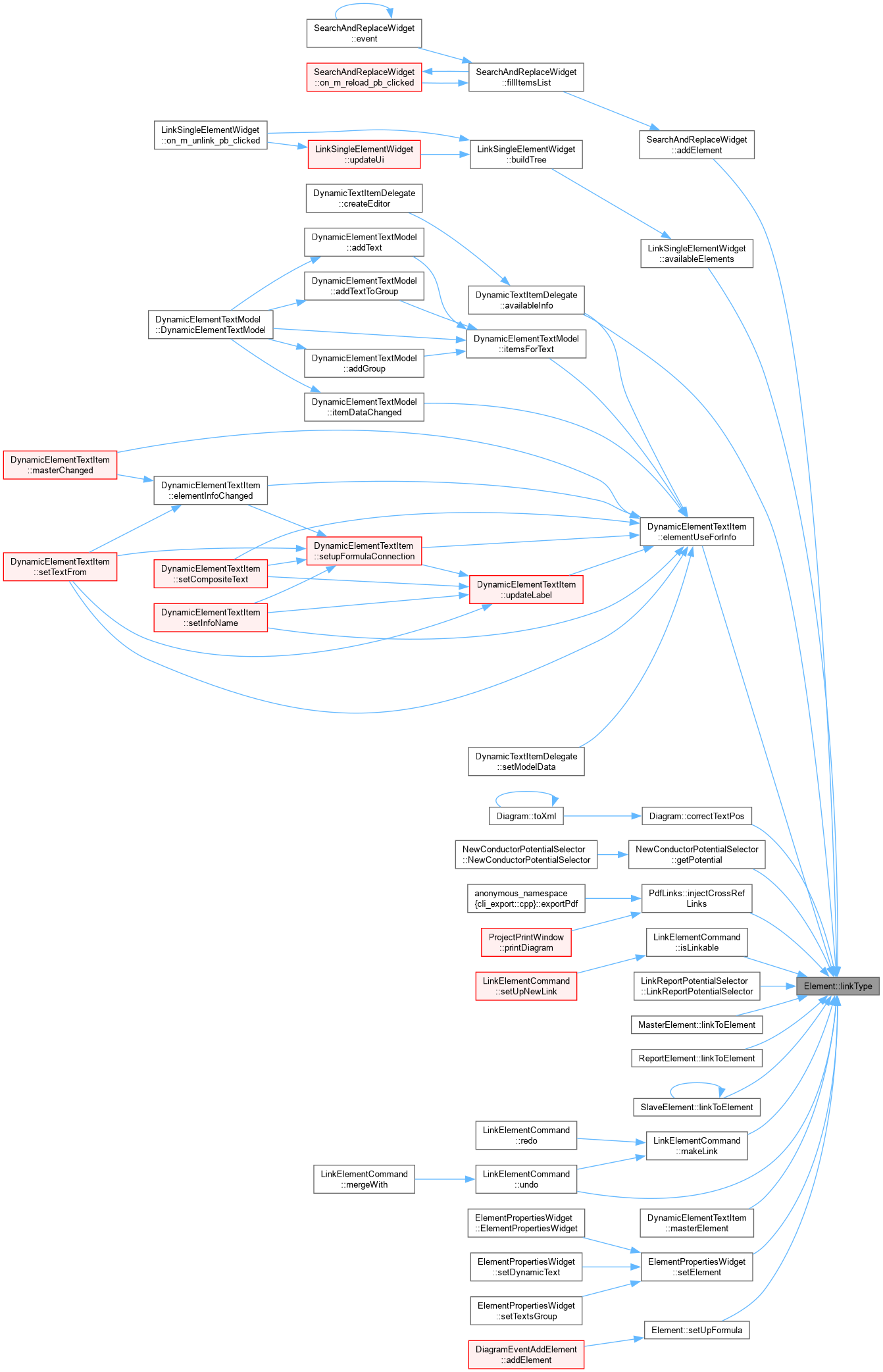

Here is the caller graph for this function:

◆ linkTypeToString()

QString Element::linkTypeToString ( ) const

linkTypeToString use elementData function instead

Element::linkTypeToString.

Returns

Deprecated: use instead ElementData::typeToString

Todo: remove this function

Returns

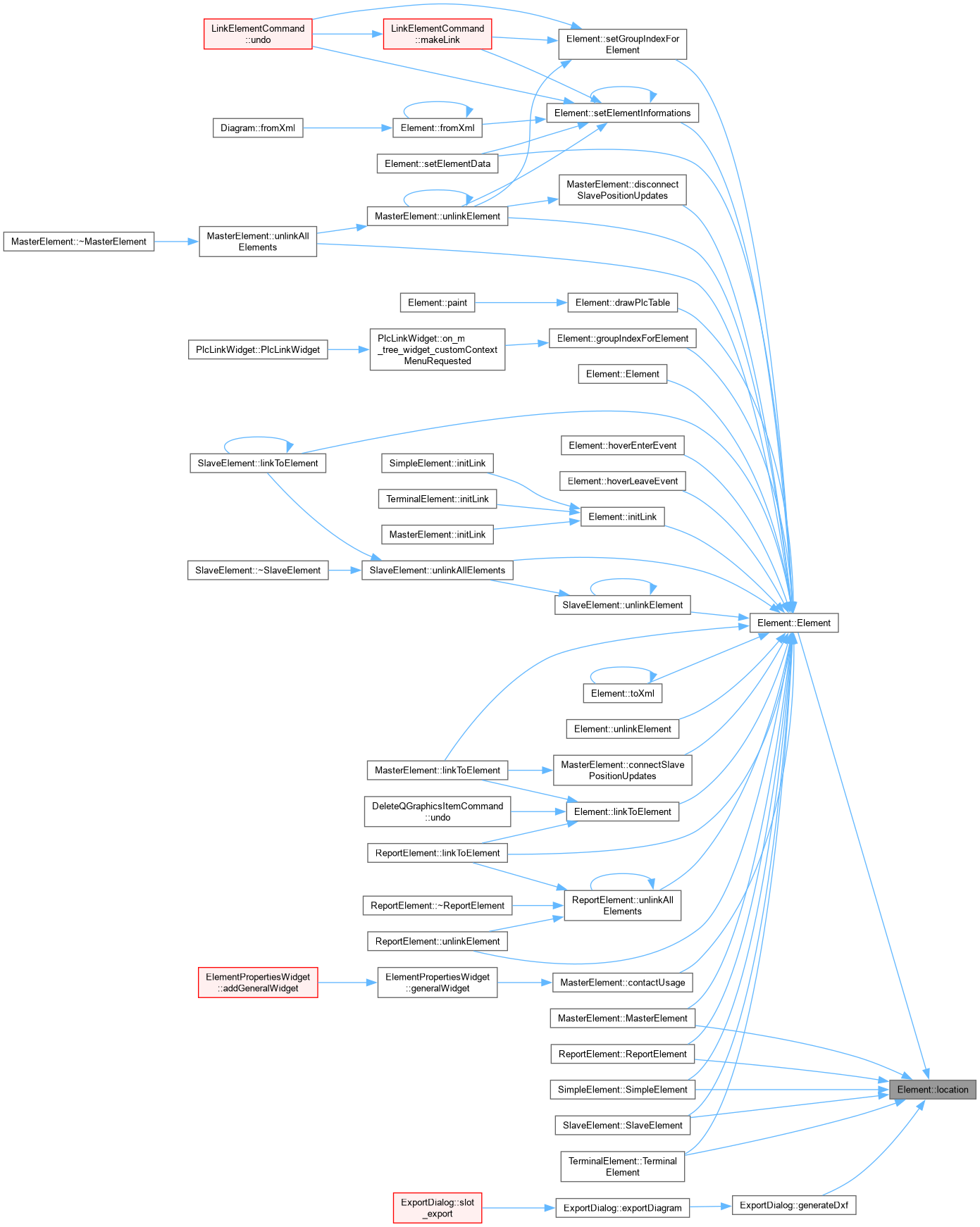

◆ location()

ElementsLocation Element::location ( ) const

Here is the caller graph for this function:

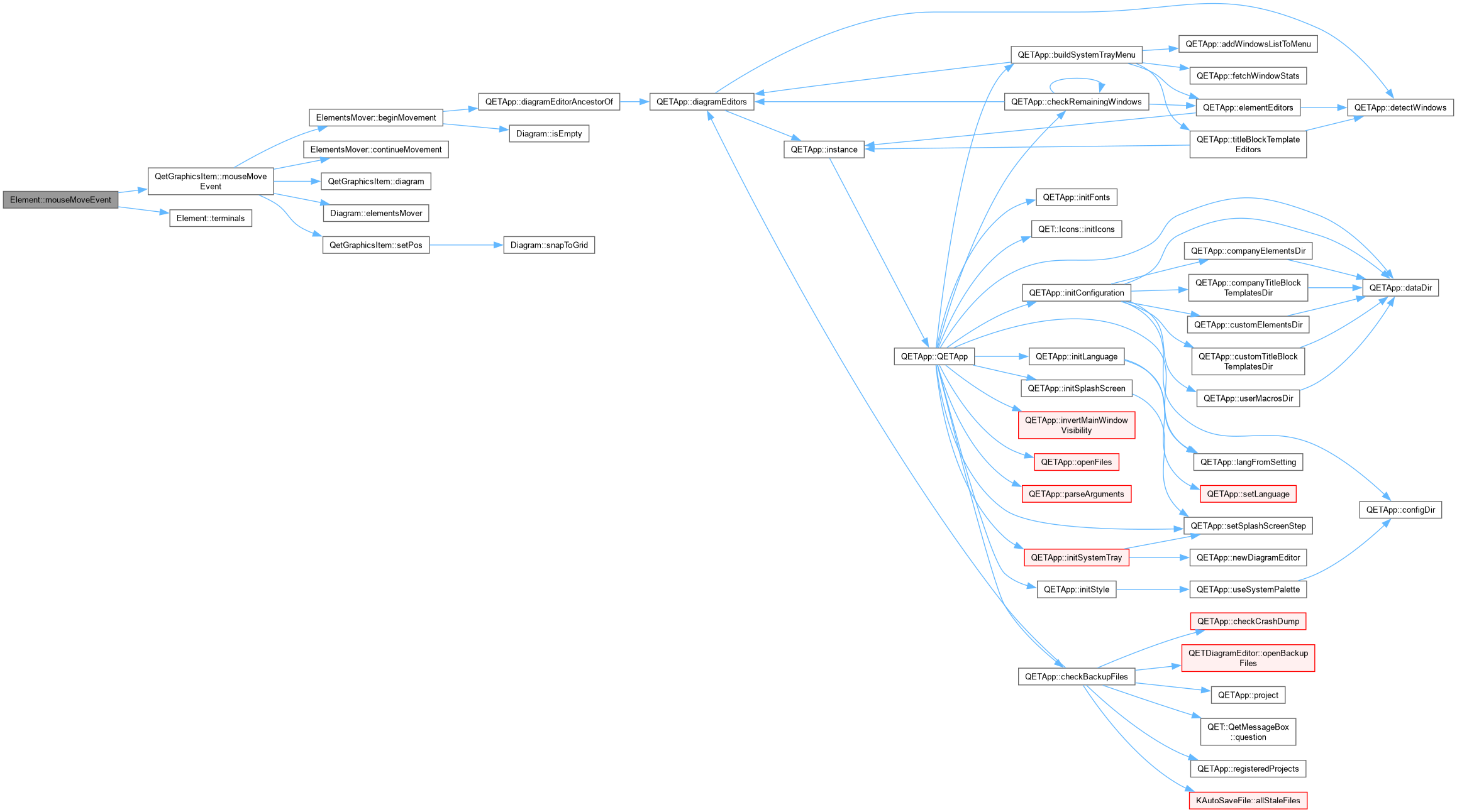

◆ mouseMoveEvent()

void Element::mouseMoveEvent ( QGraphicsSceneMouseEvent * event )

overrideprotected

Element::mouseMoveEvent.

Parameters

event

Here is the call graph for this function:

Here is the caller graph for this function:

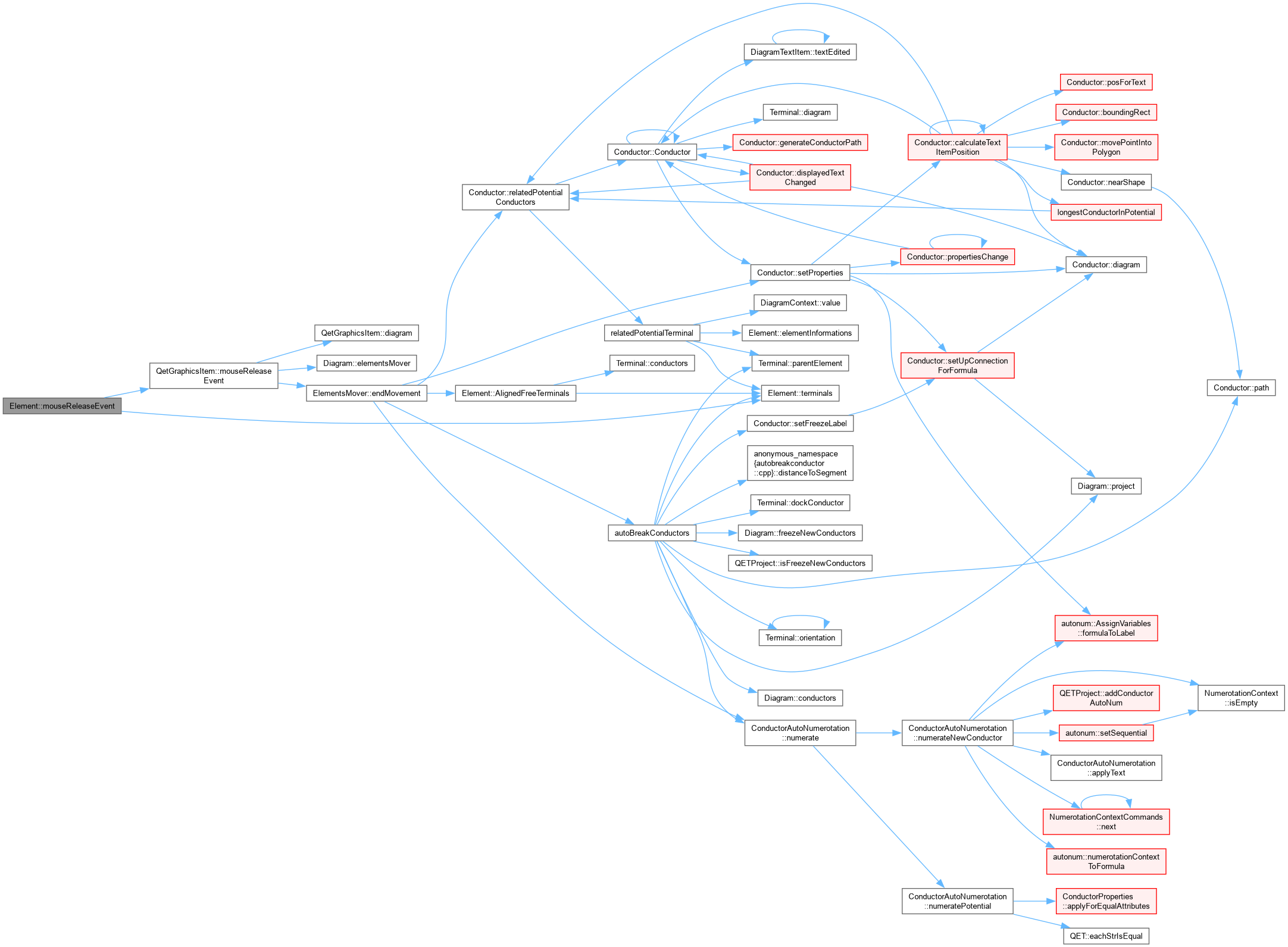

◆ mouseReleaseEvent()

void Element::mouseReleaseEvent ( QGraphicsSceneMouseEvent * event )

overrideprotected

Element::mouseReleaseEvent.

Parameters

event

Here is the call graph for this function:

Here is the caller graph for this function:

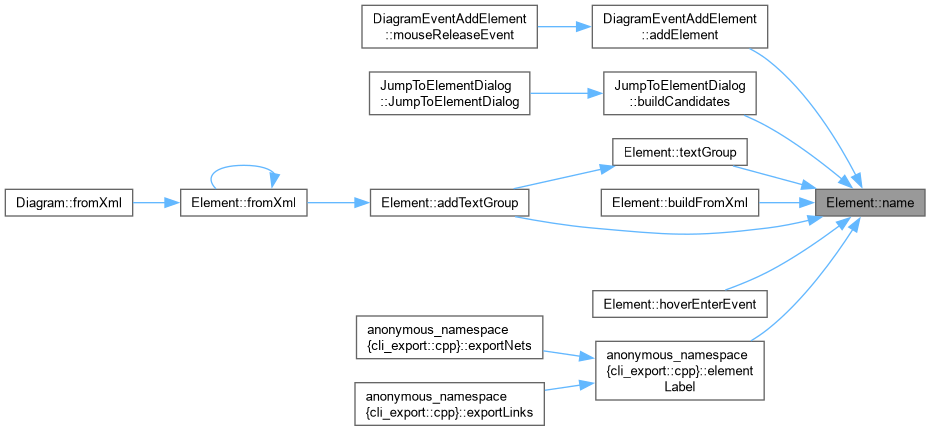

◆ name()

QString Element::name ( ) const

overridevirtual

Element::name.

Returns: the human name of this element

Reimplemented from QetGraphicsItem.

Here is the caller graph for this function:

◆ newUuid()

void Element::newUuid ( )

inline

◆ orientation()

int Element::orientation ( ) const

inline

Indicate the current orientation of this element O = 0° 1 = 90° 2 = 180° 3 = 270°

Returns: the current orientation of this element

Here is the call graph for this function:

Here is the caller graph for this function:

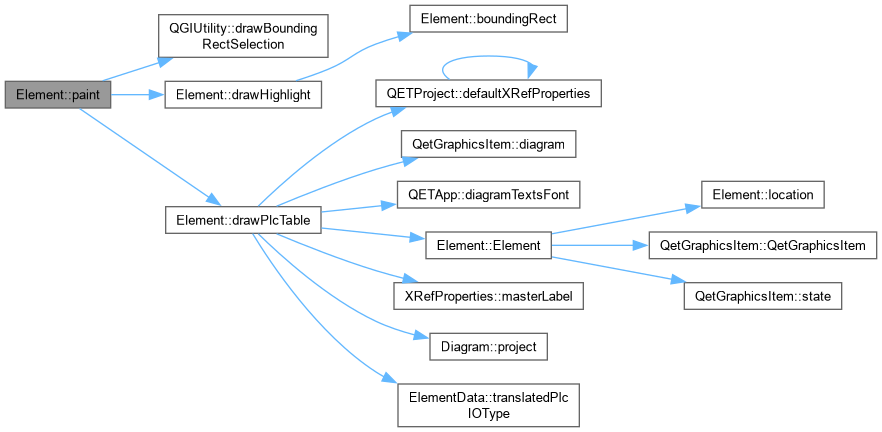

◆ paint()

void Element::paint	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	options,
		QWidget *	)

override

Element::paint.

Parameters

painter
options

Here is the call graph for this function:

◆ parseDynamicText()

DynamicElementTextItem * Element::parseDynamicText ( const QDomElement & dom_element )

private

Element::parseDynamicText Create the dynamic text field described in dom_element.

Parameters

dom_element

Returns

Here is the call graph for this function:

Here is the caller graph for this function:

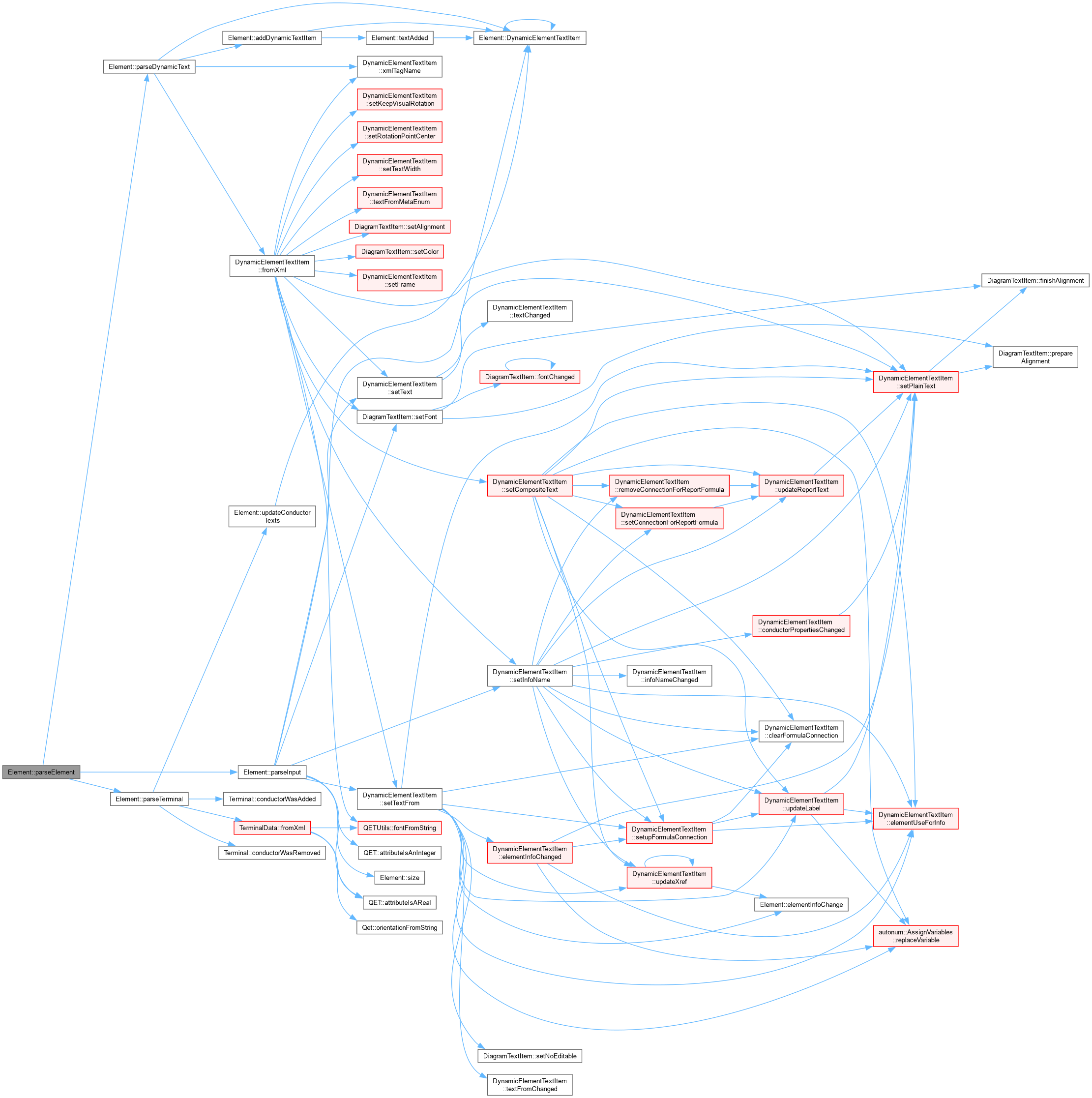

◆ parseElement()

bool Element::parseElement ( const QDomElement & dom )

private

Element::parseElement Parse the element of the xml description of this element.

Parameters

dom

Returns

Here is the call graph for this function:

Here is the caller graph for this function:

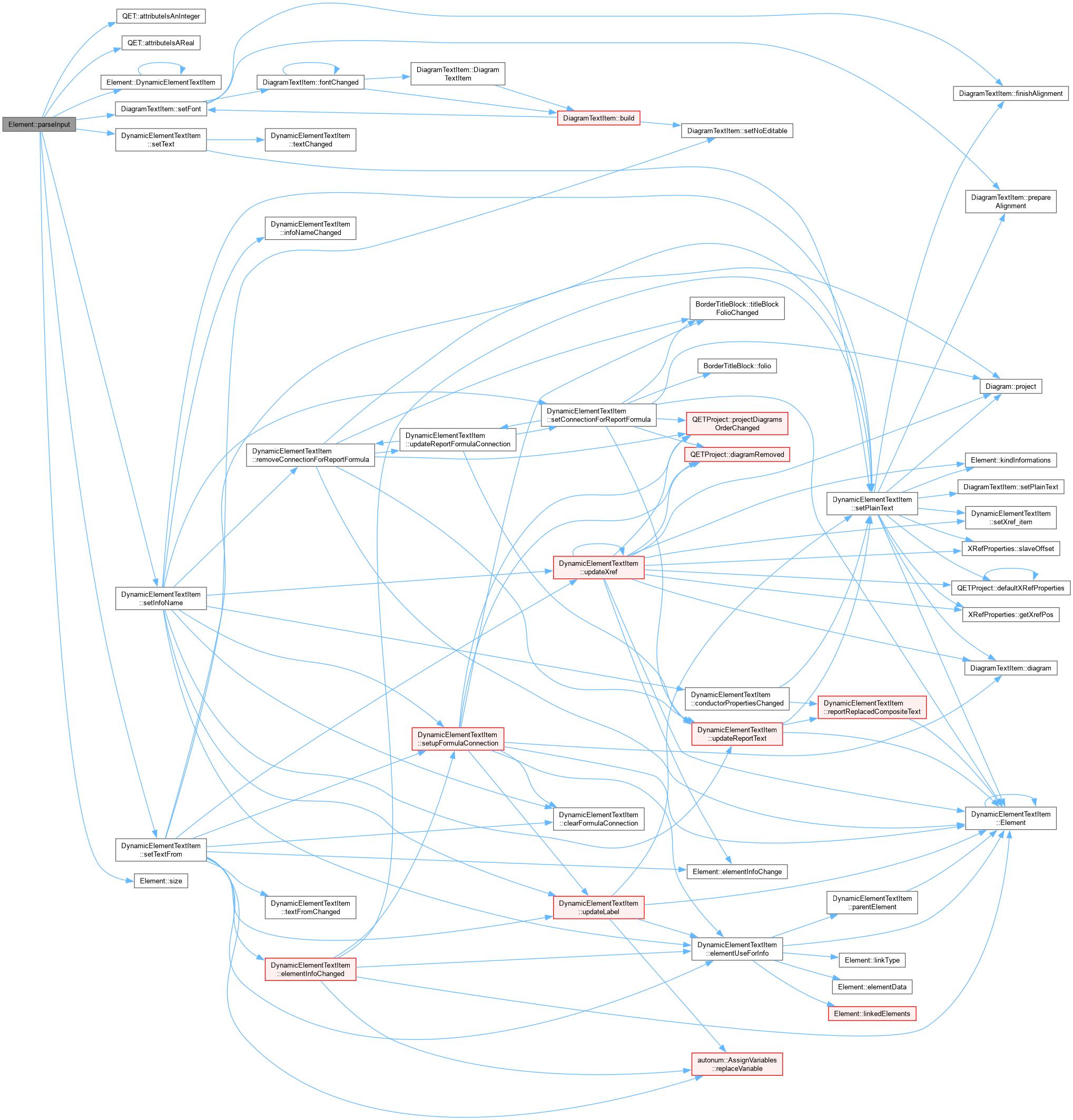

◆ parseInput()

bool Element::parseInput ( const QDomElement & dom_element )

private

Element::parseInput Parse the input (old text field) the parsed input are converted to dynamic text field, this function is only here to keep compatibility with old text.

Parameters

dom_element

Returns

Here is the call graph for this function:

Here is the caller graph for this function:

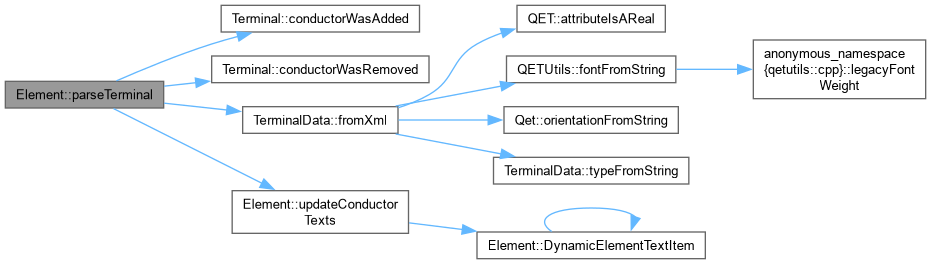

◆ parseTerminal()

Terminal * Element::parseTerminal ( const QDomElement & dom_element )

private

Element::parseTerminal Parse partTerminal from xml structure.

Parameters

dom_element

Returns

Here is the call graph for this function:

Here is the caller graph for this function:

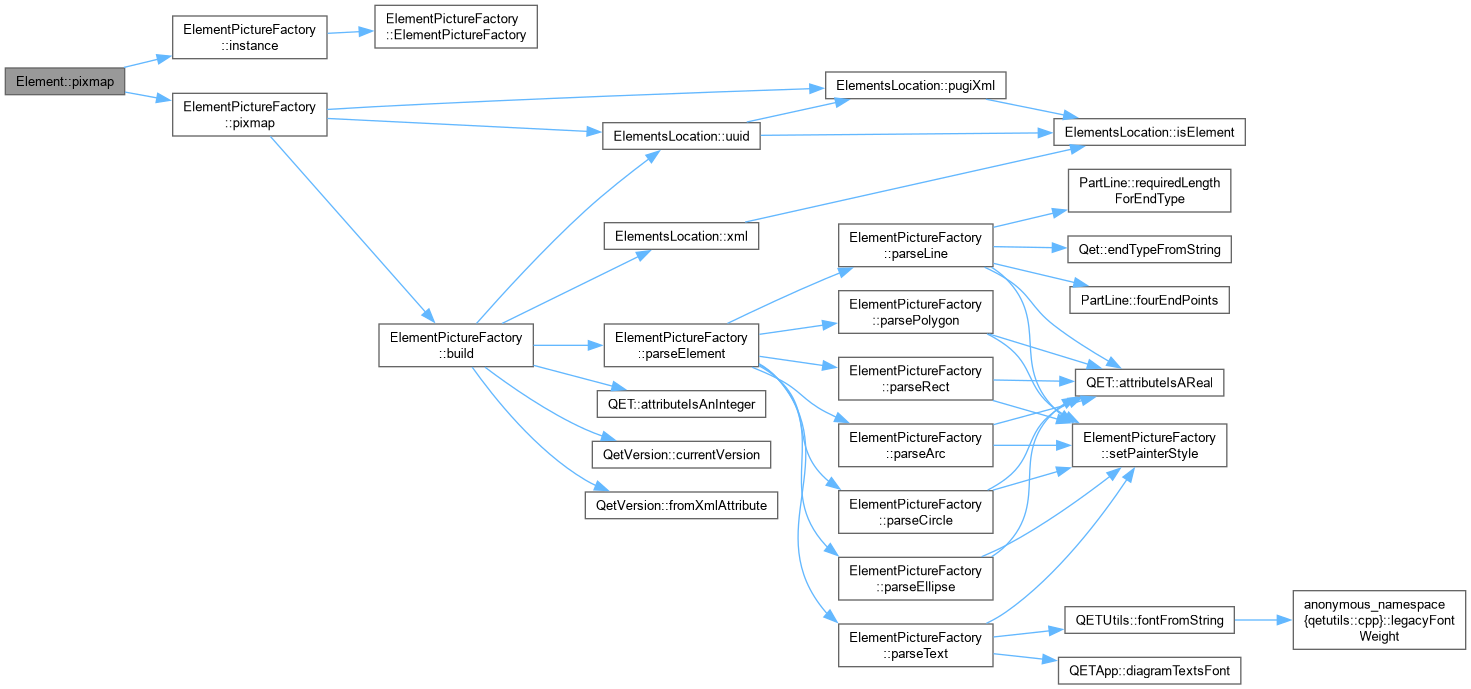

◆ pixmap()

QPixmap Element::pixmap ( )

Element::pixmap.

Returns: the pixmap of this element

Here is the call graph for this function:

◆ plcTablePositions()

QList< QPointF > Element::plcTablePositions ( ) const

inline

Positions where the PLC IO table is drawn (from the .elmt file).

◆ removeDynamicTextItem()

void Element::removeDynamicTextItem ( DynamicElementTextItem * deti )

Element::removeDynamicTextItem Remove deti, no matter if is a child of this element or a child of a group of this element. Set he parent item of deti to 0, deti is not deleted.

Parameters

deti

Here is the call graph for this function:

Here is the caller graph for this function:

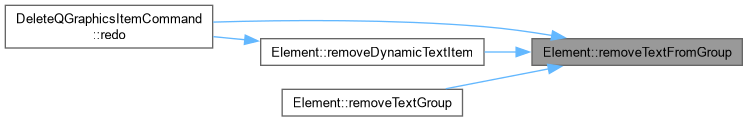

◆ removeTextFromGroup()

bool Element::removeTextFromGroup	(	DynamicElementTextItem *	text,
		ElementTextItemGroup *	group )

Element::removeTextFromGroup Remove the text text from the group group, en reparent text to this element.

Returns: true if text was successfully removed

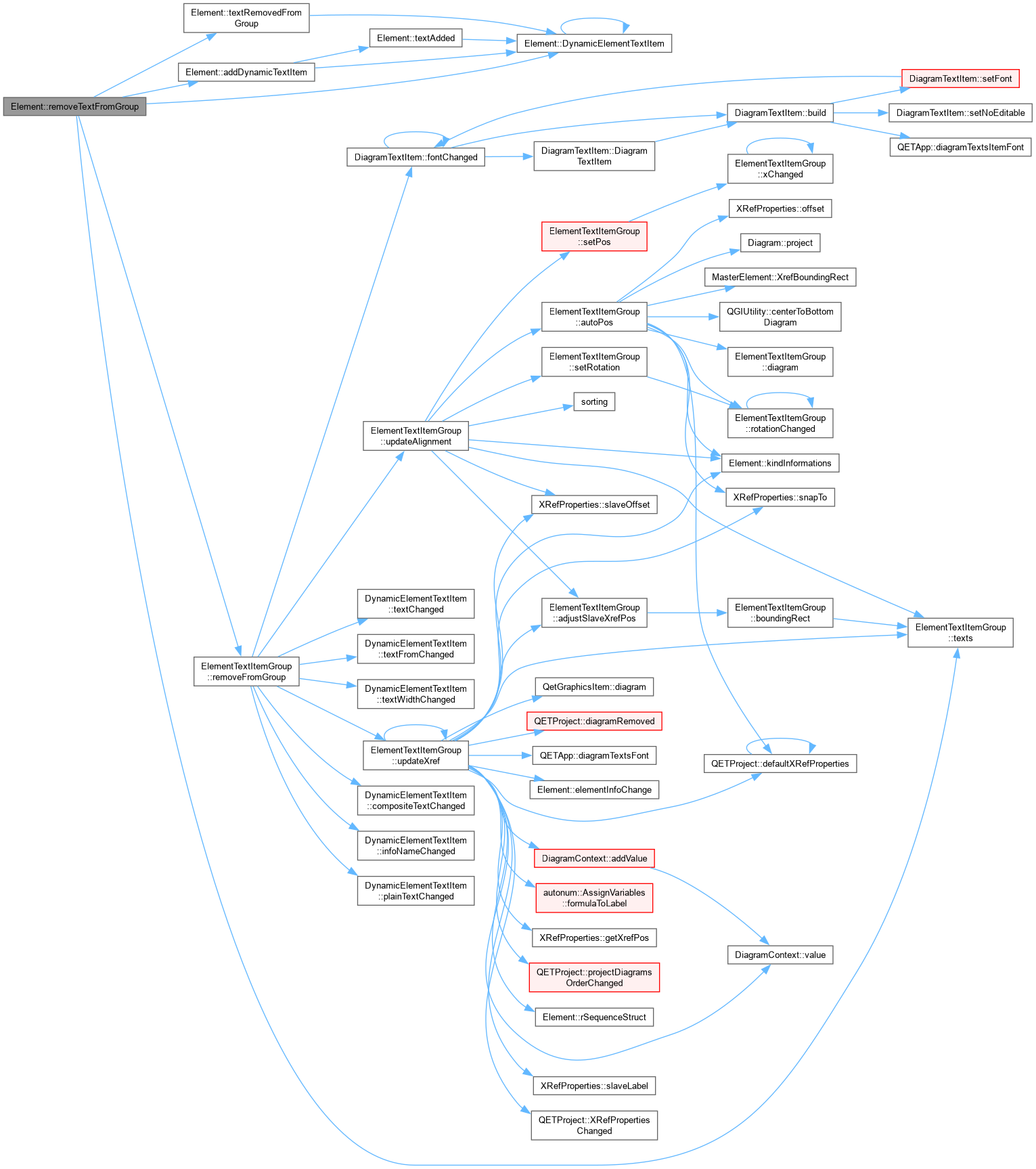

Here is the call graph for this function:

Here is the caller graph for this function:

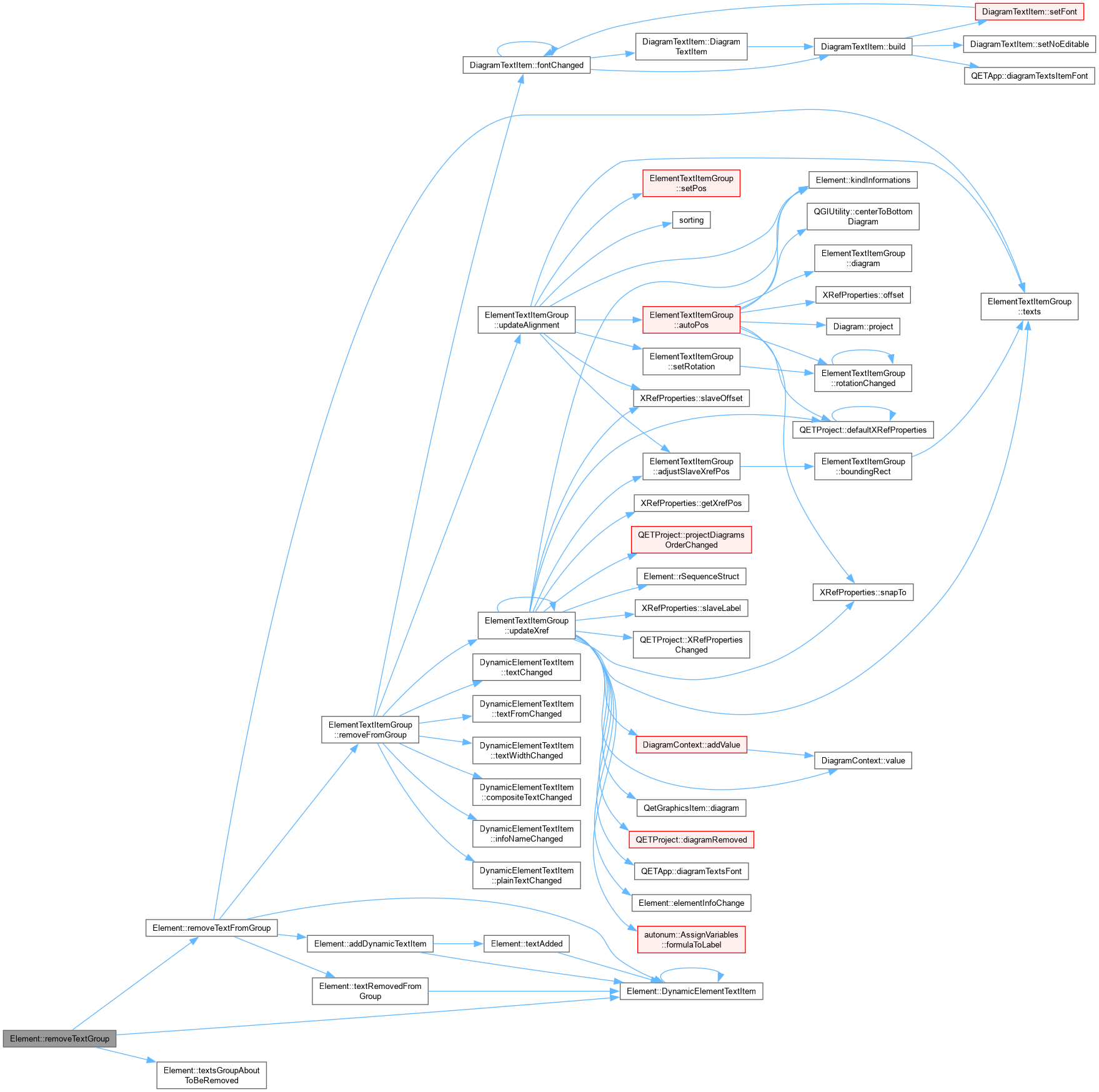

◆ removeTextGroup()

void Element::removeTextGroup ( ElementTextItemGroup * group )

Element::removeTextGroup Remove the text group group from this element, and set the parent of group to 0. group is not deleted. All texts owned by the group will be reparented to this element.

Parameters

group

Here is the call graph for this function:

◆ rSequenceStruct()

autonum::sequentialNumbers & Element::rSequenceStruct ( )

inline

Here is the caller graph for this function:

◆ sequenceStruct()

autonum::sequentialNumbers Element::sequenceStruct ( ) const

inline

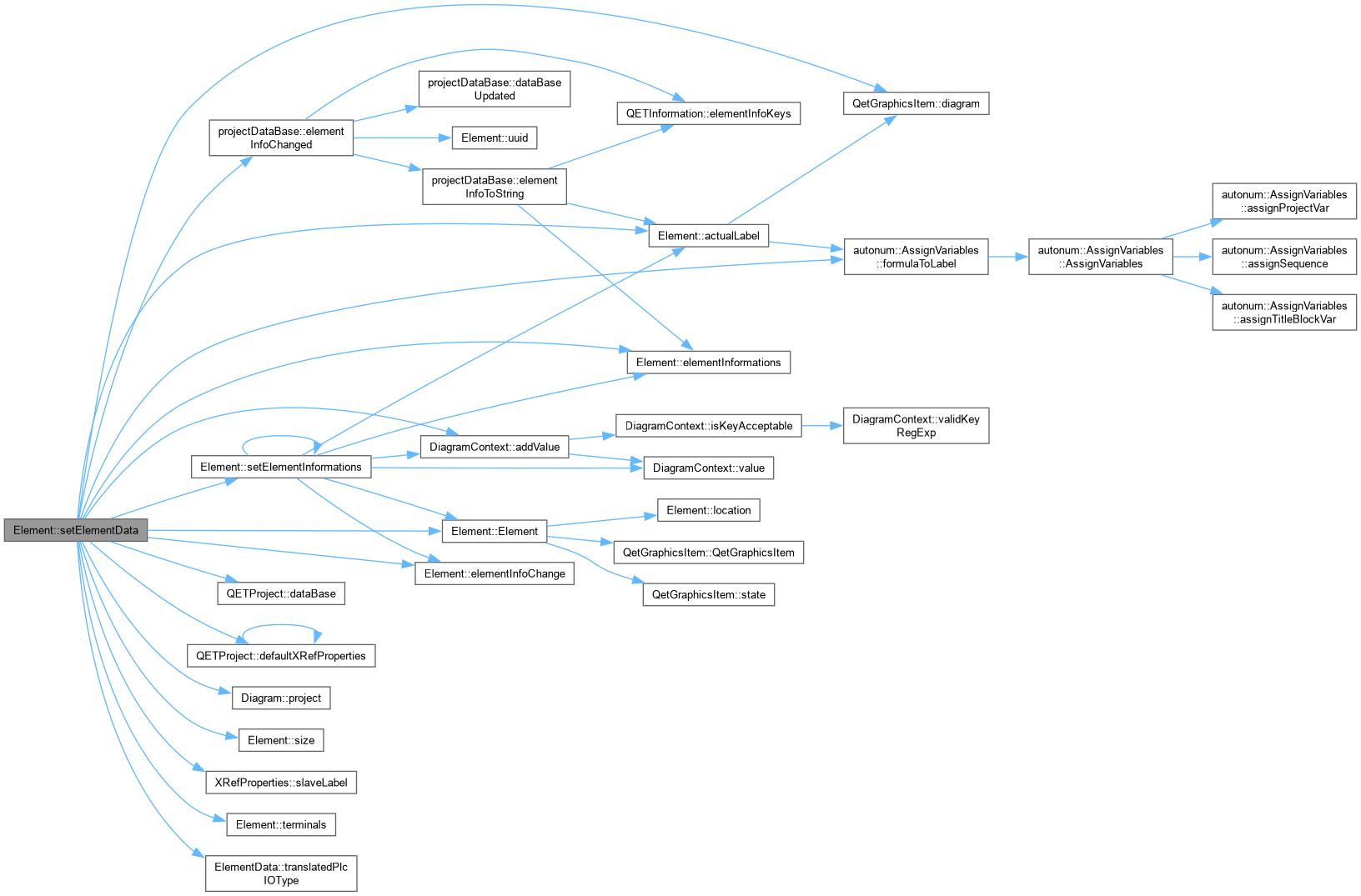

◆ setElementData()

void Element::setElementData ( ElementData data )

Element::setElementData Set new data for this element. If m_information of data is changed, emit elementInfoChange.

Parameters

data

Here is the call graph for this function:

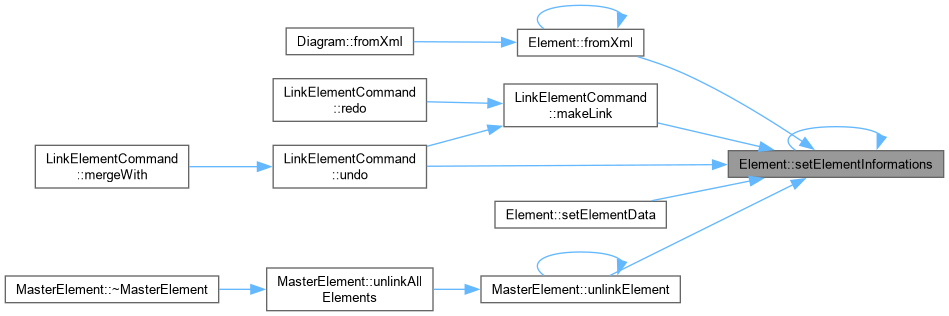

◆ setElementInformations()

void Element::setElementInformations ( DiagramContext dc )

virtual

Element::setElementInformations Set new information for this element. If new information is different of current infotmation emit elementInfoChange.

Parameters

dc

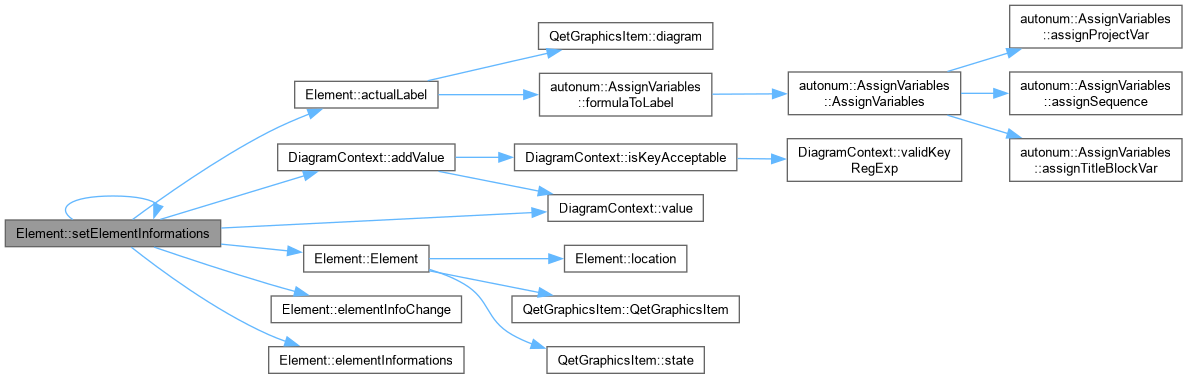

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setGroupIndexForElement()

void Element::setGroupIndexForElement	(	Element *	elmt,
		int	index )

Element::setGroupIndexForElement Sets the group index for a linked element.

Parameters

elmt	the linked element
index	the group index to assign

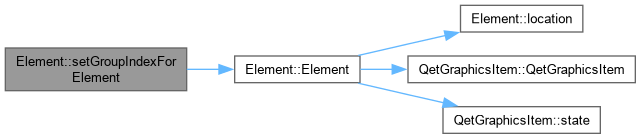

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setHighlighted()

void Element::setHighlighted ( bool hl )

virtual

Parameters

hl	true pour mettre l'element en evidence, false sinon

Here is the caller graph for this function:

◆ setHotspot()

QPoint Element::setHotspot ( QPoint hs )

Definit le hotspot de l'element par rapport au coin superieur gauche de son rectangle delimitant. Necessite que la taille ait deja ete definie

Parameters

hs	Coordonnees du hotspot

Here is the caller graph for this function:

◆ setPrefix()

void Element::setPrefix ( QString prefix )

Element::setPrefix set Element Prefix.

◆ setSize()

void Element::setSize	(	int	wid,
		int	hei )

protected

Element::setSize Define the size of the element. The size must be a multiple of 10. If not, the dimensions indicated will be arrrondies to higher tens.

Parameters

wid
hei

Here is the caller graph for this function:

◆ setUpFormula()

void Element::setUpFormula	(	bool	code_letter = true,
		QUndoCommand *	parent_undo = nullptr )

Element::setUpFormula Set up the formula used to create the label of this element.

Parameters

code_letter : Q_UNUSED(code_letter) if true set tagged text to code letter (ex K for coil) with condition : formula is empty, text tagged "label" is emptty or "_";

Here is the call graph for this function:

Here is the caller graph for this function:

◆ size()

QSize Element::size ( ) const

Returns: la taille de l'element sur le schema

Here is the caller graph for this function:

◆ terminals()

QList< Terminal * > Element::terminals ( ) const

Element::terminals.

Returns: the list of terminals of this element.

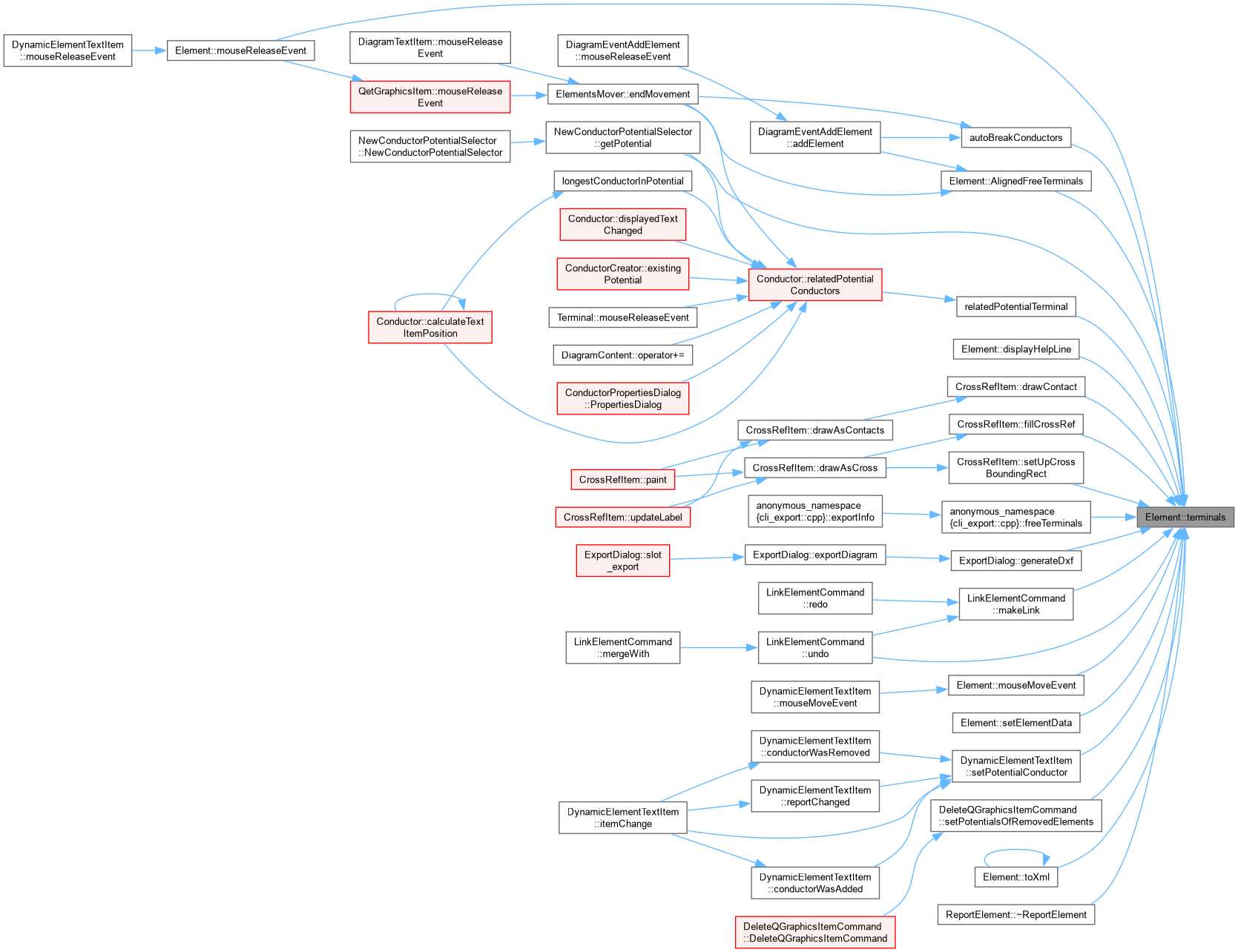

Here is the caller graph for this function:

◆ textAdded

void Element::textAdded ( DynamicElementTextItem * deti )

signal

Here is the call graph for this function:

Here is the caller graph for this function:

◆ textAddedToGroup

void Element::textAddedToGroup	(	DynamicElementTextItem *	text,
		ElementTextItemGroup *	group )

signal

Here is the call graph for this function:

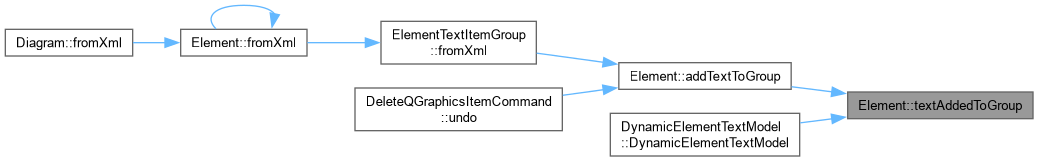

Here is the caller graph for this function:

◆ textGroup()

ElementTextItemGroup * Element::textGroup ( const QString & name ) const

Element::textGroup.

Parameters

name

Returns: the text group named name or nullptr if this element haven't got a group with this name

Here is the call graph for this function:

Here is the caller graph for this function:

◆ textGroups()

QList< ElementTextItemGroup * > Element::textGroups ( ) const

Element::textGroups.

Returns: All texts groups of this element

Here is the caller graph for this function:

◆ textRemoved

void Element::textRemoved ( DynamicElementTextItem * deti )

signal

Here is the call graph for this function:

Here is the caller graph for this function:

◆ textRemovedFromGroup

void Element::textRemovedFromGroup	(	DynamicElementTextItem *	text,
		ElementTextItemGroup *	group )

signal

Here is the call graph for this function:

Here is the caller graph for this function:

◆ textsGroupAboutToBeRemoved

void Element::textsGroupAboutToBeRemoved ( ElementTextItemGroup * group )

signal

Here is the caller graph for this function:

◆ textsGroupAdded

void Element::textsGroupAdded ( ElementTextItemGroup * group )

signal

Here is the caller graph for this function:

◆ toXml()

QDomElement Element::toXml	(	QDomDocument &	document,
		QHash< Terminal *, int > &	table_adr_id ) const

virtual

Element::toXml Allows to export the element in XML.

Parameters

document	: XML document to use
table_adr_id	: Correspondence table between the addresses of the terminals and their id in the XML representation; this table completed by this method

Returns: The XML element representing this electrical element

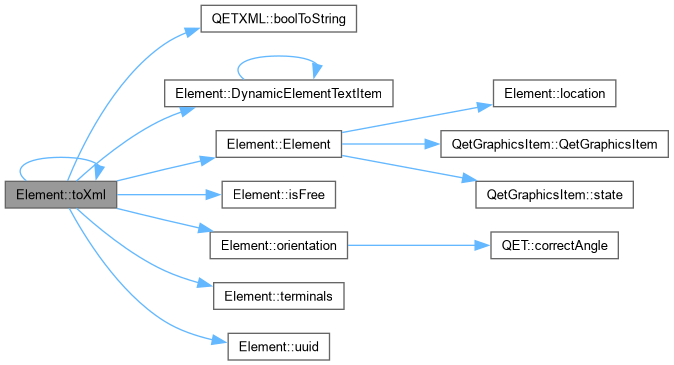

Here is the call graph for this function:

Here is the caller graph for this function:

◆ type()

int Element::type ( ) const

inlineoverride

◆ unlinkAllElements()

virtual void Element::unlinkAllElements ( )

inlinevirtual

Reimplemented in MasterElement, ReportElement, and SlaveElement.

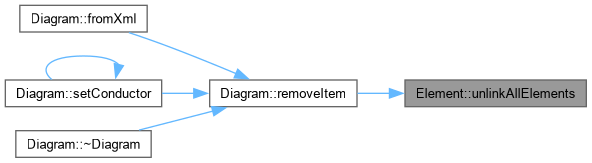

Here is the caller graph for this function:

◆ unlinkElement()

virtual void Element::unlinkElement ( Element * )

inlinevirtual

Reimplemented in MasterElement, ReportElement, and SlaveElement.

Here is the call graph for this function:

◆ updateConductorTexts

void Element::updateConductorTexts ( )

slot

Element::updateConductorTexts Slot that is triggered when a cable is * connected to or disconnected from a terminal on this component.

Element::updateConductorTexts

Here is the call graph for this function:

Here is the caller graph for this function:

◆ uuid()

QUuid Element::uuid ( ) const

inline

Element::uuid.

Returns: the uuid of this element

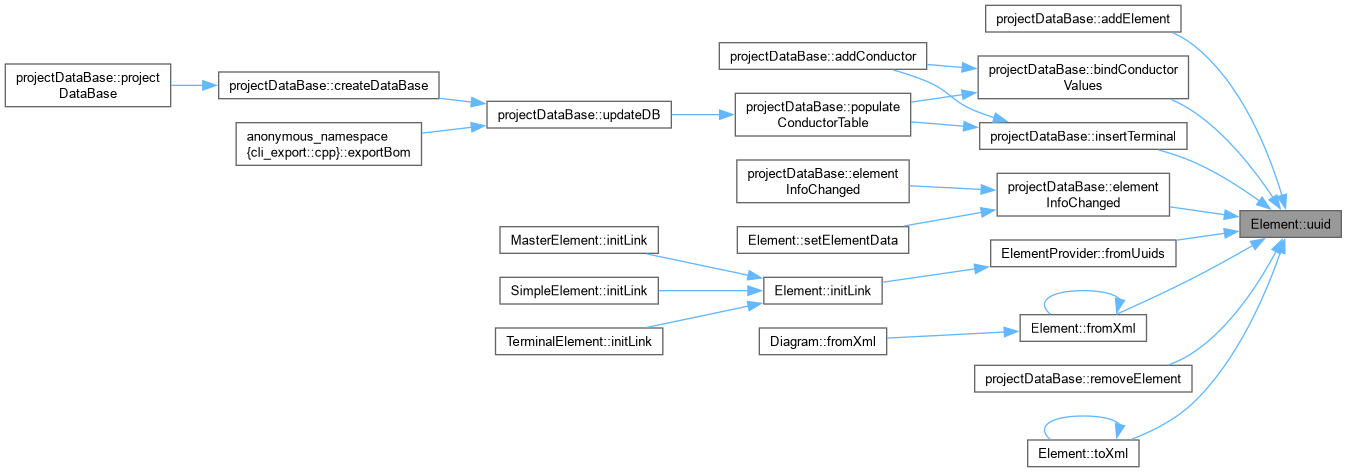

Here is the caller graph for this function:

◆ valideXml()

bool Element::valideXml ( QDomElement & e )

static

Permet de savoir si un element XML (QDomElement) represente bien un element

Parameters

e	Le QDomElement a valide

Returns: true si l'element XML est un Element, false sinon

Here is the caller graph for this function:

◆ DiagramEventAddElement

friend class DiagramEventAddElement

friend

◆ DynamicElementTextItem

friend class DynamicElementTextItem

friend

Member Data Documentation

◆ connected_elements

QList<Element *> Element::connected_elements

protected

◆ dimensions

QSize Element::dimensions

private

◆ hotspot_coord

QPoint Element::hotspot_coord

private

◆ m_autoNum_seq

autonum::sequentialNumbers Element::m_autoNum_seq

protected

◆ m_data

ElementData Element::m_data

protected

◆ m_dynamic_text_list

QList<DynamicElementTextItem *> Element::m_dynamic_text_list

private

◆ m_F_str

QString Element::m_F_str

protected

◆ m_freeze_label

bool Element::m_freeze_label = false

protected

◆ m_group_index_map

QHash<Element *, int> Element::m_group_index_map

protected

Maps linked elements to their group index (for slave->master links).

◆ m_kind_informations

DiagramContext Element::m_kind_informations

protected

◆ m_link_type

kind Element::m_link_type = Element::Simple

protected

◆ m_location

ElementsLocation Element::m_location

protected

◆ m_low_zoom_picture

QPicture Element::m_low_zoom_picture

protected

◆ m_mouse_over

bool Element::m_mouse_over = false

private

◆ m_must_highlight

bool Element::m_must_highlight = false

private

◆ m_picture

QPicture Element::m_picture

protected

◆ m_plc_table_positions

QList<QPointF> Element::m_plc_table_positions

protected

◆ m_prefix

QString Element::m_prefix

private

◆ m_terminals

QList<Terminal *> Element::m_terminals

protected

◆ m_texts_group

QList<ElementTextItemGroup *> Element::m_texts_group

private

◆ m_uuid

QUuid Element::m_uuid

protected

◆ tmp_uuids_link

QList<LinkInfo> Element::tmp_uuids_link

protected

The documentation for this class was generated from the following files:

sources/qetgraphicsitem/element.h
sources/qetgraphicsitem/element.cpp

Classes

Public Types

Public Slots

Signals

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Friends

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

◆ kind

Constructor & Destructor Documentation

◆ Element() [1/2]

◆ ~Element()

◆ Element() [2/2]

Member Function Documentation

◆ actualLabel()

◆ addDynamicTextItem()

◆ addTextGroup() [1/2]

◆ addTextGroup() [2/2]

◆ addTextToGroup()

◆ AlignedFreeTerminals()

◆ boundingRect()

◆ buildFromXml()

◆ conductors()

◆ displayHelpLine()

◆ drawAxes()

◆ drawHighlight()

◆ drawPlcTable()

◆ dynamicTextItems()

◆ editProperty()

◆ elementData()

◆ elementInfoChange

◆ elementInformations()

◆ freezeLabel()

◆ freezeNewAddedElement()

◆ fromXml()

◆ getPrefix()

◆ groupIndexForElement()

◆ hotspot()

◆ hoverEnterEvent()

◆ hoverLeaveEvent()

◆ initLink()

◆ isFree()

◆ isFreezeLabel()

◆ kindInformations()

◆ linkedElementChanged

◆ linkedElements()

◆ linkToElement()

◆ linkType()

◆ linkTypeToString()

◆ location()

◆ mouseMoveEvent()

◆ mouseReleaseEvent()

◆ name()

◆ newUuid()

◆ orientation()

◆ paint()

◆ parseDynamicText()

◆ parseElement()

◆ parseInput()

◆ parseTerminal()

◆ pixmap()

◆ plcTablePositions()

◆ removeDynamicTextItem()

◆ removeTextFromGroup()

◆ removeTextGroup()

◆ rSequenceStruct()

◆ sequenceStruct()

◆ setElementData()

◆ setElementInformations()

◆ setGroupIndexForElement()

◆ setHighlighted()

◆ setHotspot()

◆ setPrefix()

◆ setSize()
