DiagramContext Class Reference

#include <diagramcontext.h>

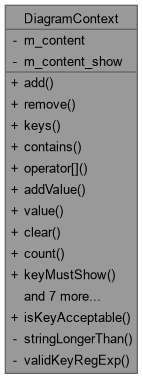

Collaboration diagram for DiagramContext:

Public Types
enum	KeyOrder { None , Alphabetical , DecreasingLength }

Public Member Functions
void	add (DiagramContext other)
	DiagramContext::add Add all value of other to this. If a key already exist, the value is replaced. If a key doesn't exist, it will be added. All other keys of this context, which are not present in other, stay unchanged.
void	remove (const QString &key)
	DiagramContext::remove.
QList< QString >	keys (KeyOrder=Alphabetical) const
bool	contains (const QString &) const
const QVariant	operator[] (const QString &) const
bool	addValue (const QString &, const QVariant &, bool show=true)
QVariant	value (const QString &key) const
void	clear ()
int	count ()
bool	keyMustShow (const QString &) const
	DiagramContext::keyMustShow.
bool	operator== (const DiagramContext &) const
bool	operator!= (const DiagramContext &) const
void	toXml (QDomElement &, const QString &="property") const
void	fromXml (const QDomElement &, const QString &="property")
void	fromXml (const pugi::xml_node &dom_element, const QString &tag_name="property")
	DiagramContext::fromXml Read this context properties from the dom_element, looking for tags named tag_name.
void	toSettings (QSettings &, const QString &) const
void	fromSettings (QSettings &, const QString &)

Static Public Member Functions
static bool	isKeyAcceptable (const QString &)

Static Private Member Functions
static bool	stringLongerThan (const QString &, const QString &)
static QString	validKeyRegExp ()

Private Attributes
QHash< QString, QVariant >	m_content
	Diagram context data (key/value pairs).
QHash< QString, bool >	m_content_show

Detailed Description

This class represents a diagram context, i.e. the data (a list of key/value pairs) of a diagram at a given time. It is notably used by titleblock templates to fetch the informations they need to do their rendering, or element for retrieve information about itself Key for element : label -> label or identification of element formula -> formula used to create the label (formula is make with variable) designation -> exhaustive comment used to explain what the element does. description -> exhaustive description used to explain what the element does. plant -> the plant assigned to the element comment -> a little comment which can be displayed in the folio manufacturer -> the manufacturer of the element manufacturer_reference -> the manufacturer reference of the element quantity -> quantity of the element unity -> unity of the element auxiliary1 -> auxiliary 1 of element description_auxiliary1 designation_auxiliary1 manufacturer_auxiliary1 manufacturer_reference_auxiliary1 machine_manufacturer_reference_auxiliary1 supplier_auxiliary1 quantity_auxiliary1 unity_auxiliary1 auxiliary2 -> auxiliary 2 of element description_auxiliary2 designation_auxiliary2 manufacturer_auxiliary2 manufacturer_reference_auxiliary2 machine_manufacturer_reference_auxiliary2 supplier_auxiliary2 quantity_auxiliary2 unity_auxiliary2 auxiliary3 -> auxiliary 3 of element description_auxiliary3 designation_auxiliary3 manufacturer_auxiliary3 manufacturer_reference_auxiliary3 machine_manufacturer_reference_auxiliary3 supplier_auxiliary3 quantity_auxiliary3 unity_auxiliary3 auxiliary4 -> auxiliary 4 of element description_auxiliary4 designation_auxiliary4 manufacturer_auxiliary4 manufacturer_reference_auxiliary4 machine_manufacturer_reference_auxiliary4 supplier_auxiliary4 quantity_auxiliary4 unity_auxiliary4

machine_manufacturer_reference -> reference of the machine manufacturer supplier -> the supplier of the element function -> the function of element location -> the location assigned to the element frozenLabel -> label locked at a given time

Member Enumeration Documentation

KeyOrder

enum DiagramContext::KeyOrder

Enumerator
None
Alphabetical
DecreasingLength

Member Function Documentation

add()

void DiagramContext::add

(

DiagramContext

other

)

DiagramContext::add Add all value of other to this. If a key already exist, the value is replaced. If a key doesn't exist, it will be added. All other keys of this context, which are not present in other, stay unchanged.

Parameters

other

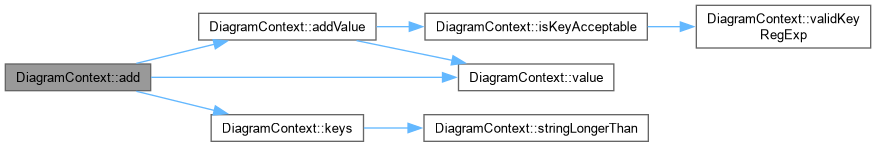

Here is the call graph for this function:

Here is the caller graph for this function:

addValue()

bool DiagramContext::addValue	(	const QString &	key,
		const QVariant &	value,
		bool	show = true )

Parameters

key	key to insert in the context - the key may only contain lowercase letters and dashes. If embedded key is set, key must be find it else value is not added.

See also

DiagramContext::keyIsAcceptable()

Parameters

value	value to insert in the context
show	if value is used to be show on the diagram or somewhere else, we can specify if he is show(true) or not(false)

Returns

true if the insertion succeeds, false otherwise

Here is the call graph for this function:

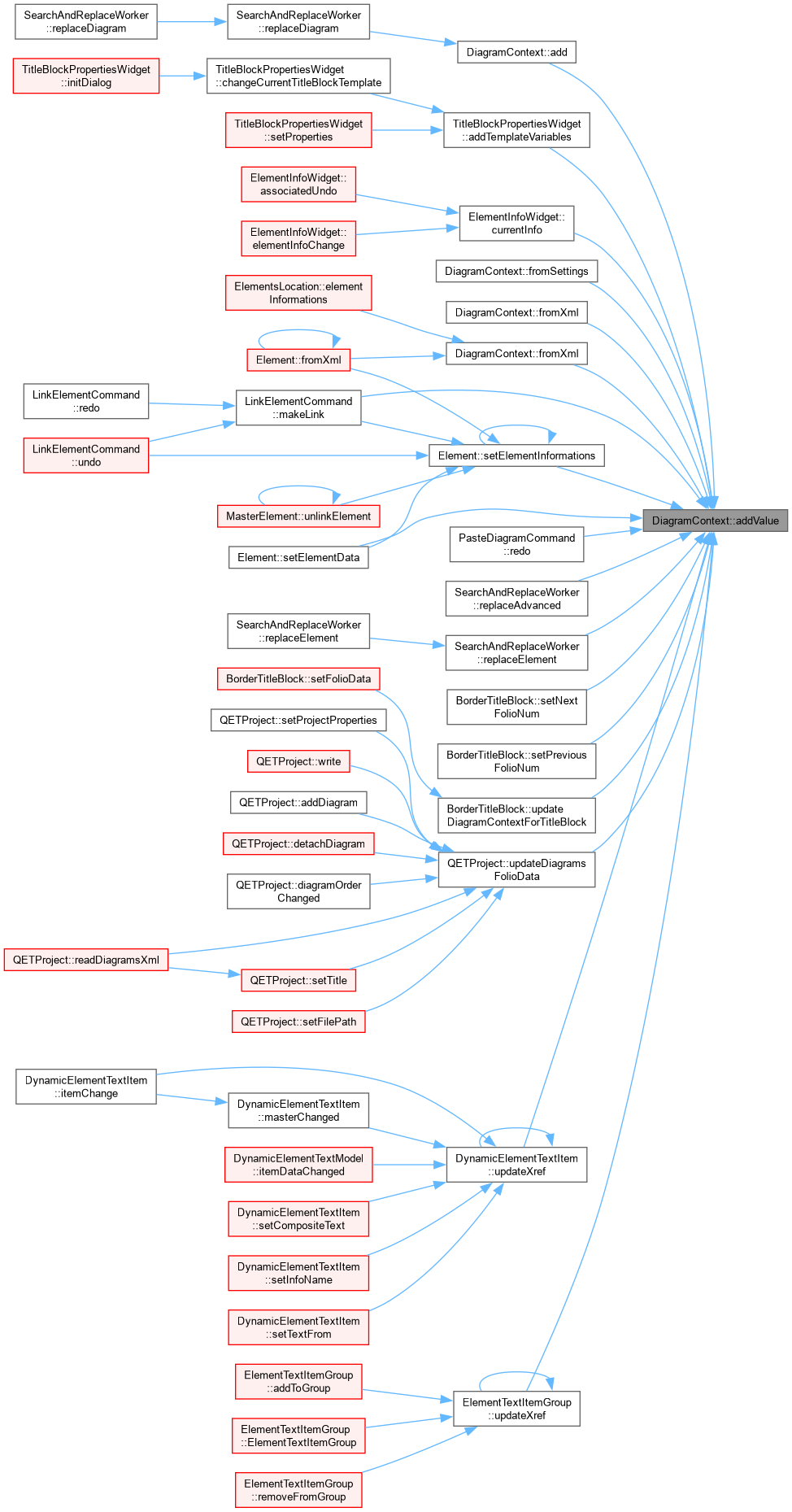

Here is the caller graph for this function:

clear()

void DiagramContext::clear

(

)

Clear the content of this diagram context.

contains()

bool DiagramContext::contains

(

const QString &

key

)

const

Parameters

key	string key

Returns

true if that key is known to the diagram context, false otherwise

Here is the caller graph for this function:

count()

int DiagramContext::count

(

)

Returns

the number of key/value pairs stored in this object.

fromSettings()

void DiagramContext::fromSettings	(	QSettings &	settings,
		const QString &	array_name )

Read this context properties from settings by running through the array named array_name.

Here is the call graph for this function:

fromXml() [1/2]

void DiagramContext::fromXml	(	const pugi::xml_node &	dom_element,
		const QString &	tag_name = "property" )

DiagramContext::fromXml Read this context properties from the dom_element, looking for tags named tag_name.

Parameters

dom_element	: dom element to parse
tag_name	: tag name to find, by default "property"

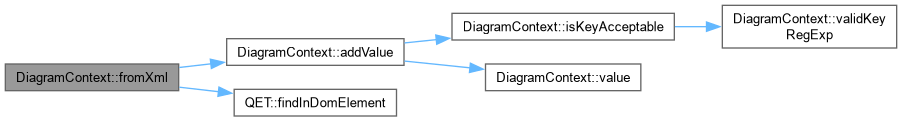

Here is the call graph for this function:

fromXml() [2/2]

void DiagramContext::fromXml	(	const QDomElement &	e,
		const QString &	tag_name = "property" )

Read this context properties from the e XML element, looking for tags named tag_name (defaults to "property").

Here is the call graph for this function:

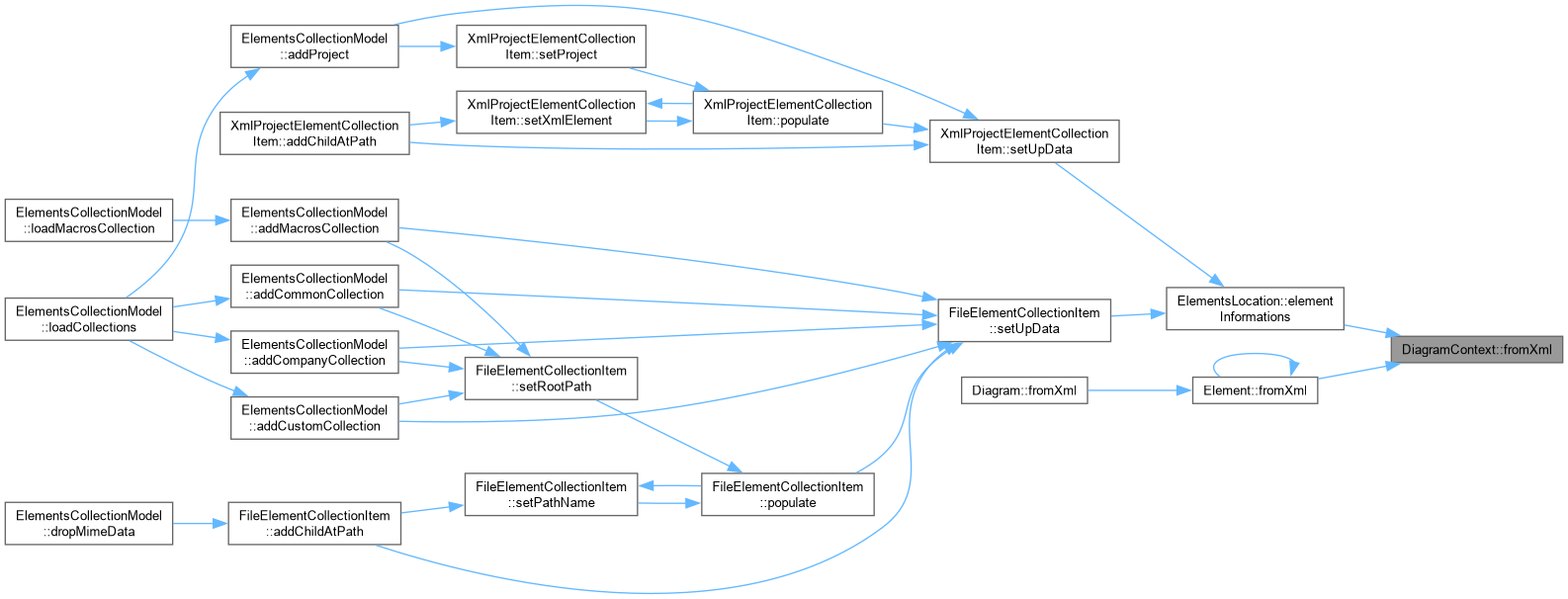

Here is the caller graph for this function:

isKeyAcceptable()

bool DiagramContext::isKeyAcceptable ( const QString & key )

static

Parameters

key	a key string

Returns

true if that key is acceptable, false otherwise

Here is the call graph for this function:

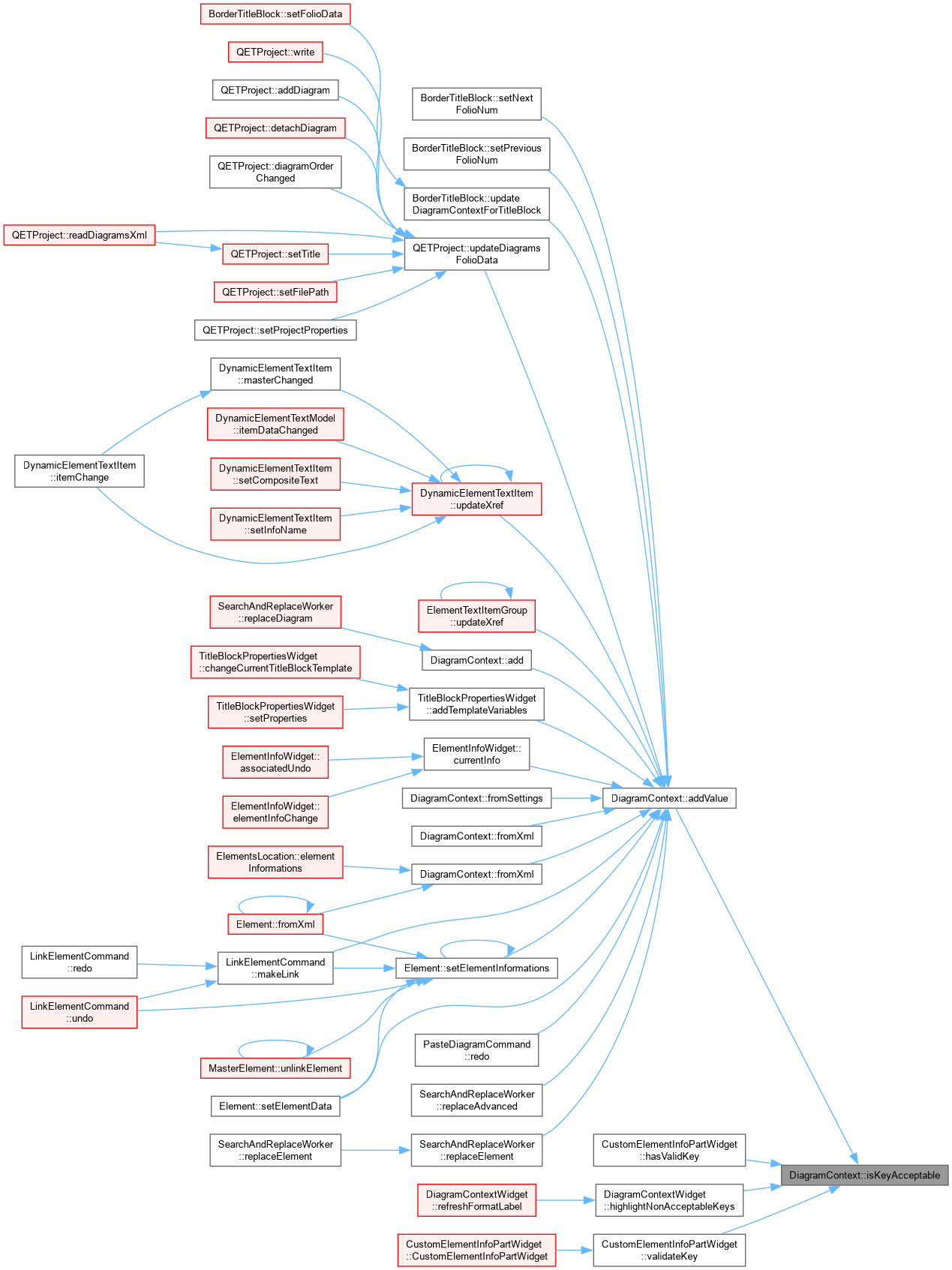

Here is the caller graph for this function:

keyMustShow()

bool DiagramContext::keyMustShow

(

const QString &

key

)

const

DiagramContext::keyMustShow.

Returns

the value pairs with key, if key not found, return false

keys()

QList< QString > DiagramContext::keys

(

DiagramContext::KeyOrder

order = Alphabetical

)

const

Returns

a list containing all the keys in the context object.

Here is the call graph for this function:

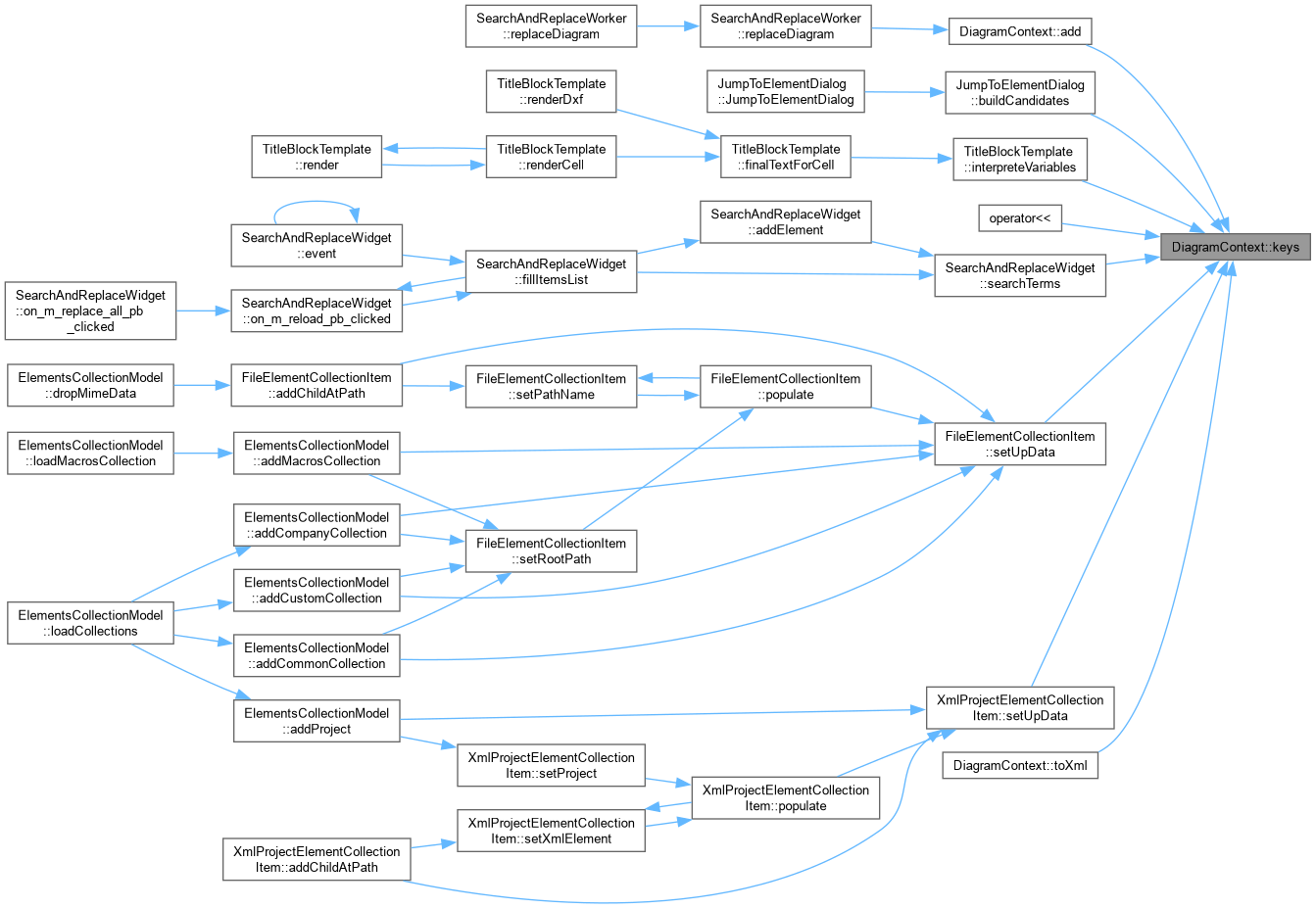

Here is the caller graph for this function:

operator!=()

bool DiagramContext::operator!=

(

const DiagramContext &

dc

)

const

operator==()

bool DiagramContext::operator==

(

const DiagramContext &

dc

)

const

operator[]()

const QVariant DiagramContext::operator[]

(

const QString &

key

)

const

Parameters

key

remove()

void DiagramContext::remove

(

const QString &

key

)

DiagramContext::remove.

Parameters

key

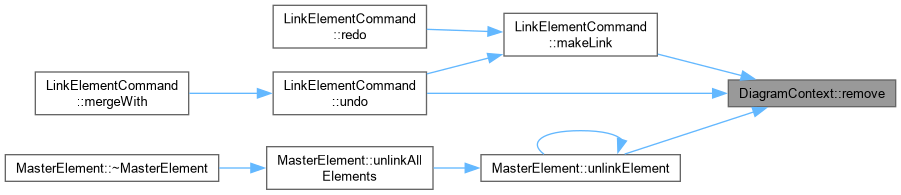

Here is the caller graph for this function:

stringLongerThan()

bool DiagramContext::stringLongerThan ( const QString & a, const QString & b )

staticprivate

Returns

True if a is longer than b, false otherwise.

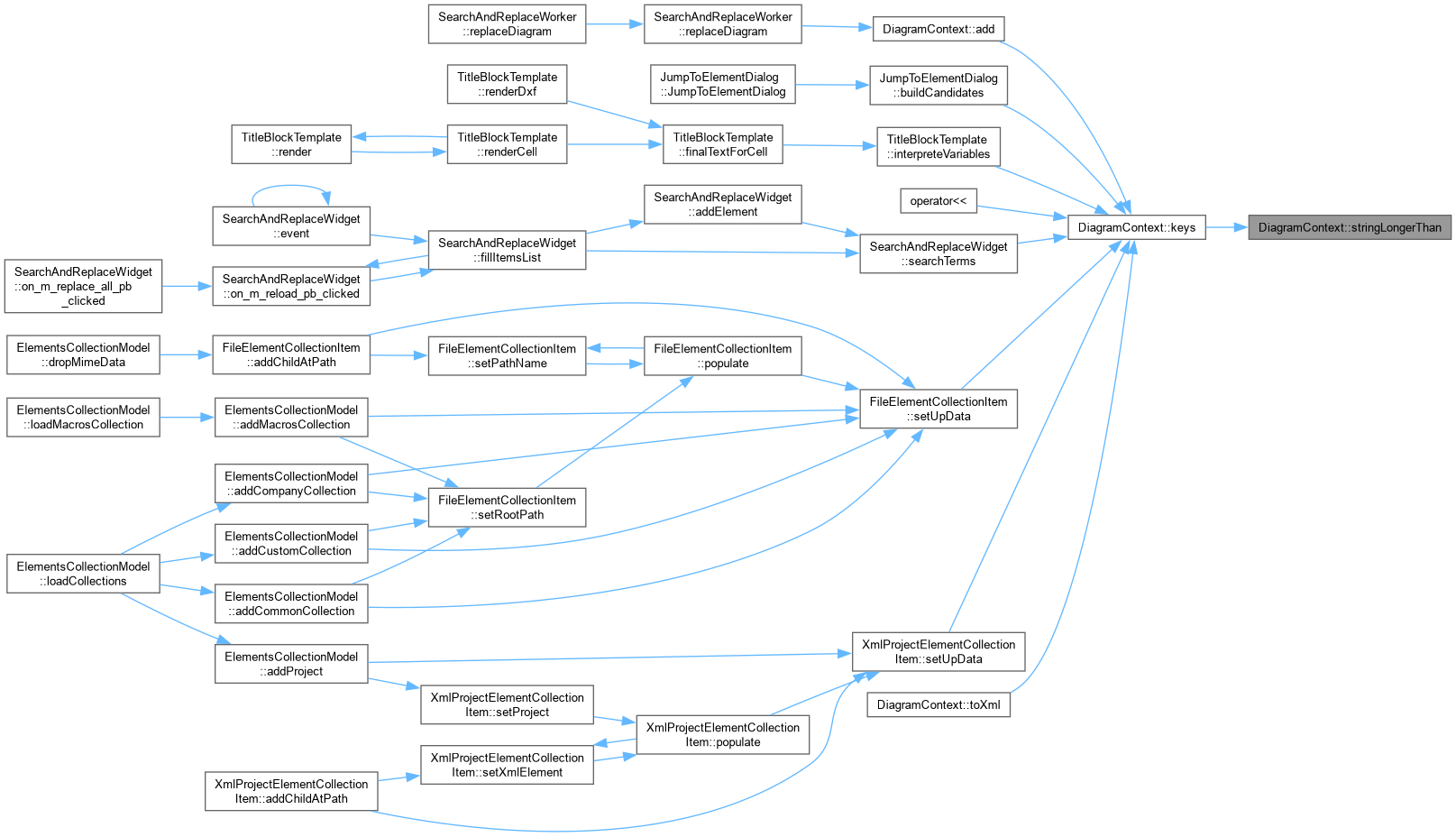

Here is the caller graph for this function:

toSettings()

void DiagramContext::toSettings	(	QSettings &	settings,
		const QString &	array_name ) const

Export this context properties to settings by creating an array named array_name.

toXml()

void DiagramContext::toXml	(	QDomElement &	e,
		const QString &	tag_name = "property" ) const

Export this context properties under the e XML element, using tags named tag_name (defaults to "property").

Here is the call graph for this function:

validKeyRegExp()

QString DiagramContext::validKeyRegExp ( )

staticprivate

Returns

the regular expression used to check whether a given key is acceptable.

See also

keyIsAcceptable()

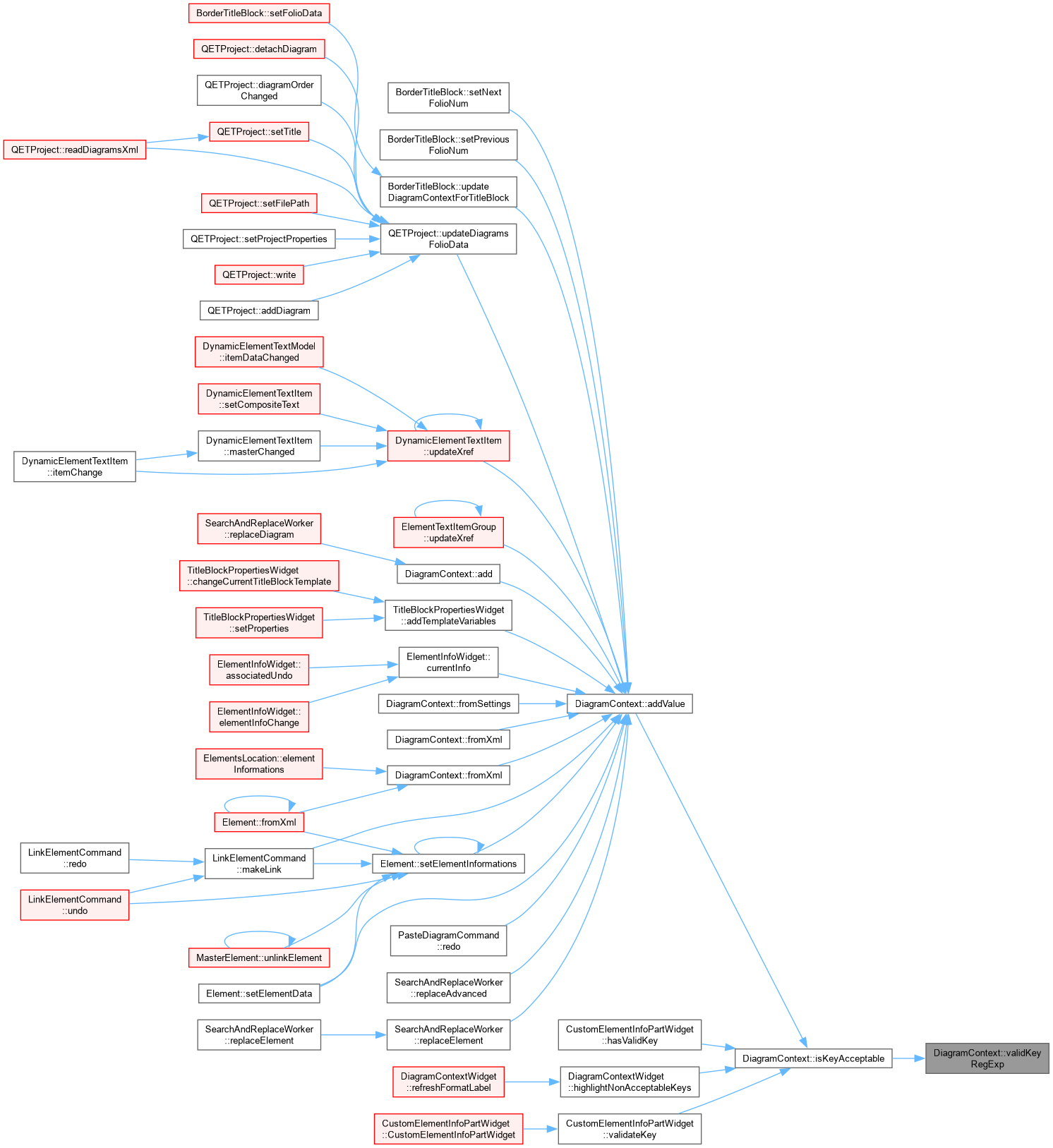

Here is the caller graph for this function:

value()

QVariant DiagramContext::value

(

const QString &

key

)

const

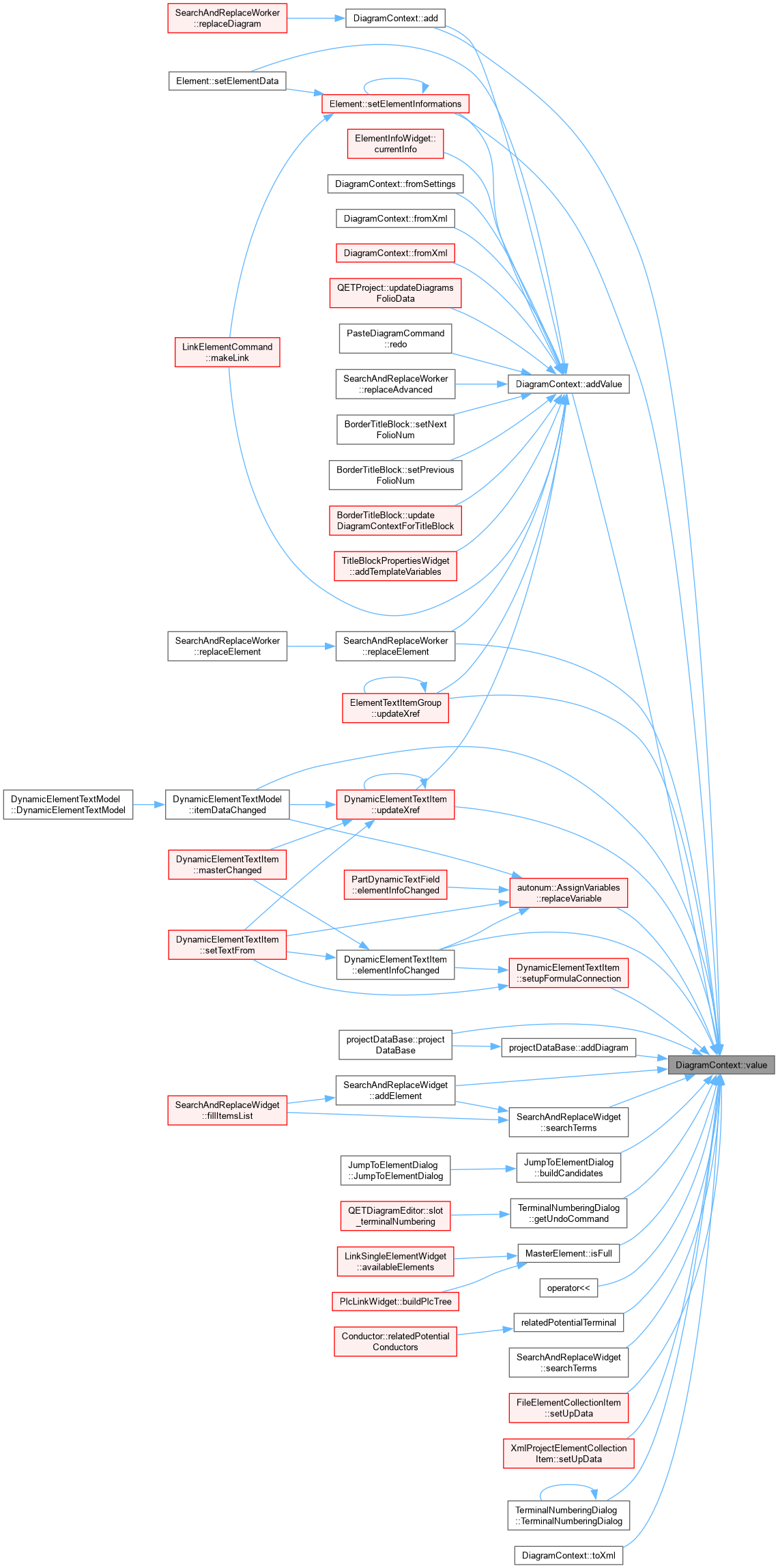

Here is the caller graph for this function:

Member Data Documentation

m_content

QHash<QString, QVariant> DiagramContext::m_content

private

Diagram context data (key/value pairs).

m_content_show

QHash<QString, bool> DiagramContext::m_content_show

private

---

The documentation for this class was generated from the following files:

• sources/diagramcontext.h
• sources/diagramcontext.cpp
