The Terminal class This class represents a terminal of an electrical element, i.e. a possible plug point for conductors. This class handles all mouse events for connecting conductors. More...

#include <terminal.h>

Inherits QGraphicsObject.

Collaboration diagram for Terminal:

Public Types
enum	{ Type = UserType + 1002 }

Signals
void	conductorWasAdded (Conductor *conductor)
void	conductorWasRemoved (Conductor *conductor)

Public Member Functions
	Terminal (TerminalData data, Element e=nullptr)
	~Terminal () override
	Terminal::~Terminal Destruction of the terminal, and also docked conductor.
int	type () const override
	type Enable the use of qgraphicsitem_cast to safely cast a QGraphicsItem into a Terminal
void	paint (QPainter painter, const QStyleOptionGraphicsItem , QWidget *) override
	Terminal::paint Fonction de dessin des bornes.
void	drawHelpLine (bool draw=true)
	Terminal::drawHelpLine.
QLineF	HelpLine () const
	Terminal::HelpLine.
QRectF	boundingRect () const override
	Terminal::boundingRect.
Terminal *	alignedWithTerminal () const
	Terminal::alignedWithTerminal If this terminal is aligned with an other terminal and is orientation is opposed return the other terminal else return nullptr.
bool	addConductor (Conductor *conductor)
	Terminal::addConductor Add a conductor to this terminal.
void	removeConductor (Conductor *conductor)
	Terminal::removeConductor Remove a conductor from this terminal.
int	conductorsCount () const
	Terminal::conductorsCount.
Diagram *	diagram () const
	Terminal::diagram.
Element *	parentElement () const
	Terminal::parentElement.
QUuid	uuid () const
QUuid	stableUuid () const
	Terminal::stableUuid An identity for this terminal that exists on every element, not only on those saved by a uuid-aware element editor.
QString	name () const
QString	baseName () const
	Terminal::baseName Return the original terminal name (T1, T2...) without master label override. Used for sorting when linking.
TerminalData::Type	terminalType () const
	Terminal::terminalType.
bool	useMasterLabel () const
void	setUseMasterLabel (bool use)
	Terminal::setUseMasterLabel Set whether this terminal uses a label from the master's contact group.
int	masterLabelIndex () const
void	setMasterLabelIndex (int index)
	Terminal::setMasterLabelIndex Set the index into the master's contact group labels.
QList< Conductor * >	conductors () const
	Terminal::conductors.
Qet::Orientation	orientation () const
QPointF	dockConductor () const
	Terminal::dockConductor.
void	updateConductor ()
	Terminal::updateConductor Update the path of conductor docked to this terminal.
bool	isLinkedTo (Terminal *)
	Terminal::isLinkedTo.
bool	canBeLinkedTo (Terminal *)
	Terminal::canBeLinkedTo Checking if the terminal can be linked to `other_terminal` or not Reasons for not linable:
bool	fromXml (QDomElement &)
	Terminal::fromXml Enables you to find out whether an XML element represents this terminal. Warning, the XML element is not checked Permet de savoir si un element XML represente cette borne. Attention, l'element XML n'est pas verifie.
QDomElement	toXml (QDomDocument &) const
	Terminal::toXml Methode d'export en XML.

Static Public Member Functions
static bool	valideXml (QDomElement &)
	Terminal::valideXml Permet de savoir si un element XML represente une borne.

Public Attributes
QPointF	dock_elmt_
	docking point for parent element

Static Public Attributes
static const qreal	terminalSize = 4.0
static const qreal	Z = 1000
static QColor	neutralColor = QColor(Qt::blue)
	default color
static QColor	allowedColor = QColor(Qt::darkGreen)
	color for legal actions
static QColor	warningColor = QColor("#ff8000")
	color for allowed but fuzzy or not recommended actions
static QColor	forbiddenColor = QColor(Qt::red)
	color for forbidden actions

Protected Member Functions
void	hoverEnterEvent (QGraphicsSceneHoverEvent *) override
	Terminal::hoverEnterEvent Gere l'entree de la souris sur la zone de la Borne.
void	hoverMoveEvent (QGraphicsSceneHoverEvent *) override
	Terminal::hoverMoveEvent Gere les mouvements de la souris sur la zone de la Borne.
void	hoverLeaveEvent (QGraphicsSceneHoverEvent *) override
	Terminal::hoverLeaveEvent Gere le fait que la souris sorte de la zone de la Borne.
void	mousePressEvent (QGraphicsSceneMouseEvent *) override
	Terminal::mousePressEvent Gere le fait qu'on enfonce un bouton de la souris sur la Borne.
void	mouseMoveEvent (QGraphicsSceneMouseEvent *) override
	Terminal::mouseMoveEvent Gere le fait qu'on bouge la souris sur la Borne.
void	mouseReleaseEvent (QGraphicsSceneMouseEvent *) override
	Terminal::mouseReleaseEvent.

Private Member Functions
	Terminal (const Terminal &)
void	init ()
	Terminal::init Methode privee pour initialiser la borne. Private method to initialize the terminal.
void	init (QPointF pf, Qet::Orientation o)

Private Attributes
bool	m_draw_help_line {false}
QGraphicsLineItem *	m_help_line {nullptr}
QGraphicsLineItem *	m_help_line_a {nullptr}
TerminalData *	d
Element *	parent_element_ {nullptr}
	Parent electrical element.
QList< Conductor * >	m_conductors_list
	List of conductors attached to the terminal.
QRectF	m_br
Terminal *	m_previous_terminal = nullptr
	Last terminal seen through an attached conductor.
bool	m_hovered = false
	Whether the mouse pointer is hovering the terminal.
QColor	m_hovered_color = Terminal::neutralColor
	Color used for the hover effect.

Detailed Description

The Terminal class This class represents a terminal of an electrical element, i.e. a possible plug point for conductors. This class handles all mouse events for connecting conductors.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
Type

Constructor & Destructor Documentation

◆ Terminal() [1/2]

Terminal::Terminal	(	TerminalData *	data,
		Element *	e = nullptr )

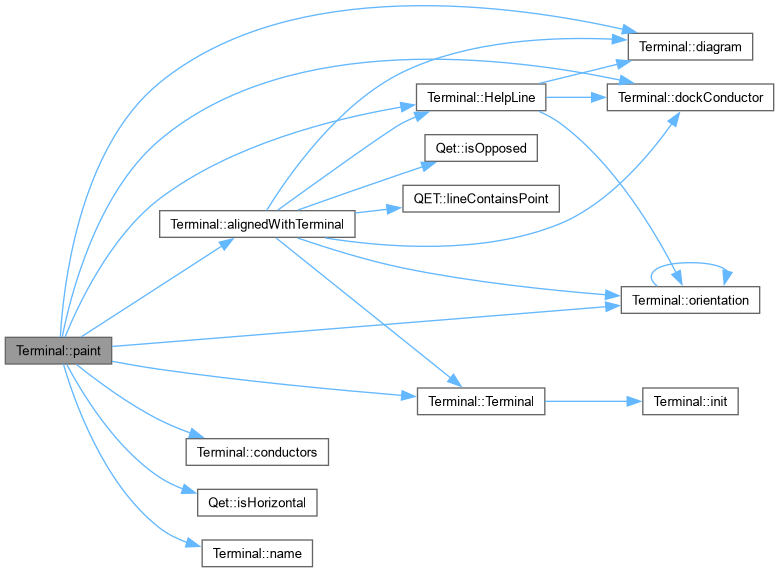

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ~Terminal()

Terminal::~Terminal ( )

override

Terminal::~Terminal Destruction of the terminal, and also docked conductor.

◆ Terminal() [2/2]

Terminal::Terminal ( const Terminal & )

private

Here is the call graph for this function:

Member Function Documentation

◆ addConductor()

bool Terminal::addConductor ( Conductor * conductor )

Terminal::addConductor Add a conductor to this terminal.

Parameters

conductor : the conductor to add.

Returns: true if the conductor was successfully added

Here is the call graph for this function:

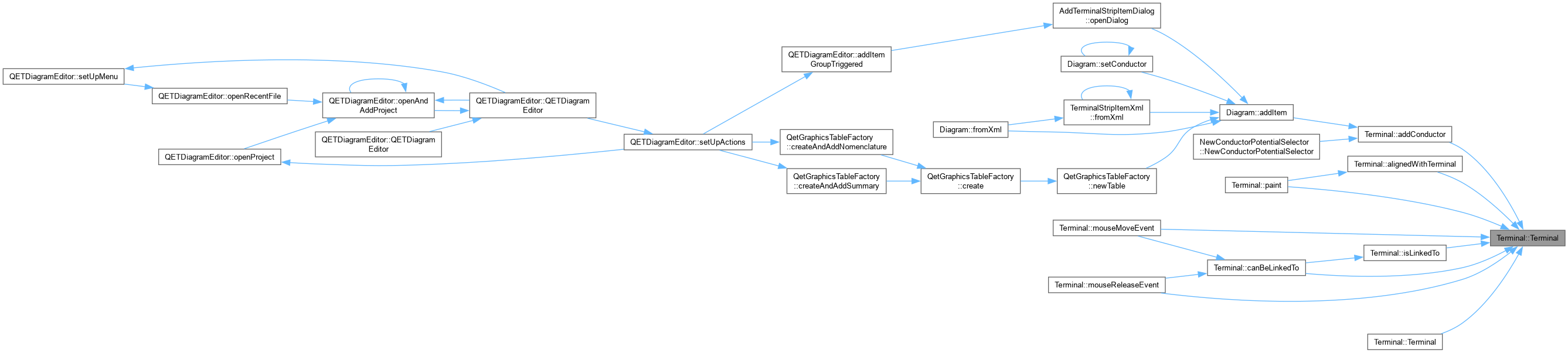

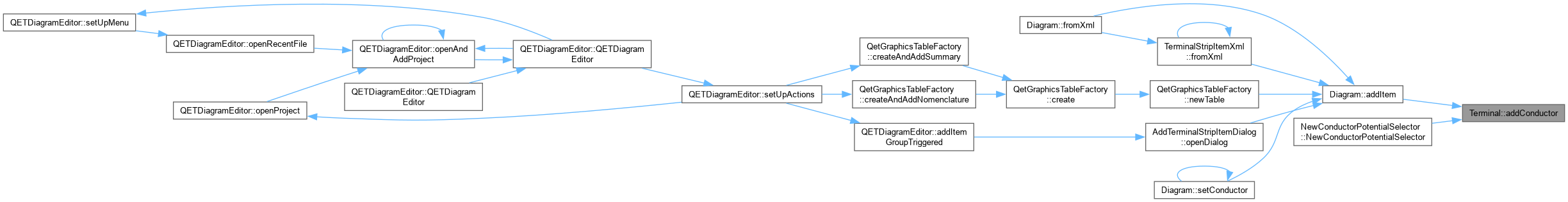

Here is the caller graph for this function:

◆ alignedWithTerminal()

Terminal * Terminal::alignedWithTerminal ( ) const

Terminal::alignedWithTerminal If this terminal is aligned with an other terminal and is orientation is opposed return the other terminal else return nullptr.

Returns

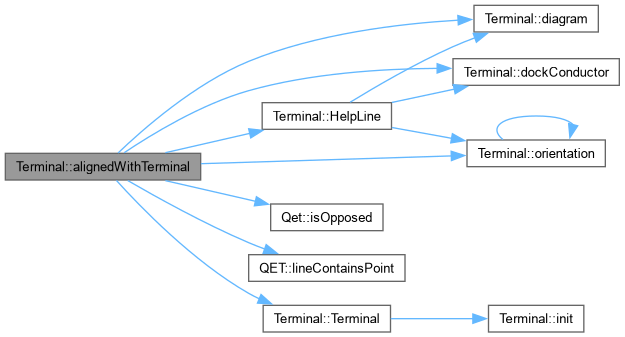

Here is the call graph for this function:

Here is the caller graph for this function:

◆ baseName()

QString Terminal::baseName ( ) const

Terminal::baseName Return the original terminal name (T1, T2...) without master label override. Used for sorting when linking.

◆ boundingRect()

QRectF Terminal::boundingRect ( ) const

override

Terminal::boundingRect.

Returns: Le rectangle (en precision flottante) delimitant la borne et ses alentours.

Here is the call graph for this function:

◆ canBeLinkedTo()

bool Terminal::canBeLinkedTo ( Terminal * other_terminal )

Terminal::canBeLinkedTo Checking if the terminal can be linked to other_terminal or not Reasons for not linable:

other_terminal is this terminal
this terminal is already connected to other_terminal
Parameters

other_terminal

Returns
true if this terminal can be linked to other_terminal, otherwise false

Here is the call graph for this function:

Here is the caller graph for this function:

◆ conductors()

QList< Conductor * > Terminal::conductors ( ) const

Terminal::conductors.

Returns: La liste des conducteurs lies a cette borne

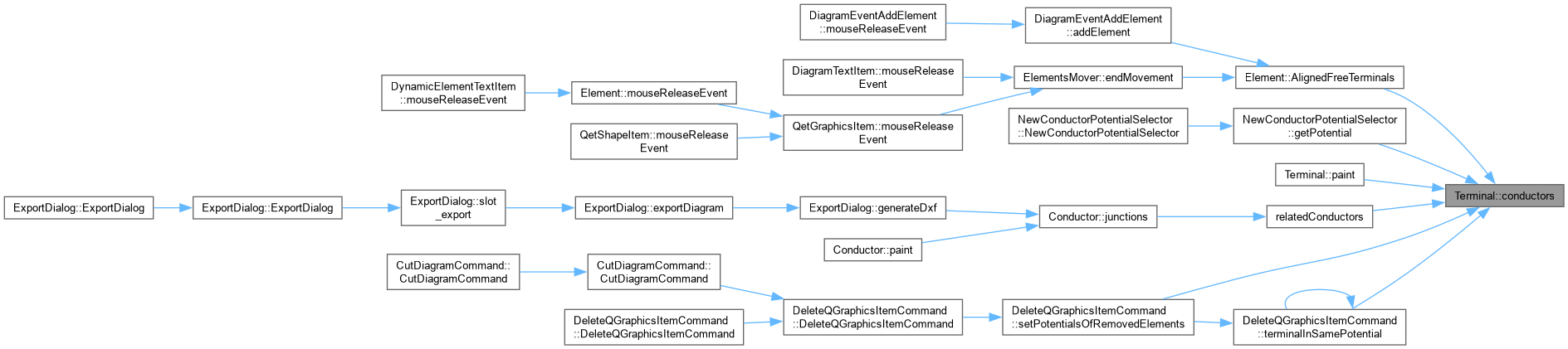

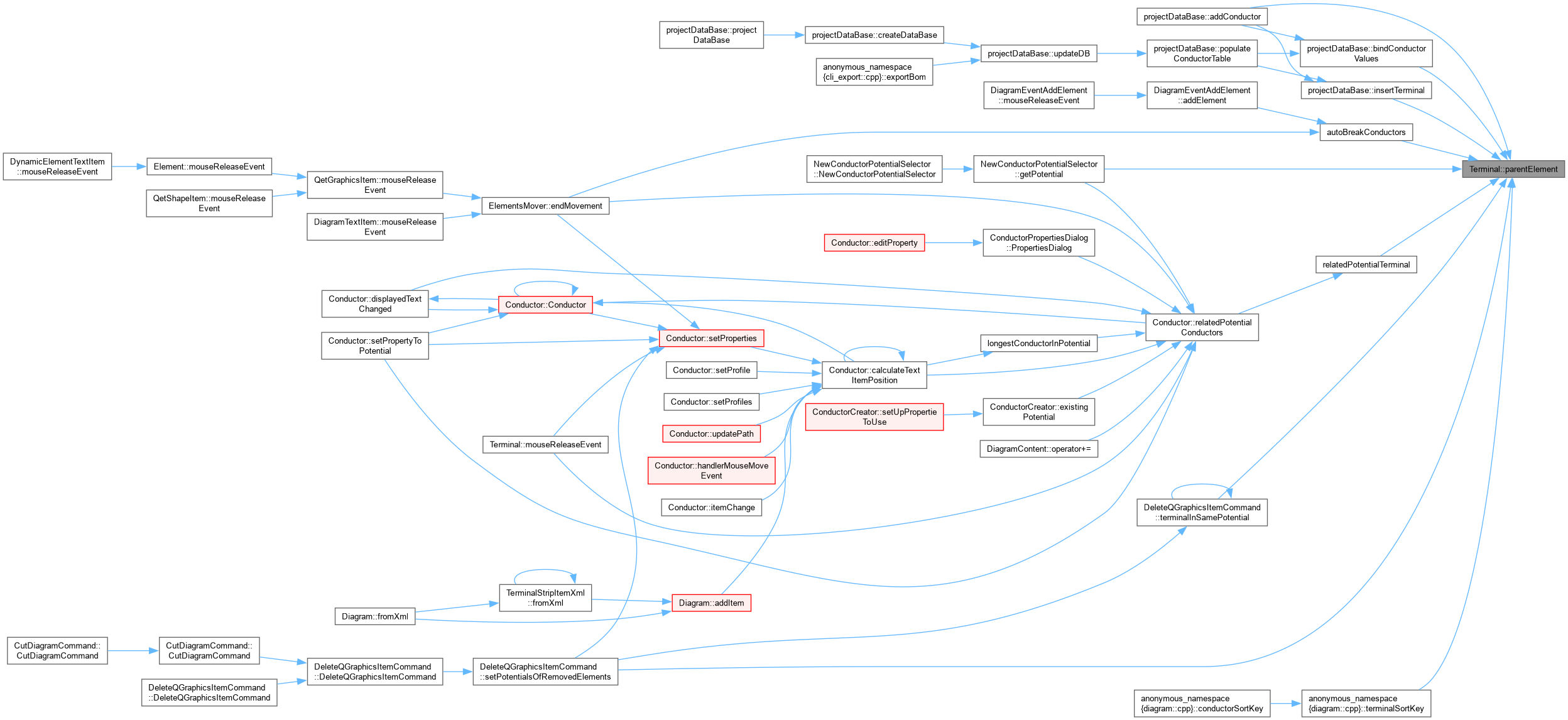

Here is the caller graph for this function:

◆ conductorsCount()

int Terminal::conductorsCount ( ) const

inline

Terminal::conductorsCount.

Returns: the number of conductors attached to the terminal.

Here is the caller graph for this function:

◆ conductorWasAdded

void Terminal::conductorWasAdded ( Conductor * conductor )

signal

Here is the caller graph for this function:

◆ conductorWasRemoved

void Terminal::conductorWasRemoved ( Conductor * conductor )

signal

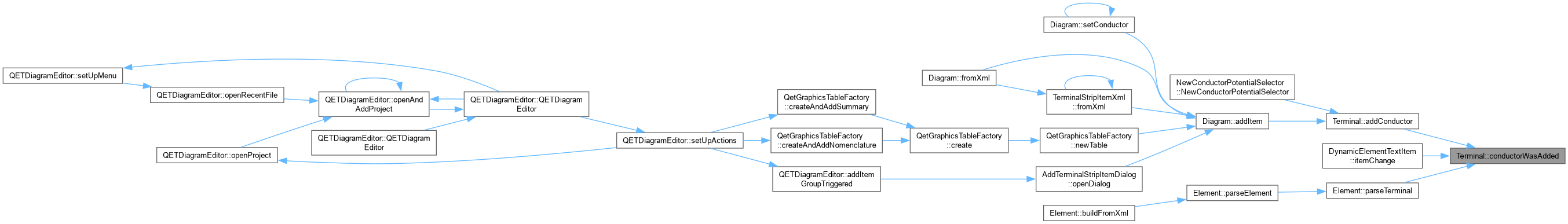

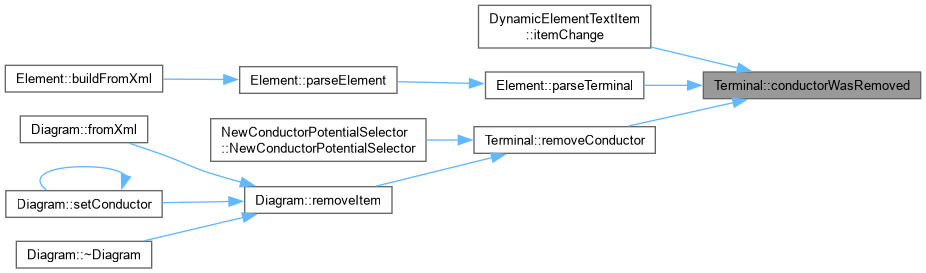

Here is the caller graph for this function:

◆ diagram()

Diagram * Terminal::diagram ( ) const

Terminal::diagram.

Returns: le Diagram auquel cette borne appartient, ou 0 si cette borne est independant

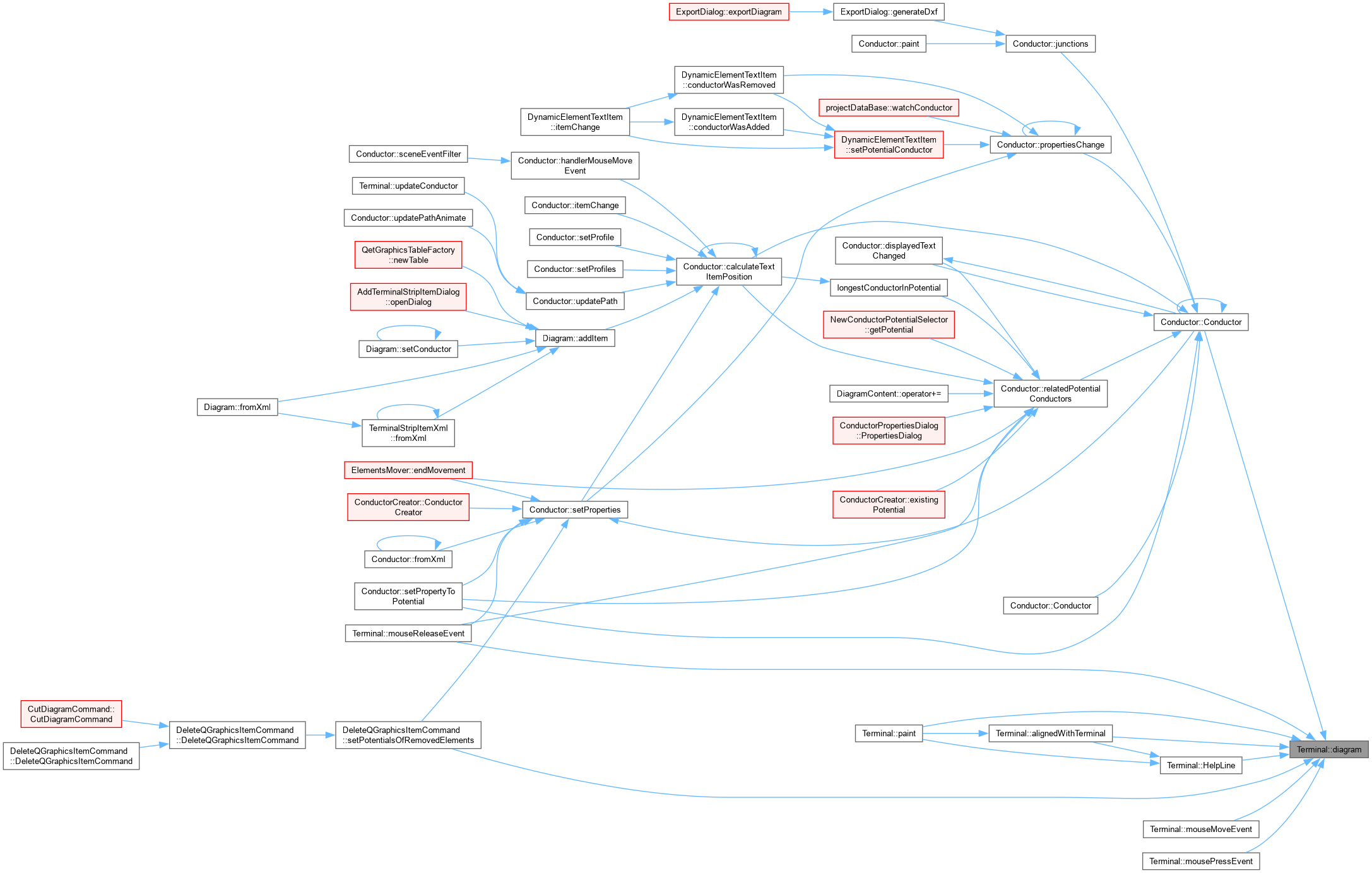

Here is the caller graph for this function:

◆ dockConductor()

QPointF Terminal::dockConductor ( ) const

Terminal::dockConductor.

Returns: the position, relative to the scene, of the docking point for conductors.

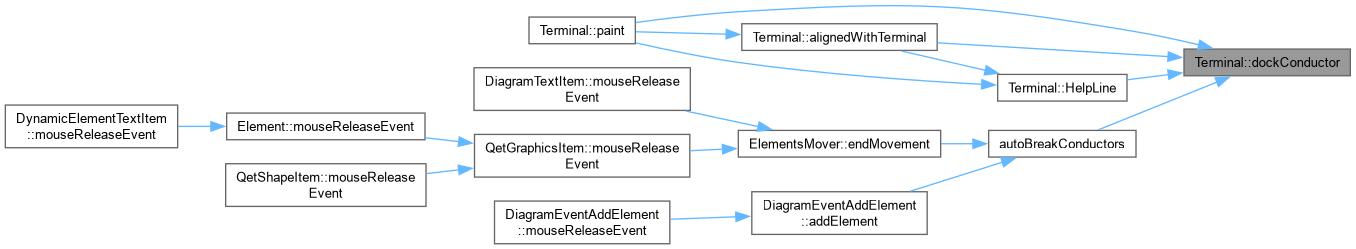

Here is the caller graph for this function:

◆ drawHelpLine()

void Terminal::drawHelpLine ( bool draw = true )

Terminal::drawHelpLine.

Parameters

draw	: true, display the help line false, hide it.

Here is the caller graph for this function:

◆ fromXml()

bool Terminal::fromXml ( QDomElement & terminal )

Terminal::fromXml Enables you to find out whether an XML element represents this terminal. Warning, the XML element is not checked Permet de savoir si un element XML represente cette borne. Attention, l'element XML n'est pas verifie.

Parameters

terminal Le QDomElement a analyser / QDomElement to check

Returns: true si la borne "se reconnait" (memes coordonnes, meme orientation), false sinon true, if the terminal ‘recognises’ itself (same coordinates, same orientation), false otherwise

◆ HelpLine()

QLineF Terminal::HelpLine ( ) const

Terminal::HelpLine.

Returns: a line with coordinate P1 the dock point of conductor and P2 the border of diagram, according to the orientation of terminal The line is in scene coordinate;

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hoverEnterEvent()

void Terminal::hoverEnterEvent ( QGraphicsSceneHoverEvent * )

overrideprotected

Terminal::hoverEnterEvent Gere l'entree de la souris sur la zone de la Borne.

◆ hoverLeaveEvent()

void Terminal::hoverLeaveEvent ( QGraphicsSceneHoverEvent * )

overrideprotected

Terminal::hoverLeaveEvent Gere le fait que la souris sorte de la zone de la Borne.

◆ hoverMoveEvent()

void Terminal::hoverMoveEvent ( QGraphicsSceneHoverEvent * )

overrideprotected

Terminal::hoverMoveEvent Gere les mouvements de la souris sur la zone de la Borne.

◆ init() [1/2]

void Terminal::init ( )

private

Terminal::init Methode privee pour initialiser la borne. Private method to initialize the terminal.

Parameters

number	of terminal
name	of terminal
hiddenName

Here is the caller graph for this function:

◆ init() [2/2]

void Terminal::init	(	QPointF	pf,
		Qet::Orientation	o )

private

◆ isLinkedTo()

bool Terminal::isLinkedTo ( Terminal * other_terminal )

Terminal::isLinkedTo.

Parameters

other_terminal Autre borne

Returns: true si cette borne est reliee a other_terminal, false sion

Here is the call graph for this function:

Here is the caller graph for this function:

◆ masterLabelIndex()

int Terminal::masterLabelIndex ( ) const

inline

◆ mouseMoveEvent()

void Terminal::mouseMoveEvent ( QGraphicsSceneMouseEvent * e )

overrideprotected

Terminal::mouseMoveEvent Gere le fait qu'on bouge la souris sur la Borne.

Parameters

e	L'evenement souris correspondant

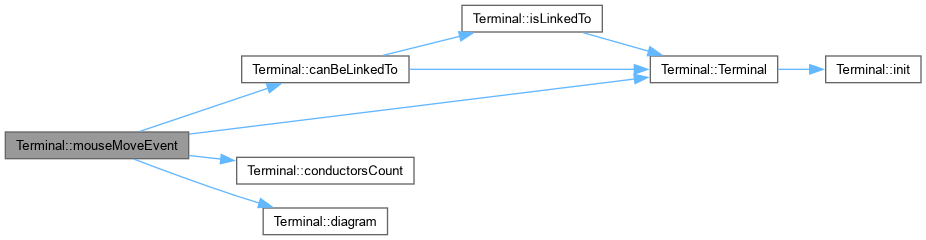

Here is the call graph for this function:

◆ mousePressEvent()

void Terminal::mousePressEvent ( QGraphicsSceneMouseEvent * e )

overrideprotected

Terminal::mousePressEvent Gere le fait qu'on enfonce un bouton de la souris sur la Borne.

Parameters

e	L'evenement souris correspondant

Here is the call graph for this function:

◆ mouseReleaseEvent()

void Terminal::mouseReleaseEvent ( QGraphicsSceneMouseEvent * e )

overrideprotected

Terminal::mouseReleaseEvent.

Parameters

e

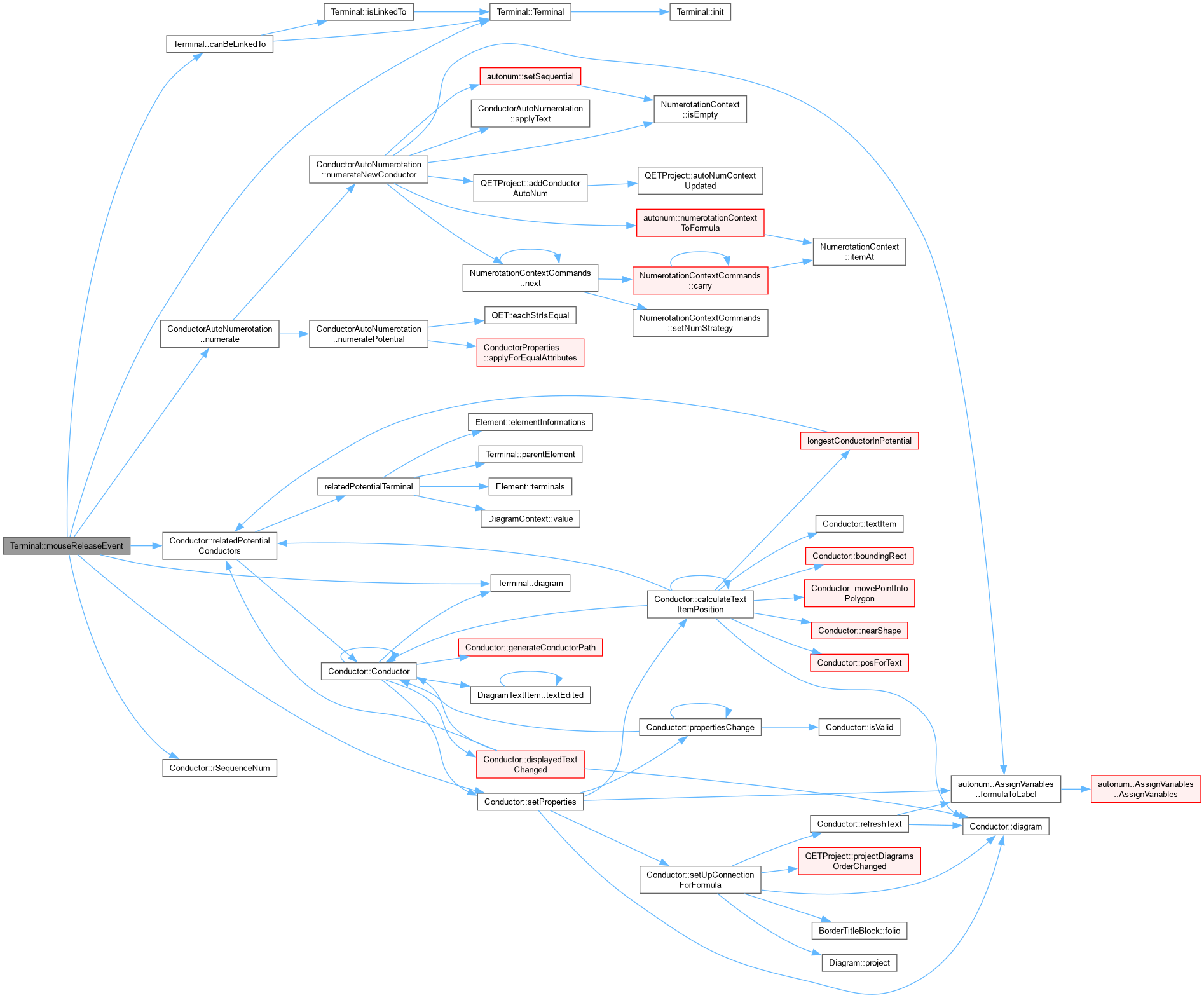

Here is the call graph for this function:

◆ name()

QString Terminal::name ( ) const

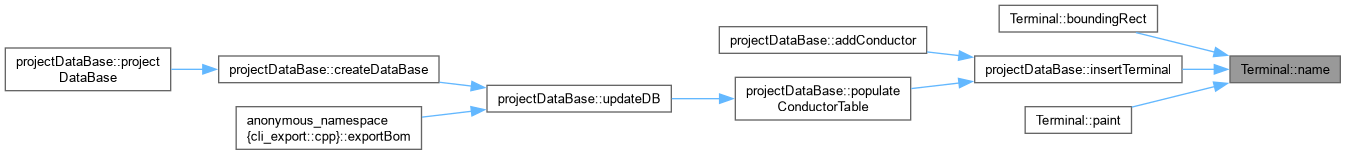

Here is the caller graph for this function:

◆ orientation()

Qet::Orientation Terminal::orientation ( ) const

Permet de connaitre l'orientation de la borne. Si le parent de la borne est bien un Element, cette fonction renvoie l'orientation par rapport a la scene de la borne, en tenant compte du fait que l'element ait pu etre pivote. Sinon elle renvoie son sens normal. Used to find out the orientation of the terminal. If the terminal's parent is in fact an Element, this function returns the orientation of the terminal with respect to the scene, taking into account the angle of rotation. scene, taking into account the fact that the element may have been rotated. Otherwise it returns its normal direction.

Returns: L'orientation actuelle de la Terminal.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ paint()

void Terminal::paint	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	options,
		QWidget *	)

override

Terminal::paint Fonction de dessin des bornes.

Parameters

painter	Le QPainter a utiliser
options	Les options de dessin

Here is the call graph for this function:

◆ parentElement()

Element * Terminal::parentElement ( ) const

Terminal::parentElement.

Returns: L'element auquel cette borne est rattachee

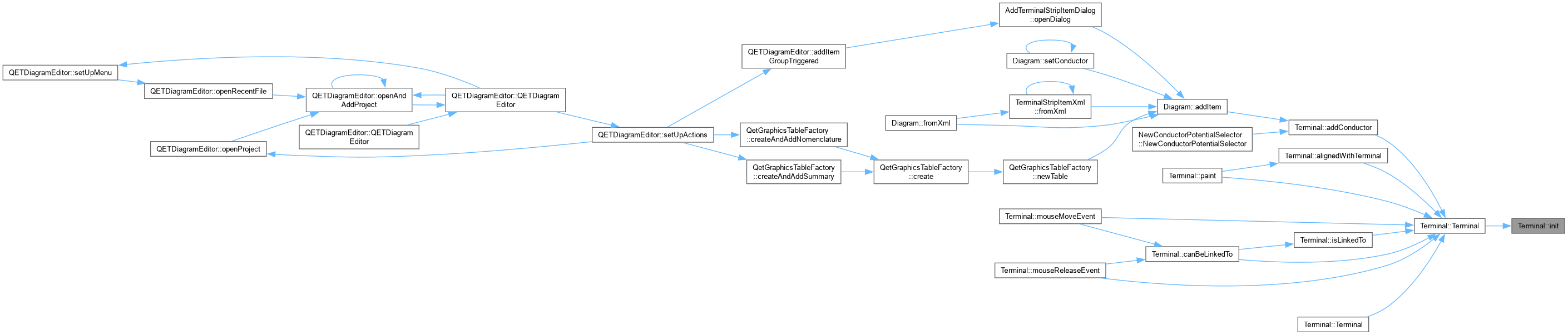

Here is the caller graph for this function:

◆ removeConductor()

void Terminal::removeConductor ( Conductor * conductor )

Terminal::removeConductor Remove a conductor from this terminal.

Parameters

conductor : conductor to remove

Here is the call graph for this function:

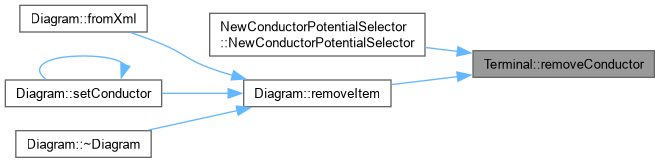

Here is the caller graph for this function:

◆ setMasterLabelIndex()

void Terminal::setMasterLabelIndex ( int index )

Terminal::setMasterLabelIndex Set the index into the master's contact group labels.

Parameters

index the label index (0-based)

◆ setUseMasterLabel()

void Terminal::setUseMasterLabel ( bool use )

Terminal::setUseMasterLabel Set whether this terminal uses a label from the master's contact group.

Parameters

use	true to use master label

◆ stableUuid()

QUuid Terminal::stableUuid ( ) const

Terminal::stableUuid An identity for this terminal that exists on every element, not only on those saved by a uuid-aware element editor.

uuid() comes from the catalog .elmt definition and is empty for every element authored before that field existed – which is most of the installed base. Anything keyed on uuid() alone therefore cannot see those elements at all.

When there is no uuid, derive one from the terminal's local position and orientation inside its element. That is not an arbitrary choice: it is the same thing the project format itself uses to match a conductor back to a terminal ("each connection is made by using the local position of the terminal and a dynamic id" – TerminalData::m_uuid). m_pos is the position read from the definition and is not touched by moving the element on the folio, so the result is stable across loads, saves and folio moves, and it is unique within an element except where a definition genuinely declares two terminals at the same point – three cases in the whole example corpus, and harmless, because two terminals sharing a position and orientation are indistinguishable in every observable respect: they merge to one terminal row and every conductor on either of them still resolves to the right element and name.

Derived values are UUID v5 in a fixed namespace, so they are reproducible without being written to the file, and cannot collide with the v4 uuids the element editor generates.

Returns: the terminal's own uuid when it has one, otherwise a derived one

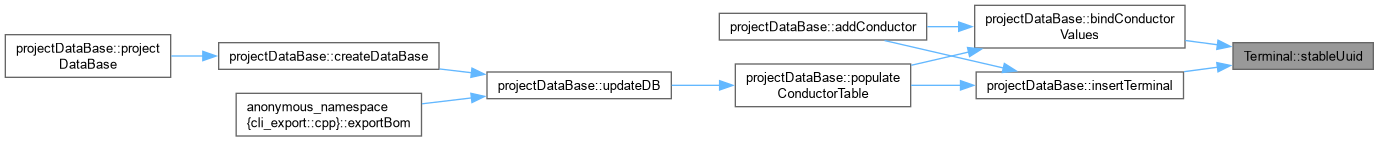

Here is the caller graph for this function:

◆ terminalType()

TerminalData::Type Terminal::terminalType ( ) const

Terminal::terminalType.

Returns: the type of this terminal (Generic, Inner, Outer, No, Nc, Common)

◆ toXml()

QDomElement Terminal::toXml ( QDomDocument & doc ) const

Terminal::toXml Methode d'export en XML.

Parameters

doc	Le Document XML a utiliser pour creer l'element XML

Returns: un QDomElement representant cette borne

◆ type()

int Terminal::type ( ) const

inlineoverride

type Enable the use of qgraphicsitem_cast to safely cast a QGraphicsItem into a Terminal

Returns: the QGraphicsItem type

◆ updateConductor()

void Terminal::updateConductor ( )

Terminal::updateConductor Update the path of conductor docked to this terminal.

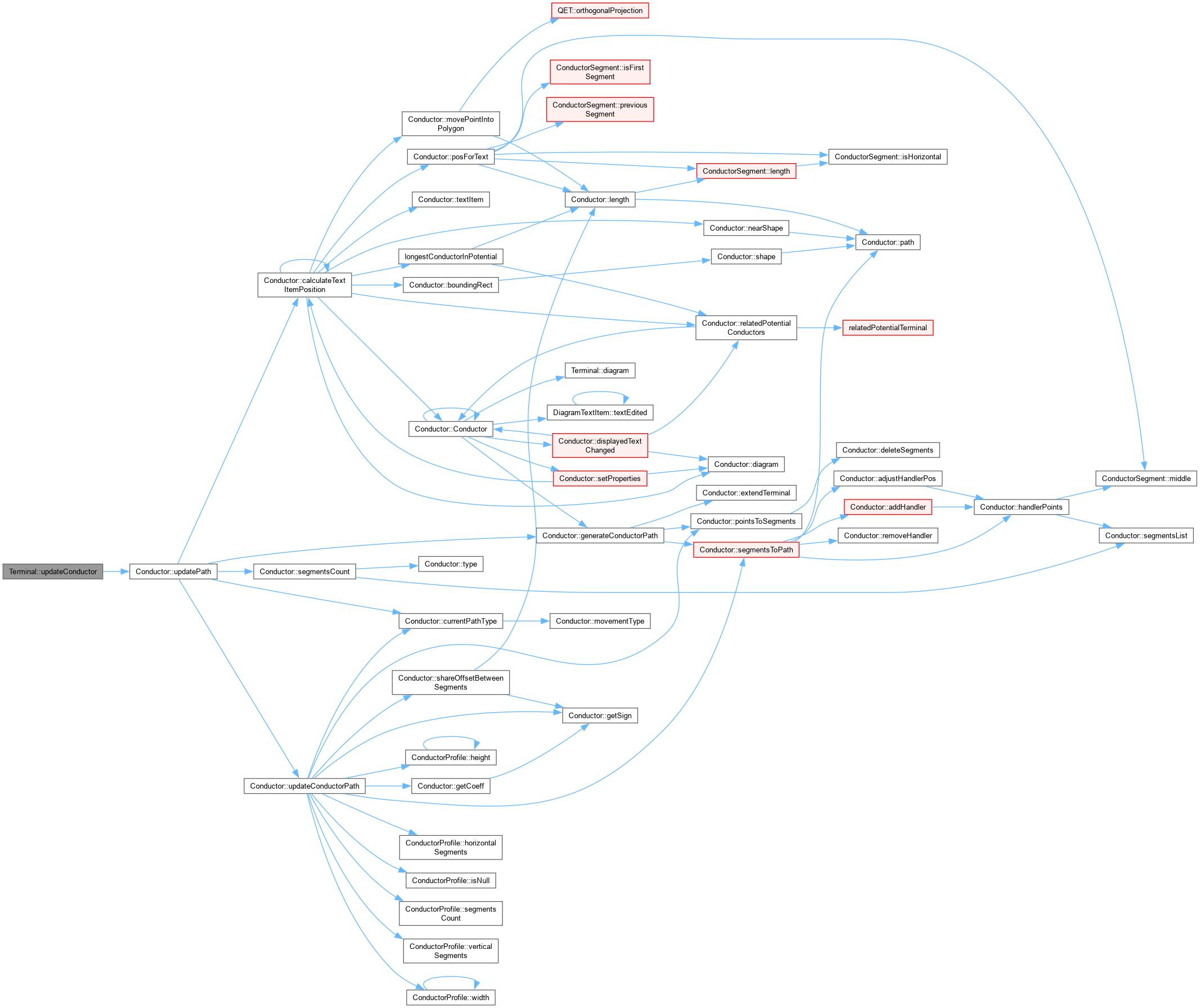

Here is the call graph for this function:

◆ useMasterLabel()

bool Terminal::useMasterLabel ( ) const

inline

◆ uuid()

QUuid Terminal::uuid ( ) const

◆ valideXml()

bool Terminal::valideXml ( QDomElement & terminal )

static

Terminal::valideXml Permet de savoir si un element XML represente une borne.

Parameters

terminal Le QDomElement a analyser

Returns: true si le QDomElement passe en parametre est une borne, false sinon

Here is the caller graph for this function:

Member Data Documentation

◆ allowedColor

QColor Terminal::allowedColor = QColor(Qt::darkGreen)

static

color for legal actions

◆ d

TerminalData* Terminal::d

private

◆ dock_elmt_

QPointF Terminal::dock_elmt_

docking point for parent element

◆ forbiddenColor

QColor Terminal::forbiddenColor = QColor(Qt::red)

static

color for forbidden actions

◆ m_br

QRectF Terminal::m_br

private

◆ m_conductors_list

QList<Conductor *> Terminal::m_conductors_list

private

List of conductors attached to the terminal.

◆ m_draw_help_line

bool Terminal::m_draw_help_line {false}

private

◆ m_help_line

QGraphicsLineItem* Terminal::m_help_line {nullptr}

private

◆ m_help_line_a

QGraphicsLineItem* Terminal::m_help_line_a {nullptr}

private

◆ m_hovered

bool Terminal::m_hovered = false

private

Whether the mouse pointer is hovering the terminal.

◆ m_hovered_color

QColor Terminal::m_hovered_color = Terminal::neutralColor

private

Color used for the hover effect.

◆ m_previous_terminal

Terminal* Terminal::m_previous_terminal = nullptr

private

Last terminal seen through an attached conductor.

◆ neutralColor

QColor Terminal::neutralColor = QColor(Qt::blue)

static

default color

◆ parent_element_

Element* Terminal::parent_element_ {nullptr}

private

Parent electrical element.

◆ terminalSize

const qreal Terminal::terminalSize = 4.0

static

◆ warningColor

QColor Terminal::warningColor = QColor("#ff8000")

static

color for allowed but fuzzy or not recommended actions

◆ Z

const qreal Terminal::Z = 1000

static

The documentation for this class was generated from the following files:

sources/qetgraphicsitem/terminal.h
sources/qetgraphicsitem/terminal.cpp

Public Types

Signals

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ Terminal() [1/2]

◆ ~Terminal()

◆ Terminal() [2/2]

Member Function Documentation

◆ addConductor()

◆ alignedWithTerminal()

◆ baseName()

◆ boundingRect()

◆ canBeLinkedTo()

◆ conductors()

◆ conductorsCount()

◆ conductorWasAdded

◆ conductorWasRemoved

◆ diagram()

◆ dockConductor()

◆ drawHelpLine()

◆ fromXml()

◆ HelpLine()

◆ hoverEnterEvent()

◆ hoverLeaveEvent()

◆ hoverMoveEvent()

◆ init() [1/2]

◆ init() [2/2]

◆ isLinkedTo()

◆ masterLabelIndex()

◆ mouseMoveEvent()

◆ mousePressEvent()

◆ mouseReleaseEvent()

◆ name()

◆ orientation()

◆ paint()

◆ parentElement()

◆ removeConductor()

◆ setMasterLabelIndex()

◆ setUseMasterLabel()

◆ stableUuid()

◆ terminalType()

◆ toXml()

◆ type()

◆ updateConductor()

◆ useMasterLabel()

◆ uuid()

◆ valideXml()

Member Data Documentation

◆ allowedColor

◆ d

◆ dock_elmt_

◆ forbiddenColor

◆ m_br

◆ m_conductors_list

◆ m_draw_help_line

◆ m_help_line

◆ m_help_line_a

◆ m_hovered

◆ m_hovered_color

◆ m_previous_terminal

◆ neutralColor

◆ parent_element_

◆ terminalSize

◆ warningColor

◆ Z
