QETElementEditor Class Reference

#include <qetelementeditor.h>

Inherits QMainWindow.

Collaboration diagram for QETElementEditor:

Signals

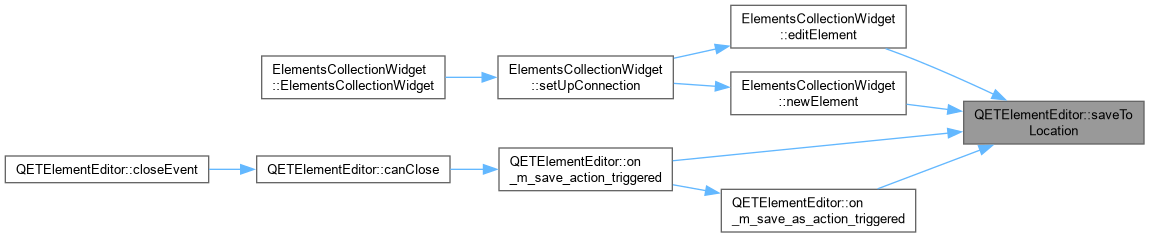

void	saveToLocation (ElementsLocation loc)

Public Member Functions

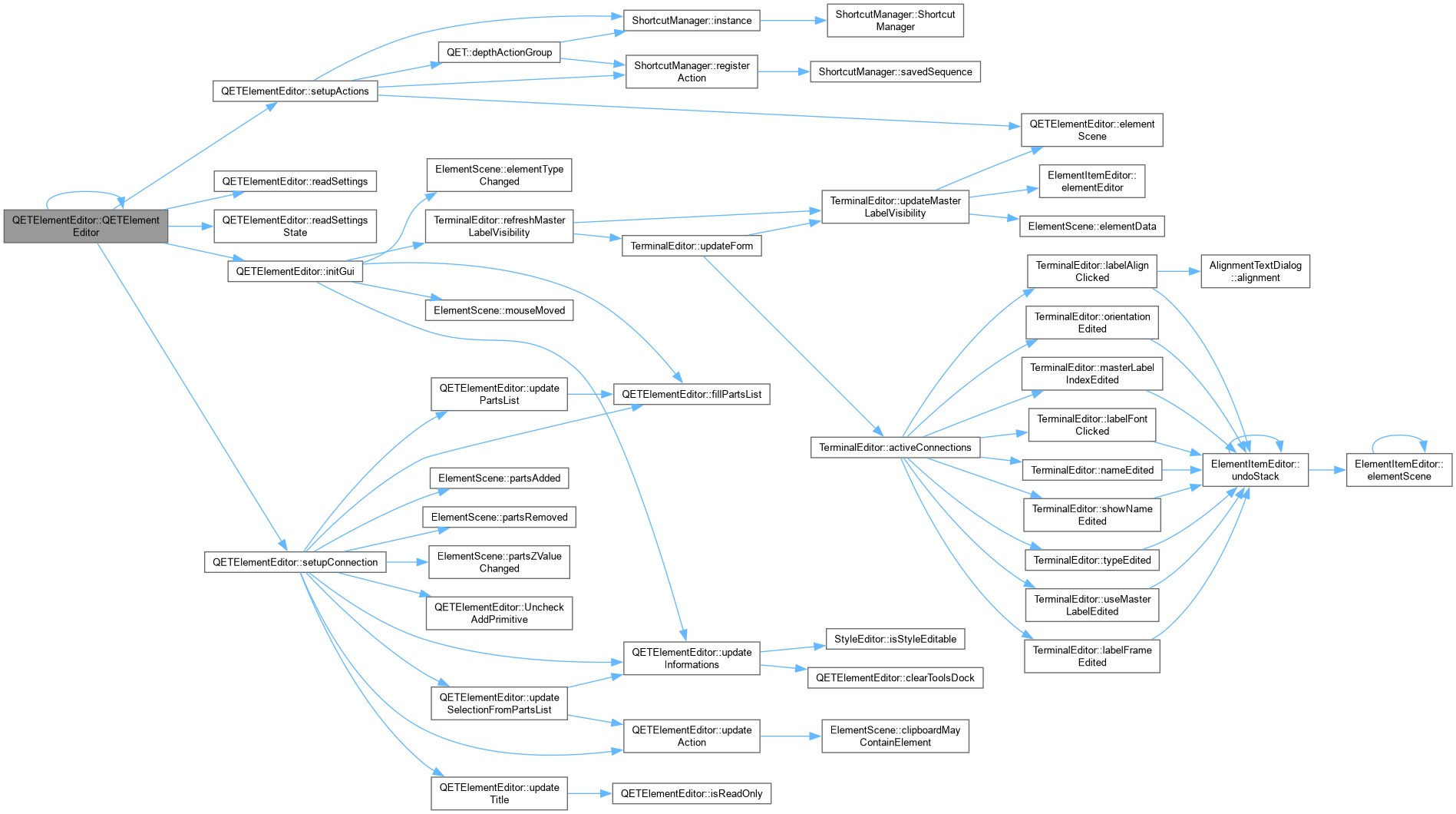

	QETElementEditor (QWidget *parent=nullptr)
	QETElementEditor::QETElementEditor.
	~QETElementEditor () override
	QETElementEditor::~QETElementEditor.
void	contextMenu (QPoint p, QList< QAction * > actions=QList< QAction * >())
	QETElementEditor::contextMenu Display a context menu, with all available action.
void	setNames (const NamesList &name_list)
	QETElementEditor::setNames Set the names list of the edited element.

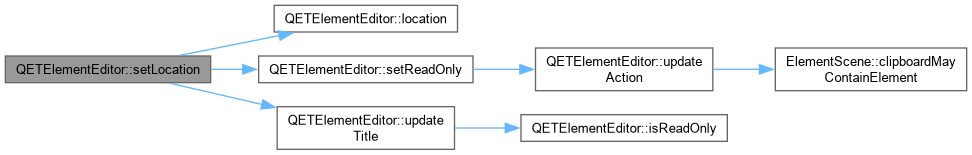

void	setLocation (const ElementsLocation &location)
	QETElementEditor::setLocation Set the location to edit.
ElementsLocation	location () const
	QETElementEditor::location.
void	setFileName (const QString &file_name)
	QETElementEditor::setFileName Set the file name of the edited element.
QString	fileName () const
	QETElementEditor::fileName.
void	setReadOnly (bool ro)
bool	isReadOnly () const
void	fromFile (const QString &filepath)
	QETElementEditor::fromFile Open an element from @filepath.
bool	toFile (const QString &filepath)
	QETElementEditor::toFile Save to a file the current edited element.

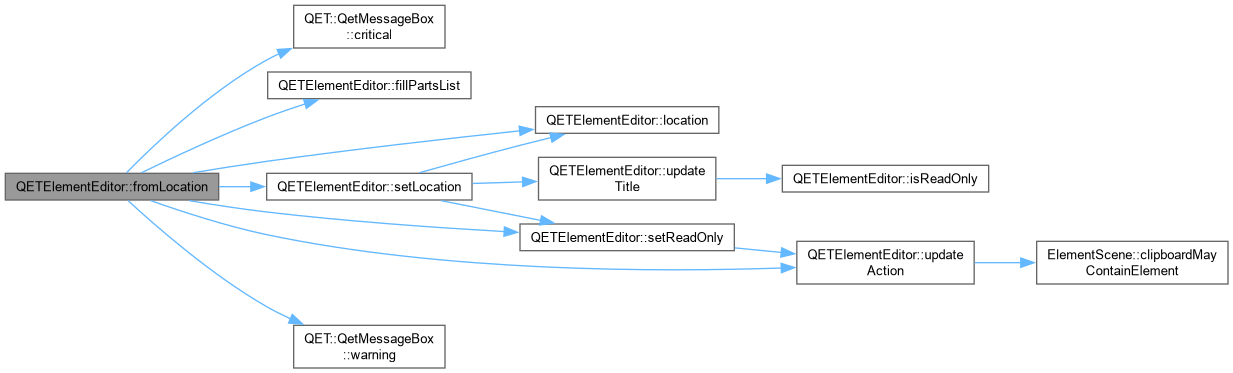

void	fromLocation (const ElementsLocation &location)
	QETElementEditor::fromLocation Location of an element to edit.
bool	toLocation (const ElementsLocation &location)
	QETElementEditor::toLocation Save the edited element into @location.
bool	isEditing (const ElementsLocation &location)
	QETElementEditor::isEditing.
bool	isEditing (const QString &filepath)
	QETElementEditor::isEditing.
ElementScene *	elementScene () const
	QETElementEditor::elementScene.
ElementView *	elementView () const
	QETElementEditor::elementView.
void	updateTitle ()
	QETElementEditor::updateTitle Update the title of the windows.
void	fillPartsList ()
	QETElementEditor::fillPartsList.

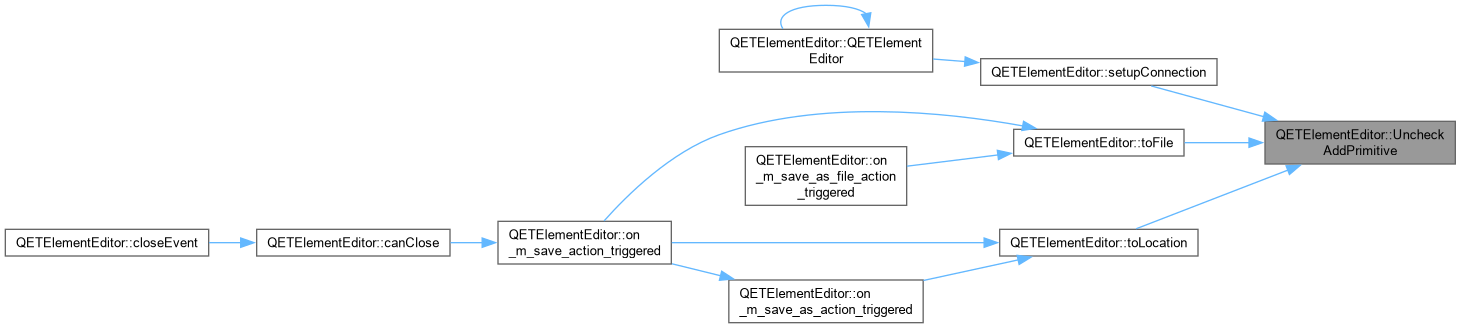

void	UncheckAddPrimitive ()
	QETElementEditor::UncheckAddPrimitive.
void	updateCurrentPartEditor ()
	QETElementEditor::updateCurrentPartEditor.

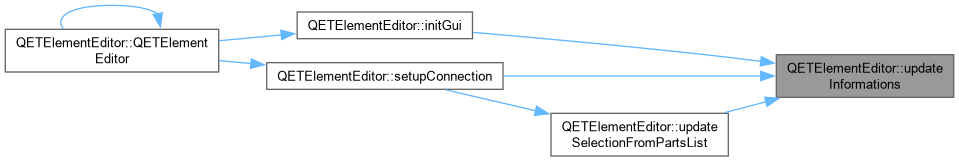

void	updateInformations ()
	QETElementEditor::updateInformations Update the information and editor dock.
void	updatePartsList ()
	QETElementEditor::updatePartsList.
void	updateSelectionFromPartsList ()
	QETElementEditor::updateSelectionFromPartsList.
void	openElement (const QString &filepath)
	QETElementEditor::openElement OPen an element from @filepath.
bool	checkElement ()
	QETElementEditor::checkElement Do several check about element.

Static Public Member Functions
static QPointF	pasteOffset ()
	QETElementEditor::pasteOffset.
static QString	getOpenElementFileName (QWidget *parent=nullptr, const QString &dir=QString())
	QETElementEditor::getOpenElementFileName Ask user to open a file who must be an element.

Protected Member Functions

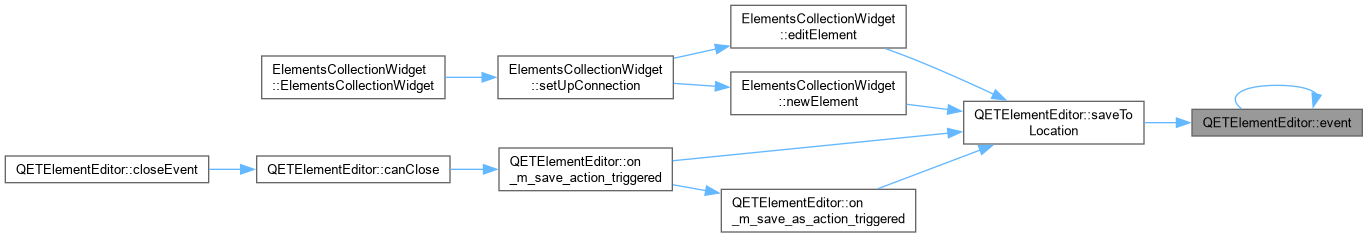

bool	event (QEvent *event) override
	QETElementEditor::event.
void	closeEvent (QCloseEvent *) override
	QETElementEditor::closeEvent.

Private Slots

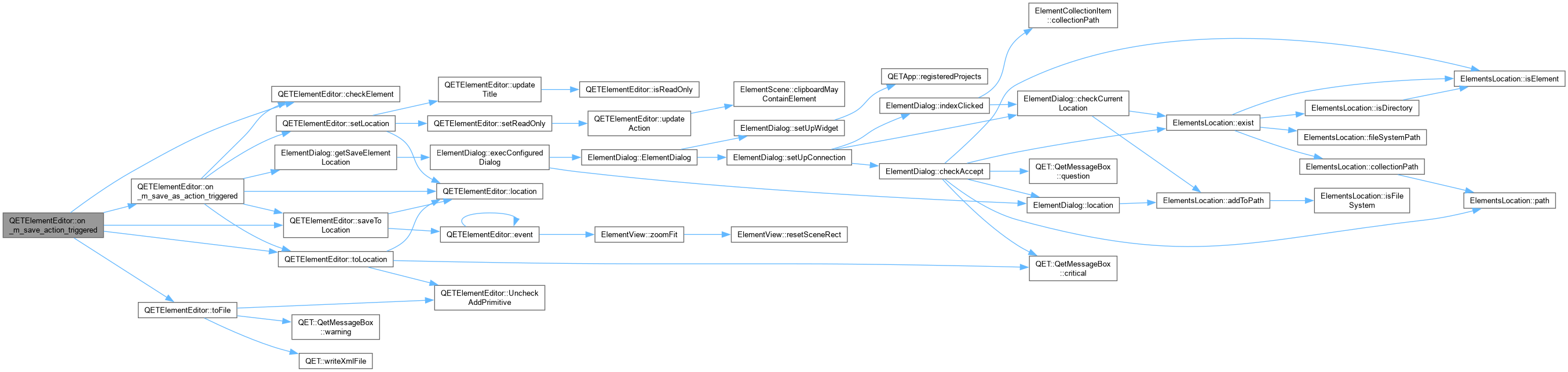

bool	on_m_save_action_triggered ()
	QETElementEditor::on_m_save_action_triggered.
bool	on_m_save_as_action_triggered ()
	QETElementEditor::on_m_save_as_action_triggered Ask a location to user and save the current edited element to this location.
void	on_m_select_all_act_triggered ()
void	on_m_edit_element_properties_action_triggered ()
void	on_m_new_action_triggered ()
void	on_m_open_action_triggered ()
void	on_m_open_from_file_action_triggered ()
bool	on_m_save_as_file_action_triggered ()
bool	on_m_export_svg_action_triggered ()
	QETElementEditor::on_m_export_svg_action_triggered Export the element currently open in this editor to a standalone SVG file.
void	on_m_reload_action_triggered ()
void	on_m_quit_action_triggered ()
void	on_m_deselect_all_action_triggered ()
void	on_m_cut_action_triggered ()
void	on_m_copy_action_triggered ()
void	on_m_paste_action_triggered ()
void	on_m_paste_in_area_action_triggered ()
void	on_m_paste_from_file_action_triggered ()
void	on_m_paste_from_element_action_triggered ()
void	on_m_revert_selection_action_triggered ()
void	on_m_delete_action_triggered ()
void	on_m_edit_names_action_triggered ()
void	on_m_edit_author_action_triggered ()
void	on_m_zoom_in_action_triggered ()
void	on_m_zoom_out_action_triggered ()
void	on_m_zoom_fit_best_action_triggered ()
void	on_m_zoom_original_action_triggered ()
void	on_m_about_qet_action_triggered ()
void	on_m_online_manual_triggered ()
void	on_m_youtube_action_triggered ()
void	on_m_donate_action_triggered ()
void	on_m_about_qt_action_triggered ()
void	on_m_import_dxf_triggered ()
void	on_m_import_scaled_element_triggered ()

Private Member Functions
bool	canClose ()
	QETElementEditor::canClose.
void	readSettings ()
	QETElementEditor::readSettings Read some setting about this widget in the QSetting of qelectrotech.
void	readSettingsState ()
	QETElementEditor::readSettingsState Restore the window state (docks, toolbars). Must be called AFTER show() in Qt6 for restoreState() to work correctly.
void	writeSettings () const
	QETElementEditor::writeSettings Write some setting of this widget in the QSetting of qelectrotech.
void	setupActions ()

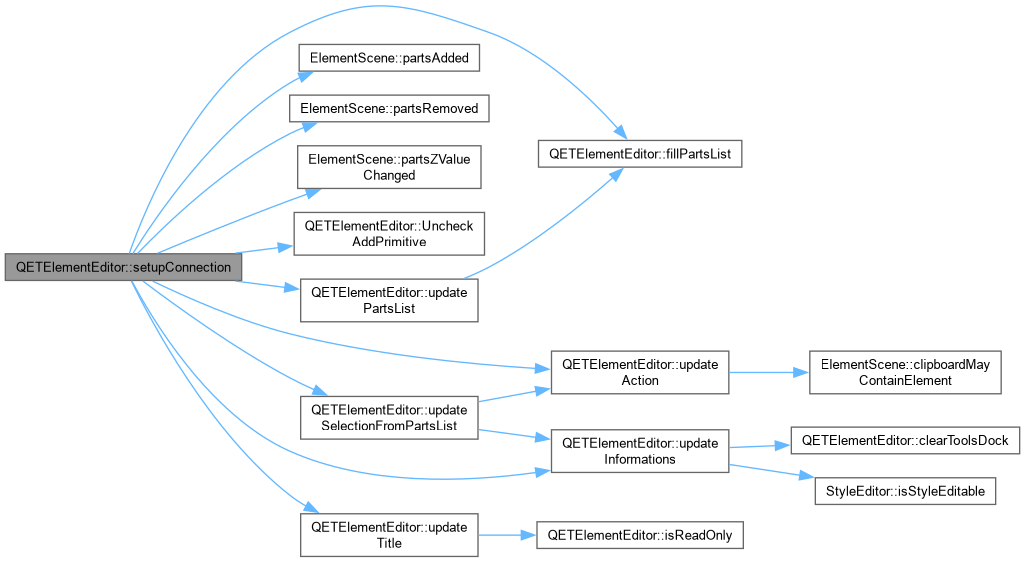

	QETElementEditor::setupActions.
void	updateAction ()
	QETElementEditor::updateAction Update actions.
void	setupConnection ()
	QETElementEditor::setupConnection.
void	initGui ()
	QETElementEditor::initGui.
QWidget *	clearToolsDock ()
	QETElementEditor::clearToolsDock Remove and hide the widget displayed by the dock used to edit primitives.
void	copyAndPasteXml (const QDomDocument &xml_document)
	QETElementEditor::copyAndPasteXml Copy the content of @xml_document to the clipboard and call pasteInArea method of elementView.

Private Attributes
Ui::QETElementEditor *	ui
bool	m_read_only = false
bool	m_opened_from_file = false
bool	m_first_activation = true
ElementScene *	m_elmt_scene = nullptr
QActionGroup *	m_add_part_action_grp = nullptr
QActionGroup *	m_depth_action_group = nullptr
QList< QAction * >	m_context_menu_action_list
QAction *	m_undo_action = nullptr
QAction *	m_redo_action = nullptr
QHash< QString, ElementItemEditor * >	m_editors
	Hash associating primitive names with their matching edition widget.
ElementsLocation	m_location
QString	m_file_name
QString	m_min_title
ElementView *	m_view = nullptr
QListWidget *	m_parts_list = nullptr
QStackedWidget *	m_tools_dock_stack = nullptr
QLabel *	m_default_informations = nullptr
QLabel *	m_position_label = nullptr

Constructor & Destructor Documentation

QETElementEditor()

QETElementEditor::QETElementEditor ( QWidget * parent = nullptr )

explicit

QETElementEditor::QETElementEditor.

Parameters

parent

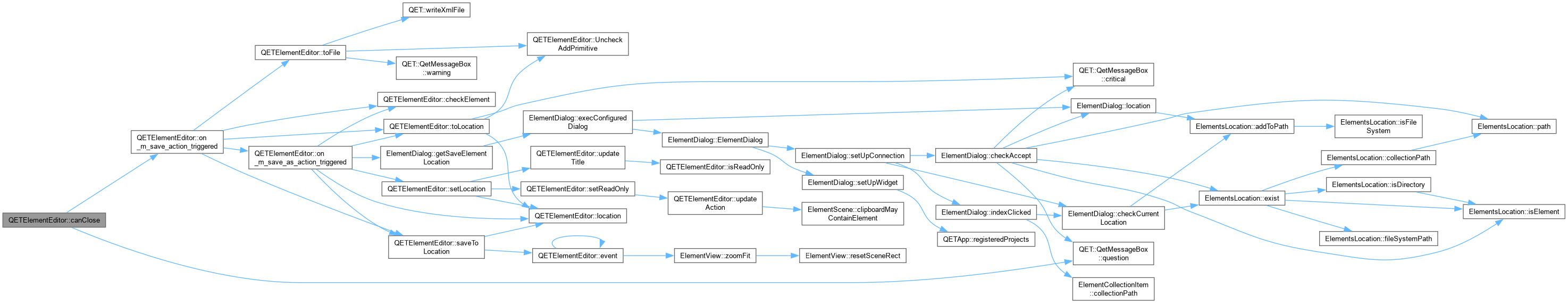

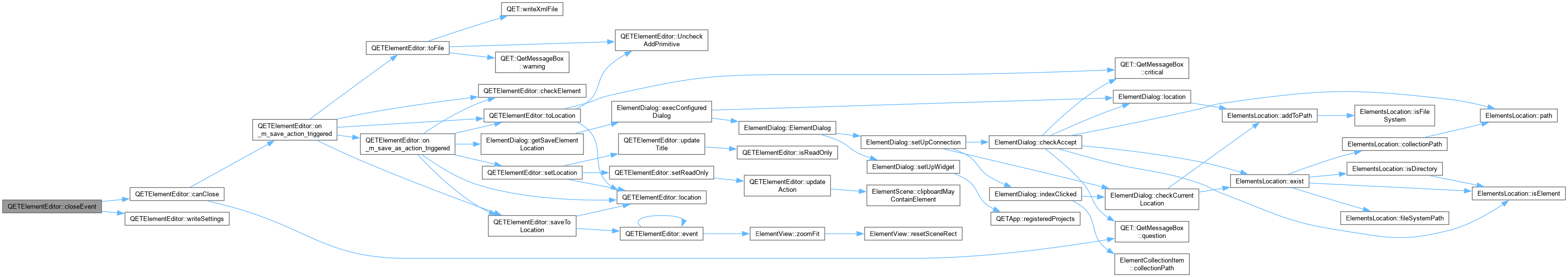

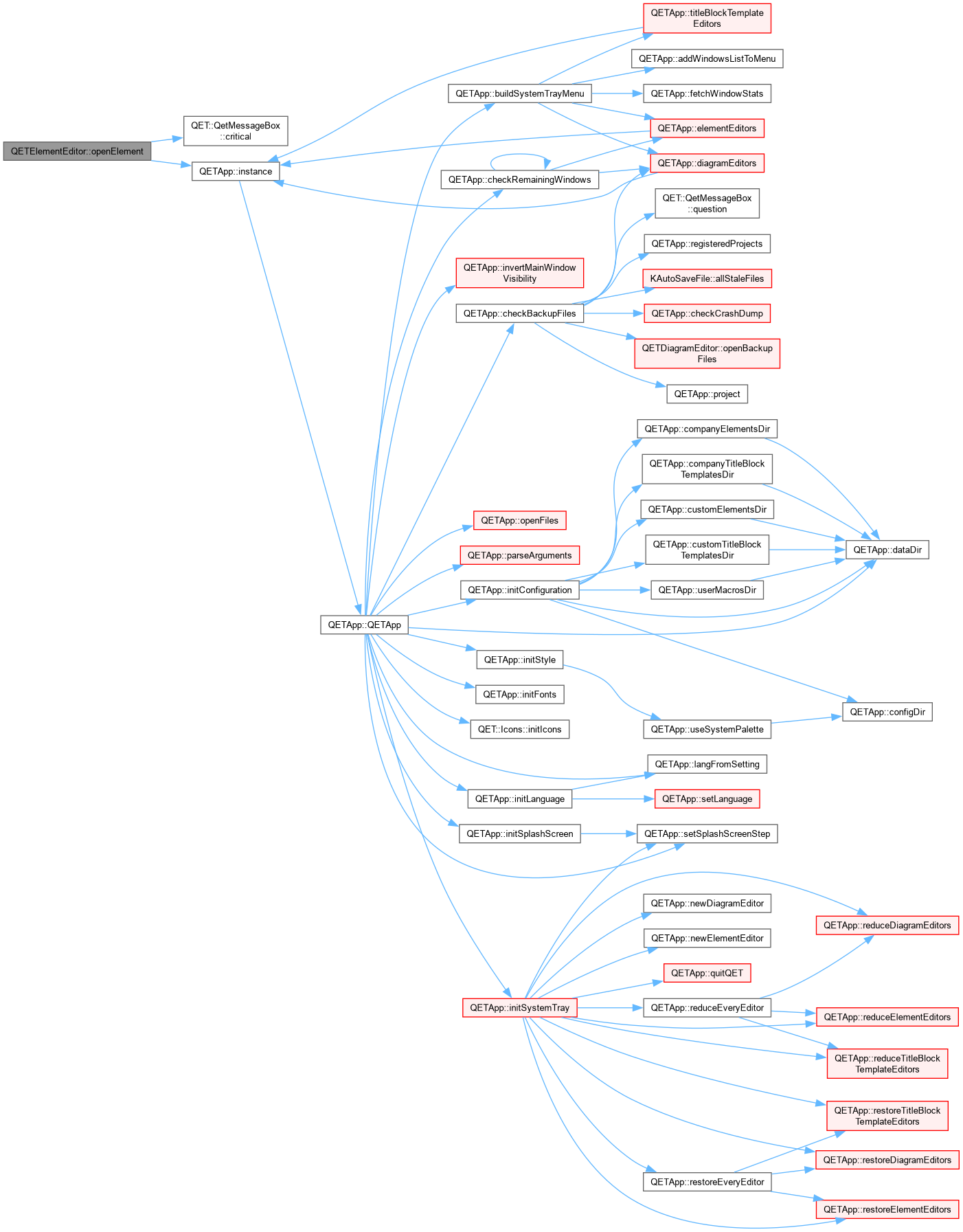

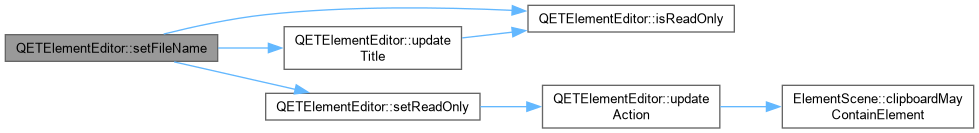

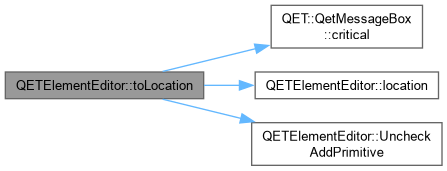

Here is the call graph for this function:

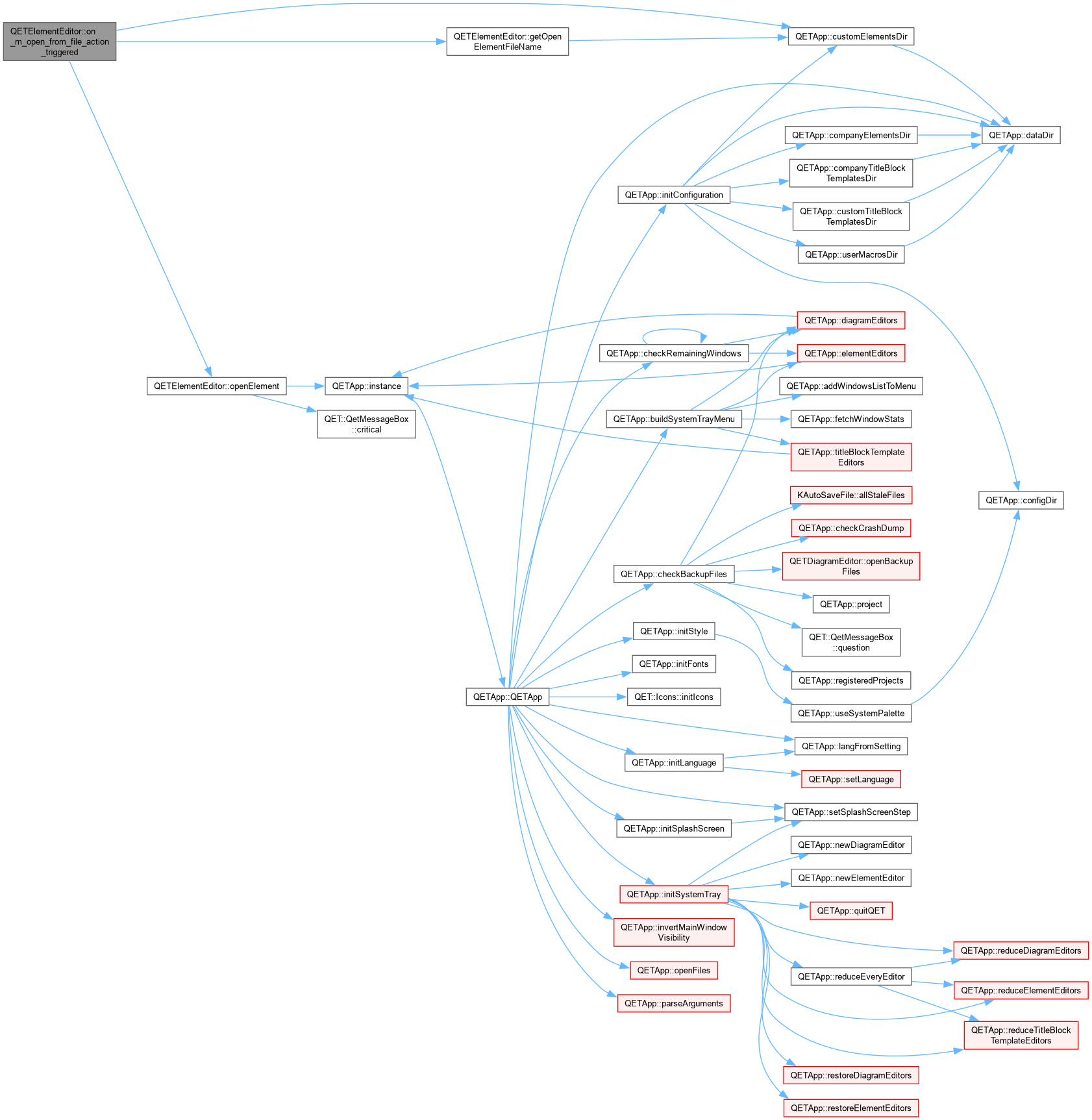

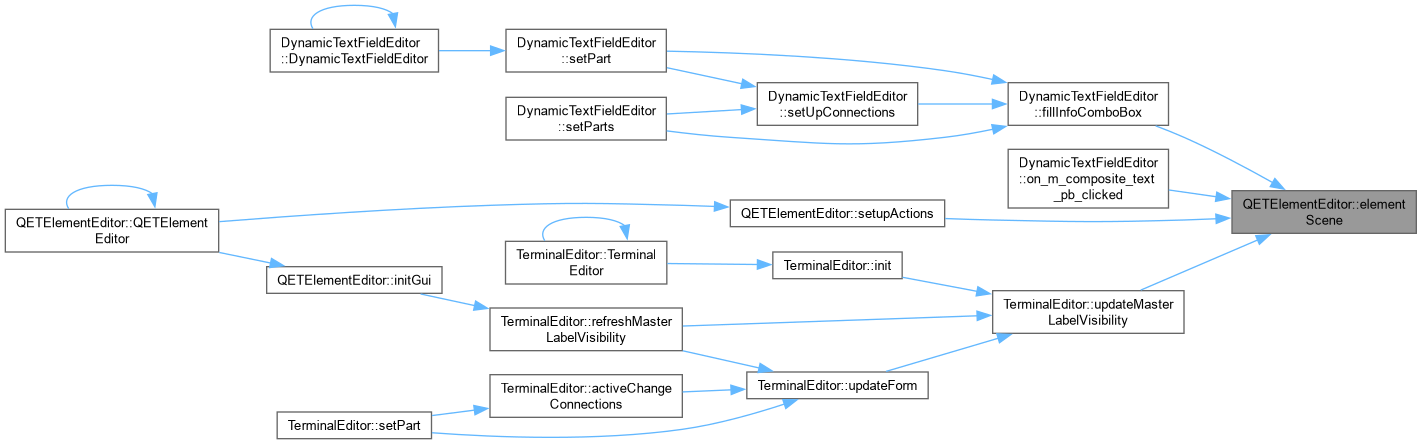

Here is the caller graph for this function:

~QETElementEditor()

QETElementEditor::~QETElementEditor ( )

override

QETElementEditor::~QETElementEditor.

Member Function Documentation

canClose()

bool QETElementEditor::canClose ( )

private

QETElementEditor::canClose.

Returns

Here is the call graph for this function:

Here is the caller graph for this function:

checkElement()

bool QETElementEditor::checkElement

(

)

QETElementEditor::checkElement Do several check about element.

Returns

true if there is no error

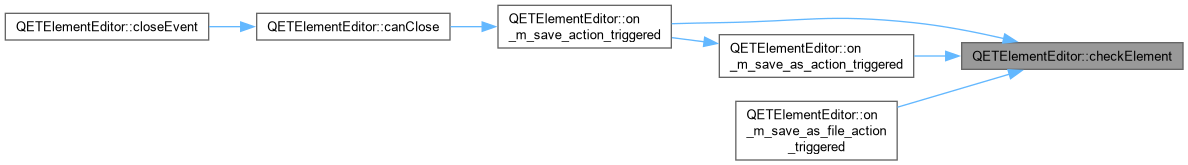

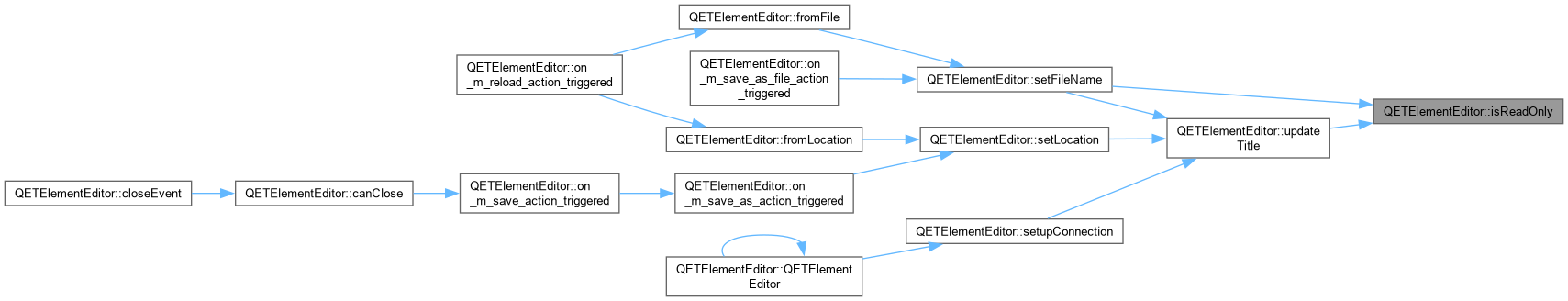

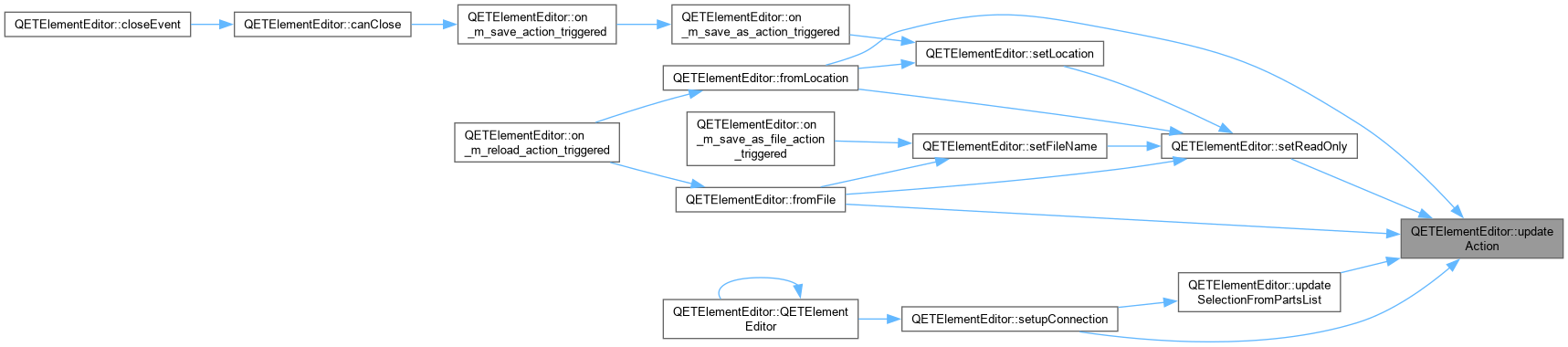

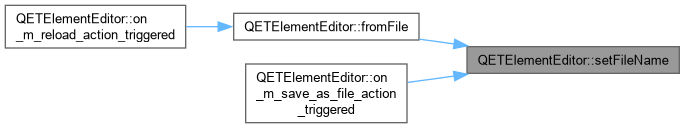

Here is the caller graph for this function:

clearToolsDock()

QWidget * QETElementEditor::clearToolsDock ( )

private

QETElementEditor::clearToolsDock Remove and hide the widget displayed by the dock used to edit primitives.

Returns

Return the removed widget or nullptr if there is no widget to remove.

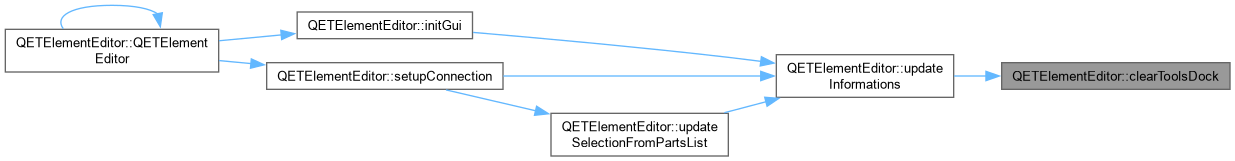

Here is the caller graph for this function:

closeEvent()

void QETElementEditor::closeEvent ( QCloseEvent * qce )

overrideprotected

QETElementEditor::closeEvent.

Parameters

qce

Here is the call graph for this function:

contextMenu()

void QETElementEditor::contextMenu	(	QPoint	p,
		QList< QAction * >	actions = QList<QAction *>() )

QETElementEditor::contextMenu Display a context menu, with all available action.

Parameters

p	: the pos of the menu, in screen coordinate
actions	: a list of actions who can be prepended to the context menu.

Here is the caller graph for this function:

copyAndPasteXml()

void QETElementEditor::copyAndPasteXml ( const QDomDocument & xml_document )

private

QETElementEditor::copyAndPasteXml Copy the content of @xml_document to the clipboard and call pasteInArea method of elementView.

Parameters

xml_document

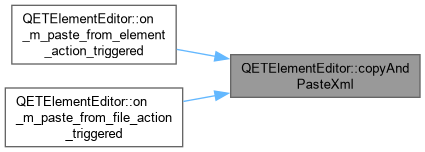

Here is the caller graph for this function:

elementScene()

ElementScene * QETElementEditor::elementScene

(

)

const

QETElementEditor::elementScene.

Returns

Here is the caller graph for this function:

elementView()

ElementView * QETElementEditor::elementView

(

)

const

QETElementEditor::elementView.

Returns

event()

bool QETElementEditor::event ( QEvent * event )

overrideprotected

QETElementEditor::event.

Parameters

event

Returns

Here is the call graph for this function:

Here is the caller graph for this function:

fileName()

QString QETElementEditor::fileName

(

)

const

QETElementEditor::fileName.

Returns

the file name of this element

fillPartsList()

void QETElementEditor::fillPartsList

(

)

QETElementEditor::fillPartsList.

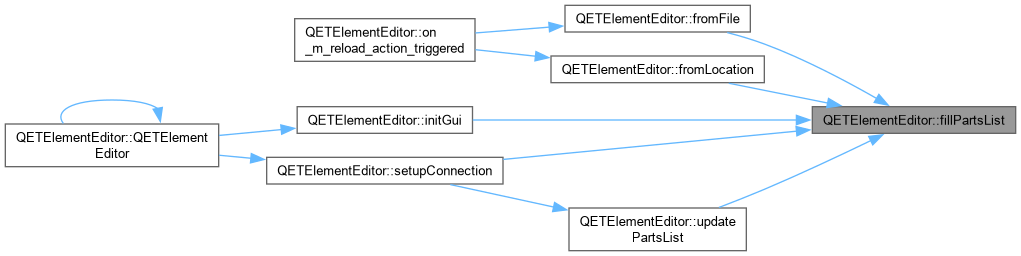

Here is the caller graph for this function:

fromFile()

void QETElementEditor::fromFile

(

const QString &

filepath

)

QETElementEditor::fromFile Open an element from @filepath.

Parameters

filepath

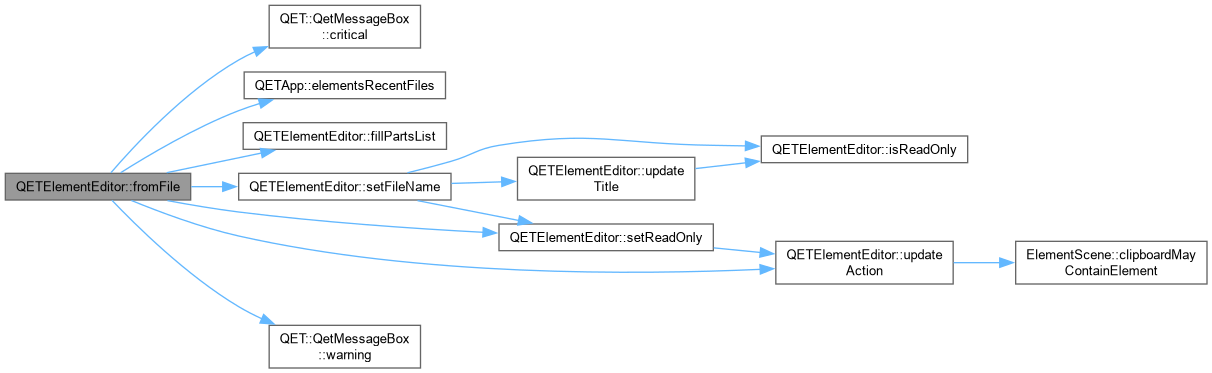

Here is the call graph for this function:

Here is the caller graph for this function:

fromLocation()

void QETElementEditor::fromLocation

(

const ElementsLocation &

location

)

QETElementEditor::fromLocation Location of an element to edit.

Here is the call graph for this function:

Here is the caller graph for this function:

getOpenElementFileName()

QString QETElementEditor::getOpenElementFileName ( QWidget * parent = nullptr, const QString & dir = QString() )

static

QETElementEditor::getOpenElementFileName Ask user to open a file who must be an element.

Parameters

parent
dir

Returns

Here is the call graph for this function:

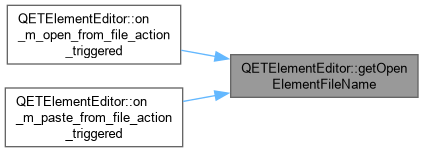

Here is the caller graph for this function:

initGui()

void QETElementEditor::initGui ( )

private

QETElementEditor::initGui.

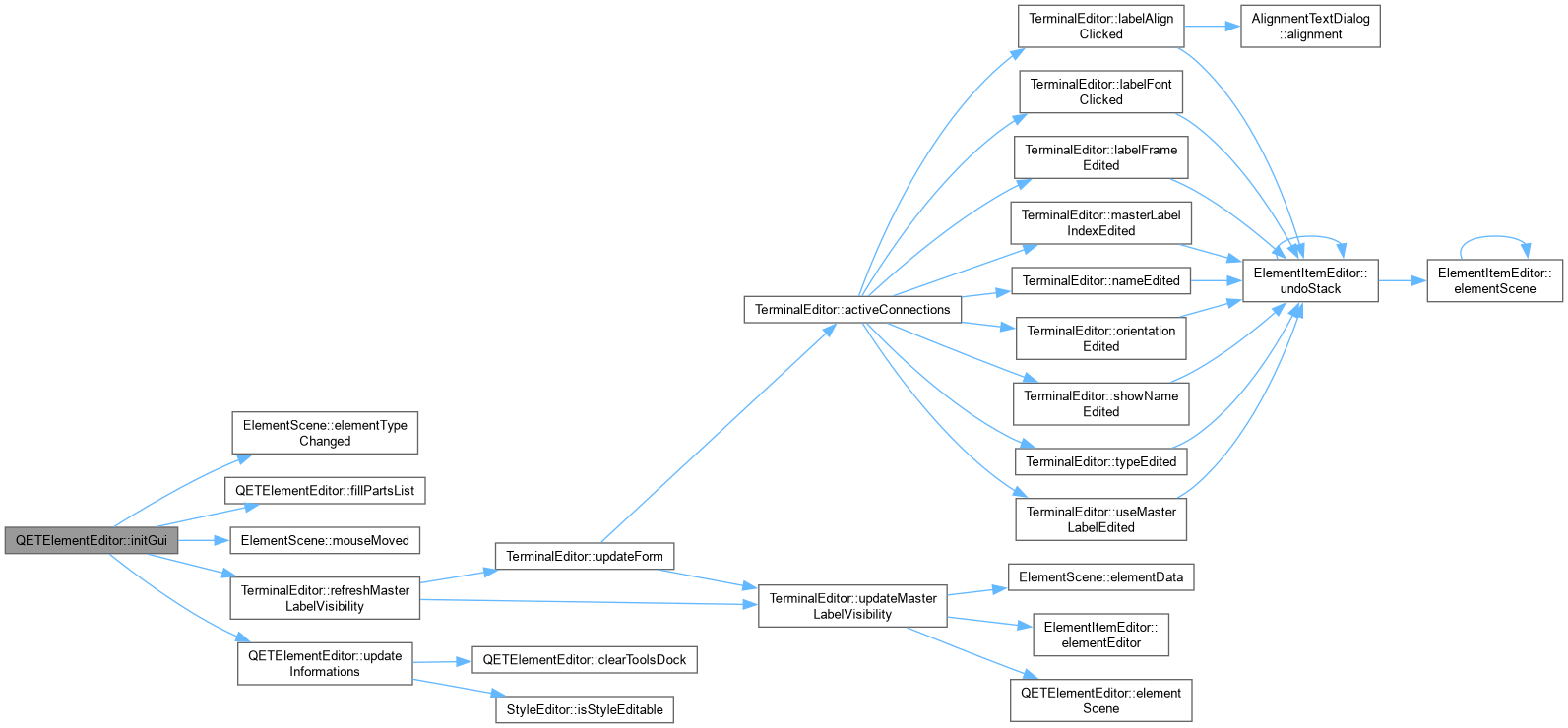

Here is the call graph for this function:

Here is the caller graph for this function:

isEditing() [1/2]

bool QETElementEditor::isEditing

(

const ElementsLocation &

location

)

QETElementEditor::isEditing.

Parameters

location

Returns

true if this editor is currently editing element of location

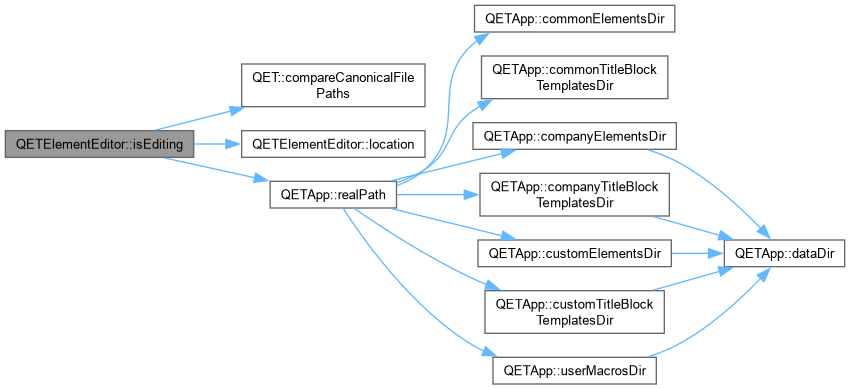

Here is the call graph for this function:

isEditing() [2/2]

bool QETElementEditor::isEditing

(

const QString &

filepath

)

QETElementEditor::isEditing.

Parameters

filepath

Returns

true if this editor is currently editing element at filepath.

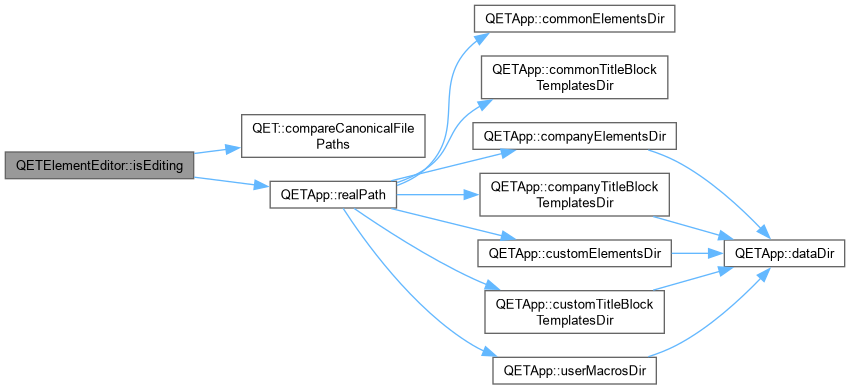

Here is the call graph for this function:

isReadOnly()

bool QETElementEditor::isReadOnly

(

)

const

Here is the caller graph for this function:

location()

ElementsLocation QETElementEditor::location

(

)

const

QETElementEditor::location.

Returns

The location of the edited element

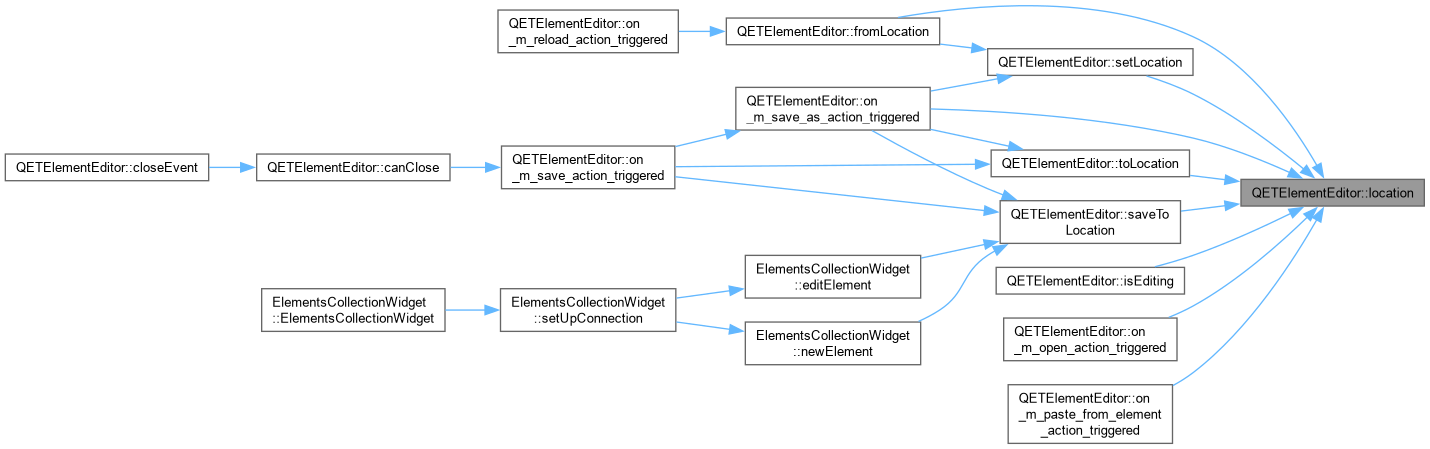

Here is the caller graph for this function:

on_m_about_qet_action_triggered

void QETElementEditor::on_m_about_qet_action_triggered ( )

privateslot

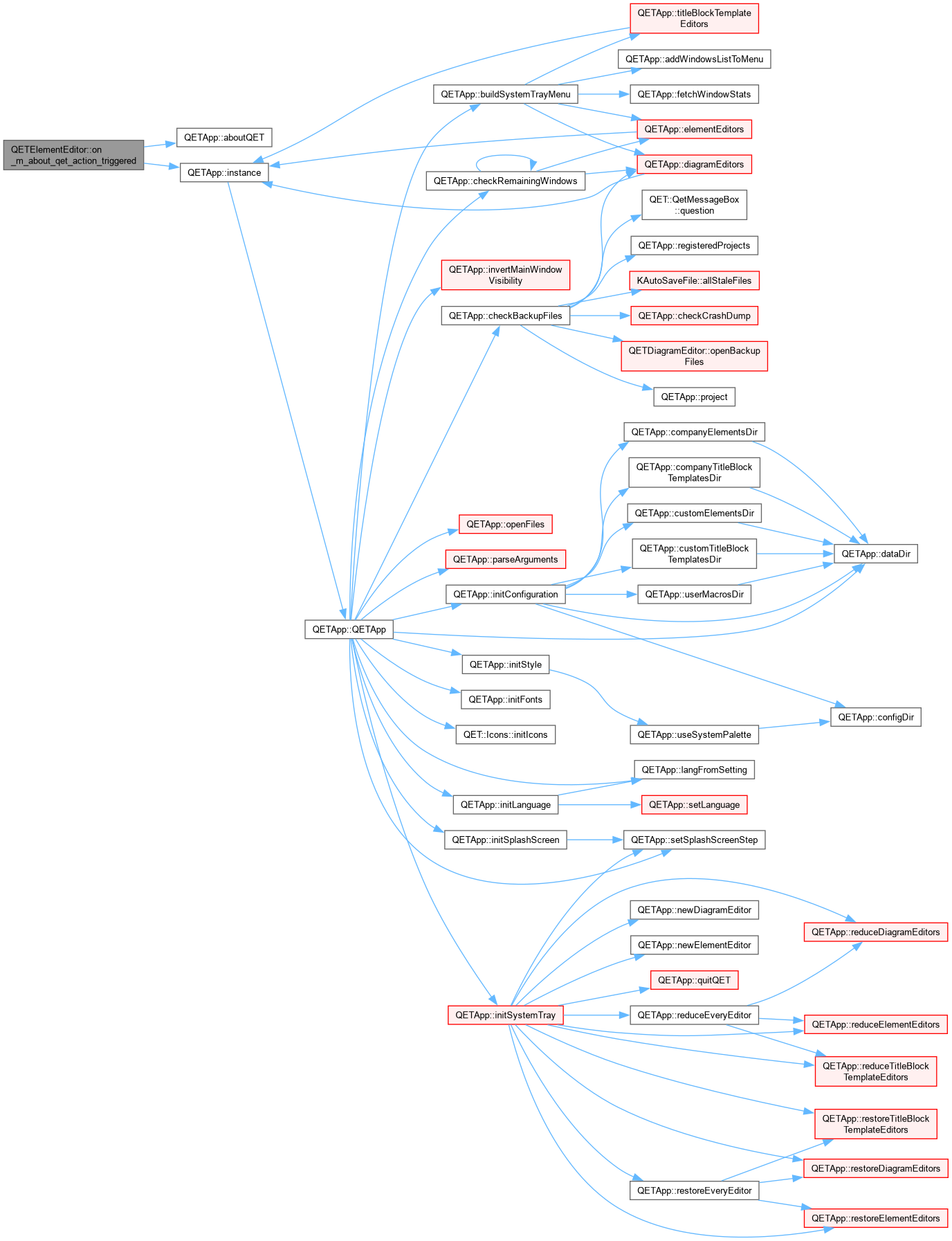

Here is the call graph for this function:

on_m_about_qt_action_triggered

void QETElementEditor::on_m_about_qt_action_triggered ( )

privateslot

on_m_copy_action_triggered

void QETElementEditor::on_m_copy_action_triggered ( )

privateslot

on_m_cut_action_triggered

void QETElementEditor::on_m_cut_action_triggered ( )

privateslot

on_m_delete_action_triggered

void QETElementEditor::on_m_delete_action_triggered ( )

privateslot

on_m_deselect_all_action_triggered

void QETElementEditor::on_m_deselect_all_action_triggered ( )

privateslot

on_m_donate_action_triggered

void QETElementEditor::on_m_donate_action_triggered ( )

privateslot

on_m_edit_author_action_triggered

void QETElementEditor::on_m_edit_author_action_triggered ( )

privateslot

on_m_edit_element_properties_action_triggered

void QETElementEditor::on_m_edit_element_properties_action_triggered ( )

privateslot

on_m_edit_names_action_triggered

void QETElementEditor::on_m_edit_names_action_triggered ( )

privateslot

on_m_export_svg_action_triggered

bool QETElementEditor::on_m_export_svg_action_triggered ( )

privateslot

QETElementEditor::on_m_export_svg_action_triggered Export the element currently open in this editor to a standalone SVG file.

Renders the live ElementScene directly, the same way ExportDialog::generateSvg() renders the live Diagram for the diagram editor's own SVG export – not ElementPictureFactory's cached picture. That cache is keyed by the element's saved-to-disk uuid and is never invalidated on edit (nothing in this editor ever tells it to), so it would silently export stale content for any element already previewed once in the elements panel, and nothing at all for one that has never been saved. Rendering the scene directly has neither problem and always reflects exactly what is currently on screen, saved or not.

Returns

true if the file was written

Here is the call graph for this function:

on_m_import_dxf_triggered

void QETElementEditor::on_m_import_dxf_triggered ( )

privateslot

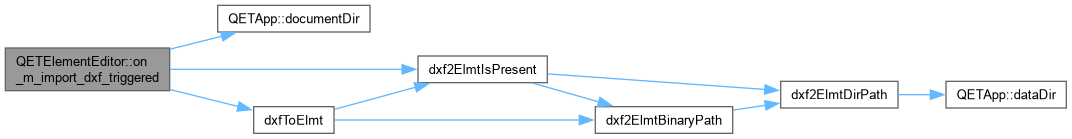

Here is the call graph for this function:

on_m_import_scaled_element_triggered

void QETElementEditor::on_m_import_scaled_element_triggered ( )

privateslot

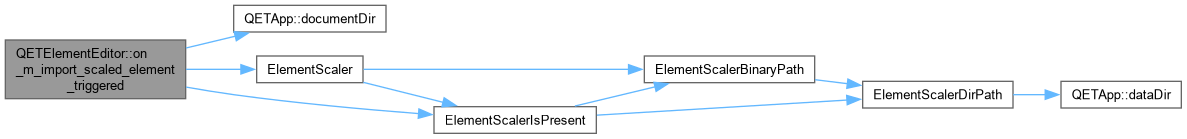

Here is the call graph for this function:

on_m_new_action_triggered

void QETElementEditor::on_m_new_action_triggered ( )

privateslot

on_m_online_manual_triggered

void QETElementEditor::on_m_online_manual_triggered ( )

privateslot

on_m_open_action_triggered

void QETElementEditor::on_m_open_action_triggered ( )

privateslot

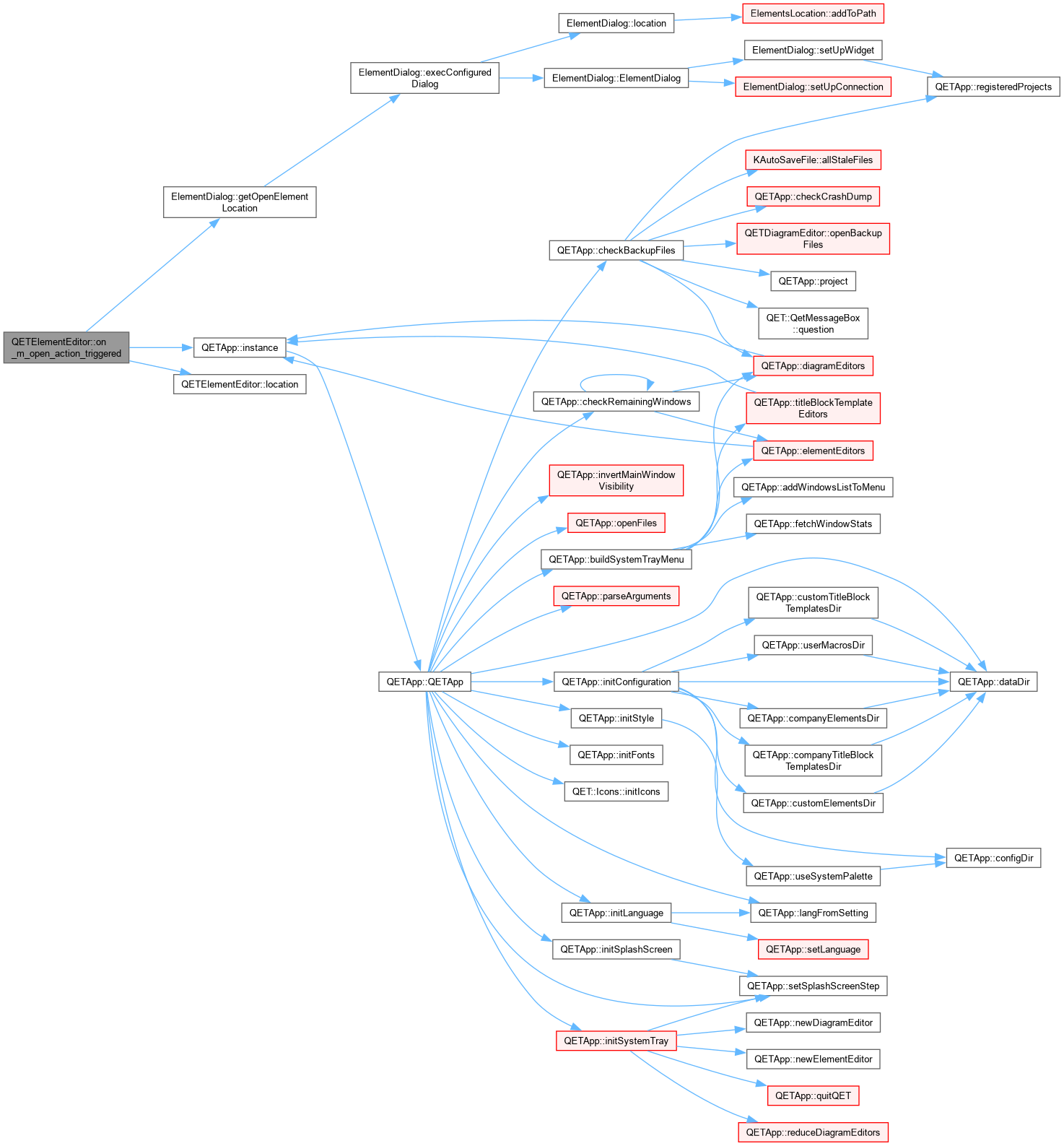

Here is the call graph for this function:

on_m_open_from_file_action_triggered

void QETElementEditor::on_m_open_from_file_action_triggered ( )

privateslot

Here is the call graph for this function:

on_m_paste_action_triggered

void QETElementEditor::on_m_paste_action_triggered ( )

privateslot

on_m_paste_from_element_action_triggered

void QETElementEditor::on_m_paste_from_element_action_triggered ( )

privateslot

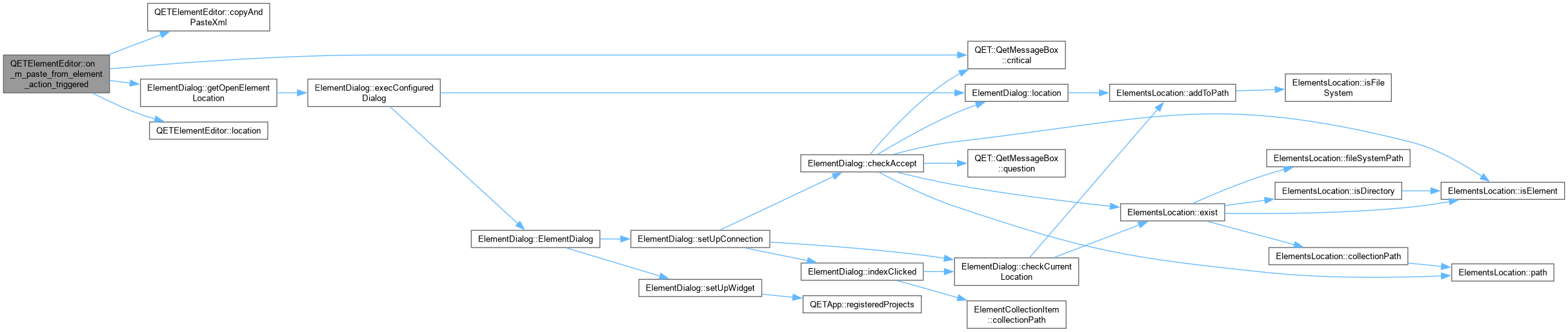

Here is the call graph for this function:

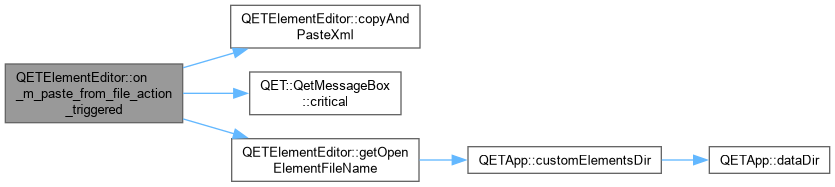

on_m_paste_from_file_action_triggered

void QETElementEditor::on_m_paste_from_file_action_triggered ( )

privateslot

Here is the call graph for this function:

on_m_paste_in_area_action_triggered

void QETElementEditor::on_m_paste_in_area_action_triggered ( )

privateslot

on_m_quit_action_triggered

void QETElementEditor::on_m_quit_action_triggered ( )

privateslot

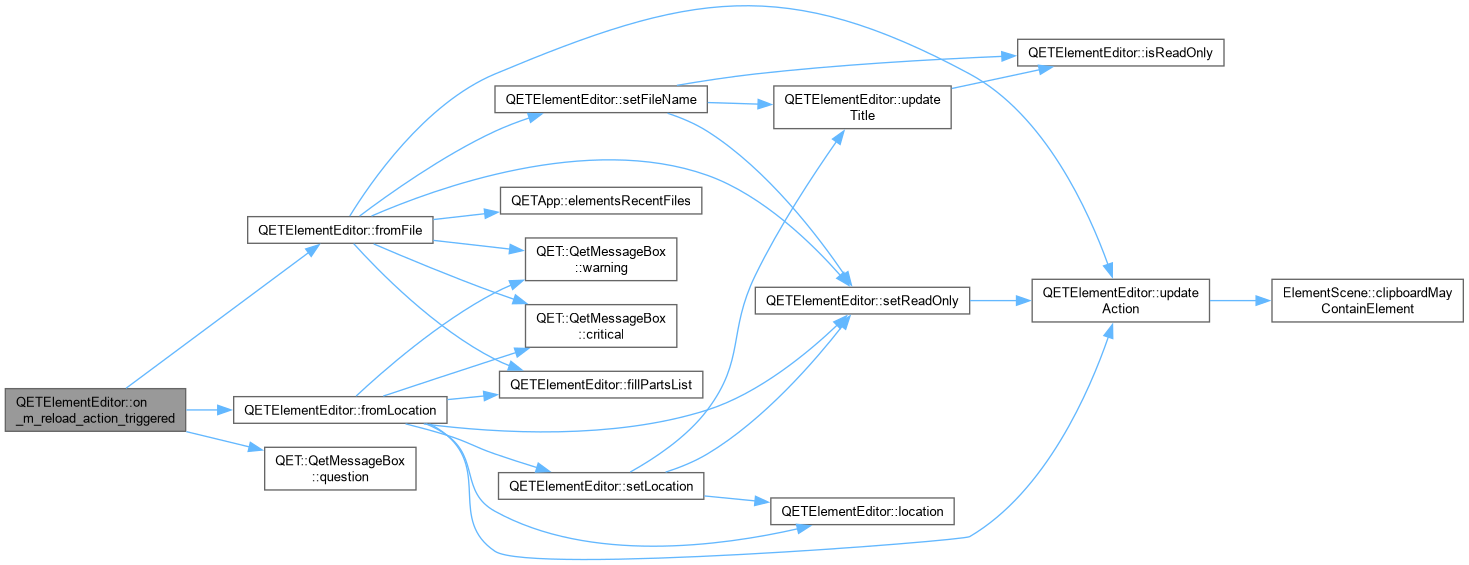

on_m_reload_action_triggered

void QETElementEditor::on_m_reload_action_triggered ( )

privateslot

Here is the call graph for this function:

on_m_revert_selection_action_triggered

void QETElementEditor::on_m_revert_selection_action_triggered ( )

privateslot

on_m_save_action_triggered

bool QETElementEditor::on_m_save_action_triggered ( )

privateslot

QETElementEditor::on_m_save_action_triggered.

Returns

Here is the call graph for this function:

Here is the caller graph for this function:

on_m_save_as_action_triggered

bool QETElementEditor::on_m_save_as_action_triggered ( )

privateslot

QETElementEditor::on_m_save_as_action_triggered Ask a location to user and save the current edited element to this location.

Returns

true is success

Here is the call graph for this function:

Here is the caller graph for this function:

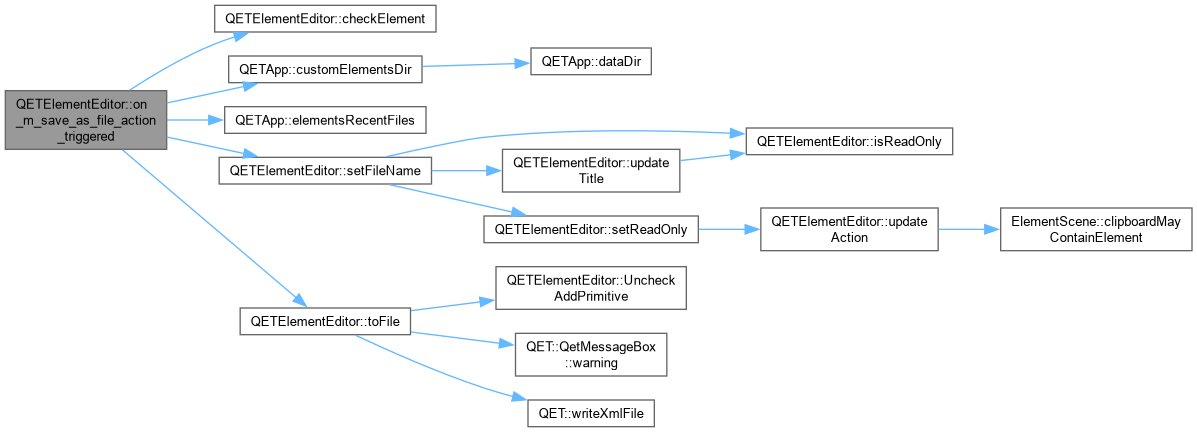

on_m_save_as_file_action_triggered

bool QETElementEditor::on_m_save_as_file_action_triggered ( )

privateslot

Here is the call graph for this function:

on_m_select_all_act_triggered

void QETElementEditor::on_m_select_all_act_triggered ( )

privateslot

on_m_youtube_action_triggered

void QETElementEditor::on_m_youtube_action_triggered ( )

privateslot

on_m_zoom_fit_best_action_triggered

void QETElementEditor::on_m_zoom_fit_best_action_triggered ( )

privateslot

on_m_zoom_in_action_triggered

void QETElementEditor::on_m_zoom_in_action_triggered ( )

privateslot

on_m_zoom_original_action_triggered

void QETElementEditor::on_m_zoom_original_action_triggered ( )

privateslot

on_m_zoom_out_action_triggered

void QETElementEditor::on_m_zoom_out_action_triggered ( )

privateslot

openElement()

void QETElementEditor::openElement

(

const QString &

filepath

)

QETElementEditor::openElement OPen an element from @filepath.

Parameters

filepath

Here is the call graph for this function:

Here is the caller graph for this function:

pasteOffset()

QPointF QETElementEditor::pasteOffset ( )

static

QETElementEditor::pasteOffset.

Returns

the vertical and horizontal paste offset

readSettings()

void QETElementEditor::readSettings ( )

private

QETElementEditor::readSettings Read some setting about this widget in the QSetting of qelectrotech.

Here is the caller graph for this function:

readSettingsState()

void QETElementEditor::readSettingsState ( )

private

QETElementEditor::readSettingsState Restore the window state (docks, toolbars). Must be called AFTER show() in Qt6 for restoreState() to work correctly.

Here is the caller graph for this function:

saveToLocation

void QETElementEditor::saveToLocation ( ElementsLocation loc )

signal

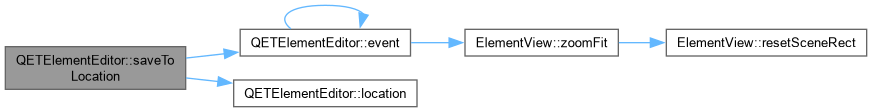

Here is the call graph for this function:

Here is the caller graph for this function:

setFileName()

void QETElementEditor::setFileName

(

const QString &

file_name

)

QETElementEditor::setFileName Set the file name of the edited element.

Parameters

file_name

Here is the call graph for this function:

Here is the caller graph for this function:

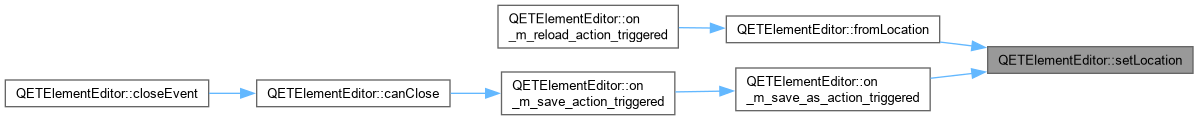

setLocation()

void QETElementEditor::setLocation

(

const ElementsLocation &

location

)

QETElementEditor::setLocation Set the location to edit.

Parameters

location

Here is the call graph for this function:

Here is the caller graph for this function:

setNames()

void QETElementEditor::setNames

(

const NamesList &

name_list

)

QETElementEditor::setNames Set the names list of the edited element.

Parameters

name_list

setReadOnly()

void QETElementEditor::setReadOnly

(

bool

ro

)

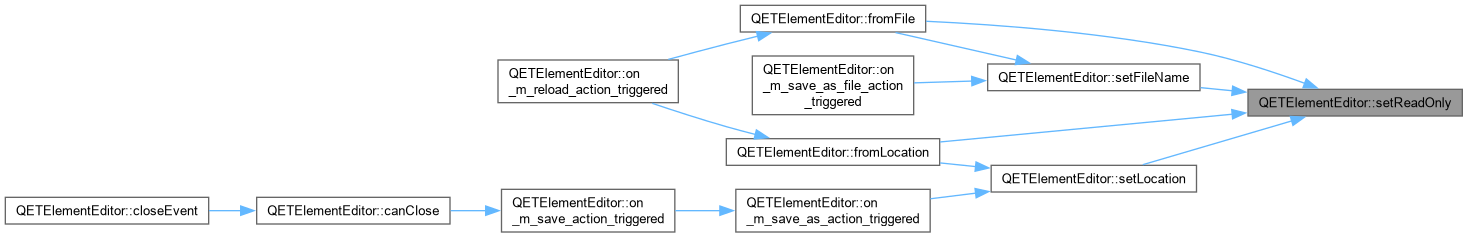

Here is the call graph for this function:

Here is the caller graph for this function:

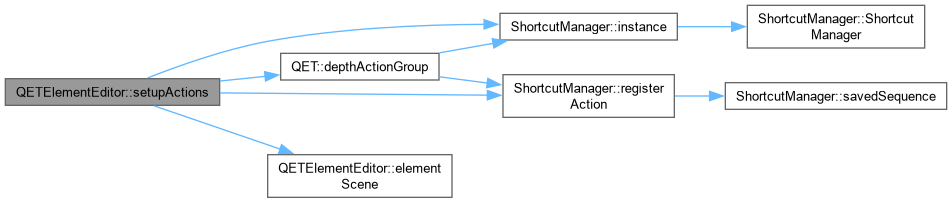

setupActions()

void QETElementEditor::setupActions ( )

private

QETElementEditor::setupActions.

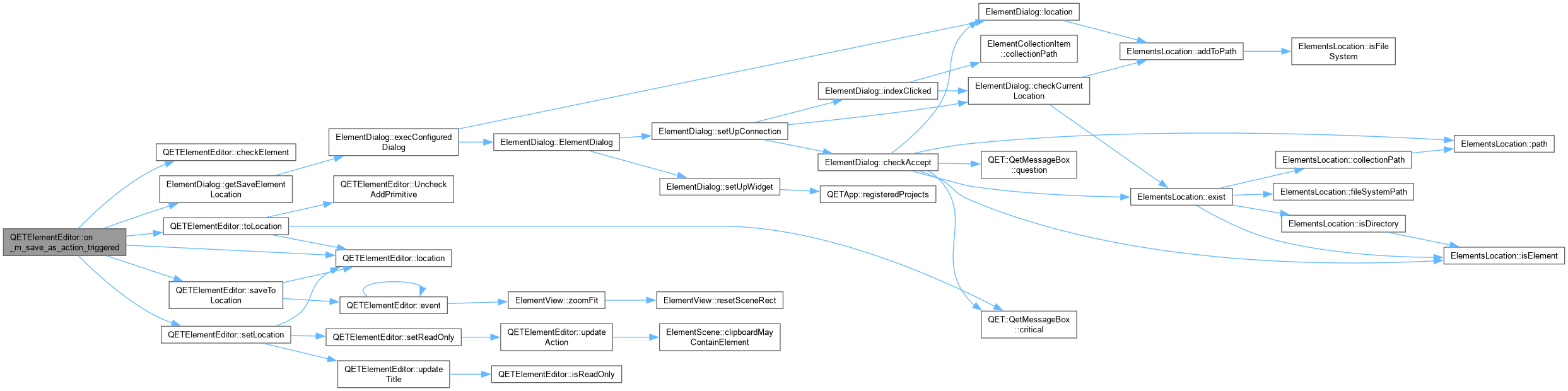

Here is the call graph for this function:

Here is the caller graph for this function:

setupConnection()

void QETElementEditor::setupConnection ( )

private

QETElementEditor::setupConnection.

Here is the call graph for this function:

Here is the caller graph for this function:

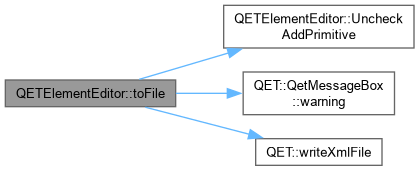

toFile()

bool QETElementEditor::toFile

(

const QString &

filepath

)

QETElementEditor::toFile Save to a file the current edited element.

Parameters

filepath

: path of the file

Returns

true if success

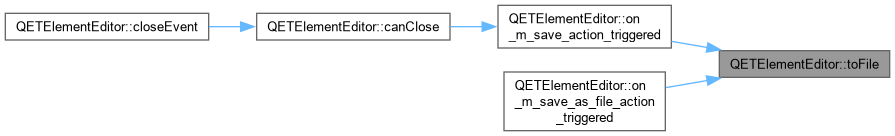

Here is the call graph for this function:

Here is the caller graph for this function:

toLocation()

bool QETElementEditor::toLocation

(

const ElementsLocation &

location

)

QETElementEditor::toLocation Save the edited element into @location.

Parameters

location

Returns

true if successfully saved

Here is the call graph for this function:

Here is the caller graph for this function:

UncheckAddPrimitive()

void QETElementEditor::UncheckAddPrimitive

(

)

QETElementEditor::UncheckAddPrimitive.

Here is the caller graph for this function:

updateAction()

void QETElementEditor::updateAction ( )

private

QETElementEditor::updateAction Update actions.

Here is the call graph for this function:

Here is the caller graph for this function:

updateCurrentPartEditor()

void QETElementEditor::updateCurrentPartEditor

(

)

QETElementEditor::updateCurrentPartEditor.

updateInformations()

void QETElementEditor::updateInformations

(

)

QETElementEditor::updateInformations Update the information and editor dock.

Here is the call graph for this function:

Here is the caller graph for this function:

updatePartsList()

void QETElementEditor::updatePartsList

(

)

QETElementEditor::updatePartsList.

Here is the call graph for this function:

Here is the caller graph for this function:

updateSelectionFromPartsList()

void QETElementEditor::updateSelectionFromPartsList

(

)

QETElementEditor::updateSelectionFromPartsList.

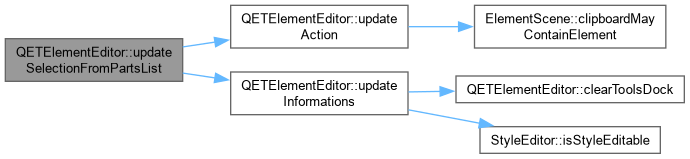

Here is the call graph for this function:

Here is the caller graph for this function:

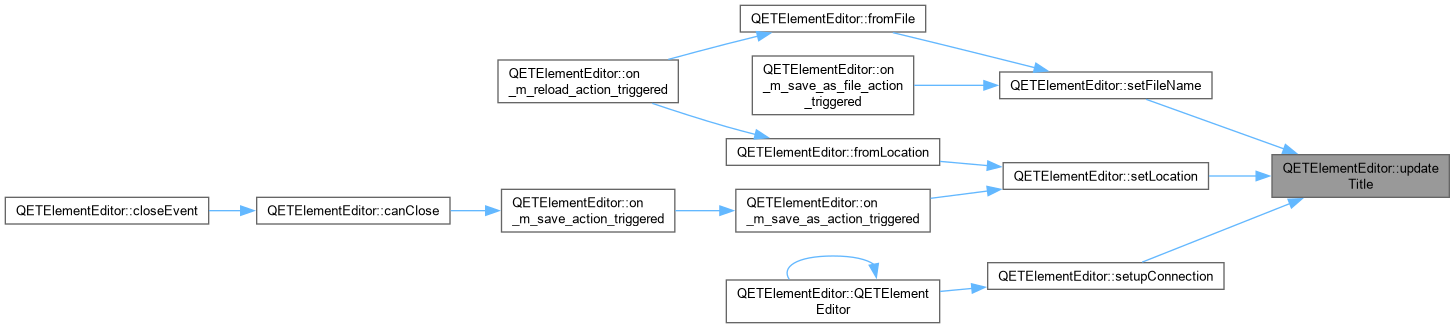

updateTitle()

void QETElementEditor::updateTitle

(

)

QETElementEditor::updateTitle Update the title of the windows.

Here is the call graph for this function:

Here is the caller graph for this function:

writeSettings()

void QETElementEditor::writeSettings ( ) const

private

QETElementEditor::writeSettings Write some setting of this widget in the QSetting of qelectrotech.

Here is the caller graph for this function:

Member Data Documentation

m_add_part_action_grp

QActionGroup* QETElementEditor::m_add_part_action_grp = nullptr

private

m_context_menu_action_list

QList<QAction *> QETElementEditor::m_context_menu_action_list

private

m_default_informations

QLabel* QETElementEditor::m_default_informations = nullptr

private

m_depth_action_group

QActionGroup * QETElementEditor::m_depth_action_group = nullptr

private

m_editors

QHash<QString, ElementItemEditor *> QETElementEditor::m_editors

private

Hash associating primitive names with their matching edition widget.

m_elmt_scene

ElementScene* QETElementEditor::m_elmt_scene = nullptr

private

m_file_name

QString QETElementEditor::m_file_name

private

m_first_activation

bool QETElementEditor::m_first_activation = true

private

m_location

ElementsLocation QETElementEditor::m_location

private

m_min_title

QString QETElementEditor::m_min_title

private

m_opened_from_file

bool QETElementEditor::m_opened_from_file = false

private

m_parts_list

QListWidget* QETElementEditor::m_parts_list = nullptr

private

m_position_label

QLabel* QETElementEditor::m_position_label = nullptr

private

m_read_only

bool QETElementEditor::m_read_only = false

private

m_redo_action

QAction * QETElementEditor::m_redo_action = nullptr

private

m_tools_dock_stack

QStackedWidget* QETElementEditor::m_tools_dock_stack = nullptr

private

m_undo_action

QAction* QETElementEditor::m_undo_action = nullptr

private

m_view

ElementView* QETElementEditor::m_view = nullptr

private

ui

Ui::QETElementEditor* QETElementEditor::ui

private

---

The documentation for this class was generated from the following files:

• sources/editor/ui/qetelementeditor.h
• sources/editor/ui/qetelementeditor.cpp
