RecentFiles Class Reference

#include <recentfiles.h>

Inherits QObject.

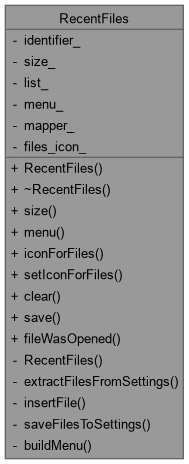

Collaboration diagram for RecentFiles:

Public Slots
void	clear ()
void	save ()
void	fileWasOpened (const QString &)

Signals
void	fileOpeningRequested (const QString &)

Public Member Functions
	RecentFiles (const QString &, int=10, QObject *=nullptr)
	~RecentFiles () override
int	size () const
QMenu *	menu () const
QIcon	iconForFiles () const
void	setIconForFiles (const QIcon &)

Private Member Functions
	RecentFiles (const RecentFiles &)
void	extractFilesFromSettings ()
	RecentFiles::extractFilesFromSettings Read the list of recent file from settings.
void	insertFile (const QString &)
void	saveFilesToSettings ()
	RecentFiles::saveFilesToSettings Write the list of recent files to settings.
void	buildMenu ()

Private Attributes
QString	identifier_
int	size_
QList< QString >	list_
QMenu *	menu_
QSignalMapper *	mapper_
QIcon	files_icon_

Detailed Description

This class provides a way to manage recently opened files.

Constructor & Destructor Documentation

RecentFiles() [1/2]

RecentFiles::RecentFiles	(	const QString &	identifier,
		int	size = 10,
		QObject *	parent = nullptr )

Constructeur

Parameters

identifier	prefixe a utiliser pour recuperer les fichiers recents dans la configuration de l'application
size	Nombre de fichiers recents a retenir
parent	QObject parent

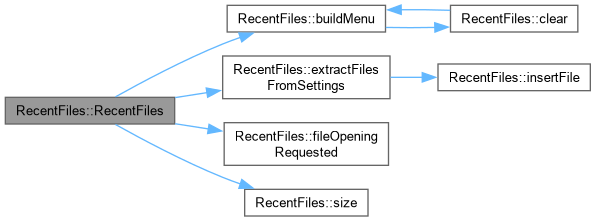

Here is the call graph for this function:

Here is the caller graph for this function:

~RecentFiles()

RecentFiles::~RecentFiles ( )

override

Destructeur

Todo

determiner s'il faut detruire ou non le menu

RecentFiles() [2/2]

RecentFiles::RecentFiles ( const RecentFiles & )

private

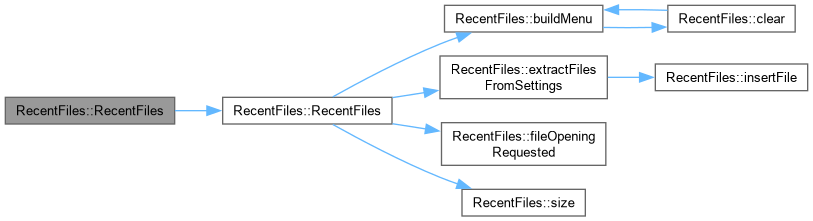

Here is the call graph for this function:

Member Function Documentation

buildMenu()

void RecentFiles::buildMenu ( )

private

Construit le menu

Here is the call graph for this function:

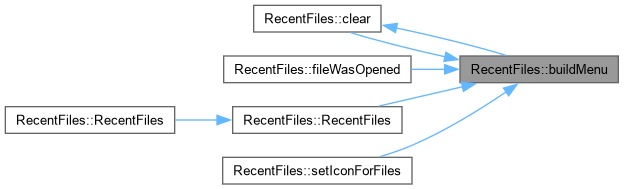

Here is the caller graph for this function:

clear

void RecentFiles::clear ( )

slot

Oublie les fichiers recents

Here is the call graph for this function:

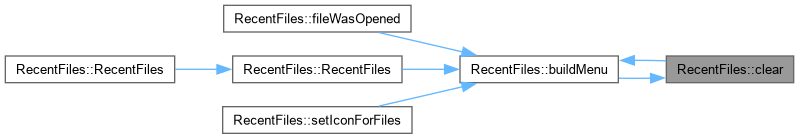

Here is the caller graph for this function:

extractFilesFromSettings()

void RecentFiles::extractFilesFromSettings ( )

private

RecentFiles::extractFilesFromSettings Read the list of recent file from settings.

Here is the call graph for this function:

Here is the caller graph for this function:

fileOpeningRequested

void RecentFiles::fileOpeningRequested ( const QString & )

signal

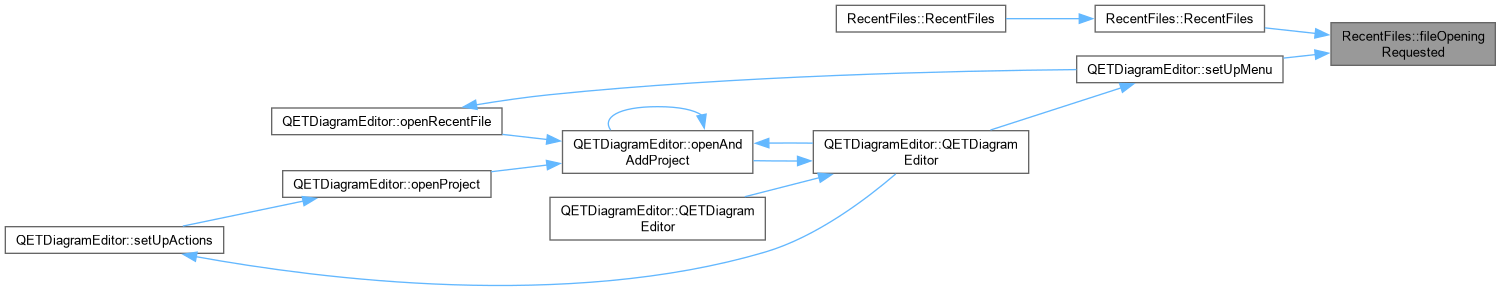

Here is the caller graph for this function:

fileWasOpened

void RecentFiles::fileWasOpened ( const QString & filepath )

slot

Gere le fait qu'un fichier ait ete ouvert

Parameters

filepath

Chemin du fichier ouvert

Here is the call graph for this function:

iconForFiles()

QIcon RecentFiles::iconForFiles

(

)

const

Returns

l'icone affichee a cote de chaque fichier, ou une QIcon nulle si aucune icone n'est utilisee.

insertFile()

void RecentFiles::insertFile ( const QString & filepath )

private

Insere un fichier dans la liste des fichiers recents

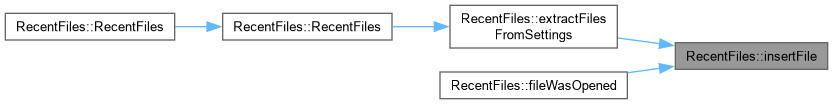

Here is the caller graph for this function:

menu()

QMenu * RecentFiles::menu

(

)

const

Returns

un menu listant les derniers fichiers ouverts

save

void RecentFiles::save ( )

slot

Sauvegarde les fichiers recents dans la configuration

Here is the call graph for this function:

saveFilesToSettings()

void RecentFiles::saveFilesToSettings ( )

private

RecentFiles::saveFilesToSettings Write the list of recent files to settings.

Here is the caller graph for this function:

setIconForFiles()

void RecentFiles::setIconForFiles

(

const QIcon &

icon

)

Definit l'icone a afficher a cote de chaque fichier. Si une QIcon nulle est fournie, aucune icone n'est utilisee.

Parameters

icon	Icone a afficher a cote de chaque fichier

Here is the call graph for this function:

size()

int RecentFiles::size

(

)

const

Returns

le nombre de fichiers a retenir

Here is the caller graph for this function:

Member Data Documentation

files_icon_

QIcon RecentFiles::files_icon_

private

identifier_

QString RecentFiles::identifier_

private

list_

QList<QString> RecentFiles::list_

private

mapper_

QSignalMapper* RecentFiles::mapper_

private

menu_

QMenu* RecentFiles::menu_

private

size_

int RecentFiles::size_

private

---

The documentation for this class was generated from the following files:

• sources/recentfiles.h
• sources/recentfiles.cpp
