The CustomElementPart class This abstract class represents a primitive of the visual representation of an electrical element. The Element, FixedElement and CustomElement classes do not embed its attributes and methods in order to remain lightweight; indeed, there is no point for those classes to store their visual representation with anything more complex than a QImage. More...

#include <customelementpart.h>

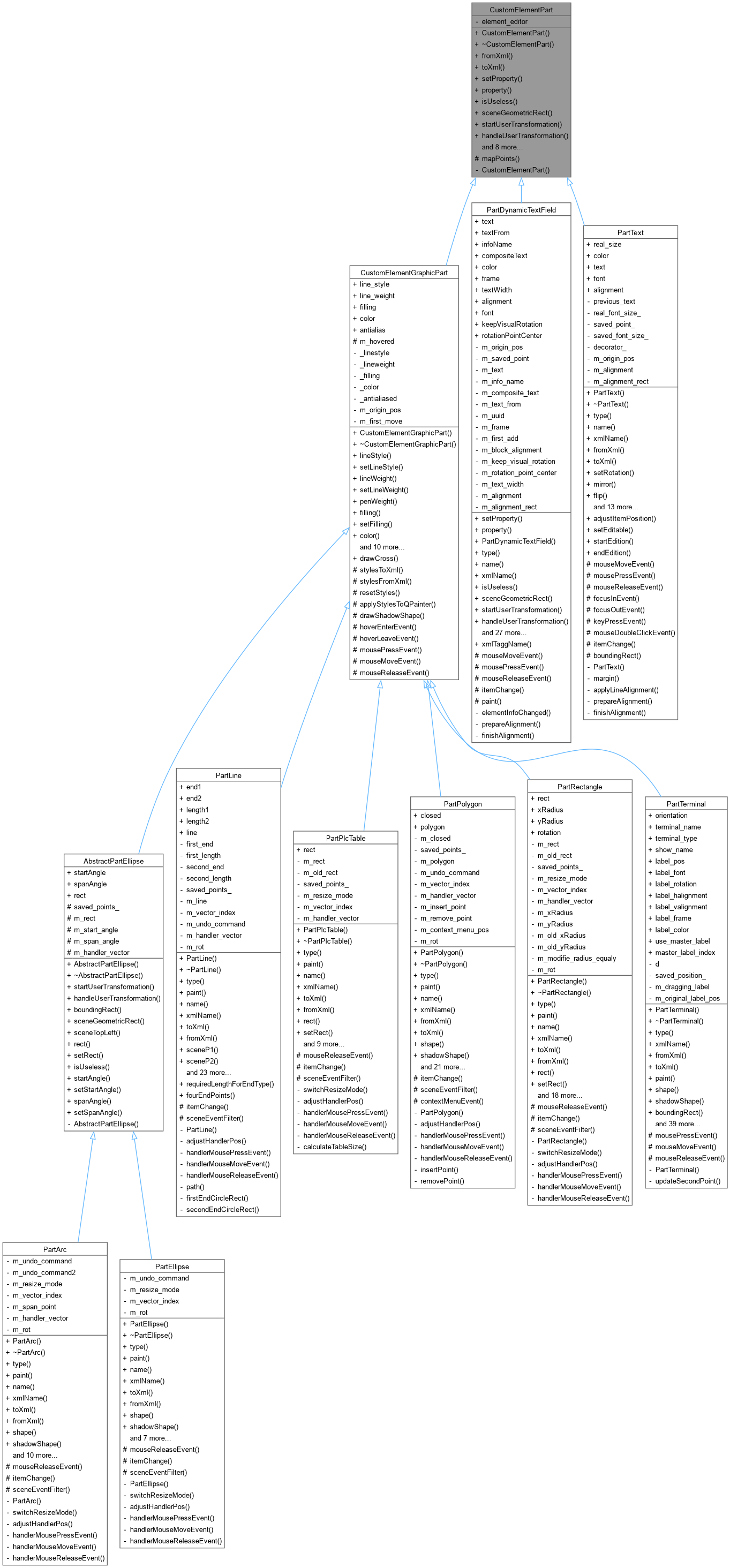

Inheritance diagram for CustomElementPart:

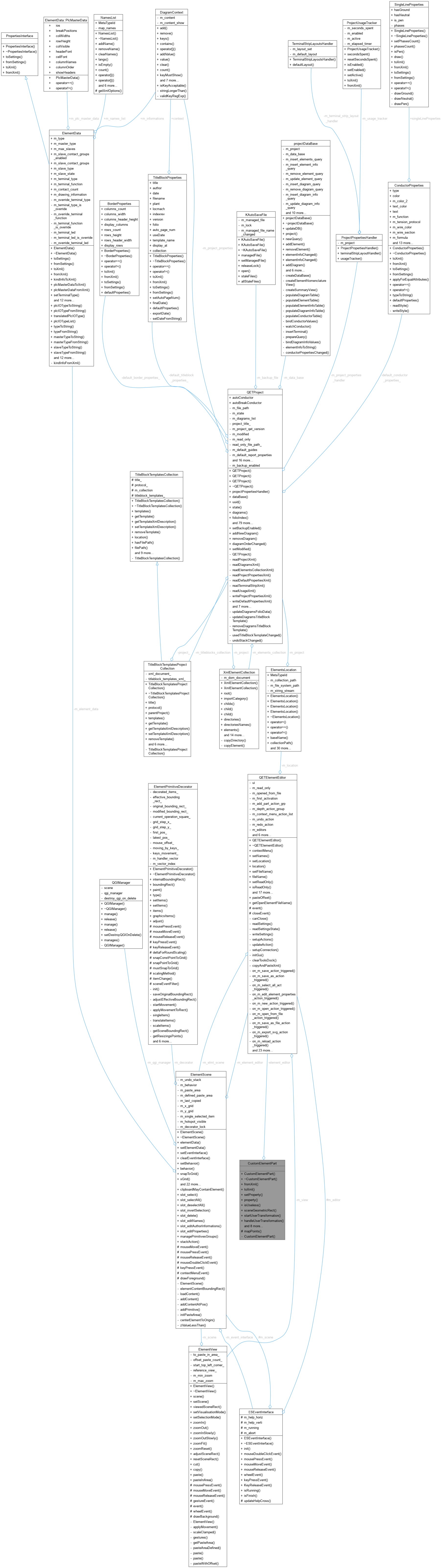

Collaboration diagram for CustomElementPart:

Public Member Functions
	CustomElementPart (QETElementEditor *editor)
	CustomElementPart Constructor.
virtual	~CustomElementPart ()
	~CustomElementPart Destructor
virtual void	fromXml (const QDomElement &)=0
virtual const QDomElement	toXml (QDomDocument &) const =0
virtual void	setProperty (const char *name, const QVariant &value)=0
virtual QVariant	property (const char *name) const =0
virtual bool	isUseless () const =0
virtual QRectF	sceneGeometricRect () const =0
virtual void	startUserTransformation (const QRectF &)=0
virtual void	handleUserTransformation (const QRectF &, const QRectF &)=0
virtual QETElementEditor *	elementEditor () const
virtual void	updateCurrentPartEditor () const
virtual ElementScene *	elementScene () const

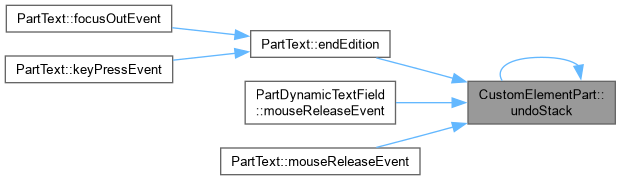

virtual QUndoStack &	undoStack () const
virtual QString	name () const =0
virtual QString	xmlName () const =0
virtual QGraphicsItem *	toItem ()
virtual QET::ScalingMethod	preferredScalingMethod () const

Protected Member Functions
QList< QPointF >	mapPoints (const QRectF &, const QRectF &, const QList< QPointF > &)

Private Member Functions
	CustomElementPart (const CustomElementPart &)

Private Attributes
QETElementEditor *	element_editor

Detailed Description

The CustomElementPart class This abstract class represents a primitive of the visual representation of an electrical element. The Element, FixedElement and CustomElement classes do not embed its attributes and methods in order to remain lightweight; indeed, there is no point for those classes to store their visual representation with anything more complex than a QImage.

Constructor & Destructor Documentation

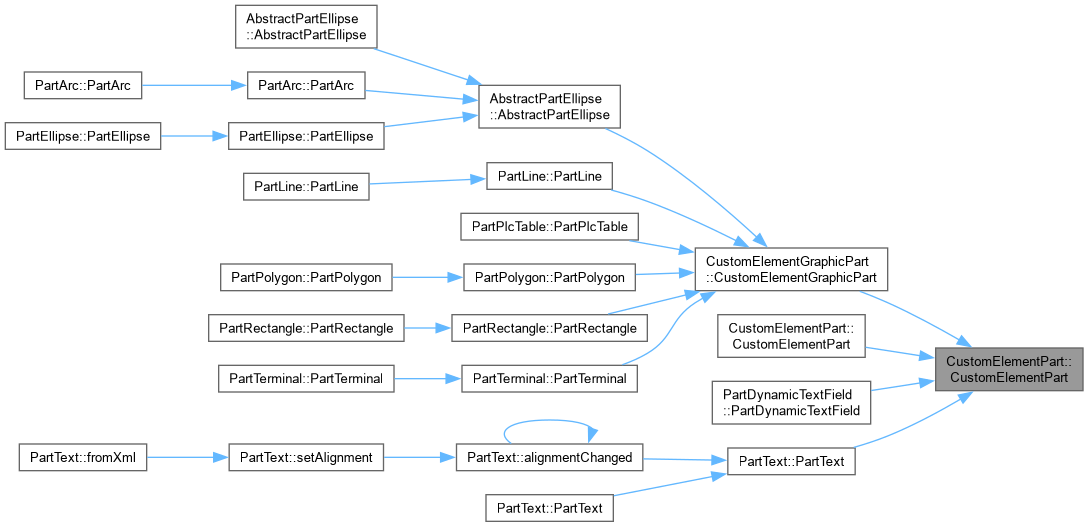

◆ CustomElementPart() [1/2]

CustomElementPart::CustomElementPart ( QETElementEditor * editor )

inline

CustomElementPart Constructor.

Parameters

editor Element editor this primitive is attached to

Here is the caller graph for this function:

◆ ~CustomElementPart()

virtual CustomElementPart::~CustomElementPart ( )

inlinevirtual

~CustomElementPart Destructor

◆ CustomElementPart() [2/2]

CustomElementPart::CustomElementPart ( const CustomElementPart & )

private

Here is the call graph for this function:

Member Function Documentation

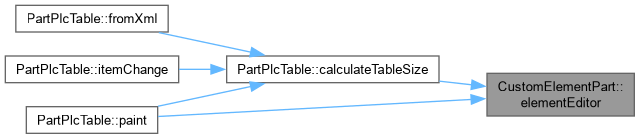

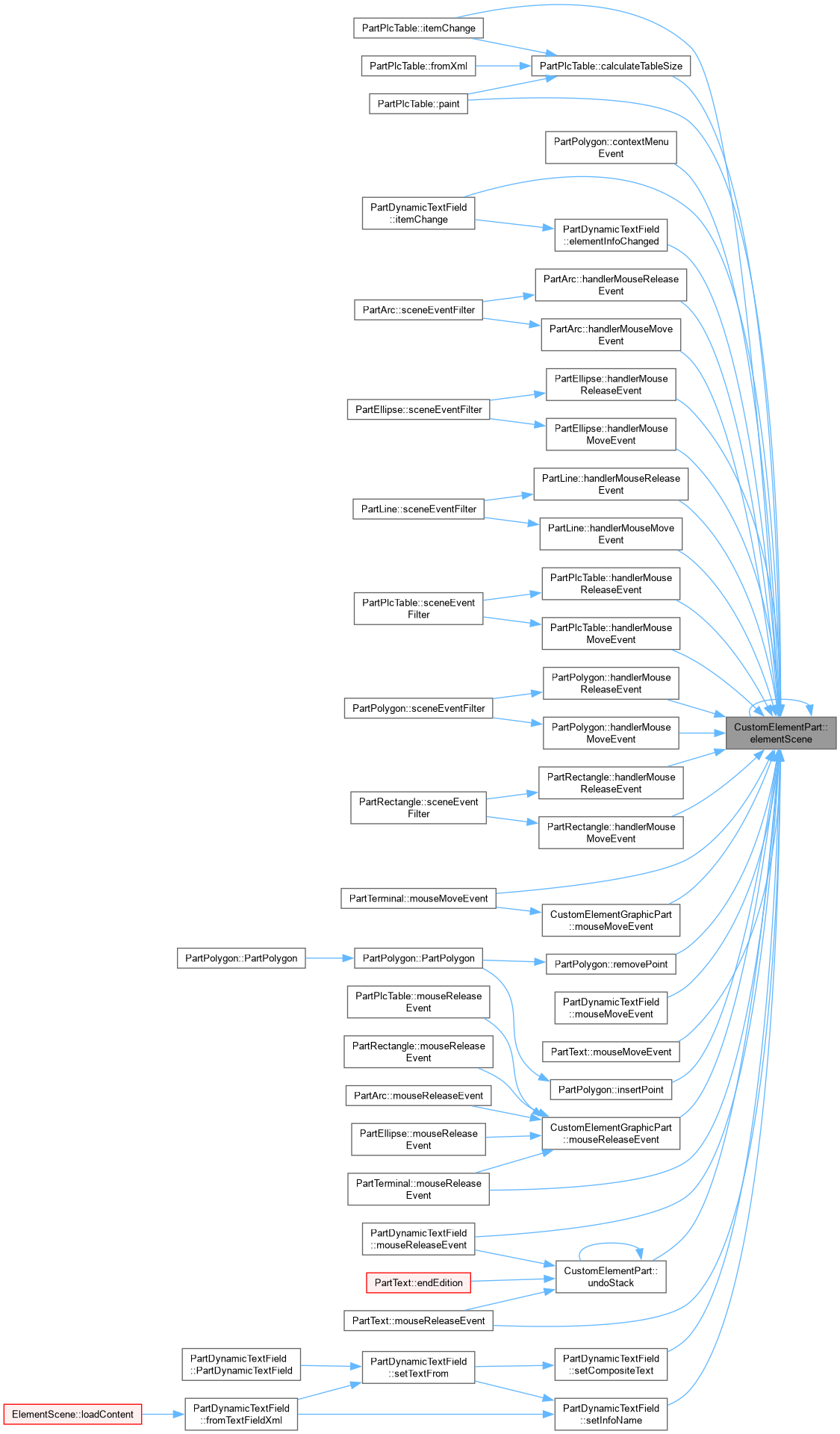

◆ elementEditor()

QETElementEditor * CustomElementPart::elementEditor ( ) const

virtual

Returns: a pointer to the parent element editor; le QETElementEditor auquel cet editeur appartient

Here is the caller graph for this function:

◆ elementScene()

ElementScene * CustomElementPart::elementScene ( ) const

virtual

Returns: a pointer to the parent editing scene; l'ElementScene contenant les parties editees par cet editeur

Here is the call graph for this function:

Here is the caller graph for this function:

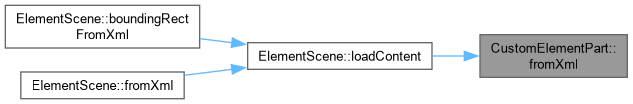

◆ fromXml()

virtual void CustomElementPart::fromXml ( const QDomElement & )

pure virtual

Load the primitive from an XML element that describes it

Implemented in PartArc, PartDynamicTextField, PartEllipse, PartLine, PartPlcTable, PartPolygon, PartRectangle, PartTerminal, and PartText.

Here is the caller graph for this function:

◆ handleUserTransformation()

virtual void CustomElementPart::handleUserTransformation	(	const QRectF &	,
		const QRectF &	)

pure virtual

Make this part fit into the provided rectangle.

Implemented in AbstractPartEllipse, PartDynamicTextField, PartLine, PartPlcTable, PartPolygon, PartRectangle, PartTerminal, and PartText.

◆ isUseless()

virtual bool CustomElementPart::isUseless ( ) const

pure virtual

Returns: whether the primitive appears to be useless (e.g. 0-length line) Typically, useless primitives are discarded when saving the element.

Implemented in AbstractPartEllipse, PartDynamicTextField, PartLine, PartPlcTable, PartPolygon, PartRectangle, PartTerminal, and PartText.

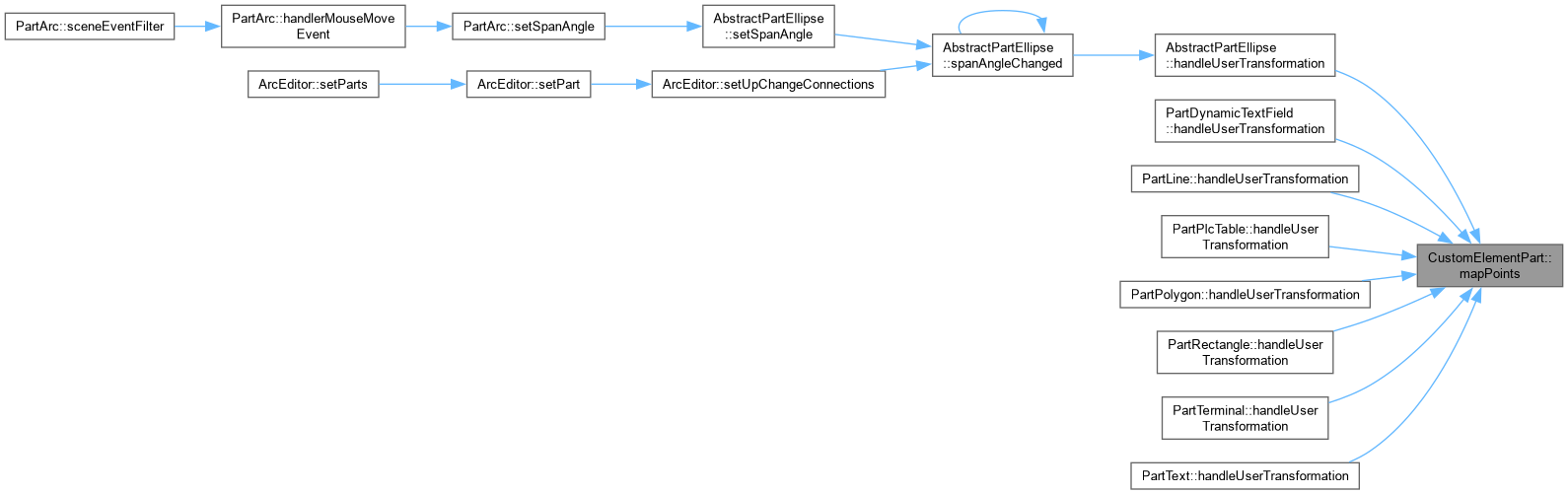

◆ mapPoints()

QList< QPointF > CustomElementPart::mapPoints	(	const QRectF &	initial_selection_rect,
		const QRectF &	new_selection_rect,
		const QList< QPointF > &	points )

protected

Helper method to map points in CustomElementPart::handleUserTransformation()

Parameters

initial_selection_rect	Selection rectangle when the movement started, in scene coordinates
new_selection_rect	New selection rectangle, in scene coordinates
points	List of points when the movement started, in scene coordinates.

Returns: The list of points mapped from initial_selection_rect to new_selection_rect

Here is the caller graph for this function:

◆ name()

virtual QString CustomElementPart::name ( ) const

pure virtual

Returns: the name of the primitive

Implemented in PartArc, PartDynamicTextField, PartEllipse, PartLine, PartPlcTable, PartPolygon, PartRectangle, PartTerminal, and PartText.

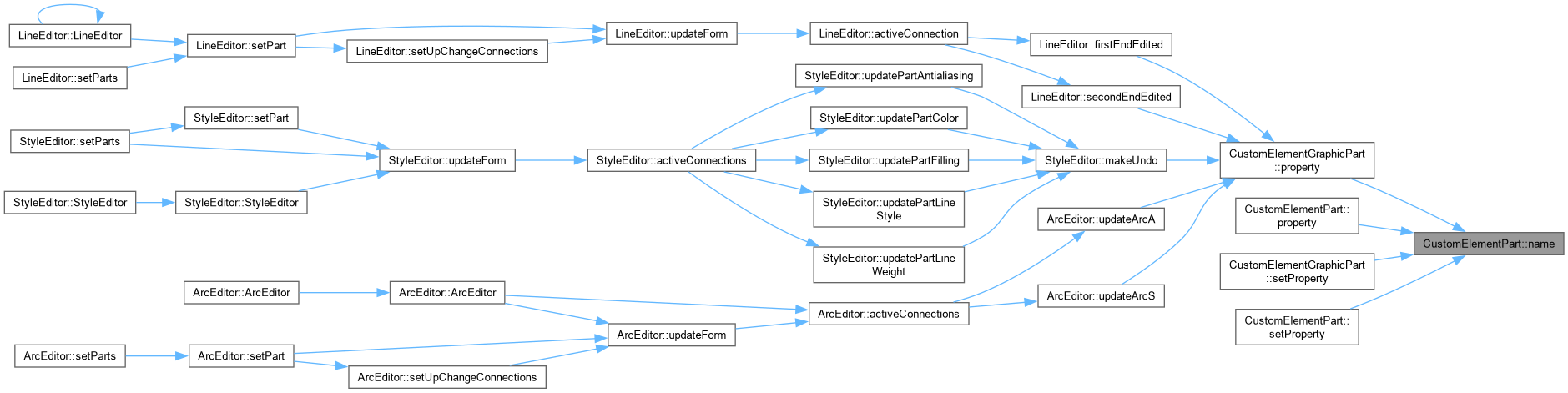

Here is the caller graph for this function:

◆ preferredScalingMethod()

QET::ScalingMethod CustomElementPart::preferredScalingMethod ( ) const

virtual

This method is called by the decorator when it needs to determine the best way to interactively scale a primitive. It is typically called when only a single primitive is being scaled. The default implementation systematically returns QET::SnapScalingPointToGrid

Reimplemented in PartPolygon.
