PartDynamicTextField Class Reference

The PartDynamicTextField class This class represents an editable dynamic text field which may be used to compose the drawing of an electrical element within the element editor. The field will remain editable once the element is added onto a diagram. More...

#include <partdynamictextfield.h>

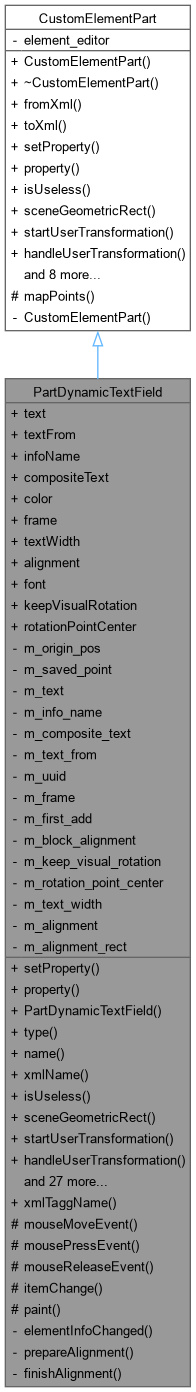

Inheritance diagram for PartDynamicTextField:

Collaboration diagram for PartDynamicTextField:

Public Types
enum	{ Type = UserType + 1110 }

Signals
void	taggChanged (QString tagg)
void	textChanged (QString text)
void	textFromChanged (DynamicElementTextItem::TextFrom text_from)
void	infoNameChanged (QString info)
void	compositeTextChanged (QString text)
void	colorChanged (QColor color)
void	frameChanged (bool frame)
void	textWidthChanged (qreal width)
void	alignmentChanged (Qt::Alignment alignment)
void	fontChanged (QFont font)
void	keepVisualRotationChanged (bool keep)
void	rotationPointCenterChanged (bool center)

Public Member Functions
void	setProperty (const char *name, const QVariant &value) override
	PROPERTY.
QVariant	property (const char *name) const override
	PartDynamicTextField (QETElementEditor *editor, QGraphicsItem *parent=nullptr)
int	type () const override
QString	name () const override
QString	xmlName () const override
bool	isUseless () const override
QRectF	sceneGeometricRect () const override
void	startUserTransformation (const QRectF &initial_selection_rect) override
	PartDynamicTextField::startUserTransformation.
void	handleUserTransformation (const QRectF &initial_selection_rect, const QRectF &new_selection_rect) override
	PartDynamicTextField::handleUserTransformation.
const QDomElement	toXml (QDomDocument &dom_doc) const override
	PartDynamicTextField::toXml.
void	fromXml (const QDomElement &dom_elmt) override
	PartDynamicTextField::fromXml.
void	fromTextFieldXml (const QDomElement &dom_element)
	PartDynamicTextField::fromTextFieldXml Setup this text from the xml definition of a text field (The xml tagg of a text field is "input");.
DynamicElementTextItem::TextFrom	textFrom () const
	PartDynamicTextField::textFrom.
void	setTextFrom (DynamicElementTextItem::TextFrom text_from)
	PartDynamicTextField::setTextFrom Set the final text is created from.
QString	text () const
	PartDynamicTextField::text.
void	setText (const QString &text)
	PartDynamicTextField::setText Set the text of this text.
void	setInfoName (const QString &info_name)
QString	infoName () const
	PartDynamicTextField::infoName.
void	setCompositeText (const QString &text)
	PartDynamicTextField::setCompositeText Set the composite text of this text item to text.
QString	compositeText () const
	PartDynamicTextField::compositeText.
void	setColor (const QColor &color)
	PartDynamicTextField::setColor.
QColor	color () const
	PartDynamicTextField::color.
void	setFrame (bool frame)
bool	frame () const
void	setTextWidth (qreal width)
void	setPlainText (const QString &text)
void	setAlignment (Qt::Alignment alignment)
Qt::Alignment	alignment () const
void	setFont (const QFont &font)
void	setKeepVisualRotation (const bool &keep)
bool	keepVisualRotation () const
void	setRotationPointCenter (const bool &center)
bool	rotationPointCenter () const
void	setRotation (qreal angle)
void	mirror (qreal axis_x=0)
void	flip (qreal axis_y=0)
Public Member Functions inherited from CustomElementPart
	CustomElementPart (QETElementEditor *editor)
	CustomElementPart Constructor.
virtual	~CustomElementPart ()
	~CustomElementPart Destructor
virtual QETElementEditor *	elementEditor () const
virtual void	updateCurrentPartEditor () const
virtual ElementScene *	elementScene () const
virtual QUndoStack &	undoStack () const
virtual QGraphicsItem *	toItem ()
virtual QET::ScalingMethod	preferredScalingMethod () const

Static Public Member Functions
static QString	xmlTaggName ()

Protected Member Functions
void	mouseMoveEvent (QGraphicsSceneMouseEvent *event) override
	PartDynamicTextField::mouseMoveEvent.
void	mousePressEvent (QGraphicsSceneMouseEvent *event) override
	PartDynamicTextField::mousePressEvent.
void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event) override
	PartDynamicTextField::mouseReleaseEvent.
QVariant	itemChange (GraphicsItemChange change, const QVariant &value) override
	PartDynamicTextField::itemChange.
void	paint (QPainter *painter, const QStyleOptionGraphicsItem *option, QWidget *widget) override
Protected Member Functions inherited from CustomElementPart
QList< QPointF >	mapPoints (const QRectF &, const QRectF &, const QList< QPointF > &)

Properties
QString	text
DynamicElementTextItem::TextFrom	textFrom
QString	infoName
QString	compositeText
QColor	color
bool	frame
qreal	textWidth
Qt::Alignment	alignment
QFont	font
bool	keepVisualRotation
bool	rotationPointCenter

Private Member Functions
void	elementInfoChanged ()
	PartDynamicTextField::elementInfoChanged Used to up to date this text field, when the element information (see elementScene) changed.
void	prepareAlignment ()
void	finishAlignment ()

Private Attributes
QPointF	m_origin_pos
QPointF	m_saved_point
QString	m_text
QString	m_info_name
QString	m_composite_text
DynamicElementTextItem::TextFrom	m_text_from = DynamicElementTextItem::UserText
QUuid	m_uuid
bool	m_frame = false
bool	m_first_add = true
bool	m_block_alignment = false
bool	m_keep_visual_rotation = false
bool	m_rotation_point_center = false
qreal	m_text_width = -1
Qt::Alignment	m_alignment = Qt::AlignTop|Qt::AlignLeft
QRectF	m_alignment_rect

Detailed Description

The PartDynamicTextField class This class represents an editable dynamic text field which may be used to compose the drawing of an electrical element within the element editor. The field will remain editable once the element is added onto a diagram.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
Type

Constructor & Destructor Documentation

PartDynamicTextField()

PartDynamicTextField::PartDynamicTextField	(	QETElementEditor *	editor,
		QGraphicsItem *	parent = nullptr )

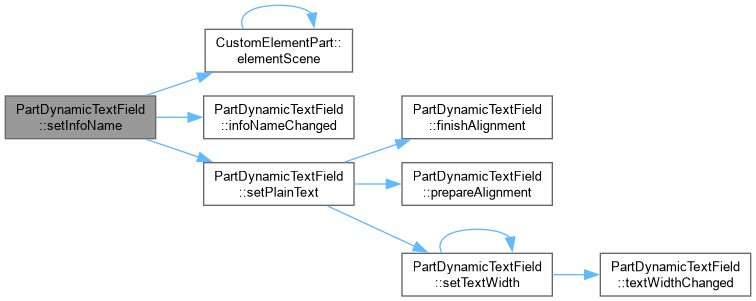

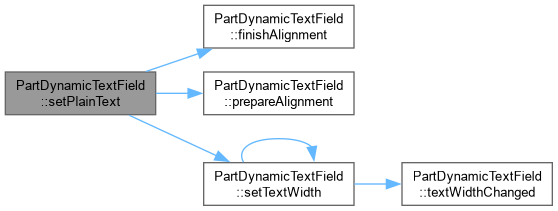

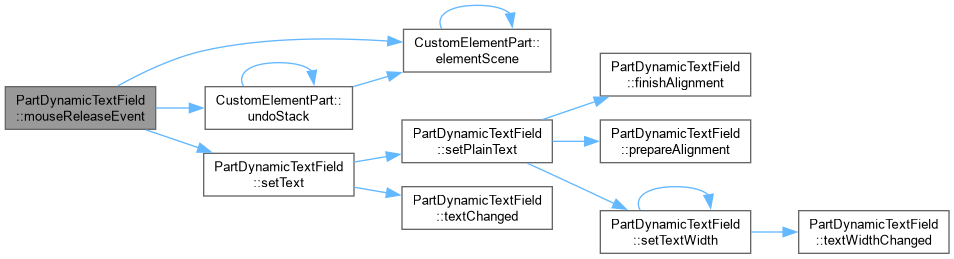

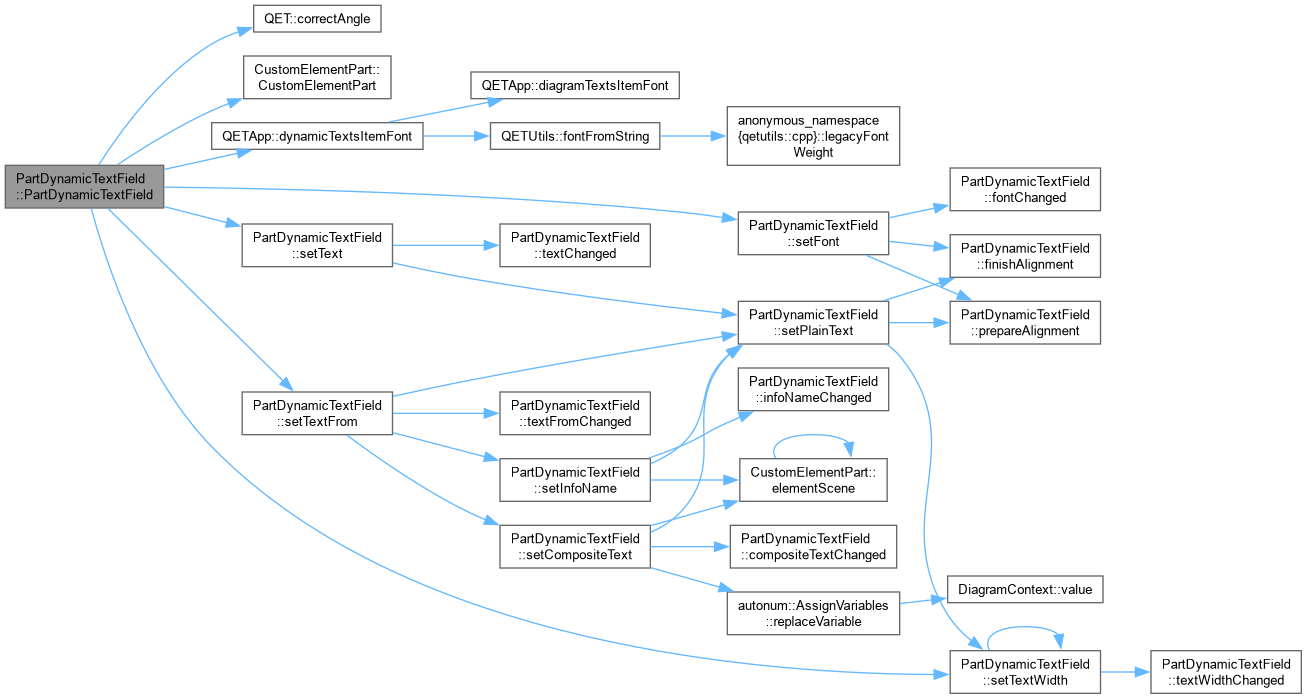

Here is the call graph for this function:

Member Function Documentation

alignment()

Qt::Alignment PartDynamicTextField::alignment

(

)

const

alignmentChanged

void PartDynamicTextField::alignmentChanged ( Qt::Alignment alignment )

signal

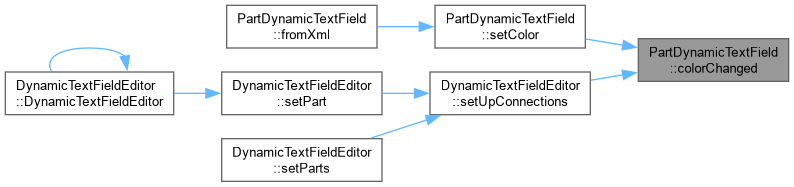

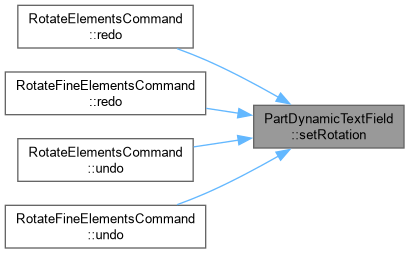

Here is the caller graph for this function:

color()

QColor PartDynamicTextField::color

(

)

const

PartDynamicTextField::color.

Returns

The color of this text

colorChanged

void PartDynamicTextField::colorChanged ( QColor color )

signal

Here is the caller graph for this function:

compositeText()

QString PartDynamicTextField::compositeText

(

)

const

PartDynamicTextField::compositeText.

Returns

the composite text of this text

compositeTextChanged

void PartDynamicTextField::compositeTextChanged ( QString text )

signal

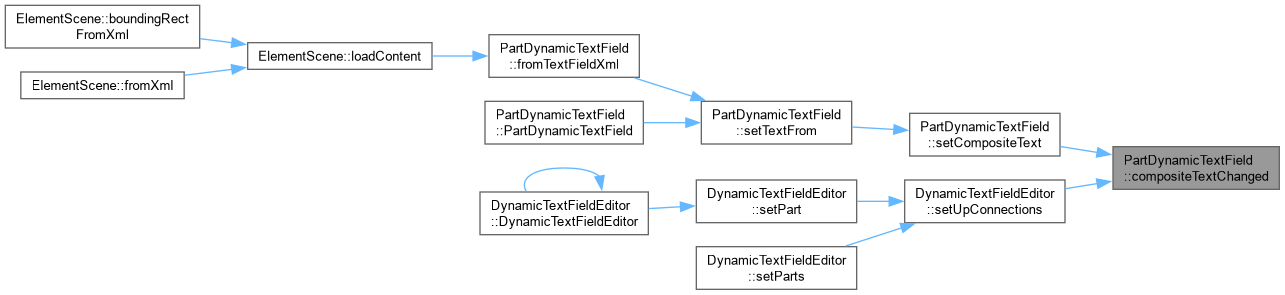

Here is the caller graph for this function:

elementInfoChanged()

void PartDynamicTextField::elementInfoChanged ( )

private

PartDynamicTextField::elementInfoChanged Used to up to date this text field, when the element information (see elementScene) changed.

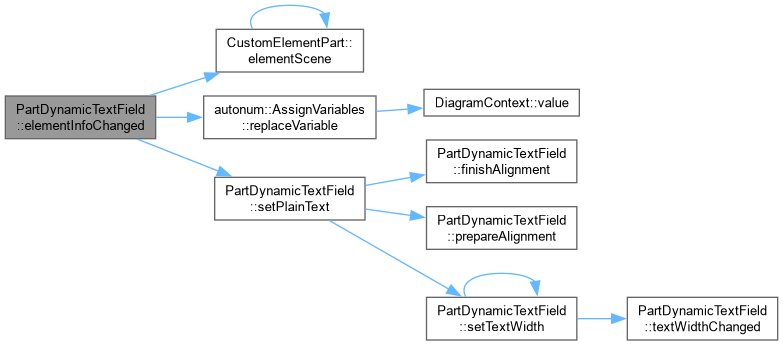

Here is the call graph for this function:

Here is the caller graph for this function:

finishAlignment()

void PartDynamicTextField::finishAlignment ( )

private

Here is the caller graph for this function:

flip()

void PartDynamicTextField::flip

(

qreal

axis_y = 0

)

Here is the call graph for this function:

Here is the caller graph for this function:

fontChanged

void PartDynamicTextField::fontChanged ( QFont font )

signal

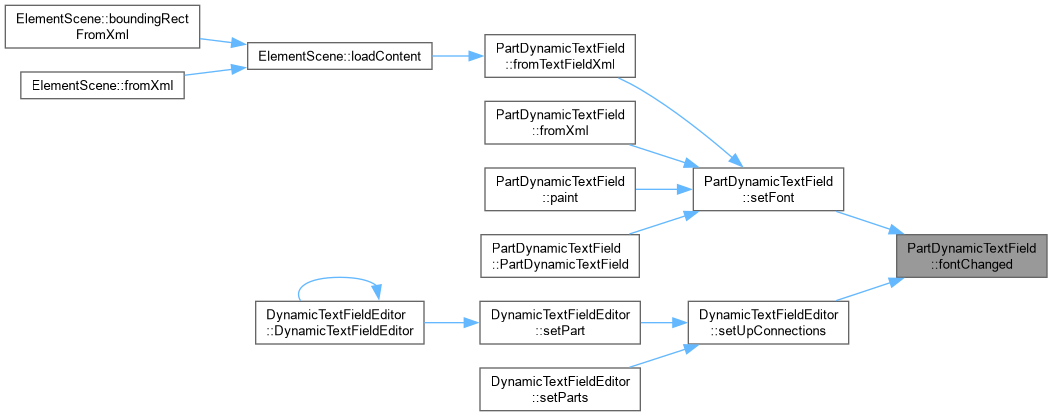

Here is the caller graph for this function:

frame()

bool PartDynamicTextField::frame

(

)

const

frameChanged

void PartDynamicTextField::frameChanged ( bool frame )

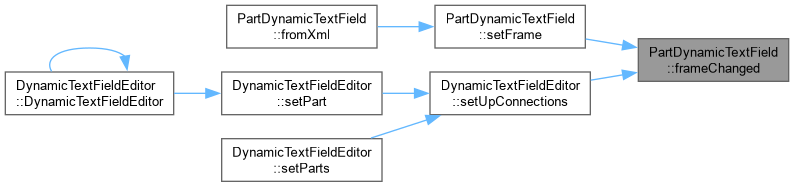

signal

Here is the caller graph for this function:

fromTextFieldXml()

void PartDynamicTextField::fromTextFieldXml

(

const QDomElement &

dom_element

)

PartDynamicTextField::fromTextFieldXml Setup this text from the xml definition of a text field (The xml tagg of a text field is "input");.

Parameters

dom_element

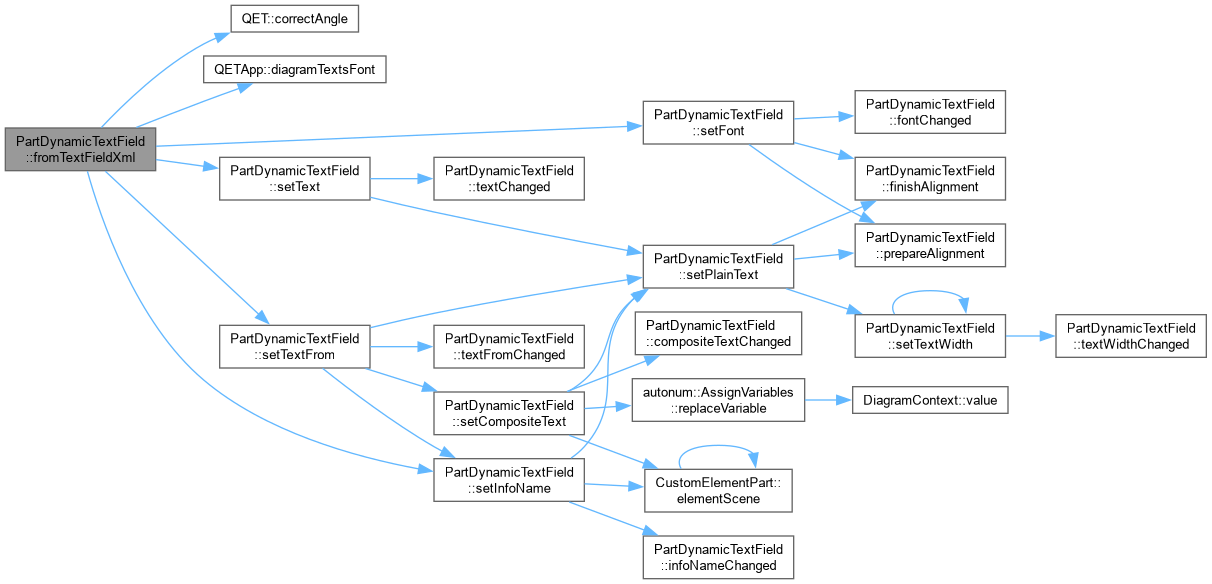

Here is the call graph for this function:

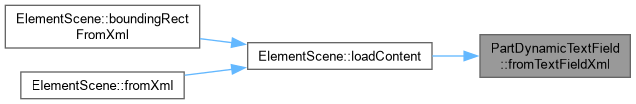

Here is the caller graph for this function:

fromXml()

void PartDynamicTextField::fromXml ( const QDomElement & dom_elmt )

overridevirtual

PartDynamicTextField::fromXml.

Parameters

dom_elmt

Implements CustomElementPart.

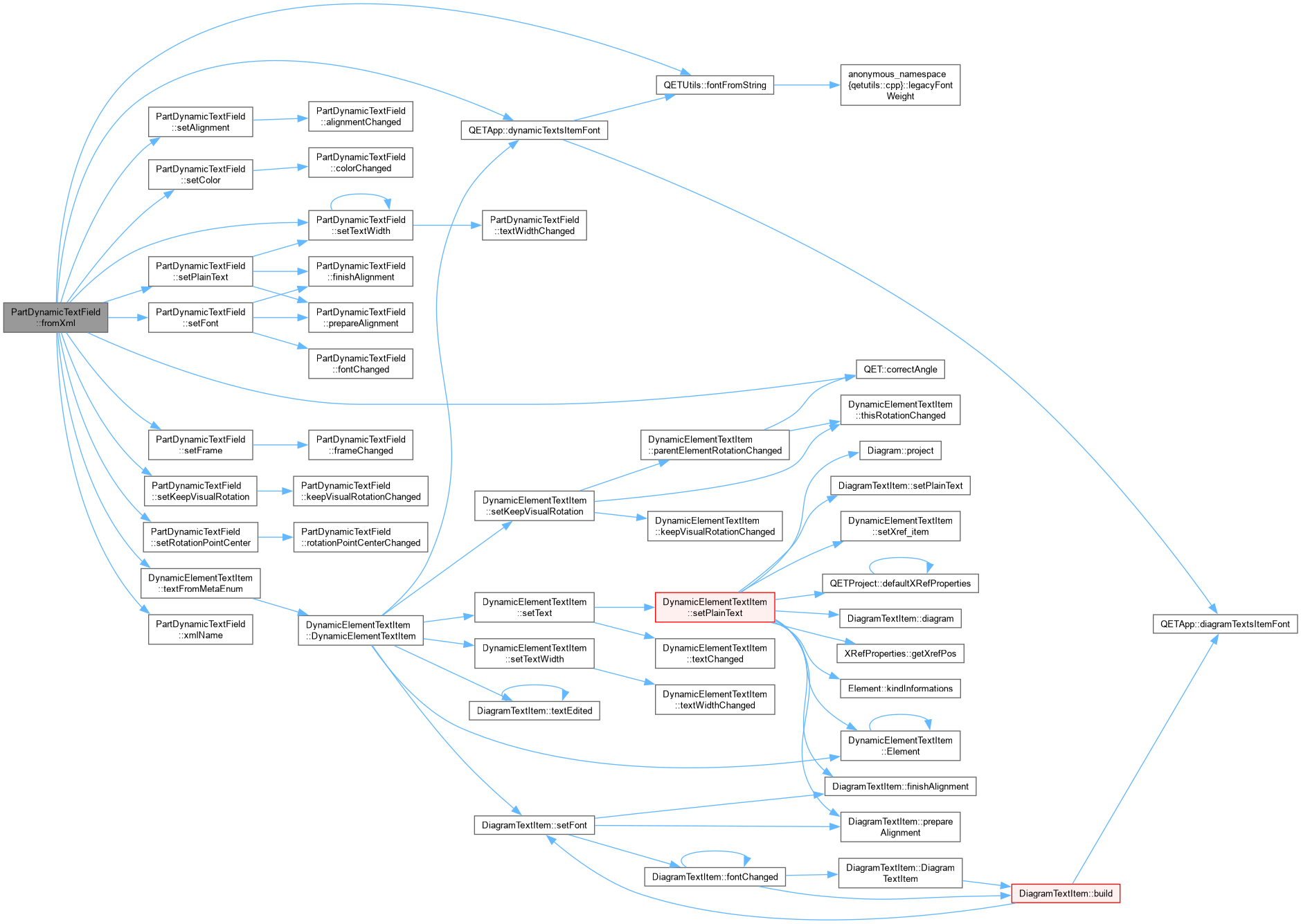

Here is the call graph for this function:

handleUserTransformation()

void PartDynamicTextField::handleUserTransformation ( const QRectF & initial_selection_rect, const QRectF & new_selection_rect )

overridevirtual

PartDynamicTextField::handleUserTransformation.

Parameters

initial_selection_rect
new_selection_rect	Handle the user-induced transformation from initial_selection_rect to new_selection_rect

Implements CustomElementPart.

Here is the call graph for this function:

infoName()

QString PartDynamicTextField::infoName

(

)

const

PartDynamicTextField::infoName.

Returns

the info name of this text

infoNameChanged

void PartDynamicTextField::infoNameChanged ( QString info )

signal

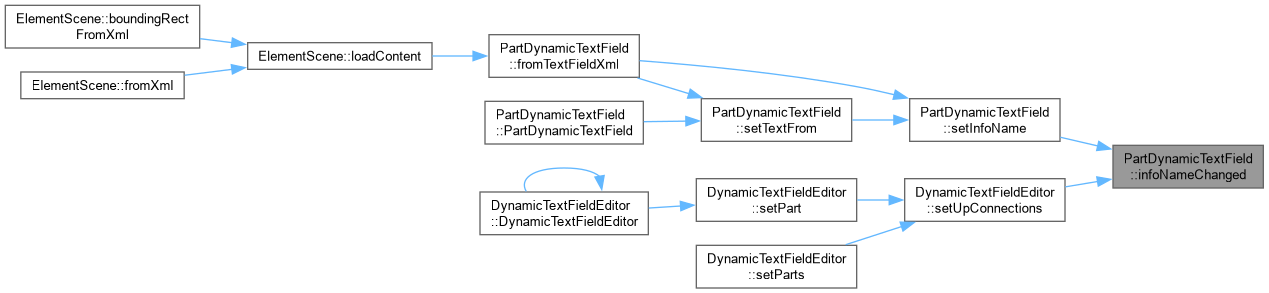

Here is the caller graph for this function:

isUseless()

bool PartDynamicTextField::isUseless ( ) const

inlineoverridevirtual

Returns

whether the primitive appears to be useless (e.g. 0-length line) Typically, useless primitives are discarded when saving the element.

Implements CustomElementPart.

itemChange()

QVariant PartDynamicTextField::itemChange ( GraphicsItemChange change, const QVariant & value )

overrideprotected

PartDynamicTextField::itemChange.

Parameters

change
value

Returns

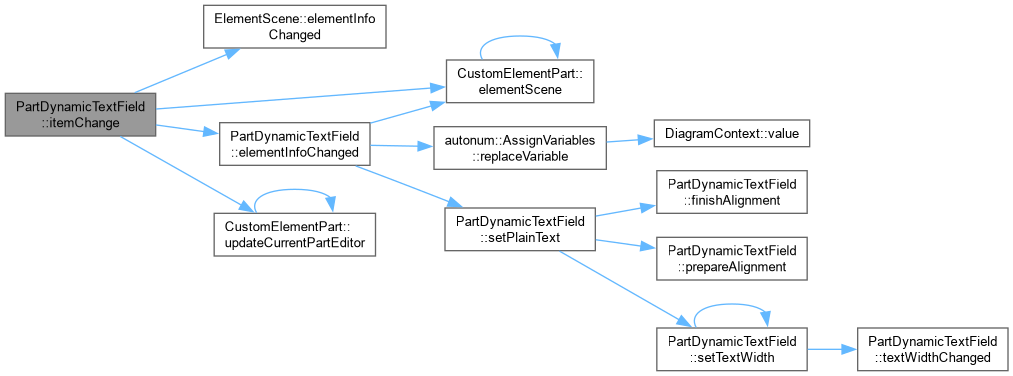

Here is the call graph for this function:

keepVisualRotation()

bool PartDynamicTextField::keepVisualRotation

(

)

const

keepVisualRotationChanged

void PartDynamicTextField::keepVisualRotationChanged ( bool keep )

signal

Here is the caller graph for this function:

mirror()

void PartDynamicTextField::mirror

(

qreal

axis_x = 0

)

Here is the call graph for this function:

Here is the caller graph for this function:

mouseMoveEvent()

void PartDynamicTextField::mouseMoveEvent ( QGraphicsSceneMouseEvent * event )

overrideprotected

PartDynamicTextField::mouseMoveEvent.

Parameters

event

Here is the call graph for this function:

mousePressEvent()

void PartDynamicTextField::mousePressEvent ( QGraphicsSceneMouseEvent * event )

overrideprotected

PartDynamicTextField::mousePressEvent.

Parameters

event

mouseReleaseEvent()

void PartDynamicTextField::mouseReleaseEvent ( QGraphicsSceneMouseEvent * event )

overrideprotected

PartDynamicTextField::mouseReleaseEvent.

Parameters

event

Here is the call graph for this function:

name()

QString PartDynamicTextField::name ( ) const

overridevirtual

Returns

the name of the primitive

Implements CustomElementPart.

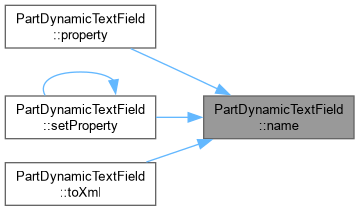

Here is the caller graph for this function:

paint()

void PartDynamicTextField::paint ( QPainter * painter, const QStyleOptionGraphicsItem * option, QWidget * widget )

overrideprotected

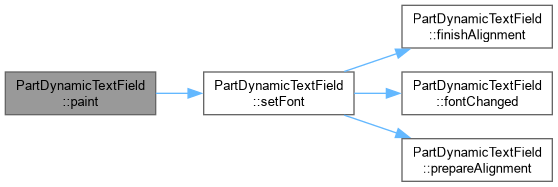

Here is the call graph for this function:

prepareAlignment()

void PartDynamicTextField::prepareAlignment ( )

private

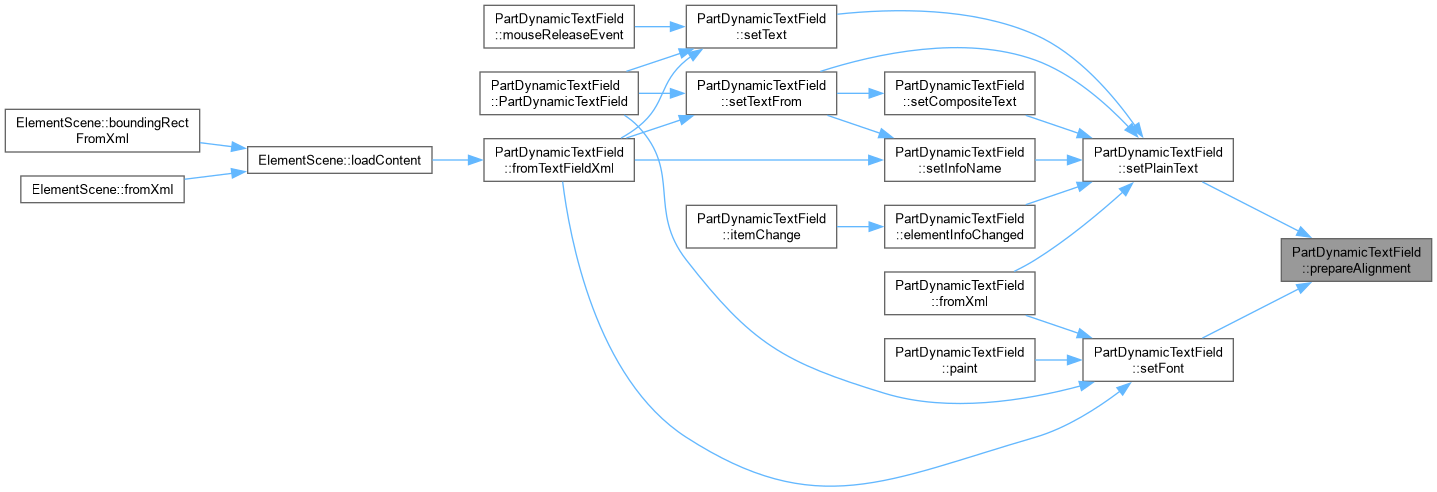

Here is the caller graph for this function:

property()

QVariant PartDynamicTextField::property ( const char * name ) const

inlineoverridevirtual

Get the current value of a specific primitive property

Implements CustomElementPart.

Here is the call graph for this function:

rotationPointCenter()

bool PartDynamicTextField::rotationPointCenter

(

)

const

rotationPointCenterChanged

void PartDynamicTextField::rotationPointCenterChanged ( bool center )

signal

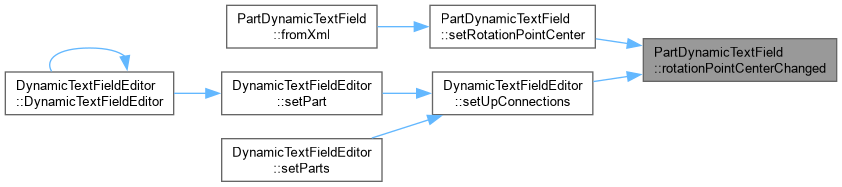

Here is the caller graph for this function:

sceneGeometricRect()

QRectF PartDynamicTextField::sceneGeometricRect ( ) const

inlineoverridevirtual

Implements CustomElementPart.

setAlignment()

void PartDynamicTextField::setAlignment

(

Qt::Alignment

alignment

)

Here is the call graph for this function:

Here is the caller graph for this function:

setColor()

void PartDynamicTextField::setColor

(

const QColor &

color

)

PartDynamicTextField::setColor.

Parameters

color

set text color to color

Here is the call graph for this function:

Here is the caller graph for this function:

setCompositeText()

void PartDynamicTextField::setCompositeText

(

const QString &

text

)

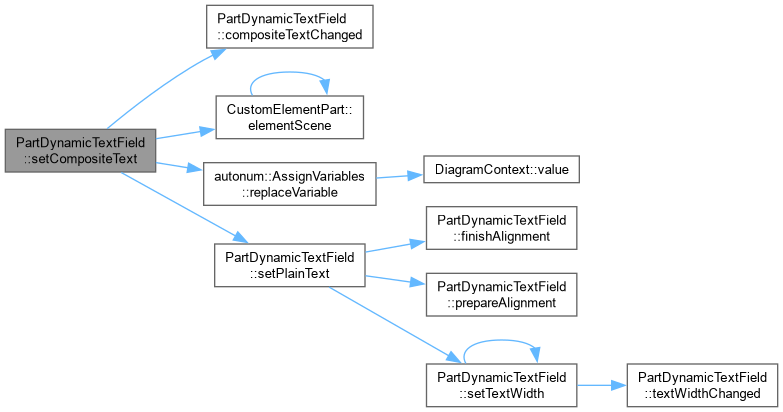

PartDynamicTextField::setCompositeText Set the composite text of this text item to text.

Parameters

text

Here is the call graph for this function:

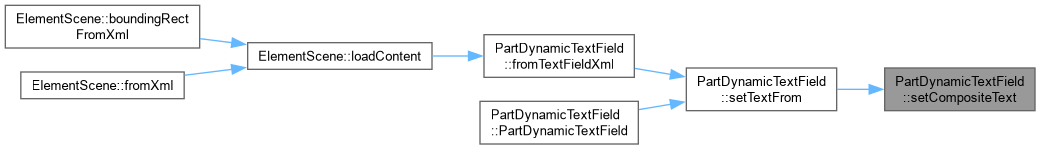

Here is the caller graph for this function:

setFont()

void PartDynamicTextField::setFont

(

const QFont &

font

)

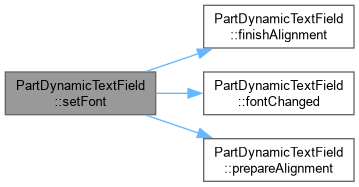

Here is the call graph for this function:

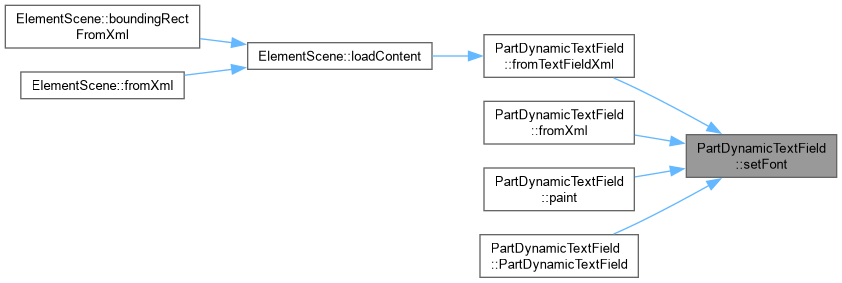

Here is the caller graph for this function:

setFrame()

void PartDynamicTextField::setFrame

(

bool

frame

)

Here is the call graph for this function:

Here is the caller graph for this function:

setInfoName()

void PartDynamicTextField::setInfoName

(

const QString &

info_name

)

Here is the call graph for this function:

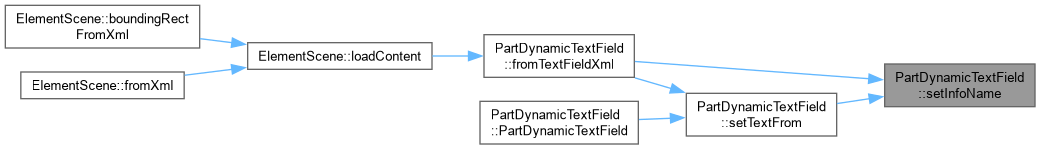

Here is the caller graph for this function:

setKeepVisualRotation()

void PartDynamicTextField::setKeepVisualRotation

(

const bool &

keep

)

Here is the call graph for this function:

Here is the caller graph for this function:

setPlainText()

void PartDynamicTextField::setPlainText

(

const QString &

text

)

Here is the call graph for this function:

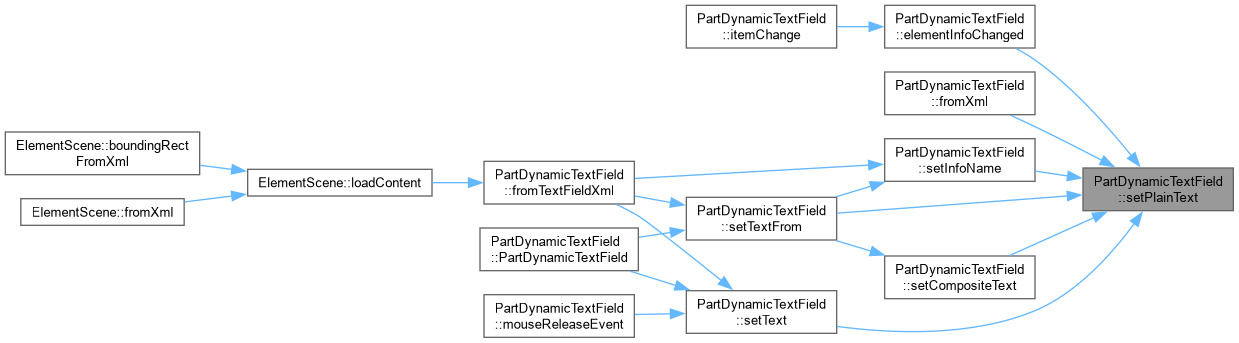

Here is the caller graph for this function:

setProperty()

void PartDynamicTextField::setProperty ( const char * name, const QVariant & value )

inlineoverridevirtual

PROPERTY.

Implements CustomElementPart.

Here is the call graph for this function:

Here is the caller graph for this function:

setRotation()

void PartDynamicTextField::setRotation

(

qreal

angle

)

Redefines setRotation

Parameters

angle

Here is the call graph for this function:

Here is the caller graph for this function:

setRotationPointCenter()

void PartDynamicTextField::setRotationPointCenter

(

const bool &

center

)

Here is the call graph for this function:

Here is the caller graph for this function:

setText()

void PartDynamicTextField::setText

(

const QString &

text

)

PartDynamicTextField::setText Set the text of this text.

Parameters

text

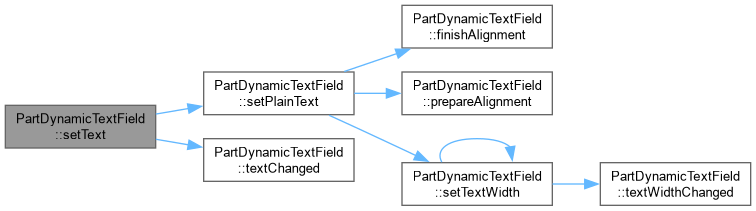

Here is the call graph for this function:

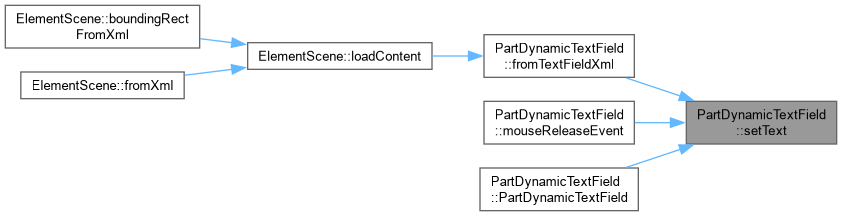

Here is the caller graph for this function:

setTextFrom()

void PartDynamicTextField::setTextFrom

(

DynamicElementTextItem::TextFrom

text_from

)

PartDynamicTextField::setTextFrom Set the final text is created from.

Parameters

text_from

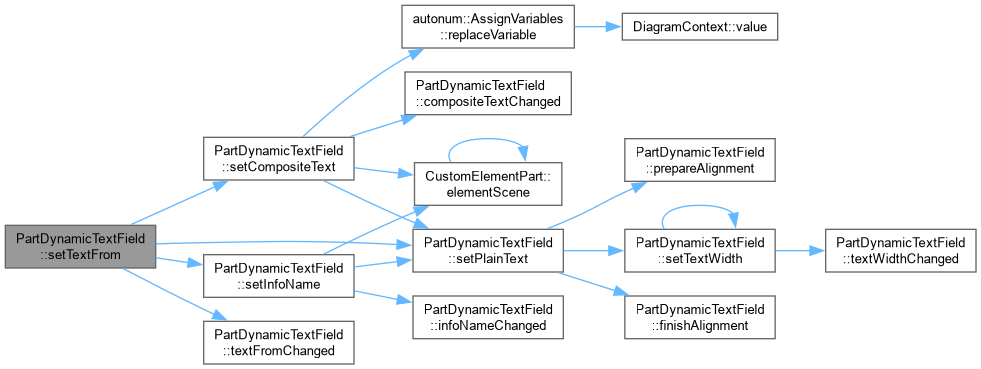

Here is the call graph for this function:

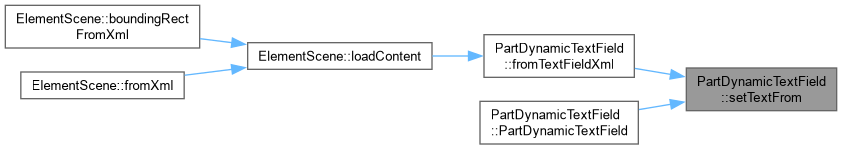

Here is the caller graph for this function:

setTextWidth()

void PartDynamicTextField::setTextWidth

(

qreal

width

)

Here is the call graph for this function:

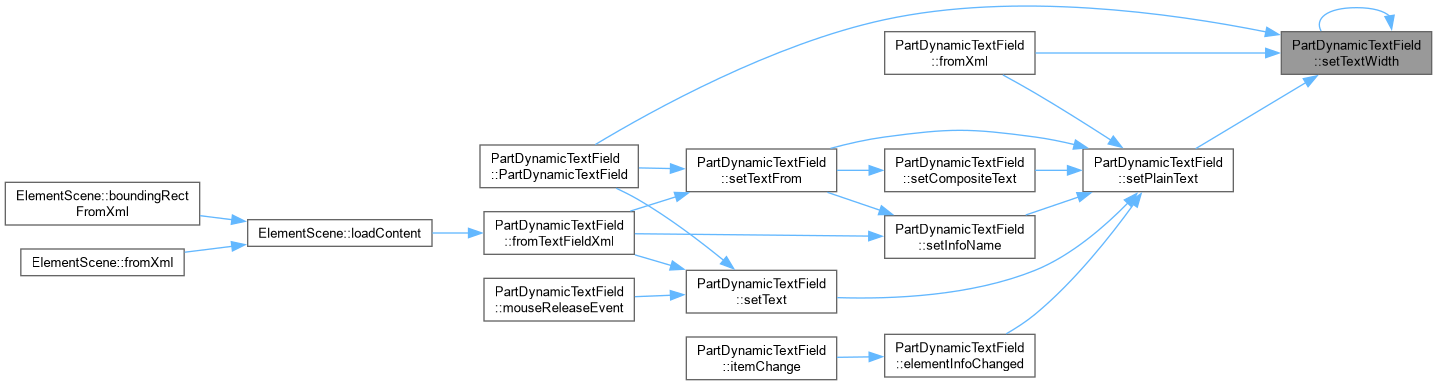

Here is the caller graph for this function:

startUserTransformation()

void PartDynamicTextField::startUserTransformation ( const QRectF & initial_selection_rect )

overridevirtual

PartDynamicTextField::startUserTransformation.

Parameters

initial_selection_rect

Start the user-induced transformation, provided this primitive is contained within the initial_selection_rect bounding rectangle.

Implements CustomElementPart.

taggChanged

void PartDynamicTextField::taggChanged ( QString tagg )

signal

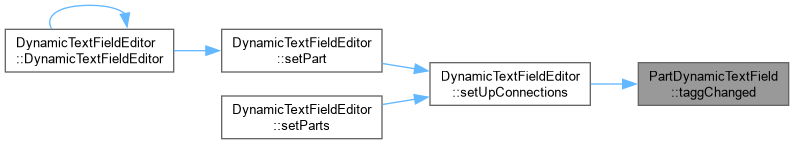

Here is the caller graph for this function:

text()

QString PartDynamicTextField::text

(

)

const

PartDynamicTextField::text.

Returns

the text of this text

textChanged

void PartDynamicTextField::textChanged ( QString text )

signal

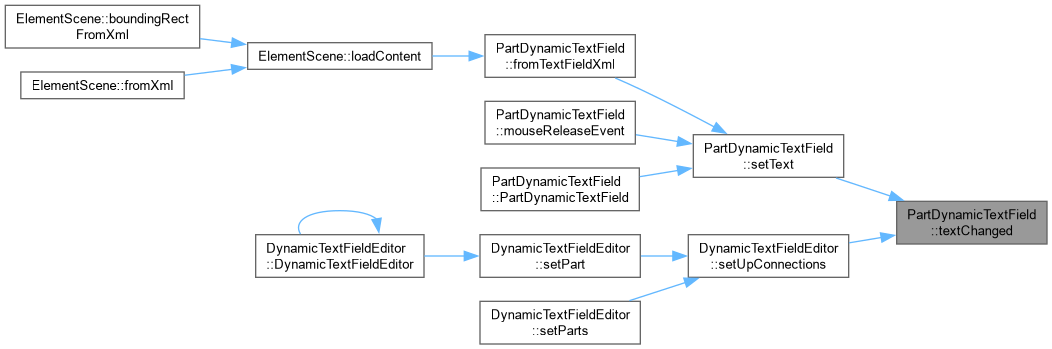

Here is the caller graph for this function:

textFrom()

DynamicElementTextItem::TextFrom PartDynamicTextField::textFrom

(

)

const

PartDynamicTextField::textFrom.

Returns

what the final text is created from.

textFromChanged

void PartDynamicTextField::textFromChanged ( DynamicElementTextItem::TextFrom text_from )

signal

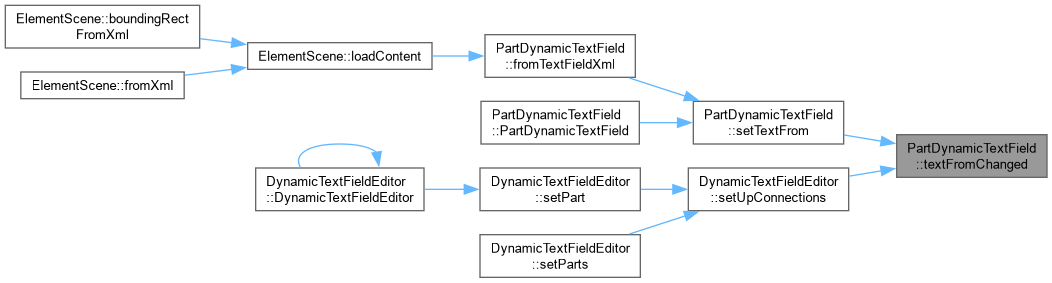

Here is the caller graph for this function:

textWidthChanged

void PartDynamicTextField::textWidthChanged ( qreal width )

signal

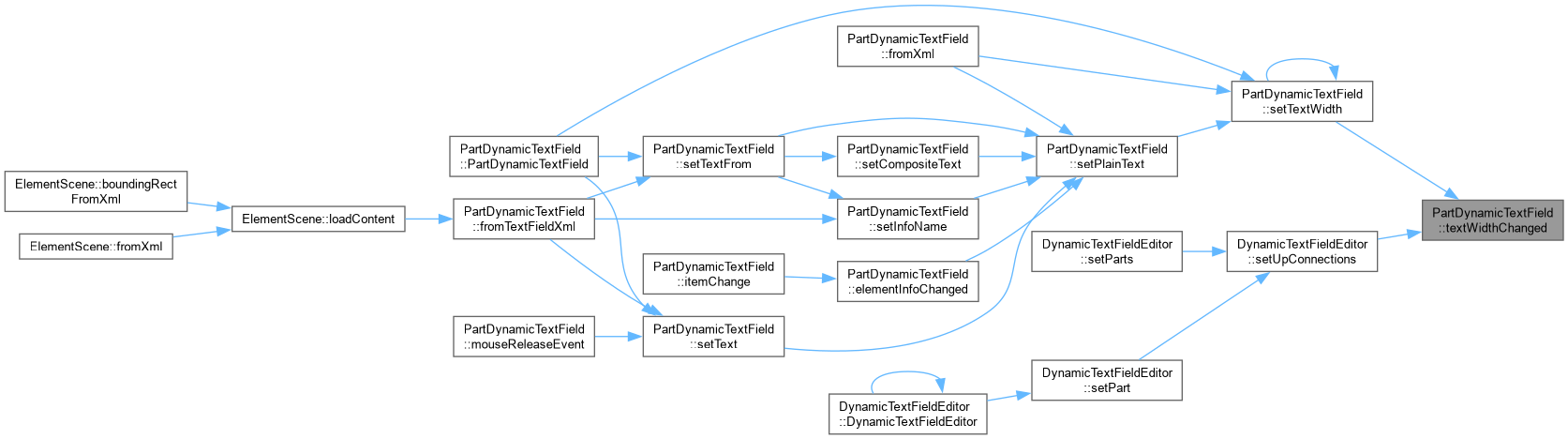

Here is the caller graph for this function:

toXml()

const QDomElement PartDynamicTextField::toXml ( QDomDocument & dom_doc ) const

overridevirtual

PartDynamicTextField::toXml.

Parameters

dom_doc

Returns

Implements CustomElementPart.

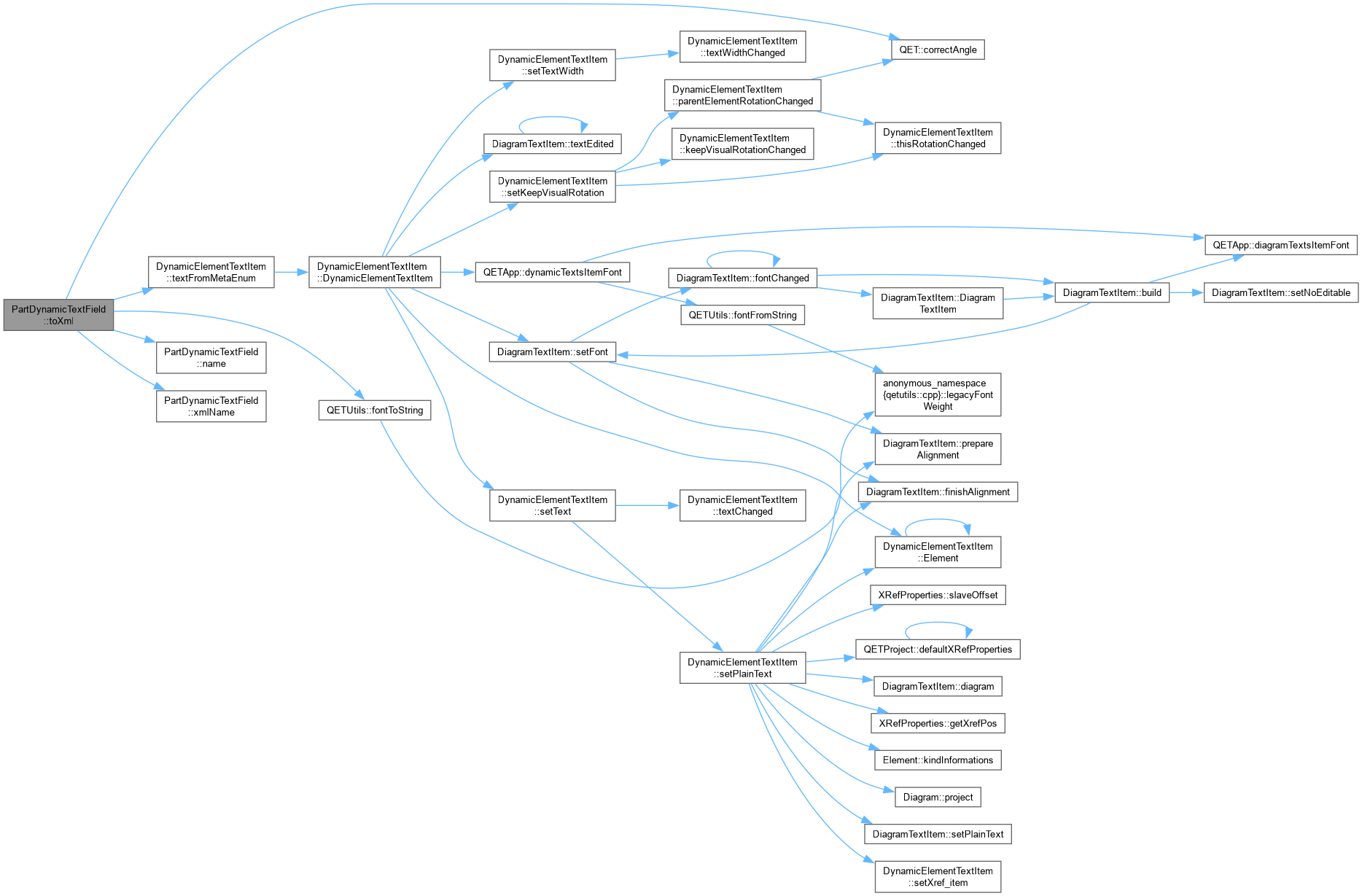

Here is the call graph for this function:

type()

int PartDynamicTextField::type ( ) const

inlineoverride

xmlName()

QString PartDynamicTextField::xmlName ( ) const

overridevirtual

Returns

the name that will be used as XML tag when exporting the primitive

Implements CustomElementPart.

Here is the caller graph for this function:

xmlTaggName()

QString PartDynamicTextField::xmlTaggName ( )

inlinestatic

Member Data Documentation

m_alignment

Qt::Alignment PartDynamicTextField::m_alignment = Qt::AlignTop|Qt::AlignLeft

private

m_alignment_rect

QRectF PartDynamicTextField::m_alignment_rect

private

m_block_alignment

bool PartDynamicTextField::m_block_alignment = false

private

m_composite_text

QString PartDynamicTextField::m_composite_text

private

m_first_add

bool PartDynamicTextField::m_first_add = true

private

m_frame

bool PartDynamicTextField::m_frame = false

private

m_info_name

QString PartDynamicTextField::m_info_name

private

m_keep_visual_rotation

bool PartDynamicTextField::m_keep_visual_rotation = false

private

m_origin_pos

QPointF PartDynamicTextField::m_origin_pos

private

m_rotation_point_center

bool PartDynamicTextField::m_rotation_point_center = false

private

m_saved_point

QPointF PartDynamicTextField::m_saved_point

private

m_text

QString PartDynamicTextField::m_text

private

m_text_from

DynamicElementTextItem::TextFrom PartDynamicTextField::m_text_from = DynamicElementTextItem::UserText

private

m_text_width

qreal PartDynamicTextField::m_text_width = -1

private

m_uuid

QUuid PartDynamicTextField::m_uuid

private

Property Documentation

alignment

Qt::Alignment PartDynamicTextField::alignment

readwrite

color

QColor PartDynamicTextField::color

readwrite

compositeText

QString PartDynamicTextField::compositeText

readwrite

font

QFont PartDynamicTextField::font

readwrite

frame

bool PartDynamicTextField::frame

readwrite

infoName

QString PartDynamicTextField::infoName

readwrite

keepVisualRotation

bool PartDynamicTextField::keepVisualRotation

readwrite

rotationPointCenter

bool PartDynamicTextField::rotationPointCenter

readwrite

text

QString PartDynamicTextField::text

readwrite

textFrom

DynamicElementTextItem::TextFrom PartDynamicTextField::textFrom

readwrite

textWidth

qreal PartDynamicTextField::textWidth

readwrite

---

The documentation for this class was generated from the following files:

• sources/editor/graphicspart/partdynamictextfield.h
• sources/editor/graphicspart/partdynamictextfield.cpp
