PartTerminal Class Reference

#include <partterminal.h>

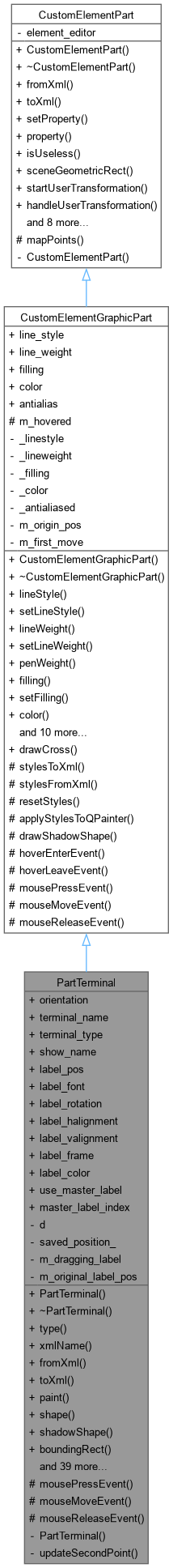

Inheritance diagram for PartTerminal:

Collaboration diagram for PartTerminal:

Public Types
enum	{ Type = UserType + 1106 }
Public Types inherited from CustomElementGraphicPart
enum	LineStyle { NormalStyle , DashedStyle , DottedStyle , DashdottedStyle }
enum	LineWeight {   NoneWeight , ThinWeight , NormalWeight , UltraWeight ,   BigWeight }
enum	Filling {   NoneFilling , BlackFilling , WhiteFilling , GreenFilling ,   RedFilling , BlueFilling , GrayFilling , BrunFilling ,   YellowFilling , CyanFilling , MagentaFilling , LightgrayFilling ,   OrangeFilling , PurpleFilling , HTMLPinkPinkFilling , HTMLPinkLightPinkFilling ,   HTMLPinkHotPinkFilling , HTMLPinkDeepPinkFilling , HTMLPinkPaleVioletRedFilling , HTMLPinkMediumVioletRedFilling ,   HTMLRedLightSalmonFilling , HTMLRedSalmonFilling , HTMLRedDarkSalmonFilling , HTMLRedLightCoralFilling ,   HTMLRedIndianRedFilling , HTMLRedCrimsonFilling , HTMLRedFirebrickFilling , HTMLRedDarkRedFilling ,   HTMLRedRedFilling , HTMLOrangeOrangeRedFilling , HTMLOrangeTomatoFilling , HTMLOrangeCoralFilling ,   HTMLOrangeDarkOrangeFilling , HTMLOrangeOrangeFilling , HTMLYellowYellowFilling , HTMLYellowLightYellowFilling ,   HTMLYellowLemonChiffonFilling , HTMLYellowLightGoldenrodYellowFilling , HTMLYellowPapayaWhipFilling , HTMLYellowMoccasinFilling ,   HTMLYellowPeachPuffFilling , HTMLYellowPaleGoldenrodFilling , HTMLYellowKhakiFilling , HTMLYellowDarkKhakiFilling ,   HTMLYellowGoldFilling , HTMLBrownCornsilkFilling , HTMLBrownBlanchedAlmondFilling , HTMLBrownBisqueFilling ,   HTMLBrownNavajoWhiteFilling , HTMLBrownWheatFilling , HTMLBrownBurlywoodFilling , HTMLBrownTanFilling ,   HTMLBrownRosyBrownFilling , HTMLBrownSandyBrownFilling , HTMLBrownGoldenrodFilling , HTMLBrownDarkGoldenrodFilling ,   HTMLBrownPeruFilling , HTMLBrownChocolateFilling , HTMLBrownSaddleBrownFilling , HTMLBrownSiennaFilling ,   HTMLBrownBrownFilling , HTMLBrownMaroonFilling , HTMLGreenDarkOliveGreenFilling , HTMLGreenOliveFilling ,   HTMLGreenOliveDrabFilling , HTMLGreenYellowGreenFilling , HTMLGreenLimeGreenFilling , HTMLGreenLimeFilling ,   HTMLGreenLawnGreenFilling , HTMLGreenChartreuseFilling , HTMLGreenGreenYellowFilling , HTMLGreenSpringGreenFilling ,   HTMLGreenMediumSpringGreenFilling , HTMLGreenLightGreenFilling , HTMLGreenPaleGreenFilling , HTMLGreenDarkSeaGreenFilling ,   HTMLGreenMediumAquamarineFilling , HTMLGreenMediumSeaGreenFilling , HTMLGreenSeaGreenFilling , HTMLGreenForestGreenFilling ,   HTMLGreenGreenFilling , HTMLGreenDarkGreenFilling , HTMLCyanAquaFilling , HTMLCyanCyanFilling ,   HTMLCyanLightCyanFilling , HTMLCyanPaleTurquoiseFilling , HTMLCyanAquamarineFilling , HTMLCyanTurquoiseFilling ,   HTMLCyanMediumTurquoiseFilling , HTMLCyanDarkTurquoiseFilling , HTMLCyanLightSeaGreenFilling , HTMLCyanCadetBlueFilling ,   HTMLCyanDarkCyanFilling , HTMLCyanTealFilling , HTMLBlueLightSteelBlueFilling , HTMLBluePowderBlueFilling ,   HTMLBlueLightBlueFilling , HTMLBlueSkyBlueFilling , HTMLBlueLightSkyBlueFilling , HTMLBlueDeepSkyBlueFilling ,   HTMLBlueDodgerBlueFilling , HTMLBlueCornflowerBlueFilling , HTMLBlueSteelBlueFilling , HTMLBlueRoyalBlueFilling ,   HTMLBlueBlueFilling , HTMLBlueMediumBlueFilling , HTMLBlueDarkBlueFilling , HTMLBlueNavyFilling ,   HTMLBlueMidnightBlueFilling , HTMLPurpleLavenderFilling , HTMLPurpleThistleFilling , HTMLPurplePlumFilling ,   HTMLPurpleVioletFilling , HTMLPurpleOrchidFilling , HTMLPurpleFuchsiaFilling , HTMLPurpleMagentaFilling ,   HTMLPurpleMediumOrchidFilling , HTMLPurpleMediumPurpleFilling , HTMLPurpleBlueVioletFilling , HTMLPurpleDarkVioletFilling ,   HTMLPurpleDarkOrchidFilling , HTMLPurpleDarkMagentaFilling , HTMLPurplePurpleFilling , HTMLPurpleIndigoFilling ,   HTMLPurpleDarkSlateBlueFilling , HTMLPurpleSlateBlueFilling , HTMLPurpleMediumSlateBlueFilling , HTMLWhiteWhiteFilling ,   HTMLWhiteSnowFilling , HTMLWhiteHoneydewFilling , HTMLWhiteMintCreamFilling , HTMLWhiteAzureFilling ,   HTMLWhiteAliceBlueFilling , HTMLWhiteGhostWhiteFilling , HTMLWhiteWhiteSmokeFilling , HTMLWhiteSeashellFilling ,   HTMLWhiteBeigeFilling , HTMLWhiteOldLaceFilling , HTMLWhiteFloralWhiteFilling , HTMLWhiteIvoryFilling ,   HTMLWhiteAntiqueWhiteFilling , HTMLWhiteLinenFilling , HTMLWhiteLavenderBlushFilling , HTMLWhiteMistyRoseFilling ,   HTMLGrayGainsboroFilling , HTMLGrayLightGrayFilling , HTMLGraySilverFilling , HTMLGrayDarkGrayFilling ,   HTMLGrayGrayFilling , HTMLGrayDimGrayFilling , HTMLGrayLightSlateGrayFilling , HTMLGraySlateGrayFilling ,   HTMLGrayDarkSlateGrayFilling , HTMLGrayBlackFilling , HorFilling , VerFilling ,   BdiagFilling , FdiagFilling }
enum	Color {   BlackColor , WhiteColor , GreenColor , RedColor ,   BlueColor , GrayColor , BrunColor , YellowColor ,   CyanColor , MagentaColor , LightgrayColor , OrangeColor ,   PurpleColor , HTMLPinkPinkColor , HTMLPinkLightPinkColor , HTMLPinkHotPinkColor ,   HTMLPinkDeepPinkColor , HTMLPinkPaleVioletRedColor , HTMLPinkMediumVioletRedColor , HTMLRedLightSalmonColor ,   HTMLRedSalmonColor , HTMLRedDarkSalmonColor , HTMLRedLightCoralColor , HTMLRedIndianRedColor ,   HTMLRedCrimsonColor , HTMLRedFirebrickColor , HTMLRedDarkRedColor , HTMLRedRedColor ,   HTMLOrangeOrangeRedColor , HTMLOrangeTomatoColor , HTMLOrangeCoralColor , HTMLOrangeDarkOrangeColor ,   HTMLOrangeOrangeColor , HTMLYellowYellowColor , HTMLYellowLightYellowColor , HTMLYellowLemonChiffonColor ,   HTMLYellowLightGoldenrodYellowColor , HTMLYellowPapayaWhipColor , HTMLYellowMoccasinColor , HTMLYellowPeachPuffColor ,   HTMLYellowPaleGoldenrodColor , HTMLYellowKhakiColor , HTMLYellowDarkKhakiColor , HTMLYellowGoldColor ,   HTMLBrownCornsilkColor , HTMLBrownBlanchedAlmondColor , HTMLBrownBisqueColor , HTMLBrownNavajoWhiteColor ,   HTMLBrownWheatColor , HTMLBrownBurlywoodColor , HTMLBrownTanColor , HTMLBrownRosyBrownColor ,   HTMLBrownSandyBrownColor , HTMLBrownGoldenrodColor , HTMLBrownDarkGoldenrodColor , HTMLBrownPeruColor ,   HTMLBrownChocolateColor , HTMLBrownSaddleBrownColor , HTMLBrownSiennaColor , HTMLBrownBrownColor ,   HTMLBrownMaroonColor , HTMLGreenDarkOliveGreenColor , HTMLGreenOliveColor , HTMLGreenOliveDrabColor ,   HTMLGreenYellowGreenColor , HTMLGreenLimeGreenColor , HTMLGreenLimeColor , HTMLGreenLawnGreenColor ,   HTMLGreenChartreuseColor , HTMLGreenGreenYellowColor , HTMLGreenSpringGreenColor , HTMLGreenMediumSpringGreenColor ,   HTMLGreenLightGreenColor , HTMLGreenPaleGreenColor , HTMLGreenDarkSeaGreenColor , HTMLGreenMediumAquamarineColor ,   HTMLGreenMediumSeaGreenColor , HTMLGreenSeaGreenColor , HTMLGreenForestGreenColor , HTMLGreenGreenColor ,   HTMLGreenDarkGreenColor , HTMLCyanAquaColor , HTMLCyanCyanColor , HTMLCyanLightCyanColor ,   HTMLCyanPaleTurquoiseColor , HTMLCyanAquamarineColor , HTMLCyanTurquoiseColor , HTMLCyanMediumTurquoiseColor ,   HTMLCyanDarkTurquoiseColor , HTMLCyanLightSeaGreenColor , HTMLCyanCadetBlueColor , HTMLCyanDarkCyanColor ,   HTMLCyanTealColor , HTMLBlueLightSteelBlueColor , HTMLBluePowderBlueColor , HTMLBlueLightBlueColor ,   HTMLBlueSkyBlueColor , HTMLBlueLightSkyBlueColor , HTMLBlueDeepSkyBlueColor , HTMLBlueDodgerBlueColor ,   HTMLBlueCornflowerBlueColor , HTMLBlueSteelBlueColor , HTMLBlueRoyalBlueColor , HTMLBlueBlueColor ,   HTMLBlueMediumBlueColor , HTMLBlueDarkBlueColor , HTMLBlueNavyColor , HTMLBlueMidnightBlueColor ,   HTMLPurpleLavenderColor , HTMLPurpleThistleColor , HTMLPurplePlumColor , HTMLPurpleVioletColor ,   HTMLPurpleOrchidColor , HTMLPurpleFuchsiaColor , HTMLPurpleMagentaColor , HTMLPurpleMediumOrchidColor ,   HTMLPurpleMediumPurpleColor , HTMLPurpleBlueVioletColor , HTMLPurpleDarkVioletColor , HTMLPurpleDarkOrchidColor ,   HTMLPurpleDarkMagentaColor , HTMLPurplePurpleColor , HTMLPurpleIndigoColor , HTMLPurpleDarkSlateBlueColor ,   HTMLPurpleSlateBlueColor , HTMLPurpleMediumSlateBlueColor , HTMLWhiteWhiteColor , HTMLWhiteSnowColor ,   HTMLWhiteHoneydewColor , HTMLWhiteMintCreamColor , HTMLWhiteAzureColor , HTMLWhiteAliceBlueColor ,   HTMLWhiteGhostWhiteColor , HTMLWhiteWhiteSmokeColor , HTMLWhiteSeashellColor , HTMLWhiteBeigeColor ,   HTMLWhiteOldLaceColor , HTMLWhiteFloralWhiteColor , HTMLWhiteIvoryColor , HTMLWhiteAntiqueWhiteColor ,   HTMLWhiteLinenColor , HTMLWhiteLavenderBlushColor , HTMLWhiteMistyRoseColor , HTMLGrayGainsboroColor ,   HTMLGrayLightGrayColor , HTMLGraySilverColor , HTMLGrayDarkGrayColor , HTMLGrayGrayColor ,   HTMLGrayDimGrayColor , HTMLGrayLightSlateGrayColor , HTMLGraySlateGrayColor , HTMLGrayDarkSlateGrayColor ,   HTMLGrayBlackColor , NoneColor }

Signals
void	orientationChanged ()
void	nameChanged ()
void	terminalTypeChanged ()
void	showNameChanged ()
void	labelPosChanged ()
void	labelFontChanged ()
void	labelRotationChanged ()
void	labelHAlignmentChanged ()
void	labelVAlignmentChanged ()
void	labelFrameChanged ()
void	labelColorChanged ()
void	useMasterLabelChanged ()
void	masterLabelIndexChanged ()

Public Member Functions
	PartTerminal (QETElementEditor *editor, QGraphicsItem *parent=nullptr)
	PartTerminal::PartTerminal.
	~PartTerminal () override
	Destructeur.
int	type () const override
QString	xmlName () const override
void	fromXml (const QDomElement &) override
const QDomElement	toXml (QDomDocument &) const override
void	paint (QPainter *painter, const QStyleOptionGraphicsItem *, QWidget *) override
QPainterPath	shape () const override
	PartTerminal::shape.
QPainterPath	shadowShape () const override
	PartTerminal::shadowShape.
QRectF	boundingRect () const override
	PartTerminal::boundingRect.
bool	isUseless () const override
QRectF	sceneGeometricRect () const override
void	startUserTransformation (const QRectF &) override
void	handleUserTransformation (const QRectF &, const QRectF &) override
Qet::Orientation	orientation () const
void	setOrientation (Qet::Orientation ori)
void	setRotation (qreal angle)
qreal	rotation () const
	PartTerminal::rotation.
void	flip (qreal axis_y=0)
	PartTerminal::flip turn part upside down.
void	mirror (qreal axis_x=0)
	PartTerminal::mirror turn part from left to right.
void	nextOrientation ()

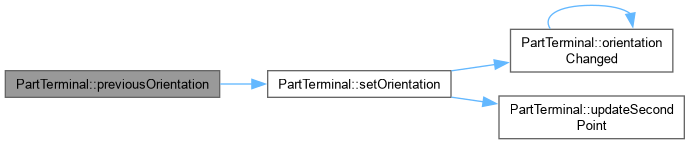

void	previousOrientation ()
QString	terminalName () const
void	setTerminalName (const QString &name)
	PartTerminal::setTerminalName.
QString	name () const override
TerminalData::Type	terminalType () const
void	setTerminalType (TerminalData::Type type)
	PartTerminal::setTerminalType Set the type of terminal to 'type'.
bool	showName () const
void	setShowName (bool show)
QPointF	labelPos () const
void	setLabelPos (QPointF pos)
QFont	labelFont () const
void	setLabelFont (QFont font)
qreal	labelRotation () const
void	setLabelRotation (qreal rotation)
Qt::Alignment	labelHAlignment () const
void	setLabelHAlignment (Qt::Alignment align)
Qt::Alignment	labelVAlignment () const
void	setLabelVAlignment (Qt::Alignment align)
bool	labelFrame () const
void	setLabelFrame (bool frame)
QColor	labelColor () const
void	setLabelColor (QColor color)
bool	useMasterLabel () const
void	setUseMasterLabel (bool use)
int	masterLabelIndex () const
void	setMasterLabelIndex (int index)
void	setNewUuid ()
QRectF	labelRect () const
	PartTerminal::labelRect.
Public Member Functions inherited from CustomElementGraphicPart
	CustomElementGraphicPart (QETElementEditor *editor, QGraphicsItem *parent=nullptr)
	CustomElementGraphicPart::CustomElementGraphicPart Default constructor. By default, item is selectable, send geometry change (Qt > 4.6), accept mouse left button and accept hover event.
	~CustomElementGraphicPart () override
	CustomElementGraphicPart::~CustomElementGraphicPart Destructor.
LineStyle	lineStyle () const
void	setLineStyle (const LineStyle ls)
	CustomElementGraphicPart::setLineStyle Set line style to ls.
LineWeight	lineWeight () const
void	setLineWeight (const LineWeight lw)
	CustomElementGraphicPart::setLineWeight Set line weight to lw.
qreal	penWeight () const
	CustomElementGraphicPart::penWeight.
Filling	filling () const
void	setFilling (const Filling f)
	CustomElementGraphicPart::setFilling Set filling to f.
Color	color () const
void	setColor (const Color c)
	CustomElementGraphicPart::setColor Set color to c.
bool	antialiased () const
void	setAntialiased (const bool b)
	CustomElementGraphicPart::setAntialiased Set antialias to b.
void	setProperty (const char *name, const QVariant &value) override
QVariant	property (const char *name) const override
virtual void	addHandler ()
virtual void	removeHandler ()
virtual void	setHandlerColor (QPointF, const QColor &)
virtual void	resetAllHandlerColor ()
Public Member Functions inherited from CustomElementPart
	CustomElementPart (QETElementEditor *editor)
	CustomElementPart Constructor.
virtual	~CustomElementPart ()
	~CustomElementPart Destructor
virtual QETElementEditor *	elementEditor () const
virtual void	updateCurrentPartEditor () const
virtual ElementScene *	elementScene () const
virtual QUndoStack &	undoStack () const
virtual QGraphicsItem *	toItem ()
virtual QET::ScalingMethod	preferredScalingMethod () const

Protected Member Functions
void	mousePressEvent (QGraphicsSceneMouseEvent *event) override
void	mouseMoveEvent (QGraphicsSceneMouseEvent *event) override
void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event) override
Protected Member Functions inherited from CustomElementGraphicPart
void	stylesToXml (QDomElement &) const
	CustomElementGraphicPart::stylesToXml Write the current style to xml element. The style are stored like this: name-of-style:value;name-of-style:value Each style separate by ; and name-style/value are separate by :
void	stylesFromXml (const QDomElement &)
	CustomElementGraphicPart::stylesFromXml Read the style used by this, from a xml element.
void	resetStyles ()
	CustomElementGraphicPart::resetStyles Reset the current style to default, same style of default constructor.
void	applyStylesToQPainter (QPainter &) const
	CustomElementGraphicPart::applyStylesToQPainter Apply the current style to the QPainter.
void	drawShadowShape (QPainter *painter)
	CustomElementGraphicPart::drawShadowShape Draw a transparent blue shadow arround the shape of this item. The QPainterPathStroker used to draw shadows have a width of SHADOWS_HEIGHT Be carefull if penWeight of this item is to 0 the outline of strock is bigger of 0.5.
void	hoverEnterEvent (QGraphicsSceneHoverEvent *event) override
	CustomElementGraphicPart::hoverEnterEvent Reimplemented from QGraphicsObject. Set m_hovered to true.
void	hoverLeaveEvent (QGraphicsSceneHoverEvent *event) override
	CustomElementGraphicPart::hoverLeaveEvent Reimplemented from QGraphicsObject. Set m_hovered to false.
void	mousePressEvent (QGraphicsSceneMouseEvent *event) override
void	mouseMoveEvent (QGraphicsSceneMouseEvent *event) override
void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event) override
Protected Member Functions inherited from CustomElementPart
QList< QPointF >	mapPoints (const QRectF &, const QRectF &, const QList< QPointF > &)

Properties
Qet::Orientation	orientation
QString	terminal_name
TerminalData::Type	terminal_type
bool	show_name
QPointF	label_pos
QFont	label_font
qreal	label_rotation
Qt::Alignment	label_halignment
Qt::Alignment	label_valignment
bool	label_frame
QColor	label_color
bool	use_master_label
int	master_label_index
Properties inherited from CustomElementGraphicPart
LineStyle	line_style
LineWeight	line_weight
Filling	filling
Color	color
bool	antialias

Private Member Functions
	PartTerminal (const PartTerminal &)

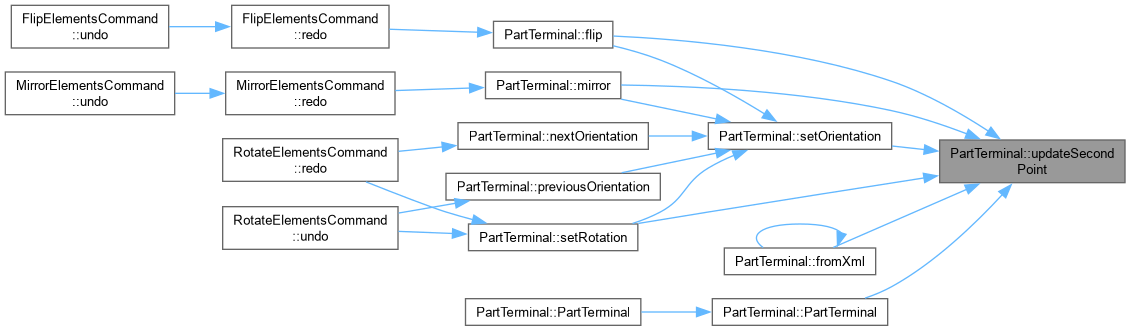

void	updateSecondPoint ()

Private Attributes
TerminalData *	d
QPointF	saved_position_
bool	m_dragging_label = false
QPointF	m_original_label_pos

Additional Inherited Members
Static Public Member Functions inherited from CustomElementGraphicPart
static void	drawCross (const QPointF &center, QPainter *painter)
	CustomElementGraphicPart::drawCross Draw a cross at pos center.
Protected Attributes inherited from CustomElementGraphicPart
bool	m_hovered

Detailed Description

This class represents a terminal which may be used to compose the drawing of an electrical element within the element editor.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
Type

Constructor & Destructor Documentation

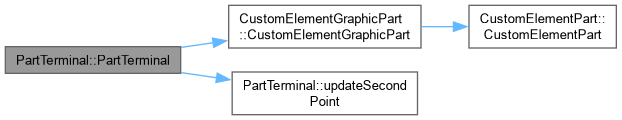

PartTerminal() [1/2]

PartTerminal::PartTerminal	(	QETElementEditor *	editor,
		QGraphicsItem *	parent = nullptr )

PartTerminal::PartTerminal.

Parameters

editor	: L'editeur d'element concerne
parent	: Le QGraphicsItem parent de cette borne

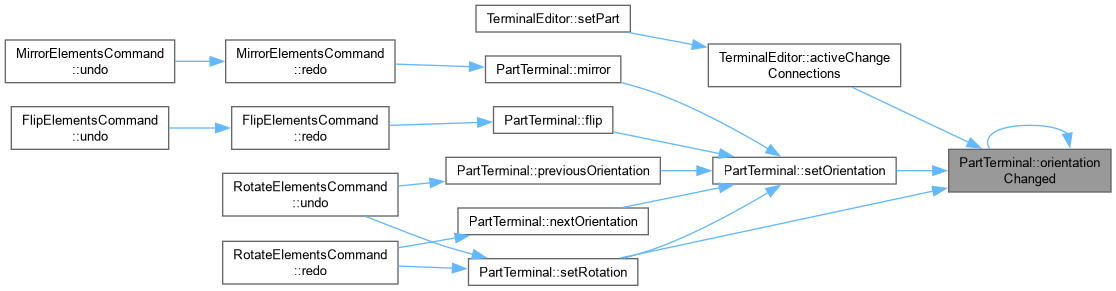

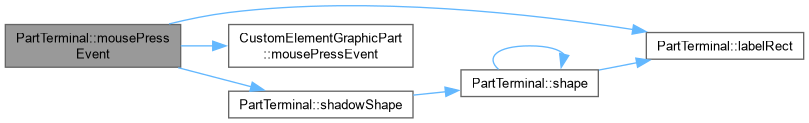

Here is the call graph for this function:

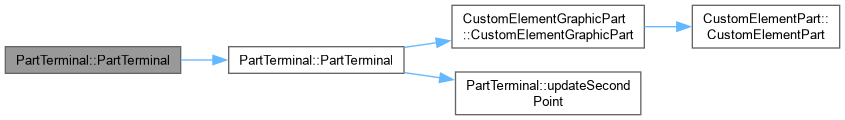

Here is the caller graph for this function:

~PartTerminal()

PartTerminal::~PartTerminal ( )

override

Destructeur.

PartTerminal() [2/2]

PartTerminal::PartTerminal ( const PartTerminal & )

private

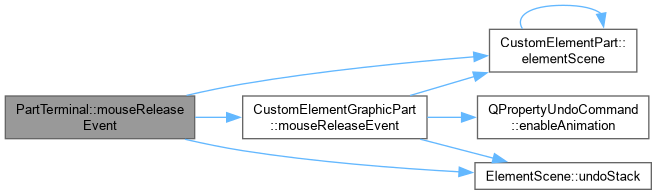

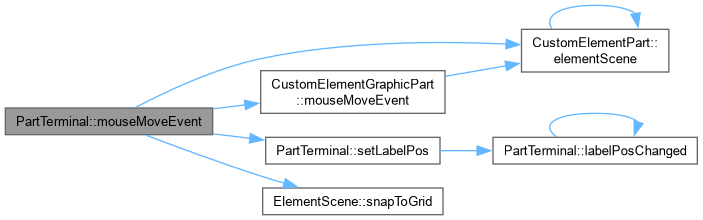

Here is the call graph for this function:

Member Function Documentation

boundingRect()

QRectF PartTerminal::boundingRect ( ) const

override

PartTerminal::boundingRect.

Returns

the bounding rect of this item

Here is the call graph for this function:

flip()

void PartTerminal::flip

(

qreal

axis_y = 0

)

PartTerminal::flip turn part upside down.

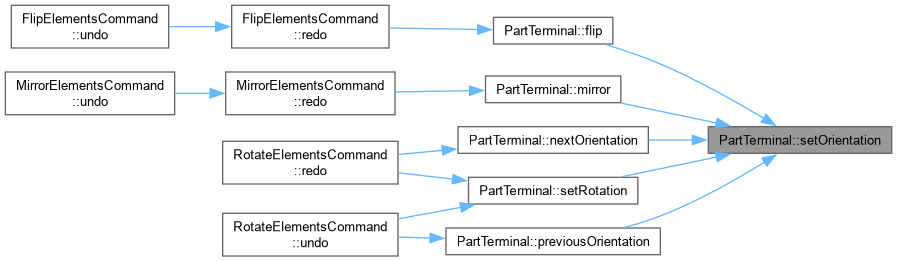

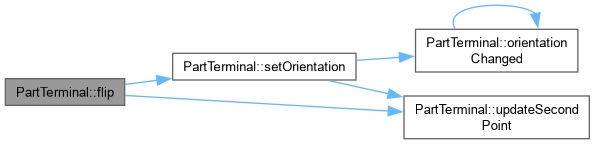

Here is the call graph for this function:

Here is the caller graph for this function:

fromXml()

void PartTerminal::fromXml ( const QDomElement & xml_elmt )

overridevirtual

Import terminal properties from an XML element Importe les proprietes d'une borne depuis un element XML

Parameters

xml_elmt

Element XML a lire / XML element to read

Implements CustomElementPart.

Here is the call graph for this function:

Here is the caller graph for this function:

handleUserTransformation()

void PartTerminal::handleUserTransformation ( const QRectF & initial_selection_rect, const QRectF & new_selection_rect )

overridevirtual

Handle the user-induced transformation from initial_selection_rect to new_selection_rect

Implements CustomElementPart.

Here is the call graph for this function:

isUseless()

bool PartTerminal::isUseless ( ) const

overridevirtual

Returns

true si cette partie n'est pas pertinente et ne merite pas d'etre conservee / enregistree. Une borne est toujours pertinente ; cette fonction renvoie donc toujours false

Implements CustomElementPart.

labelColor()

QColor PartTerminal::labelColor ( ) const

inline

labelColorChanged

void PartTerminal::labelColorChanged ( )

signal

Here is the call graph for this function:

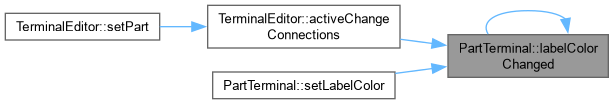

Here is the caller graph for this function:

labelFont()

QFont PartTerminal::labelFont ( ) const

inline

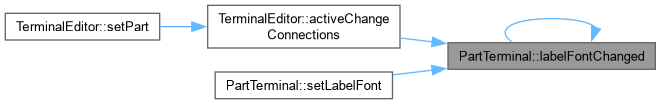

labelFontChanged

void PartTerminal::labelFontChanged ( )

signal

Here is the call graph for this function:

Here is the caller graph for this function:

labelFrame()

bool PartTerminal::labelFrame ( ) const

inline

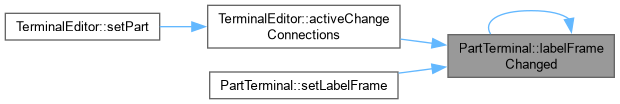

labelFrameChanged

void PartTerminal::labelFrameChanged ( )

signal

Here is the call graph for this function:

Here is the caller graph for this function:

labelHAlignment()

Qt::Alignment PartTerminal::labelHAlignment ( ) const

inline

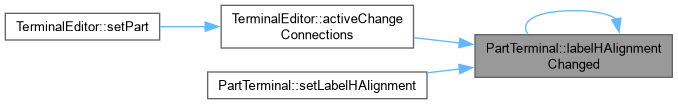

labelHAlignmentChanged

void PartTerminal::labelHAlignmentChanged ( )

signal

Here is the call graph for this function:

Here is the caller graph for this function:

labelPos()

QPointF PartTerminal::labelPos ( ) const

inline

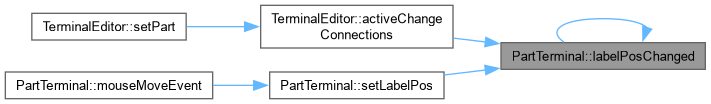

labelPosChanged

void PartTerminal::labelPosChanged ( )

signal

Here is the call graph for this function:

Here is the caller graph for this function:

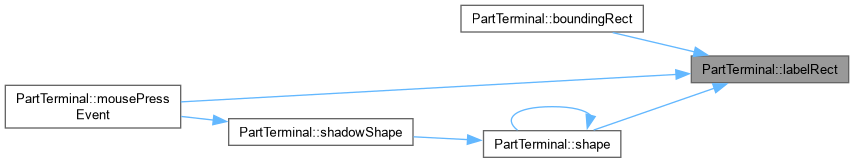

labelRect()

QRectF PartTerminal::labelRect

(

)

const

PartTerminal::labelRect.

Returns

the rectangle of the label text (in item coordinates), or an empty rect if the label is not shown

Here is the caller graph for this function:

labelRotation()

qreal PartTerminal::labelRotation ( ) const

inline

labelRotationChanged

void PartTerminal::labelRotationChanged ( )

signal

Here is the call graph for this function:

Here is the caller graph for this function:

labelVAlignment()

Qt::Alignment PartTerminal::labelVAlignment ( ) const

inline

labelVAlignmentChanged

void PartTerminal::labelVAlignmentChanged ( )

signal

Here is the call graph for this function:

Here is the caller graph for this function:

masterLabelIndex()

int PartTerminal::masterLabelIndex ( ) const

inline

masterLabelIndexChanged

void PartTerminal::masterLabelIndexChanged ( )

signal

Here is the call graph for this function:

Here is the caller graph for this function:

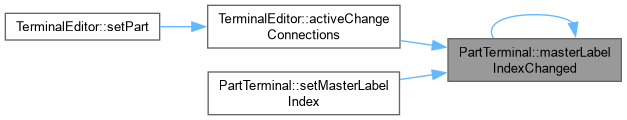

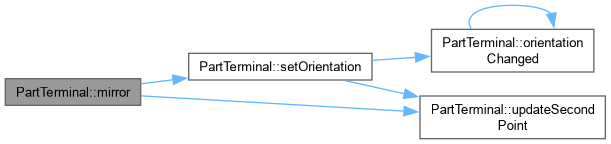

mirror()

void PartTerminal::mirror

(

qreal

axis_x = 0

)

PartTerminal::mirror turn part from left to right.

Here is the call graph for this function:

Here is the caller graph for this function:

mouseMoveEvent()

void PartTerminal::mouseMoveEvent ( QGraphicsSceneMouseEvent * event )

overrideprotected

Here is the call graph for this function:

mousePressEvent()

void PartTerminal::mousePressEvent ( QGraphicsSceneMouseEvent * event )

overrideprotected

Here is the call graph for this function:

mouseReleaseEvent()

void PartTerminal::mouseReleaseEvent ( QGraphicsSceneMouseEvent * event )

overrideprotected

Here is the call graph for this function:

name()

QString PartTerminal::name ( ) const

inlineoverridevirtual

Returns

the name of the primitive

Implements CustomElementPart.

Here is the caller graph for this function:

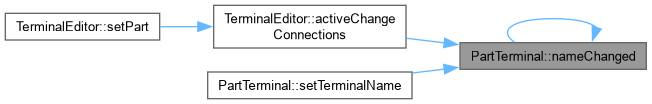

nameChanged

void PartTerminal::nameChanged ( )

signal

Here is the call graph for this function:

Here is the caller graph for this function:

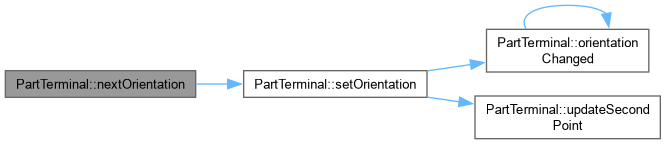

nextOrientation()

void PartTerminal::nextOrientation

(

)

Here is the call graph for this function:

Here is the caller graph for this function:

orientation()

Qet::Orientation PartTerminal::orientation ( ) const

inline

orientationChanged

void PartTerminal::orientationChanged ( )

signal

Here is the call graph for this function:

Here is the caller graph for this function:

paint()

void PartTerminal::paint ( QPainter * painter, const QStyleOptionGraphicsItem * options, QWidget * widget )

override

Dessine la borne

Parameters

painter	QPainter a utiliser pour rendre le dessin
options	Options pour affiner le rendu
widget	Widget sur lequel le rendu est effectue

Here is the call graph for this function:

previousOrientation()

void PartTerminal::previousOrientation

(

)

Here is the call graph for this function:

Here is the caller graph for this function:

rotation()

qreal PartTerminal::rotation

(

)

const

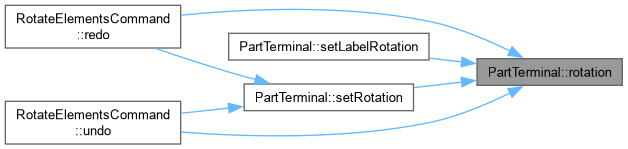

PartTerminal::rotation.

Returns

current rotation-angle in degrees

Here is the caller graph for this function:

sceneGeometricRect()

QRectF PartTerminal::sceneGeometricRect ( ) const

overridevirtual

Returns

the minimum, margin-less rectangle this part can fit into, in scene coordinates. It is different from boundingRect() because it is not supposed to imply any margin, and it is different from shape because it is a regular rectangle, not a complex shape.

Implements CustomElementPart.

setLabelColor()

void PartTerminal::setLabelColor

(

QColor

color

)

Here is the call graph for this function:

setLabelFont()

void PartTerminal::setLabelFont

(

QFont

font

)

Here is the call graph for this function:

setLabelFrame()

void PartTerminal::setLabelFrame

(

bool

frame

)

Here is the call graph for this function:

setLabelHAlignment()

void PartTerminal::setLabelHAlignment

(

Qt::Alignment

align

)

Here is the call graph for this function:

setLabelPos()

void PartTerminal::setLabelPos

(

QPointF

pos

)

Here is the call graph for this function:

Here is the caller graph for this function:

setLabelRotation()

void PartTerminal::setLabelRotation

(

qreal

rotation

)

Here is the call graph for this function:

setLabelVAlignment()

void PartTerminal::setLabelVAlignment

(

Qt::Alignment

align

)

Here is the call graph for this function:

setMasterLabelIndex()

void PartTerminal::setMasterLabelIndex

(

int

index

)

Here is the call graph for this function:

setNewUuid()

void PartTerminal::setNewUuid

(

)

Here is the caller graph for this function:

setOrientation()

void PartTerminal::setOrientation

(

Qet::Orientation

ori

)

Definit l'orientation de la borne

Parameters

ori	la nouvelle orientation de la borne

Here is the call graph for this function:

Here is the caller graph for this function:

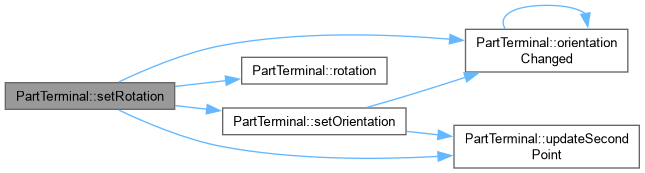

setRotation()

void PartTerminal::setRotation

(

qreal

angle

)

Redefines setRotation to call setOrientation

Parameters

angle

Here is the call graph for this function:

Here is the caller graph for this function:

setShowName()

void PartTerminal::setShowName

(

bool

show

)

Here is the call graph for this function:

setTerminalName()

void PartTerminal::setTerminalName

(

const QString &

name

)

PartTerminal::setTerminalName.

Parameters

name

Here is the call graph for this function:

setTerminalType()

void PartTerminal::setTerminalType

(

TerminalData::Type

type

)

PartTerminal::setTerminalType Set the type of terminal to 'type'.

Parameters

type

Here is the call graph for this function:

setUseMasterLabel()

void PartTerminal::setUseMasterLabel

(

bool

use

)

Here is the call graph for this function:

shadowShape()

QPainterPath PartTerminal::shadowShape ( ) const

overridevirtual

PartTerminal::shadowShape.

Returns

the hover outline shape (terminal line only, no label rect)

Implements CustomElementGraphicPart.

Here is the call graph for this function:

Here is the caller graph for this function:

shape()

QPainterPath PartTerminal::shape ( ) const

override

PartTerminal::shape.

Returns

the shape of this item

Here is the call graph for this function:

Here is the caller graph for this function:

showName()

bool PartTerminal::showName ( ) const

inline

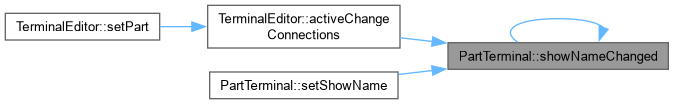

showNameChanged

void PartTerminal::showNameChanged ( )

signal

Here is the call graph for this function:

Here is the caller graph for this function:

startUserTransformation()

void PartTerminal::startUserTransformation ( const QRectF & initial_selection_rect )

overridevirtual

Start the user-induced transformation, provided this primitive is contained within the initial_selection_rect bounding rectangle.

Implements CustomElementPart.

terminalName()

QString PartTerminal::terminalName ( ) const

inline

terminalType()

TerminalData::Type PartTerminal::terminalType ( ) const

inline

terminalTypeChanged

void PartTerminal::terminalTypeChanged ( )

signal

Here is the call graph for this function:

Here is the caller graph for this function:

toXml()

const QDomElement PartTerminal::toXml ( QDomDocument & xml_document ) const

overridevirtual

Exporte la borne en XML

Parameters

xml_document

Document XML a utiliser pour creer l'element XML

Returns

un element XML decrivant la borne

Implements CustomElementPart.

Here is the call graph for this function:

Here is the caller graph for this function:

type()

int PartTerminal::type ( ) const

inlineoverride

Enable the use of qgraphicsitem_cast to safely cast a QGraphicsItem into a PartTerminal.

Returns

the QGraphicsItem type

Here is the caller graph for this function:

updateSecondPoint()

void PartTerminal::updateSecondPoint ( )

private

Updates the position of the second point according to the position and orientation of the terminal. Met a jour la position du second point en fonction de la position et de l'orientation de la borne.

Here is the caller graph for this function:

useMasterLabel()

bool PartTerminal::useMasterLabel ( ) const

inline

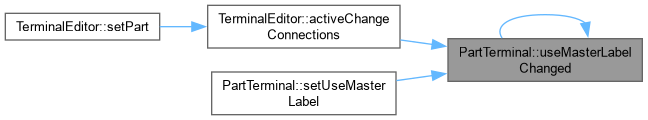

useMasterLabelChanged

void PartTerminal::useMasterLabelChanged ( )

signal

Here is the call graph for this function:

Here is the caller graph for this function:

xmlName()

QString PartTerminal::xmlName ( ) const

inlineoverridevirtual

Returns

the name that will be used as XML tag when exporting the primitive

Implements CustomElementPart.

Member Data Documentation

d

TerminalData* PartTerminal::d

private

m_dragging_label

bool PartTerminal::m_dragging_label = false

private

m_original_label_pos

QPointF PartTerminal::m_original_label_pos

private

saved_position_

QPointF PartTerminal::saved_position_

private

Property Documentation

label_color

QColor PartTerminal::label_color

readwrite

label_font

QFont PartTerminal::label_font

readwrite

label_frame

bool PartTerminal::label_frame

readwrite

label_halignment

Qt::Alignment PartTerminal::label_halignment

readwrite

label_pos

QPointF PartTerminal::label_pos

readwrite

label_rotation

qreal PartTerminal::label_rotation

readwrite

label_valignment

Qt::Alignment PartTerminal::label_valignment

readwrite

master_label_index

int PartTerminal::master_label_index

readwrite

orientation

Qet::Orientation PartTerminal::orientation

readwrite

show_name

bool PartTerminal::show_name

readwrite

terminal_name

QString PartTerminal::terminal_name

readwrite

terminal_type

TerminalData::Type PartTerminal::terminal_type

readwrite

use_master_label

bool PartTerminal::use_master_label

readwrite

---

The documentation for this class was generated from the following files:

• sources/editor/graphicspart/partterminal.h
• sources/editor/graphicspart/partterminal.cpp
