DiagramContent Class Reference

#include <diagramcontent.h>

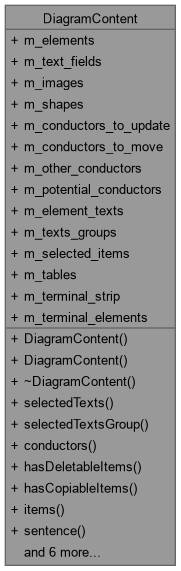

Collaboration diagram for DiagramContent:

Public Types
enum	Filter {   Elements = 1 , TextFields = 2 , ElementTextFields = 4 , Images = 8 ,   ConductorsToMove = 16 , ConductorsToUpdate = 32 , OtherConductors = 64 , AnyConductor = 112 ,   Shapes = 128 , TextGroup = 256 , Tables = 512 , TerminalStrip = 1024 ,   All = 2047 , SelectedOnly = 2048 }
	Used to filter the different items carried by this container. More...

Public Member Functions
	DiagramContent ()
	DiagramContent::DiagramContent.
	DiagramContent (Diagram *diagram, bool selected=true)
	DiagramContent::DiagramContent Constructor.
	~DiagramContent ()
QList< DiagramTextItem * >	selectedTexts () const
	DiagramContent::selectedTexts.
QList< ElementTextItemGroup * >	selectedTextsGroup () const
	DiagramContent::selectedTextsGroup.
QList< Conductor * >	conductors (int=AnyConductor) const
	DiagramContent::conductors.
bool	hasDeletableItems () const
	DiagramContent::hasDeletableItems.
bool	hasCopiableItems () const
	DiagramContent::hasCopiableItems.
QList< QGraphicsItem * >	items (int=All) const
	DiagramContent::items.
QString	sentence (int=All) const
	DiagramContent::sentence.
int	count (int=All) const
	DiagramContent::count.
void	clear ()
	DiagramContent::clear Remove all items from the diagram content.
int	removeNonMovableItems ()
	DiagramContent::removeNonMovableItems Remove all non movable item.
DiagramContent &	operator+= (const DiagramContent &other)
bool	potentialIsManaged (QList< Conductor * >conductors)
	DiagramContent::potentialIsManaged.
bool	hasTextEditing ()
	DiagramContent::hasTextEditing.

Public Attributes
QList< Element * >	m_elements
QSet< IndependentTextItem * >	m_text_fields
QSet< DiagramImageItem * >	m_images
QSet< QetShapeItem * >	m_shapes
QList< Conductor * >	m_conductors_to_update
QList< Conductor * >	m_conductors_to_move
QList< Conductor * >	m_other_conductors
QList< Conductor * >	m_potential_conductors
QSet< DynamicElementTextItem * >	m_element_texts
QSet< ElementTextItemGroup * >	m_texts_groups
QList< QGraphicsItem * >	m_selected_items
QVector< QetGraphicsTableItem * >	m_tables
QVector< TerminalStripItem * >	m_terminal_strip
QVector< QPointer< TerminalElement > >	m_terminal_elements

Detailed Description

This class provides a container that makes the transmission of diagram content to other functions/methods easier. The different kind of items are made available through a handful of filter-aware methods. Considering selected elements are to be moved, the filter notably distinguishes conductors to be moved from those to be updated. Please note this container does not systematically contains a whole diagram: it may describe only a part of it, e.g. selected items.

Member Enumeration Documentation

Filter

enum DiagramContent::Filter

Used to filter the different items carried by this container.

Enumerator
Elements
TextFields
ElementTextFields
Images
ConductorsToMove
ConductorsToUpdate
OtherConductors
AnyConductor
Shapes
TextGroup
Tables
TerminalStrip
All
SelectedOnly

Constructor & Destructor Documentation

DiagramContent() [1/2]

DiagramContent::DiagramContent

(

)

DiagramContent::DiagramContent.

Here is the caller graph for this function:

DiagramContent() [2/2]

DiagramContent::DiagramContent	(	Diagram *	diagram,
		bool	selected = true )

DiagramContent::DiagramContent Constructor.

Parameters

diagram	: Construct a diagramContent and fill it with the selected item of diagram
selected	: this diagramcontent get only selected items if true.

Here is the call graph for this function:

~DiagramContent()

DiagramContent::~DiagramContent

(

)

Member Function Documentation

clear()

void DiagramContent::clear

(

)

DiagramContent::clear Remove all items from the diagram content.

conductors()

QList< Conductor * > DiagramContent::conductors

(

int

filter = AnyConductor

)

const

DiagramContent::conductors.

Parameters

filter

Returns

Every conductors according to the filter

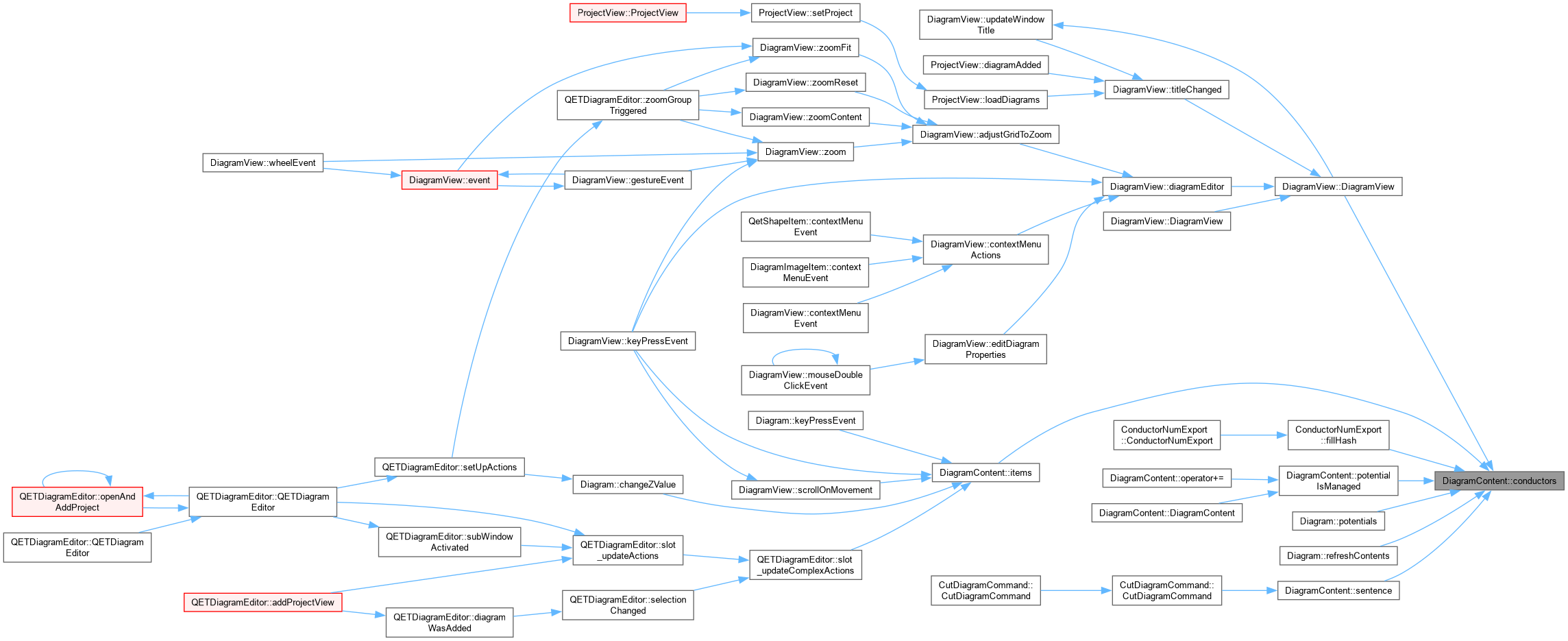

Here is the caller graph for this function:

count()

int DiagramContent::count

(

int

filter = All

)

const

DiagramContent::count.

Parameters

filter

Returns

The number of items, according to filter

Here is the call graph for this function:

Here is the caller graph for this function:

hasCopiableItems()

bool DiagramContent::hasCopiableItems

(

)

const

DiagramContent::hasCopiableItems.

Returns

true if this diagram content have copiable items.

Here is the caller graph for this function:

hasDeletableItems()

bool DiagramContent::hasDeletableItems

(

)

const

DiagramContent::hasDeletableItems.

Returns

true if this diagram content have deletable item The deletable items correspond to the selected items of diagram at the moment of the creation of this DiagramContent, with the constructor : DiagramContent::DiagramContent(Diagram *diagram)

Here is the caller graph for this function:

hasTextEditing()

bool DiagramContent::hasTextEditing

(

)

DiagramContent::hasTextEditing.

Returns

true if handle a text currently in editing interaction

Here is the call graph for this function:

Here is the caller graph for this function:

items()

QList< QGraphicsItem * > DiagramContent::items

(

int

filter = All

)

const

DiagramContent::items.

Parameters

filter

Returns

The items of this diagram content according to filter

Here is the call graph for this function:

Here is the caller graph for this function:

operator+=()

DiagramContent & DiagramContent::operator+=

(

const DiagramContent &

other

)

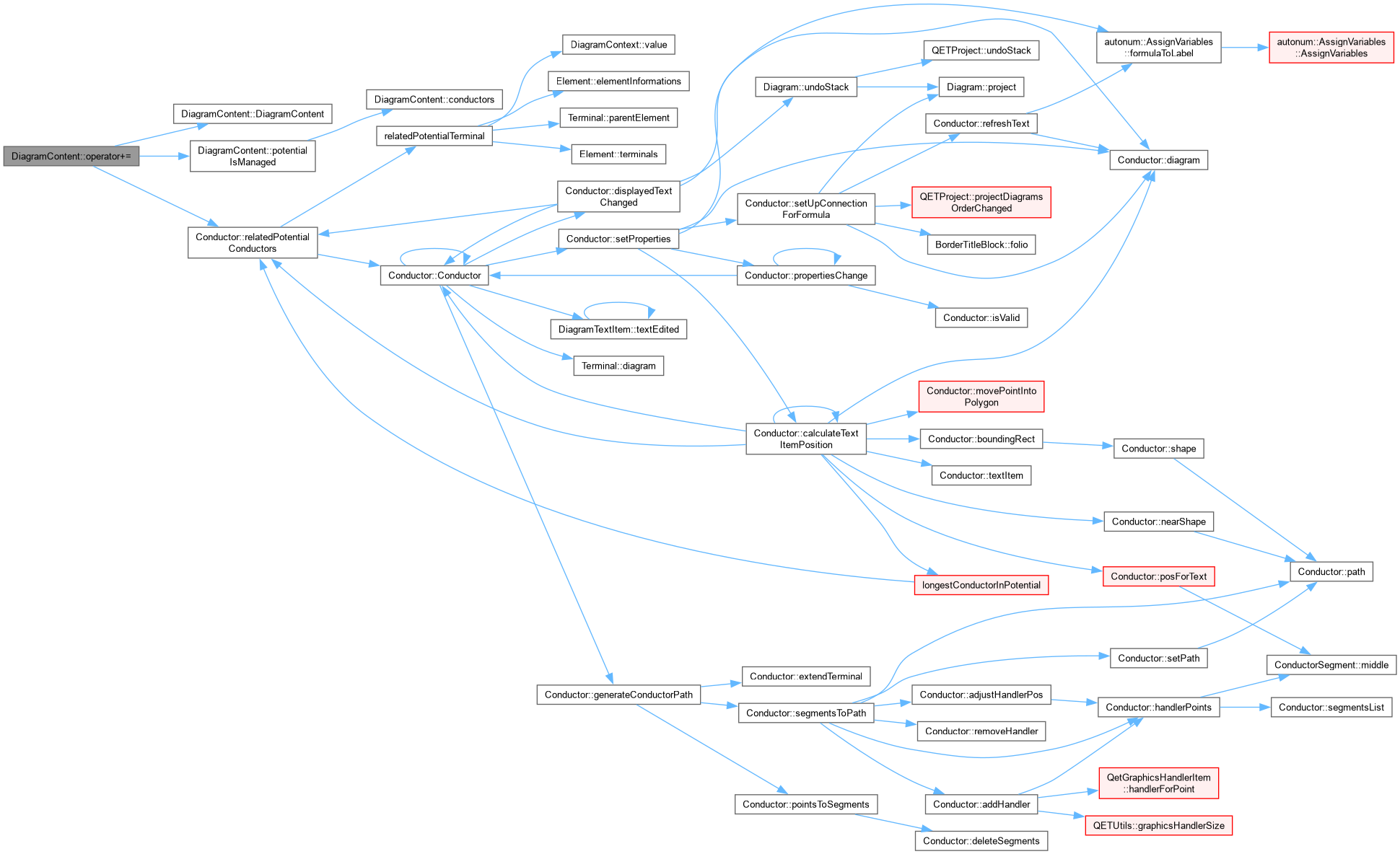

Here is the call graph for this function:

potentialIsManaged()

bool DiagramContent::potentialIsManaged

(

QList< Conductor * >

conductors

)

DiagramContent::potentialIsManaged.

Parameters

conductors

a list of conductors at the same potential.

Returns

true, if m_potential_conductors already have a conductor of this potential.

Here is the call graph for this function:

Here is the caller graph for this function:

removeNonMovableItems()

int DiagramContent::removeNonMovableItems

(

)

DiagramContent::removeNonMovableItems Remove all non movable item.

Returns

: return the numbers of removed item

selectedTexts()

QList< DiagramTextItem * > DiagramContent::selectedTexts

(

)

const

DiagramContent::selectedTexts.

Returns

a list of every selected texts (every kind of texts) Note that the returned list of texts, correspond to the selected texts at the moment of the creation of this DiagramContent, with the constructor : DiagramContent::DiagramContent(Diagram *diagram)

Here is the caller graph for this function:

selectedTextsGroup()

QList< ElementTextItemGroup * > DiagramContent::selectedTextsGroup

(

)

const

DiagramContent::selectedTextsGroup.

Returns

a list of selected texts group Note that the returned list of texts group, correspond to the selected texts group at the moment of the creation of this DiagramContent, with the constructor : DiagramContent::DiagramContent(Diagram *diagram)

Here is the caller graph for this function:

sentence()

QString DiagramContent::sentence

(

int

filter = All

)

const

DiagramContent::sentence.

Parameters

filter

Returns

A string that describe the items of the diagram content according to filter. Example : X elements, Y conductors etc....

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_conductors_to_move

QList<Conductor *> DiagramContent::m_conductors_to_move

m_conductors_to_update

QList<Conductor *> DiagramContent::m_conductors_to_update

m_element_texts

QSet<DynamicElementTextItem *> DiagramContent::m_element_texts

m_elements

QList<Element *> DiagramContent::m_elements

m_images

QSet<DiagramImageItem *> DiagramContent::m_images

m_other_conductors

QList<Conductor *> DiagramContent::m_other_conductors

m_potential_conductors

QList<Conductor *> DiagramContent::m_potential_conductors

m_selected_items

QList<QGraphicsItem *> DiagramContent::m_selected_items

m_shapes

QSet<QetShapeItem *> DiagramContent::m_shapes

m_tables

QVector<QetGraphicsTableItem *> DiagramContent::m_tables

m_terminal_elements

QVector<QPointer<TerminalElement> > DiagramContent::m_terminal_elements

m_terminal_strip

QVector<TerminalStripItem *> DiagramContent::m_terminal_strip

m_text_fields

QSet<IndependentTextItem *> DiagramContent::m_text_fields

m_texts_groups

QSet<ElementTextItemGroup *> DiagramContent::m_texts_groups

---

The documentation for this class was generated from the following files:

• sources/diagramcontent.h
• sources/diagramcontent.cpp
