RotateSelectionCommand Class Reference

The RotateSelectionCommand class Rotate the selected items in the given diagram. More...

#include <rotateselectioncommand.h>

Inherits QUndoCommand.

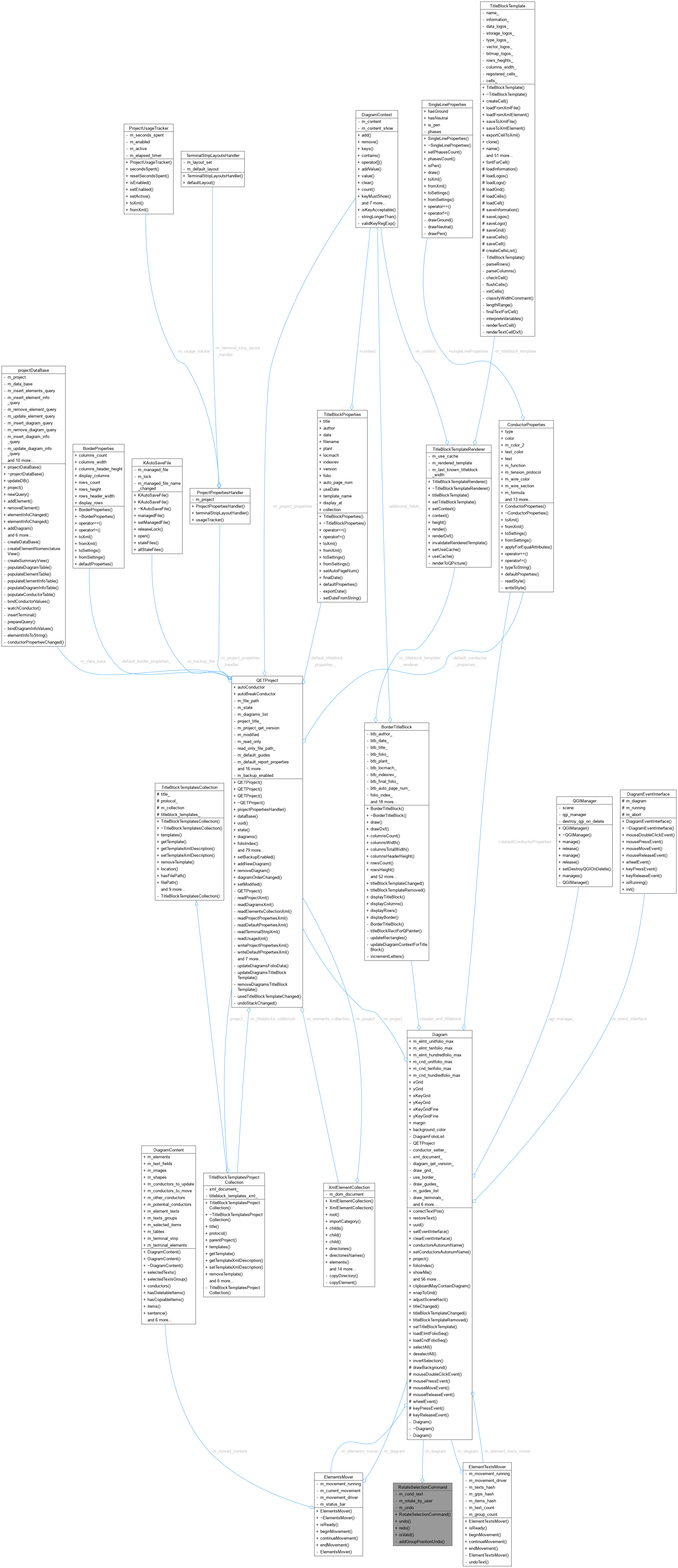

Collaboration diagram for RotateSelectionCommand:

Public Member Functions
	RotateSelectionCommand (Diagram *diagram, qreal angle=90, QUndoCommand *parent=nullptr, bool rotate_as_group=false)
void	undo () override
	RotateSelectionCommand::undo.
void	redo () override
	RotateSelectionCommand::redo.
bool	isValid ()
	RotateSelectionCommand::isValid.

Private Member Functions
void	addGroupPositionUndo (QGraphicsItem *item, const QPointF &pivot, qreal angle)
	RotateSelectionCommand::addGroupPositionUndo Queue a "pos" QPropertyUndoCommand that rotates item's position around pivot by angle degrees (Qt's clockwise-positive convention, matching QGraphicsItem::setRotation() so a group rotation turns the same direction as each item's own spin). Only meaningful for items whose pos() is in scene coordinates (Element, IndependentTextItem, DiagramImageItem) – never call this for a child item positioned relative to its own parent.

Private Attributes
Diagram *	m_diagram =nullptr
QList< QPointer< ConductorTextItem > >	m_cond_text
QHash< ConductorTextItem *, bool >	m_rotate_by_user
QList< QPropertyUndoCommand * >	m_undo

Detailed Description

The RotateSelectionCommand class Rotate the selected items in the given diagram.

Constructor & Destructor Documentation

RotateSelectionCommand()

RotateSelectionCommand::RotateSelectionCommand	(	Diagram *	diagram,
		qreal	angle = 90,
		QUndoCommand *	parent = nullptr,
		bool	rotate_as_group = false )

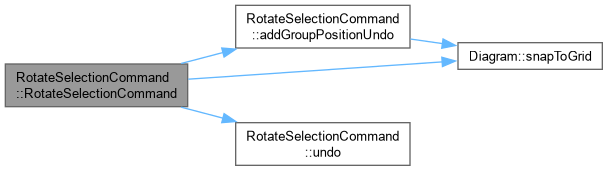

Here is the call graph for this function:

Member Function Documentation

addGroupPositionUndo()

void RotateSelectionCommand::addGroupPositionUndo ( QGraphicsItem * item, const QPointF & pivot, qreal angle )

private

RotateSelectionCommand::addGroupPositionUndo Queue a "pos" QPropertyUndoCommand that rotates item's position around pivot by angle degrees (Qt's clockwise-positive convention, matching QGraphicsItem::setRotation() so a group rotation turns the same direction as each item's own spin). Only meaningful for items whose pos() is in scene coordinates (Element, IndependentTextItem, DiagramImageItem) – never call this for a child item positioned relative to its own parent.

Parameters

item	: item to reposition, its own rotation undo already queued
pivot	: shared pivot point, in scene coordinates
angle	: rotation angle in degrees

Here is the call graph for this function:

Here is the caller graph for this function:

isValid()

bool RotateSelectionCommand::isValid

(

)

RotateSelectionCommand::isValid.

Returns

true if this command rotate a least one item.

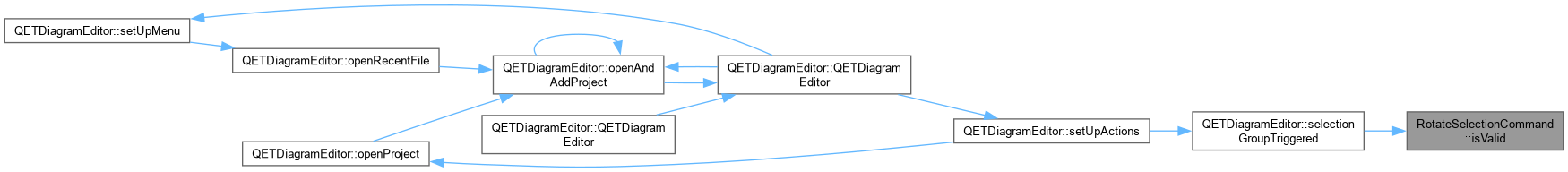

Here is the caller graph for this function:

redo()

void RotateSelectionCommand::redo ( )

override

RotateSelectionCommand::redo.

undo()

void RotateSelectionCommand::undo ( )

override

RotateSelectionCommand::undo.

Here is the caller graph for this function:

Member Data Documentation

m_cond_text

QList<QPointer<ConductorTextItem> > RotateSelectionCommand::m_cond_text

private

m_diagram

Diagram* RotateSelectionCommand::m_diagram =nullptr

private

m_rotate_by_user

QHash<ConductorTextItem *, bool> RotateSelectionCommand::m_rotate_by_user

private

m_undo

QList<QPropertyUndoCommand*> RotateSelectionCommand::m_undo

private

---

The documentation for this class was generated from the following files:

• sources/undocommand/rotateselectioncommand.h
• sources/undocommand/rotateselectioncommand.cpp
