PastePartsCommand Class Reference

The PastePartsCommand class Undo command for paste element primitive in an element editor. More...

#include <pastepartscommand.h>

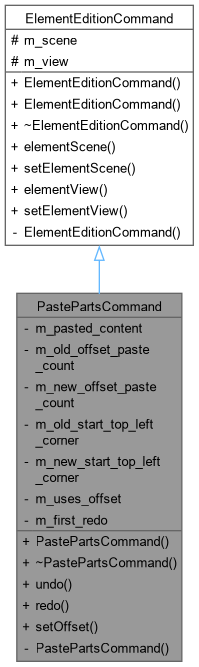

Inheritance diagram for PastePartsCommand:

Collaboration diagram for PastePartsCommand:

Public Member Functions
	PastePartsCommand (ElementView *view, const ElementContent &content_to_paste, QUndoCommand *parent=nullptr)
	PastePartsCommand::PastePartsCommand.
	~PastePartsCommand () override
	PastePartsCommand::~PastePartsCommand.
void	undo () override
	PastePartsCommand::undo.
void	redo () override
	PastePartsCommand::redo.
virtual void	setOffset (int old_offset_paste_count, const QPointF &old_start_top_left_corner, int new_offset_paste_count, const QPointF &new_start_top_left_corner)
	PastePartsCommand::setOffset Describe the offset to use with this undo command.
Public Member Functions inherited from ElementEditionCommand
	ElementEditionCommand (ElementScene *=nullptr, ElementView *=nullptr, QUndoCommand *=nullptr)
	ElementEditionCommand::ElementEditionCommand Constructs an ElementEditionCommand, thus embedding the provided scene and view.
	ElementEditionCommand (const QString &, ElementScene *=nullptr, ElementView *=nullptr, QUndoCommand *=nullptr)
	ElementEditionCommand::ElementEditionCommand Constructs an ElementEditionCommand, thus embedding the provided scene and view.
	~ElementEditionCommand () override
ElementScene *	elementScene () const
void	setElementScene (ElementScene *)
ElementView *	elementView () const
void	setElementView (ElementView *)

Private Member Functions
	PastePartsCommand (const PastePartsCommand &)

Private Attributes
ElementContent	m_pasted_content
int	m_old_offset_paste_count
int	m_new_offset_paste_count
QPointF	m_old_start_top_left_corner
QPointF	m_new_start_top_left_corner
bool	m_uses_offset = false
bool	m_first_redo = true

Additional Inherited Members
Protected Attributes inherited from ElementEditionCommand
ElementScene *	m_scene
	Element editor/view/scene the command should take place on.
ElementView *	m_view

Detailed Description

The PastePartsCommand class Undo command for paste element primitive in an element editor.

Constructor & Destructor Documentation

PastePartsCommand() [1/2]

PastePartsCommand::PastePartsCommand	(	ElementView *	view,
		const ElementContent &	content_to_paste,
		QUndoCommand *	parent = nullptr )

PastePartsCommand::PastePartsCommand.

Parameters

view	: view where this command work
content_to_paste	: content to paste
parent	: parent undo command

Note

all terminal stored in content_to_paste get a new uuid in the constructor of this class to avoid have several terminal of an element with the same uuid.

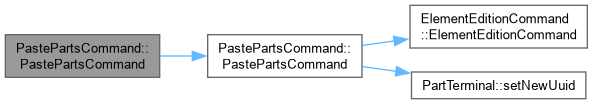

Here is the call graph for this function:

Here is the caller graph for this function:

~PastePartsCommand()

PastePartsCommand::~PastePartsCommand ( )

override

PastePartsCommand::~PastePartsCommand.

PastePartsCommand() [2/2]

PastePartsCommand::PastePartsCommand ( const PastePartsCommand & )

private

Here is the call graph for this function:

Member Function Documentation

redo()

void PastePartsCommand::redo ( )

override

PastePartsCommand::redo.

setOffset()

void PastePartsCommand::setOffset ( int old_offset_paste_count, const QPointF & old_start_top_left_corner, int new_offset_paste_count, const QPointF & new_start_top_left_corner )

virtual

PastePartsCommand::setOffset Describe the offset to use with this undo command.

Parameters

old_offset_paste_count
old_start_top_left_corner
new_offset_paste_count
new_start_top_left_corner

undo()

void PastePartsCommand::undo ( )

override

PastePartsCommand::undo.

Member Data Documentation

m_first_redo

bool PastePartsCommand::m_first_redo = true

private

m_new_offset_paste_count

int PastePartsCommand::m_new_offset_paste_count

private

m_new_start_top_left_corner

QPointF PastePartsCommand::m_new_start_top_left_corner

private

m_old_offset_paste_count

int PastePartsCommand::m_old_offset_paste_count

private

m_old_start_top_left_corner

QPointF PastePartsCommand::m_old_start_top_left_corner

private

m_pasted_content

ElementContent PastePartsCommand::m_pasted_content

private

m_uses_offset

bool PastePartsCommand::m_uses_offset = false

private

---

The documentation for this class was generated from the following files:

• sources/editor/UndoCommand/pastepartscommand.h
• sources/editor/UndoCommand/pastepartscommand.cpp
