QetLogger Class Reference

The QetLogger class Rework of QET's diagnostic logging (discussion #644, steps 1-3): More...

#include <qetlogger.h>

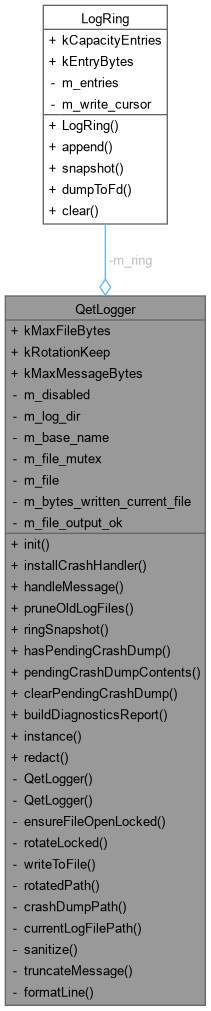

Collaboration diagram for QetLogger:

Public Member Functions
void	init ()
void	installCrashHandler ()
void	handleMessage (QtMsgType type, const QMessageLogContext &context, const QString &msg)
	The function installed via qInstallMessageHandler() forwards here.
void	pruneOldLogFiles (int days)
QVector< QByteArray >	ringSnapshot () const
	Snapshot of the in-memory ring, oldest first.
bool	hasPendingCrashDump () const
QByteArray	pendingCrashDumpContents () const
void	clearPendingCrashDump ()
QByteArray	buildDiagnosticsReport () const

Static Public Member Functions
static QetLogger &	instance ()
	QetLogger::instance Function-local static: guaranteed constructed exactly once, in a thread-safe way, on first use – but the meaningful initialisation (log path resolution, opening the file) happens in init(), called explicitly from main() at a defined point, not implicitly on whichever thread happens to log first.
static QByteArray	redact (const QByteArray &input)
	QetLogger::redact Replaces the user's home directory with "~" wherever it appears. Applied before a crash dump or a diagnostics report is ever shown to the user: both are destined to be attached to a public bug tracker, and an absolute path under the home directory leaks the account name (discussion #644's privacy section: "/home/laurent/... leaks a username"). This is the one redaction implemented here; the discussion's fancier "optionally redact project filenames too" is not attempted – reliably telling a project path apart from arbitrary log text is a much fuzzier problem than a literal prefix match against a known directory.

Static Public Attributes
static constexpr qint64	kMaxFileBytes = 2 * 1024 * 1024
static constexpr int	kRotationKeep = 4
static constexpr int	kMaxMessageBytes = 4096

Private Member Functions
	QetLogger ()=default
	QetLogger (const QetLogger &)=delete
bool	ensureFileOpenLocked ()
	QetLogger::ensureFileOpenLocked Caller must hold m_file_mutex. Opens the current session's log file if not already open. Refuses to follow a pre-existing symlink at that path, and creates the file owner-read/write only.
void	rotateLocked ()
	QetLogger::rotateLocked Caller must hold m_file_mutex. Shifts .3.log -> .4.log (dropping the previous .4.log), .2.log -> .3.log, .1.log -> .2.log, .log -> .1.log, then opens a fresh, empty current file.
void	writeToFile (const QByteArray &line, QtMsgType type)
QString	rotatedPath (int index) const
QString	crashDumpPath () const
QString	currentLogFilePath () const

Static Private Member Functions
static QByteArray	sanitize (const QByteArray &input)
	QetLogger::sanitize Escapes newlines, carriage returns and other control characters. Much of what QET logs is externally controlled (file paths, element names, font strings read out of a .qet file); left unescaped, a crafted string containing ' ' can forge additional log lines. Operates on already-UTF-8-encoded bytes: this is safe because UTF-8 continuation bytes are always >= 0x80, so any byte < 0x20 found here is a genuine ASCII control character, never part of a multi-byte sequence.
static QByteArray	truncateMessage (const QByteArray &input, int max_bytes)
	QetLogger::truncateMessage Caps a single message at max_bytes, appending a marker stating how many bytes were dropped, so one pathological caller (e.g. dumping an entire XML document to qDebug()) can't consume an unbounded amount of the ring's or file's byte budget.
static QByteArray	formatLine (QtMsgType type, const QMessageLogContext &context, const QByteArray &sanitized_msg)

Private Attributes
bool	m_disabled = false
QString	m_log_dir
QString	m_base_name
QMutex	m_file_mutex
QFile	m_file
qint64	m_bytes_written_current_file = 0
bool	m_file_output_ok = false
LogRing	m_ring

Detailed Description

The QetLogger class Rework of QET's diagnostic logging (discussion #644, steps 1-3):

• Step 1: one file handle held open for the session under a mutex instead of opening/closing per message; the log path (including the date-stamped filename) is resolved exactly once, at init(), instead of being recomputed on every message – a session that crosses midnight now stays in one file; retention now uses lastModified() instead of lastRead(); stderr and file output both use UTF-8 explicitly (previously stderr used the local 8-bit codec and the file's encoding silently differed between Qt5 and Qt6).
• Step 2: the previously-unbounded daily file is now size-capped and rotated (kMaxFileBytes per file, kRotationKeep old files kept beyond the current one); each message is truncated to kMaxMessageBytes and control characters are escaped before being written, so one pathological caller can't blow the size budget or forge log lines; the log file is refused if it already exists as a symlink and is created owner-read/write only.
• Step 3: every formatted line is also appended to an in-memory LogRing (see logring.h) – always on, fixed capacity, allocation- free on the hot path.
• Step 4: installCrashHandler() wires the ring up to CrashHandler (see crashhandler.h), so a SIGSEGV/SIGABRT/SIGBUS/SIGFPE/SIGILL (or, on Windows, an unhandled structured exception) flushes the ring to a fixed crash-dump file before the process dies.
• Step 5: hasPendingCrashDump()/pendingCrashDumpContents()/ clearPendingCrashDump() let startup code (see QETApp::checkBackupFiles()) notice and offer an unretrieved crash dump from the previous run; buildDiagnosticsReport() is the equivalent for a manual "save a report right now" action on the current, still-running session. Both go through redact() before ever reaching the user, since both are destined for a public bug tracker.

Deliberately NOT included: log categories, a full session header beyond what the crash dump/report already carry, repeat collapsing, rate limiting. Those are listed in discussion #644 under "best practices worth building in", not part of the numbered steps.

Escape hatch: if QET_LOG_DISABLE=1 is set in the environment at init() time, this class does nothing beyond a minimal, independent stderr passthrough – no ring, no file, no rotation – so a problem in this rework can be worked around without a rebuild.

Constructor & Destructor Documentation

QetLogger() [1/2]

QetLogger::QetLogger ( )

privatedefault

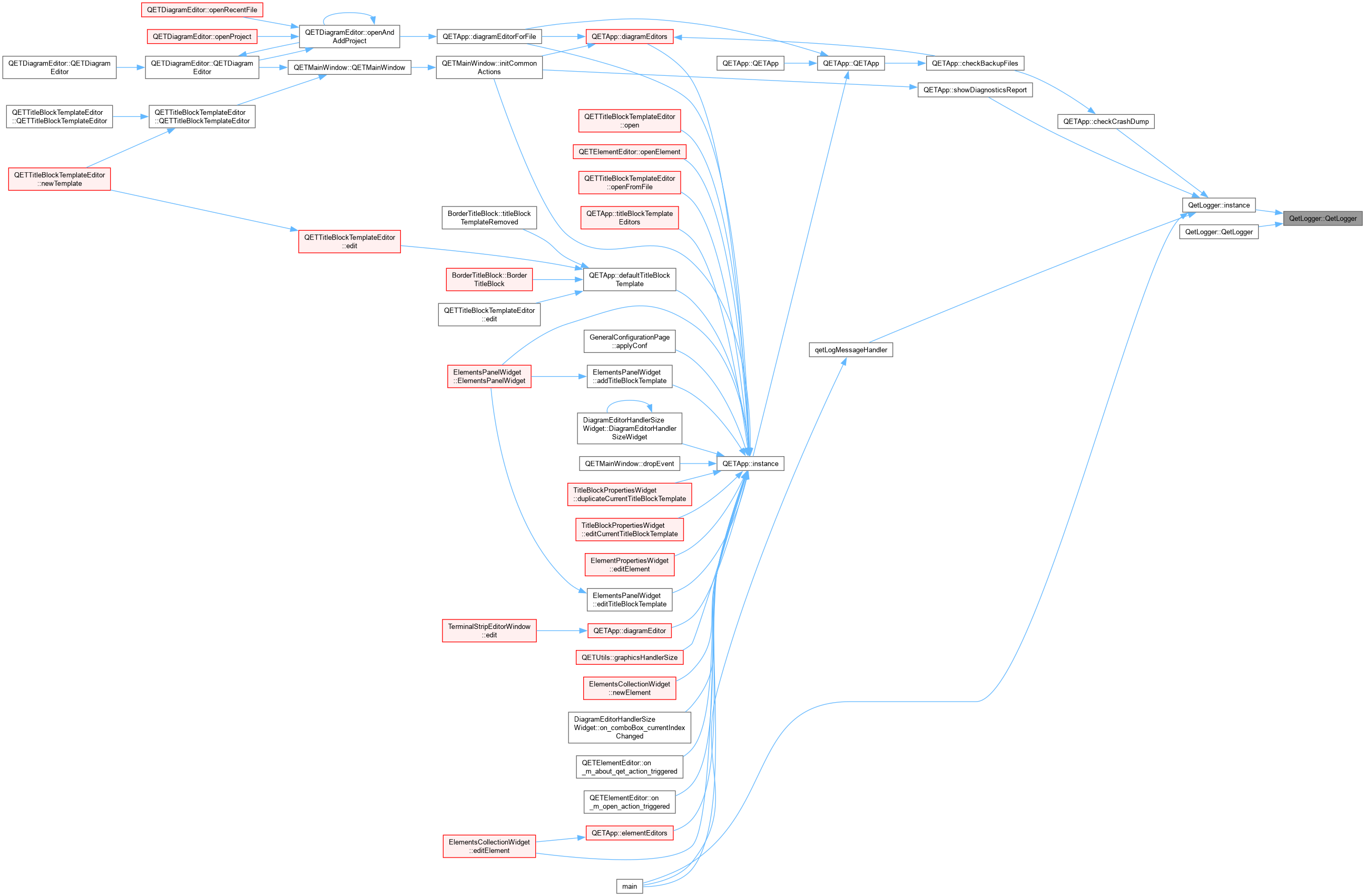

Here is the caller graph for this function:

QetLogger() [2/2]

QetLogger::QetLogger ( const QetLogger & )

privatedelete

Here is the call graph for this function:

Member Function Documentation

buildDiagnosticsReport()

QByteArray QetLogger::buildDiagnosticsReport

(

)

const

Builds a redacted diagnostics bundle from the current session (header + this session's log file so far) for the manual "Save report" action – as opposed to pendingCrashDumpContents(), which is about a previous, already-terminated session.

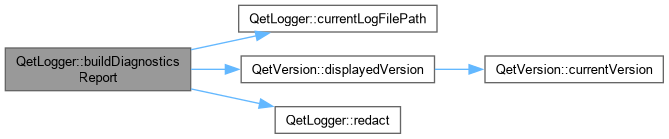

Here is the call graph for this function:

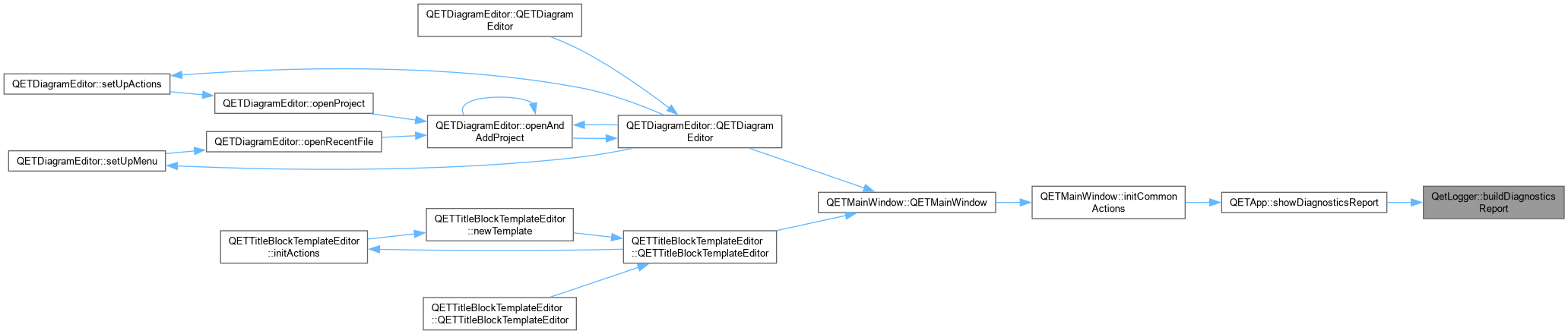

Here is the caller graph for this function:

clearPendingCrashDump()

void QetLogger::clearPendingCrashDump

(

)

Deletes the pending crash dump file. Call after the user has been offered it (whether they chose to save it or not) so it is never offered a second time.

Here is the call graph for this function:

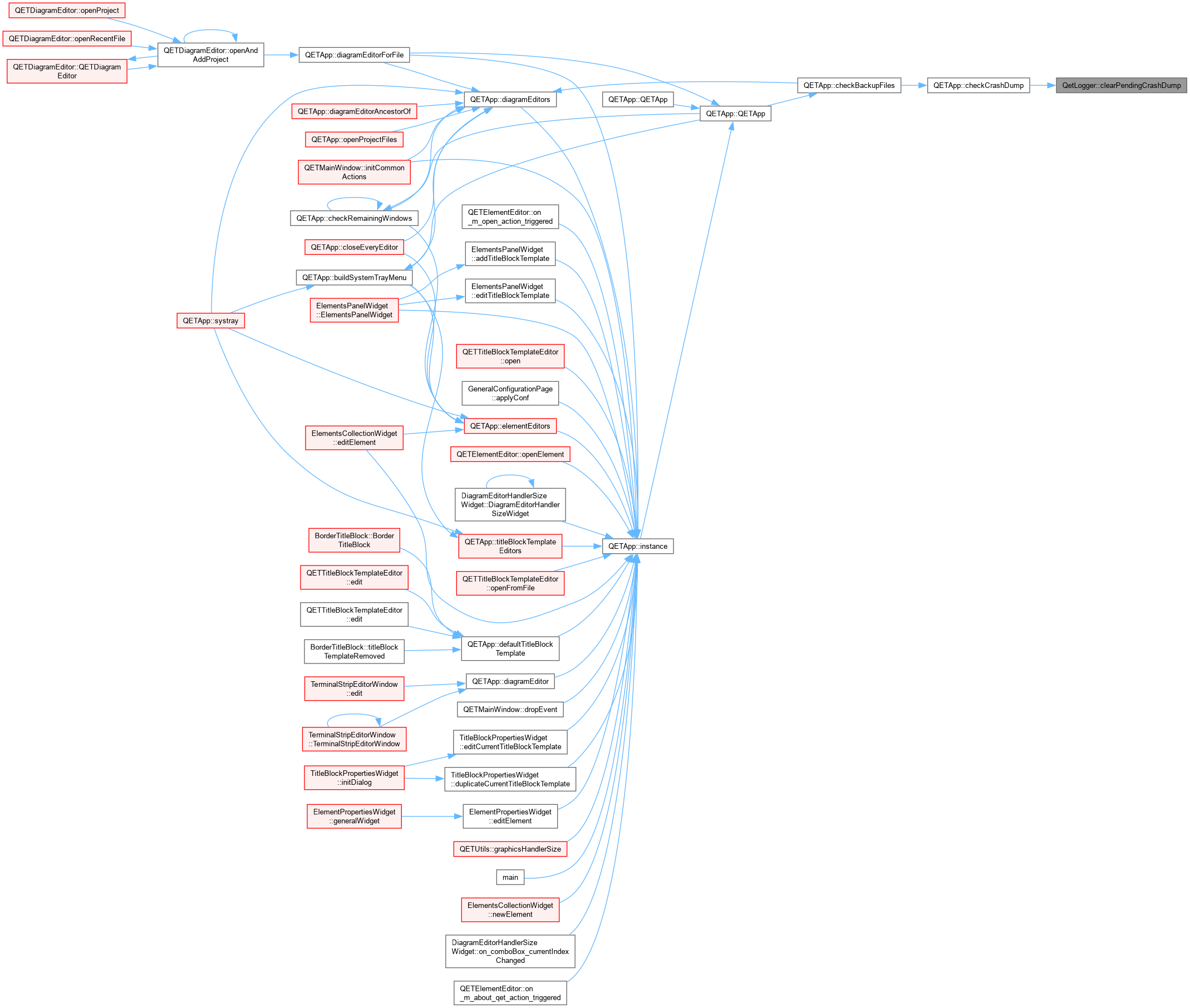

Here is the caller graph for this function:

crashDumpPath()

QString QetLogger::crashDumpPath ( ) const

private

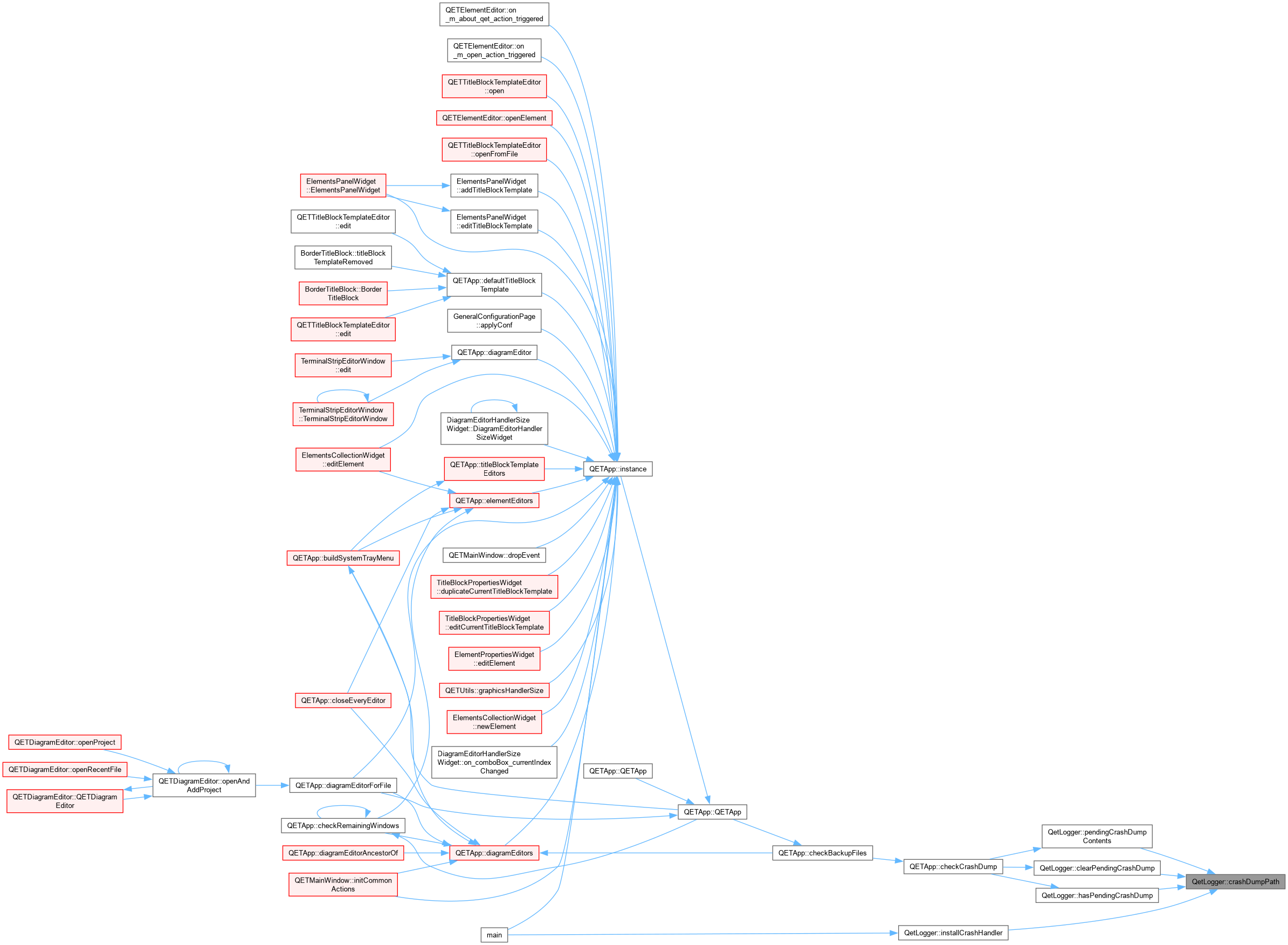

Here is the caller graph for this function:

currentLogFilePath()

QString QetLogger::currentLogFilePath ( ) const

private

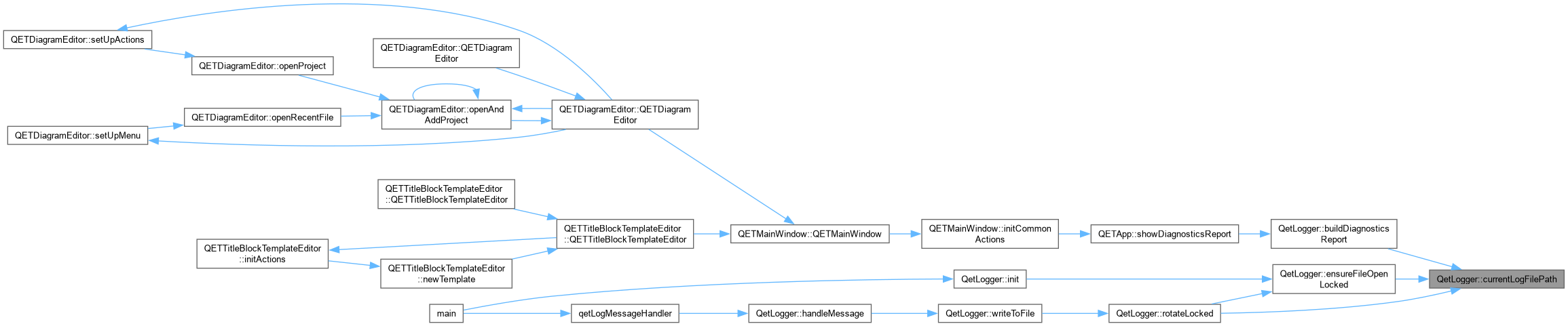

Here is the caller graph for this function:

ensureFileOpenLocked()

bool QetLogger::ensureFileOpenLocked ( )

private

QetLogger::ensureFileOpenLocked Caller must hold m_file_mutex. Opens the current session's log file if not already open. Refuses to follow a pre-existing symlink at that path, and creates the file owner-read/write only.

Here is the call graph for this function:

Here is the caller graph for this function:

formatLine()

QByteArray QetLogger::formatLine ( QtMsgType type, const QMessageLogContext & context, const QByteArray & sanitized_msg )

staticprivate

Here is the caller graph for this function:

handleMessage()

void QetLogger::handleMessage	(	QtMsgType	type,
		const QMessageLogContext &	context,
		const QString &	msg )

The function installed via qInstallMessageHandler() forwards here.

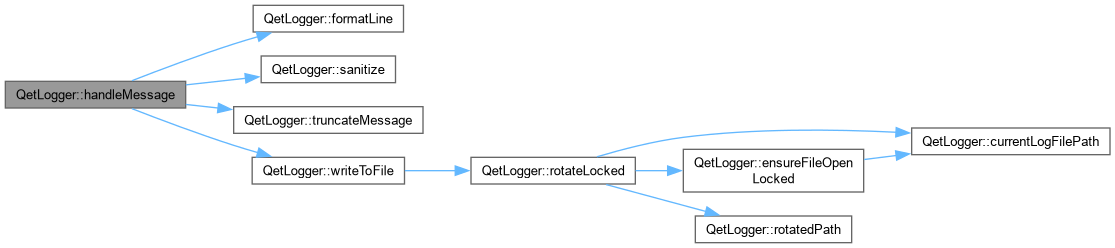

Here is the call graph for this function:

Here is the caller graph for this function:

hasPendingCrashDump()

bool QetLogger::hasPendingCrashDump

(

)

const

True if a previous run's crash handler left an unretrieved dump behind.

Here is the call graph for this function:

Here is the caller graph for this function:

init()

void QetLogger::init

(

)

Must be called exactly once, from main(), before qInstallMessageHandler(). Resolves the log directory and the session's log filename, and opens the file.

Here is the call graph for this function:

Here is the caller graph for this function:

installCrashHandler()

void QetLogger::installCrashHandler

(

)

Step 4: installs the crash handler (see crashhandler.h). Must be called after init() (the ring and the dump path must exist first) and, like init(), only once.

Here is the call graph for this function:

Here is the caller graph for this function:

instance()

QetLogger & QetLogger::instance ( )

static

QetLogger::instance Function-local static: guaranteed constructed exactly once, in a thread-safe way, on first use – but the meaningful initialisation (log path resolution, opening the file) happens in init(), called explicitly from main() at a defined point, not implicitly on whichever thread happens to log first.

Here is the call graph for this function:

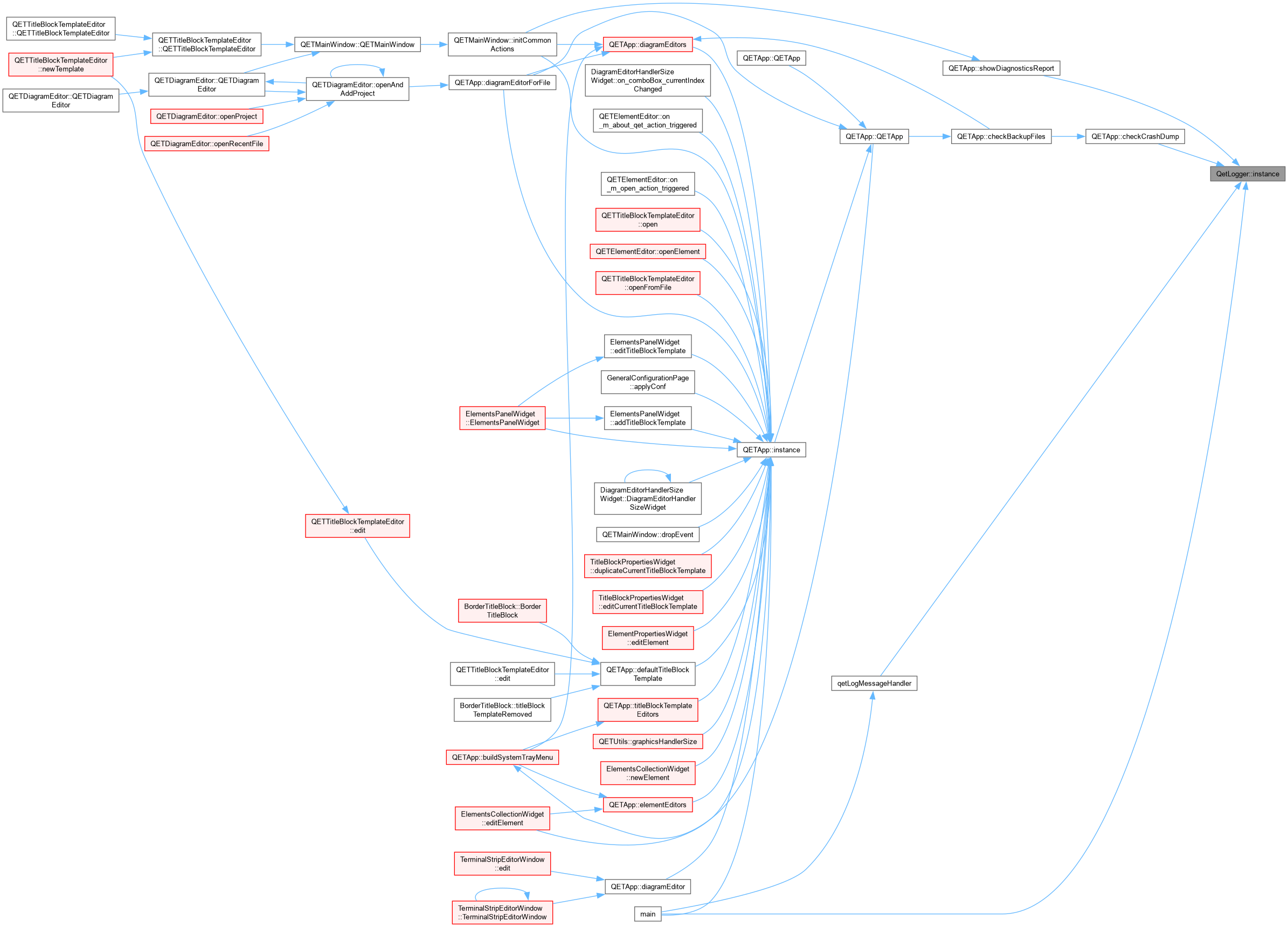

Here is the caller graph for this function:

pendingCrashDumpContents()

QByteArray QetLogger::pendingCrashDumpContents

(

)

const

Raw contents of the pending crash dump, or an empty array if there isn't one. Does not delete it – call clearPendingCrashDump() once it has been offered to the user.

Here is the call graph for this function:

Here is the caller graph for this function:

pruneOldLogFiles()

void QetLogger::pruneOldLogFiles

(

int

days

)

Replaces the old delete_old_log_files(): same call shape, fixed to use lastModified() (not lastRead()) and to also match rotated file names.

Here is the caller graph for this function:

redact()

QByteArray QetLogger::redact ( const QByteArray & input )

static

QetLogger::redact Replaces the user's home directory with "~" wherever it appears. Applied before a crash dump or a diagnostics report is ever shown to the user: both are destined to be attached to a public bug tracker, and an absolute path under the home directory leaks the account name (discussion #644's privacy section: "/home/laurent/... leaks a username"). This is the one redaction implemented here; the discussion's fancier "optionally redact project filenames too" is not attempted – reliably telling a project path apart from arbitrary log text is a much fuzzier problem than a literal prefix match against a known directory.

Replaces occurrences of the user's home directory with "~". Applied to both the crash dump and buildDiagnosticsReport() before they are ever shown to the user, since both are destined for a public bug tracker.

Here is the caller graph for this function:

ringSnapshot()

QVector< QByteArray > QetLogger::ringSnapshot ( ) const

inline

Snapshot of the in-memory ring, oldest first.

rotatedPath()

QString QetLogger::rotatedPath ( int index ) const

private

Here is the caller graph for this function:

rotateLocked()

void QetLogger::rotateLocked ( )

private

QetLogger::rotateLocked Caller must hold m_file_mutex. Shifts .3.log -> .4.log (dropping the previous .4.log), .2.log -> .3.log, .1.log -> .2.log, .log -> .1.log, then opens a fresh, empty current file.

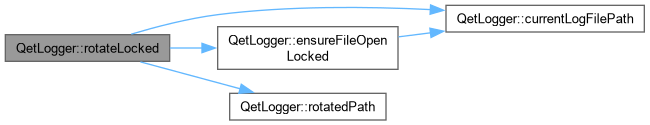

Here is the call graph for this function:

Here is the caller graph for this function:

sanitize()

QByteArray QetLogger::sanitize ( const QByteArray & input )

staticprivate

QetLogger::sanitize Escapes newlines, carriage returns and other control characters. Much of what QET logs is externally controlled (file paths, element names, font strings read out of a .qet file); left unescaped, a crafted string containing '
' can forge additional log lines. Operates on already-UTF-8-encoded bytes: this is safe because UTF-8 continuation bytes are always >= 0x80, so any byte < 0x20 found here is a genuine ASCII control character, never part of a multi-byte sequence.

Here is the caller graph for this function:

truncateMessage()

QByteArray QetLogger::truncateMessage ( const QByteArray & input, int max_bytes )

staticprivate

QetLogger::truncateMessage Caps a single message at max_bytes, appending a marker stating how many bytes were dropped, so one pathological caller (e.g. dumping an entire XML document to qDebug()) can't consume an unbounded amount of the ring's or file's byte budget.

Here is the caller graph for this function:

writeToFile()

void QetLogger::writeToFile ( const QByteArray & line, QtMsgType type )

private

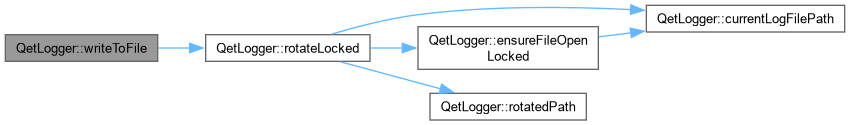

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

kMaxFileBytes

qint64 QetLogger::kMaxFileBytes = 2 * 1024 * 1024

staticconstexpr

kMaxMessageBytes

int QetLogger::kMaxMessageBytes = 4096

staticconstexpr

kRotationKeep

int QetLogger::kRotationKeep = 4

staticconstexpr

m_base_name

QString QetLogger::m_base_name

private

m_bytes_written_current_file

qint64 QetLogger::m_bytes_written_current_file = 0

private

m_disabled

bool QetLogger::m_disabled = false

private

m_file

QFile QetLogger::m_file

private

m_file_mutex

QMutex QetLogger::m_file_mutex

private

m_file_output_ok

bool QetLogger::m_file_output_ok = false

private

m_log_dir

QString QetLogger::m_log_dir

private

m_ring

LogRing QetLogger::m_ring

private

---

The documentation for this class was generated from the following files:

• sources/logging/qetlogger.h
• sources/logging/qetlogger.cpp
