MasterPropertiesWidget Class Reference

The MasterPropertiesWidget class This class is a widget for make link between a master element with several slave element. This class embenddedthe undo/redo command when apply new connection. More...

#include <masterpropertieswidget.h>

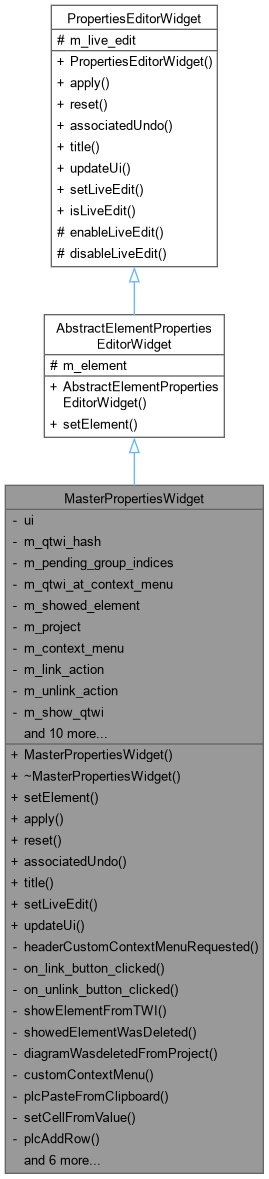

Inheritance diagram for MasterPropertiesWidget:

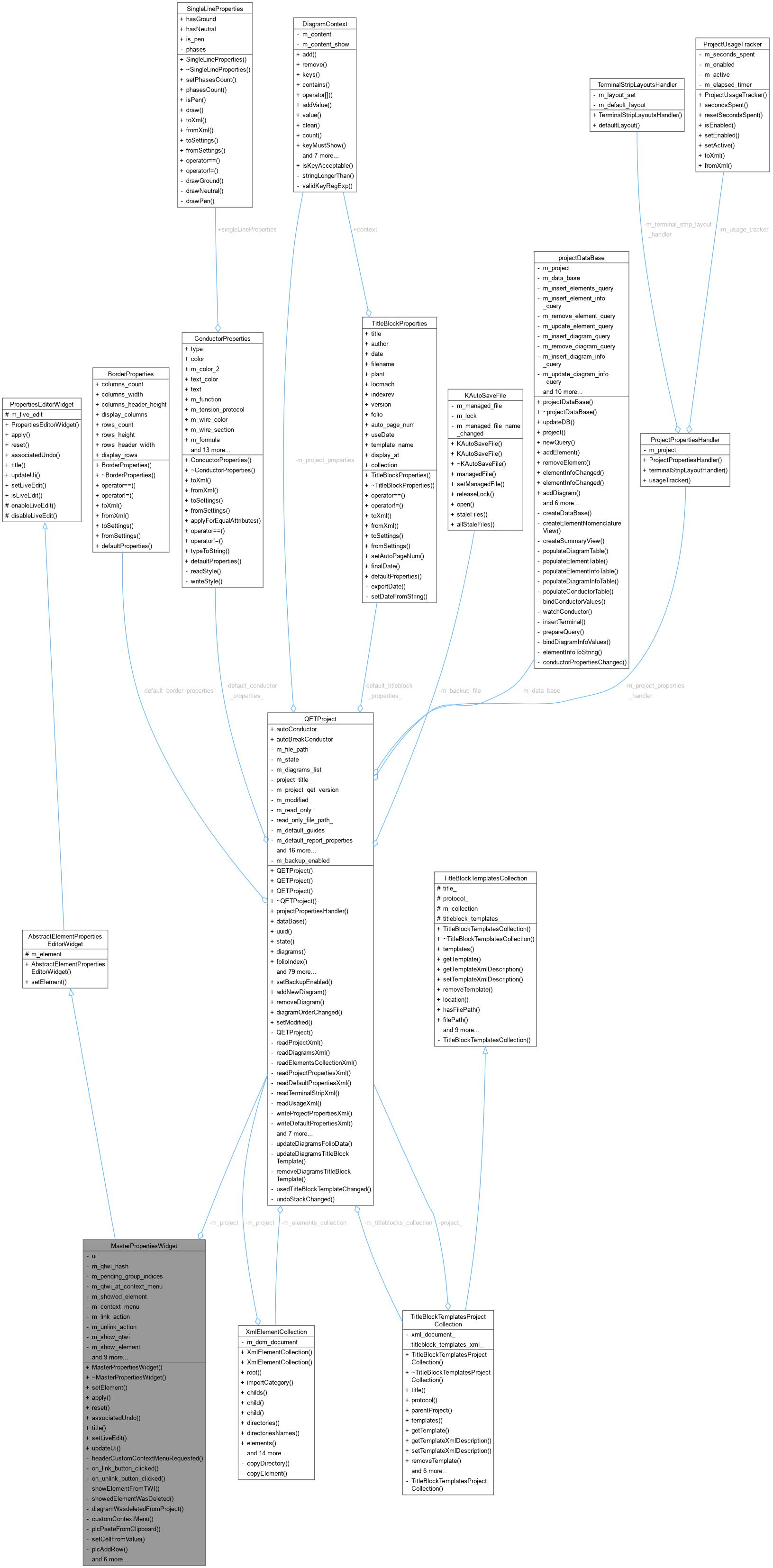

Collaboration diagram for MasterPropertiesWidget:

Public Slots
void	updateUi () override
	MasterPropertiesWidget::updateUi Build the interface of the widget.

Public Member Functions
	MasterPropertiesWidget (Element *elmt, QWidget *parent=nullptr)
	MasterPropertiesWidget::MasterPropertiesWidget Default constructor.
	~MasterPropertiesWidget () override
	MasterPropertiesWidget::~MasterPropertiesWidget Destructor.
void	setElement (Element *element) override
	MasterPropertiesWidget::setElement Set the element to be edited.
void	apply () override
	MasterPropertiesWidget::apply If link between edited element and other change, apply the change with a QUndoCommand (got with method associatedUndo) pushed to the stack of element project. Return true if link change, else false.
void	reset () override
	MasterPropertiesWidget::reset Reset current widget, clear eveything and rebuild widget.
QUndoCommand *	associatedUndo () const override
	MasterPropertiesWidget::associatedUndo If link between the edited element and other change, return a QUndoCommand with this change. If no change return nullptr.
QString	title () const override
	title
bool	setLiveEdit (bool live_edit) override
	MasterPropertiesWidget::setLiveEdit.
Public Member Functions inherited from AbstractElementPropertiesEditorWidget
	AbstractElementPropertiesEditorWidget (QWidget *parent=nullptr)
Public Member Functions inherited from PropertiesEditorWidget
	PropertiesEditorWidget (QWidget *parent=nullptr)
	PropertiesEditorWidget::PropertiesEditorWidget Constructor.
virtual void	updateUi ()
bool	isLiveEdit () const
	PropertiesEditorWidget::isLiveEdit.

Private Slots
void	headerCustomContextMenuRequested (const QPoint &pos)
	MasterPropertiesWidget::headerCustomContextMenuRequested.
void	on_link_button_clicked ()
	MasterPropertiesWidget::on_link_button_clicked Moves the current item from the free_list to the linked_list, provided the master's slave limit has not been reached.
void	on_unlink_button_clicked ()
	MasterPropertiesWidget::on_unlink_button_clicked move current item in linked_list to free_list.
void	showElementFromTWI (QTreeWidgetItem *qtwi, int column)
	MasterPropertiesWidget::showElementFromTWI Show the element corresponding to the given QTreeWidgetItem.
void	showedElementWasDeleted ()
	MasterPropertiesWidget::showedElementWasDeleted Set to nullptr the current showed element when he was deleted.
void	diagramWasdeletedFromProject ()
	MasterPropertiesWidget::diagramWasdeletedFromProject This slot is called when a diagram is removed from the parent project of edited element to update the content of this widget.
void	customContextMenu (const QPoint &pos, int i=0)
	MasterPropertiesWidget::customContextMenu Display a context menu.
void	plcPasteFromClipboard ()
	MasterPropertiesWidget::plcPasteFromClipboard Paste IO data from clipboard.
void	setCellFromValue (int row, int col, const QString &val)
	MasterPropertiesWidget::setCellFromValue Set a single table cell value, respecting the column widget type.
void	plcAddRow ()
	MasterPropertiesWidget::plcAddRow Add a new empty row to the PLC IO table.
void	plcRemoveRow ()
	MasterPropertiesWidget::plcRemoveRow Remove selected rows from the PLC IO table.
void	plcMoveRowUp ()
	MasterPropertiesWidget::plcMoveRowUp Move selected row up.
void	plcMoveRowDown ()
	MasterPropertiesWidget::plcMoveRowDown Move selected row down.
void	plcIOCellChanged (int row, int column)
	MasterPropertiesWidget::plcIOCellChanged Called when a cell in the PLC IO table changes.
void	plcUpdateDisplaySettings ()
	MasterPropertiesWidget::plcUpdateDisplaySettings Update the IO data from the table (display settings are managed by the editor only).
void	plcShowTableContextMenu (const QPoint &pos)
	MasterPropertiesWidget::plcShowTableContextMenu Show context menu for the PLC IO table.

Private Attributes
Ui::MasterPropertiesWidget *	ui
QHash< QTreeWidgetItem *, Element * >	m_qtwi_hash
QMap< Element *, int >	m_pending_group_indices
QTreeWidgetItem *	m_qtwi_at_context_menu = nullptr
QPointer< Element >	m_showed_element
QETProject *	m_project
QMenu *	m_context_menu
QAction *	m_link_action
QAction *	m_unlink_action
QAction *	m_show_qtwi
QAction *	m_show_element
QAction *	m_save_header_state
QWidget *	m_plc_widget = nullptr
QTableWidget *	m_plc_table = nullptr
QCheckBox *	m_plc_break_checkboxes [4] = {nullptr, nullptr, nullptr, nullptr}
QSpinBox *	m_plc_break_spinboxes [4] = {nullptr, nullptr, nullptr, nullptr}
QSpinBox *	m_plc_row_height_spinbox = nullptr
QList< QCheckBox * >	m_plc_col_visibility_checkboxes
QList< QSpinBox * >	m_plc_col_width_spinboxes
bool	m_plc_updating = false

Additional Inherited Members
Protected Member Functions inherited from PropertiesEditorWidget
virtual void	enableLiveEdit ()
virtual void	disableLiveEdit ()
Protected Attributes inherited from AbstractElementPropertiesEditorWidget
QPointer< Element >	m_element
Protected Attributes inherited from PropertiesEditorWidget
bool	m_live_edit

Detailed Description

The MasterPropertiesWidget class This class is a widget for make link between a master element with several slave element. This class embenddedthe undo/redo command when apply new connection.

Constructor & Destructor Documentation

MasterPropertiesWidget()

MasterPropertiesWidget::MasterPropertiesWidget ( Element * elmt, QWidget * parent = nullptr )

explicit

MasterPropertiesWidget::MasterPropertiesWidget Default constructor.

Parameters

elmt
parent

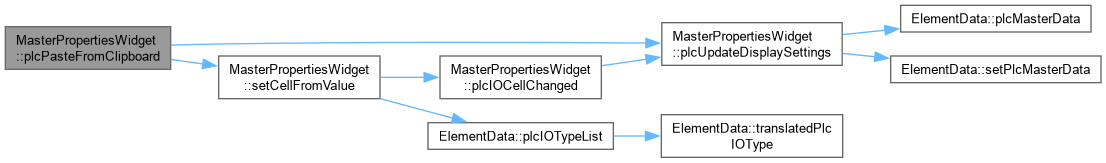

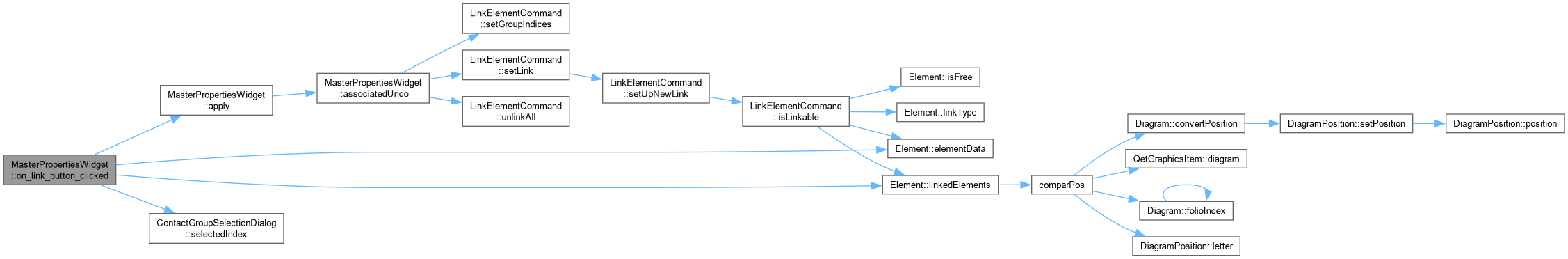

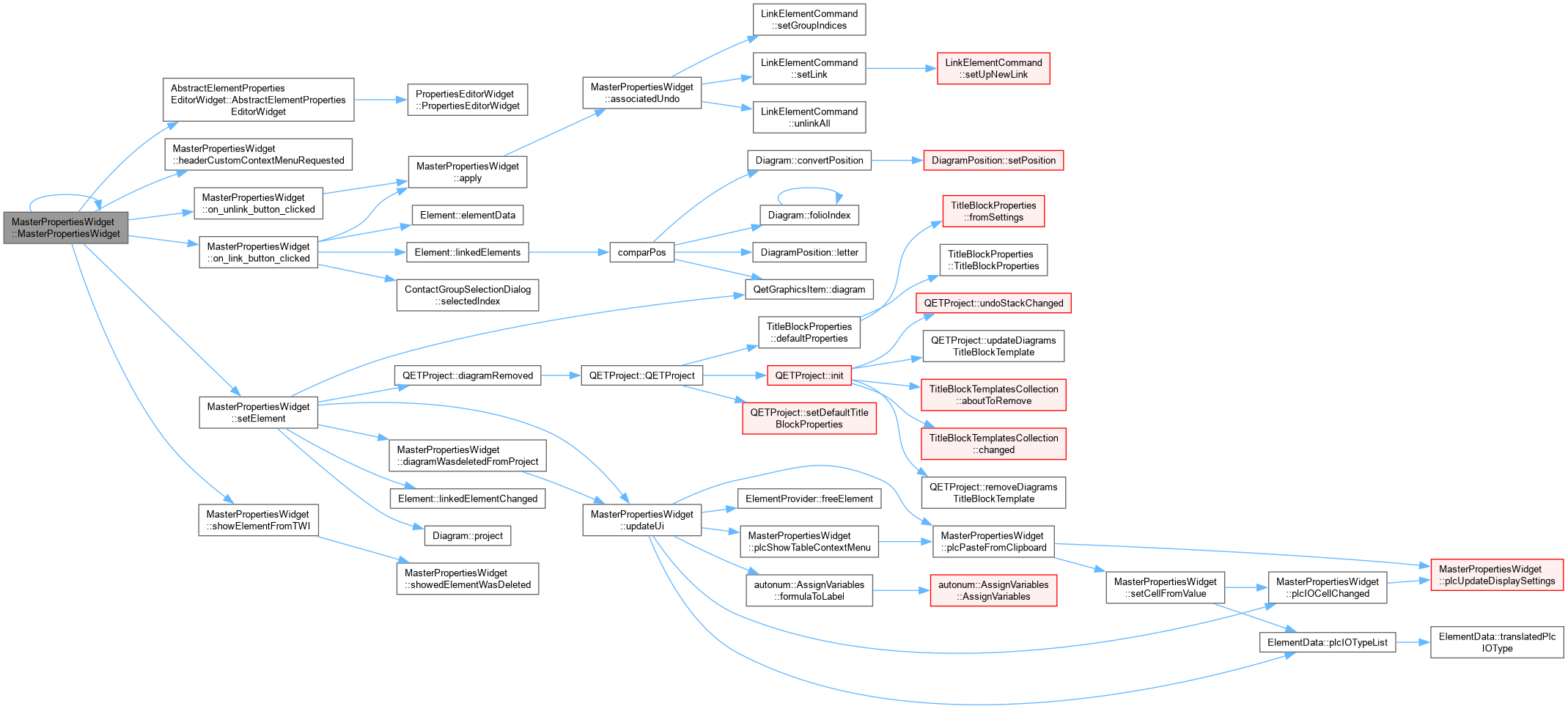

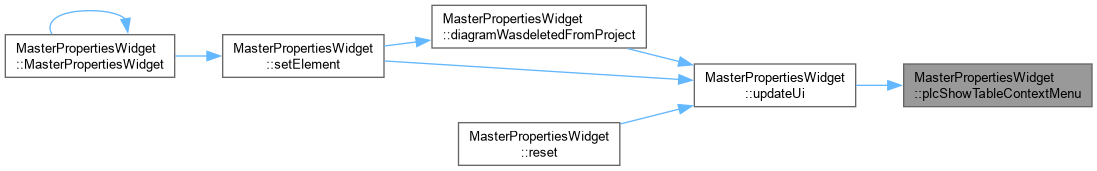

Here is the call graph for this function:

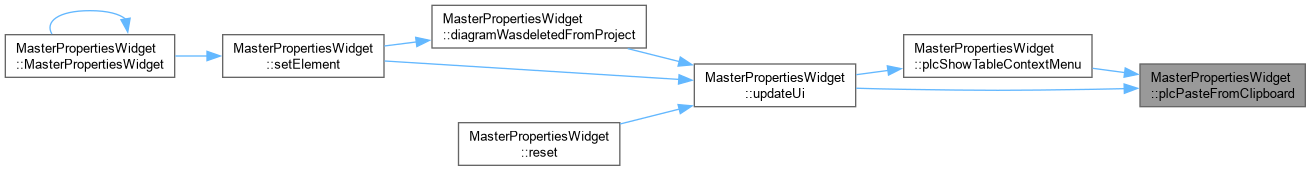

Here is the caller graph for this function:

~MasterPropertiesWidget()

MasterPropertiesWidget::~MasterPropertiesWidget ( )

override

MasterPropertiesWidget::~MasterPropertiesWidget Destructor.

Member Function Documentation

apply()

void MasterPropertiesWidget::apply ( )

overridevirtual

MasterPropertiesWidget::apply If link between edited element and other change, apply the change with a QUndoCommand (got with method associatedUndo) pushed to the stack of element project. Return true if link change, else false.

Note

is void no Return ???

Reimplemented from PropertiesEditorWidget.

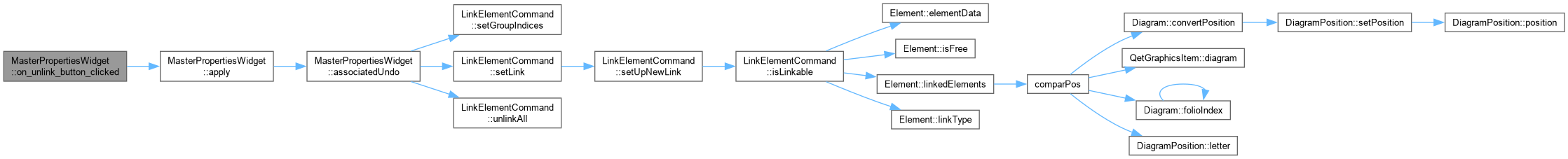

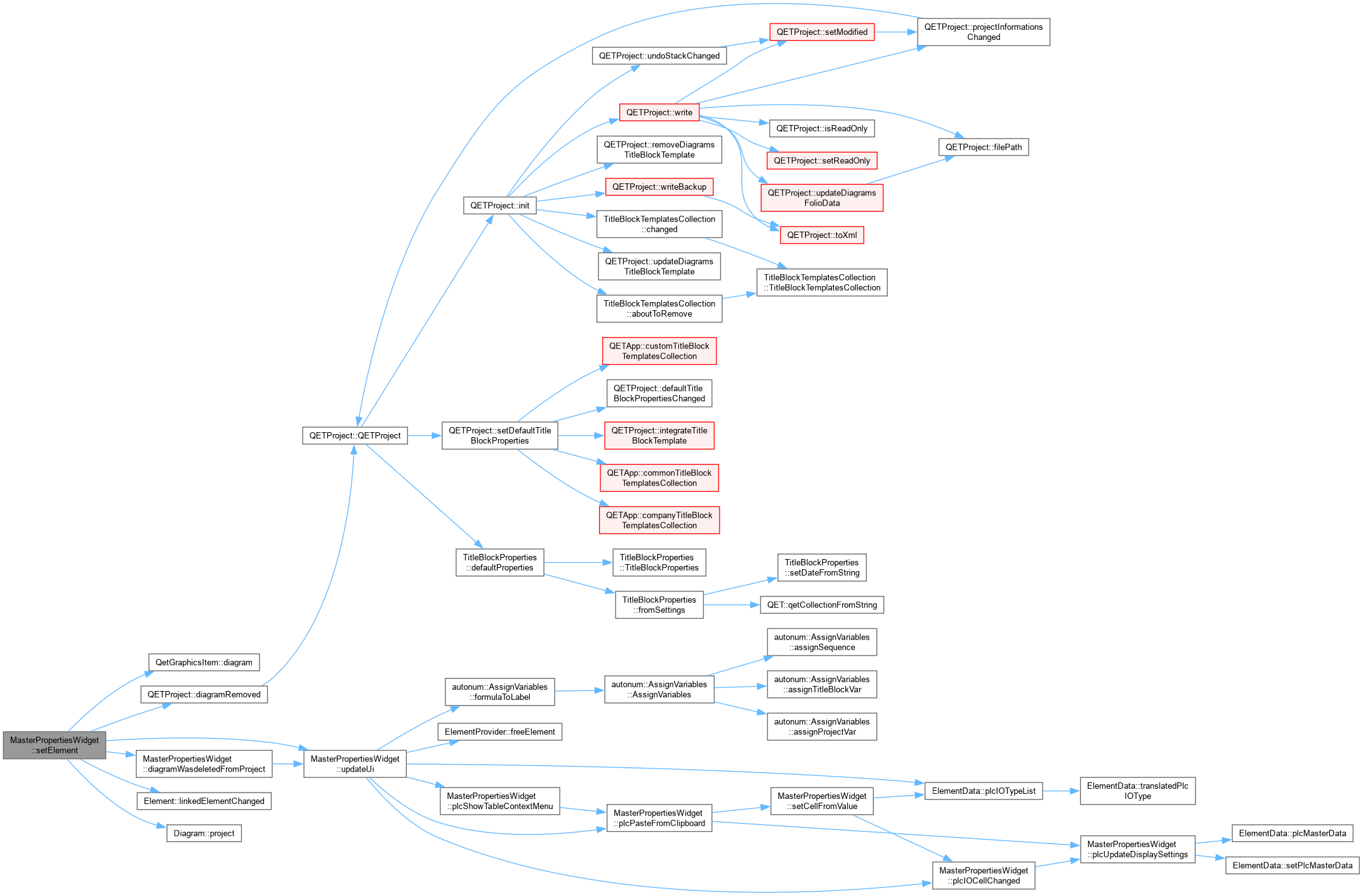

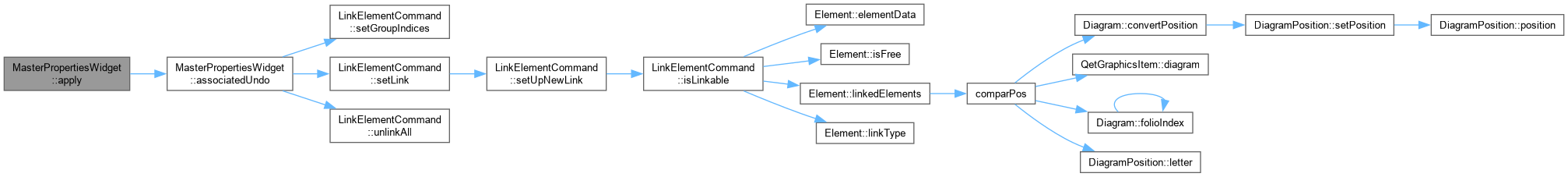

Here is the call graph for this function:

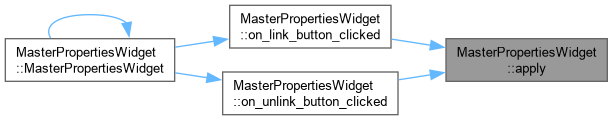

Here is the caller graph for this function:

associatedUndo()

QUndoCommand * MasterPropertiesWidget::associatedUndo ( ) const

overridevirtual

MasterPropertiesWidget::associatedUndo If link between the edited element and other change, return a QUndoCommand with this change. If no change return nullptr.

Returns

Reimplemented from PropertiesEditorWidget.

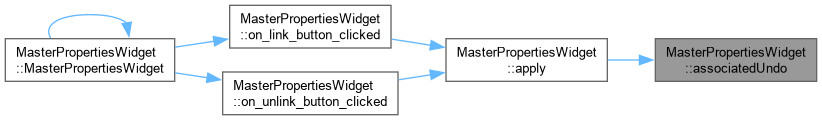

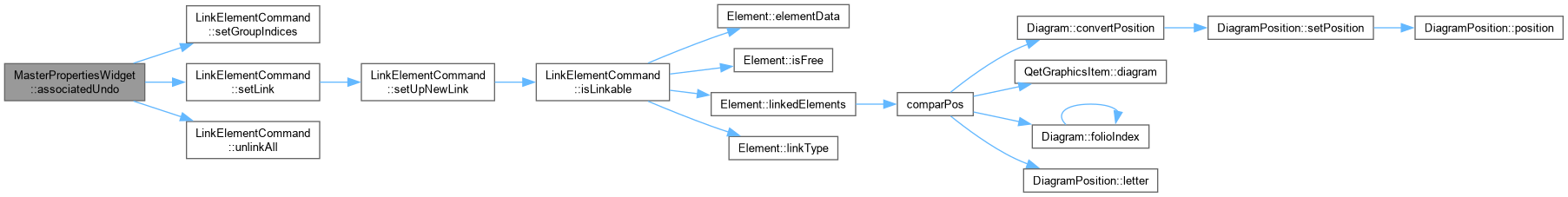

Here is the call graph for this function:

Here is the caller graph for this function:

customContextMenu

void MasterPropertiesWidget::customContextMenu ( const QPoint & pos, int i = 0 )

privateslot

MasterPropertiesWidget::customContextMenu Display a context menu.

Parameters

pos
i	: the tree widget where the context menu was requested.

diagramWasdeletedFromProject

void MasterPropertiesWidget::diagramWasdeletedFromProject ( )

privateslot

MasterPropertiesWidget::diagramWasdeletedFromProject This slot is called when a diagram is removed from the parent project of edited element to update the content of this widget.

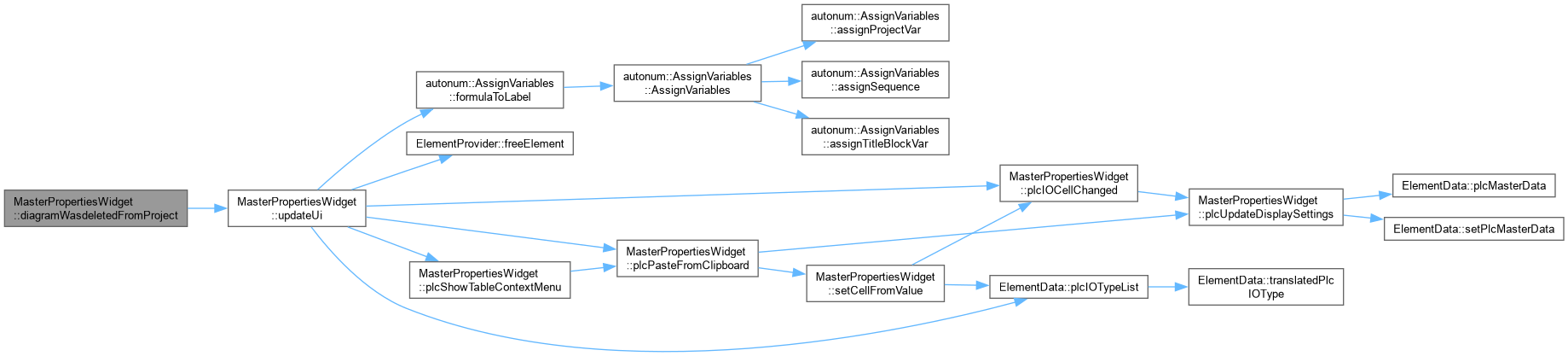

Here is the call graph for this function:

Here is the caller graph for this function:

headerCustomContextMenuRequested

void MasterPropertiesWidget::headerCustomContextMenuRequested ( const QPoint & pos )

privateslot

MasterPropertiesWidget::headerCustomContextMenuRequested.

Parameters

pos

Here is the caller graph for this function:

on_link_button_clicked

void MasterPropertiesWidget::on_link_button_clicked ( )

privateslot

MasterPropertiesWidget::on_link_button_clicked Moves the current item from the free_list to the linked_list, provided the master's slave limit has not been reached.

Here is the call graph for this function:

Here is the caller graph for this function:

on_unlink_button_clicked

void MasterPropertiesWidget::on_unlink_button_clicked ( )

privateslot

MasterPropertiesWidget::on_unlink_button_clicked move current item in linked_list to free_list.

Here is the call graph for this function:

Here is the caller graph for this function:

plcAddRow

void MasterPropertiesWidget::plcAddRow ( )

privateslot

MasterPropertiesWidget::plcAddRow Add a new empty row to the PLC IO table.

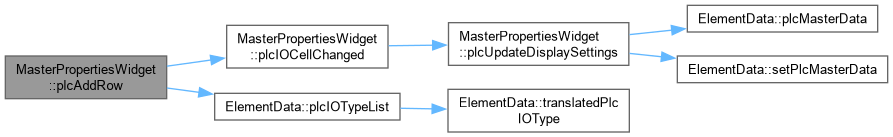

Here is the call graph for this function:

plcIOCellChanged

void MasterPropertiesWidget::plcIOCellChanged ( int row, int column )

privateslot

MasterPropertiesWidget::plcIOCellChanged Called when a cell in the PLC IO table changes.

Here is the call graph for this function:

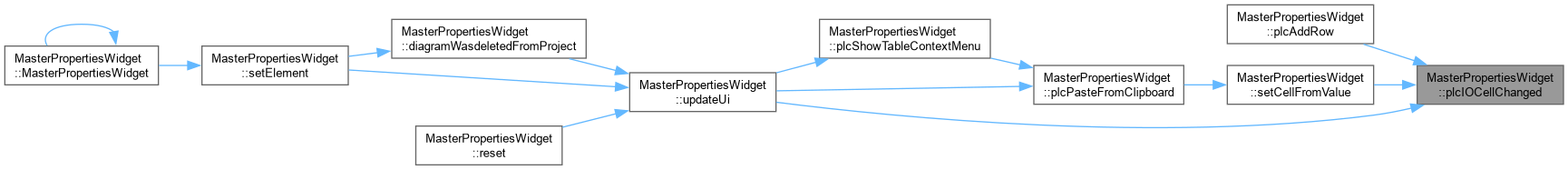

Here is the caller graph for this function:

plcMoveRowDown

void MasterPropertiesWidget::plcMoveRowDown ( )

privateslot

MasterPropertiesWidget::plcMoveRowDown Move selected row down.

Here is the call graph for this function:

plcMoveRowUp

void MasterPropertiesWidget::plcMoveRowUp ( )

privateslot

MasterPropertiesWidget::plcMoveRowUp Move selected row up.

Here is the call graph for this function:

plcPasteFromClipboard

void MasterPropertiesWidget::plcPasteFromClipboard ( )

privateslot

MasterPropertiesWidget::plcPasteFromClipboard Paste IO data from clipboard.

Two modes:

1. Single-column data (no tabs, e.g. copied vertically from A1:A6): Values are pasted vertically down the current column.
2. Multi-column data (tab-separated, e.g. copied from a row in Excel): Each line becomes a separate IO row.

Here is the call graph for this function:

Here is the caller graph for this function:

plcRemoveRow

void MasterPropertiesWidget::plcRemoveRow ( )

privateslot

MasterPropertiesWidget::plcRemoveRow Remove selected rows from the PLC IO table.

Here is the call graph for this function:

plcShowTableContextMenu

void MasterPropertiesWidget::plcShowTableContextMenu ( const QPoint & pos )

privateslot

MasterPropertiesWidget::plcShowTableContextMenu Show context menu for the PLC IO table.

Here is the call graph for this function:

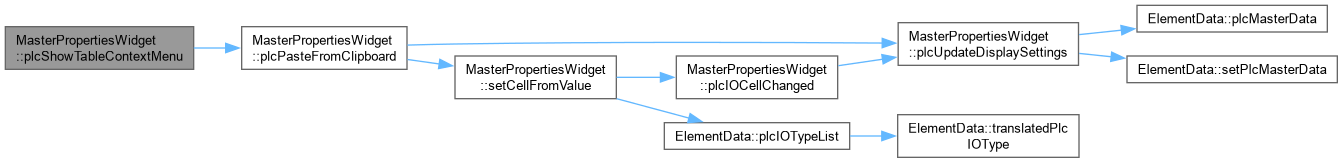

Here is the caller graph for this function:

plcUpdateDisplaySettings

void MasterPropertiesWidget::plcUpdateDisplaySettings ( )

privateslot

MasterPropertiesWidget::plcUpdateDisplaySettings Update the IO data from the table (display settings are managed by the editor only).

Here is the call graph for this function:

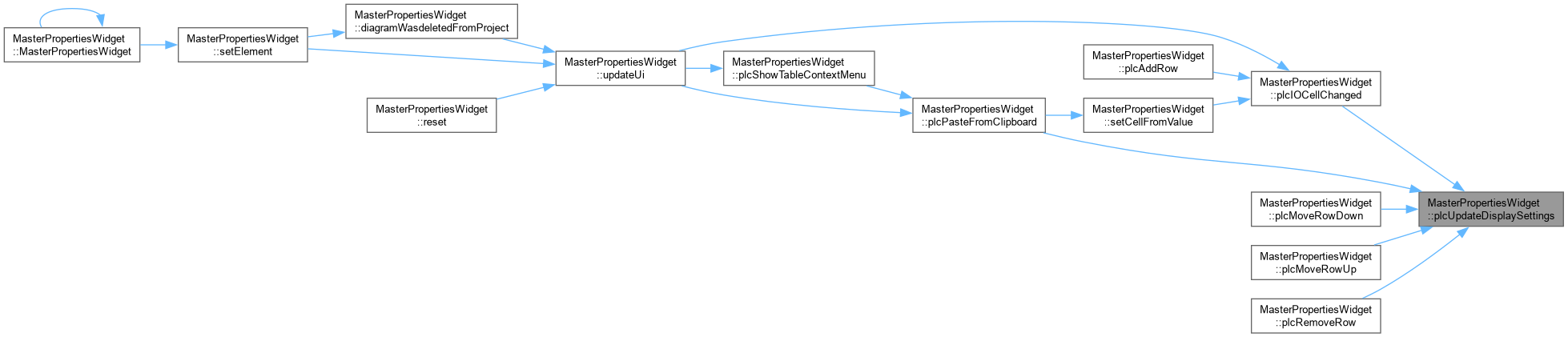

Here is the caller graph for this function:

reset()

void MasterPropertiesWidget::reset ( )

overridevirtual

MasterPropertiesWidget::reset Reset current widget, clear eveything and rebuild widget.

Reimplemented from PropertiesEditorWidget.

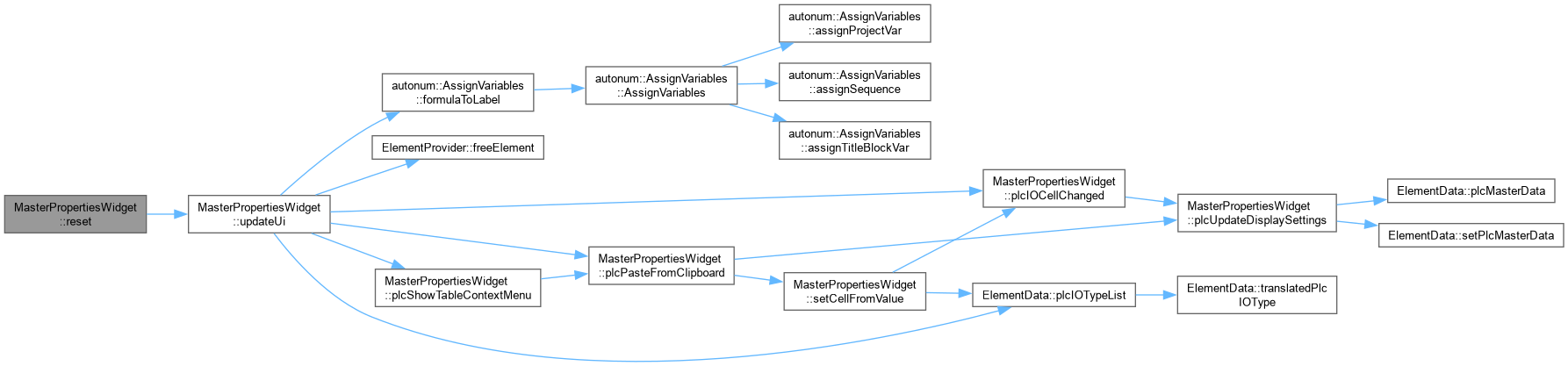

Here is the call graph for this function:

setCellFromValue

void MasterPropertiesWidget::setCellFromValue ( int row, int col, const QString & val )

privateslot

MasterPropertiesWidget::setCellFromValue Set a single table cell value, respecting the column widget type.

Here is the call graph for this function:

Here is the caller graph for this function:

setElement()

void MasterPropertiesWidget::setElement ( Element * element )

overridevirtual

MasterPropertiesWidget::setElement Set the element to be edited.

Parameters

element

Implements AbstractElementPropertiesEditorWidget.

Here is the call graph for this function:

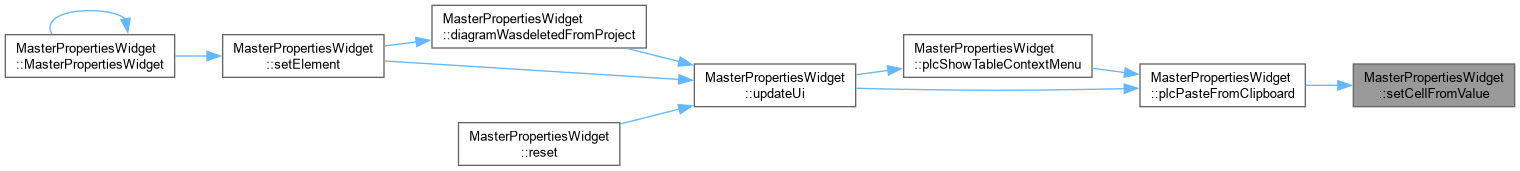

Here is the caller graph for this function:

setLiveEdit()

bool MasterPropertiesWidget::setLiveEdit ( bool live_edit )

overridevirtual

MasterPropertiesWidget::setLiveEdit.

Parameters

live_edit

= true : live edit is enable else false : live edit is disable.

Returns

always true because live edit is handled by this editor widget

Reimplemented from PropertiesEditorWidget.

showedElementWasDeleted

void MasterPropertiesWidget::showedElementWasDeleted ( )

privateslot

MasterPropertiesWidget::showedElementWasDeleted Set to nullptr the current showed element when he was deleted.

Here is the caller graph for this function:

showElementFromTWI

void MasterPropertiesWidget::showElementFromTWI ( QTreeWidgetItem * qtwi, int column )

privateslot

MasterPropertiesWidget::showElementFromTWI Show the element corresponding to the given QTreeWidgetItem.

Parameters

qtwi
column

Here is the call graph for this function:

Here is the caller graph for this function:

title()

QString MasterPropertiesWidget::title ( ) const

inlineoverridevirtual

title

Returns

QString title

Reimplemented from PropertiesEditorWidget.

updateUi

void MasterPropertiesWidget::updateUi ( )

overrideslot

MasterPropertiesWidget::updateUi Build the interface of the widget.

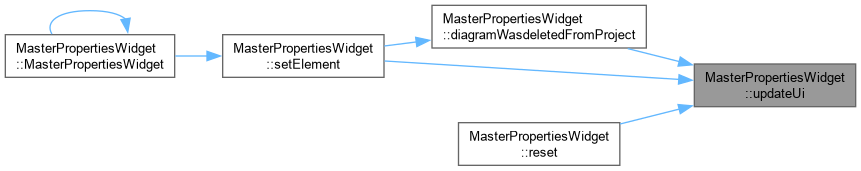

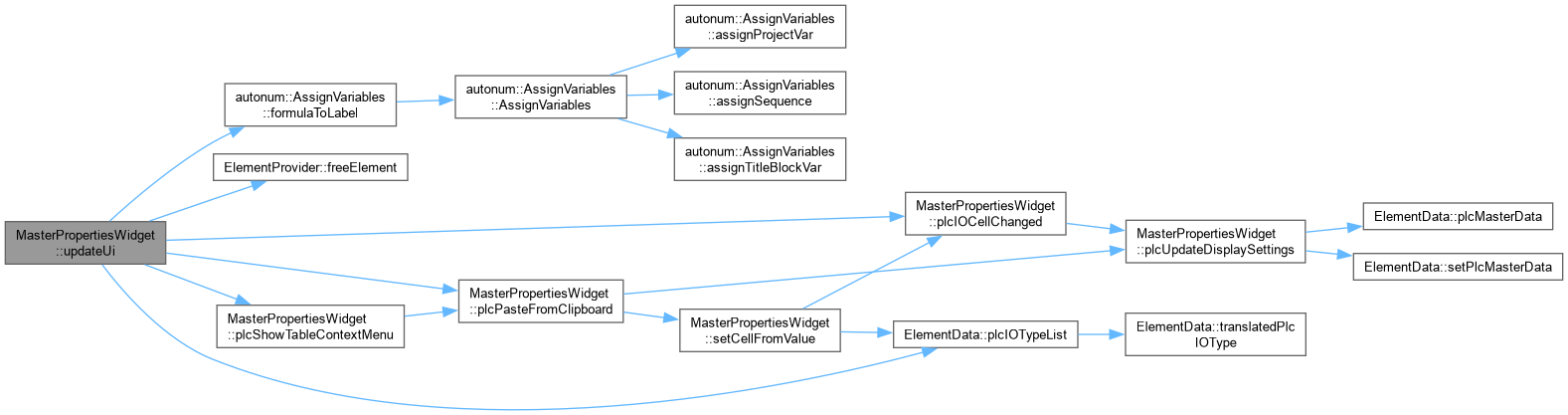

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_context_menu

QMenu* MasterPropertiesWidget::m_context_menu

private

m_link_action

QAction* MasterPropertiesWidget::m_link_action

private

m_pending_group_indices

QMap<Element *, int> MasterPropertiesWidget::m_pending_group_indices

private

m_plc_break_checkboxes

QCheckBox* MasterPropertiesWidget::m_plc_break_checkboxes[4] = {nullptr, nullptr, nullptr, nullptr}

private

m_plc_break_spinboxes

QSpinBox* MasterPropertiesWidget::m_plc_break_spinboxes[4] = {nullptr, nullptr, nullptr, nullptr}

private

m_plc_col_visibility_checkboxes

QList<QCheckBox *> MasterPropertiesWidget::m_plc_col_visibility_checkboxes

private

m_plc_col_width_spinboxes

QList<QSpinBox *> MasterPropertiesWidget::m_plc_col_width_spinboxes

private

m_plc_row_height_spinbox

QSpinBox* MasterPropertiesWidget::m_plc_row_height_spinbox = nullptr

private

m_plc_table

QTableWidget* MasterPropertiesWidget::m_plc_table = nullptr

private

m_plc_updating

bool MasterPropertiesWidget::m_plc_updating = false

private

m_plc_widget

QWidget* MasterPropertiesWidget::m_plc_widget = nullptr

private

m_project

QETProject* MasterPropertiesWidget::m_project

private

m_qtwi_at_context_menu

QTreeWidgetItem* MasterPropertiesWidget::m_qtwi_at_context_menu = nullptr

private

m_qtwi_hash

QHash<QTreeWidgetItem *, Element *> MasterPropertiesWidget::m_qtwi_hash

private

m_save_header_state

QAction * MasterPropertiesWidget::m_save_header_state

private

m_show_element

QAction * MasterPropertiesWidget::m_show_element

private

m_show_qtwi

QAction * MasterPropertiesWidget::m_show_qtwi

private

m_showed_element

QPointer<Element> MasterPropertiesWidget::m_showed_element

private

m_unlink_action

QAction * MasterPropertiesWidget::m_unlink_action

private

ui

Ui::MasterPropertiesWidget* MasterPropertiesWidget::ui

private

---

The documentation for this class was generated from the following files:

• sources/ui/masterpropertieswidget.h
• sources/ui/masterpropertieswidget.cpp
