Orchestrates importing an EPLAN .edz package as a QET element. More...

#include <edzimporter.h>

Collaboration diagram for EdzImporter:

Public Member Functions
bool	importToDirectory (const QString &edz_path, const QString &dest_dir)
QString	writtenPath () const
QString	errorString () const

Private Attributes
QString	m_written
QString	m_error

Detailed Description

Orchestrates importing an EPLAN .edz package as a QET element.

Ties together EdzArchive (extract) -> EdzPart (parse) -> EdzElementBuilder (build) and writes the resulting .elmt into a destination collection folder. UI-decoupled so it stays unit-testable headless; the collection widget calls importToDirectory() and then refreshes the panel.

Member Function Documentation

◆ errorString()

QString EdzImporter::errorString ( ) const

inline

Here is the caller graph for this function:

◆ importToDirectory()

bool EdzImporter::importToDirectory	(	const QString &	edz_path,
		const QString &	dest_dir )

Import the .edz at edz_path, writing the generated .elmt into the filesystem folder dest_dir.

Returns: true on success; writtenPath() then holds the created file. On failure errorString() explains why.

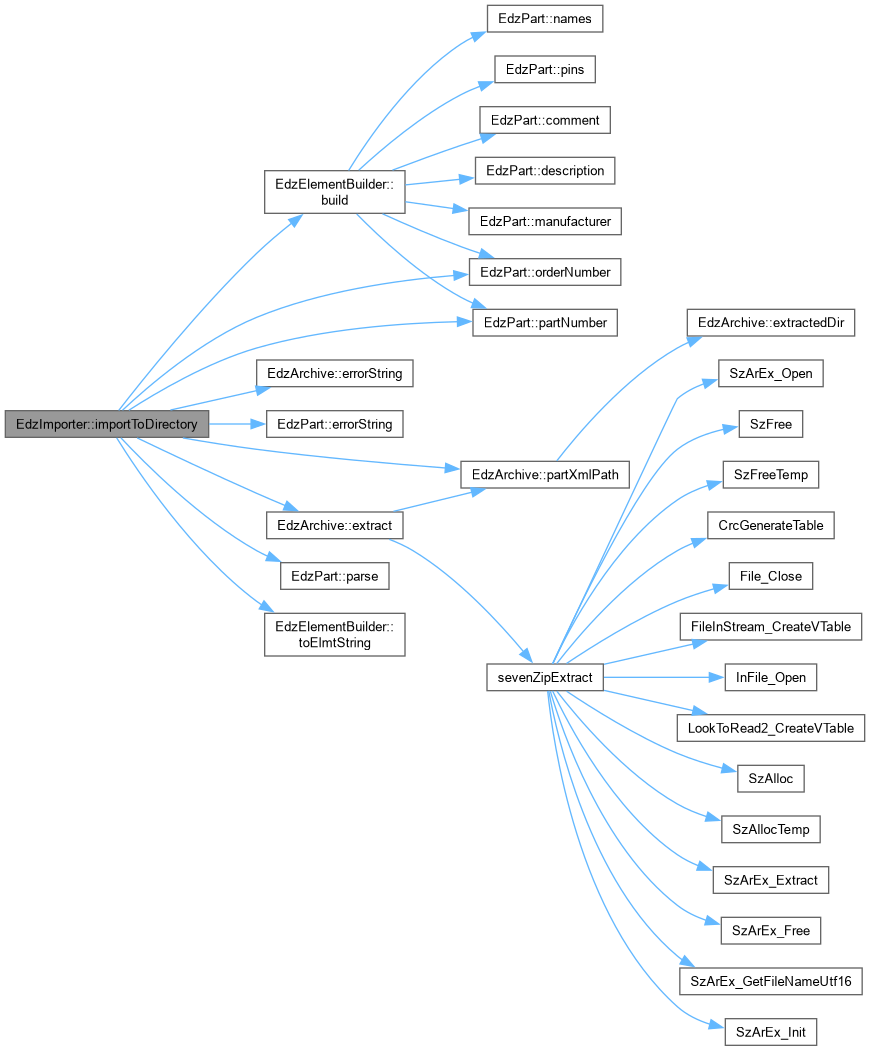

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writtenPath()

QString EdzImporter::writtenPath ( ) const

inline

Member Data Documentation

◆ m_error

QString EdzImporter::m_error

private

◆ m_written

QString EdzImporter::m_written
