EdzPart Class Reference

The portable data of an EPLAN part, read from its part.xml. More...

#include <edzpart.h>

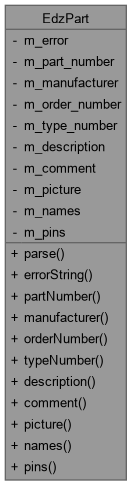

Collaboration diagram for EdzPart:

Public Member Functions
bool	parse (const QString &part_xml_path)
QString	errorString () const
QString	partNumber () const
QString	manufacturer () const
QString	orderNumber () const
QString	typeNumber () const
QString	description () const
QString	comment () const
QString	picture () const
QMap< QString, QString >	names () const
QList< EdzPin >	pins () const

Private Attributes
QString	m_error
QString	m_part_number
QString	m_manufacturer
QString	m_order_number
QString	m_type_number
QString	m_description
	DESCR1, preferred English (for element-info).
QString	m_comment
	DESCR2, preferred English.
QString	m_picture
	picture file name, if any
QMap< QString, QString >	m_names
	2-letter lang -> localized name
QList< EdzPin >	m_pins

Detailed Description

The portable data of an EPLAN part, read from its part.xml.

Mirrors the fields the standalone edz2qet.py prototype maps: identity and metadata, localized names (2-letter language -> text) and the connection list. Geometry from the EPLAN macro is intentionally ignored — the importer generates a generic symbol from the pin list instead.

Member Function Documentation

comment()

QString EdzPart::comment ( ) const

inline

Here is the caller graph for this function:

description()

QString EdzPart::description ( ) const

inline

Here is the caller graph for this function:

errorString()

QString EdzPart::errorString ( ) const

inline

Here is the caller graph for this function:

manufacturer()

QString EdzPart::manufacturer ( ) const

inline

Here is the caller graph for this function:

names()

QMap< QString, QString > EdzPart::names ( ) const

inline

Here is the caller graph for this function:

orderNumber()

QString EdzPart::orderNumber ( ) const

inline

Here is the caller graph for this function:

parse()

bool EdzPart::parse

(

const QString &

part_xml_path

)

Parse the part.xml at part_xml_path into this object.

Here is the caller graph for this function:

partNumber()

QString EdzPart::partNumber ( ) const

inline

Here is the caller graph for this function:

picture()

QString EdzPart::picture ( ) const

inline

pins()

QList< EdzPin > EdzPart::pins ( ) const

inline

Here is the caller graph for this function:

typeNumber()

QString EdzPart::typeNumber ( ) const

inline

Member Data Documentation

m_comment

QString EdzPart::m_comment

private

DESCR2, preferred English.

m_description

QString EdzPart::m_description

private

DESCR1, preferred English (for element-info).

m_error

QString EdzPart::m_error

private

m_manufacturer

QString EdzPart::m_manufacturer

private

m_names

QMap<QString, QString> EdzPart::m_names

private

2-letter lang -> localized name

m_order_number

QString EdzPart::m_order_number

private

m_part_number

QString EdzPart::m_part_number

private

m_picture

QString EdzPart::m_picture

private

picture file name, if any

m_pins

QList<EdzPin> EdzPart::m_pins

private

m_type_number

QString EdzPart::m_type_number

private

---

The documentation for this class was generated from the following files:

• sources/import/edz/edzpart.h
• sources/import/edz/edzpart.cpp
