ImagePropertiesWidget Class Reference

The ImagePropertiesWidget class This class provides a widget to edit the properties of a DiagramImageItem. More...

#include <imagepropertieswidget.h>

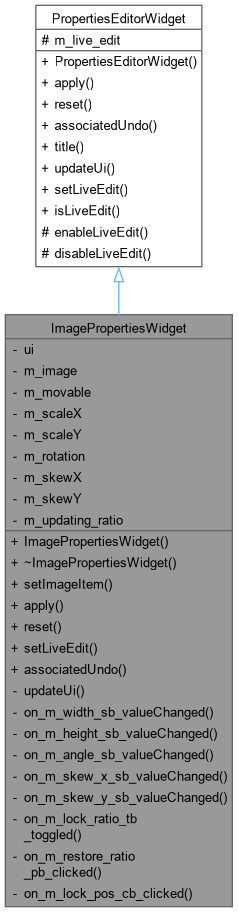

Inheritance diagram for ImagePropertiesWidget:

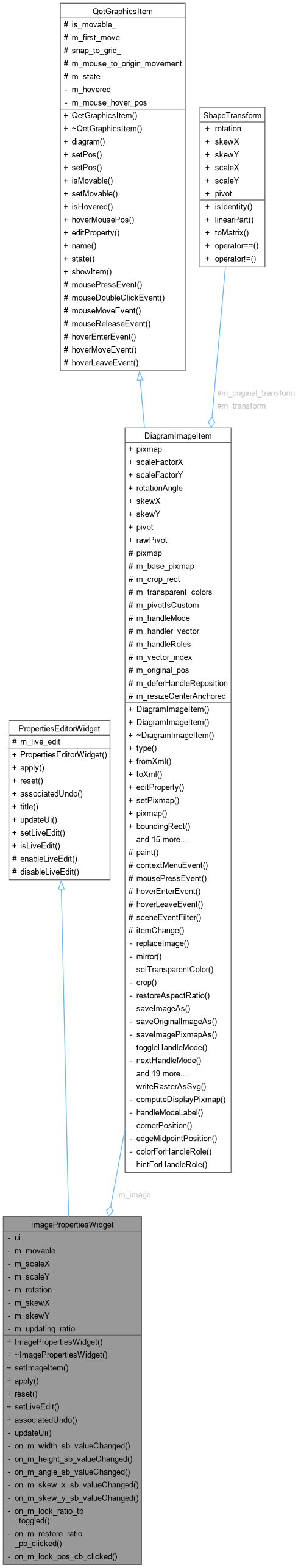

Collaboration diagram for ImagePropertiesWidget:

Public Member Functions
	ImagePropertiesWidget (DiagramImageItem *image=nullptr, QWidget *parent=nullptr)
	ImagePropertiesWidget::ImagePropertiesWidget Constructor.
	~ImagePropertiesWidget () override
	ImagePropertiesWidget::~ImagePropertiesWidget Destructor.
void	setImageItem (DiagramImageItem *image)
	ImagePropertiesWidget::setImageItem Set the image to edit properties.
void	apply () override
	ImagePropertiesWidget::apply Apply the change.
void	reset () override
	ImagePropertiesWidget::reset Reset the change.
bool	setLiveEdit (bool live_edit) override
	ImagePropertiesWidget::setLiveEdit.
QUndoCommand *	associatedUndo () const override
	ImagePropertiesWidget::associatedUndo.
Public Member Functions inherited from PropertiesEditorWidget
	PropertiesEditorWidget (QWidget *parent=nullptr)
	PropertiesEditorWidget::PropertiesEditorWidget Constructor.
virtual QString	title () const
	PropertiesEditorWidget::title.
bool	isLiveEdit () const
	PropertiesEditorWidget::isLiveEdit.

Private Slots
void	on_m_width_sb_valueChanged (double value)
	ImagePropertiesWidget::on_m_width_sb_valueChanged Applies the new width live, and – if "Conserver les proportions" is checked – scales height by the same ratio this change just applied to width, so the two stay locked together. Guarded by m_updating_ratio: the setValue() call below would otherwise re-trigger on_m_height_sb_valueChanged(), which would then try to scale width again in response, recursing indefinitely.
void	on_m_height_sb_valueChanged (double value)
	ImagePropertiesWidget::on_m_height_sb_valueChanged Mirror of on_m_width_sb_valueChanged() – see its comment.
void	on_m_angle_sb_valueChanged (double value)
	ImagePropertiesWidget::on_m_angle_sb_valueChanged.
void	on_m_skew_x_sb_valueChanged (double value)
	ImagePropertiesWidget::on_m_skew_x_sb_valueChanged.
void	on_m_skew_y_sb_valueChanged (double value)
	ImagePropertiesWidget::on_m_skew_y_sb_valueChanged.
void	on_m_lock_ratio_tb_toggled (bool checked)
	ImagePropertiesWidget::on_m_lock_ratio_tb_toggled Keeps the button's own icon and tooltip in sync with its checked state – Qt shows the checked/unchecked state visually (a sunken look) regardless, but the lock/unlock glyph makes the meaning obvious at a glance rather than needing that convention noticed.
void	on_m_restore_ratio_pb_clicked ()
	ImagePropertiesWidget::on_m_restore_ratio_pb_clicked The same action as the item's own "Restaurer les proportions" context-menu entry, offered here too since this dialog is exactly where someone would notice the proportions are off in the first place. Deliberately bypasses on_m_height_sb_valueChanged()'s own lock-following logic (guarded by m_updating_ratio, then applied directly rather than through the spinbox's own signal) rather than going through it normally: if the lock happened to be engaged, that logic would treat this as an ordinary edit and scale width by the same ratio the height change just applied – compounding into some other, unrelated value instead of the plain "make height match width" this button promises regardless of lock state.
void	on_m_lock_pos_cb_clicked ()
	ImagePropertiesWidget::on_m_lock_pos_cb_clicked Set movable or not the image according to corresponding check box.

Private Member Functions
void	updateUi () override
	ImagePropertiesWidget::updateUi Udpdate the ui, notably when the image to edit change.

Private Attributes
Ui::ImagePropertiesWidget *	ui
DiagramImageItem *	m_image
bool	m_movable
qreal	m_scaleX
qreal	m_scaleY
qreal	m_rotation
qreal	m_skewX
qreal	m_skewY
bool	m_updating_ratio = false

Additional Inherited Members
Protected Member Functions inherited from PropertiesEditorWidget
virtual void	enableLiveEdit ()
virtual void	disableLiveEdit ()
Protected Attributes inherited from PropertiesEditorWidget
bool	m_live_edit

Detailed Description

The ImagePropertiesWidget class This class provides a widget to edit the properties of a DiagramImageItem.

Constructor & Destructor Documentation

ImagePropertiesWidget()

ImagePropertiesWidget::ImagePropertiesWidget ( DiagramImageItem * image = nullptr, QWidget * parent = nullptr )

explicit

ImagePropertiesWidget::ImagePropertiesWidget Constructor.

Parameters

image	: image to edit properties
parent	: parent widget

Here is the call graph for this function:

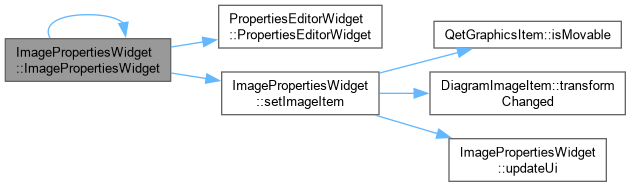

Here is the caller graph for this function:

~ImagePropertiesWidget()

ImagePropertiesWidget::~ImagePropertiesWidget ( )

override

ImagePropertiesWidget::~ImagePropertiesWidget Destructor.

Member Function Documentation

apply()

void ImagePropertiesWidget::apply ( )

overridevirtual

ImagePropertiesWidget::apply Apply the change.

Reimplemented from PropertiesEditorWidget.

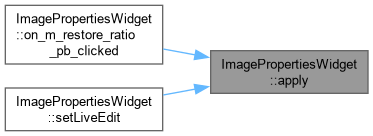

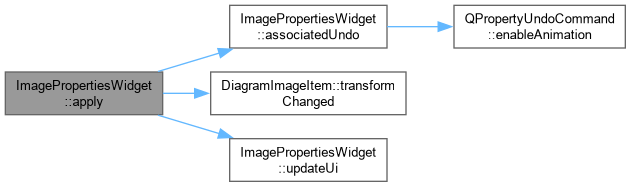

Here is the call graph for this function:

Here is the caller graph for this function:

associatedUndo()

QUndoCommand * ImagePropertiesWidget::associatedUndo ( ) const

overridevirtual

ImagePropertiesWidget::associatedUndo.

Returns

the change in an undo command. If there is no change return nullptr. Chains scaleFactorX, scaleFactorY, rotationAngle, skewX and skewY as separate QPropertyUndoCommands, matching the established "check each field, chain if changed" pattern used elsewhere – each of these is genuinely independent (the resize/rotate/skew handles can set any of them without touching the others), so a single combined command wouldn't correctly capture "only two of five fields actually changed".

Reimplemented from PropertiesEditorWidget.

Here is the call graph for this function:

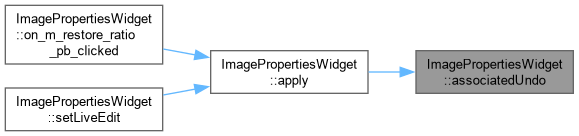

Here is the caller graph for this function:

on_m_angle_sb_valueChanged

void ImagePropertiesWidget::on_m_angle_sb_valueChanged ( double value )

privateslot

ImagePropertiesWidget::on_m_angle_sb_valueChanged.

Parameters

value

the new rotation, in degrees

on_m_height_sb_valueChanged

void ImagePropertiesWidget::on_m_height_sb_valueChanged ( double value )

privateslot

ImagePropertiesWidget::on_m_height_sb_valueChanged Mirror of on_m_width_sb_valueChanged() – see its comment.

Parameters

value

the new height, as a percentage

Here is the call graph for this function:

on_m_lock_pos_cb_clicked

void ImagePropertiesWidget::on_m_lock_pos_cb_clicked ( )

privateslot

ImagePropertiesWidget::on_m_lock_pos_cb_clicked Set movable or not the image according to corresponding check box.

on_m_lock_ratio_tb_toggled

void ImagePropertiesWidget::on_m_lock_ratio_tb_toggled ( bool checked )

privateslot

ImagePropertiesWidget::on_m_lock_ratio_tb_toggled Keeps the button's own icon and tooltip in sync with its checked state – Qt shows the checked/unchecked state visually (a sunken look) regardless, but the lock/unlock glyph makes the meaning obvious at a glance rather than needing that convention noticed.

Parameters

checked

on_m_restore_ratio_pb_clicked

void ImagePropertiesWidget::on_m_restore_ratio_pb_clicked ( )

privateslot

ImagePropertiesWidget::on_m_restore_ratio_pb_clicked The same action as the item's own "Restaurer les proportions" context-menu entry, offered here too since this dialog is exactly where someone would notice the proportions are off in the first place. Deliberately bypasses on_m_height_sb_valueChanged()'s own lock-following logic (guarded by m_updating_ratio, then applied directly rather than through the spinbox's own signal) rather than going through it normally: if the lock happened to be engaged, that logic would treat this as an ordinary edit and scale width by the same ratio the height change just applied – compounding into some other, unrelated value instead of the plain "make height match width" this button promises regardless of lock state.

Here is the call graph for this function:

on_m_skew_x_sb_valueChanged

void ImagePropertiesWidget::on_m_skew_x_sb_valueChanged ( double value )

privateslot

ImagePropertiesWidget::on_m_skew_x_sb_valueChanged.

Parameters

value

the new X skew, in degrees

on_m_skew_y_sb_valueChanged

void ImagePropertiesWidget::on_m_skew_y_sb_valueChanged ( double value )

privateslot

ImagePropertiesWidget::on_m_skew_y_sb_valueChanged.

Parameters

value

the new Y skew, in degrees

on_m_width_sb_valueChanged

void ImagePropertiesWidget::on_m_width_sb_valueChanged ( double value )

privateslot

ImagePropertiesWidget::on_m_width_sb_valueChanged Applies the new width live, and – if "Conserver les proportions" is checked – scales height by the same ratio this change just applied to width, so the two stay locked together. Guarded by m_updating_ratio: the setValue() call below would otherwise re-trigger on_m_height_sb_valueChanged(), which would then try to scale width again in response, recursing indefinitely.

Parameters

value

the new width, as a percentage

Here is the call graph for this function:

reset()

void ImagePropertiesWidget::reset ( )

overridevirtual

ImagePropertiesWidget::reset Reset the change.

Reimplemented from PropertiesEditorWidget.

Here is the call graph for this function:

setImageItem()

void ImagePropertiesWidget::setImageItem

(

DiagramImageItem *


)

ImagePropertiesWidget::setImageItem Set the image to edit properties.

Parameters


: image to edit

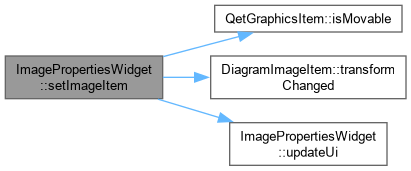

Here is the call graph for this function:

Here is the caller graph for this function:

setLiveEdit()

bool ImagePropertiesWidget::setLiveEdit ( bool live_edit )

overridevirtual

ImagePropertiesWidget::setLiveEdit.

Parameters

live_edit

true -> enable live edit false -> disable live edit

Returns

always true

Reimplemented from PropertiesEditorWidget.

Here is the call graph for this function:

updateUi()

void ImagePropertiesWidget::updateUi ( )

overrideprivatevirtual

ImagePropertiesWidget::updateUi Udpdate the ui, notably when the image to edit change.

Reimplemented from PropertiesEditorWidget.

Here is the caller graph for this function:

Member Data Documentation

m_image

DiagramImageItem* ImagePropertiesWidget::m_image

private

m_movable

bool ImagePropertiesWidget::m_movable

private

m_rotation

qreal ImagePropertiesWidget::m_rotation

private

m_scaleX

qreal ImagePropertiesWidget::m_scaleX

private

m_scaleY

qreal ImagePropertiesWidget::m_scaleY

private

m_skewX

qreal ImagePropertiesWidget::m_skewX

private

m_skewY

qreal ImagePropertiesWidget::m_skewY

private

m_updating_ratio

bool ImagePropertiesWidget::m_updating_ratio = false

private

ui

Ui::ImagePropertiesWidget* ImagePropertiesWidget::ui

private

---

The documentation for this class was generated from the following files:

• sources/ui/imagepropertieswidget.h
• sources/ui/imagepropertieswidget.cpp
