DiagramEventAddShape Class Reference

The DiagramEventAddShape class This event manage the creation of a shape. More...

#include <diagrameventaddshape.h>

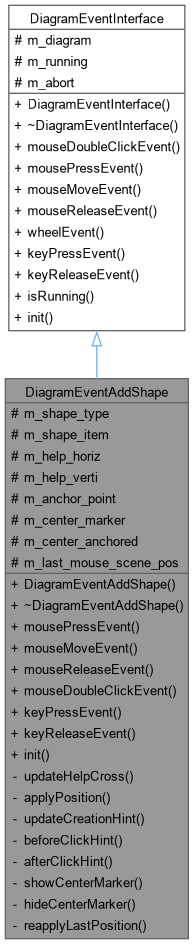

Inheritance diagram for DiagramEventAddShape:

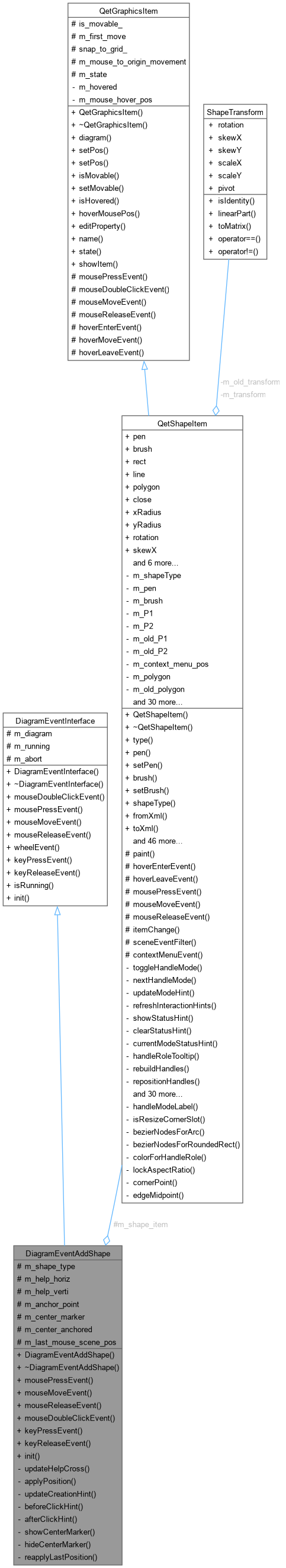

Collaboration diagram for DiagramEventAddShape:

Public Member Functions
	DiagramEventAddShape (Diagram *diagram, QetShapeItem::ShapeType shape_type)
	DiagramEventAddShape::DiagramEventAddShape Default constructor.
	~DiagramEventAddShape () override
	DiagramEventAddShape::~DiagramEventAddShape.
void	mousePressEvent (QGraphicsSceneMouseEvent *event) override
	DiagramEventAddShape::mousePressEvent Action when mouse is pressed.
void	mouseMoveEvent (QGraphicsSceneMouseEvent *event) override
	DiagramEventAddShape::mouseMoveEvent Action when mouse move.
void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event) override
	DiagramEventAddShape::mouseReleaseEvent Action when mouse button is released.
void	mouseDoubleClickEvent (QGraphicsSceneMouseEvent *event) override
	DiagramEventAddShape::mouseDoubleClickEvent Action when mouse button is double clicked.
void	keyPressEvent (QKeyEvent *event) override
	DiagramEventAddShape::keyPressEvent / keyReleaseEvent Pressing or releasing Shift (the square/circle lock) does nothing visible on its own – applyPosition() only ever runs from mouseMoveEvent, so without this, a keyboard-only change just sits there until the next, often incidental, pixel of mouse movement brings the shape in line with it. That's exactly what looked like a freeze: holding Shift while the mouse is genuinely still produces no visible change (correctly – nothing has moved), and it only "unsticks" once the mouse moves again, which released keys tend to coincide with purely by hand tremor, not because releasing itself did anything. Re-running the last known mouse position through applyPosition() here makes the key press or release itself the trigger, giving immediate feedback instead of waiting on chance.
void	keyReleaseEvent (QKeyEvent *event) override
void	init () override
Public Member Functions inherited from DiagramEventInterface
	DiagramEventInterface (Diagram *diagram)
	~DiagramEventInterface () override=0
virtual void	wheelEvent (QGraphicsSceneWheelEvent *event)
virtual bool	isRunning () const

Protected Attributes
QetShapeItem::ShapeType	m_shape_type
QetShapeItem *	m_shape_item
QGraphicsLineItem *	m_help_horiz
QGraphicsLineItem *	m_help_verti
QPointF	m_anchor_point
QGraphicsEllipseItem *	m_center_marker = nullptr
bool	m_center_anchored = false
QPointF	m_last_mouse_scene_pos
Protected Attributes inherited from DiagramEventInterface
QPointer< Diagram >	m_diagram
bool	m_running {false}
bool	m_abort {false}

Private Member Functions
void	updateHelpCross (const QPointF &p)
	DiagramEventAddShape::updateHelpCross Create and update the position of the cross to help user for draw new shape.
void	applyPosition (const QPointF &pos, Qt::KeyboardModifiers mods)
	DiagramEventAddShape::applyPosition Applies a drag/click position to the in-progress shape, honouring two modifiers that mirror how the very same shape can already be edited afterward, once placed:
void	updateCreationHint () const
	DiagramEventAddShape::updateCreationHint Shows whichever of beforeClickHint()/afterClickHint() matches the current phase – there was previously either no message at all (Line/Rectangle/Ellipse) or a single static one that never changed regardless of progress (Polygon, set externally in QETDiagramEditor::addItemGroupTriggered()); this replaces both with one phase-aware message per shape type, managed by the tool itself.
QString	beforeClickHint () const
QString	afterClickHint () const
void	showCenterMarker (const QPointF &scenePos)
	DiagramEventAddShape::showCenterMarker Small, filled marker at the anchor point, shown only while Ctrl- anchoring is actually in effect right now (see applyPosition()) – doubling as live confirmation that it is, rather than leaving the user to infer it purely from how the shape happens to be growing.
void	hideCenterMarker ()
void	reapplyLastPosition (QKeyEvent *event)

Additional Inherited Members
Signals inherited from DiagramEventInterface
void	finish ()

Detailed Description

The DiagramEventAddShape class This event manage the creation of a shape.

Constructor & Destructor Documentation

DiagramEventAddShape()

DiagramEventAddShape::DiagramEventAddShape	(	Diagram *	diagram,
		QetShapeItem::ShapeType	shape_type )

DiagramEventAddShape::DiagramEventAddShape Default constructor.

Parameters

diagram	: the diagram where this event must operate
shape_type	: the type of shape to draw

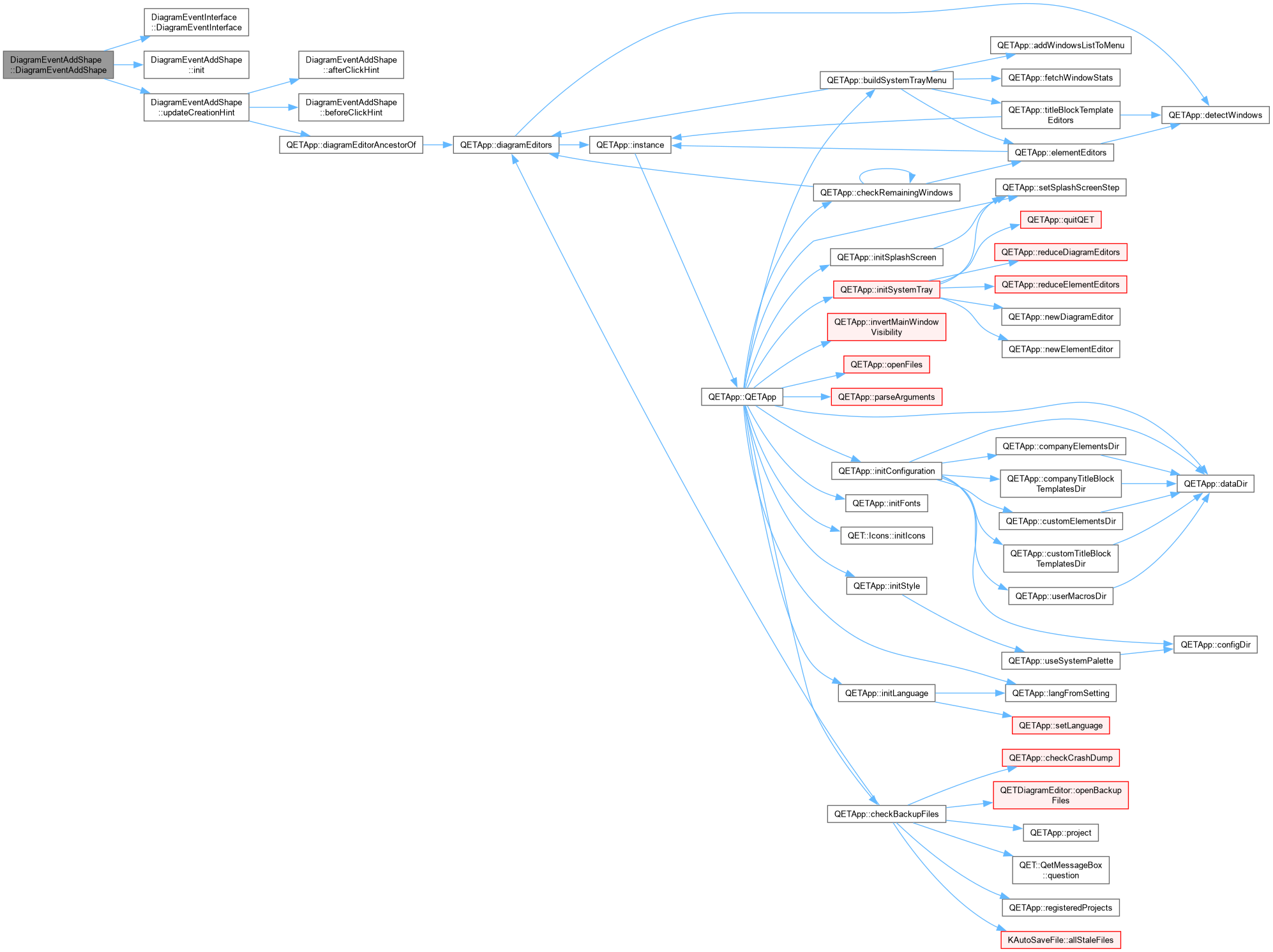

Here is the call graph for this function:

~DiagramEventAddShape()

DiagramEventAddShape::~DiagramEventAddShape ( )

override

DiagramEventAddShape::~DiagramEventAddShape.

Here is the call graph for this function:

Member Function Documentation

afterClickHint()

QString DiagramEventAddShape::afterClickHint ( ) const

private

Here is the caller graph for this function:

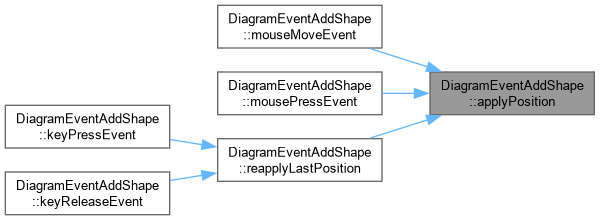

applyPosition()

void DiagramEventAddShape::applyPosition ( const QPointF & pos, Qt::KeyboardModifiers mods )

private

DiagramEventAddShape::applyPosition Applies a drag/click position to the in-progress shape, honouring two modifiers that mirror how the very same shape can already be edited afterward, once placed:

• Ctrl, for Rectangle/Ellipse only: the first click becomes the shape's center rather than a corner, growing symmetrically as the cursor moves away from it – the same meaning Ctrl already has on a Resize handle (anchor at center). Deliberately not offered for Line: unlike the Rectangle/Ellipse case, there's no established convention for "a line grows symmetrically from its middle" to justify it by, so Ctrl for Line means only free positioning (see the plain grid-snap check above), nothing more.
• Shift, for Rectangle/Ellipse only: forces the bounding box square (so Ellipse becomes a true circle), using whichever of the two dragged dimensions is currently larger and mirroring that onto the other, preserving the direction the user is actually dragging in. Both can combine (Ctrl+Shift: a centered square/circle). Whether or not Ctrl is currently held, the non-anchored branch always rebuilds from m_anchor_point rather than nudging the existing rect/line – otherwise, if Ctrl had been held earlier in the same drag (moving the shape's own first point to a mirrored position), releasing it would leave that point stuck there instead of actually restoring it.

Here is the caller graph for this function:

beforeClickHint()

QString DiagramEventAddShape::beforeClickHint ( ) const

private

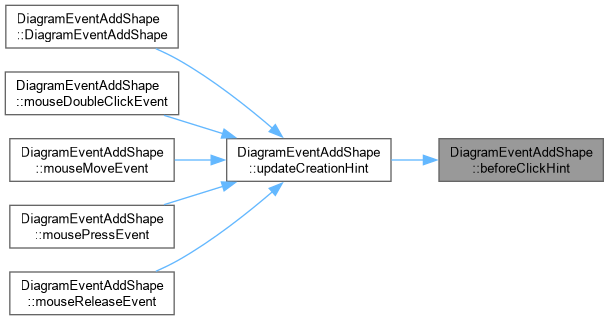

Here is the caller graph for this function:

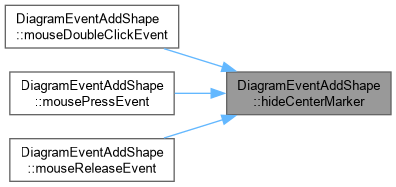

hideCenterMarker()

void DiagramEventAddShape::hideCenterMarker ( )

private

Here is the caller graph for this function:

init()

void DiagramEventAddShape::init ( )

overridevirtual

Reimplemented from DiagramEventInterface.

Here is the caller graph for this function:

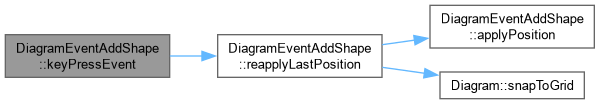

keyPressEvent()

void DiagramEventAddShape::keyPressEvent ( QKeyEvent * event )

overridevirtual

DiagramEventAddShape::keyPressEvent / keyReleaseEvent Pressing or releasing Shift (the square/circle lock) does nothing visible on its own – applyPosition() only ever runs from mouseMoveEvent, so without this, a keyboard-only change just sits there until the next, often incidental, pixel of mouse movement brings the shape in line with it. That's exactly what looked like a freeze: holding Shift while the mouse is genuinely still produces no visible change (correctly – nothing has moved), and it only "unsticks" once the mouse moves again, which released keys tend to coincide with purely by hand tremor, not because releasing itself did anything. Re-running the last known mouse position through applyPosition() here makes the key press or release itself the trigger, giving immediate feedback instead of waiting on chance.

Reimplemented from DiagramEventInterface.

Here is the call graph for this function:

keyReleaseEvent()

void DiagramEventAddShape::keyReleaseEvent ( QKeyEvent * event )

overridevirtual

Reimplemented from DiagramEventInterface.

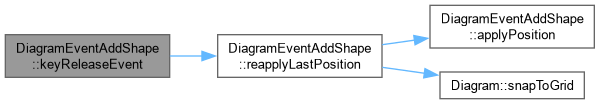

Here is the call graph for this function:

mouseDoubleClickEvent()

void DiagramEventAddShape::mouseDoubleClickEvent ( QGraphicsSceneMouseEvent * event )

overridevirtual

DiagramEventAddShape::mouseDoubleClickEvent Action when mouse button is double clicked.

Parameters

event

: event of mouse double click

Reimplemented from DiagramEventInterface.

Here is the call graph for this function:

mouseMoveEvent()

void DiagramEventAddShape::mouseMoveEvent ( QGraphicsSceneMouseEvent * event )

overridevirtual

DiagramEventAddShape::mouseMoveEvent Action when mouse move.

Parameters

event

: event of mouse move

Reimplemented from DiagramEventInterface.

Here is the call graph for this function:

mousePressEvent()

void DiagramEventAddShape::mousePressEvent ( QGraphicsSceneMouseEvent * event )

overridevirtual

DiagramEventAddShape::mousePressEvent Action when mouse is pressed.

Parameters

event

: event of mouse press

Reimplemented from DiagramEventInterface.

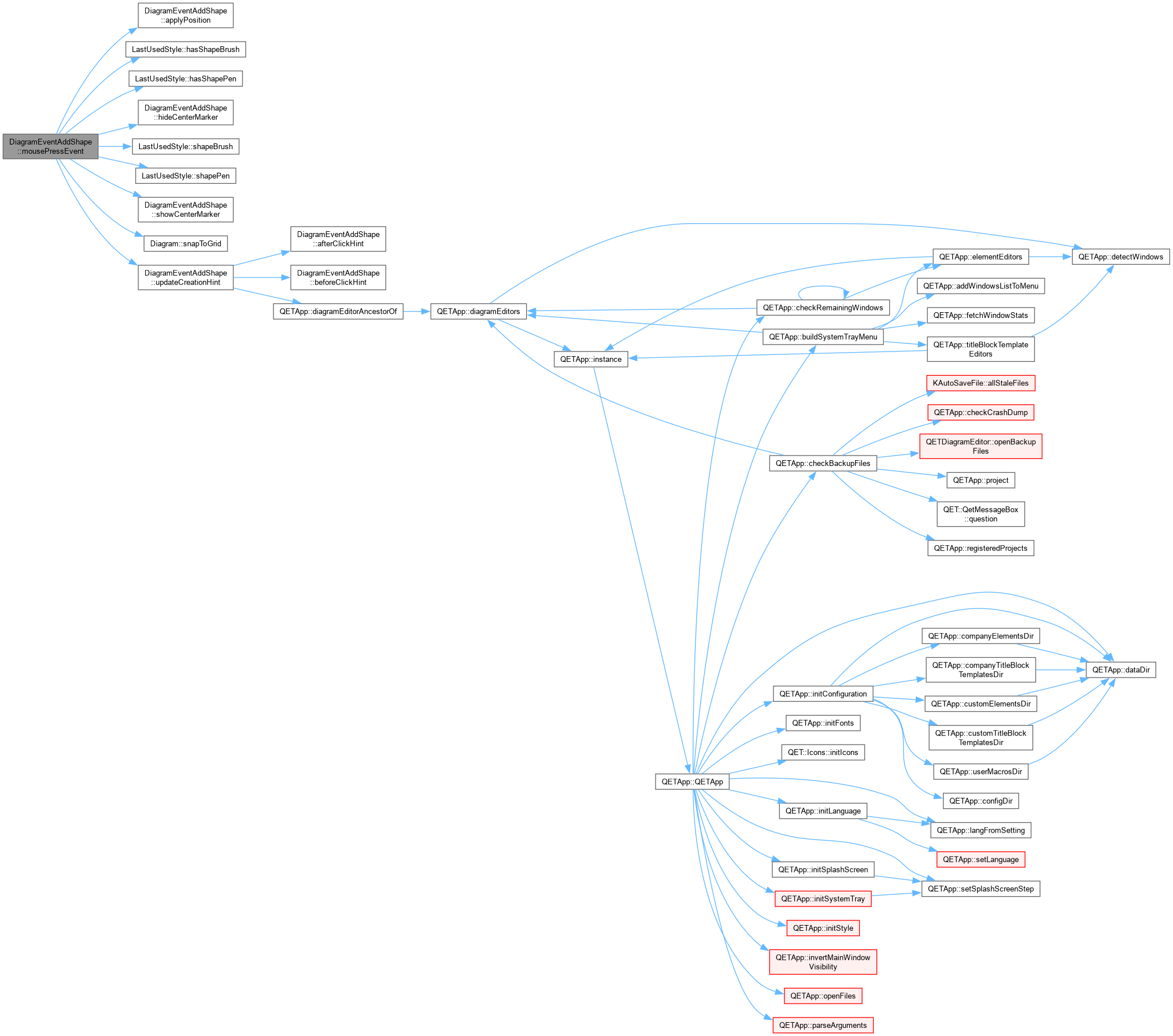

Here is the call graph for this function:

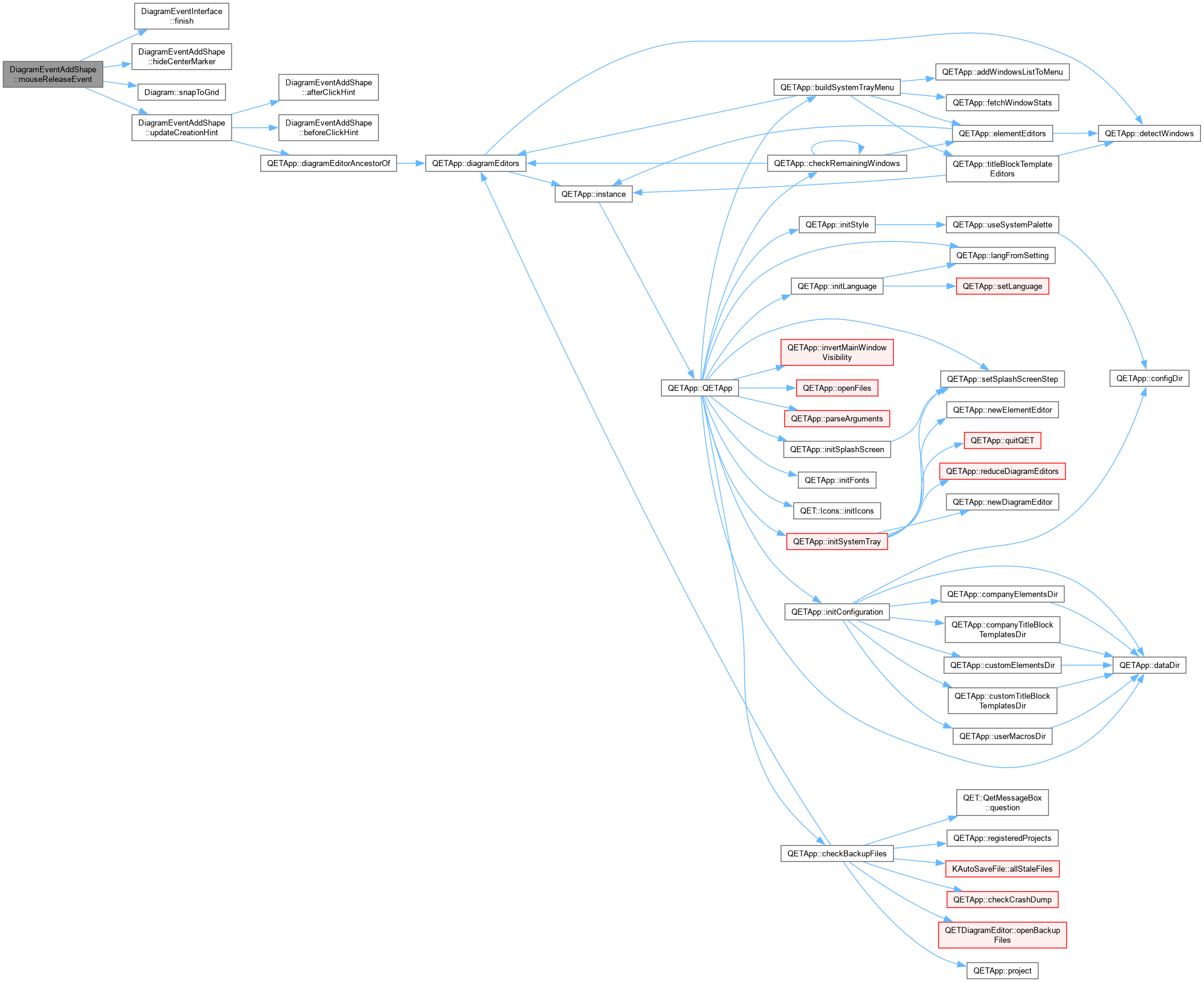

mouseReleaseEvent()

void DiagramEventAddShape::mouseReleaseEvent ( QGraphicsSceneMouseEvent * event )

overridevirtual

DiagramEventAddShape::mouseReleaseEvent Action when mouse button is released.

Parameters

event

: event of mouse release

Reimplemented from DiagramEventInterface.

Here is the call graph for this function:

reapplyLastPosition()

void DiagramEventAddShape::reapplyLastPosition ( QKeyEvent * event )

private

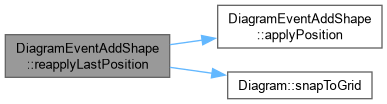

Here is the call graph for this function:

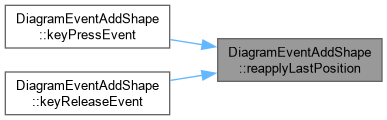

Here is the caller graph for this function:

showCenterMarker()

void DiagramEventAddShape::showCenterMarker ( const QPointF & scenePos )

private

DiagramEventAddShape::showCenterMarker Small, filled marker at the anchor point, shown only while Ctrl- anchoring is actually in effect right now (see applyPosition()) – doubling as live confirmation that it is, rather than leaving the user to infer it purely from how the shape happens to be growing.

Here is the caller graph for this function:

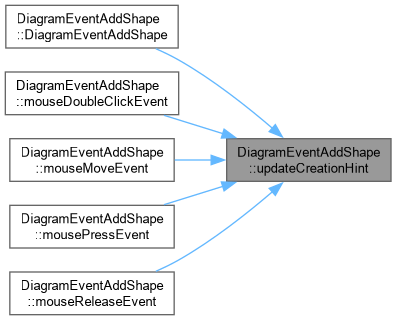

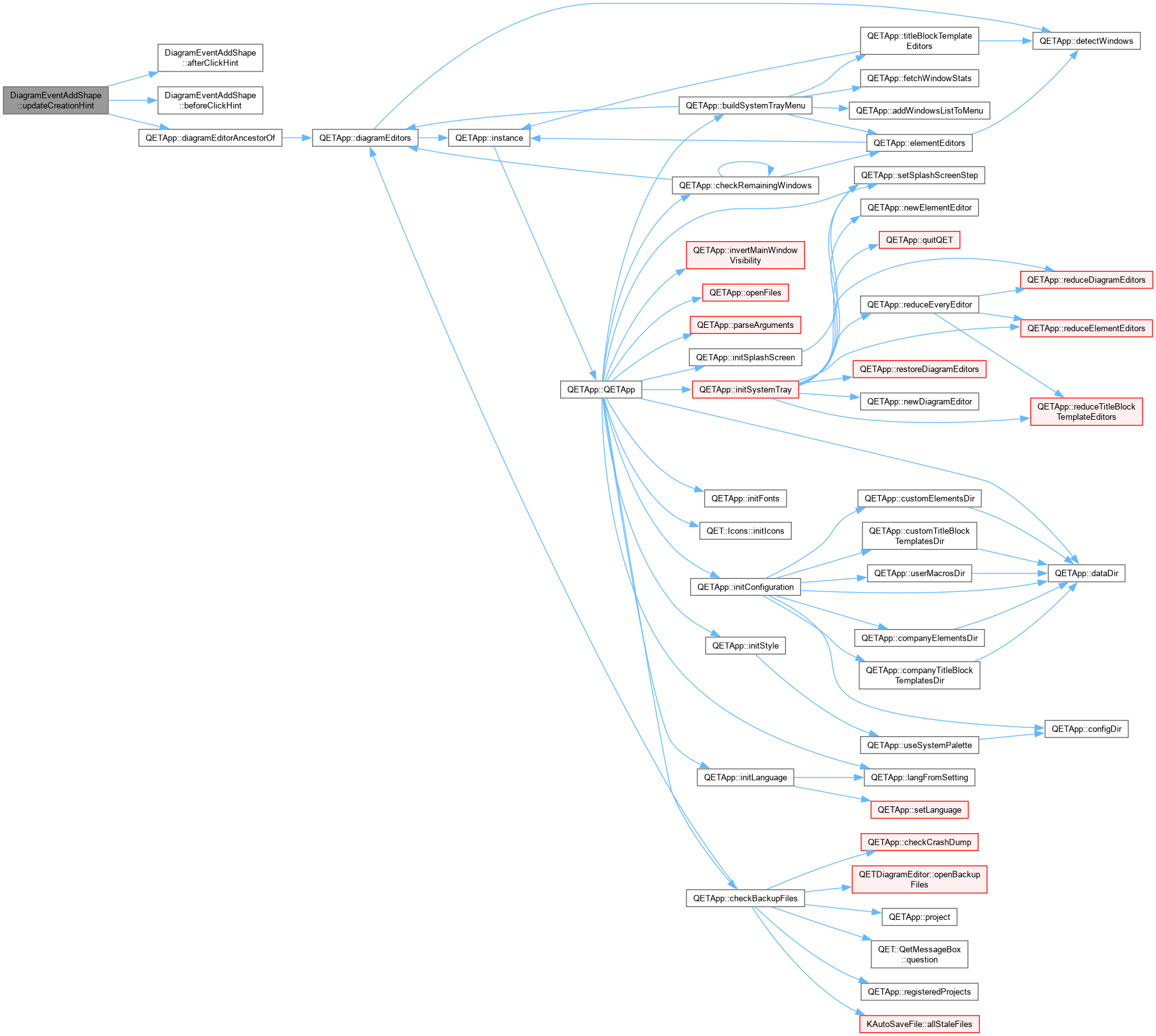

updateCreationHint()

void DiagramEventAddShape::updateCreationHint ( ) const

private

DiagramEventAddShape::updateCreationHint Shows whichever of beforeClickHint()/afterClickHint() matches the current phase – there was previously either no message at all (Line/Rectangle/Ellipse) or a single static one that never changed regardless of progress (Polygon, set externally in QETDiagramEditor::addItemGroupTriggered()); this replaces both with one phase-aware message per shape type, managed by the tool itself.

Here is the call graph for this function:

Here is the caller graph for this function:

updateHelpCross()

void DiagramEventAddShape::updateHelpCross ( const QPointF & p )

private

DiagramEventAddShape::updateHelpCross Create and update the position of the cross to help user for draw new shape.

Parameters

p	: the center of the cross

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_anchor_point

QPointF DiagramEventAddShape::m_anchor_point

protected

m_center_anchored

bool DiagramEventAddShape::m_center_anchored = false

protected

m_center_marker

QGraphicsEllipseItem* DiagramEventAddShape::m_center_marker = nullptr

protected

m_help_horiz

QGraphicsLineItem* DiagramEventAddShape::m_help_horiz

protected

m_help_verti

QGraphicsLineItem * DiagramEventAddShape::m_help_verti

protected

m_last_mouse_scene_pos

QPointF DiagramEventAddShape::m_last_mouse_scene_pos

protected

m_shape_item

QetShapeItem* DiagramEventAddShape::m_shape_item

protected

m_shape_type

QetShapeItem::ShapeType DiagramEventAddShape::m_shape_type

protected

---

The documentation for this class was generated from the following files:

• sources/diagramevent/diagrameventaddshape.h
• sources/diagramevent/diagrameventaddshape.cpp
