SetAutoNumContextCommand Class Reference

The SetAutoNumContextCommand class Undo/redo wrapper around one of QETProject's add*AutoNum() setters (conductor/element/folio numerotation counters). Placing an auto-numbered item advances one of these counters as a side effect; without this command the counter change sits outside the undo stack entirely, so undoing the placement removes the visible number but leaves the counter advanced, silently burning it. More...

#include <setautonumcontextcommand.h>

Inherits QUndoCommand.

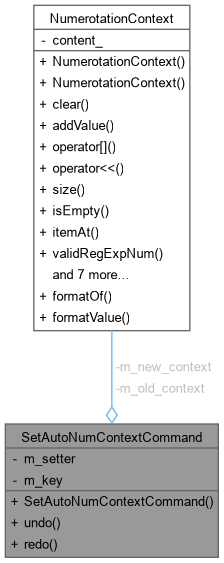

Collaboration diagram for SetAutoNumContextCommand:

Public Types
using	Setter = std::function<void(const QString &, const NumerotationContext &)>

Public Member Functions
	SetAutoNumContextCommand (Setter setter, const QString &key, const NumerotationContext &old_context, const NumerotationContext &new_context, QUndoCommand *parent=nullptr)
	SetAutoNumContextCommand::SetAutoNumContextCommand.
void	undo () override
void	redo () override

Private Attributes
Setter	m_setter
QString	m_key
NumerotationContext	m_old_context
NumerotationContext	m_new_context

Detailed Description

The SetAutoNumContextCommand class Undo/redo wrapper around one of QETProject's add*AutoNum() setters (conductor/element/folio numerotation counters). Placing an auto-numbered item advances one of these counters as a side effect; without this command the counter change sits outside the undo stack entirely, so undoing the placement removes the visible number but leaves the counter advanced, silently burning it.

Member Typedef Documentation

Setter

using SetAutoNumContextCommand::Setter = std::function<void(const QString &, const NumerotationContext &)>

Constructor & Destructor Documentation

SetAutoNumContextCommand()

SetAutoNumContextCommand::SetAutoNumContextCommand	(	Setter	setter,
		const QString &	key,
		const NumerotationContext &	old_context,
		const NumerotationContext &	new_context,
		QUndoCommand *	parent = nullptr )

SetAutoNumContextCommand::SetAutoNumContextCommand.

Parameters

setter	the QETProject setter to call on undo/redo (addConductorAutoNum/addElementAutoNum/addFolioAutoNum, bound to a project)
key	the numerotation context's name/key
old_context	the context's value before this placement
new_context	the context's value after this placement
parent	parent undo command

Member Function Documentation

redo()

void SetAutoNumContextCommand::redo ( )

override

undo()

void SetAutoNumContextCommand::undo ( )

override

Member Data Documentation

m_key

QString SetAutoNumContextCommand::m_key

private

m_new_context

NumerotationContext SetAutoNumContextCommand::m_new_context

private

m_old_context

NumerotationContext SetAutoNumContextCommand::m_old_context

private

m_setter

Setter SetAutoNumContextCommand::m_setter

private

---

The documentation for this class was generated from the following files:

• sources/undocommand/setautonumcontextcommand.h
• sources/undocommand/setautonumcontextcommand.cpp
