NumerotationContext Class Reference

#include <numerotationcontext.h>

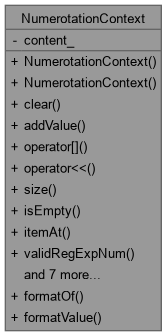

Collaboration diagram for NumerotationContext:

Public Member Functions
	NumerotationContext ()
	NumerotationContext (QDomElement &)
void	clear ()
	NumerotationContext::clear, clear the content.
bool	addValue (const QString &, const QVariant &=QVariant(1), const int=1, const int=0, const int=0, const QString &=QString())
	NumerotationContext::addValue add a new value on the contexte.
QString	operator[] (const int &) const
	NumerotationContext::operator [].
void	operator<< (const NumerotationContext &)
	NumerotationContext::operator << , append other.
int	size () const
	NumerotationContext::size.
bool	isEmpty () const
	NumerotationContext::isEmpty.
QStringList	itemAt (const int) const
	NumerotationContext::itemAt.
QString	validRegExpNum () const
	validRegExpNum
QString	validRegExpNumber () const
	NumerotationContext::validRegExpNumber.
bool	keyIsAcceptable (const QString &) const
	NumerotationContext::keyIsAcceptable.
bool	keyIsNumber (const QString &) const
	NumerotationContext::keyIsNumber.
QDomElement	toXml (QDomDocument &, const QString &)
	NumerotationContext::toXml Save the numerotation context in a QDomElement under the element name str.
void	fromXml (QDomElement &)
	NumerotationContext::fromXml load numerotation context from e.
void	replaceValue (int, QString)
	NumerotationContext::replaceValue This class replaces the current NC field value with content.
void	replaceIncrease (int, int)
	NumerotationContext::replaceIncrease Change how much this part advances per step, leaving its current value, initial value, modulus and format untouched. Sibling to replaceValue(), which deliberately never touches this field.

Static Public Member Functions
static QString	formatOf (const QStringList &item)
	NumerotationContext::formatOf.
static QString	formatValue (const QStringList &item)
	NumerotationContext::formatValue.

Private Attributes
QStringList	content_

Detailed Description

This class represents a numerotation context, i.e. the data (type, value, increase) of a numerotation at a given time. It is notably used by conductor to store the informations they need to do their autonumerotation.

Constructor & Destructor Documentation

NumerotationContext() [1/2]

NumerotationContext::NumerotationContext

(

)

Constructor

Here is the caller graph for this function:

NumerotationContext() [2/2]

NumerotationContext::NumerotationContext

(

QDomElement &

e

)

Constructor from xml

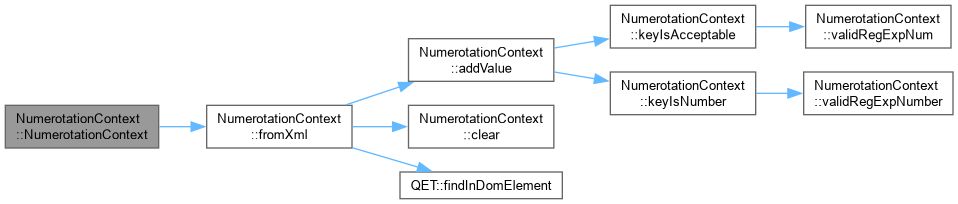

Here is the call graph for this function:

Member Function Documentation

addValue()

bool NumerotationContext::addValue	(	const QString &	type,
		const QVariant &	value = QVariant(1),
		const int	increase = 1,
		const int	initialvalue = 0,
		const int	modulus = 0,
		const QString &	format = QString() )

NumerotationContext::addValue add a new value on the contexte.

Parameters

type	the type of value
value	the value itself
increase	the increase number of value
initialvalue
modulus	wrap-and-carry modulus (0 means "not a wrapping part")
format	zero-padding mask, spreadsheet style: "00" pads to two digits, "000" to three. Empty keeps the part type's natural width, so an absent format reproduces exactly the behaviour of every context written before this field existed.

Returns

true if value is append

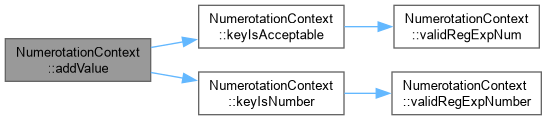

Here is the call graph for this function:

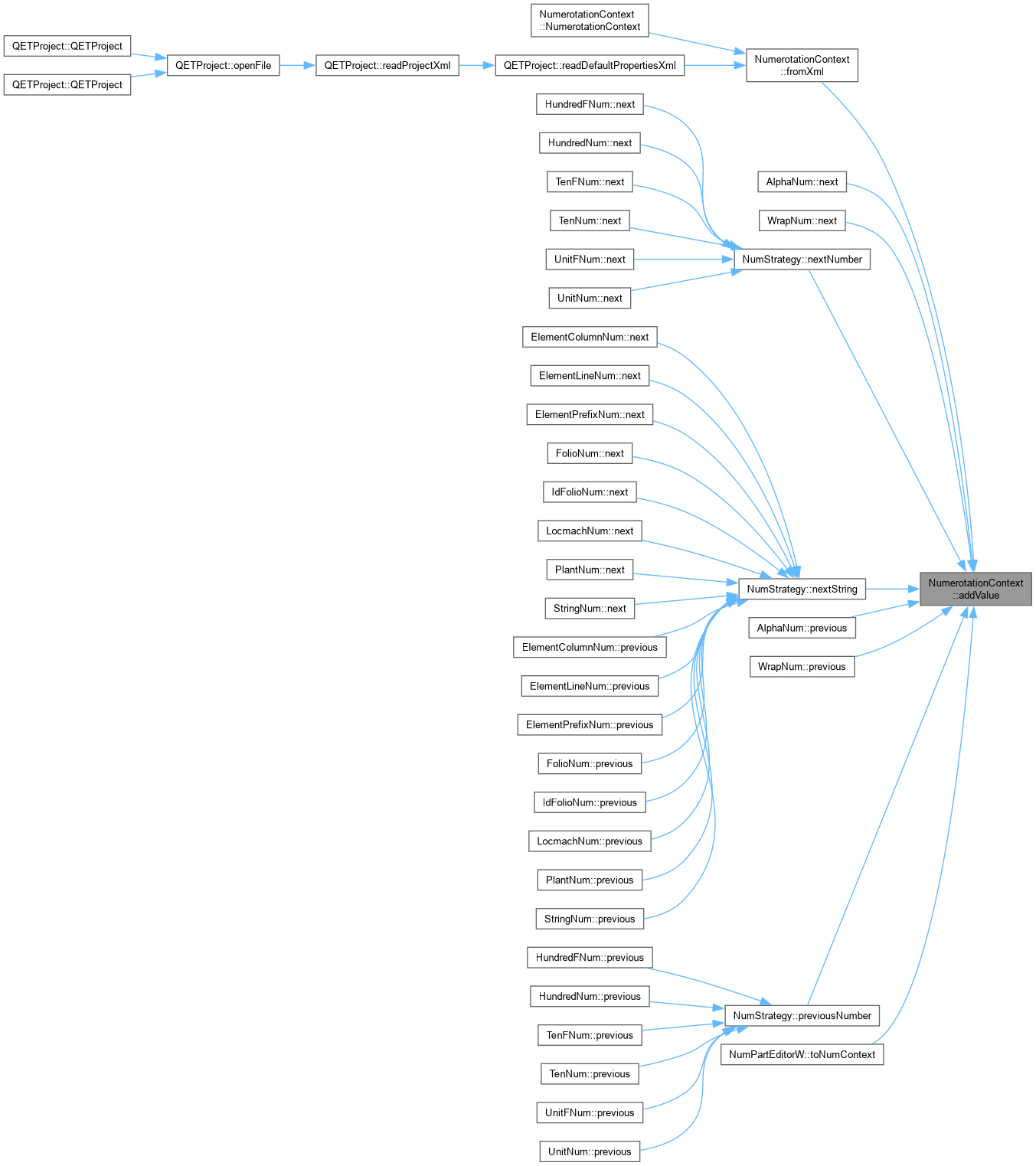

Here is the caller graph for this function:

clear()

void NumerotationContext::clear

(

)

NumerotationContext::clear, clear the content.

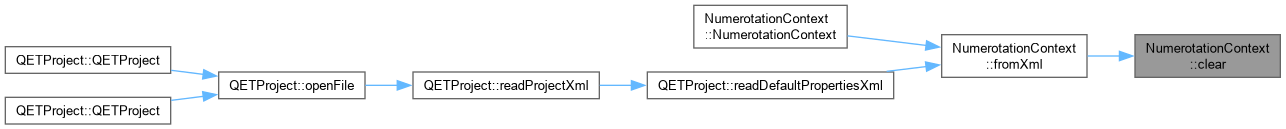

Here is the caller graph for this function:

formatOf()

QString NumerotationContext::formatOf ( const QStringList & item )

static

NumerotationContext::formatOf.

Zero-padding mask of a part, e.g. "00"; empty means the type's own natural width. See addValue().

Parameters

item	: a context item as returned by itemAt()

Returns

the part's zero-padding mask, or an empty string when it has none – which every context written before the field existed will be.

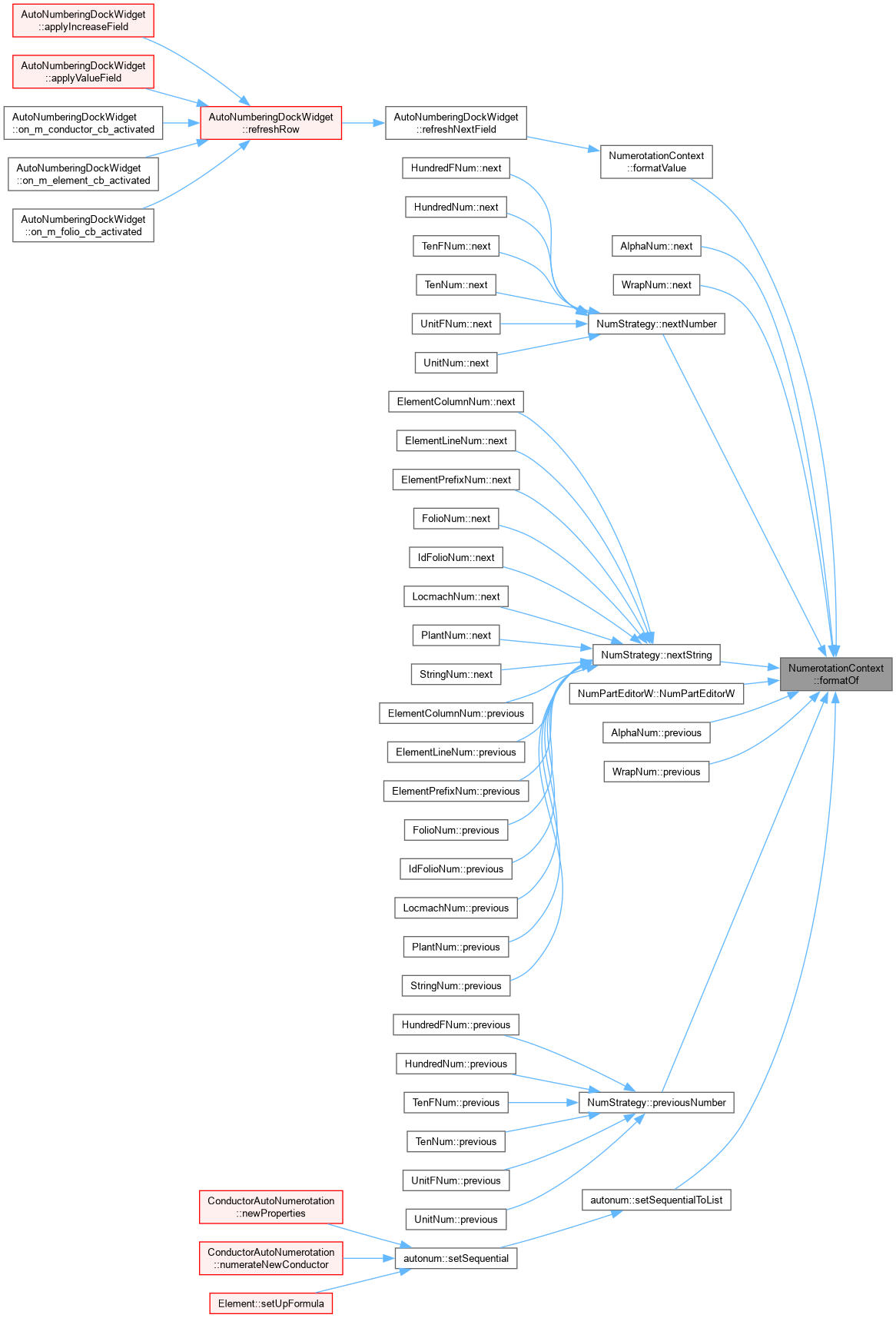

Here is the caller graph for this function:

formatValue()

QString NumerotationContext::formatValue ( const QStringList & item )

static

NumerotationContext::formatValue.

Zero-pad a part's value the same way the real numbering engine does (autonum::setSequentialToList in assignvariables.cpp), so a UI preview of a part's value matches what actually gets rendered.

Parameters

item	: a context item as returned by itemAt()

Returns

the part's value, zero-padded exactly as autonum::setSequentialToList() pads it when composing a real label: an explicit format mask wins, then "ten"/"hundred" parts get their implicit 2/3-digit width, "alpha" is used as-is, everything else is a plain number. Kept in step with that function by hand since the two cannot share code without exposing an assignvariables.cpp-local helper.

Here is the call graph for this function:

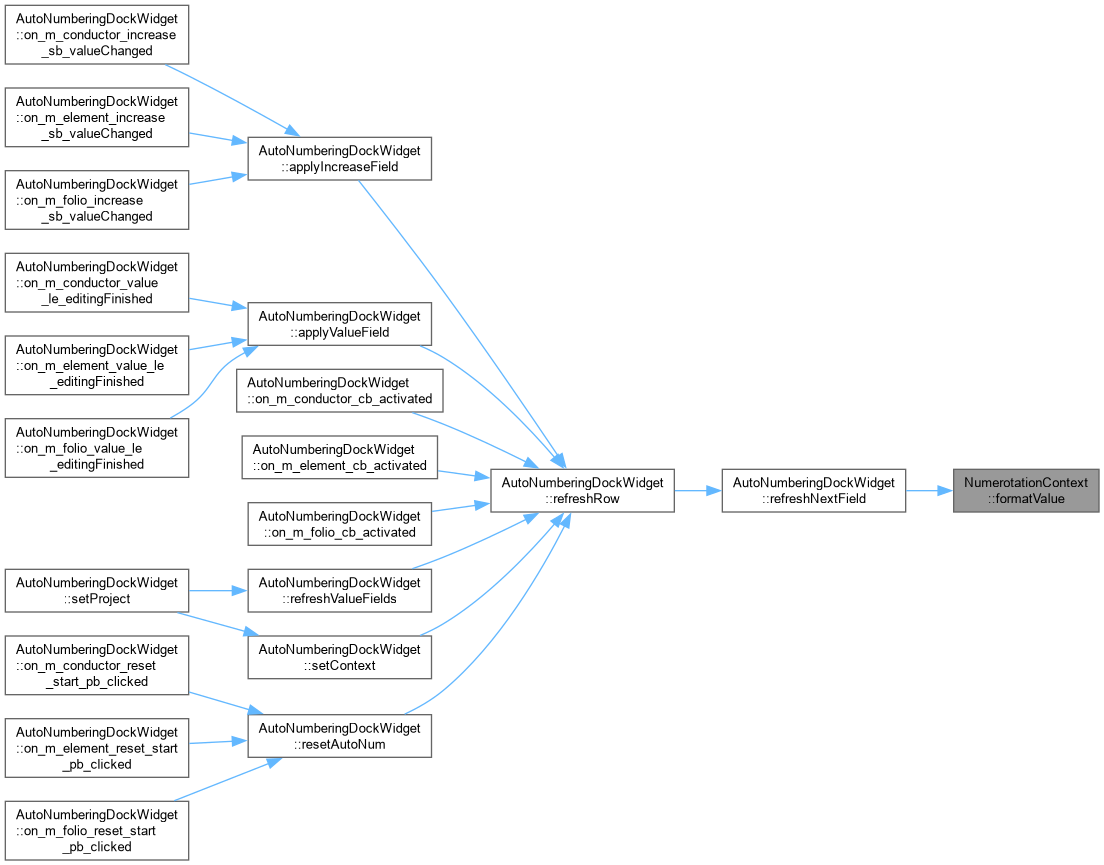

Here is the caller graph for this function:

fromXml()

void NumerotationContext::fromXml

(

QDomElement &

e

)

NumerotationContext::fromXml load numerotation context from e.

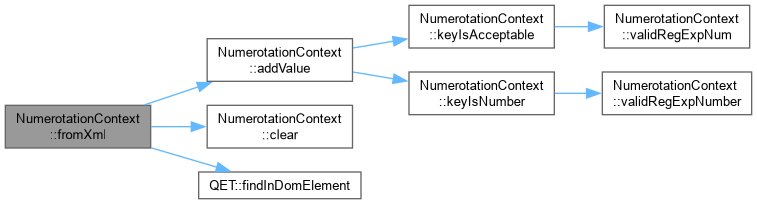

Here is the call graph for this function:

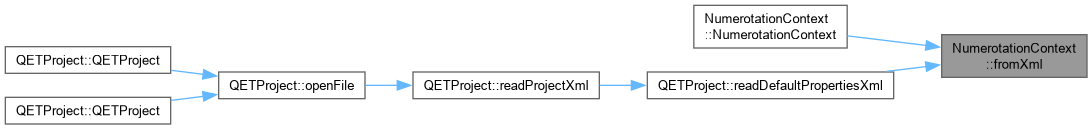

Here is the caller graph for this function:

isEmpty()

bool NumerotationContext::isEmpty

(

)

const

NumerotationContext::isEmpty.

Returns

true if numerotation content is empty

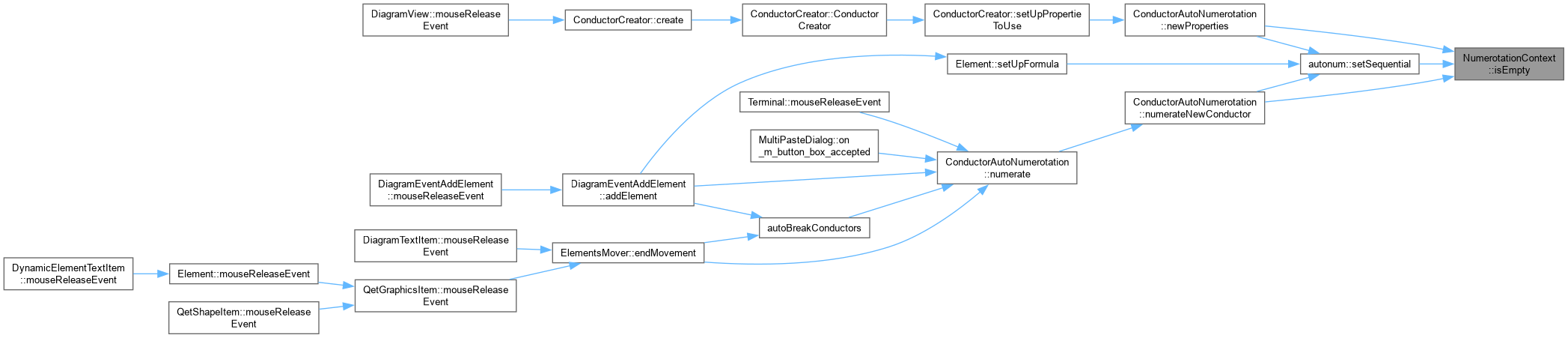

Here is the caller graph for this function:

itemAt()

QStringList NumerotationContext::itemAt

(

const int

i

)

const

NumerotationContext::itemAt.

Parameters

i

Returns

the content at position i 1:type 2:value 3:increase

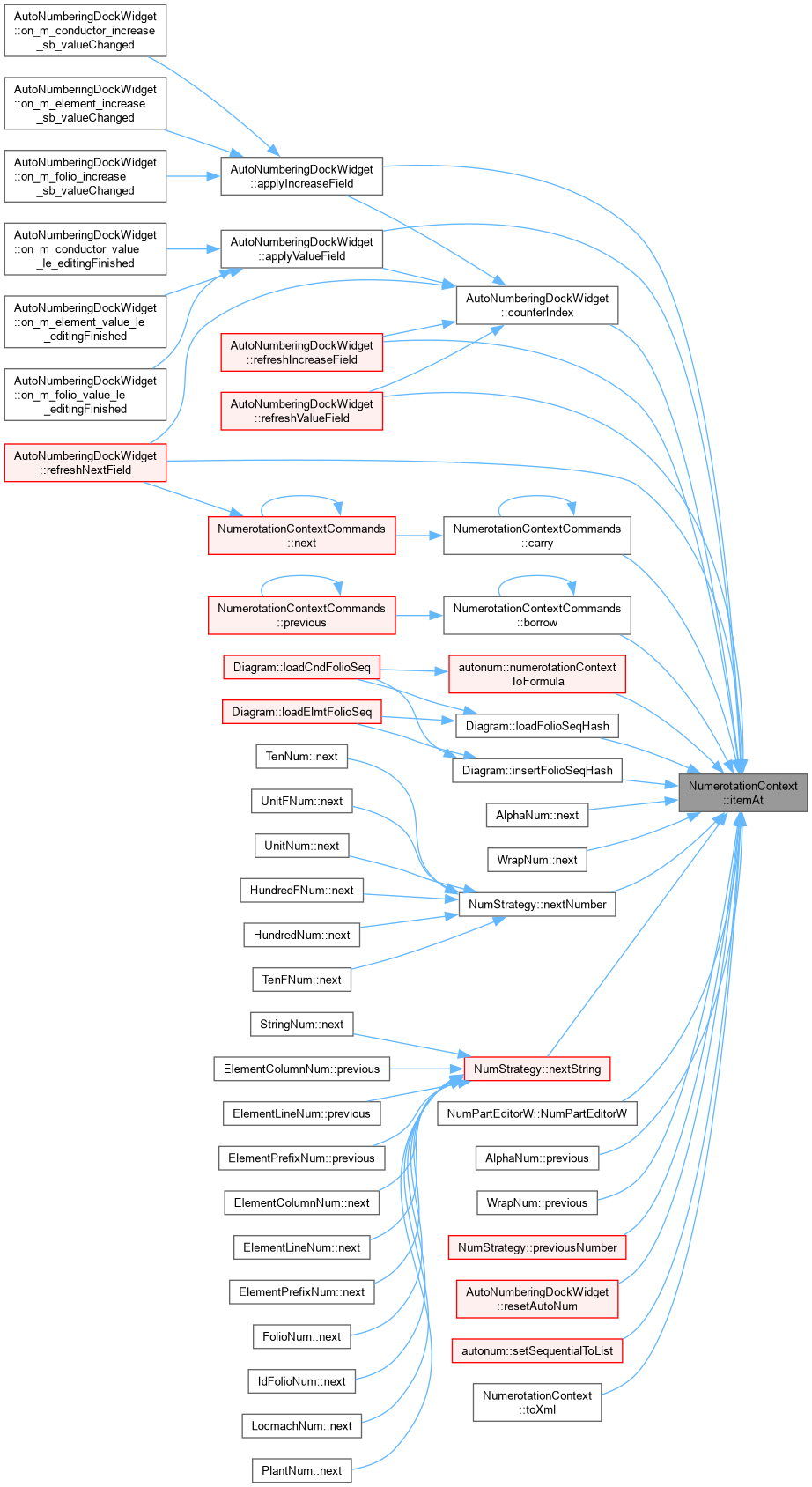

Here is the caller graph for this function:

keyIsAcceptable()

bool NumerotationContext::keyIsAcceptable

(

const QString &

type

)

const

NumerotationContext::keyIsAcceptable.

Returns

true if type is acceptable

Here is the call graph for this function:

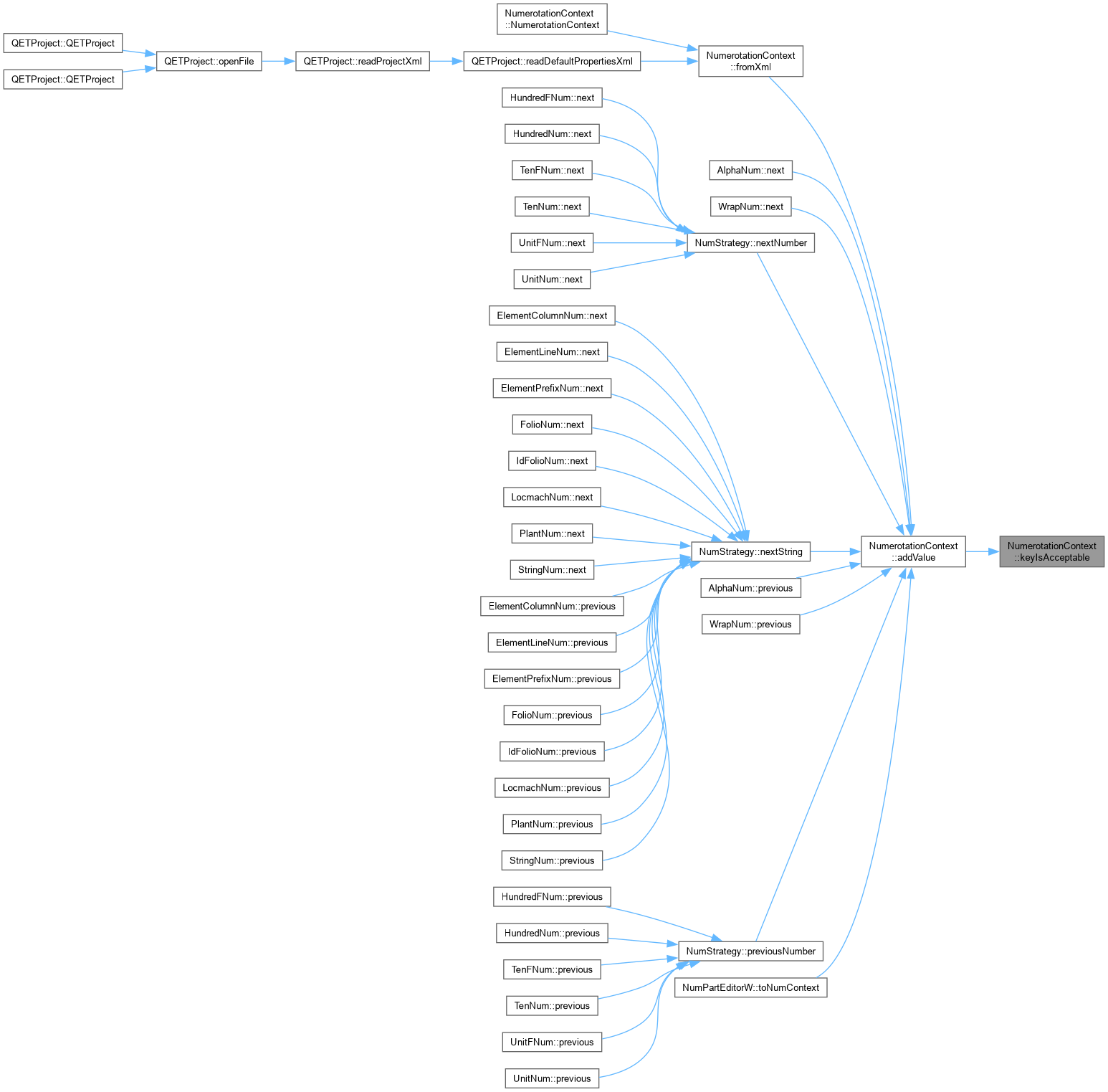

Here is the caller graph for this function:

keyIsNumber()

bool NumerotationContext::keyIsNumber

(

const QString &

type

)

const

NumerotationContext::keyIsNumber.

Returns

true if type represents a number

Here is the call graph for this function:

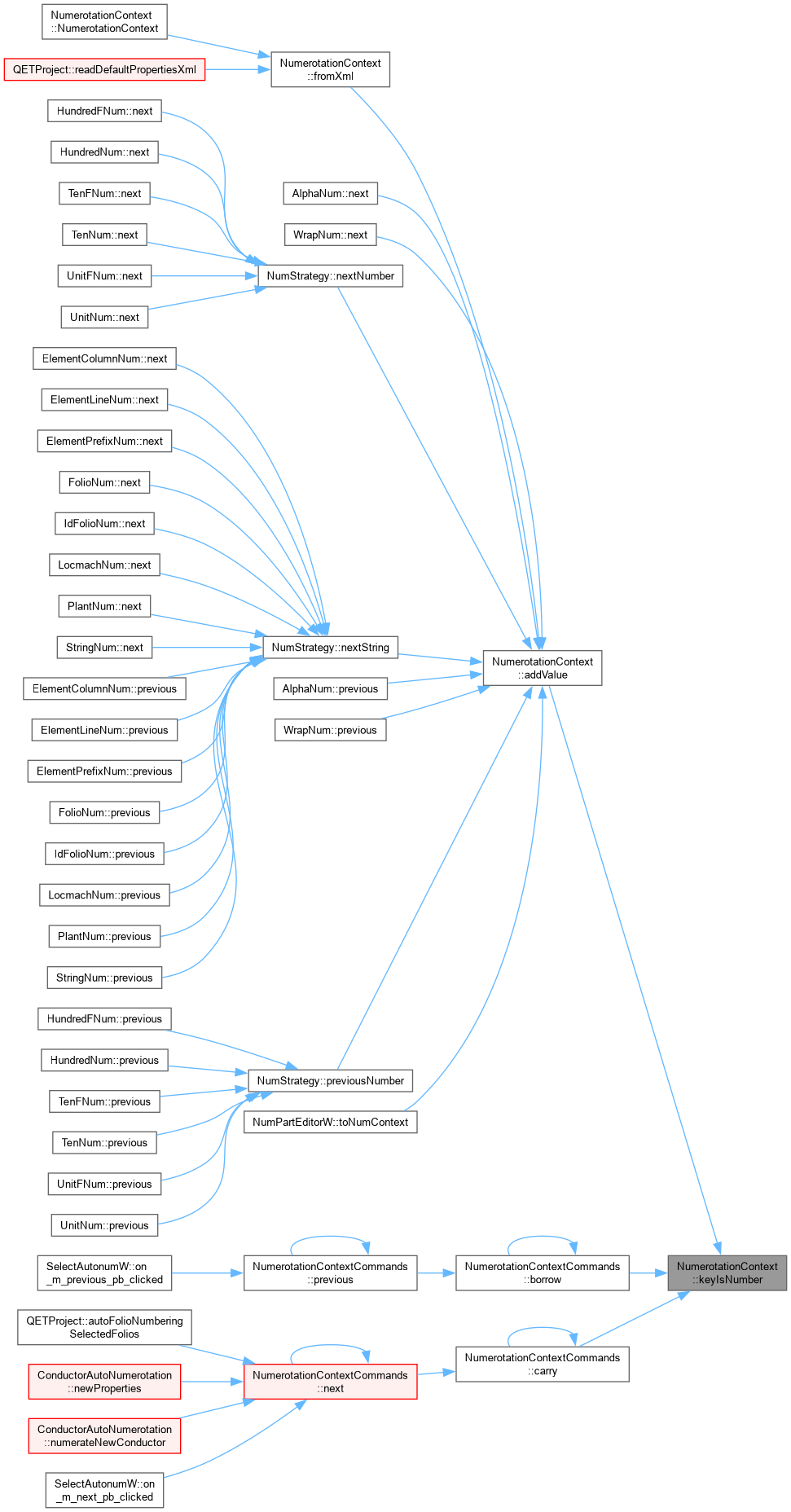

Here is the caller graph for this function:

operator<<()

void NumerotationContext::operator<<

(

const NumerotationContext &

other

)

NumerotationContext::operator << , append other.

Here is the call graph for this function:

operator[]()

QString NumerotationContext::operator[]

(

const int &

i

)

const

NumerotationContext::operator [].

Parameters

i

Returns

the string at position i

replaceIncrease()

void NumerotationContext::replaceIncrease	(	int	index,
		int	increase )

NumerotationContext::replaceIncrease Change how much this part advances per step, leaving its current value, initial value, modulus and format untouched. Sibling to replaceValue(), which deliberately never touches this field.

Parameters

index	of NC item
increase	new increase for that item

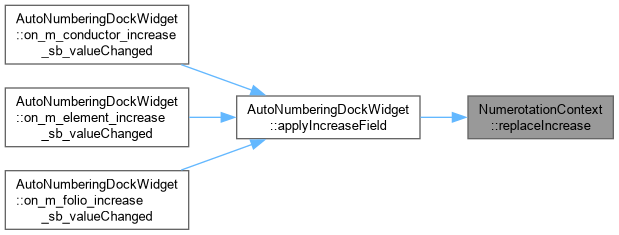

Here is the caller graph for this function:

replaceValue()

void NumerotationContext::replaceValue	(	int	index,
		QString	content )

NumerotationContext::replaceValue This class replaces the current NC field value with content.

Parameters

index	of NC Item
content	to replace current value

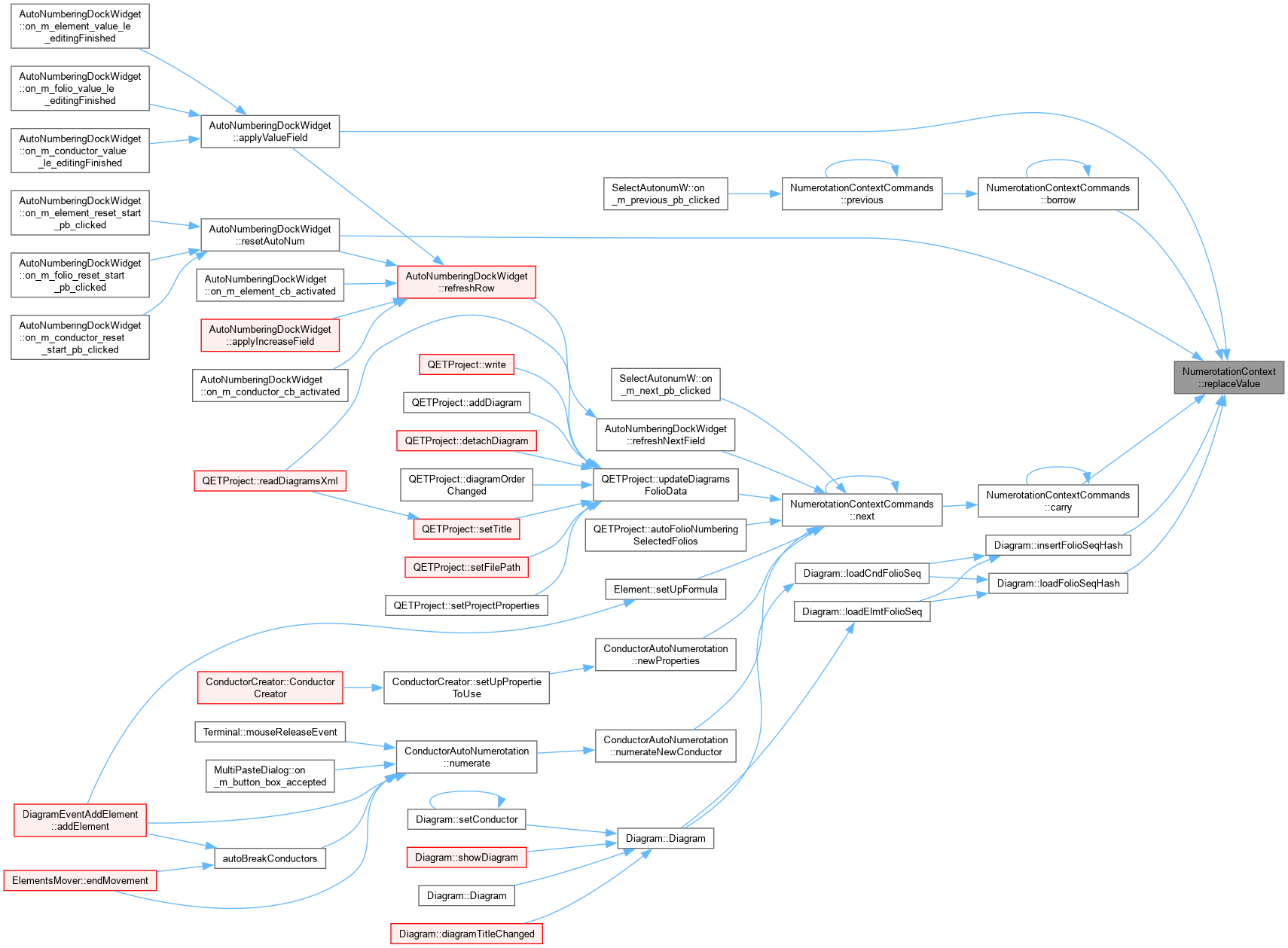

Here is the caller graph for this function:

size()

int NumerotationContext::size

(

)

const

NumerotationContext::size.

Returns

size of context

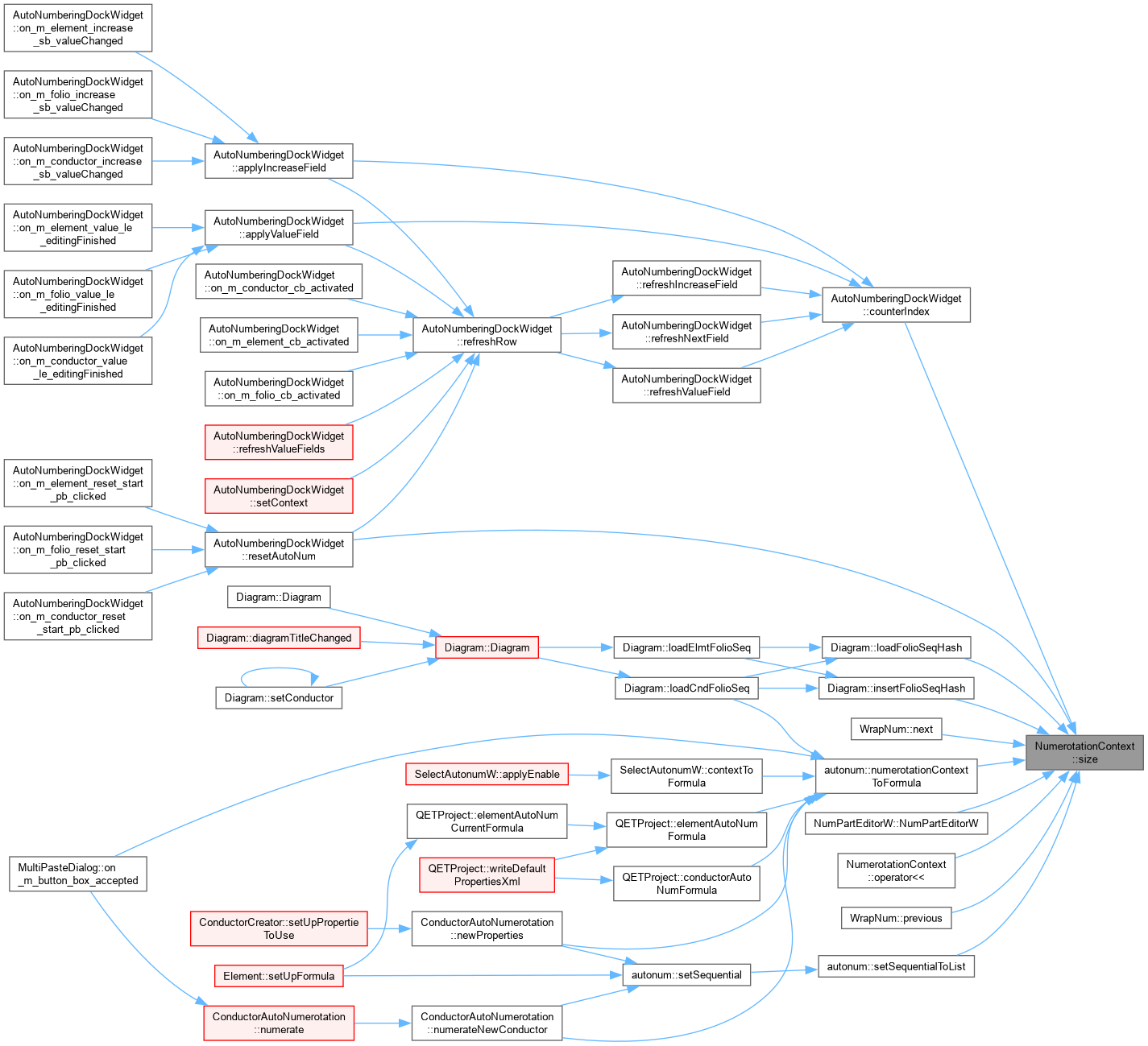

Here is the caller graph for this function:

toXml()

QDomElement NumerotationContext::toXml	(	QDomDocument &	d,
		const QString &	str )

NumerotationContext::toXml Save the numerotation context in a QDomElement under the element name str.

Here is the call graph for this function:

validRegExpNum()

QString NumerotationContext::validRegExpNum

(

)

const

validRegExpNum

Returns

all type use to numerotation

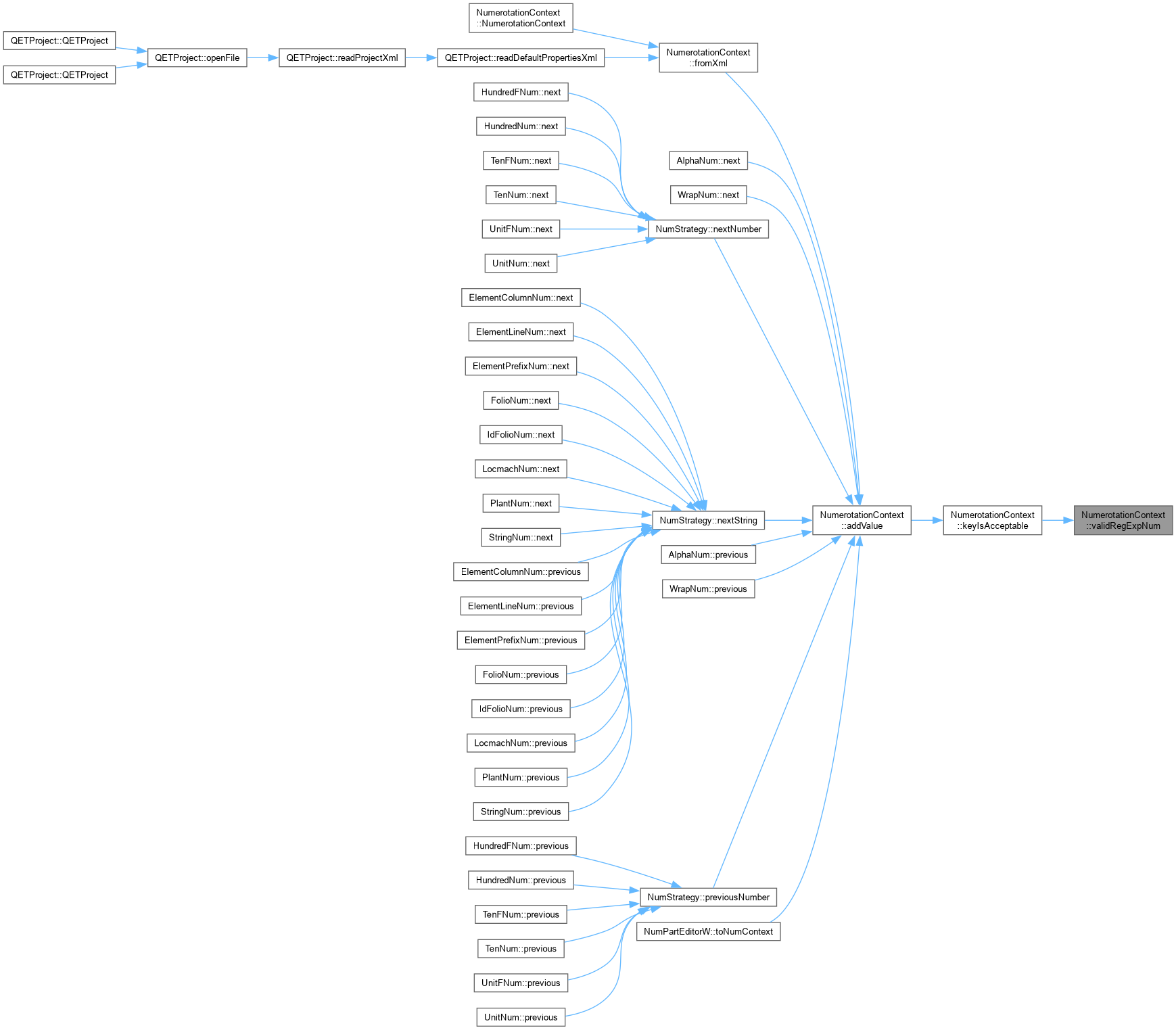

Here is the caller graph for this function:

validRegExpNumber()

QString NumerotationContext::validRegExpNumber

(

)

const

NumerotationContext::validRegExpNumber.

Returns

all type represents a number

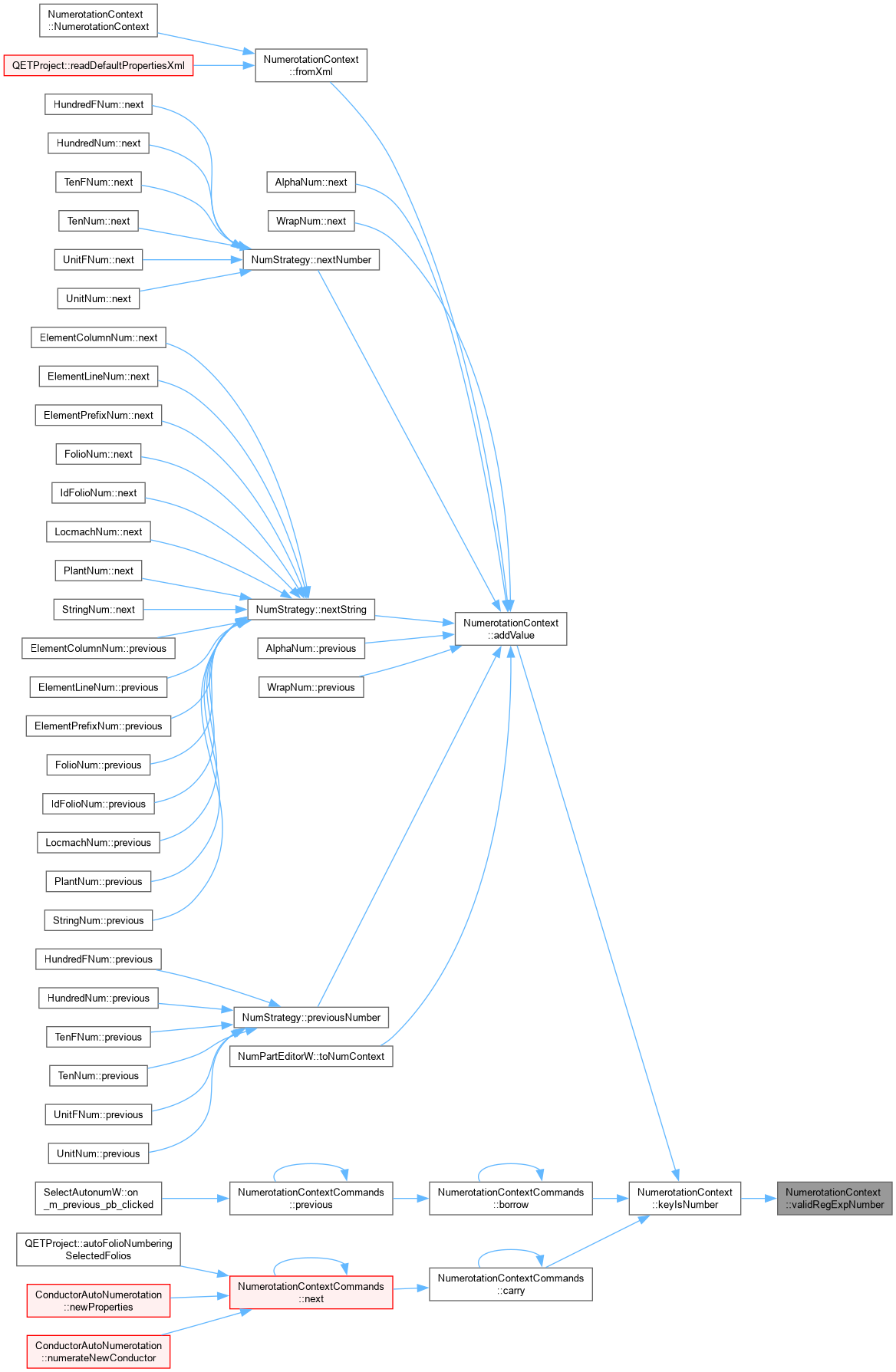

Here is the caller graph for this function:

Member Data Documentation

content_

QStringList NumerotationContext::content_

private

---

The documentation for this class was generated from the following files:

• sources/autoNum/numerotationcontext.h
• sources/autoNum/numerotationcontext.cpp
