TitleBlockTemplateCommand Class Reference

#include <templatecommands.h>

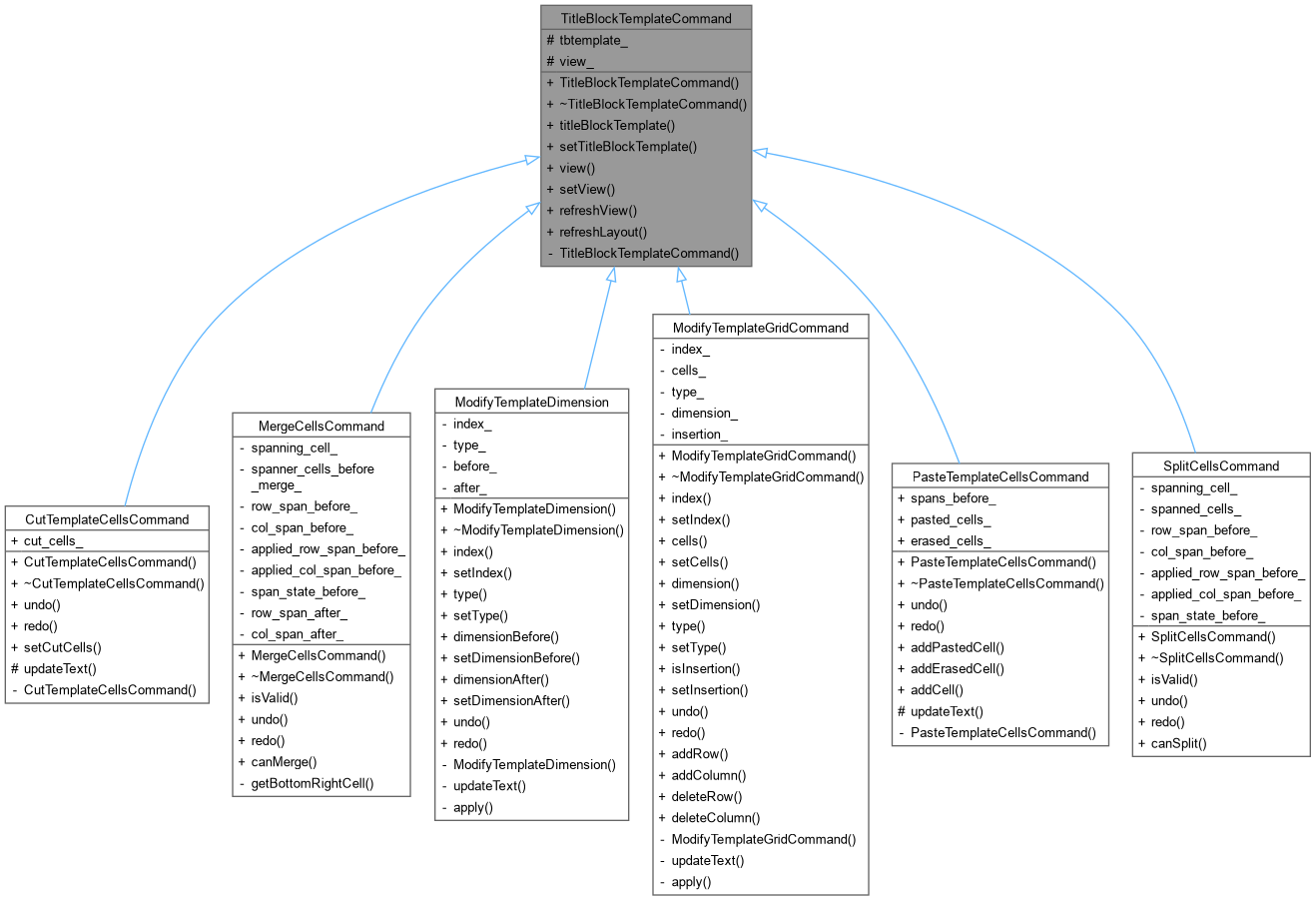

Inheritance diagram for TitleBlockTemplateCommand:

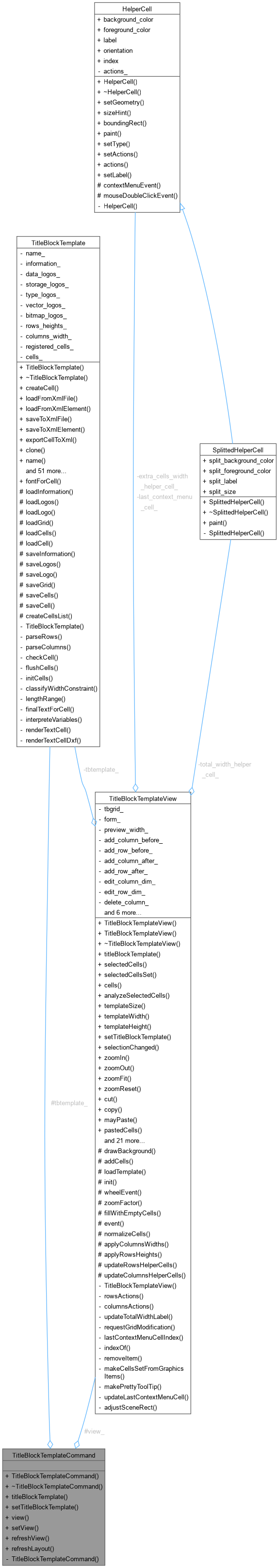

Collaboration diagram for TitleBlockTemplateCommand:

Public Member Functions
	TitleBlockTemplateCommand (TitleBlockTemplate *=nullptr, QUndoCommand *=nullptr)
	~TitleBlockTemplateCommand () override
TitleBlockTemplate *	titleBlockTemplate () const
void	setTitleBlockTemplate (TitleBlockTemplate *)
TitleBlockTemplateView *	view () const
void	setView (TitleBlockTemplateView *)
void	refreshView ()
void	refreshLayout ()

Protected Attributes
TitleBlockTemplate *	tbtemplate_
	Modified TitleBlock Template.
TitleBlockTemplateView *	view_
	This class may trigger a view update.

Private Member Functions
	TitleBlockTemplateCommand (const TitleBlockTemplateCommand &)

Detailed Description

This class is a base class for any UndoCommand that needs to work with a title block template.

Constructor & Destructor Documentation

TitleBlockTemplateCommand() [1/2]

TitleBlockTemplateCommand::TitleBlockTemplateCommand	(	TitleBlockTemplate *	tbtemplate = nullptr,
		QUndoCommand *	parent = nullptr )

Constructor

Parameters

tbtemplate	Modified title block template
parent	Parent QUndoCommand

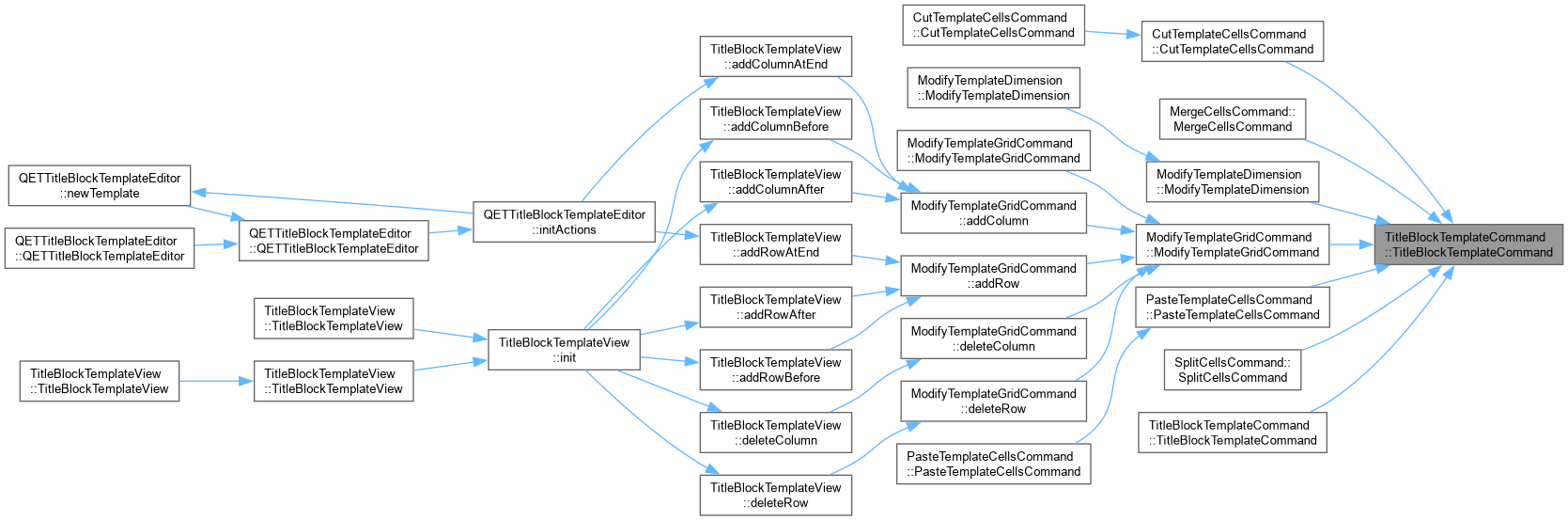

Here is the caller graph for this function:

~TitleBlockTemplateCommand()

TitleBlockTemplateCommand::~TitleBlockTemplateCommand ( )

override

Destructor

TitleBlockTemplateCommand() [2/2]

TitleBlockTemplateCommand::TitleBlockTemplateCommand ( const TitleBlockTemplateCommand & )

private

Here is the call graph for this function:

Member Function Documentation

refreshLayout()

void TitleBlockTemplateCommand::refreshLayout

(

)

Refresh the view, including layout reloading, if any.

Here is the caller graph for this function:

refreshView()

void TitleBlockTemplateCommand::refreshView

(

)

Refresh the view, if any.

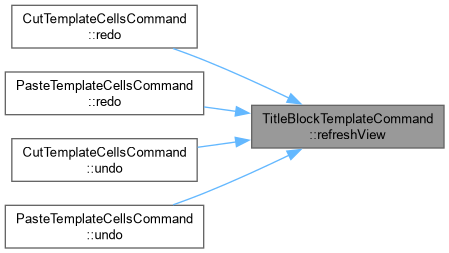

Here is the caller graph for this function:

setTitleBlockTemplate()

void TitleBlockTemplateCommand::setTitleBlockTemplate

(

TitleBlockTemplate *

tbtemplate

)

Set the modified title block template.

Parameters

tbtemplate

New modified title block template.

setView()

void TitleBlockTemplateCommand::setView

(

TitleBlockTemplateView *

view

)

Set the view to be updated after the template modification

Parameters

view	the view to be updated after the template modification

Here is the call graph for this function:

titleBlockTemplate()

TitleBlockTemplate * TitleBlockTemplateCommand::titleBlockTemplate

(

)

const

Returns

the modified title block template.

view()

TitleBlockTemplateView * TitleBlockTemplateCommand::view

(

)

const

Returns

the view to be updated after the template modification

Here is the caller graph for this function:

Member Data Documentation

tbtemplate_

TitleBlockTemplate* TitleBlockTemplateCommand::tbtemplate_

protected

Modified TitleBlock Template.

view_

TitleBlockTemplateView* TitleBlockTemplateCommand::view_

protected

This class may trigger a view update.

---

The documentation for this class was generated from the following files:

• sources/titleblock/templatecommands.h
• sources/titleblock/templatecommands.cpp
