ConductorCreator Class Reference

The ConductorCreator class This class create one or several or several conductors in a given context. More...

#include <conductorcreator.h>

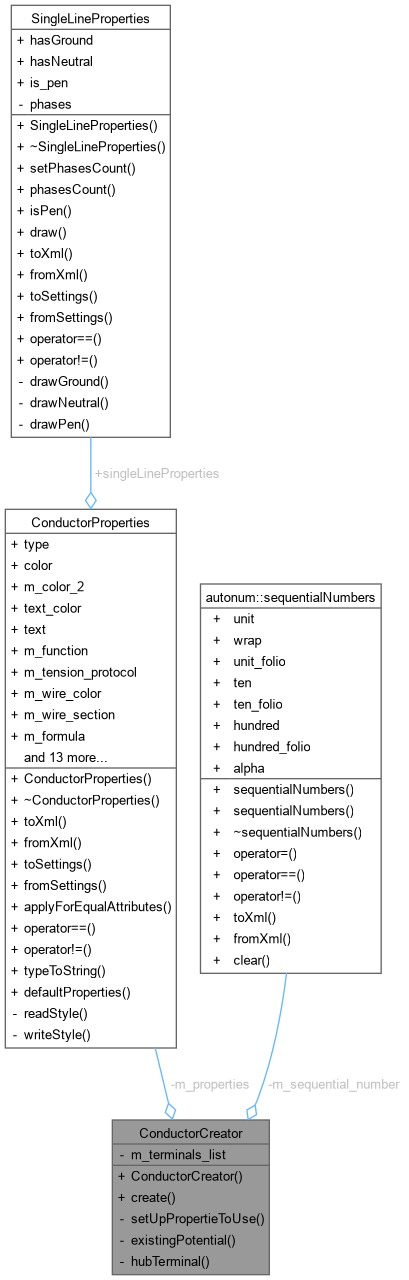

Collaboration diagram for ConductorCreator:

Public Member Functions
	ConductorCreator (Diagram *d, QList< Terminal * > terminals_list)
	ConductorCreator::ConductorCreator Create an electrical potential between all terminals of terminals_list. the terminals of the list must be in the same diagram.

Static Public Member Functions
static void	create (Diagram *d, const QPolygonF &polygon)
	ConductorCreator::create Create an electrical potential between the terminals of the diagram d, contained in the polygon.

Private Member Functions
bool	setUpPropertieToUse ()
	ConductorCreator::propertieToUse.
QList< Conductor * >	existingPotential ()
	ConductorCreator::existingPotential Return the list of existing potential of the terminal list.
Terminal *	hubTerminal ()
	ConductorCreator::hubTerminal.

Private Attributes
QList< Terminal * >	m_terminals_list
ConductorProperties	m_properties
autonum::sequentialNumbers	m_sequential_number

Detailed Description

The ConductorCreator class This class create one or several or several conductors in a given context.

Constructor & Destructor Documentation

ConductorCreator()

ConductorCreator::ConductorCreator	(	Diagram *	d,
		QList< Terminal * >	terminals_list )

ConductorCreator::ConductorCreator Create an electrical potential between all terminals of terminals_list. the terminals of the list must be in the same diagram.

Parameters

d	Diagram
terminals_list	QList<Terminal *>

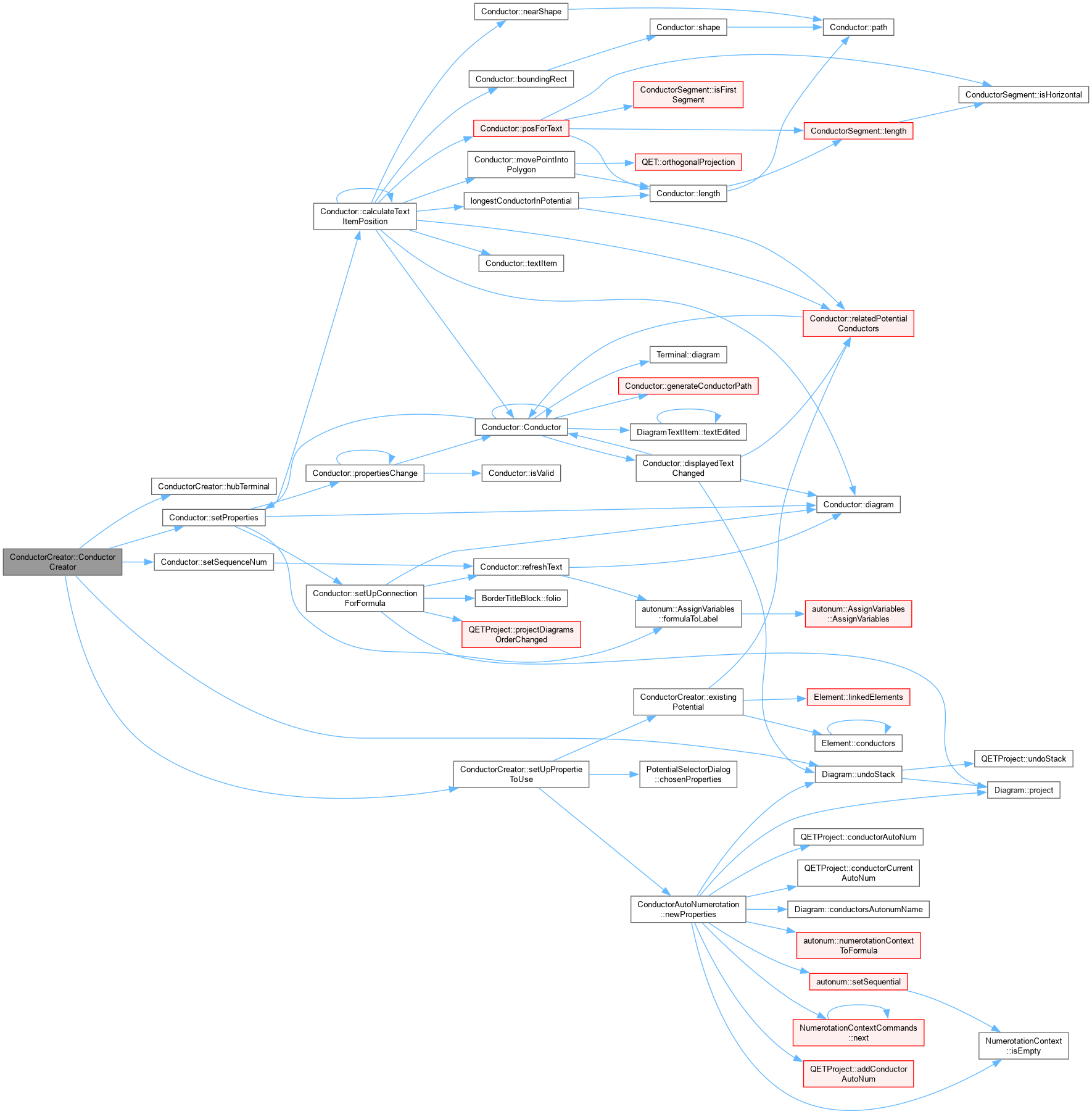

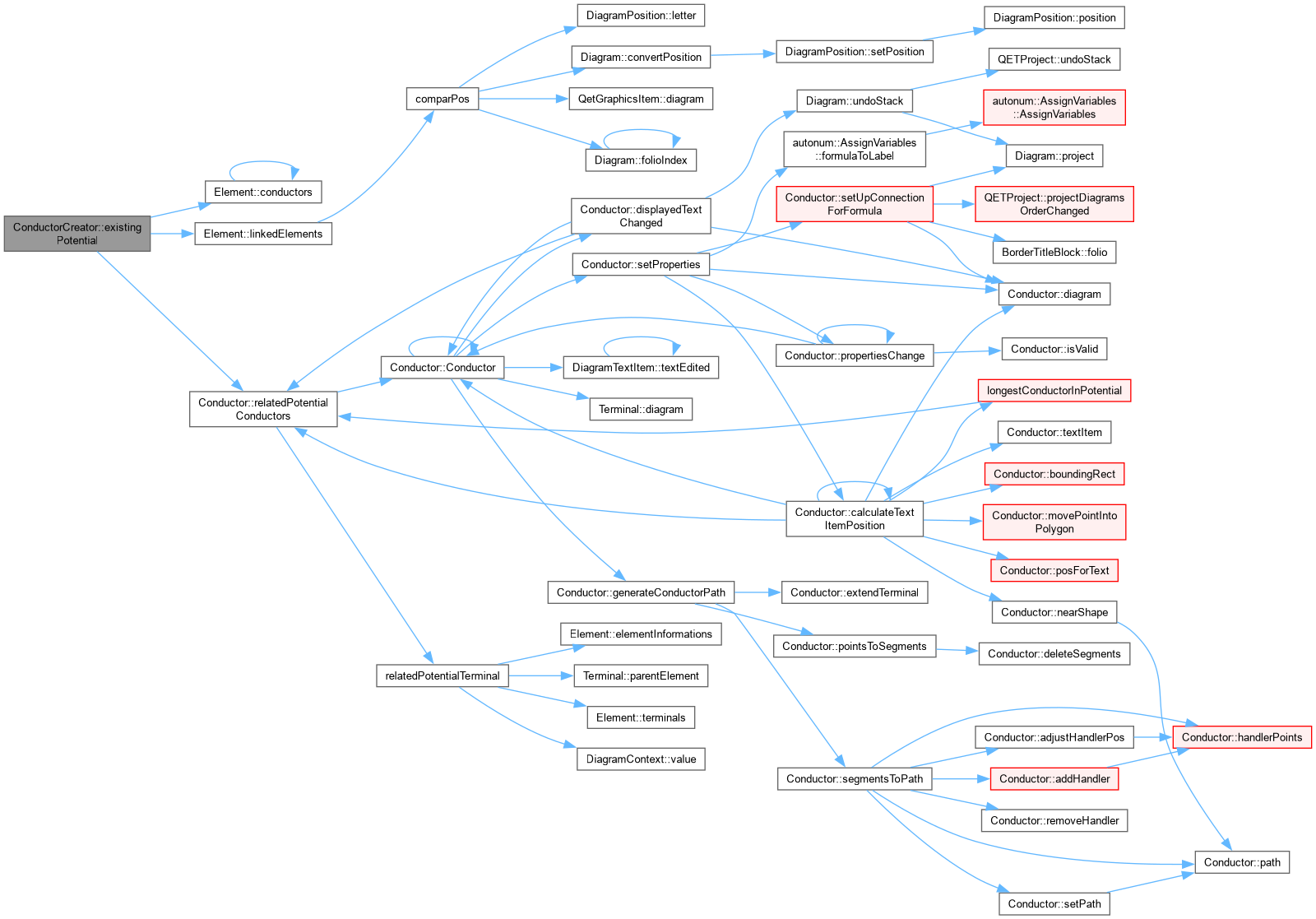

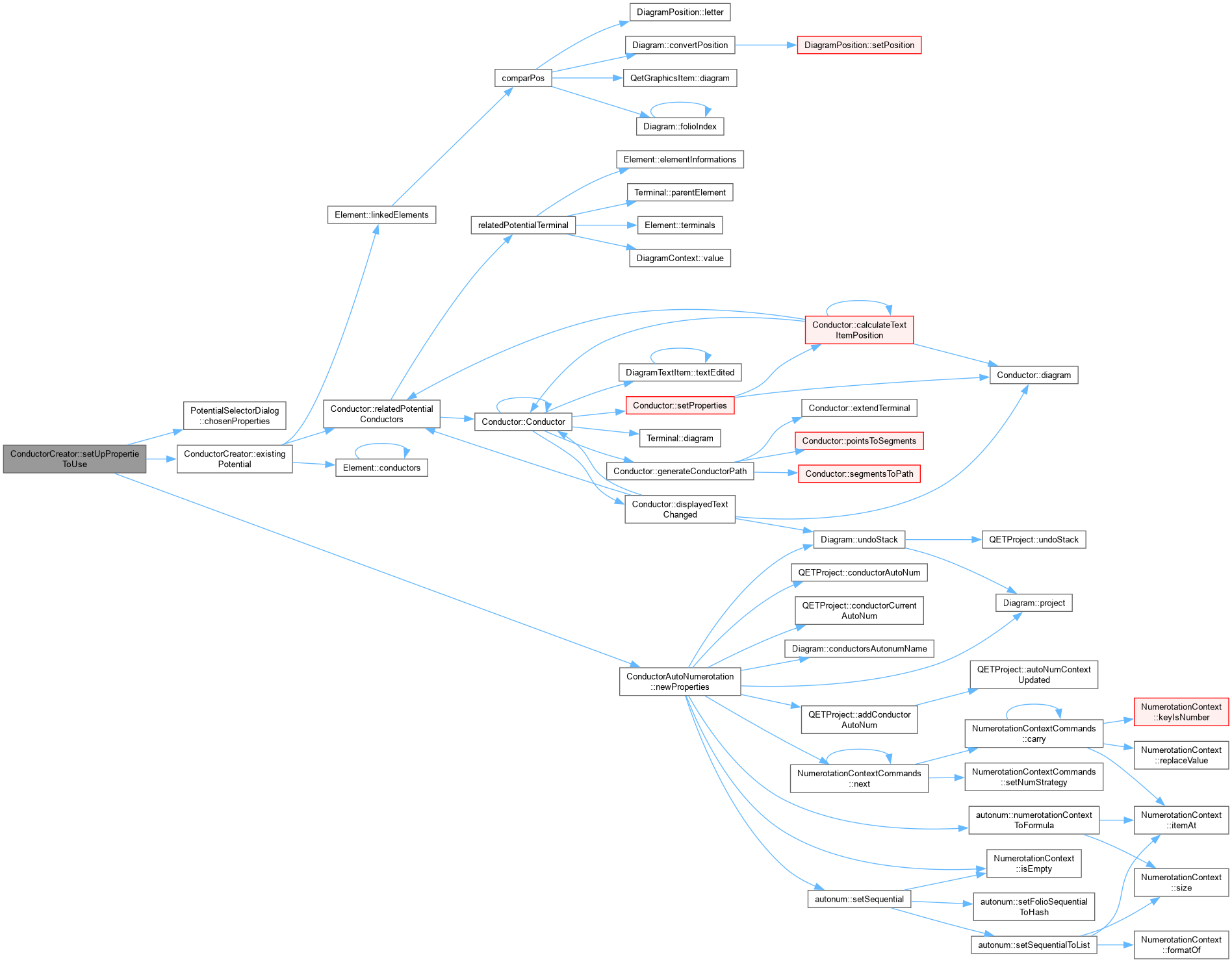

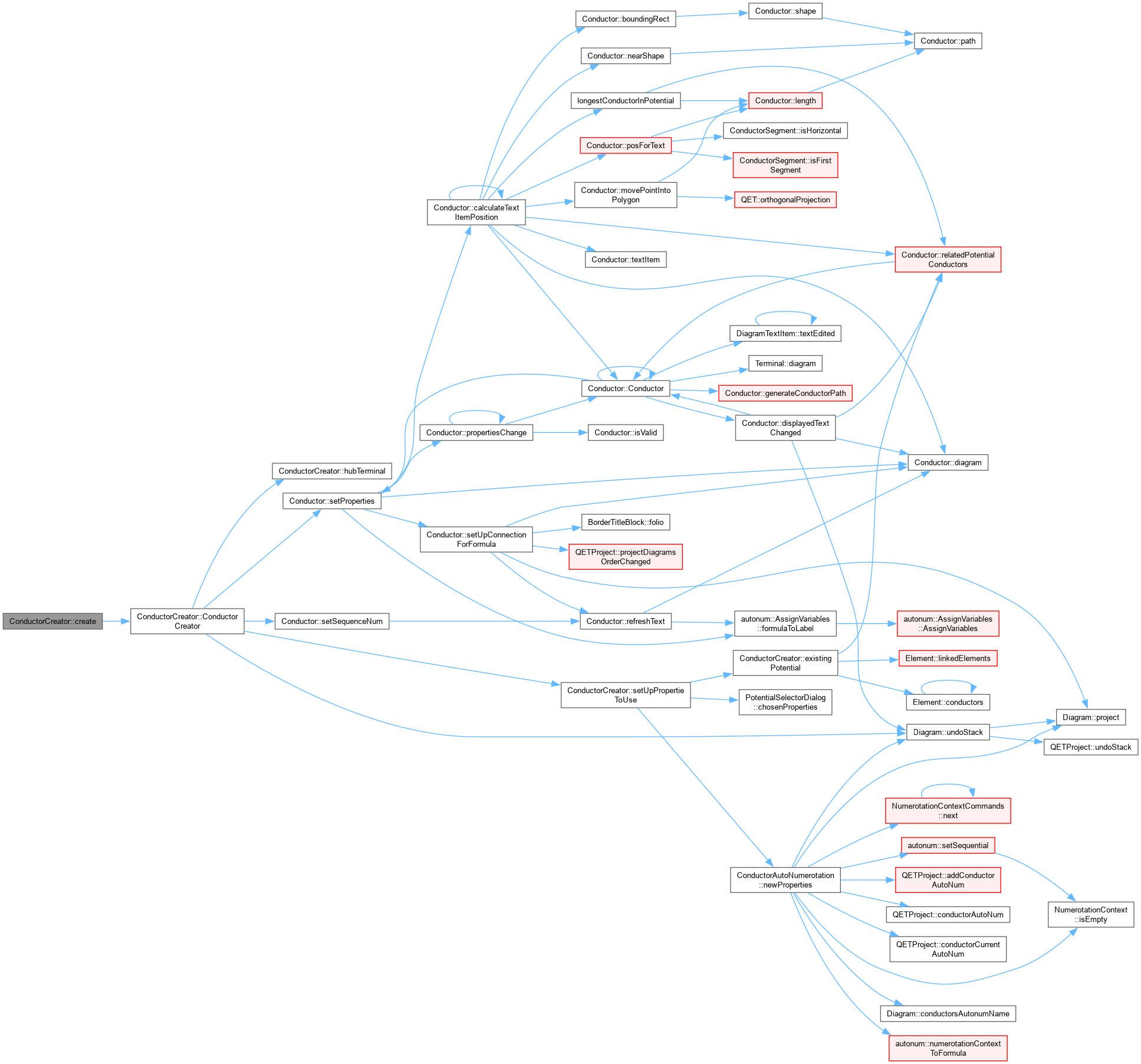

Here is the call graph for this function:

Here is the caller graph for this function:

Member Function Documentation

create()

void ConductorCreator::create ( Diagram * d, const QPolygonF & polygon )

static

ConductorCreator::create Create an electrical potential between the terminals of the diagram d, contained in the polygon.

Parameters

d	Diagram
polygon	: polygon in diagram coordinate

Here is the call graph for this function:

Here is the caller graph for this function:

existingPotential()

QList< Conductor * > ConductorCreator::existingPotential ( )

private

ConductorCreator::existingPotential Return the list of existing potential of the terminal list.

Returns

c_list QList<Conductor *>

Here is the call graph for this function:

Here is the caller graph for this function:

hubTerminal()

Terminal * ConductorCreator::hubTerminal ( )

private

ConductorCreator::hubTerminal.

Returns

hub_terminal

Here is the caller graph for this function:

setUpPropertieToUse()

bool ConductorCreator::setUpPropertieToUse ( )

private

ConductorCreator::propertieToUse.

Returns

true if the caller should proceed with conductor creation, false if the user cancelled the potential-selection dialog (in which case no properties were chosen and creation must be aborted rather than proceeding with blank/default properties).

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_properties

ConductorProperties ConductorCreator::m_properties

private

m_sequential_number

autonum::sequentialNumbers ConductorCreator::m_sequential_number

private

m_terminals_list

QList<Terminal *> ConductorCreator::m_terminals_list

private

---

The documentation for this class was generated from the following files:

• sources/utils/conductorcreator.h
• sources/utils/conductorcreator.cpp
