ProjectMainConfigPage Class Reference

#include <projectconfigpages.h>

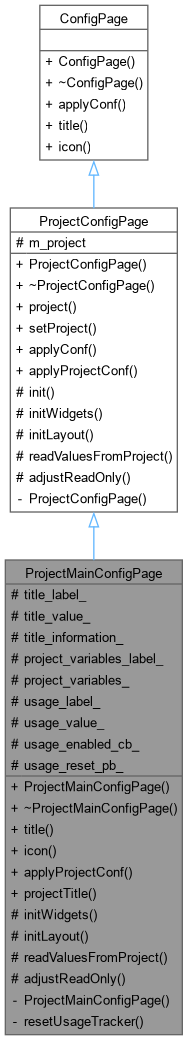

Inheritance diagram for ProjectMainConfigPage:

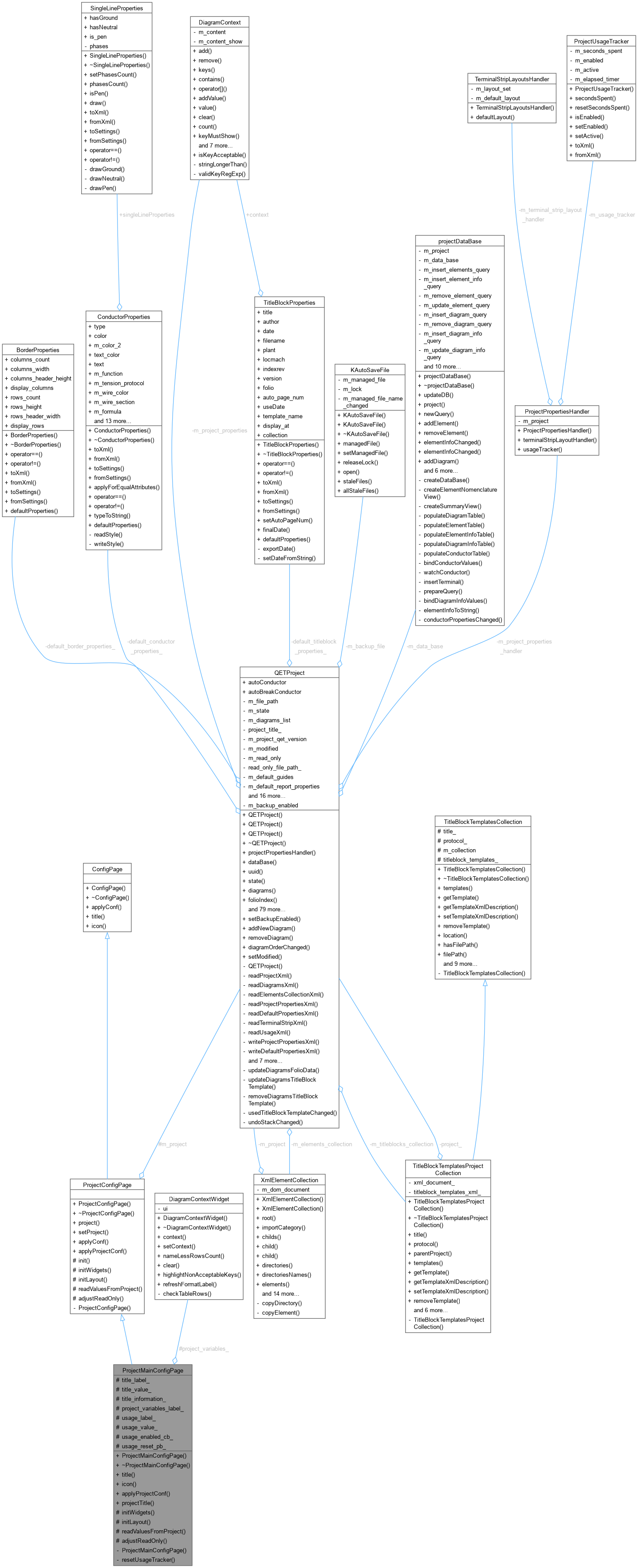

Collaboration diagram for ProjectMainConfigPage:

Public Member Functions
	ProjectMainConfigPage (QETProject *, QWidget *=nullptr)
	~ProjectMainConfigPage () override
QString	title () const override
QIcon	icon () const override
void	applyProjectConf () override
QString	projectTitle () const
Public Member Functions inherited from ProjectConfigPage
	ProjectConfigPage (QETProject *, QWidget *=nullptr)
	~ProjectConfigPage () override
virtual QETProject *	project () const
virtual QETProject *	setProject (QETProject *project, bool=true)
	ProjectConfigPage::setProject Set new_project as the project being edited by this page.
void	applyConf () override
Public Member Functions inherited from ConfigPage
	ConfigPage (QWidget *parent)
	~ConfigPage () override
	Destructor.

Protected Member Functions
void	initWidgets () override
void	initLayout () override
void	readValuesFromProject () override
void	adjustReadOnly () override
Protected Member Functions inherited from ProjectConfigPage
virtual void	init ()

Protected Attributes
QLabel *	title_label_
QLineEdit *	title_value_
QLabel *	title_information_
QLabel *	project_variables_label_
DiagramContextWidget *	project_variables_
QLabel *	usage_label_
QLabel *	usage_value_
QCheckBox *	usage_enabled_cb_
QPushButton *	usage_reset_pb_
Protected Attributes inherited from ProjectConfigPage
QETProject *	m_project
	Currently edited project.

Private Slots
void	resetUsageTracker ()
	ProjectMainConfigPage::resetUsageTracker Reset the accumulated "time spent on this project" counter to zero and refresh its displayed value. Applies immediately (not staged behind OK/Cancel like the other fields on this page), since it isn't destructive to any actual project content.

Private Member Functions
	ProjectMainConfigPage (const ProjectMainConfigPage &)

Detailed Description

This page enables users to configure the main properties of a project.

Constructor & Destructor Documentation

ProjectMainConfigPage() [1/2]

ProjectMainConfigPage::ProjectMainConfigPage	(	QETProject *	project,
		QWidget *	parent = nullptr )

Constructor

Parameters

project	Project this page is editing.
parent	Parent QWidget

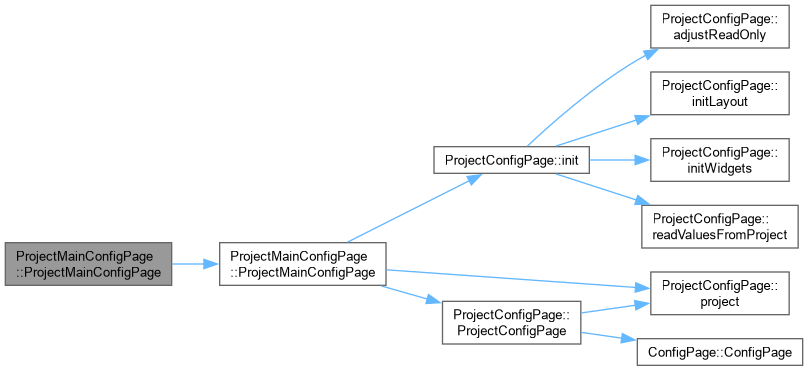

Here is the call graph for this function:

Here is the caller graph for this function:

~ProjectMainConfigPage()

ProjectMainConfigPage::~ProjectMainConfigPage ( )

override

Destructor

ProjectMainConfigPage() [2/2]

ProjectMainConfigPage::ProjectMainConfigPage ( const ProjectMainConfigPage & )

private

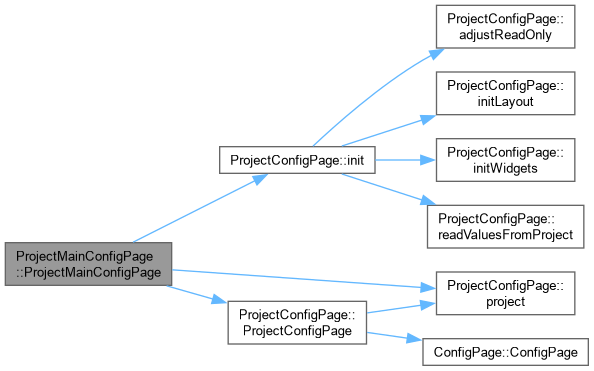

Here is the call graph for this function:

Member Function Documentation

adjustReadOnly()

void ProjectMainConfigPage::adjustReadOnly ( )

overrideprotectedvirtual

Set the content of this page read only if the project is read only, editable if the project is editable.

Implements ProjectConfigPage.

applyProjectConf()

void ProjectMainConfigPage::applyProjectConf ( )

overridevirtual

Apply the configuration after user input

Implements ProjectConfigPage.

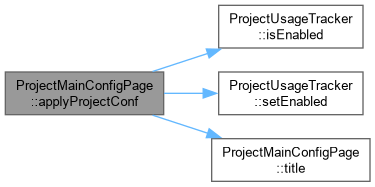

Here is the call graph for this function:

icon()

QIcon ProjectMainConfigPage::icon ( ) const

overridevirtual

Returns

the icon for this page

Implements ConfigPage.

initLayout()

void ProjectMainConfigPage::initLayout ( )

overrideprotectedvirtual

Initialize the layout of this page.

Implements ProjectConfigPage.

initWidgets()

void ProjectMainConfigPage::initWidgets ( )

overrideprotectedvirtual

Initialize widgets displayed by the page.

Implements ProjectConfigPage.

Here is the call graph for this function:

projectTitle()

QString ProjectMainConfigPage::projectTitle

(

)

const

Returns

the project title entered by the user

readValuesFromProject()

void ProjectMainConfigPage::readValuesFromProject ( )

overrideprotectedvirtual

Read properties from the edited project then fill widgets with them.

Implements ProjectConfigPage.

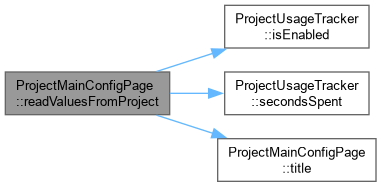

Here is the call graph for this function:

resetUsageTracker

void ProjectMainConfigPage::resetUsageTracker ( )

privateslot

ProjectMainConfigPage::resetUsageTracker Reset the accumulated "time spent on this project" counter to zero and refresh its displayed value. Applies immediately (not staged behind OK/Cancel like the other fields on this page), since it isn't destructive to any actual project content.

Here is the caller graph for this function:

title()

QString ProjectMainConfigPage::title ( ) const

overridevirtual

Returns

the title for this page

Implements ConfigPage.

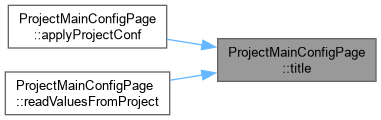

Here is the caller graph for this function:

Member Data Documentation

project_variables_

DiagramContextWidget* ProjectMainConfigPage::project_variables_

protected

project_variables_label_

QLabel* ProjectMainConfigPage::project_variables_label_

protected

title_information_

QLabel* ProjectMainConfigPage::title_information_

protected

title_label_

QLabel* ProjectMainConfigPage::title_label_

protected

title_value_

QLineEdit* ProjectMainConfigPage::title_value_

protected

usage_enabled_cb_

QCheckBox* ProjectMainConfigPage::usage_enabled_cb_

protected

usage_label_

QLabel* ProjectMainConfigPage::usage_label_

protected

usage_reset_pb_

QPushButton* ProjectMainConfigPage::usage_reset_pb_

protected

usage_value_

QLabel* ProjectMainConfigPage::usage_value_

protected

---

The documentation for this class was generated from the following files:

• sources/ui/configpage/projectconfigpages.h
• sources/ui/configpage/projectconfigpages.cpp
