ElementPropertiesEditorWidget Class Reference

The ElementPropertiesEditorWidget class This class provide a dialog for edit various property of element, like the type (master, slave, report etc....) and kind info. More...

#include <elementpropertieseditorwidget.h>

Inherits QDialog.

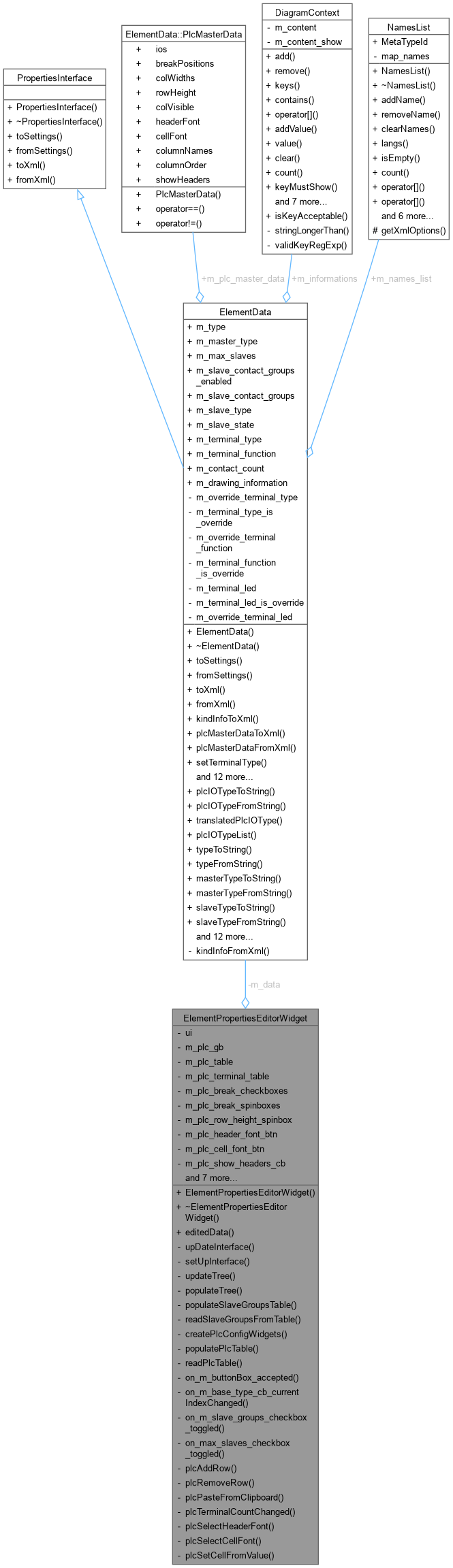

Collaboration diagram for ElementPropertiesEditorWidget:

Public Member Functions
	ElementPropertiesEditorWidget (ElementData data, QWidget *parent=nullptr)
	ElementPropertiesEditorWidget::ElementPropertiesEditorWidget.
	~ElementPropertiesEditorWidget () override
	ElementPropertiesEditorWidget::~ElementPropertiesEditorWidget Default destructor.
ElementData	editedData ()

Private Slots
void	on_m_buttonBox_accepted ()
	ElementPropertiesEditorWidget::on_m_buttonBox_accepted Action on button accepted : the new information is set.
void	on_m_base_type_cb_currentIndexChanged (int index)
	ElementPropertiesEditorWidget::on_m_base_type_cb_currentIndexChanged.
void	on_m_slave_groups_checkbox_toggled (bool checked)
	ElementPropertiesEditorWidget::on_m_slave_groups_checkbox_toggled When slave groups checkbox is toggled, enable/disable the table Also ensure max_slaves checkbox is checked when enabling groups.
void	on_max_slaves_checkbox_toggled (bool checked)
	ElementPropertiesEditorWidget::on_max_slaves_checkbox_toggled When max_slaves checkbox is unchecked, also uncheck slave groups checkbox.
void	plcAddRow ()
	ElementPropertiesEditorWidget::plcAddRow Add a new empty row to the PLC IO table.
void	plcRemoveRow ()
	ElementPropertiesEditorWidget::plcRemoveRow Remove selected rows from the PLC IO table.
void	plcPasteFromClipboard ()
	ElementPropertiesEditorWidget::plcPasteFromClipboard Paste IO data from clipboard (tab-separated, e.g. from Excel).
void	plcTerminalCountChanged (int row, int count)
	ElementPropertiesEditorWidget::plcTerminalCountChanged Enable/disable T1-T4 cells and grow columns based on terminal count spinner for a row.
void	plcSelectHeaderFont ()
	ElementPropertiesEditorWidget::plcSelectHeaderFont Open font dialog to select column header font.
void	plcSelectCellFont ()
	ElementPropertiesEditorWidget::plcSelectCellFont Open font dialog to select cell text font.
void	plcSetCellFromValue (int row, int col, const QString &val)
	ElementPropertiesEditorWidget::plcSetCellFromValue Set a single table cell value, respecting the column widget type.

Private Member Functions
void	upDateInterface ()
	ElementPropertiesEditorWidget::upDateInterface Update the interface with the current value.
void	setUpInterface ()
	ElementPropertiesEditorWidget::setUpInterface.
void	updateTree ()
void	populateTree ()
	ElementPropertiesEditorWidget::populateTree Create QTreeWidgetItem of the tree widget and populate it.
void	populateSlaveGroupsTable ()
	ElementPropertiesEditorWidget::populateSlaveGroupsTable Fill the slave contact groups table from m_data.
void	readSlaveGroupsFromTable ()
	ElementPropertiesEditorWidget::readSlaveGroupsFromTable Read the slave contact groups from the table back into m_data.
void	createPlcConfigWidgets ()
	ElementPropertiesEditorWidget::createPlcConfigWidgets Create the PLC configuration widgets programmatically and add them to m_master_gb.
void	populatePlcTable ()
	ElementPropertiesEditorWidget::populatePlcTable Fill the PLC table from m_data.
void	readPlcTable ()
	ElementPropertiesEditorWidget::readPlcTable Read the PLC data from the table back into m_data.

Private Attributes
Ui::ElementPropertiesEditorWidget *	ui
ElementData	m_data
QGroupBox *	m_plc_gb = nullptr
QTableWidget *	m_plc_table = nullptr
QTableWidget *	m_plc_terminal_table = nullptr
QCheckBox *	m_plc_break_checkboxes [4] = {nullptr, nullptr, nullptr, nullptr}
QSpinBox *	m_plc_break_spinboxes [4] = {nullptr, nullptr, nullptr, nullptr}
QSpinBox *	m_plc_row_height_spinbox = nullptr
QPushButton *	m_plc_header_font_btn = nullptr
QPushButton *	m_plc_cell_font_btn = nullptr
QCheckBox *	m_plc_show_headers_cb = nullptr
QFont	m_plc_header_font
QFont	m_plc_cell_font
QList< QCheckBox * >	m_plc_col_visibility_checkboxes
QList< QSpinBox * >	m_plc_col_width_spinboxes
QList< QLineEdit * >	m_plc_col_name_edits
QScrollBar *	m_plc_shared_scrollbar = nullptr
bool	m_plc_scroll_sync = false

Detailed Description

The ElementPropertiesEditorWidget class This class provide a dialog for edit various property of element, like the type (master, slave, report etc....) and kind info.

Constructor & Destructor Documentation

ElementPropertiesEditorWidget()

ElementPropertiesEditorWidget::ElementPropertiesEditorWidget ( ElementData data, QWidget * parent = nullptr )

explicit

ElementPropertiesEditorWidget::ElementPropertiesEditorWidget.

Parameters

data
parent

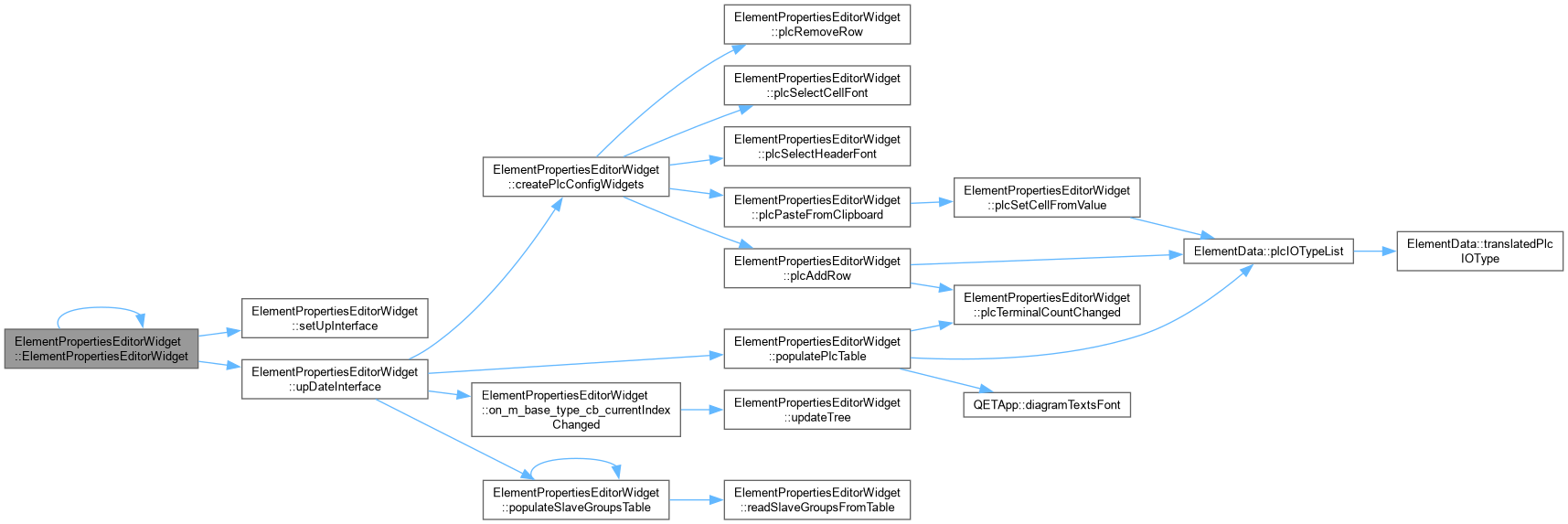

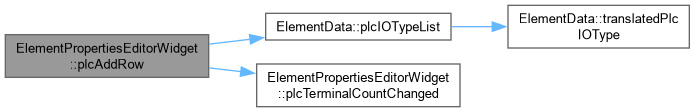

Here is the call graph for this function:

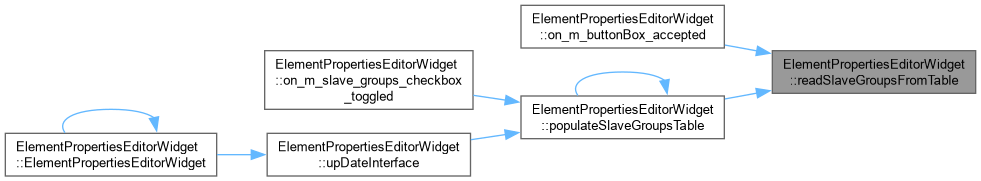

Here is the caller graph for this function:

~ElementPropertiesEditorWidget()

ElementPropertiesEditorWidget::~ElementPropertiesEditorWidget ( )

override

ElementPropertiesEditorWidget::~ElementPropertiesEditorWidget Default destructor.

Member Function Documentation

createPlcConfigWidgets()

void ElementPropertiesEditorWidget::createPlcConfigWidgets ( )

private

ElementPropertiesEditorWidget::createPlcConfigWidgets Create the PLC configuration widgets programmatically and add them to m_master_gb.

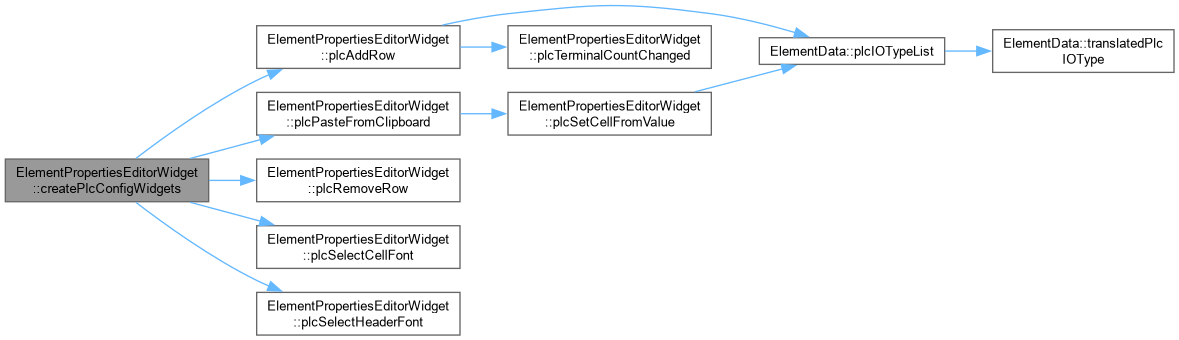

Here is the call graph for this function:

Here is the caller graph for this function:

editedData()

ElementData ElementPropertiesEditorWidget::editedData ( )

inline

Here is the caller graph for this function:

on_m_base_type_cb_currentIndexChanged

void ElementPropertiesEditorWidget::on_m_base_type_cb_currentIndexChanged ( int index )

privateslot

ElementPropertiesEditorWidget::on_m_base_type_cb_currentIndexChanged.

Parameters

index

: Action when combo-box base type index change

Here is the call graph for this function:

Here is the caller graph for this function:

on_m_buttonBox_accepted

void ElementPropertiesEditorWidget::on_m_buttonBox_accepted ( )

privateslot

ElementPropertiesEditorWidget::on_m_buttonBox_accepted Action on button accepted : the new information is set.

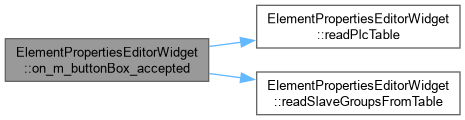

Here is the call graph for this function:

on_m_slave_groups_checkbox_toggled

void ElementPropertiesEditorWidget::on_m_slave_groups_checkbox_toggled ( bool checked )

privateslot

ElementPropertiesEditorWidget::on_m_slave_groups_checkbox_toggled When slave groups checkbox is toggled, enable/disable the table Also ensure max_slaves checkbox is checked when enabling groups.

Here is the call graph for this function:

on_max_slaves_checkbox_toggled

void ElementPropertiesEditorWidget::on_max_slaves_checkbox_toggled ( bool checked )

privateslot

ElementPropertiesEditorWidget::on_max_slaves_checkbox_toggled When max_slaves checkbox is unchecked, also uncheck slave groups checkbox.

plcAddRow

void ElementPropertiesEditorWidget::plcAddRow ( )

privateslot

ElementPropertiesEditorWidget::plcAddRow Add a new empty row to the PLC IO table.

Here is the call graph for this function:

Here is the caller graph for this function:

plcPasteFromClipboard

void ElementPropertiesEditorWidget::plcPasteFromClipboard ( )

privateslot

ElementPropertiesEditorWidget::plcPasteFromClipboard Paste IO data from clipboard (tab-separated, e.g. from Excel).

Here is the call graph for this function:

Here is the caller graph for this function:

plcRemoveRow

void ElementPropertiesEditorWidget::plcRemoveRow ( )

privateslot

ElementPropertiesEditorWidget::plcRemoveRow Remove selected rows from the PLC IO table.

Here is the caller graph for this function:

plcSelectCellFont

void ElementPropertiesEditorWidget::plcSelectCellFont ( )

privateslot

ElementPropertiesEditorWidget::plcSelectCellFont Open font dialog to select cell text font.

Here is the caller graph for this function:

plcSelectHeaderFont

void ElementPropertiesEditorWidget::plcSelectHeaderFont ( )

privateslot

ElementPropertiesEditorWidget::plcSelectHeaderFont Open font dialog to select column header font.

Here is the caller graph for this function:

plcSetCellFromValue

void ElementPropertiesEditorWidget::plcSetCellFromValue ( int row, int col, const QString & val )

privateslot

ElementPropertiesEditorWidget::plcSetCellFromValue Set a single table cell value, respecting the column widget type.

Here is the call graph for this function:

Here is the caller graph for this function:

plcTerminalCountChanged

void ElementPropertiesEditorWidget::plcTerminalCountChanged ( int row, int count )

privateslot

ElementPropertiesEditorWidget::plcTerminalCountChanged Enable/disable T1-T4 cells and grow columns based on terminal count spinner for a row.

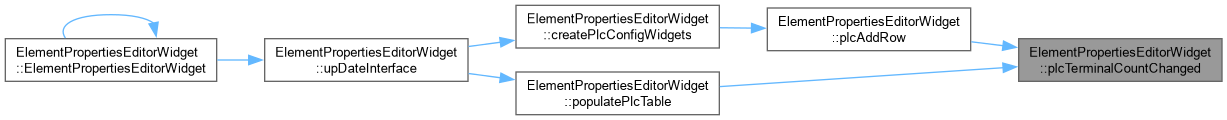

Here is the caller graph for this function:

populatePlcTable()

void ElementPropertiesEditorWidget::populatePlcTable ( )

private

ElementPropertiesEditorWidget::populatePlcTable Fill the PLC table from m_data.

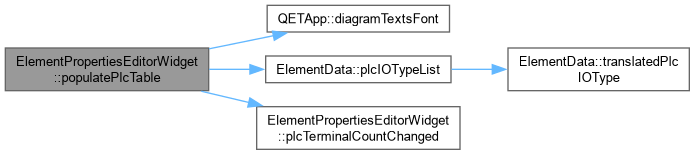

Here is the call graph for this function:

Here is the caller graph for this function:

populateSlaveGroupsTable()

void ElementPropertiesEditorWidget::populateSlaveGroupsTable ( )

private

ElementPropertiesEditorWidget::populateSlaveGroupsTable Fill the slave contact groups table from m_data.

Here is the call graph for this function:

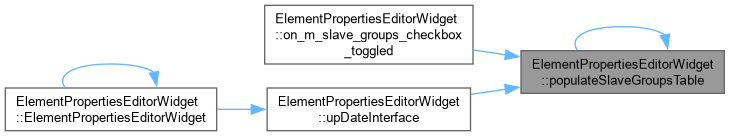

Here is the caller graph for this function:

populateTree()

void ElementPropertiesEditorWidget::populateTree ( )

private

ElementPropertiesEditorWidget::populateTree Create QTreeWidgetItem of the tree widget and populate it.

Here is the call graph for this function:

readPlcTable()

void ElementPropertiesEditorWidget::readPlcTable ( )

private

ElementPropertiesEditorWidget::readPlcTable Read the PLC data from the table back into m_data.

Here is the caller graph for this function:

readSlaveGroupsFromTable()

void ElementPropertiesEditorWidget::readSlaveGroupsFromTable ( )

private

ElementPropertiesEditorWidget::readSlaveGroupsFromTable Read the slave contact groups from the table back into m_data.

Here is the caller graph for this function:

setUpInterface()

void ElementPropertiesEditorWidget::setUpInterface ( )

private

ElementPropertiesEditorWidget::setUpInterface.

Here is the caller graph for this function:

upDateInterface()

void ElementPropertiesEditorWidget::upDateInterface ( )

private

ElementPropertiesEditorWidget::upDateInterface Update the interface with the current value.

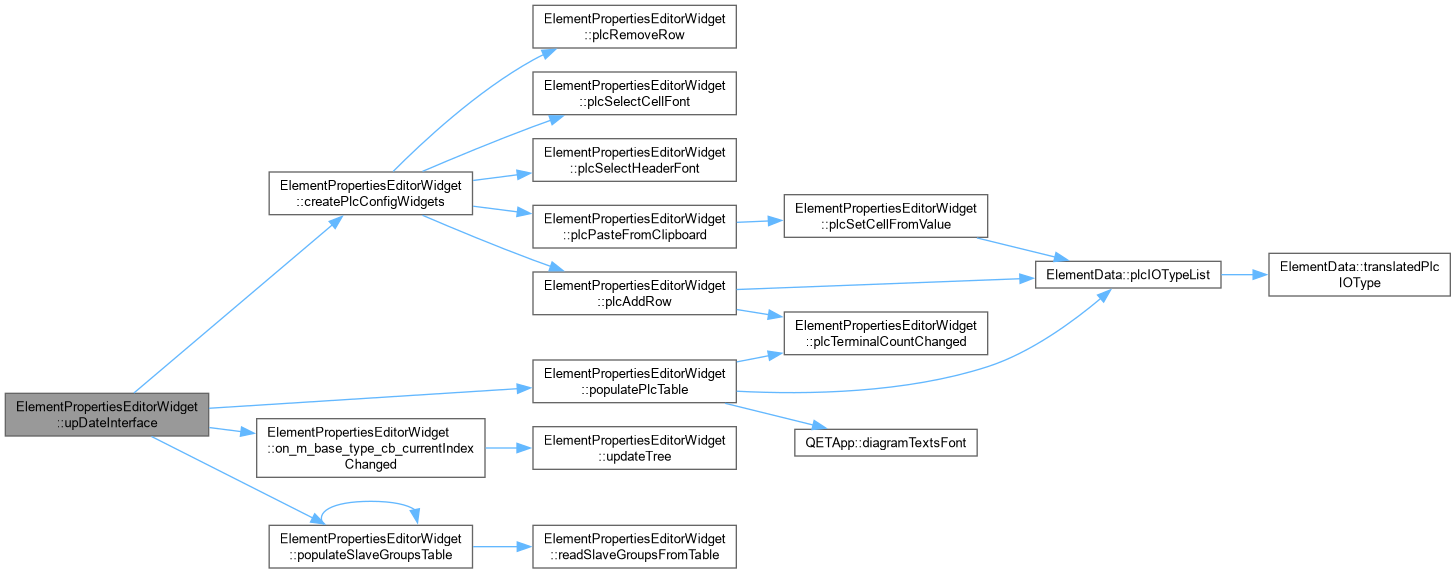

Here is the call graph for this function:

Here is the caller graph for this function:

updateTree()

void ElementPropertiesEditorWidget::updateTree ( )

private

Here is the caller graph for this function:

Member Data Documentation

m_data

ElementData ElementPropertiesEditorWidget::m_data

private

m_plc_break_checkboxes

QCheckBox* ElementPropertiesEditorWidget::m_plc_break_checkboxes[4] = {nullptr, nullptr, nullptr, nullptr}

private

m_plc_break_spinboxes

QSpinBox* ElementPropertiesEditorWidget::m_plc_break_spinboxes[4] = {nullptr, nullptr, nullptr, nullptr}

private

m_plc_cell_font

QFont ElementPropertiesEditorWidget::m_plc_cell_font

private

m_plc_cell_font_btn

QPushButton* ElementPropertiesEditorWidget::m_plc_cell_font_btn = nullptr

private

m_plc_col_name_edits

QList<QLineEdit *> ElementPropertiesEditorWidget::m_plc_col_name_edits

private

m_plc_col_visibility_checkboxes

QList<QCheckBox *> ElementPropertiesEditorWidget::m_plc_col_visibility_checkboxes

private

m_plc_col_width_spinboxes

QList<QSpinBox *> ElementPropertiesEditorWidget::m_plc_col_width_spinboxes

private

m_plc_gb

QGroupBox* ElementPropertiesEditorWidget::m_plc_gb = nullptr

private

m_plc_header_font

QFont ElementPropertiesEditorWidget::m_plc_header_font

private

m_plc_header_font_btn

QPushButton* ElementPropertiesEditorWidget::m_plc_header_font_btn = nullptr

private

m_plc_row_height_spinbox

QSpinBox* ElementPropertiesEditorWidget::m_plc_row_height_spinbox = nullptr

private

m_plc_scroll_sync

bool ElementPropertiesEditorWidget::m_plc_scroll_sync = false

private

m_plc_shared_scrollbar

QScrollBar* ElementPropertiesEditorWidget::m_plc_shared_scrollbar = nullptr

private

m_plc_show_headers_cb

QCheckBox* ElementPropertiesEditorWidget::m_plc_show_headers_cb = nullptr

private

m_plc_table

QTableWidget* ElementPropertiesEditorWidget::m_plc_table = nullptr

private

m_plc_terminal_table

QTableWidget* ElementPropertiesEditorWidget::m_plc_terminal_table = nullptr

private

ui

Ui::ElementPropertiesEditorWidget* ElementPropertiesEditorWidget::ui

private

---

The documentation for this class was generated from the following files:

• sources/editor/ui/elementpropertieseditorwidget.h
• sources/editor/ui/elementpropertieseditorwidget.cpp
