PhysicalTerminal Class Reference

The PhysicalTerminal class Represent a physical terminal. A physical terminal is composed a least by one RealTerminal. When a physical terminal have more than one real terminal that mean the physical terminal have levels (one by real terminal). The index of real terminals returned by the function terminals() is the same as the real level of the real terminal, the index are from back to front. More...

#include <physicalterminal.h>

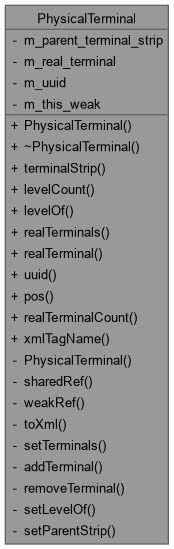

Collaboration diagram for PhysicalTerminal:

Public Member Functions
	PhysicalTerminal ()
	~PhysicalTerminal ()
TerminalStrip *	terminalStrip () const
	PhysicalTerminal::terminalStrip.
int	levelCount () const
	levelCount
int	levelOf (const QSharedPointer< RealTerminal > &terminal) const
	levelOf
QVector< QSharedPointer< RealTerminal > >	realTerminals () const
	terminals
QSharedPointer< RealTerminal >	realTerminal (int pos) const
	PhysicalTerminal::realTerminal.
QUuid	uuid () const
	uuid
int	pos () const
int	realTerminalCount () const

Static Public Member Functions
static QString	xmlTagName ()

Private Member Functions
	PhysicalTerminal (TerminalStrip *parent_strip, QVector< QSharedPointer< RealTerminal > > terminals)
	PhysicalTerminal.
QSharedPointer< PhysicalTerminal >	sharedRef ()
	PhysicalTerminal::sharedRef.
QWeakPointer< PhysicalTerminal >	weakRef ()
	PhysicalTerminal::weakRef.
QDomElement	toXml (QDomDocument &parent_document) const
	toXml
void	setTerminals (const QVector< QSharedPointer< RealTerminal > > &terminals)
	setTerminals Set the RealTerminal who compose this physical terminal. The position of the RealTerminal in terminals represent the level of these in this physical terminal.
void	addTerminal (const QSharedPointer< RealTerminal > &terminal)
	addTerminals Append the real terminal terminal to this physical terminal.
bool	removeTerminal (const QSharedPointer< RealTerminal > &terminal)
	removeTerminal Remove terminal from the list of real terminal
bool	setLevelOf (const QSharedPointer< RealTerminal > &terminal, int level)
	setLevelOf Change the level of terminal
void	setParentStrip (TerminalStrip *strip)

Private Attributes
QPointer< TerminalStrip >	m_parent_terminal_strip
QVector< QSharedPointer< RealTerminal > >	m_real_terminal
QUuid	m_uuid = QUuid::createUuid()
QWeakPointer< PhysicalTerminal >	m_this_weak

Friends
class	TerminalStrip
class	RealTerminal

Detailed Description

The PhysicalTerminal class Represent a physical terminal. A physical terminal is composed a least by one RealTerminal. When a physical terminal have more than one real terminal that mean the physical terminal have levels (one by real terminal). The index of real terminals returned by the function terminals() is the same as the real level of the real terminal, the index are from back to front.

Example for a 3 levels terminal. index 0 = back (mounting plate) index 1 = middle index 2 = front (electrical cabinet door)

 m
 o    _
 u   | |
 n   | | _
 t   | || |
 i   | || | _
 n   | || || |   d
 g   |0||1||2|   o
     | || ||_|   o
 p   | || |      r
 l   | ||_|
 a   | |
 t   |_|
 e

Constructor & Destructor Documentation

PhysicalTerminal() [1/2]

PhysicalTerminal::PhysicalTerminal ( TerminalStrip * parent_strip, QVector< QSharedPointer< RealTerminal > > terminals )

private

PhysicalTerminal.

Parameters

parent_strip	: Parent terminal strip
terminals	: A vector of real terminals who compose this physical terminal. terminals must have at least one terminal

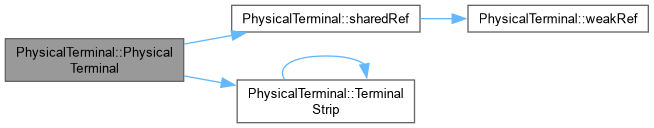

Here is the call graph for this function:

PhysicalTerminal() [2/2]

PhysicalTerminal::PhysicalTerminal ( )

inline

~PhysicalTerminal()

PhysicalTerminal::~PhysicalTerminal

(

)

Member Function Documentation

addTerminal()

void PhysicalTerminal::addTerminal ( const QSharedPointer< RealTerminal > & terminal )

private

addTerminals Append the real terminal terminal to this physical terminal.

Parameters

terminal

Here is the call graph for this function:

levelCount()

int PhysicalTerminal::levelCount

(

)

const

levelCount

Returns

the number of level of this terminal

levelOf()

int PhysicalTerminal::levelOf

(

const QSharedPointer< RealTerminal > &

terminal

)

const

levelOf

Parameters

terminal

Returns

the level of real terminal terminal or -1 if \terminal is not a part of this physicalTerminal

pos()

int PhysicalTerminal::pos

(

)

const

Here is the caller graph for this function:

realTerminal()

QSharedPointer< RealTerminal > PhysicalTerminal::realTerminal

(

int

pos

)

const

PhysicalTerminal::realTerminal.

Parameters

pos

Returns

the real terminal at position pos. Note that the returned QSharedPointer can be null

Here is the call graph for this function:

realTerminalCount()

int PhysicalTerminal::realTerminalCount

(

)

const

realTerminals()

QVector< QSharedPointer< RealTerminal > > PhysicalTerminal::realTerminals

(

)

const

terminals

Returns

A vector of RealTerminal who compose this PhysicalTerminal

removeTerminal()

bool PhysicalTerminal::removeTerminal ( const QSharedPointer< RealTerminal > & terminal )

private

removeTerminal Remove terminal from the list of real terminal

Parameters

terminal

Returns

true if successfully removed

setLevelOf()

bool PhysicalTerminal::setLevelOf ( const QSharedPointer< RealTerminal > & terminal, int level )

private

setLevelOf Change the level of terminal

Parameters

terminal
level

setParentStrip()

void PhysicalTerminal::setParentStrip ( TerminalStrip * strip )

private

Here is the call graph for this function:

setTerminals()

void PhysicalTerminal::setTerminals ( const QVector< QSharedPointer< RealTerminal > > & terminals )

private

setTerminals Set the RealTerminal who compose this physical terminal. The position of the RealTerminal in terminals represent the level of these in this physical terminal.

Parameters

terminals

Here is the call graph for this function:

sharedRef()

QSharedPointer< PhysicalTerminal > PhysicalTerminal::sharedRef ( )

private

PhysicalTerminal::sharedRef.

Returns

a QSharedPointer of this

Here is the call graph for this function:

Here is the caller graph for this function:

terminalStrip()

TerminalStrip * PhysicalTerminal::terminalStrip

(

)

const

PhysicalTerminal::terminalStrip.

Returns

The parent terminal strip ornullptr

Here is the call graph for this function:

toXml()

QDomElement PhysicalTerminal::toXml ( QDomDocument & parent_document ) const

private

toXml

Parameters

parent_document

Returns

this physical terminal to xml

Here is the call graph for this function:

uuid()

QUuid PhysicalTerminal::uuid

(

)

const

uuid

Returns

the uuid of this physical terminal

weakRef()

QWeakPointer< PhysicalTerminal > PhysicalTerminal::weakRef ( )

private

PhysicalTerminal::weakRef.

Returns

a QWeakPointer of this, weak pointer can be null

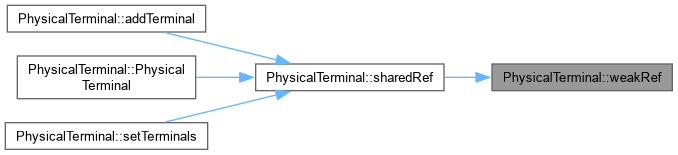

Here is the caller graph for this function:

xmlTagName()

QString PhysicalTerminal::xmlTagName ( )

static

Here is the caller graph for this function:

Friends And Related Symbol Documentation

RealTerminal

friend class RealTerminal

friend

TerminalStrip

friend class TerminalStrip

friend

Member Data Documentation

m_parent_terminal_strip

QPointer<TerminalStrip> PhysicalTerminal::m_parent_terminal_strip

private

m_real_terminal

QVector<QSharedPointer<RealTerminal> > PhysicalTerminal::m_real_terminal

private

m_this_weak

QWeakPointer<PhysicalTerminal> PhysicalTerminal::m_this_weak

private

m_uuid

QUuid PhysicalTerminal::m_uuid = QUuid::createUuid()

private

---

The documentation for this class was generated from the following files:

• sources/TerminalStrip/physicalterminal.h
• sources/TerminalStrip/physicalterminal.cpp
