CropAreaWidget Class Reference

The CropAreaWidget class Displays the image scaled to fit a reasonable dialog size, with a draggable, resizable crop rectangle overlaid on top – the area outside it dimmed, the usual visual convention for "this part goes away" during a crop, so it's never ambiguous which region survives. All internal geometry (the crop rect, drag handling, hit-testing) works in display-space pixel coordinates; only cropRect() converts back to the original, full-resolution image's own coordinates for the caller, the same original-vs-display distinction already used for colour sampling in ImageTransparentColorDialog. More...

#include <imagecropdialog.h>

Inherits QWidget.

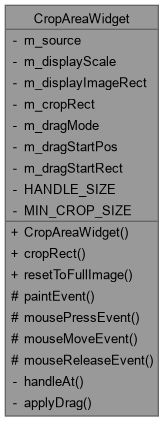

Collaboration diagram for CropAreaWidget:

Public Slots
void	resetToFullImage ()
	CropAreaWidget::resetToFullImage.

Signals
void	cropRectChanged ()

Public Member Functions
	CropAreaWidget (const QImage &sourceImage, const QRect &initialCropRect=QRect(), QWidget *parent=nullptr)
	CropAreaWidget::CropAreaWidget.
QRect	cropRect () const
	CropAreaWidget::cropRect.

Protected Member Functions
void	paintEvent (QPaintEvent *event) override
	CropAreaWidget::paintEvent Draws the image, dims everything outside the crop rect (four strips around it, rather than one overlay with a hole cut out of it, since that would need a more involved clip/composition setup for no real benefit here), then the rect's own dashed border and its eight handles.
void	mousePressEvent (QMouseEvent *event) override
void	mouseMoveEvent (QMouseEvent *event) override
void	mouseReleaseEvent (QMouseEvent *event) override

Private Types
enum class	DragMode {   None , Move , ResizeN , ResizeS ,   ResizeE , ResizeW , ResizeNE , ResizeNW ,   ResizeSE , ResizeSW }

Private Member Functions
DragMode	handleAt (const QPoint &pos) const
	CropAreaWidget::handleAt.
void	applyDrag (const QPoint &pos)
	CropAreaWidget::applyDrag Recomputes m_cropRect from m_dragStartRect plus however far pos has moved from m_dragStartPos, according to m_dragMode – always clamped to stay within the displayed image and never smaller than MIN_CROP_SIZE, so the rect can never escape its bounds or collapse to nothing while being dragged.

Private Attributes
QImage	m_source
qreal	m_displayScale = 1.0
QRect	m_displayImageRect
QRect	m_cropRect
DragMode	m_dragMode = DragMode::None
QPoint	m_dragStartPos
QRect	m_dragStartRect

Static Private Attributes
static constexpr int	HANDLE_SIZE = 8
static constexpr int	MIN_CROP_SIZE = 16

Detailed Description

The CropAreaWidget class Displays the image scaled to fit a reasonable dialog size, with a draggable, resizable crop rectangle overlaid on top – the area outside it dimmed, the usual visual convention for "this part goes away" during a crop, so it's never ambiguous which region survives. All internal geometry (the crop rect, drag handling, hit-testing) works in display-space pixel coordinates; only cropRect() converts back to the original, full-resolution image's own coordinates for the caller, the same original-vs-display distinction already used for colour sampling in ImageTransparentColorDialog.

Member Enumeration Documentation

DragMode

enum class CropAreaWidget::DragMode

strongprivate

Enumerator
None
Move
ResizeN
ResizeS
ResizeE
ResizeW
ResizeNE
ResizeNW
ResizeSE
ResizeSW

Constructor & Destructor Documentation

CropAreaWidget()

CropAreaWidget::CropAreaWidget ( const QImage & sourceImage, const QRect & initialCropRect = QRect(), QWidget * parent = nullptr )

explicit

CropAreaWidget::CropAreaWidget.

Parameters

sourceImage	the full, uncropped image to crop from
initialCropRect	a previously-chosen crop rectangle, in sourceImage's own coordinates, to start from – an empty (default-constructed) QRect means "no previous crop", i.e. start covering the whole image.
sourceImage	the full-resolution image to crop
initialCropRect	a previously-chosen crop rect (in sourceImage's own coordinates), or an empty QRect to start covering the whole image
parent

Member Function Documentation

applyDrag()

void CropAreaWidget::applyDrag ( const QPoint & pos )

private

CropAreaWidget::applyDrag Recomputes m_cropRect from m_dragStartRect plus however far pos has moved from m_dragStartPos, according to m_dragMode – always clamped to stay within the displayed image and never smaller than MIN_CROP_SIZE, so the rect can never escape its bounds or collapse to nothing while being dragged.

Parameters

pos	current widget-space mouse position

Here is the caller graph for this function:

cropRect()

QRect CropAreaWidget::cropRect

(

)

const

CropAreaWidget::cropRect.

The current crop rectangle, in the original image's own coordinates (not display-space) – always clamped to the image's own bounds and never degenerate (zero width/height).

Returns

the crop rectangle in the original, full-resolution image's own coordinates – m_cropRect itself is display-space only.

cropRectChanged

void CropAreaWidget::cropRectChanged ( )

signal

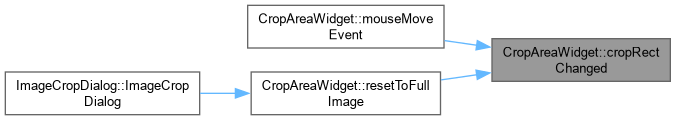

Here is the caller graph for this function:

handleAt()

CropAreaWidget::DragMode CropAreaWidget::handleAt ( const QPoint & pos ) const

private

CropAreaWidget::handleAt.

Parameters

pos	widget-space position to test

Returns

whichever handle (or the rect's own interior, for moving) pos is close enough to, or DragMode::None if it's not near anything

Here is the caller graph for this function:

mouseMoveEvent()

void CropAreaWidget::mouseMoveEvent ( QMouseEvent * event )

overrideprotected

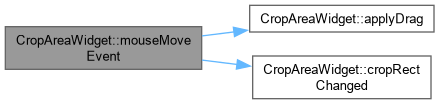

Here is the call graph for this function:

mousePressEvent()

void CropAreaWidget::mousePressEvent ( QMouseEvent * event )

overrideprotected

Here is the call graph for this function:

mouseReleaseEvent()

void CropAreaWidget::mouseReleaseEvent ( QMouseEvent * event )

overrideprotected

paintEvent()

void CropAreaWidget::paintEvent ( QPaintEvent * event )

overrideprotected

CropAreaWidget::paintEvent Draws the image, dims everything outside the crop rect (four strips around it, rather than one overlay with a hole cut out of it, since that would need a more involved clip/composition setup for no real benefit here), then the rect's own dashed border and its eight handles.

resetToFullImage

void CropAreaWidget::resetToFullImage ( )

slot

CropAreaWidget::resetToFullImage.

Resets the crop rectangle back to covering the entire image – the direct answer to "I want to undo the crop, not just adjust it", since dragging every handle back out by hand to exactly the original extent is needlessly fiddly.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

HANDLE_SIZE

int CropAreaWidget::HANDLE_SIZE = 8

staticconstexprprivate

m_cropRect

QRect CropAreaWidget::m_cropRect

private

m_displayImageRect

QRect CropAreaWidget::m_displayImageRect

private

m_displayScale

qreal CropAreaWidget::m_displayScale = 1.0

private

m_dragMode

DragMode CropAreaWidget::m_dragMode = DragMode::None

private

m_dragStartPos

QPoint CropAreaWidget::m_dragStartPos

private

m_dragStartRect

QRect CropAreaWidget::m_dragStartRect

private

m_source

QImage CropAreaWidget::m_source

private

MIN_CROP_SIZE

int CropAreaWidget::MIN_CROP_SIZE = 16

staticconstexprprivate

---

The documentation for this class was generated from the following files:

• sources/ui/imagecropdialog.h
• sources/ui/imagecropdialog.cpp
