The ContactUsage struct How many slave contacts a master element currently uses, broken down by contact type. More...

#include <contactusage.h>

Collaboration diagram for ContactUsage:

Public Types
enum	Type { NO , NC , SW , Other }

Public Member Functions
int	total () const
void	addSlave (Type type, int contacts)

Public Attributes
int	no = 0
	Normally open.
int	nc = 0
	Normally closed.
int	sw = 0
	Changeover.
int	other = 0
	Neither of the above.

Detailed Description

The ContactUsage struct How many slave contacts a master element currently uses, broken down by contact type.

Header-only and free of any graphics dependency so that the counting rules can be unit tested on their own. MasterElement::contactUsage() is the thin wrapper that feeds it the linked elements.

This counts contacts, which is what tells you how many contacts an auxiliary block must provide. It is deliberately not the count that MasterElement::isFull() uses: a master's max_slaves is a number of slots, and a slave fills exactly one slot however many contacts it carries.

Two rules are easy to get wrong, and both live here so that every caller gets them right:

a slave stands for as many contacts as its "number" kind information says, so a 4 pole contact counts as 4, not as 1
a changeover contact is counted once, as sw. CrossRefItem's NOElements() and NCElements() both return it, so adding those two lists together would count it twice.

Member Enumeration Documentation

◆ Type

enum ContactUsage::Type

Contact types a slave can declare. Mirrors ElementData::SlaveState, which is not used directly so that this header stays free of the element data dependencies and can be unit tested on its own. MasterElement::contactUsage() maps between the two.

Enumerator
NO	Normally open.
NC	Normally closed.
SW	Changeover.
Other	Neither of the above.

Member Function Documentation

◆ addSlave()

void ContactUsage::addSlave	(	Type	type,
		int	contacts )

inline

Add one slave element to the tally.

Parameters

type	the contact type the slave declares
contacts	how many contacts it stands for. Values below 1 are treated as 1: an element which declares no contact count is still one contact.

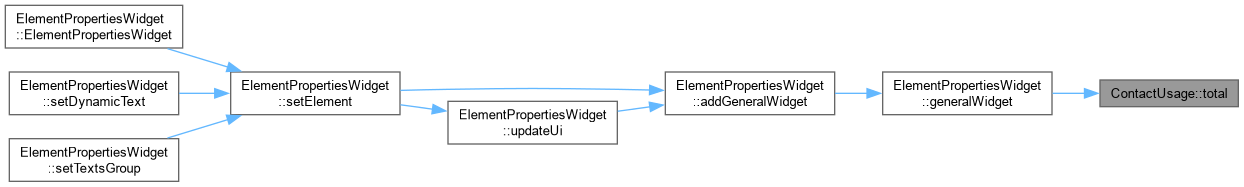

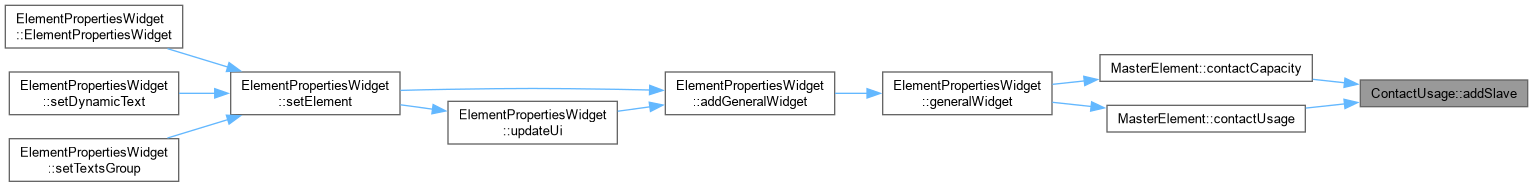

Here is the caller graph for this function:
