PdfLinks Namespace Reference

Classes
struct	PageGeometry
struct	ComponentInfo

Functions
void	injectCrossRefLinks (QPdfEngine *engine, Diagram *diagram, const PageGeometry &geom, const QMap< Diagram *, int > &pageMap, const QString &outputFileName)
void	convertUriToGoTo (const QString &pdfPath)
void	convertComponentInfoAnnotations (const QString &pdfPath, const QList< ComponentInfo > &annotations)

Detailed Description

Shared helper that turns a project's cross-references and folio reports into clickable internal hyperlinks in a Qt-generated PDF. Used by both the GUI print path (ProjectPrintWindow) and the headless CLI export, each of which builds its own page geometry and passes it in — this code never computes the scene-to-page mapping itself.

Function Documentation

convertComponentInfoAnnotations()

void PdfLinks::convertComponentInfoAnnotations	(	const QString &	pdfPath,
		const QList< ComponentInfo > &	annotations )

Post-process a Qt-generated PDF file: convert component-info placeholder link annotations (http://componentinfo.local/<N>) into invisible text annotations with the actual component info as /Contents.

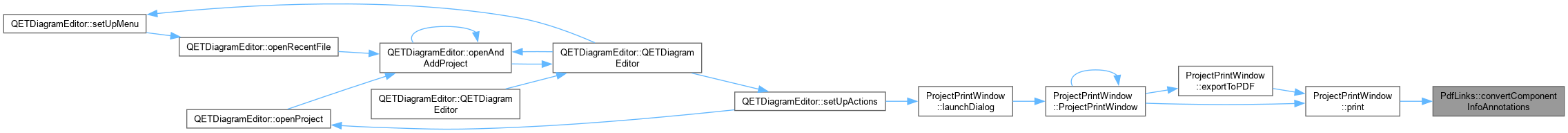

Here is the caller graph for this function:

convertUriToGoTo()

void PdfLinks::convertUriToGoTo

(

const QString &

pdfPath

)

Post-process a Qt-generated PDF file: rewrite every "/S /URI" link annotation into a native internal "/S /GoTo" action (page + /FitR or /Fit destination) and rebuild the xref table. No-op if the file has no such annotations.

Here is the caller graph for this function:

injectCrossRefLinks()

void PdfLinks::injectCrossRefLinks	(	QPdfEngine *	engine,
		Diagram *	diagram,
		const PageGeometry &	geom,
		const QMap< Diagram *, int > &	pageMap,
		const QString &	outputFileName )

Inject clickable cross-reference / folio-report hyperlinks for diagram into the current page of engine. Each link is emitted as a URI annotation encoding the target page and a /FitR rectangle; convertUriToGoTo() then rewrites those into native internal GoTo actions.

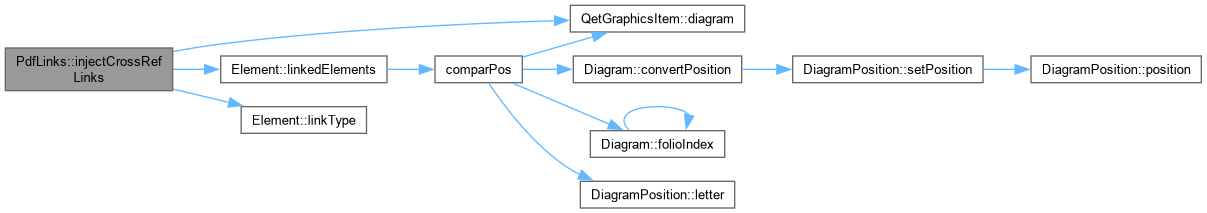

Here is the call graph for this function:

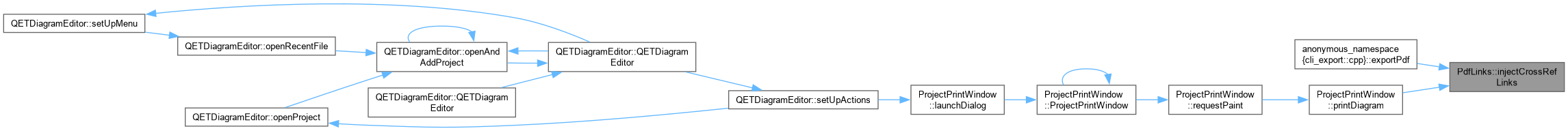

Here is the caller graph for this function:
