LastUsedStyle Class Reference

The LastUsedStyle class Session-scoped "last used" style for new shapes and free text created on the diagram canvas: whatever pen/brush/font was last applied through the properties editors becomes the starting point for the next new item of that type, the way most drawing tools behave. More...

#include <lastusedstyle.h>

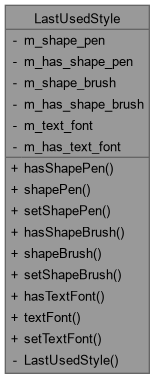

Collaboration diagram for LastUsedStyle:

Static Public Member Functions
static bool	hasShapePen ()
static QPen	shapePen ()
static void	setShapePen (const QPen &pen)
	LastUsedStyle::setShapePen Record pen as the last-used shape pen for this session.
static bool	hasShapeBrush ()
static QBrush	shapeBrush ()
static void	setShapeBrush (const QBrush &brush)
	LastUsedStyle::setShapeBrush Record brush as the last-used shape brush for this session.
static bool	hasTextFont ()
static QFont	textFont ()
static void	setTextFont (const QFont &font)
	LastUsedStyle::setTextFont Record font as the last-used free text font for this session.

Private Member Functions
	LastUsedStyle ()=delete

Static Private Attributes
static QPen	m_shape_pen
static bool	m_has_shape_pen = false
static QBrush	m_shape_brush
static bool	m_has_shape_brush = false
static QFont	m_text_font
static bool	m_has_text_font = false

Detailed Description

The LastUsedStyle class Session-scoped "last used" style for new shapes and free text created on the diagram canvas: whatever pen/brush/font was last applied through the properties editors becomes the starting point for the next new item of that type, the way most drawing tools behave.

Deliberately in-memory only, not QSettings-backed: this is a live "what did I just use" value for the current editing session, not an app-wide default (that's already covered by the Preferences dialog's font setting, read as the fallback when nothing has been set yet).

Constructor & Destructor Documentation

LastUsedStyle()

LastUsedStyle::LastUsedStyle ( )

privatedelete

Member Function Documentation

hasShapeBrush()

bool LastUsedStyle::hasShapeBrush ( )

static

Returns

true if a shape brush was set this session

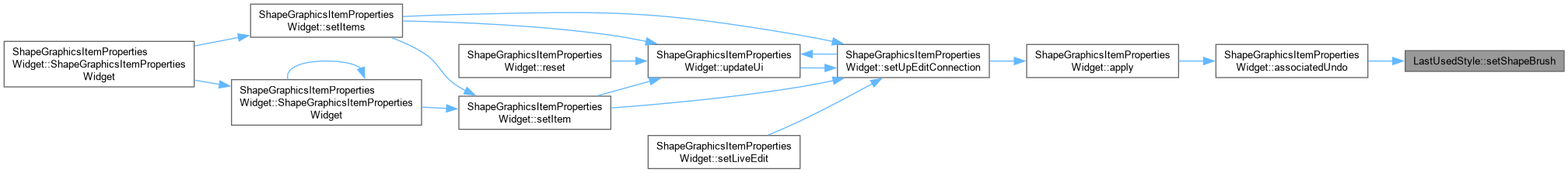

Here is the caller graph for this function:

hasShapePen()

bool LastUsedStyle::hasShapePen ( )

static

Returns

true if a shape pen was set this session

Here is the caller graph for this function:

hasTextFont()

bool LastUsedStyle::hasTextFont ( )

static

Returns

true if a text font was set this session

Here is the caller graph for this function:

setShapeBrush()

void LastUsedStyle::setShapeBrush ( const QBrush & brush )

static

LastUsedStyle::setShapeBrush Record brush as the last-used shape brush for this session.

Parameters

brush

Here is the caller graph for this function:

setShapePen()

void LastUsedStyle::setShapePen ( const QPen & pen )

static

LastUsedStyle::setShapePen Record pen as the last-used shape pen for this session.

Parameters

pen

Here is the caller graph for this function:

setTextFont()

void LastUsedStyle::setTextFont ( const QFont & font )

static

LastUsedStyle::setTextFont Record font as the last-used free text font for this session.

Parameters

font

Here is the caller graph for this function:

shapeBrush()

QBrush LastUsedStyle::shapeBrush ( )

static

Returns

the last brush applied to a shape this session

Here is the caller graph for this function:

shapePen()

QPen LastUsedStyle::shapePen ( )

static

Returns

the last pen applied to a shape this session

Here is the caller graph for this function:

textFont()

QFont LastUsedStyle::textFont ( )

static

Returns

the last font applied to a free text item this session

Here is the caller graph for this function:

Member Data Documentation

m_has_shape_brush

bool LastUsedStyle::m_has_shape_brush = false

staticprivate

m_has_shape_pen

bool LastUsedStyle::m_has_shape_pen = false

staticprivate

m_has_text_font

bool LastUsedStyle::m_has_text_font = false

staticprivate

m_shape_brush

QBrush LastUsedStyle::m_shape_brush

staticprivate

m_shape_pen

QPen LastUsedStyle::m_shape_pen

staticprivate

m_text_font

QFont LastUsedStyle::m_text_font

staticprivate

---

The documentation for this class was generated from the following files:

• sources/lastusedstyle.h
• sources/lastusedstyle.cpp
