DVEventInterface Class Reference

The DVEventInterface class This class is the main interface for manage event of a Diagram View. This does nothing, to create new event behavior, we must create new class from this. Each method returns a bool: True if the method does something, else return false. Each method of DVEventInterface returns false; isRunning() returns true if action is started but not finished. By default: return false. isFinish() returns true when the action is finished, or not started. By default: return true. More...

#include <dveventinterface.h>

Inherits QObject.

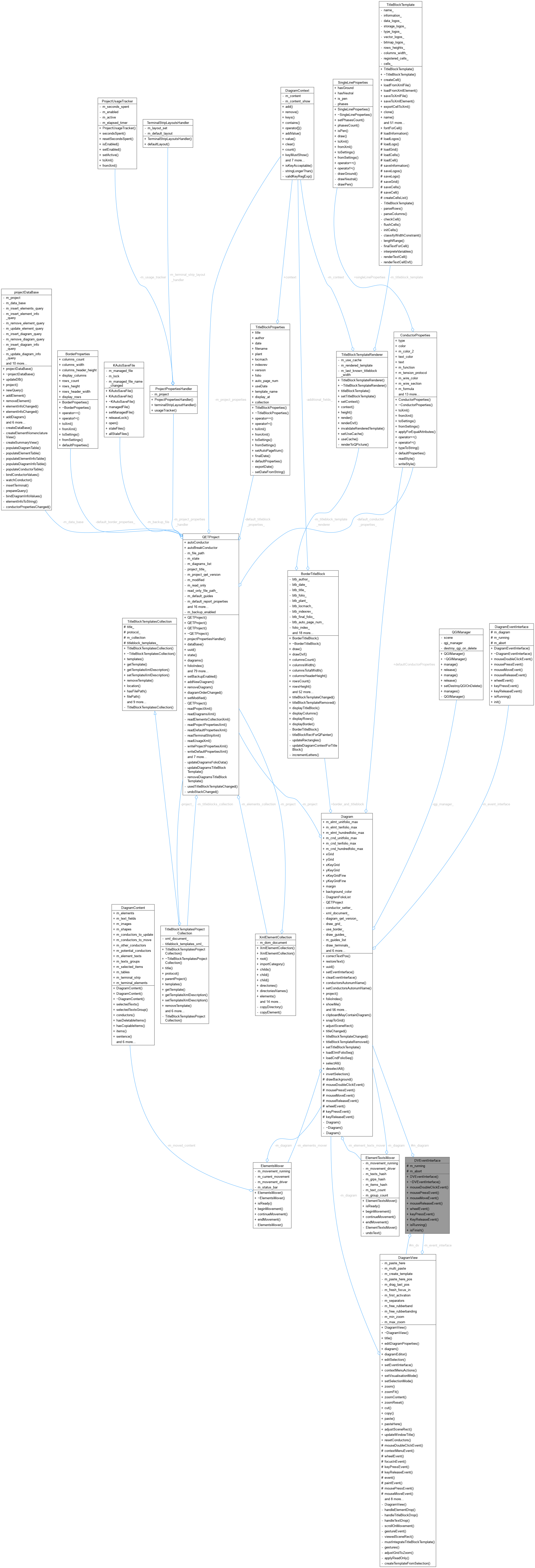

Collaboration diagram for DVEventInterface:

Signals
void	finish ()
	finish emitted when the interface finishes its job

Public Member Functions
	DVEventInterface (DiagramView *dv)
	~DVEventInterface () override=0
virtual bool	mouseDoubleClickEvent (QMouseEvent *event)
virtual bool	mousePressEvent (QMouseEvent *event)
virtual bool	mouseMoveEvent (QMouseEvent *event)
virtual bool	mouseReleaseEvent (QMouseEvent *event)
virtual bool	wheelEvent (QWheelEvent *event)
virtual bool	keyPressEvent (QKeyEvent *event)
	DVEventInterface::keyPressEvent By default, press escape key abort the current action. isFinish return true, and emit finish.
virtual bool	KeyReleaseEvent (QKeyEvent *event)
virtual bool	isRunning () const
virtual bool	isFinish () const

Protected Attributes
DiagramView *	m_dv
Diagram *	m_diagram
bool	m_running
bool	m_abort

Detailed Description

The DVEventInterface class This class is the main interface for manage event of a Diagram View. This does nothing, to create new event behavior, we must create new class from this. Each method returns a bool: True if the method does something, else return false. Each method of DVEventInterface returns false; isRunning() returns true if action is started but not finished. By default: return false. isFinish() returns true when the action is finished, or not started. By default: return true.

Constructor & Destructor Documentation

DVEventInterface()

DVEventInterface::DVEventInterface

(

DiagramView *

dv

)

~DVEventInterface()

DVEventInterface::~DVEventInterface ( )

overridepure virtual

Member Function Documentation

finish

void DVEventInterface::finish ( )

signal

finish emitted when the interface finishes its job

Here is the caller graph for this function:

isFinish()

bool DVEventInterface::isFinish ( ) const

virtual

isRunning()

bool DVEventInterface::isRunning ( ) const

virtual

keyPressEvent()

bool DVEventInterface::keyPressEvent ( QKeyEvent * event )

virtual

DVEventInterface::keyPressEvent By default, press escape key abort the current action. isFinish return true, and emit finish.

Parameters

event

Returns

Here is the call graph for this function:

KeyReleaseEvent()

bool DVEventInterface::KeyReleaseEvent ( QKeyEvent * event )

virtual

mouseDoubleClickEvent()

bool DVEventInterface::mouseDoubleClickEvent ( QMouseEvent * event )

virtual

mouseMoveEvent()

bool DVEventInterface::mouseMoveEvent ( QMouseEvent * event )

virtual

mousePressEvent()

bool DVEventInterface::mousePressEvent ( QMouseEvent * event )

virtual

mouseReleaseEvent()

bool DVEventInterface::mouseReleaseEvent ( QMouseEvent * event )

virtual

wheelEvent()

bool DVEventInterface::wheelEvent ( QWheelEvent * event )

virtual

Member Data Documentation

m_abort

bool DVEventInterface::m_abort

protected

m_diagram

Diagram* DVEventInterface::m_diagram

protected

m_dv

DiagramView* DVEventInterface::m_dv

protected

m_running

bool DVEventInterface::m_running

protected

---

The documentation for this class was generated from the following files:

• sources/dvevent/dveventinterface.h
• sources/dvevent/dveventinterface.cpp
